Product type	Compact stroller
Brand	Lionelo
Model	Emma Plus
Dimensions (unfolded)	Approx. 100 x 60 x 110 cm
Dimensions (folded)	Approx. 70 x 30 x 50 cm
Weight	Approx. 8 kg
Recommended age	From birth to 3 years (up to 15 kg)
Power supply	None (manual stroller)
Main features	Reversible seat, reclining backrest, adjustable leg rest, sun canopy
Suspension	Built-in suspension for maximum comfort
Brakes	Foot parking brake
Safety harness	Adjustable 5-point harness
Frame material	Lightweight aluminum
Seat material	Breathable and washable fabric
Foldable	One-hand compact fold with locking system
Wheels	4 swivel front wheels with lock
Care and cleaning	Wipe clean with damp sponge, removable cover machine washable
Safety	Complies with standard EN 1888-1
Spare parts and repairability	Parts available on official website; repairable
General information	User manual included; recommended for outdoor use

Frequently Asked Questions - Emma Plus Lionelo

How to fold the Emma Plus stroller?

To fold the stroller, pull the folding handle located under the seat while pushing the frame forward. The stroller folds in one motion and locks automatically.

Up to what age and weight can the stroller be used?

The Emma Plus stroller is suitable from birth up to about 3 years, with a maximum weight of 15 kg.

Is the seat reversible?

Yes, the seat is reversible: you can face it towards you or forward. Simply lift the seat and reattach it in the desired position.

How to clean the stroller cover?

The seat cover is removable and machine washable at 30 °C. The frame can be cleaned with a damp cloth. Do not use abrasive cleaners.

Is the stroller compatible with a car seat?

No, the Emma Plus model is not compatible with car seats. It is a standard stroller without an adapter.

How to adjust the backrest recline?

The recline is adjusted using a strap located at the back of the seat. Pull the strap to recline the backrest, release to lock it in position.

Is the sun canopy removable?

Yes, the sun canopy can be removed by unzipping the attachments. It is also adjustable in height for optimal protection.

How to maintain the wheels?

The swivel wheels can be cleaned with a damp cloth. If they squeak, apply some silicone lubricant to the axles.

Where to find spare parts?

Spare parts (wheels, cover, harness) are available on the official Lionelo website or through customer service.

Is the stroller under warranty?

Yes, the Lionelo Emma Plus stroller comes with a legal 2-year warranty against manufacturing defects.

USER MANUAL Emma Plus Lionelo

Black and white photo of a baby stroller with patterned backrest and wheels (no text or symbols visible)

Black and white photo of a baby stroller with a patterned back cover, no visible text or symbols

Close-up of a car engine component being held by hand, showing internal cylindrical parts (no text or symbols visible)

Close-up of a mechanical device with camouflage pattern and mounting brackets (no visible text or symbols)

7

Close-up of hands assembling or adjusting a mechanical component with wires (no visible text or symbols)

Close-up of hands adjusting a stroller wheel, no visible text or symbols

Close-up of hands using a tool to adjust or install a metal bracket (no visible text or symbols)

Close-up of a hand holding a small mechanical component, no visible text or symbols

Close-up of a hand holding a black handheld device with a tool, no visible text or symbols

11

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a hand adjusting a mechanical component with bolt holes (no visible text or symbols)

Close-up of a hand adjusting a car tire with a small tool (no visible text or symbols)

12

Close-up of a hand adjusting a stroller wheel, no visible text or symbols

13

Close-up of a black mechanical component with triangular blades and mounting holes (no visible text or symbols)

14

Close-up of hands adjusting a black propeller component with directional arrows indicating movement (no text or symbols)

15

Close-up of a mechanical component with a white arrow pointing to a specific part (no visible text or symbols)

16

Three hand diagrams showing different mechanical or electrical configurations (no text or symbols)

17

Simple line drawing of a mechanical clamp or clamping device (no text or symbols)

18

Diagram of a mechanical clamp or spring with directional arrows indicating motion (no text or symbols)

19

Dear Customer!

In case of any questions or comments on the purchased product, please contact

us: [e-mail]

IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Note: The assembly of the product must be performed by an adult.

Failure to comply with this provision and the assembly instructions could result in serious injury or even death.

Producer:

BrandLine Group Sp. z o. o.

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. The suitable age range is from 6 months to 36 months and the maximum loading weight is 15 kgs.
10. When placing / removing a child into / from the stroller, the parking device must be pulled.
11. Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

12. The trolley is designed for use by one child.

13. Accessories which are not approved by the manufacturer shall not be used.

14. Only the spare parts supplied by the manufacturer can be used with this stroller.
15. The maximum load of the shopping basket is 3 kg.
16. Child's tray can hold a maximum weight of 0.5 kg.
17. Adult's tray can hold a maximum weight of 1,3 kg.
18. The pocket on the back of seat unit can hold a maximum weight of 0.2 kg.
19. All the components of the stroller should be regularly checked to ensure they operate properly.
20. Do not use the product on stairs.

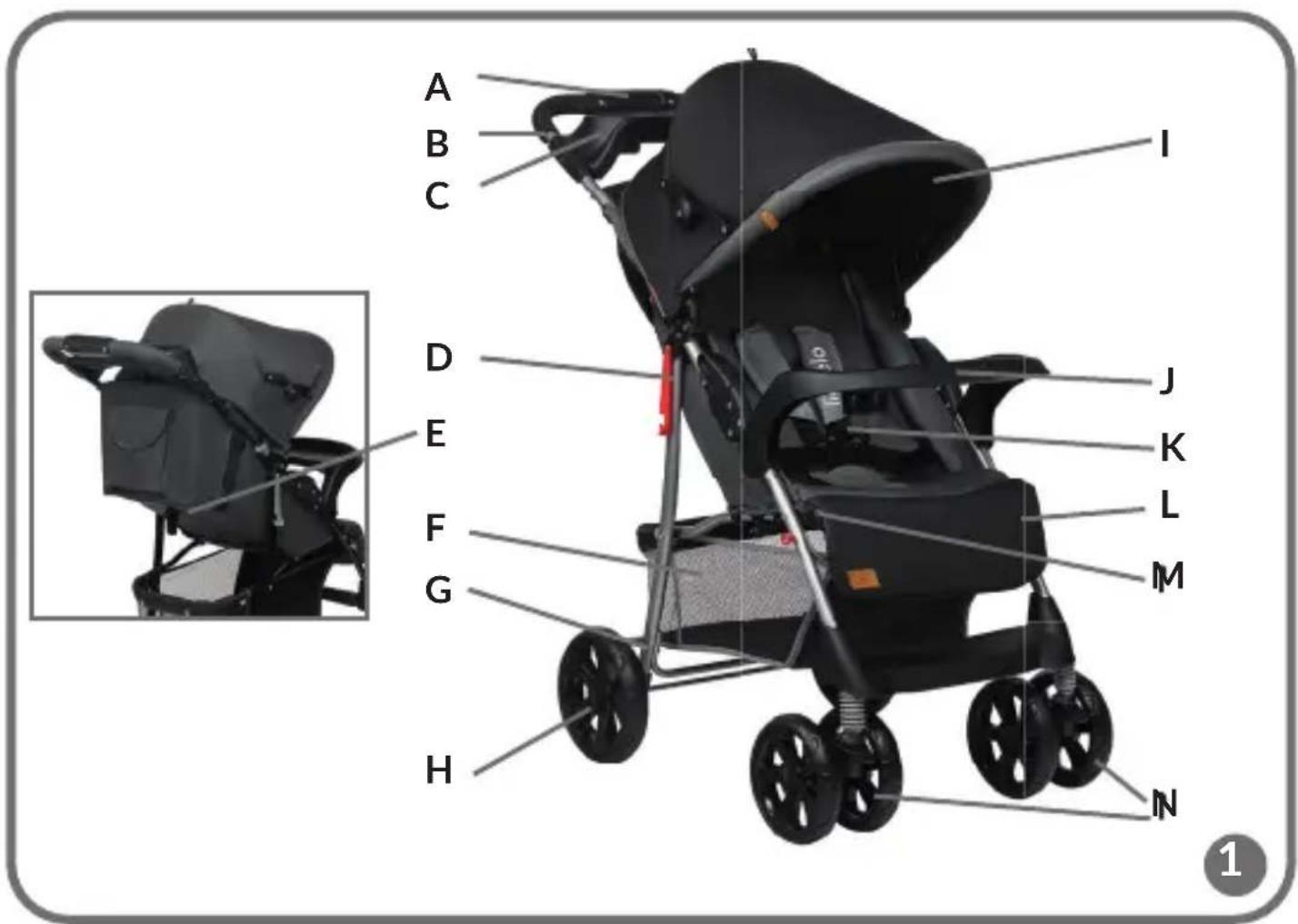

Description (fig.1):

A. Folding button
B. Handle
C. Rear base
D. Folding / unfolding lock
E. Backrest adjustor
F. Organizer
G. Parking device
H. Rear wheels

I. Canopy
J. Tray
K. Safety belts
L. Footrest
M. Footrest adjustment
N. Front wheels

Unfolding:

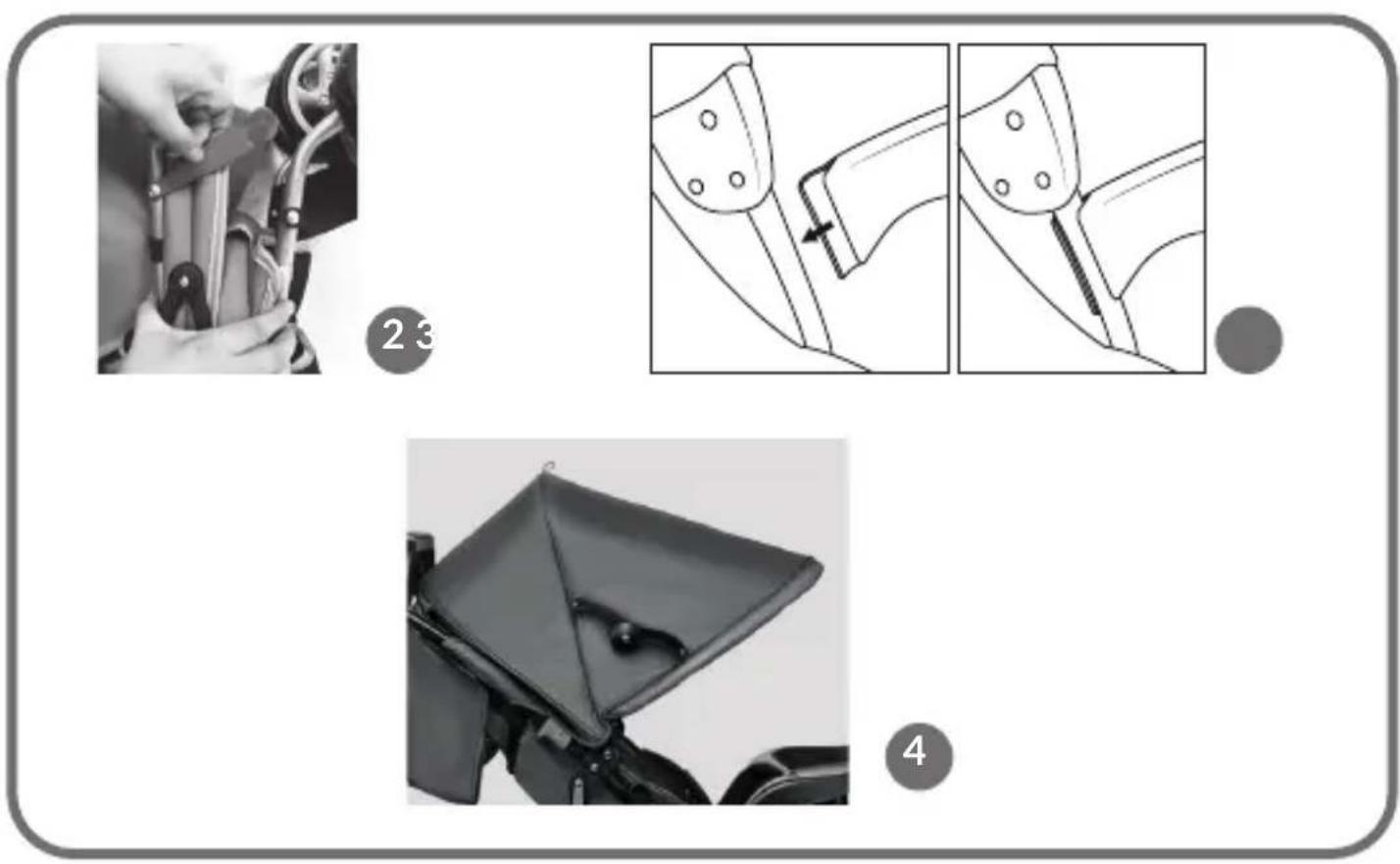

1. Release the unfolding lock (fig. 2).
2. Move the handle up, while pushing the rear lock down.
3. Unfold the canopy (fig. 4).
4. Insert the tray on both sides of the trolley frame (fig. 3).

Folding:

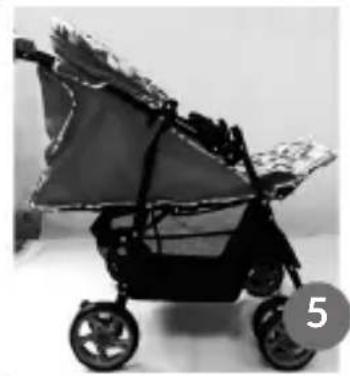

1. Fold the canopy (fig. 5).
2. Before folding the stroller, lower the backrest at the maximum.
3. Move up the rear lock.
4. Fold the frame (fig. 7).

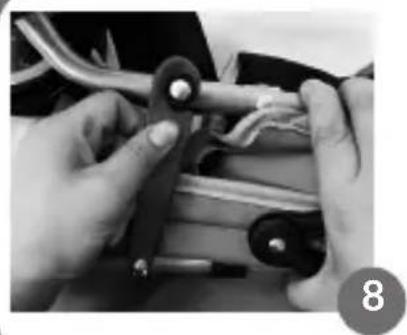

5. Secure the frame with the lock (fig. 8).

Wheels installation:

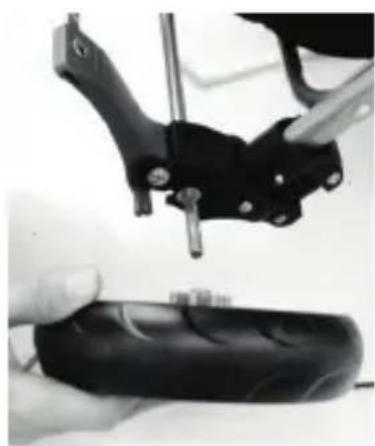

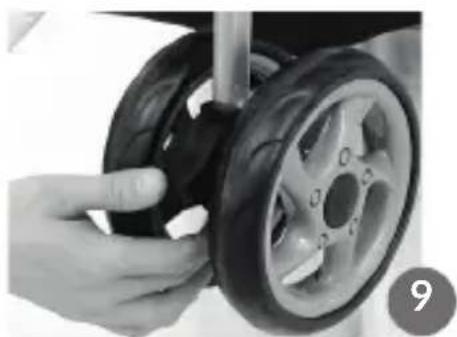

1. Insert the front wheel's stem into the front guide and push the wheel's stem until the lock snaps into place (fig. 9).

Please ensure that the wheel has been properly installed and locked in the guide.

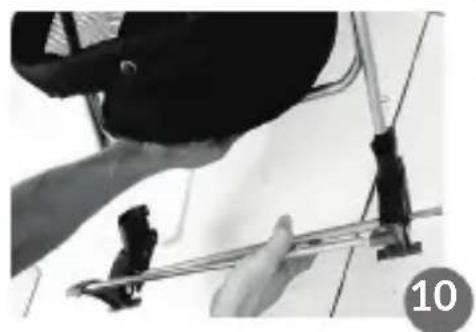

1. Insert the rear wheels' stem into the rear guides and push it until the lock snaps into place (fig. 10).

Please ensure that the wheel has been properly installed and locked in the guide.

1. Place the buttons on each side of the axle and put on the wheels (fig. 11).

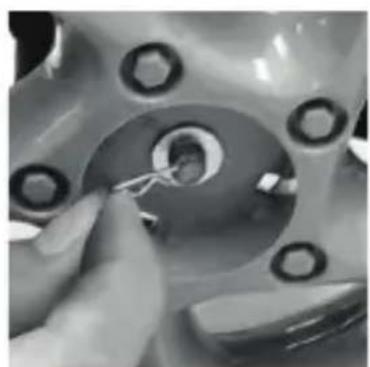

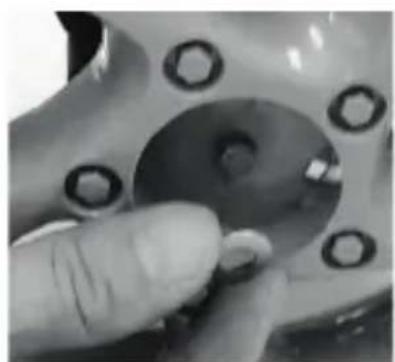

2. After you install the wheels on the axle, put on another shims and secure them with cotters.

Then, put on a rim cover (fig. 12).

Please ensure that the wheel has been properly installed and locked.

Usage:

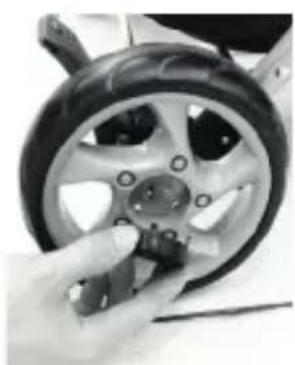

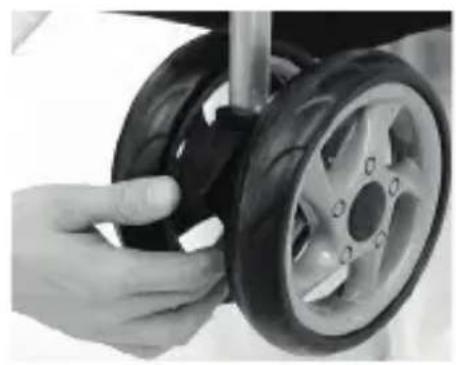

1. Front wheel lock (fig. 13).

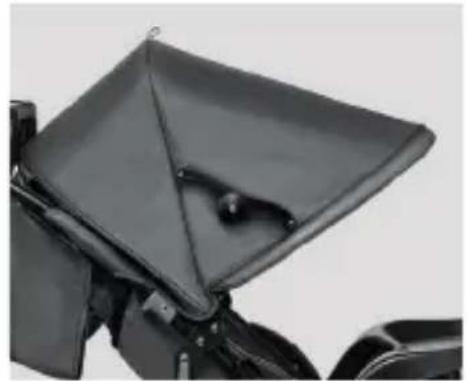

2. Unfolding the canopy (fig. 14).
3. The front wheels rotate around their axis, but it is also possible to lock them so that the stroller can be pushed straight ahead.
4. Parking device: press to lock the stroller. Lift to unlock it.

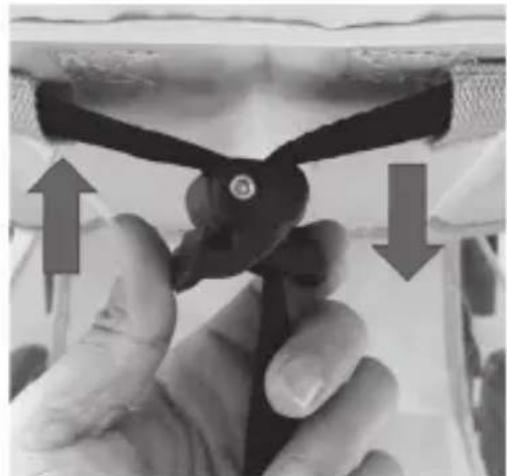

5. The backrest adjustment bucket is located behind the backrest (fig. 15).

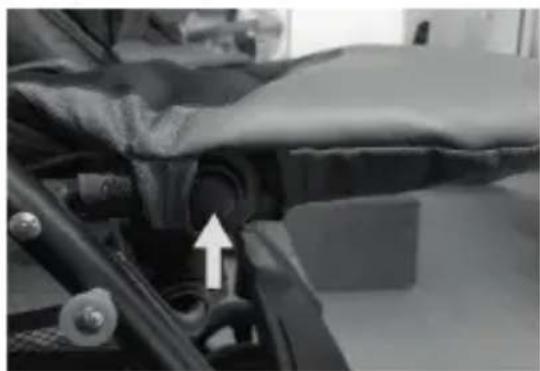

6. Footrest adjustment button (fig. 16)
7. The stroller's footrest can be adjusted to 2 different positions. In order to do so, press the footrest adjustment button.

Safety belts:

Note: Make sure that the position of the safety belts is correct and they are not twisted.

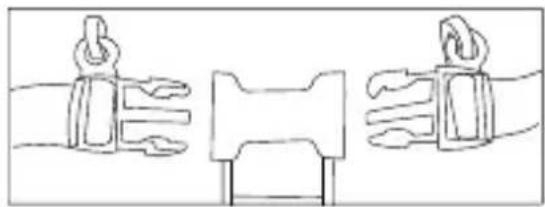

1. Insert the left and right clasp into the main buckle. You should hear a „click sound” indicating that the belts have been properly fastened (fig. 17).
2. In order to unfasten the safety belts, press the button on the middle of the buckle and pull the clasps out (fig. 18).
3. Belts length adjustment Move the clasps on the right and left belt to adjust the length (fig. 19).

Maintenance:

The stroller's frame can be cleaned with a damp cloth. Clean the padding with a soft brush. Air dry only. Do not machine wash or use iron. The fabric cover can be washed by hand in a maximum temperature of 30^ .

You should regularly check particular parts of the stroller for their functions and endurance.

The pictures in this manual are for illustrative purposes only. Therefore, they may differ from the actual product.
