USER MANUAL Bess Lionelo

Line drawing of a baby stroller with four wheels and canopy (no text or symbols)

1 2 3 4 5 6 7 8 9 10 11 12

2 3 13 15 9 10 14

A

1

click!

click!

A

Technical diagram of a mechanical component with labeled parts B and directional arrow

2

1 2 3 4 click! A 3

click! A 3A

Two diagrams showing a device being adjusted, with arrows indicating motion direction (no text or symbols)

Diagram showing two vehicle suspension systems with directional arrows indicating movement (no text or labels)

Technical diagram showing a vehicle's rearview and side view with labeled components A and directional arrows indicating movement or assembly.

Two-step diagram showing a mechanical device with a curved component and a triangular component, both rotating around a base (no text or symbols present)

click!

A B A B A 9

Illustration of two identical aircraft landing gear with lock and padlock symbols, no text or labels present

Dear Customer!

If you have any comments or questions about the product you have purchased, please contact us:

[e-mail]

Manufacturer:

BrandLine Group Sp. z o.o.

Important - Read carefully and keep for future reference WARNING

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months.
6. Always use the restraint system.
7. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. The product can accommodate a child of up to 22 kg or up to 4 years of age (whichever comes first).
10. Before putting the child in or taking out of the stroller, ensure that the parking device on the wheel is engaged.
11. The maximum basket load is 3 kg. The maximum cup holder load is 0.5 kg.
12. Any loads attached to the handle and/or to the back of the backrest and/or to the sides of the stroller will affect its stability.
13. The product is designed for use by one child.
14. Do not use accessories that have not been approved by the manufacturer.
15. Do not use the product on stairs.
16. Use only spare parts supplied or recommended by the manufacturer.
17. Always fasten the shoulder carry strap with Velcro when not in use. Keep the shoulder carry strap out of the child's reach.

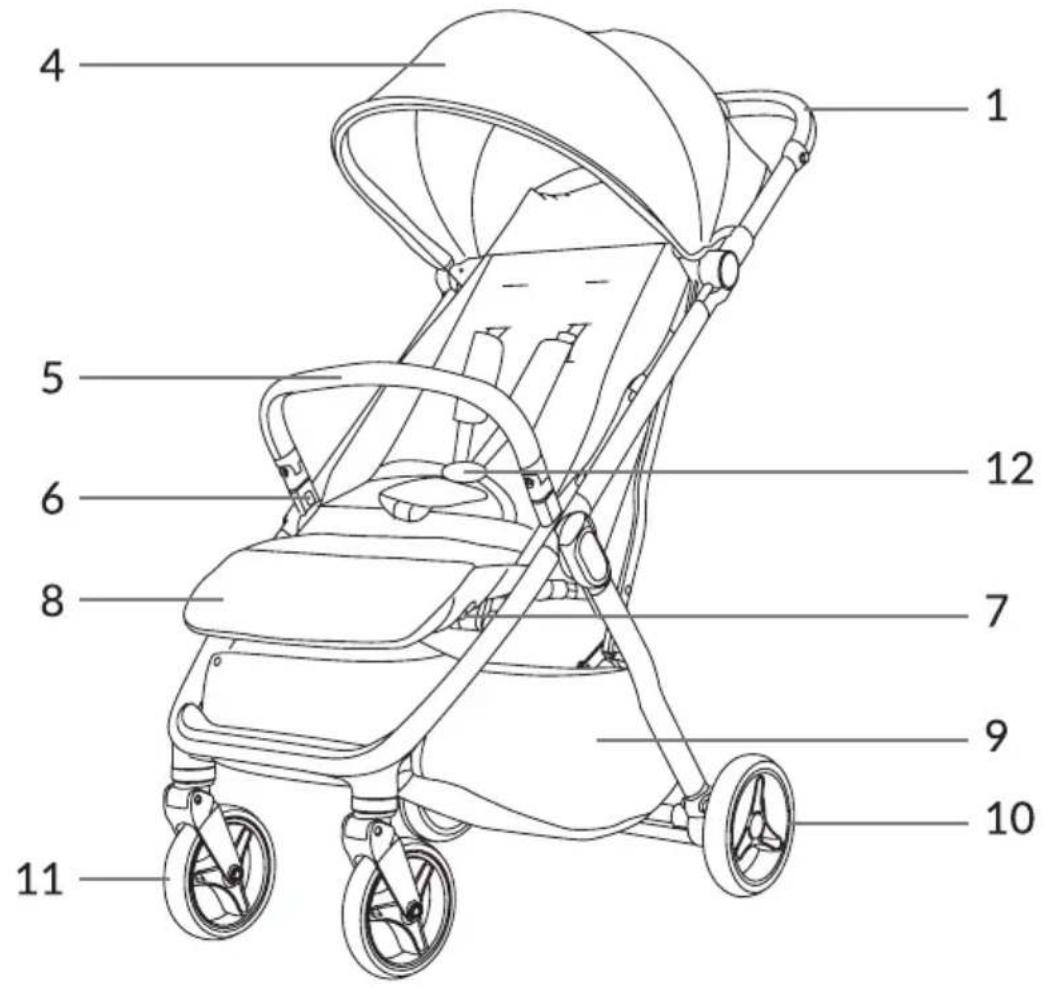

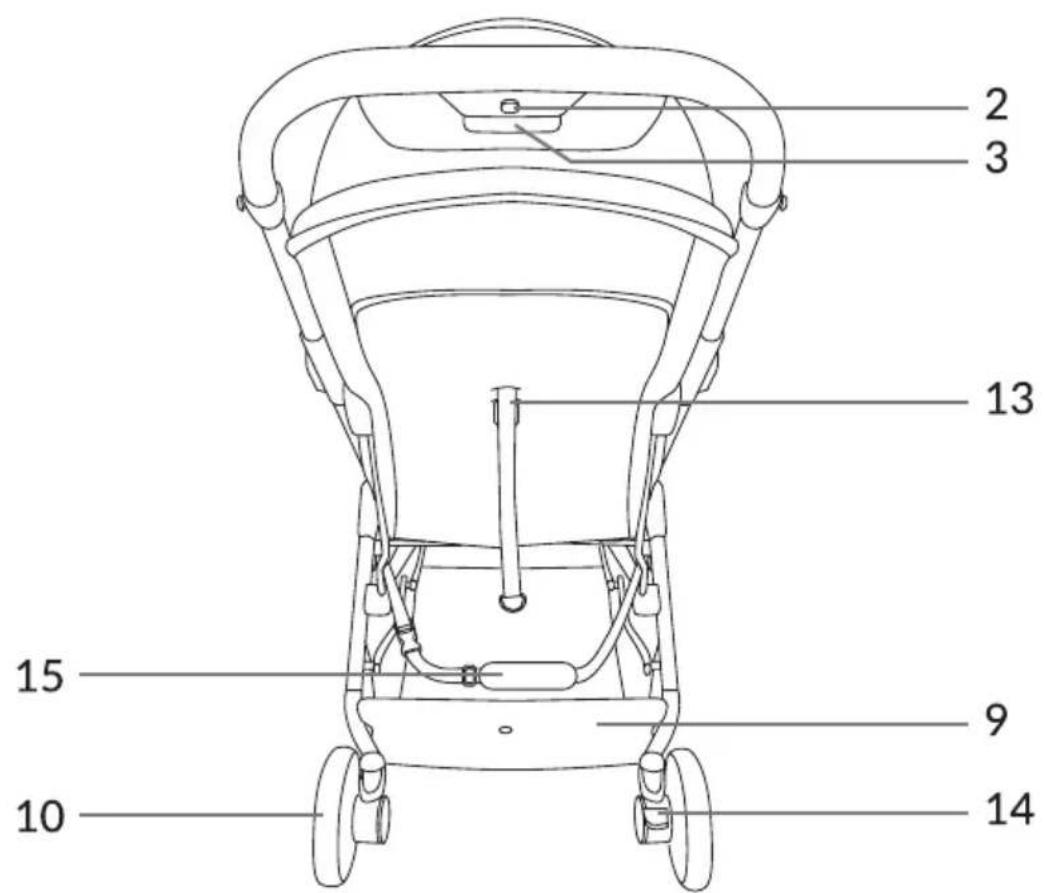

PARTS LIST (FIG. A)

1. Caregiver handle
2. Frame folding lock
3. Frame folding button
4. Canopy

5. Safety bar

6. Safety bar disassembly button

7. Footrest adjustment button
8. Footrest
9. Storage basket
10. Rear wheel
11. Front wheel
12. 5-point harness
13. Backrest adjustment
14. Parking device
15. Carry strap

FRAME UNFOLDING

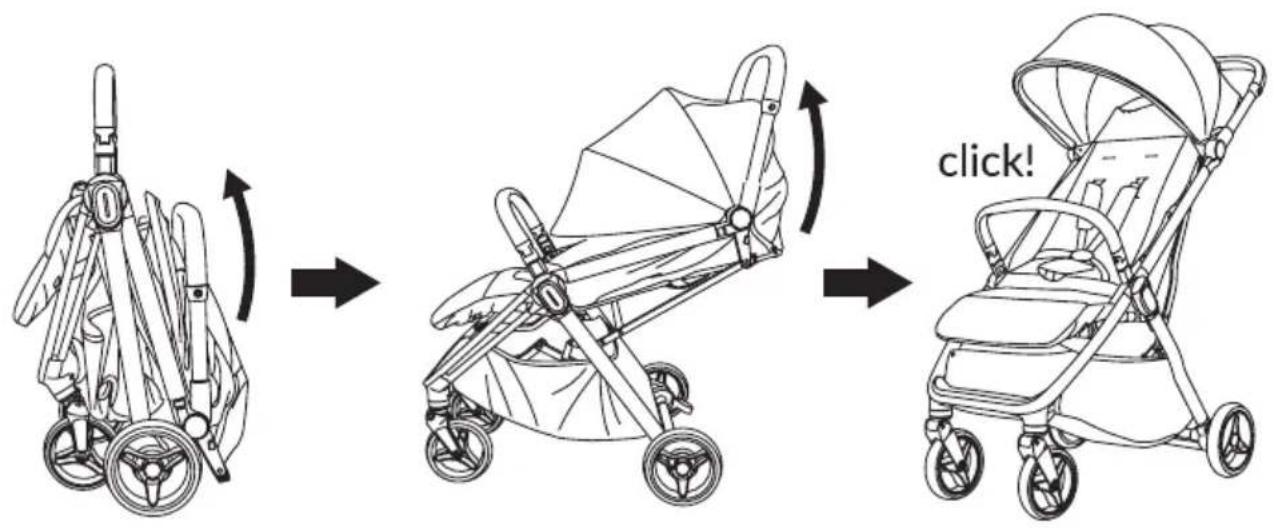

To unfold the stroller, pull the handle upwards (Fig. 1). A clicking sound confirms the stroller is unfolded correctly.

WHEEL ASSEMBLY AND DISASSEMBLY

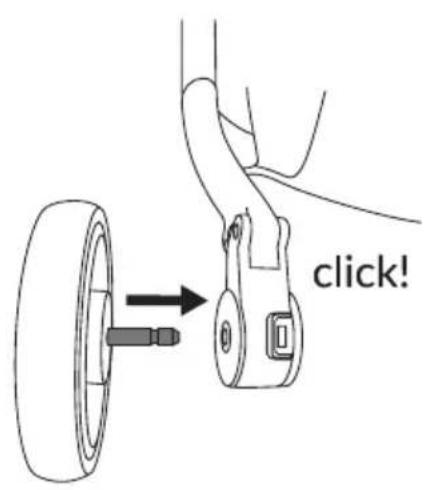

1. Insert the metal wheel pin into the designated slot on the frame (Fig. 2). Press the wheels firmly until you hear a click and ensure the metal pin is fully retracted.

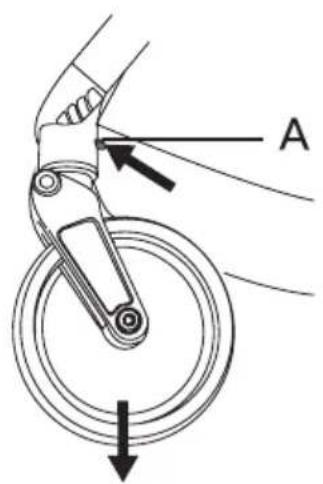

2. To disassemble the front wheels, press the button above the wheel and slide the wheel out of the frame (A, Fig. 2).

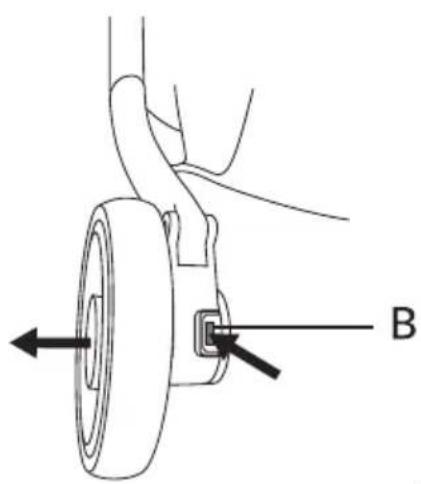

3. To disassemble the rear wheels, press the button underneath the frame and slide the wheel out of the frame (B, Fig. 2).

HARNESS (APPLIES TO: BESS)

1. To fasten the harness, connect the fastening parts and insert them into the buckle (Fig. 3). The buckle is magnetic, so it locks automatically. A clicking sound indicates that the buckle is engaged correctly.
2. To unbuckle the harness, press the button on the buckle (A, Fig. 3).

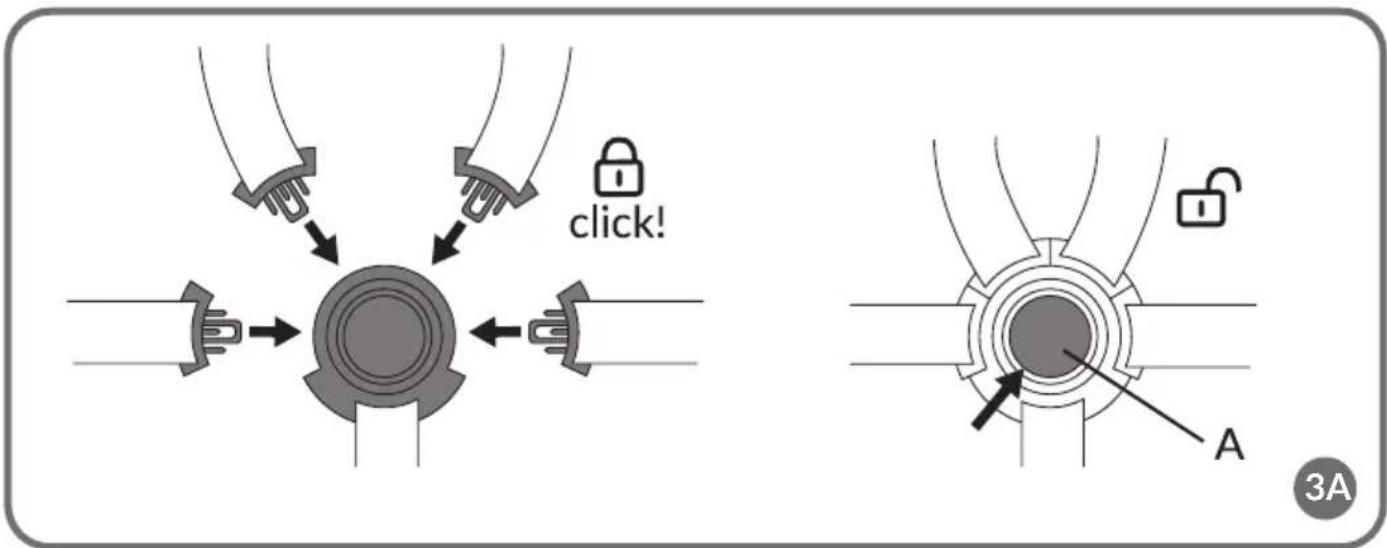

HARNESS (APPLIES TO: JULIE AIR)

1. Connect the fastening parts and insert the whole into the buckle on both sides (Fig. 3A). A clicking sound indicates that the harness is properly engaged.
2. To unbuckle the harness, press the button on the buckle (A, Fig. 3A).

INSTALLATION AND REMOVAL OF HARNESS

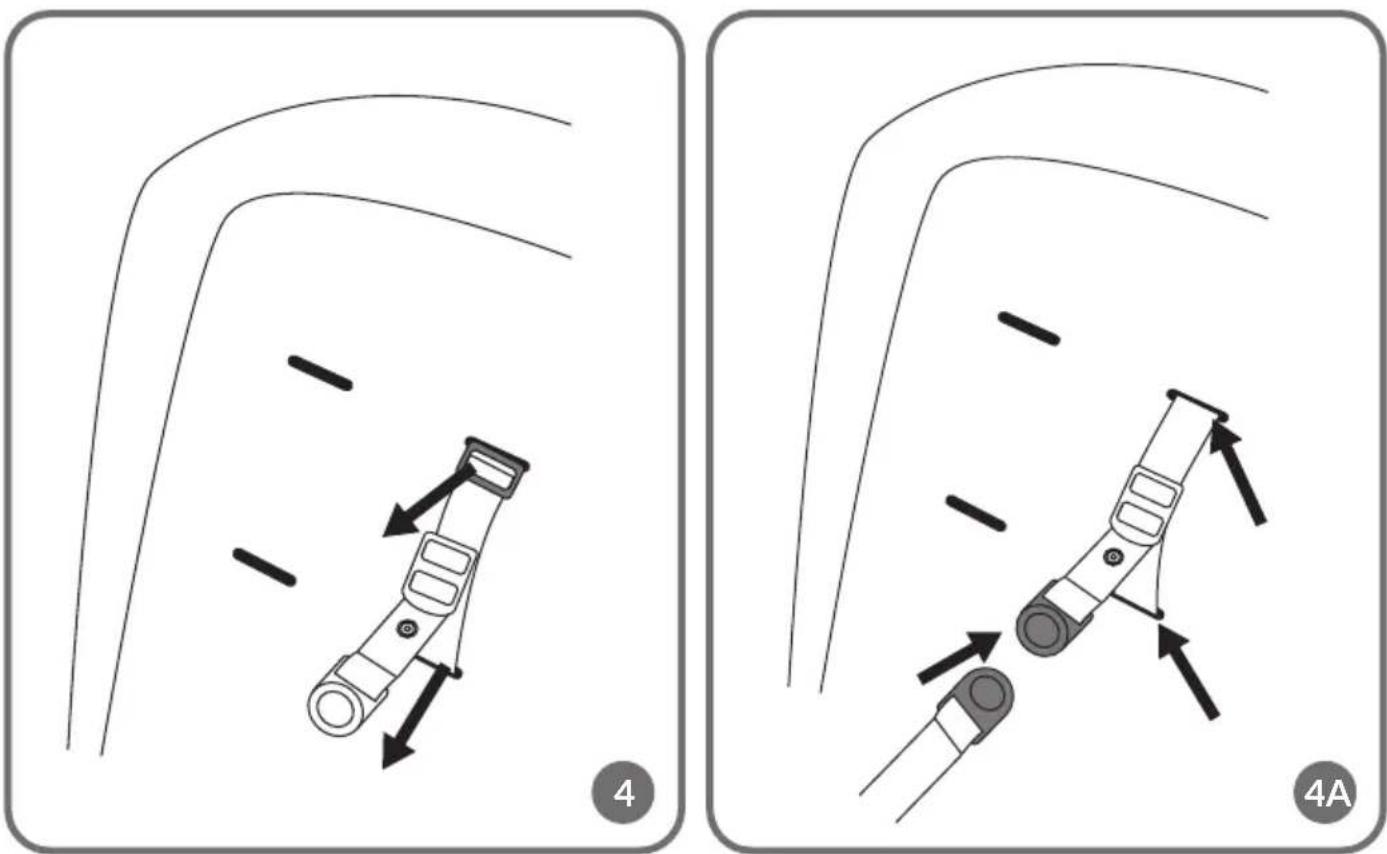

To remove the straps, pass the buckle through the slot in the seat (Fig. 4). For installation, reinsert the buckles into the slots in the seat, then attach the other part of the straps (Fig. 4A).

ADJUSTMENT OF HARNESS LENGTH

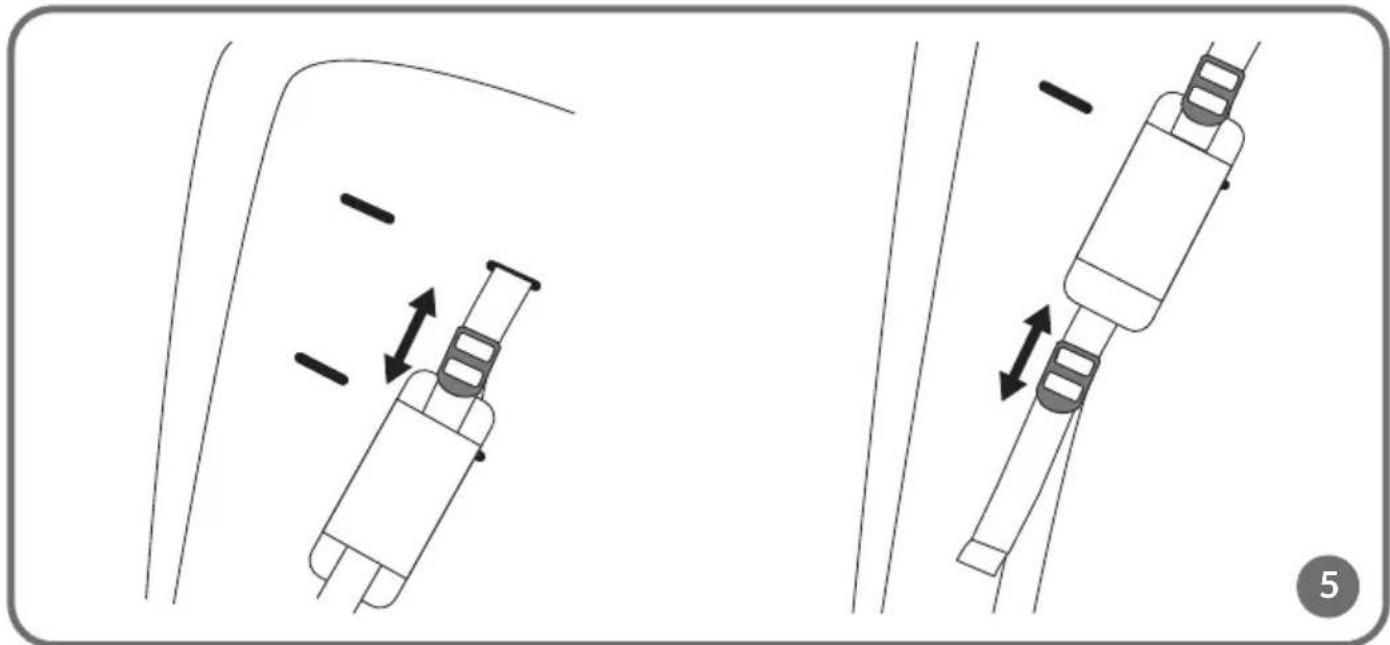

To adjust the straps, pull the buckle up or down (Fig. 5).

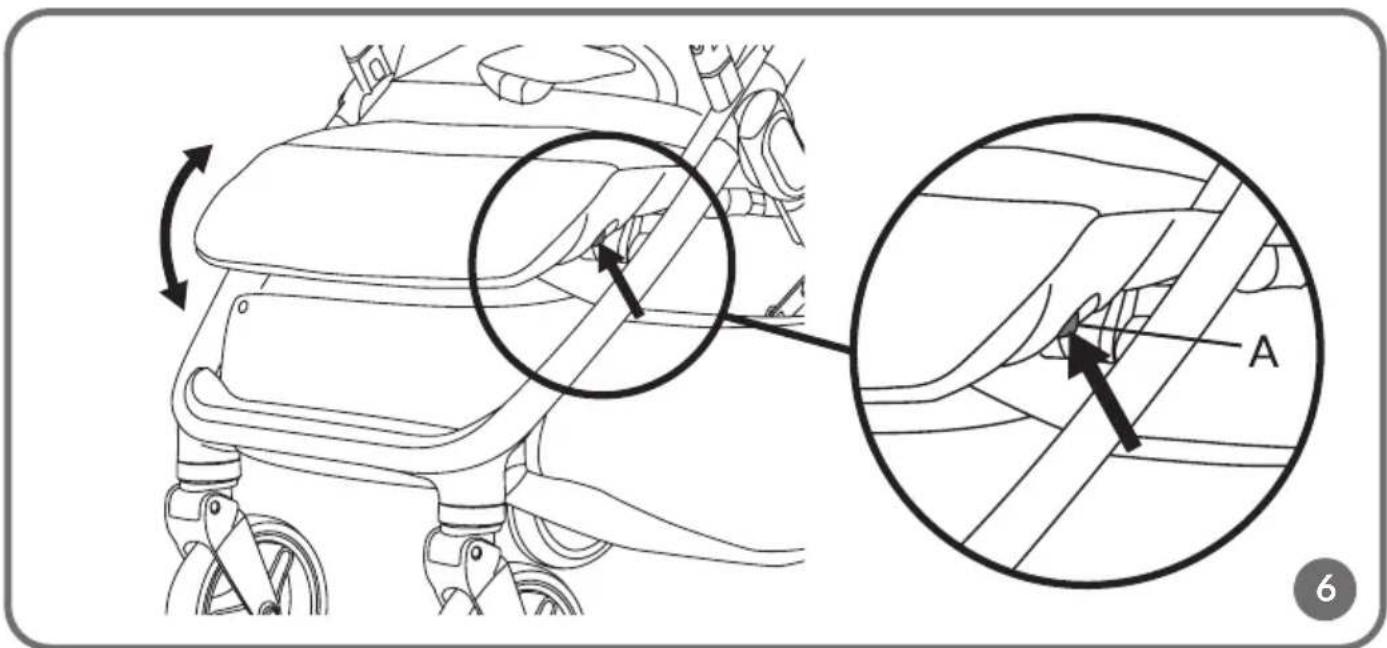

FOOTREST ADJUSTMENT

To adjust the footrest, press the buttons on both sides (A, Fig. 6) and either push the footrest down or pull it up.

CANOPY ADJUSTMENT

To adjust the canopy, move it forward or backward and select one of the available settings (Fig. 7).

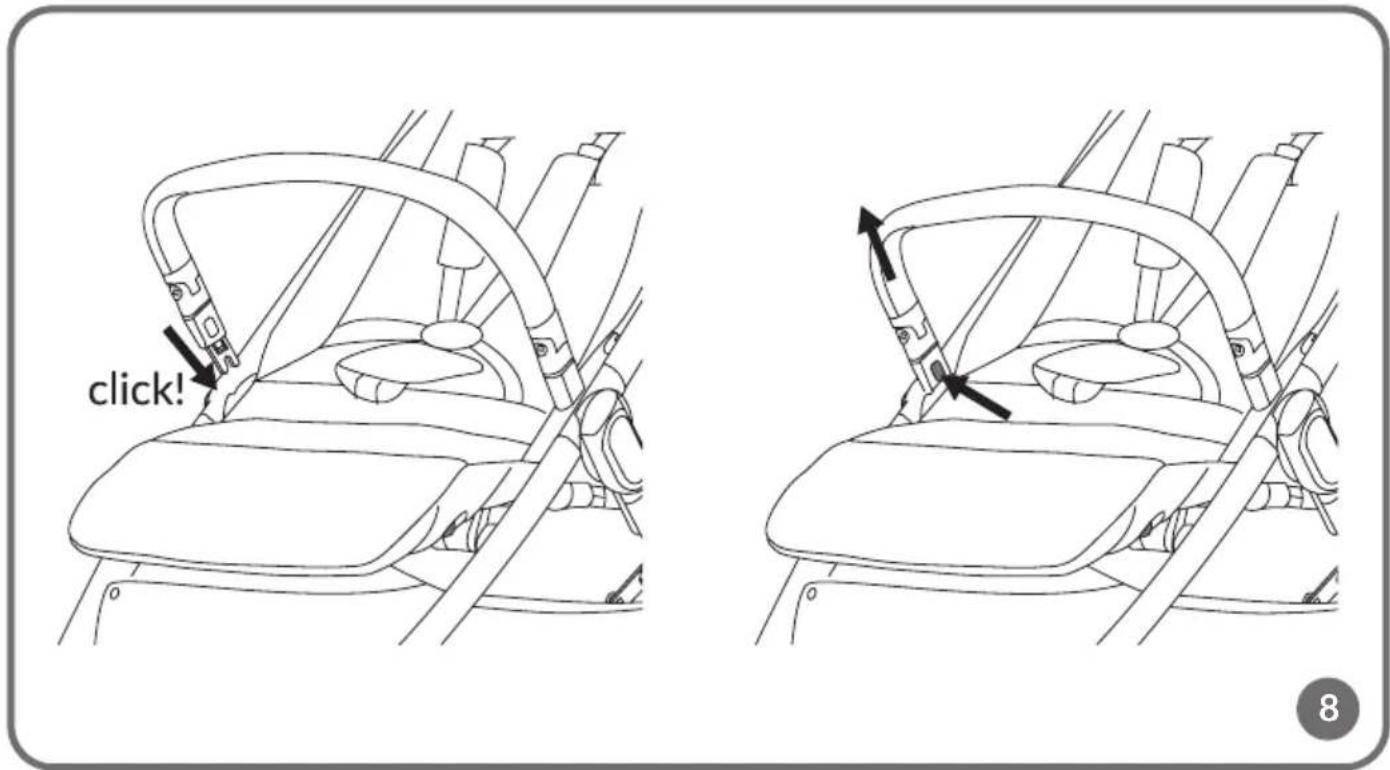

ASSEMBLY AND DISASSEMBLY OF SAFETY BAR

To mount the safety bar, insert it into the designated slots on the stroller frame. Ensure the buttons face inward toward the stroller during assembly. Correct installation will be signalled by a click. To remove the safety bar, press the disassembly buttons on both sides (Fig. 8) and then pull out the safety bar.

BACKREST ADJUSTMENT

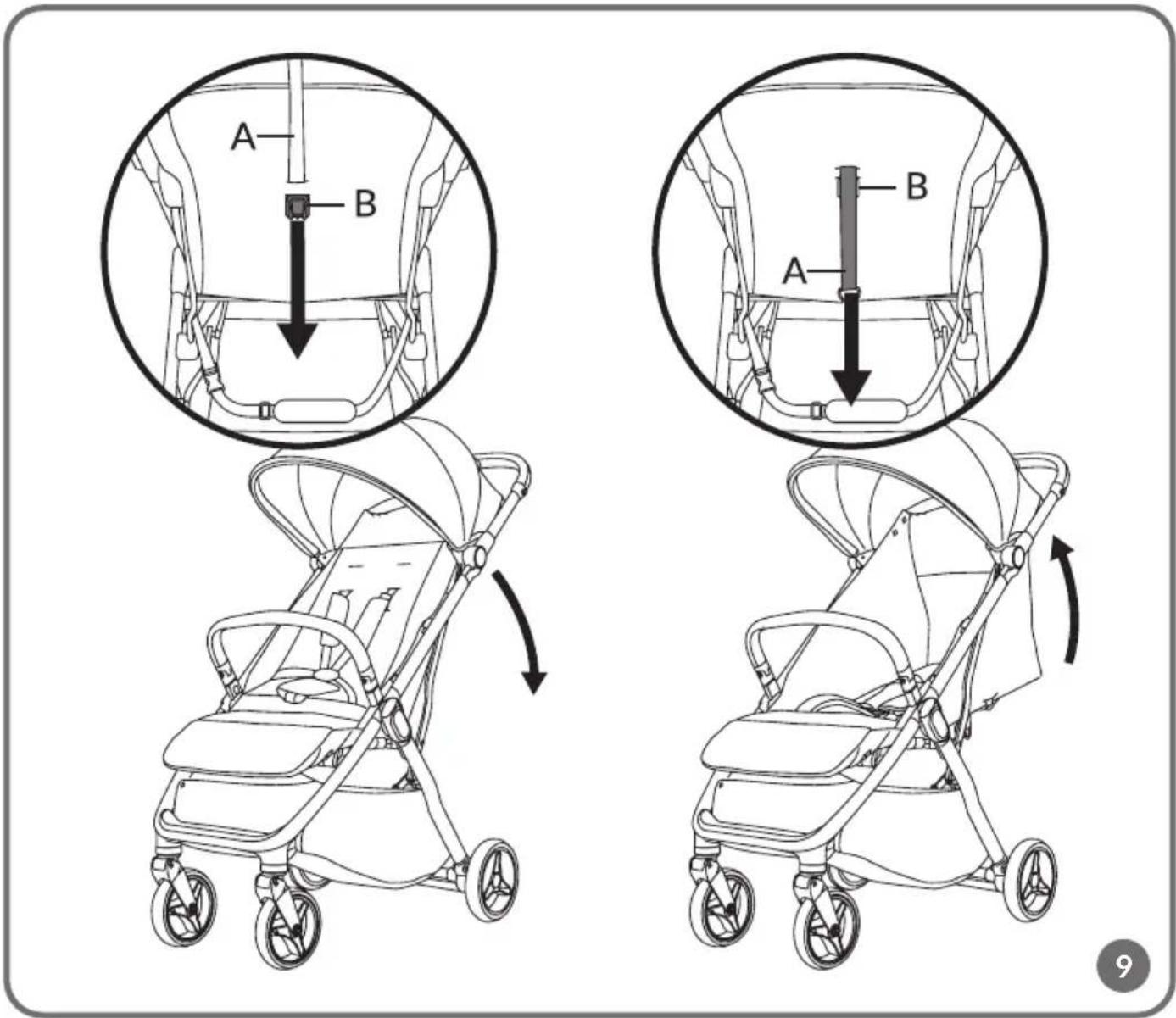

To recline the seat to a lying position, pull the lever (B, fig. 9). To return to a sitting or semi-reclined position, pull the adjustment strap (A, fig. 9).

PARKING DEVICE

Important! Use the stroller's parking device exclusively for its intended purpose. Incorrect use can result in permanent damage to the product.

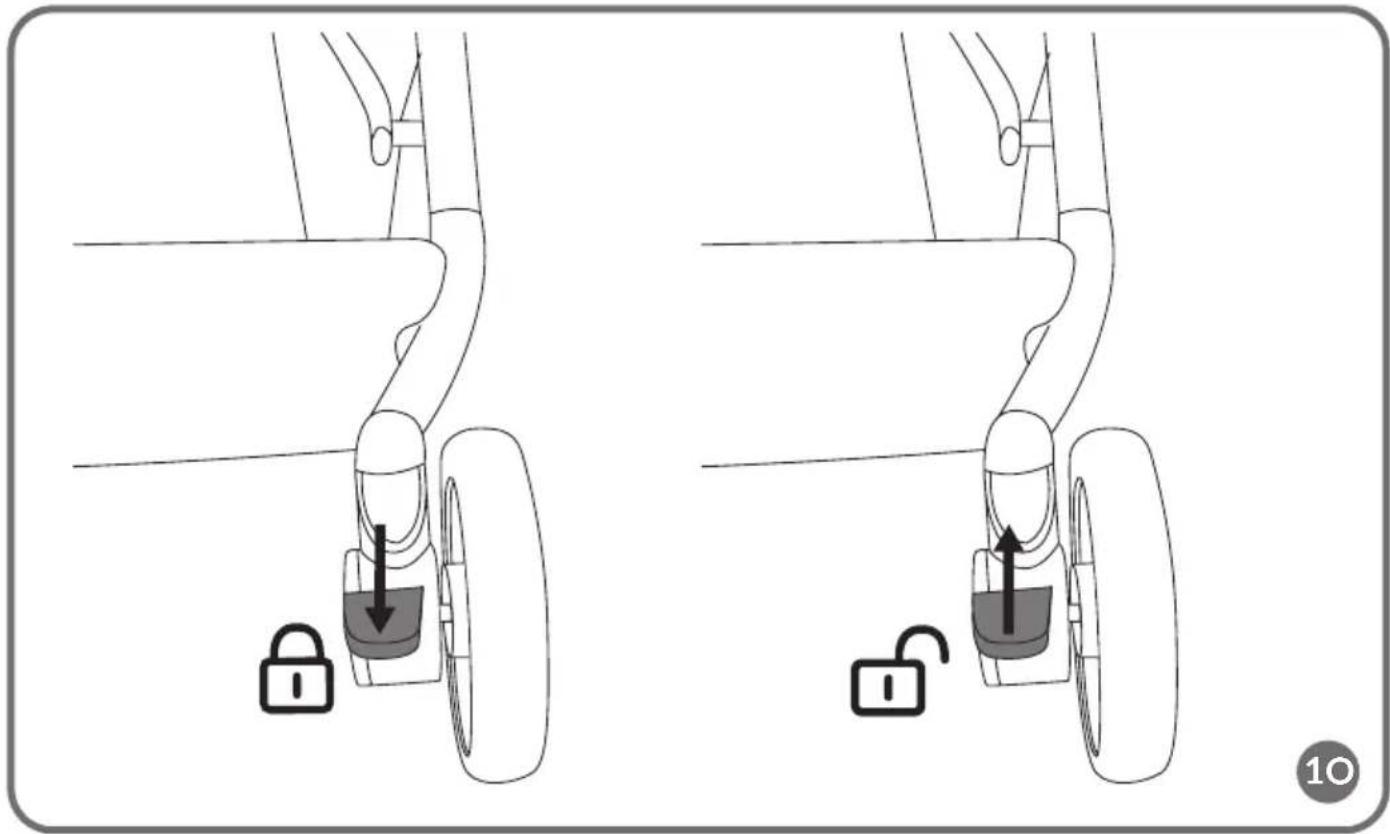

1. To lock the rear wheels, press the parking device located at the right-hand side rear wheel (Fig. 10).
2. To unlock, lift the parking device.

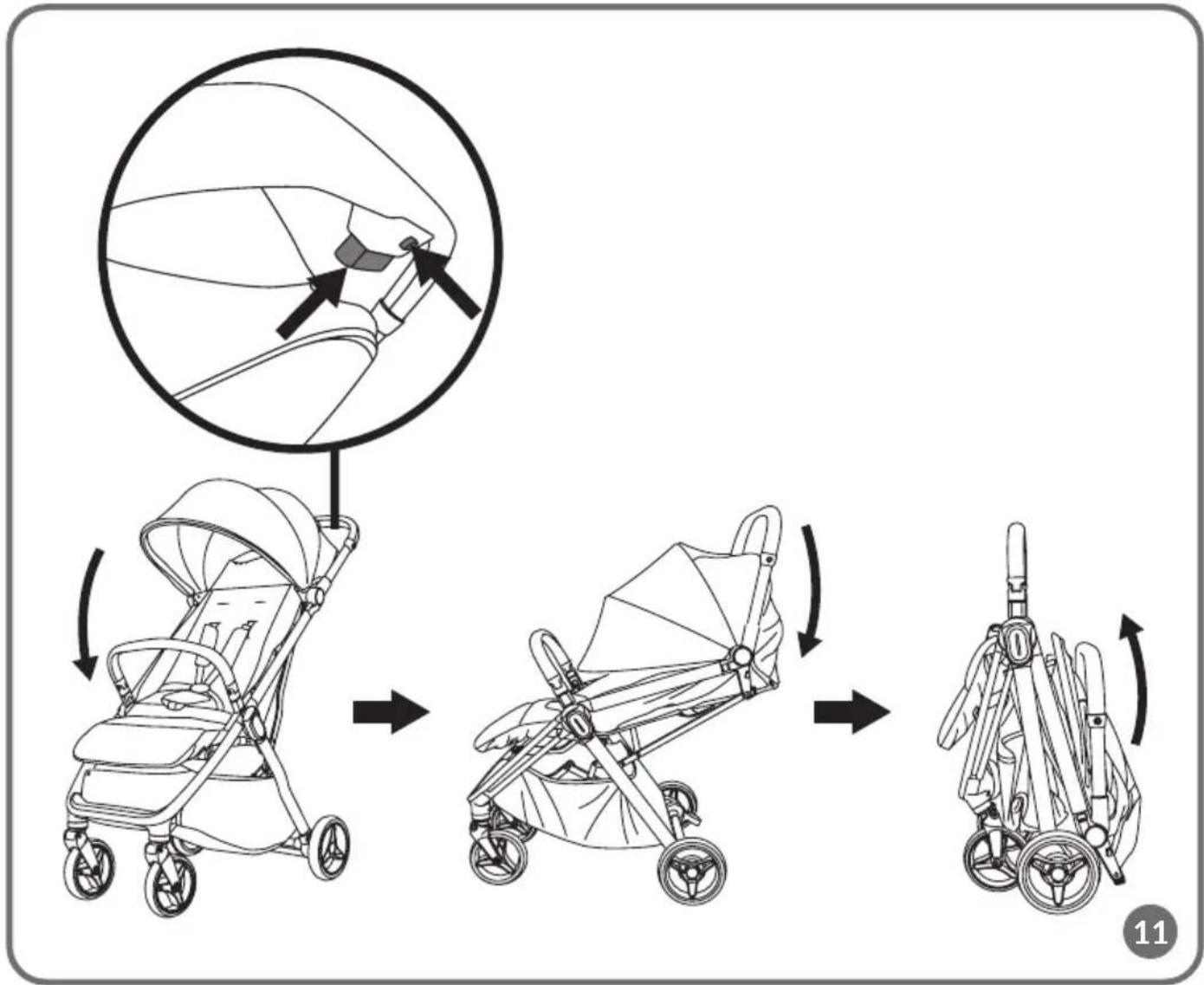

STROLLER FOLDING

1. Fold down the seat canopy.
2. Lower the seat to the reclining position (see: BACKREST ADJUSTMENT)
3. Press the button while simultaneously squeezing the frame folding lock (Fig. 11). The stroller will fold automatically.

CLEANING AND MAINTENANCE

1. Clean the wheels and frame regularly to remove dust and sand. Use a damp cloth and mild detergents for cleaning.
2. The upholstery and basket are hand-washable at 30^ C.
3. Check individual parts of the stroller regularly for functionality, durability, and any signs of damage. If any faults or defects are detected, please contact an authorised service centre.
4. Only use spare parts recommended by the manufacturer.
5. Do not use harsh chemical cleaners for cleaning the product. If the material is soiled, wipe it with a damp cloth.

The photos are for reference only; the actual appearance of products may differ from the photos.
