USER MANUAL Mika Plus Lionelo

Line drawing of a baby stroller with three inset views of the same car (no text or symbols present)

A 1 8 7 6 2 3 4 5

B 9 13 12 11 10 14 15

C 16 19 18 17

Technical line drawing of a mechanical device with three views and an inset showing a close-up of the component (no text or symbols present)

Technical diagram showing three steps of a bicycle steering wheel assembly: guide, press, and wheel assembly.

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps

5

Diagram of a device with three views showing internal components and alignment, no text or symbols present

7

Line drawing of a closed container with an open lid and a folded paper or plastic sheet, no text or symbols present.

Illustration of two different stroller designs: one with a curved handle and arrow, the other with a flat body and directional arrows (no text or symbols)

10 2 3 4 5 6 7 8 9 10

11 A B

12 1 2 3 4 click! lock

13 a b

15

Illustration of a baby stroller with attached arm and side view showing internal motion (no text or symbols)

17

18

19

20

Dear customer!

Should you have any remarks or questions concerning the product, please do not hesitate to contact us: [e-mail]

Before you use the product for the first time, please read this operating manual carefully. Wrong use of the product may pose a threat to child's life.

Producer:

BrandLine Group Sp. z o.o.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE WARNING!

FOR STROLLER:

1. Never leave the child unattended.
2. Ensure that all the locking devices are engaged before use.
3. To avoid injury ensure that the child is kept away when unfolding and folding this product.
4. Do not let the child play with this product.
5. This seat unit is not suitable for children under 6 months
6. Always use the restraint system.
7. Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
8. This product is not suitable for running or skating.
9. This product is suitable for children aged 6 months – 4 years and whose weight does not exceed 22 kg, depending on what happens earlier.

10. If you want to take the child out of the stroller or put it inside, make sure the parking mechanism on the wheel is locked.

11. The maximum load capacity of the basket is 3 kg. The maximum allowable load for the pockets is 0.2 kg.

12. Any load on the handle, backrest or sides of the stroller may affect its stability.
13. The product is intended for one child only.
14. Do not use accessories which have not been approved by the manufacturer.
15. If you use special adapters to attach a carrier which can also be used as a child safety seat, remember that it does not replace a cot. If your child needs to sleep, put it in a suitable cot.
16. Use only spare parts supplied or recommended by the manufacturer.
17. Keep the product away from fire and sources of heat.
18. Do not use the product on stairs.
19. Secure the carrying strap on the frame using the Velcro whenever it is not in use. Store the carrying strap out of the child's reach.

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING!

FOR CARRYCOT:

1. This product is only suitable for a child who cannot sit up unaided.
2. This product is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.
3. Only use on a firm, horizontal level, flat and dry surface.
4. Do not let other children play unattended near the carry cot.
5. Do not use if any part of the carry cot is broken, torn or missing.
6. Use only spare parts supplied or recommended by the manufacturer.

7. Keep the product away from fire and sources of heat.

8. The bottom and grips of the carrycot must be regularly checked for any signs of damage and wear.

9. Make sure the handle is mounted and locked in a suitable position before you lift or move the carrycot.
10. The child can be transported in a carrycot.
11. Child's head in the carrycot must not be lower than its body.
12. Do not place any additional mattresses inside the carrycot.
13. Never use this product on a stand.
14. When using the carrycot, the carrying handles should be positioned outside the carrycot.
15. Be mindful of the risk of accidentally hitting the child, for example when placing the carrycot on the floor or passing through doorways.
16. Do not leave any items in the carrycot that could pose a suffocation risk, such as soft toys or pillows.
17. Do not position the carrycot near any items that may pose a risk of strangulation, such as cords, blinds, curtains, etc.
18. Overheating poses a serious risk to your child's life! Take into account the ambient temperature and your child's clothing to ensure they are neither too cold nor too warm.
19. Consult your healthcare professional for advice to ensure your baby's safe sleep.

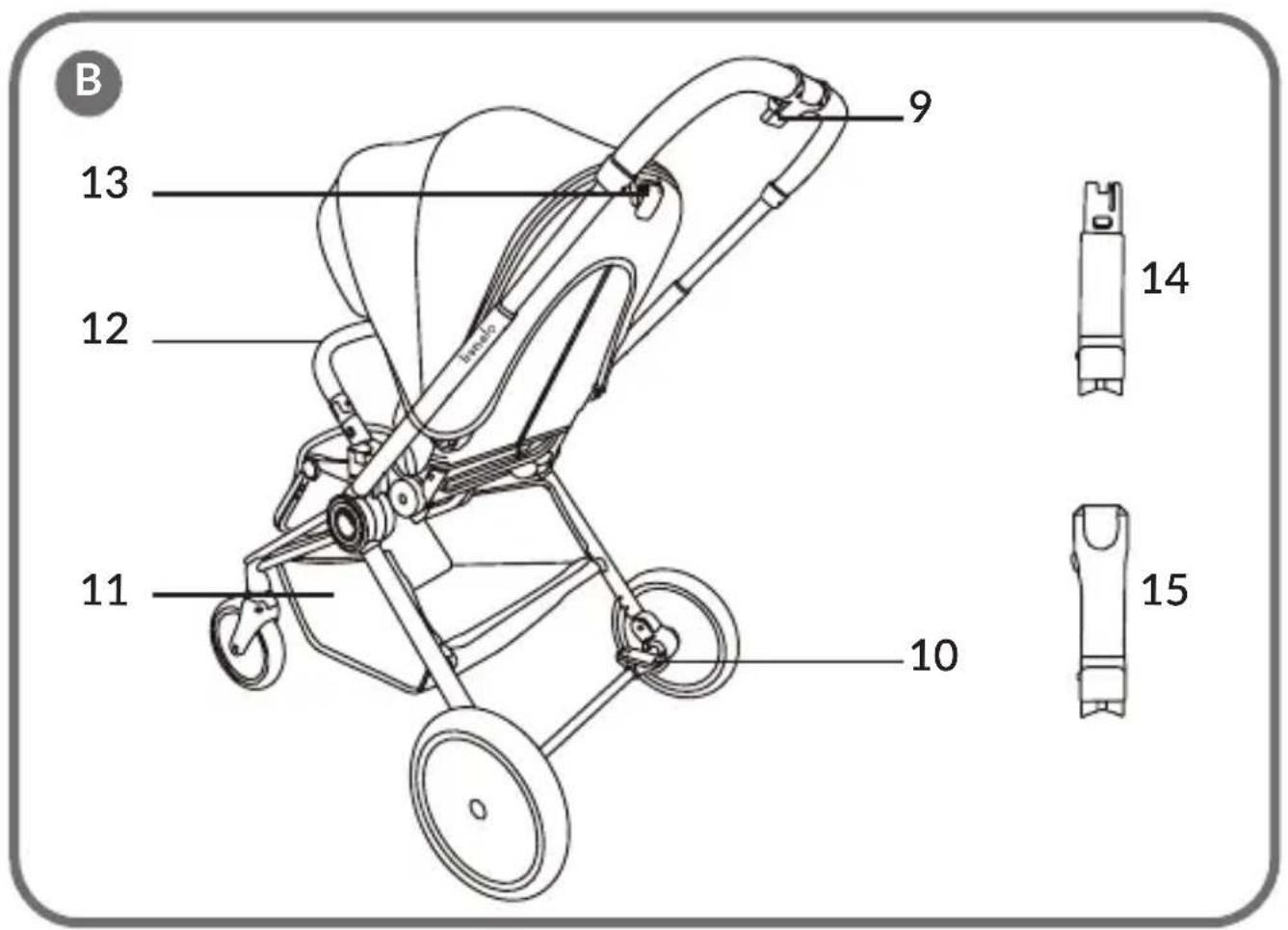

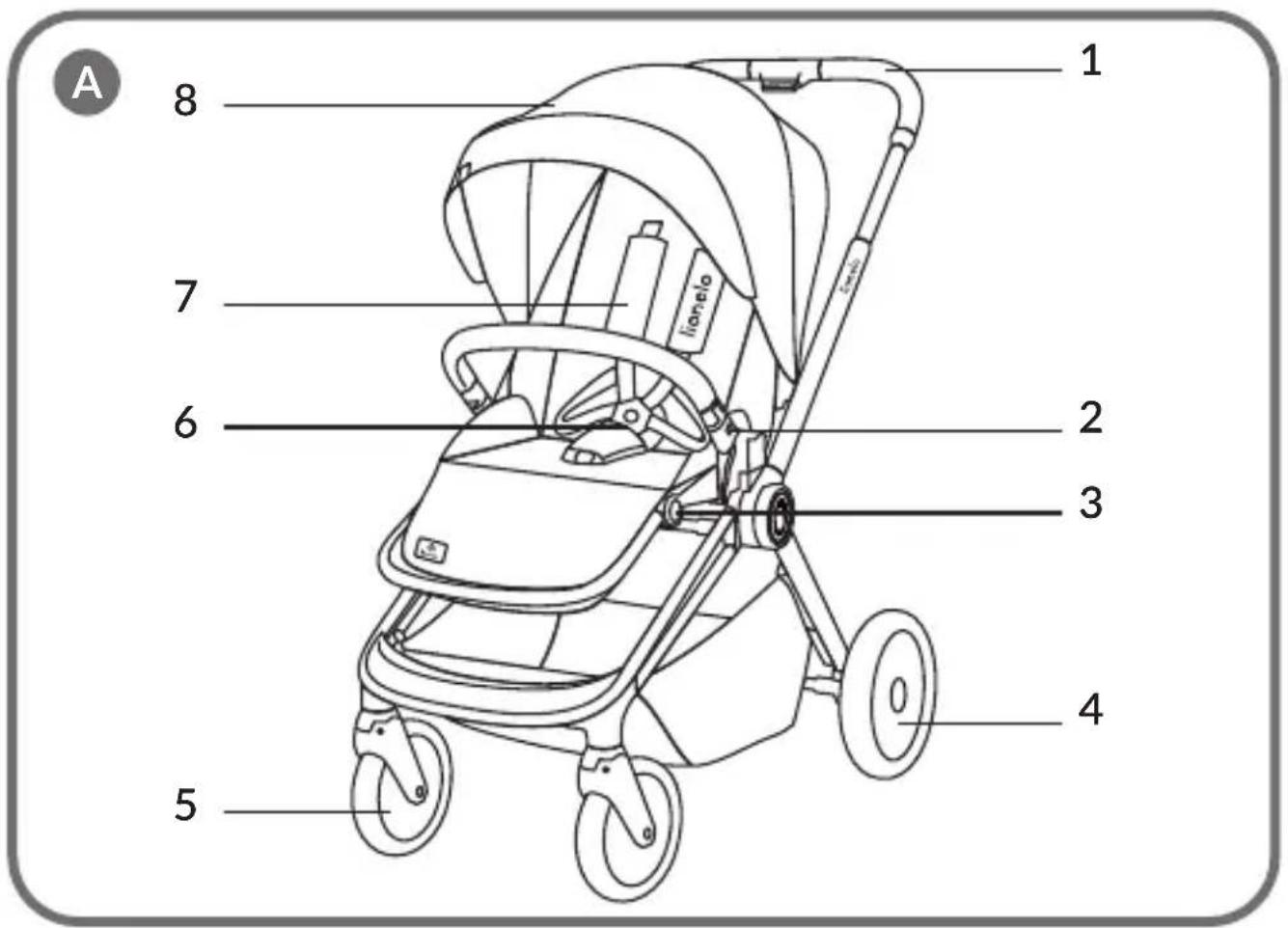

List of stroller parts (fig. A, B)

1. Handle
2. Bow releasing key
3. Footrest adjustment key
4. Rear wheels
5. Front wheels
6. Safety belts
7. Shoulder protective cushions

8. Canopy

9. Handle height adjustment key

10. Parking mechanism
11. Basket
12. Bow
13. Seat backrest angle adjustment lever
14. Carrycot adapter
15. Child safety seat adapter

The set 2 in 1 is composed of a stroller frame with a seat and carrycot.

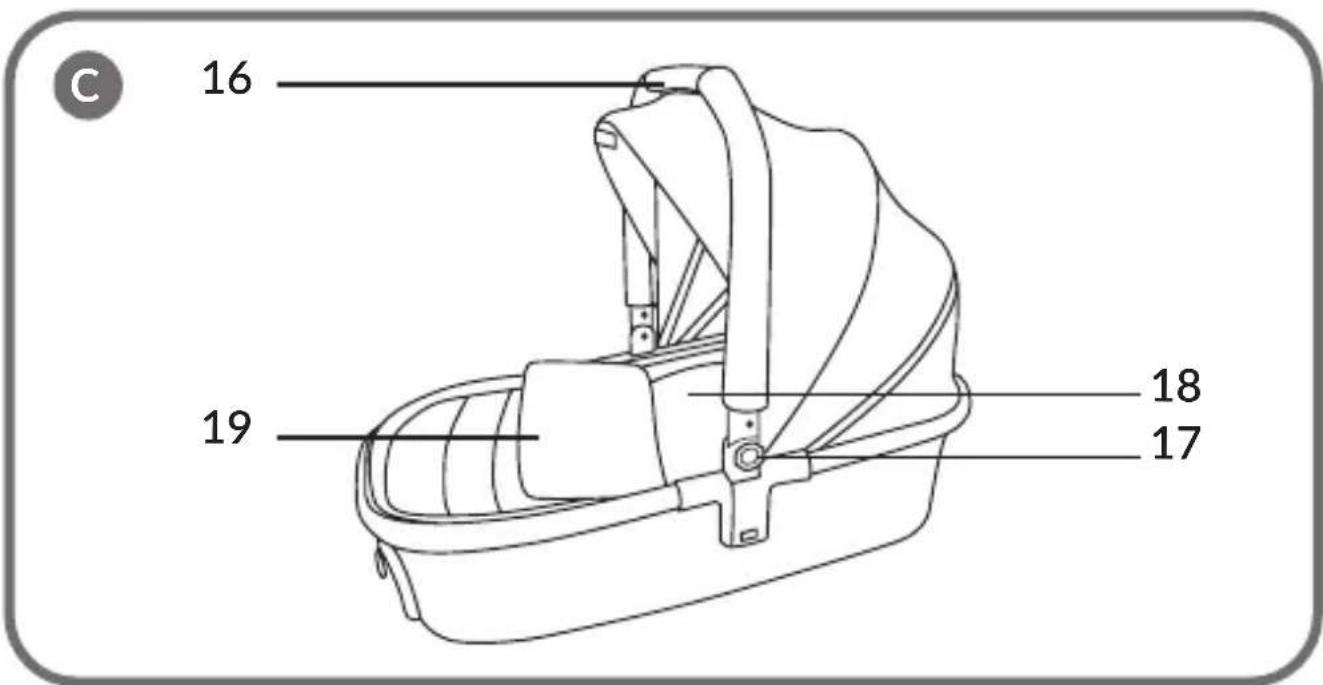

List of carrycot parts (fig. C)

1. Handle
2. Canopy adjustment keys
3. Mattress
4. Cover

How to unfold the stroller frame

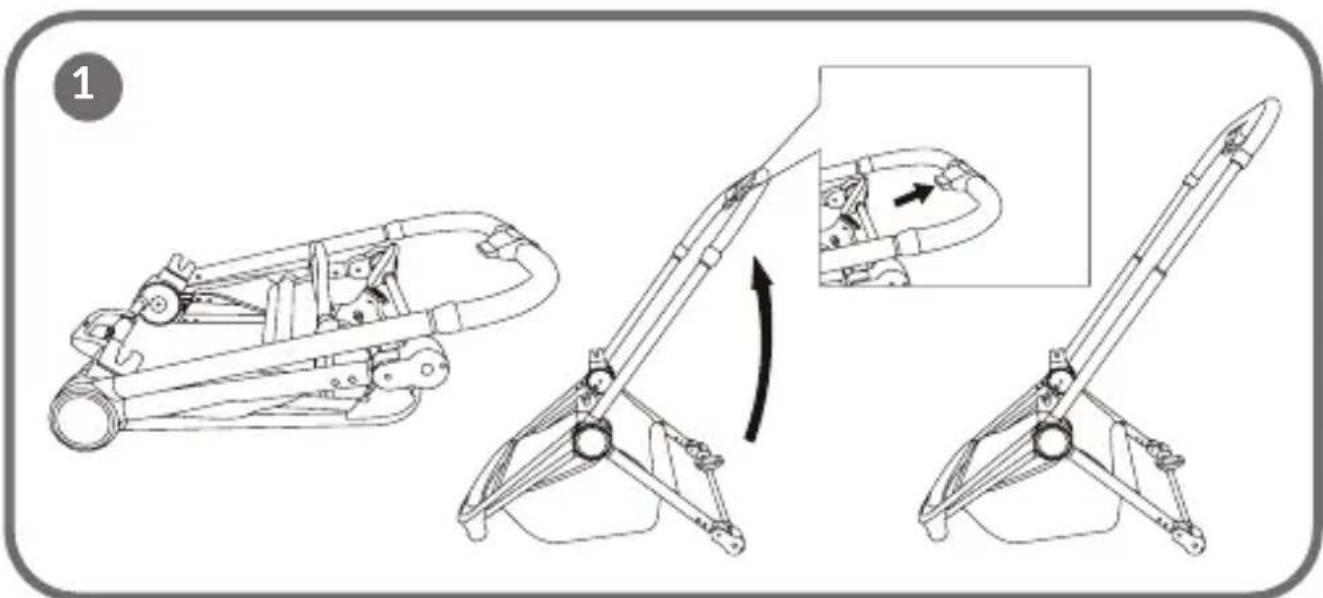

1. Unfold the stroller frame by pulling the handle up until you can hear a click which signals correct unfolding of the stroller frame (fig. 1).
2. Press the handle height adjustment key to set a desired height. If you can hear a click, it means the handle has been set at a desired height.

How to install and detach front wheels

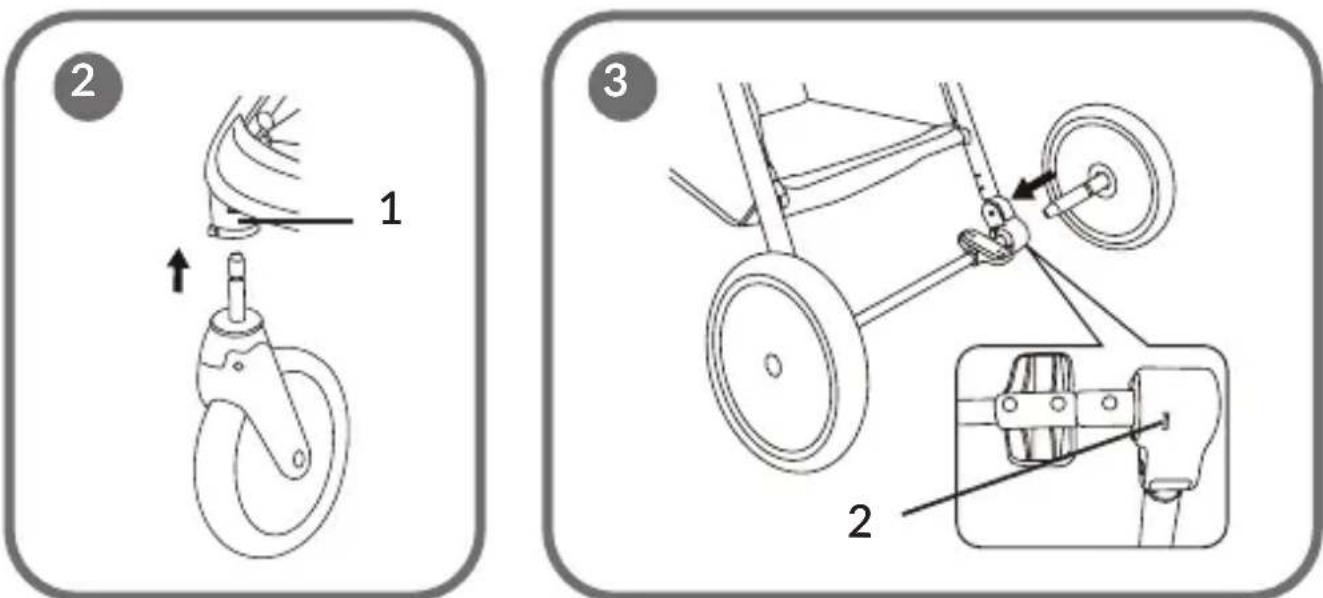

1. Insert the wheel shank into corresponding holes on the stroller frame (fig. 2). Correct installation is signaled by a click.
2. To detach front wheels, press the releasing key (1, fig. 2) and take wheels out.

How to install and detach rear wheels

1. Insert the wheel shank into corresponding holes on the stroller frame (fig. 3). Correct installation is signaled by a click.
2. To detach rear wheels, press the releasing key (2, fig. 3) and take wheels out.

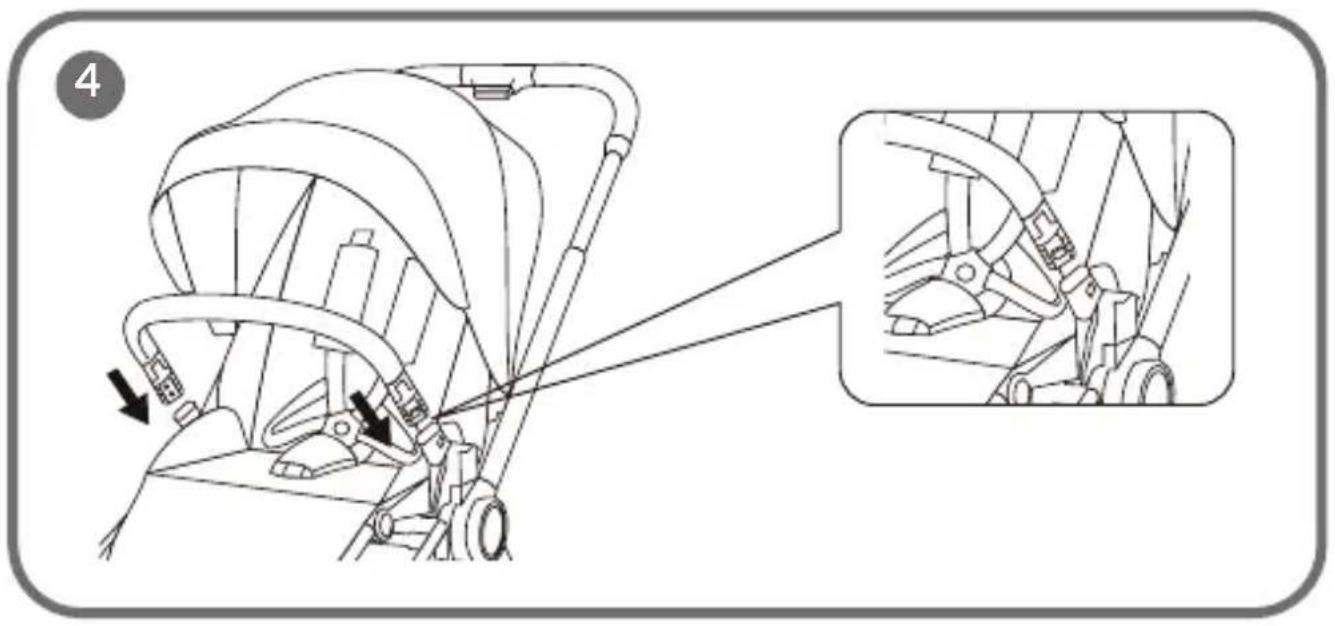

How to install the bow

1. Insert the bow into corresponding holes on the stroller frame (fig. 4). Correct installation is signaled by a click.
2. To detach the bow, press releasing keys and then take the bow out.

How to install and detach the seat

1. The seat can be installed in a forward- or rear-facing position.

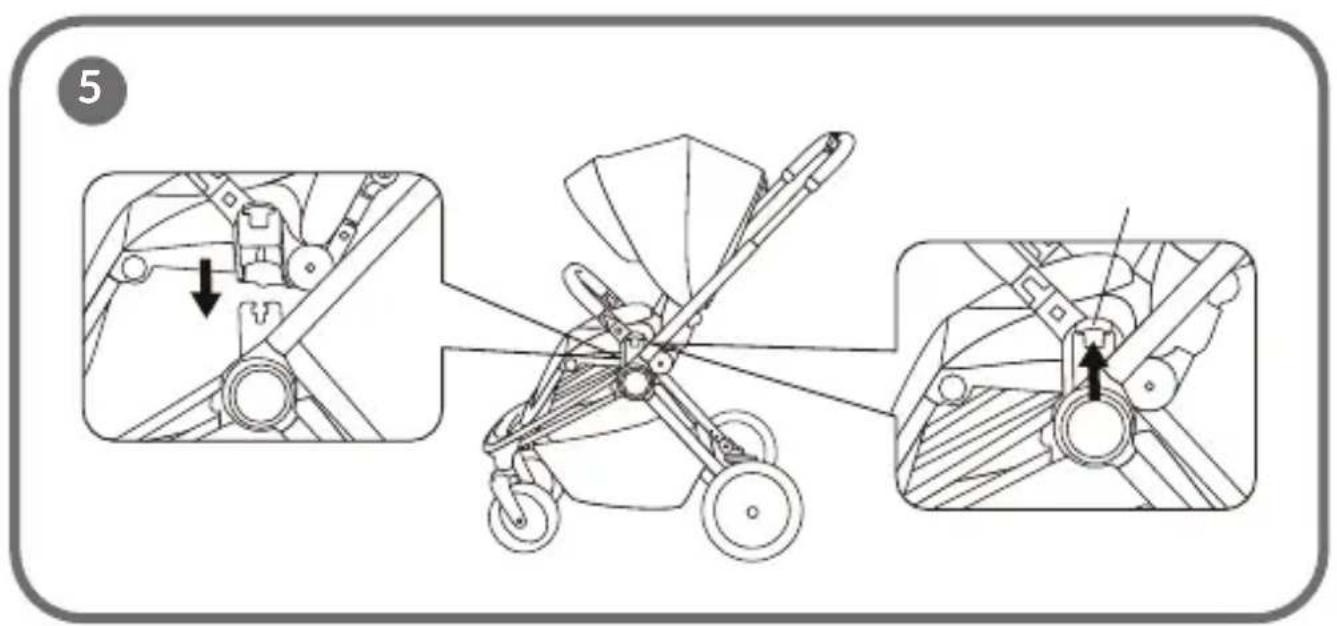

2. Place the seat on connectors on the stroller frame (fig. 5). Correct installation of the seat on the stroller frame is signaled by a click. Make sure the seat has been correctly installed in the stroller frame.
3. To detach the seat from the stroller frame, push releasing levers on both sides of the seat and then lift it upwards (fig. 5).

How to install and detach the carrycot

The child can be transported in the carrycot.

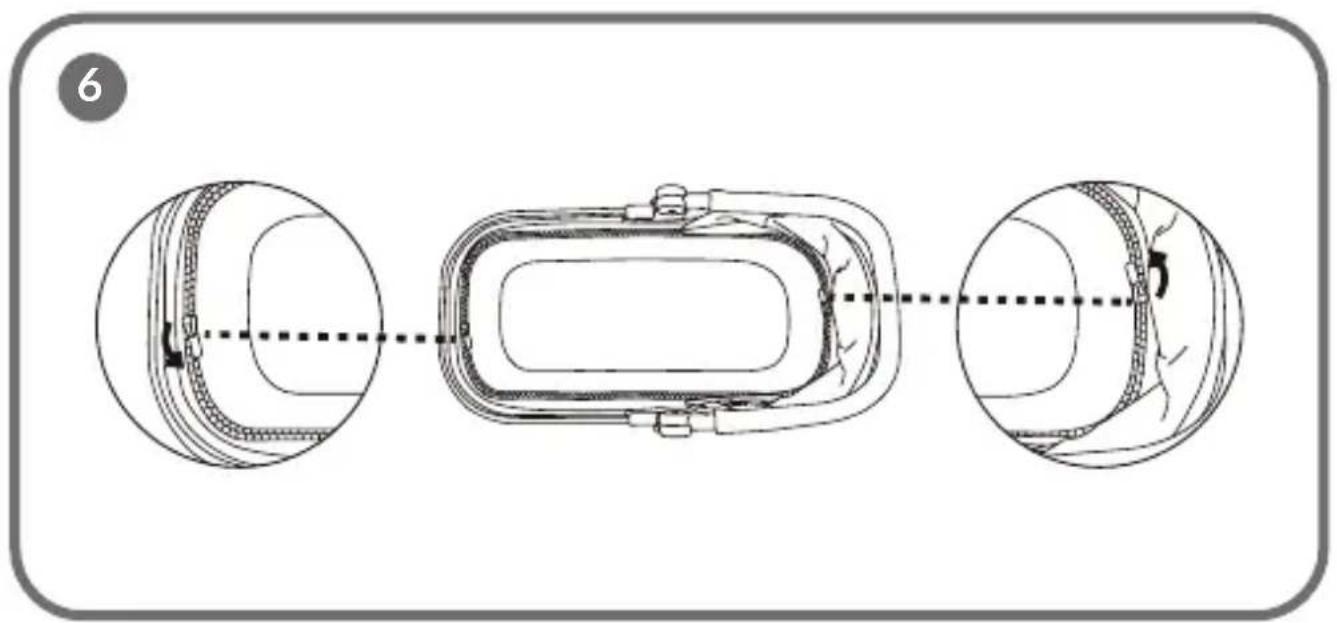

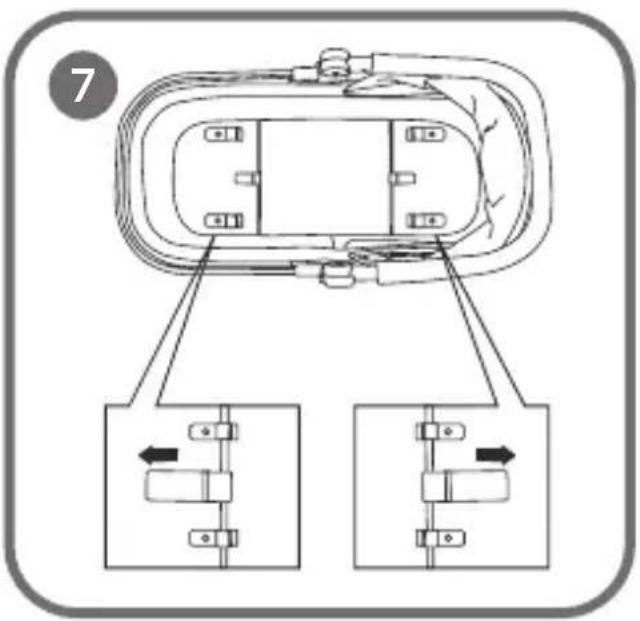

1. Undo the inner covering zip (fig. 6) and insert metal bars into carrycot brackets (fig. 7).

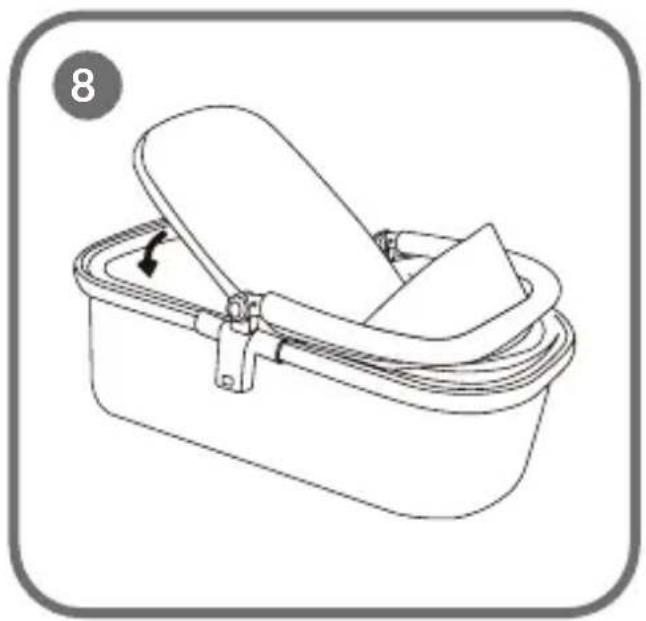

2. Zip the inner covering up and then insert the mattress (fig. 8).

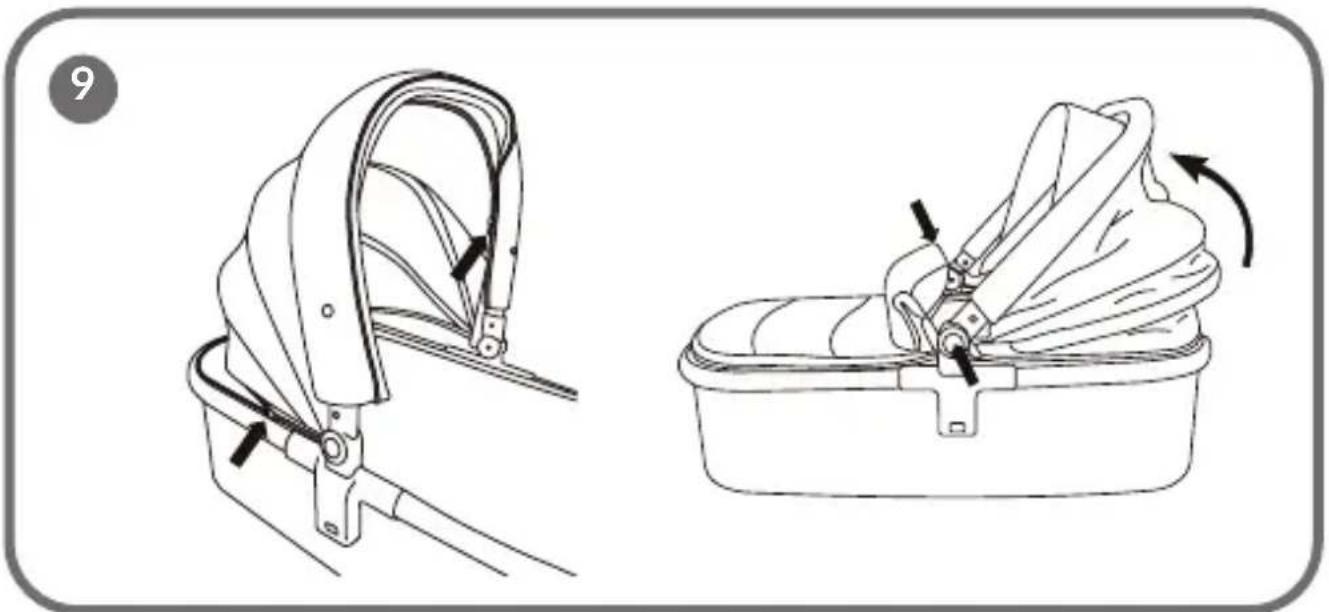

3. Put the fabric cover on the carrycot handle, and then pull up the zipper. To unfold the canopy, press the keys on both sides of the carrycot and set the canopy in a desired position (fig. 9).
4. Insert adapters (14, fig. B) into corresponding spots on the stroller frame until you can hear a double click and adapters get blocked. Adapters must be placed with the detachment key into a stroller front direction.
5. The carrycot in a stroller frame must be installed in a way that the child is facing the parent who pushes the stroller.

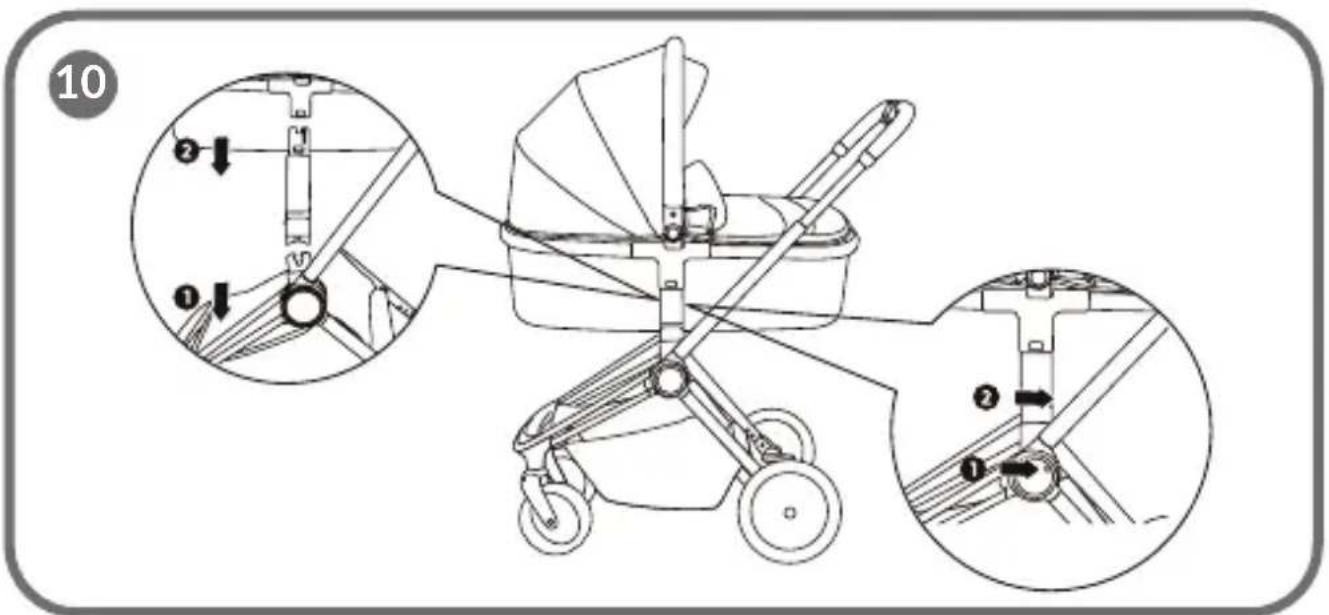

6. Place the carrycot on the stroller frame with the use of adapters (fig. 10). You will hear a distinctive click. Make sure the carrycot has been properly attached on the stroller frame.
7. To detach the carrycot from the stroller frame, press releasing keys on both sides of the carrycot and then lift the carrycot.
8. To remove the adapter, press the lower key on the adapter and pull upwards.

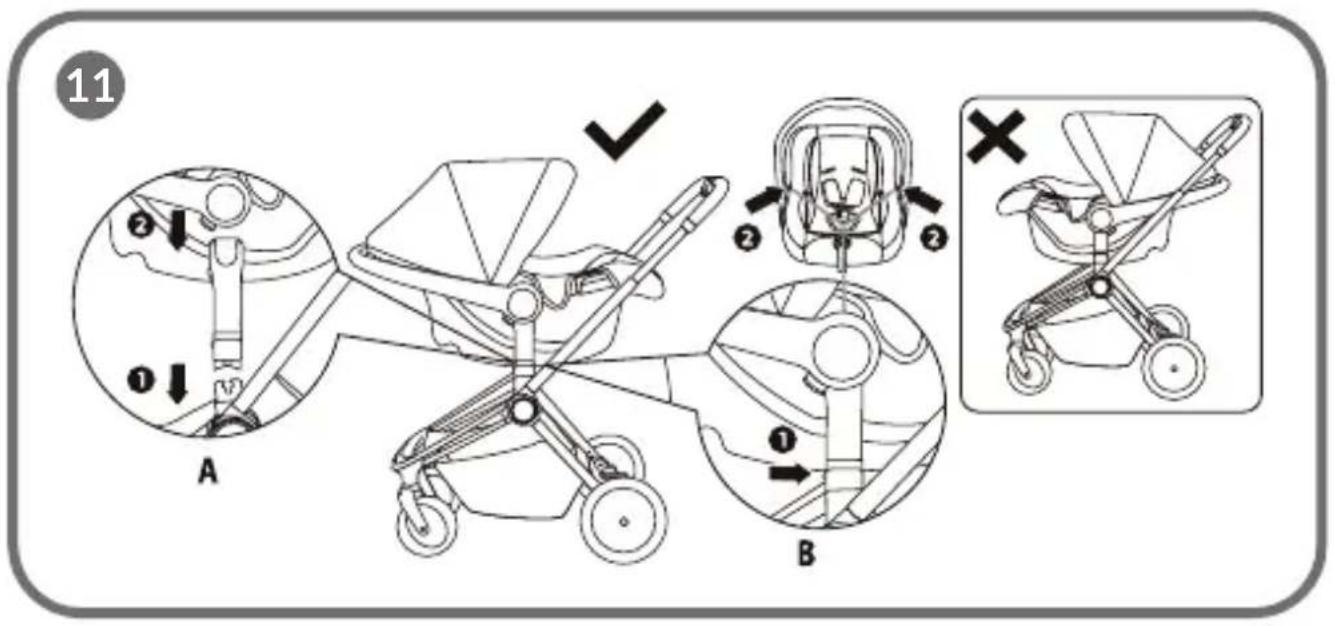

How to install and detach the child safety seat (applies to the set with Astrid carseat)

1. Insert adapters (15, fig. b) into corresponding spots on the stroller frame until you can hear a double click and adapters get blocked (A, fig. 11). Adapters must be placed with a detachment key in a stroller front direction.
2. The child safety seat in the stroller frame must be installed in a way that the child is facing the parent who pushes the stroller.
3. Place the child safety seat on the stroller frame with the use of adapters (fig. 11). You will hear a distinctive click. Make sure the child safety seat has been properly mounted on the stroller frame.
4. To detach the child safety seat in case it is necessary, remove it from adapters.
5. To remove the adapter, press the lower key in the adapter (B, fig. 11) and pull upwards.

How to adjust safety belts

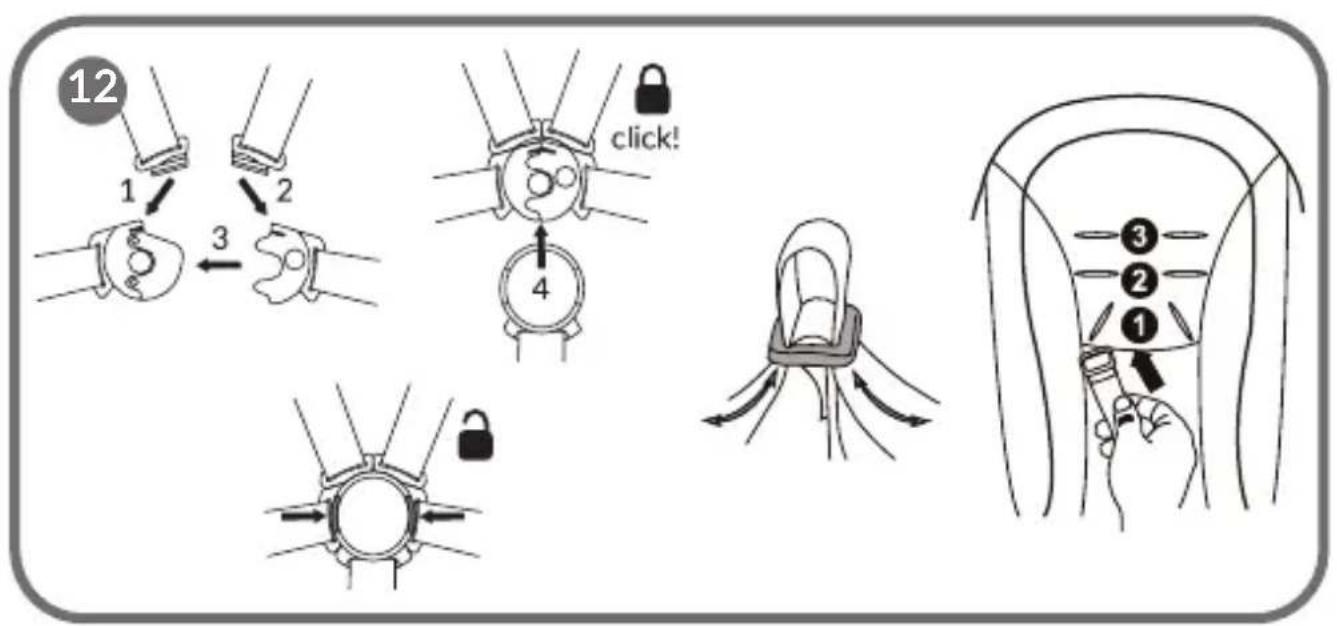

1. To fasten the belts, connect the fastening system and put on the buckle. The belt buckle is magnetic – fastening will occur automatically and will be indicated by a click. To unfasten the belts, press the buttons located on the buckle (fig. 12).
2. To adjust height of the belts, pull them through relevant holes in the seat so that they correspond to the child's height (fig. 12). You can fasten belts at three height levels.

How to install and detach safety belts

To detach the belts, pull the buckle through the hole in the seat. To install them, insert belts again.

Rotating wheel locking key

To unlock rotation of front wheels, slide the lock key to the left. To lock it, slide the lock key to the right (fig. 13).

Parking mechanism

1. To lock, press the pedal as showed by the arrow no. 1 (fig. 14). To unlock, press the pedal as showed by the arrow no. 2 (fig. 14).

2. Note: make sure the stroller is locked when parked.

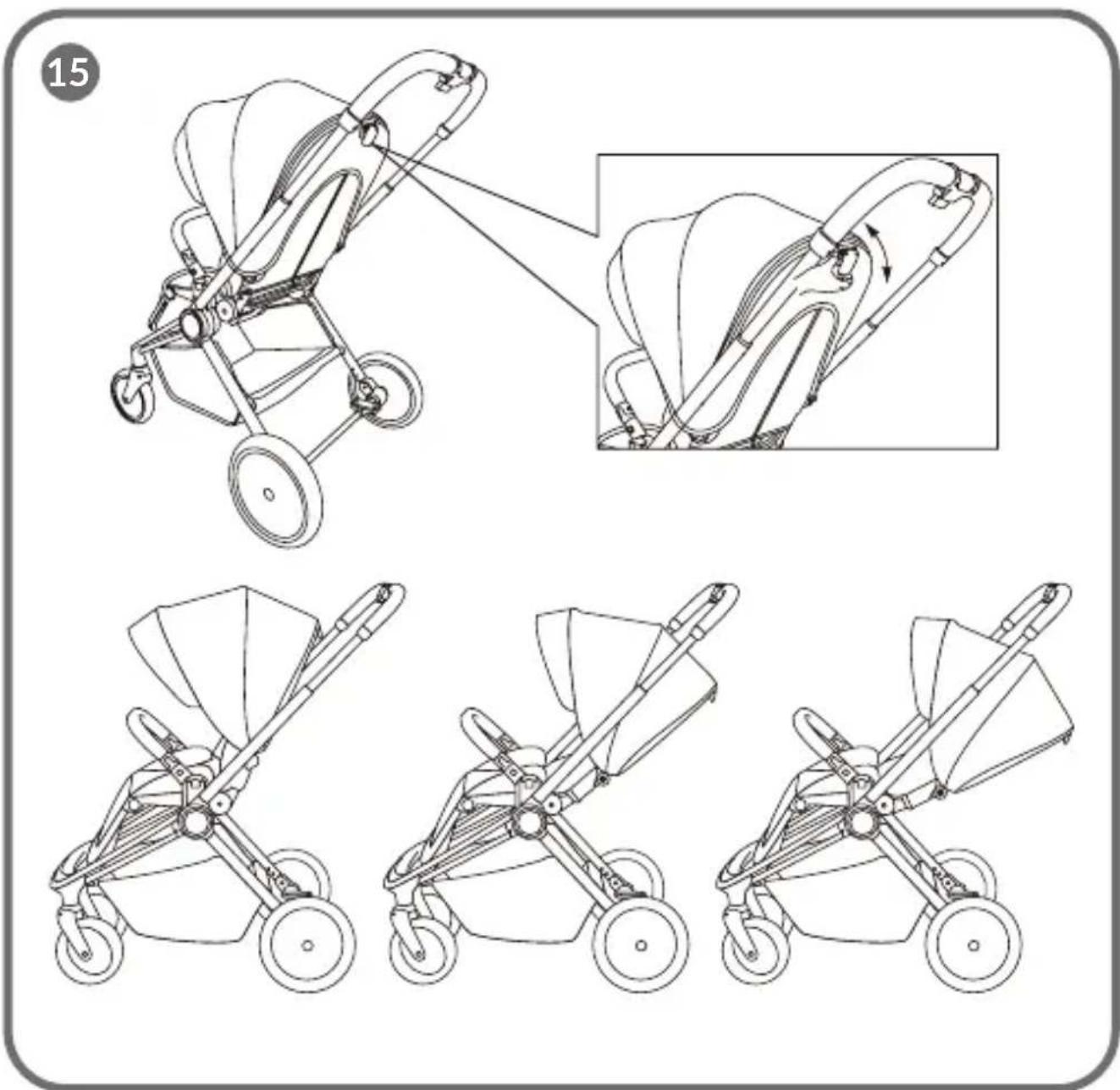

How to adjust the backrest

1. To set the seat in a desired position, use the backrest angle adjustment lever which you can find at the back of the seat (fig. 15).

2. There are three backrest inclination angles available.

How to adjust the handle

Press the handle adjustment key and then pull out or insert the handle, choose one of three available heights (fig. 16).

How to adjust the footrest

To change position of the footrest, press the footrest adjustment keys on both sides and then push upwards or downwards, depending on your preferences (fig. 17).

How to fold the stroller frame in a forward-facing position

1. To fold the stroller frame with a seat in a forward-facing position, lower the handle to the lowest position and leave rotating front wheels unlocked. Lift the footrest with the seat to the highest position (fig. 20) and fold towards the backrest (fig. 18).
2. Slide the key on the handle under the seat to the left and then dynamically lift the folded stroller (fig. 18).

How to fold the stroller frame in a rear-facing position

1. To fold the stroller frame with a seat in a rear-facing position, lower the handle to the lowest position and leave the rotating front wheels unlocked. Lift the footrest and the seat to the highest position (fig. 20) and then slide the backrest towards the bow (fig. 19).
2. Slide the key on the handle under the seat to the left and then dynamically lift the folded stroller (fig. 19).

How to clean and maintain

1. Regularly remove dust and sand from the wheels and frame. You can use a wet cloth to clean these parts.
2. Use a wet cloth to clean the stroller upholstery and basket.
3. You must wash the carrycot upholstery and mattress cover by hand, at the temperature of 30^ C. Do not dry mechanically.
4. Check particular parts of the stroller on a regular basis for their functions, durability and potential damage. In case of any defects, please contact the authorized service center.
5. Avoid excessive direct exposure of the stroller to sunlight and long-time exposure to high temperatures. Sunlight may cause fabrics to fade.
6. Do not use strong chemicals to clean this product.

The pictures are for reference only. The real design of the products may differ from the pictures presented.
