USER MANUAL Bart Tour Lionelo

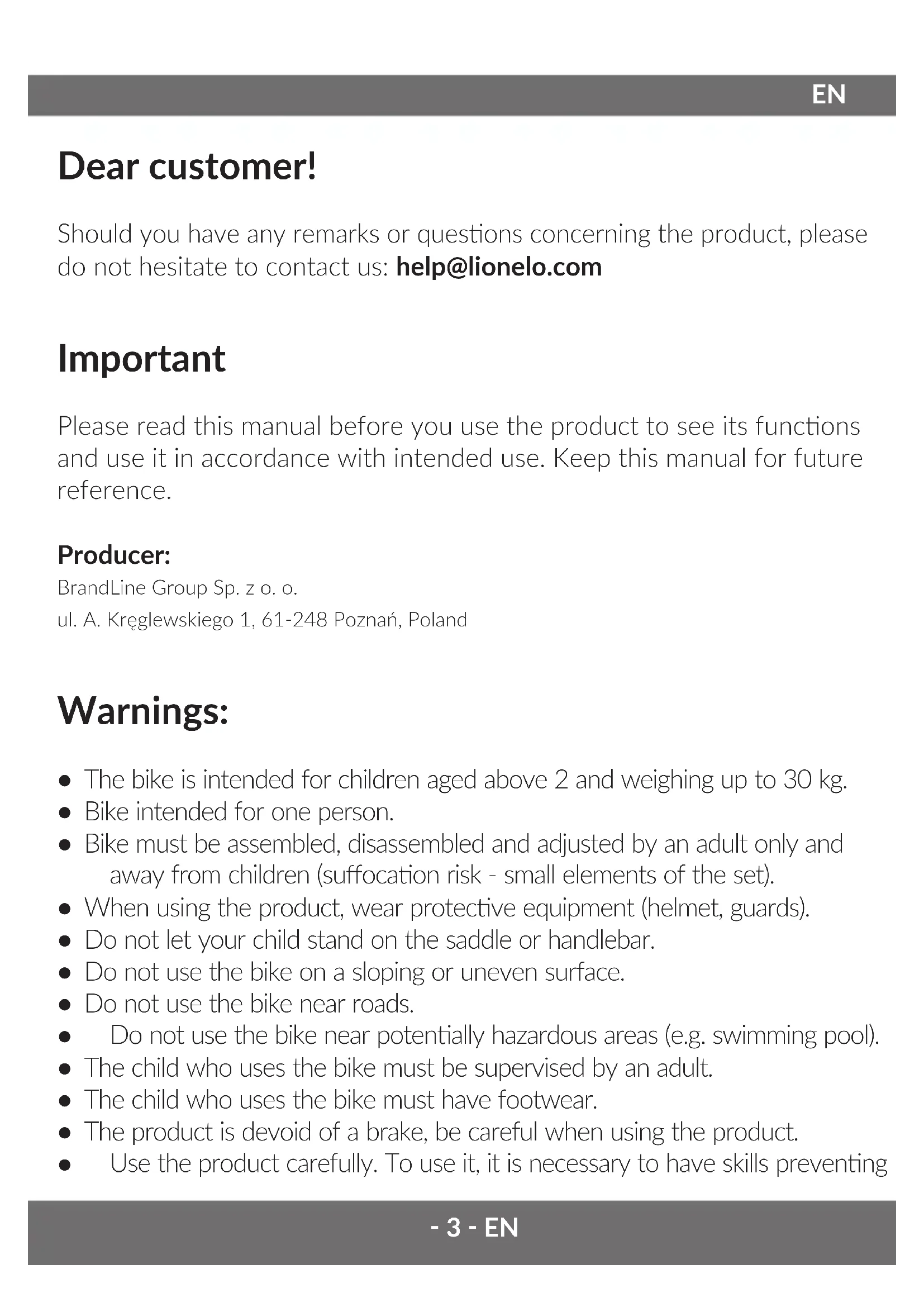

3 4‑ 3 ‑ EN Dear customer! Should you have any remarks or quesons concerning the product, please do not hesitate to contact us: [e-mail] Important Please read this manual before you use the product to see its funcons and use it in accordance with intended use. Keep this manual for future reference. Producer: BrandLine Group Sp. z o. o. ul. A. Kręglewskiego 1, 61-248 Poznań, Poland Warnings:

• The bike is intended for children aged above 2 and weighing up to 30 kg.

• Bike intended for one person.

• Bike must be assembled, disassembled and adjusted by an adult only and away from children (suocaon risk - small elements of the set).

• When using the product, wear protecve equipment (helmet, guards).

• Do not let your child stand on the saddle or handlebar.

• Do not use the bike on a sloping or uneven surface.

• Do not use the bike near roads.

Do not use the bike near potenally hazardous areas (e.g. swimming pool).

• The child who uses the bike must be supervised by an adult.

• The child who uses the bike must have footwear.

• The product is devoid of a brake, be careful when using the product.

Use the product carefully. To use it, it is necessary to have skills prevenng EN‑ 4 ‑EN falls or collisions resulng in bodily injuries to user or other persons.

Keep the plasc packaging out of reach of children as it poses a suocaon risk.

Before every use, make sure the bike has no damage, loose connecons or missing components. Do not use the product if any component is missing or the product is damaged. This being the case, contact the manufacturer’s authorized service center.

• Keep the product away from re.

• Do not drag the bike behind the car or other vehicle.

Keep the product away from sources of heat, high temperatures, hot surfaces, sources of ignion, naked ame, oil and sharp edges.

• Store the bike in a dry place.

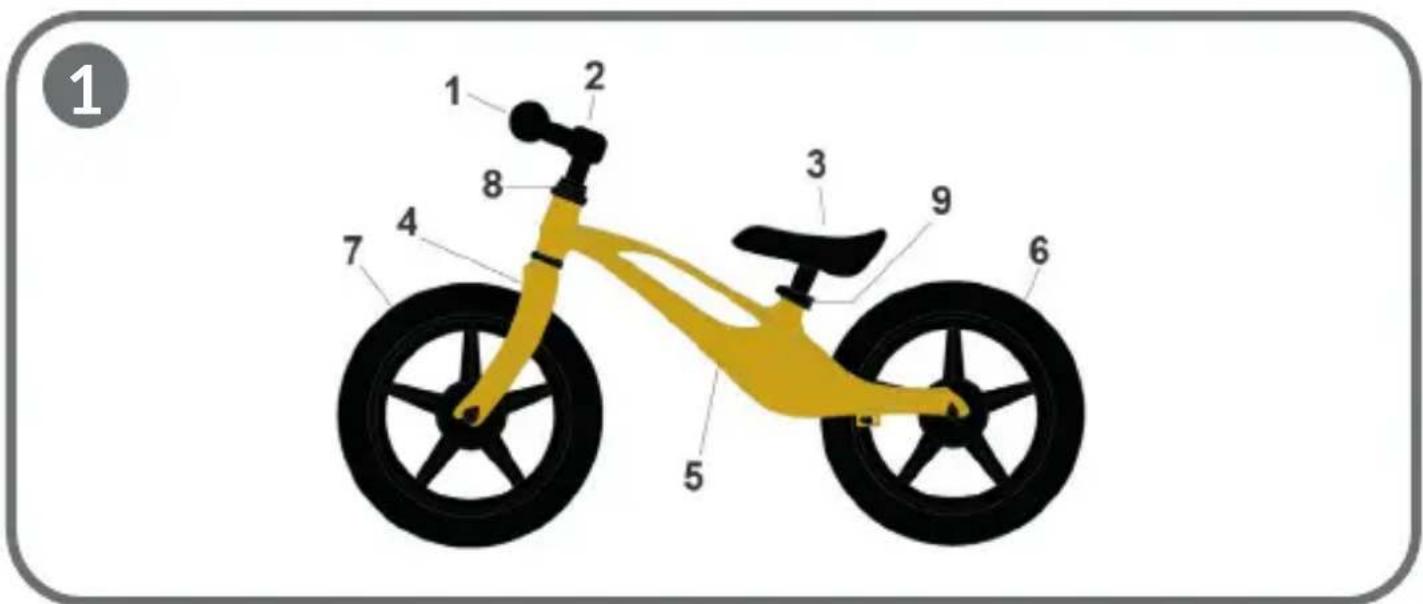

Do not use the product in unfavorable weather (e.g. frost, rain, snow, black ice). Product descripon (g. 1)

2. Handlebars with shank hole

How to assemble The bike must be assembled, disassembled and adjusted by an adult only.

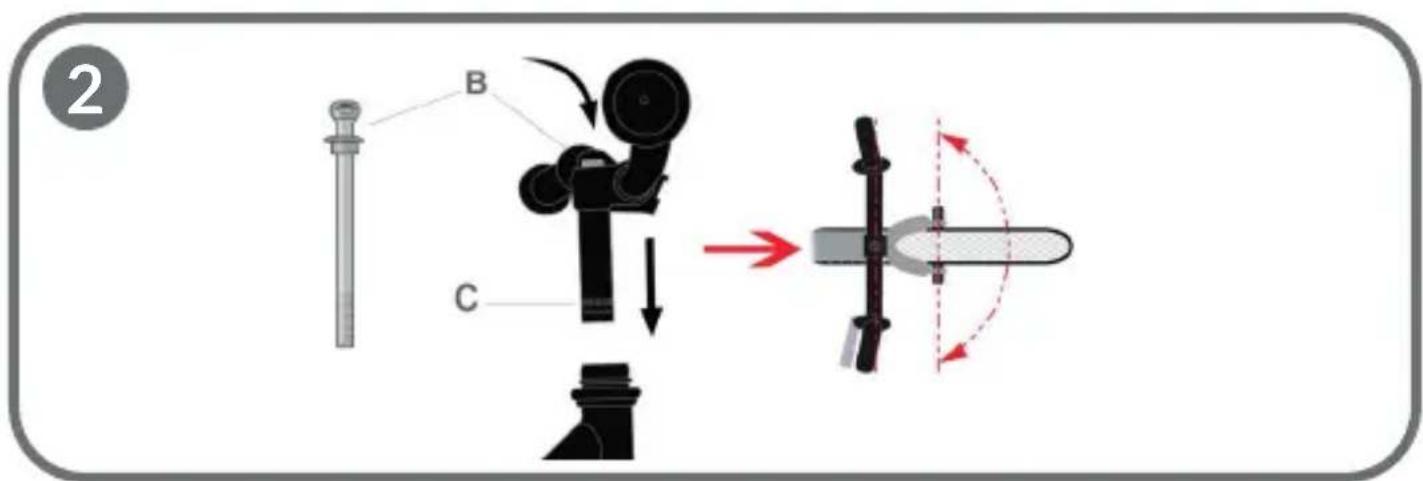

1. Handlebars (g. 2)

Insert the shank with a cap (marked as B in g. 2) into the handlebars‑ 5 ‑ EN hole. Next insert the handlebars into the front fork of the bike. Make sure the handlebars have been xed properly and the wheels are in a forward posion (see: g. 2) Adjust the handlebars height to your child’s height - the handlebars depth marker (marked as C in g. 2) must not be visible, it must be inside the bike crossbar. Use an Allen wrench (included in the set) to screw the shank in the handlebars unl it resists. When the procedure is done, make sure the handlebars have been mounted securely. If not, ghten up the shank so that the handlebars get stable.

Release the nut on the saddle clamping ring (9). Insert the saddle tube into the saddle hole in the crossbar. Adjust the saddle height to your child’s height - the saddle depth marker (marked as A in g. 3) must not be visible, it must be inside the crossbar. Tighten up the nut on the saddle clamping ring (9) properly. When the procedure is done, make sure the saddle has been xed securely. If not, ghten up the nut on the ring so that the required stability is guaranteed.
