AL1 - Scooter LAMBORGHINI - Free user manual and instructions

Product type	Electric scooter
Brand	Lamborghini
Model	AL1
Dimensions (unfolded)	1180 x 530 x 1160 mm
Net weight	13 kg
Battery	Lithium-ion 36 V / 7.8 Ah / 280 Wh
Charger	42 V / 2 A (EU plug)
Charging time	3 to 5 hours
Motor	350 W brushless
Maximum speed	25 km/h (Sport mode)
Stated range	25 to 30 km (at 20 km/h, varying conditions)
Maximum slope	12%
Brakes	Front electric brake + rear foot brake
Suspension	Front
Tires	8-inch honeycomb (puncture-proof)
Maximum load	100 kg
Recommended minimum age	16 years (helmet mandatory for under 18)
Lighting	Front LED headlight, rear light, RGB side lights
Connectivity	Bluetooth, AL e-MOBILITY app (Android/iOS)
Protection rating	IPX5 (resistant to water splashes)
Operating temperature	0 °C to 45 °C
Frame material	Magnesium alloy
Maintenance	Damp cloth, no solvents, storage between 15 and 25 °C
Spare parts	Available at www.alemobility.com (tires, battery, brakes...)

Frequently Asked Questions - AL1 LAMBORGHINI

How to assemble the AL1 scooter?

Place the handlebar stem vertically, then fix it using the special screws provided. Tighten them with the included tool. Make sure the locking mechanism is fully engaged before first use.

How to charge the battery?

Lift the rubber cover of the charging port, plug in the original charger (42 V / 2 A), then close the cover after charging. Do not charge for more than 4 hours and avoid charging at temperatures below 0 °C or above 45 °C.

What speed modes are available?

Three modes: Eco (S Black, 6 km/h max) for beginners, Standard (S White, 15 km/h) and Sport (S Red, 25 km/h). Press the power button once to switch modes.

What is the actual range of the scooter?

The stated range is 25 to 30 km at 20 km/h. It varies depending on user weight, terrain, temperature, and riding style (smooth acceleration increases range).

Is it mandatory to wear a helmet?

For users under 18, wearing a helmet is mandatory. It is strongly recommended for all ages, along with knee pads and other protections.

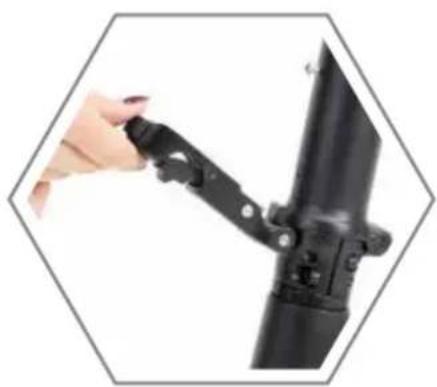

How to fold and carry the scooter?

Turn off the scooter. Press the quick-release lever button, pull the lever to release the column, then fold it until the mudguard latch clicks. To carry it, hold the handlebar stem.

What to do in case of an error code on the screen?

Refer to the error code table in the manual: E.0 = brake, E.1 = throttle, E.3 = connection, E.4 = motor, etc. Contact customer service at www.alemobility.com if the problem persists.

How to clean the scooter without damaging it?

Use a damp cloth. Never use alcohol, gasoline, or solvents. Do not wash with a pressure washer. Make sure the scooter is turned off and the charging port is securely closed.

What functions does the AL e-MOBILITY app offer?

The app allows self-diagnosis, adjustment of driving modes, cruise control, zero start, RGB light color, display of mileage and motor temperature, etc.

What regular maintenance is needed?

Periodically check the tightness of screws, tire wear, and proper brake function. Recharge the battery at least every 60 days if the scooter is not in use. Store it in a cool, dry place (15-25 °C).

USER MANUAL AL1 LAMBORGHINI

AUTOMOBILI LAMBORGHINI MOBILITY AL1 ELECTRIC SCOOTER APP CONTROL AL MOBILITY Downloaded on the App Store SETON Google Play

USER MANUAL

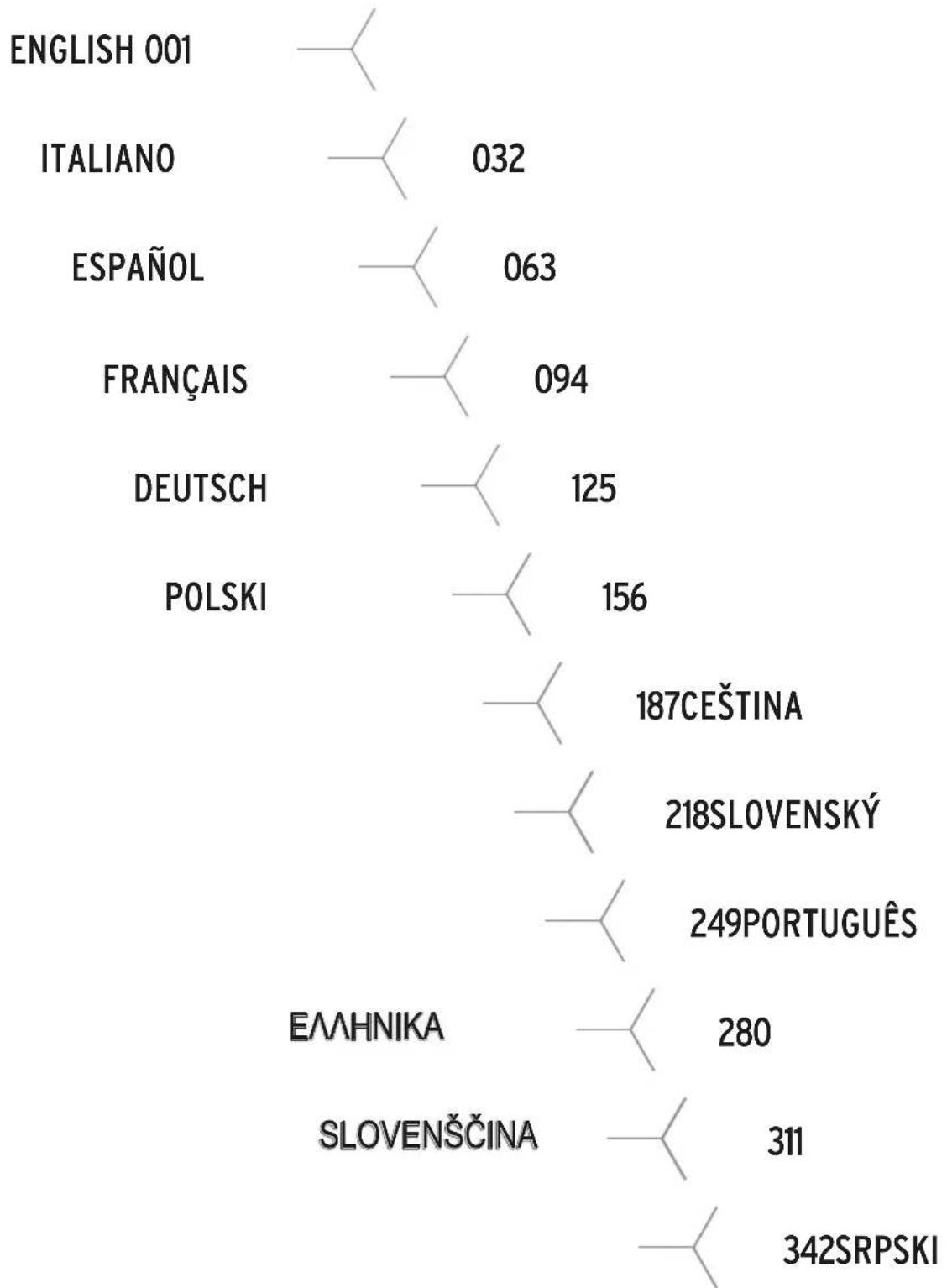

ENGLISH | ITALIANO | ESPAÑOL | FRANÇAIS | DEUTSCH | POLSKI CEŠTINA | SLOVENSKÝ | PORTUGUÊS | EΛΛΗΝΙΚΑ | SLOVENŠČINA | SRPSKI

AL1

ELECTRIC SCOOTER

USER MANUAL

For more information, technical support and assistance, contact your dealer or visit the website www.alemobility.com

1. Package contents
2. Product overview
3. Assembly and configuration
4. Charging
5. AL e-Mobility app configuration
6. How to ride the electric scooter
7. Brakes
8. Range
9. Storage and cleaning
10. Safety instructions
11. Battery
12. Responsibilities
13. Folding, transport and opening
14. Daily maintenance and care
15. Technical specifications
16. Troubleshooting
17. Error code table

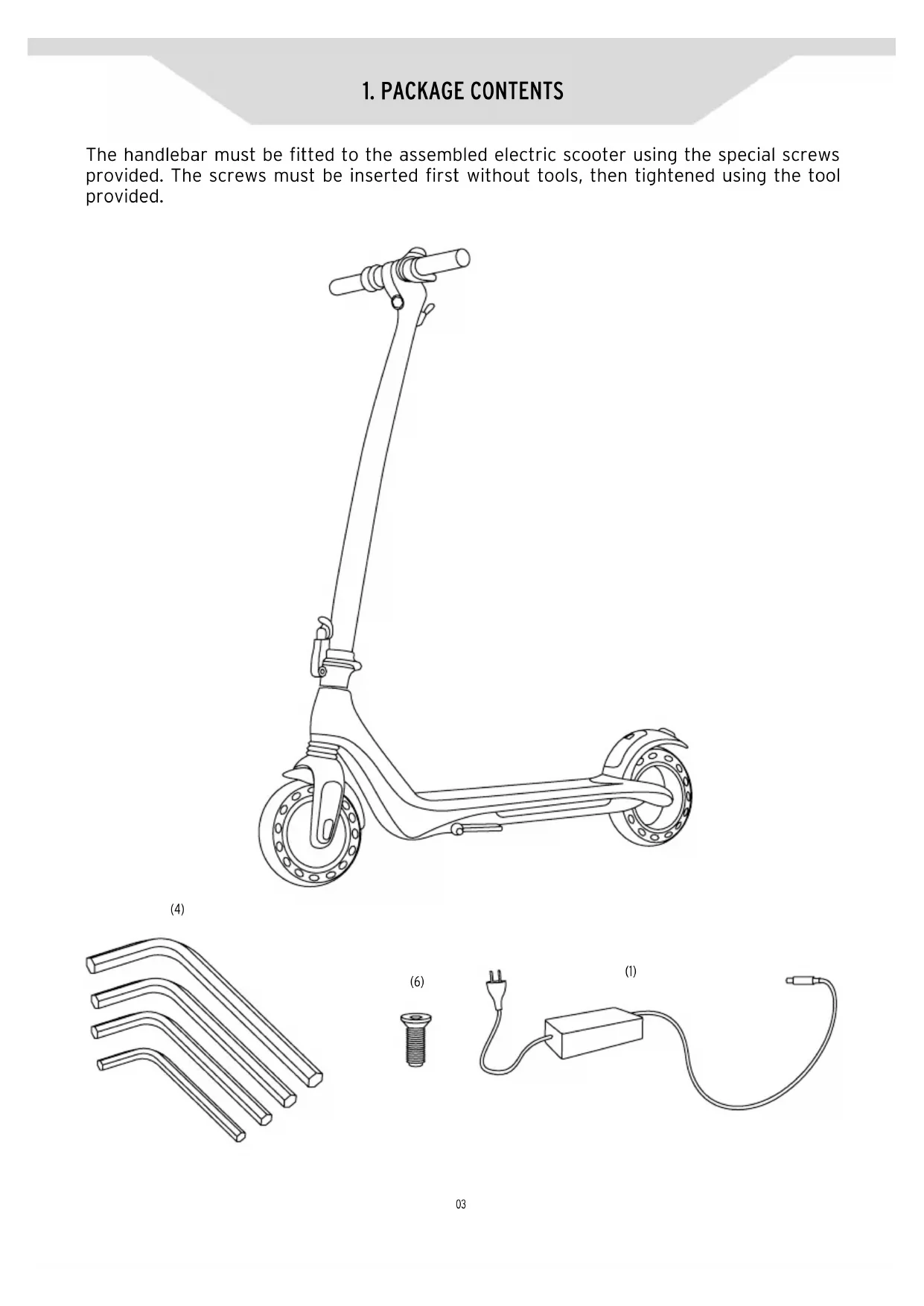

1. PACKAGE CONTENTS

The handlebar must be fitted to the assembled electric scooter using the special screws provided. The screws must be inserted first without tools, then tightened using the tool provided.

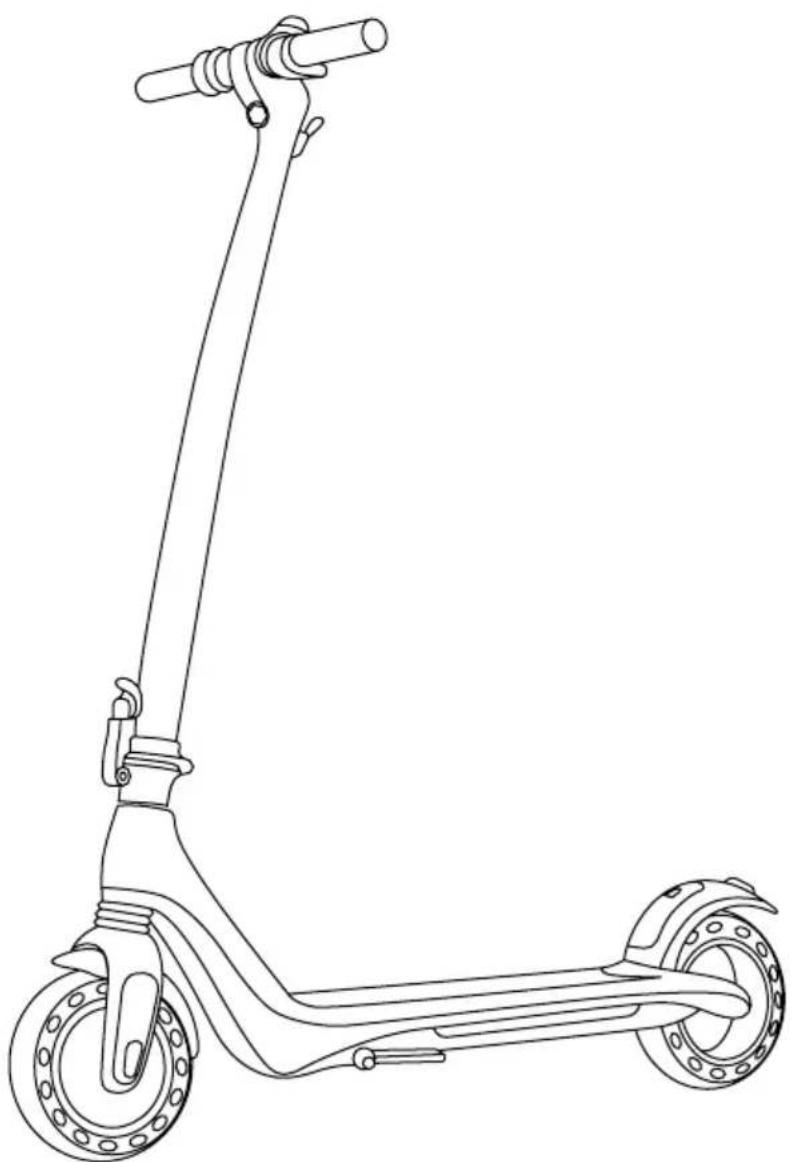

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

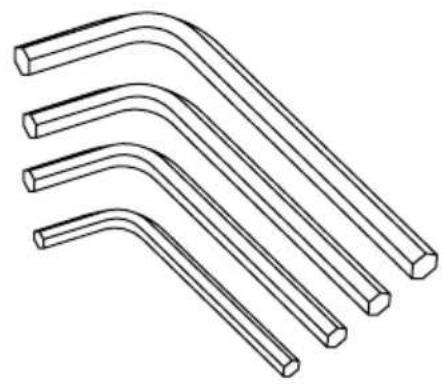

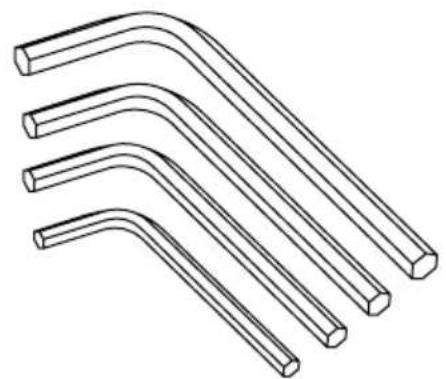

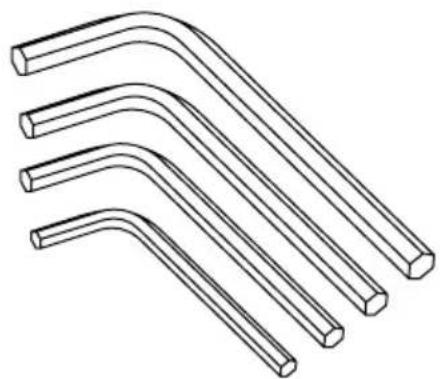

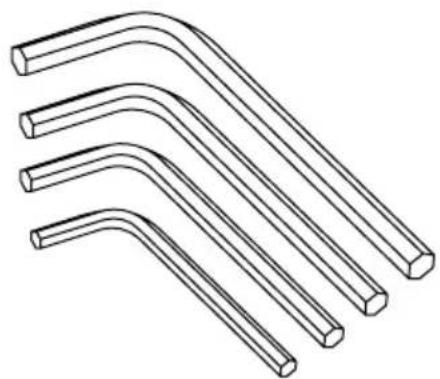

Line drawing of five identical L-shaped metal rods arranged in a V-shape (no text or symbols)

(6)

(1)

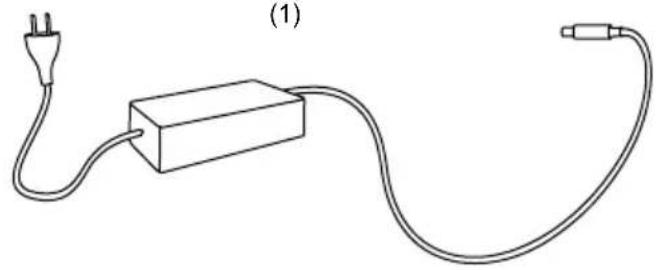

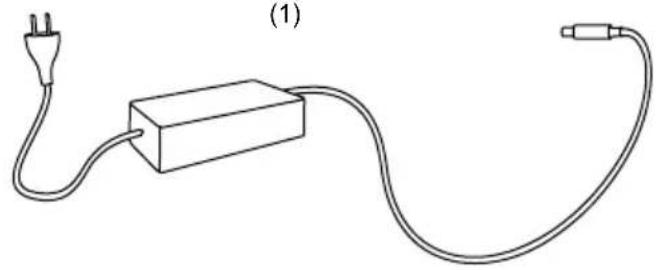

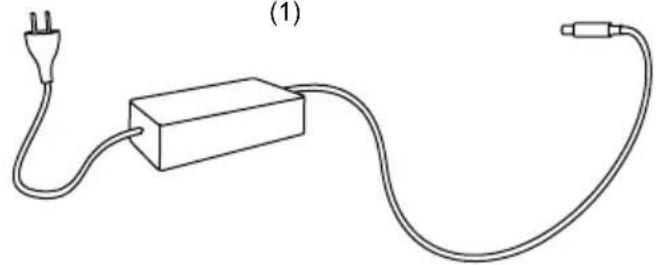

Simple line drawing of a plug connected to a rectangular block and cable (no text or symbols)

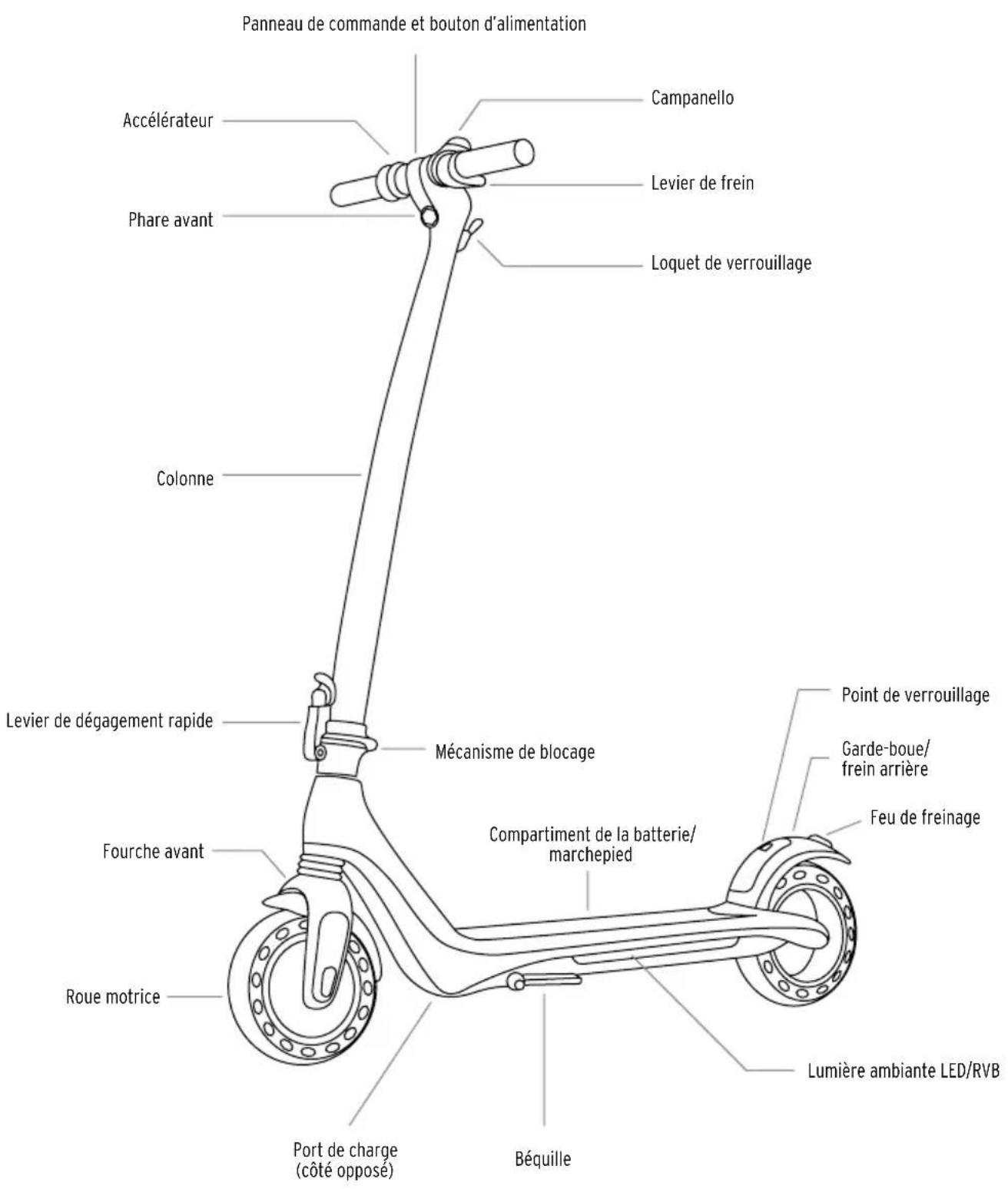

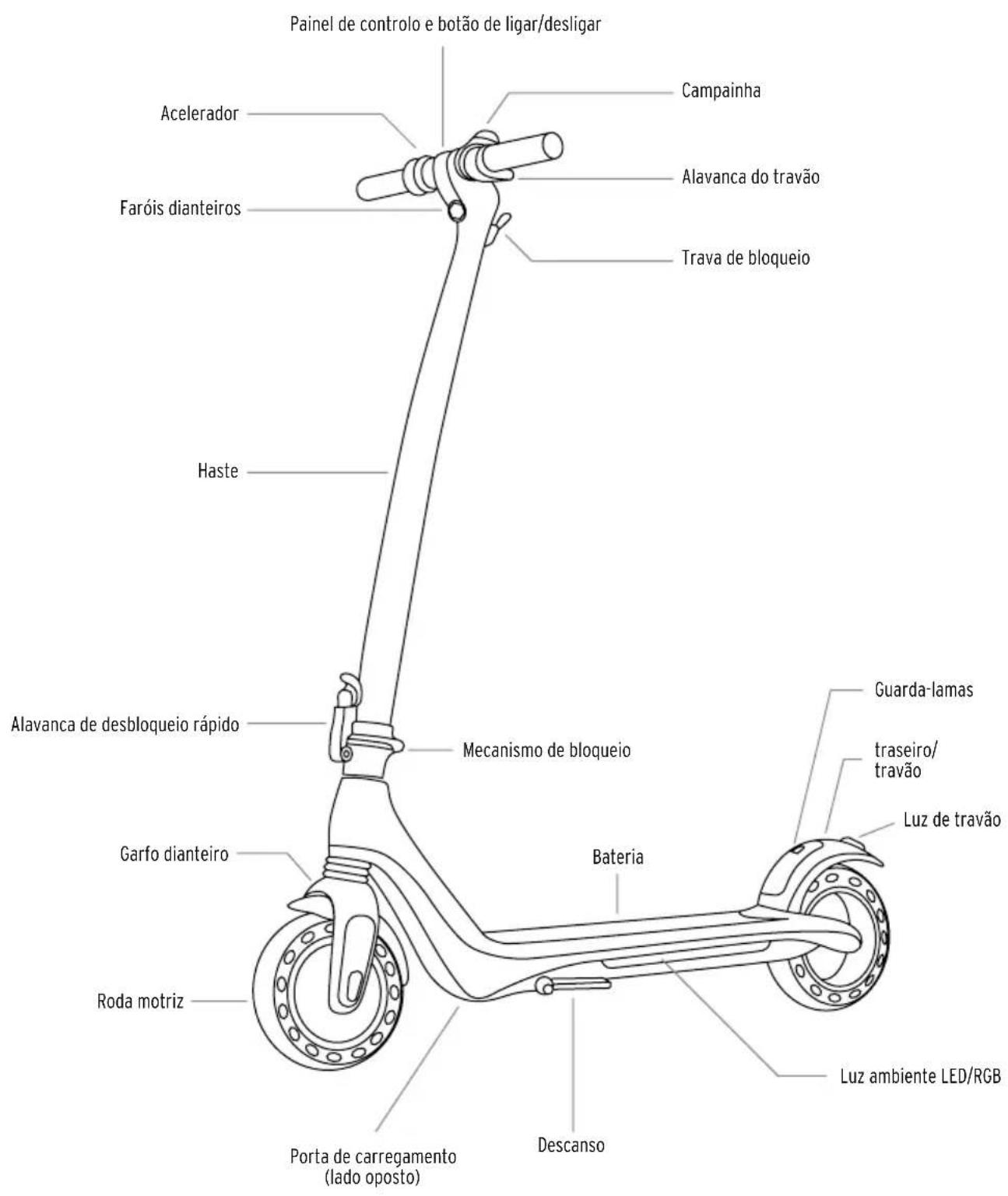

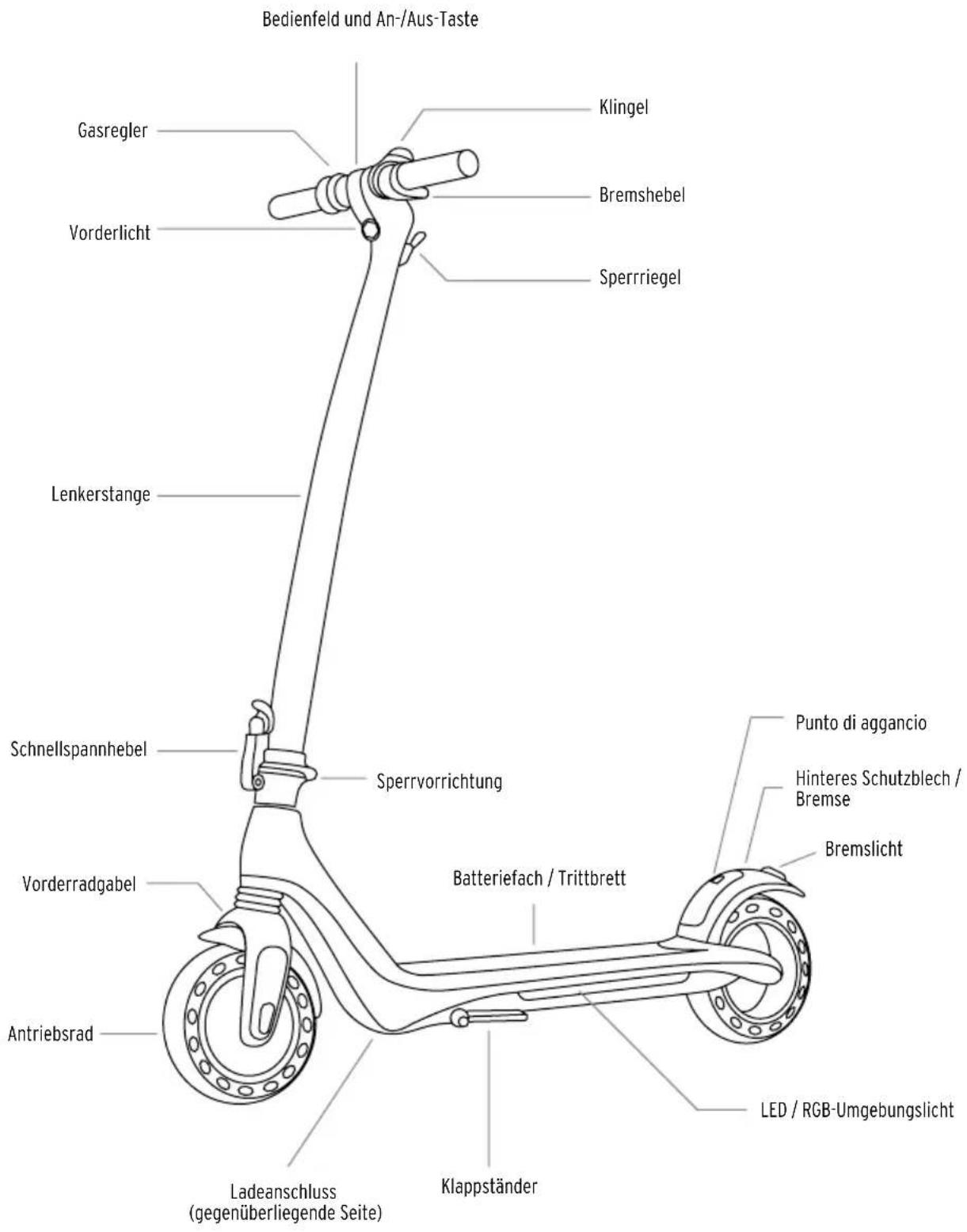

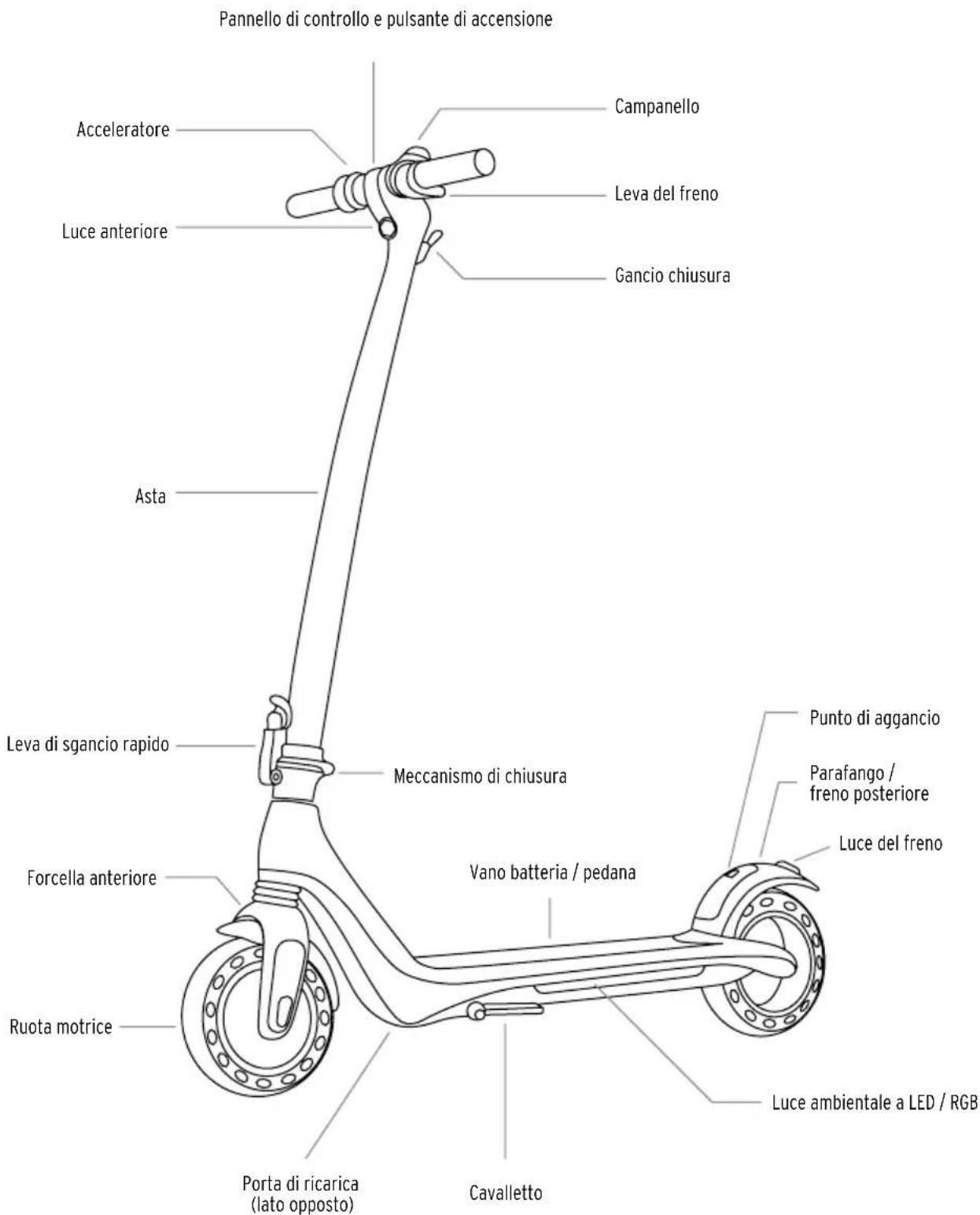

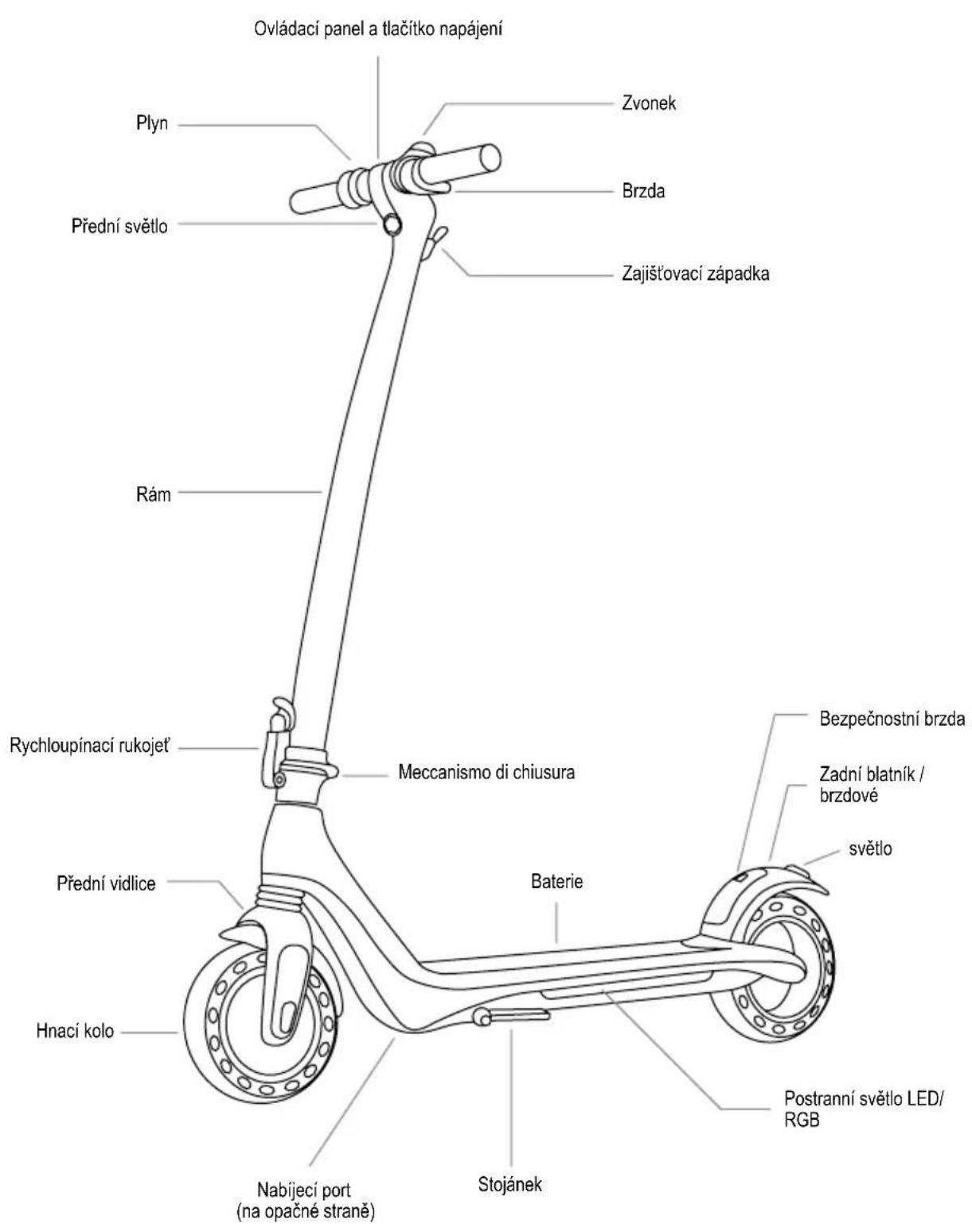

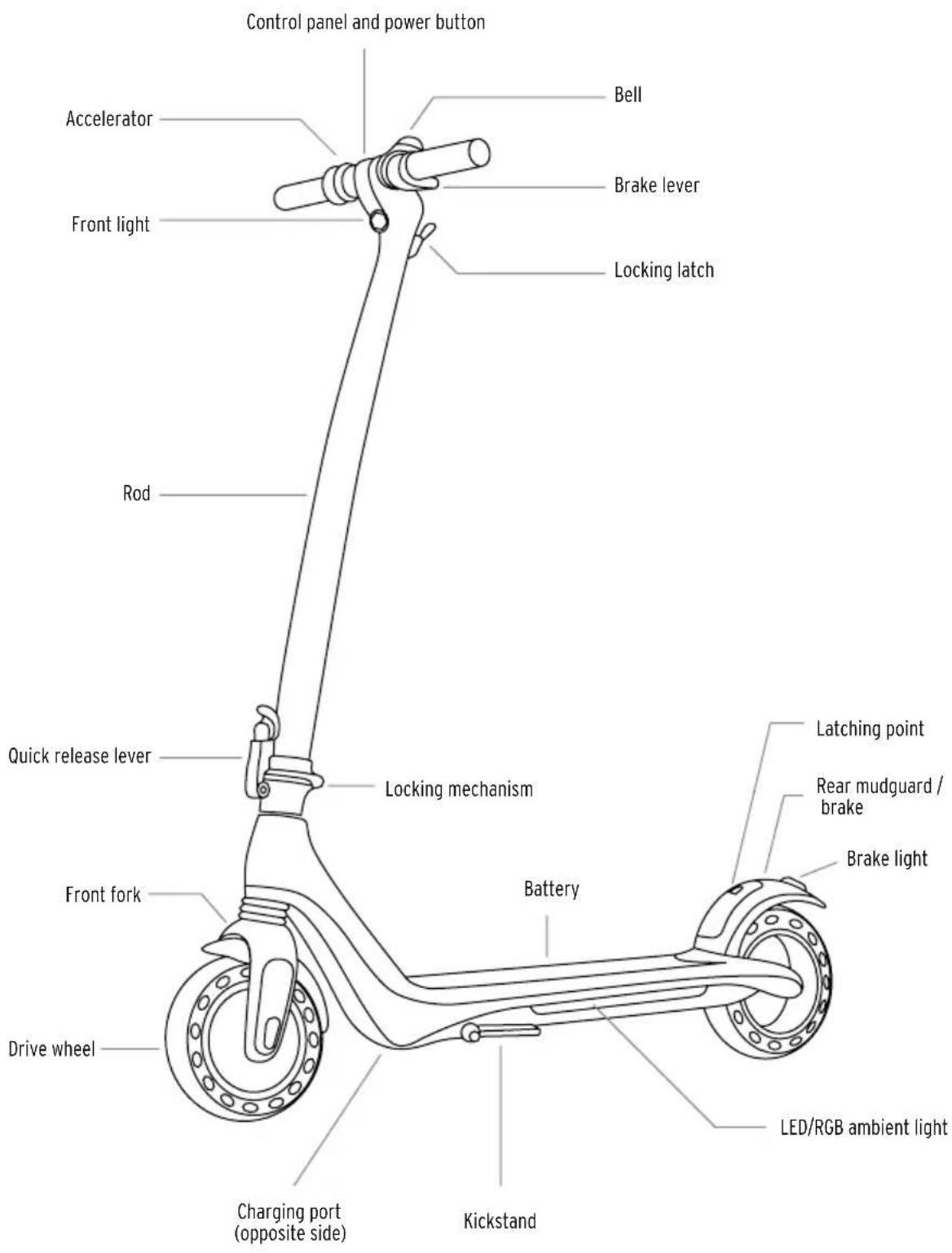

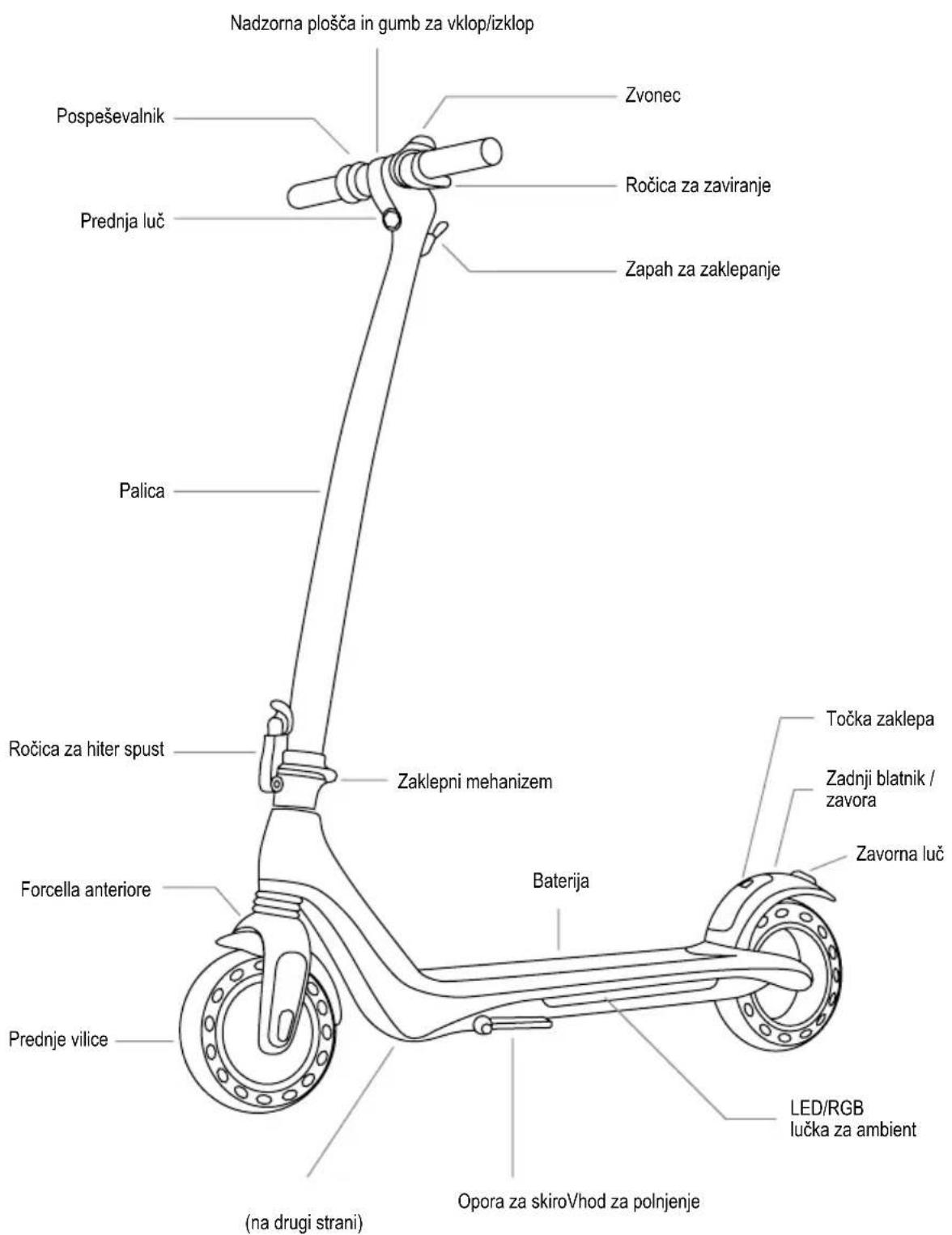

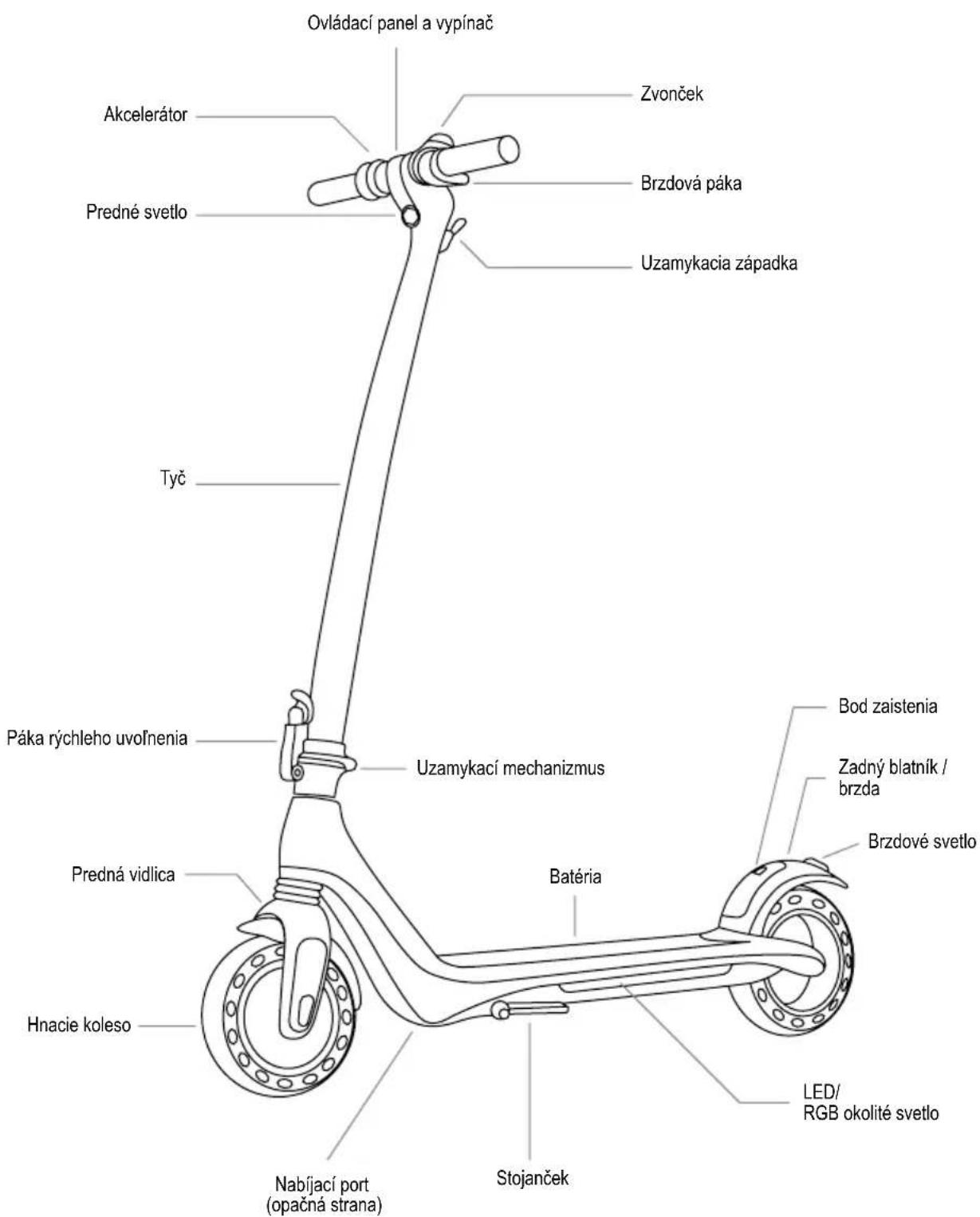

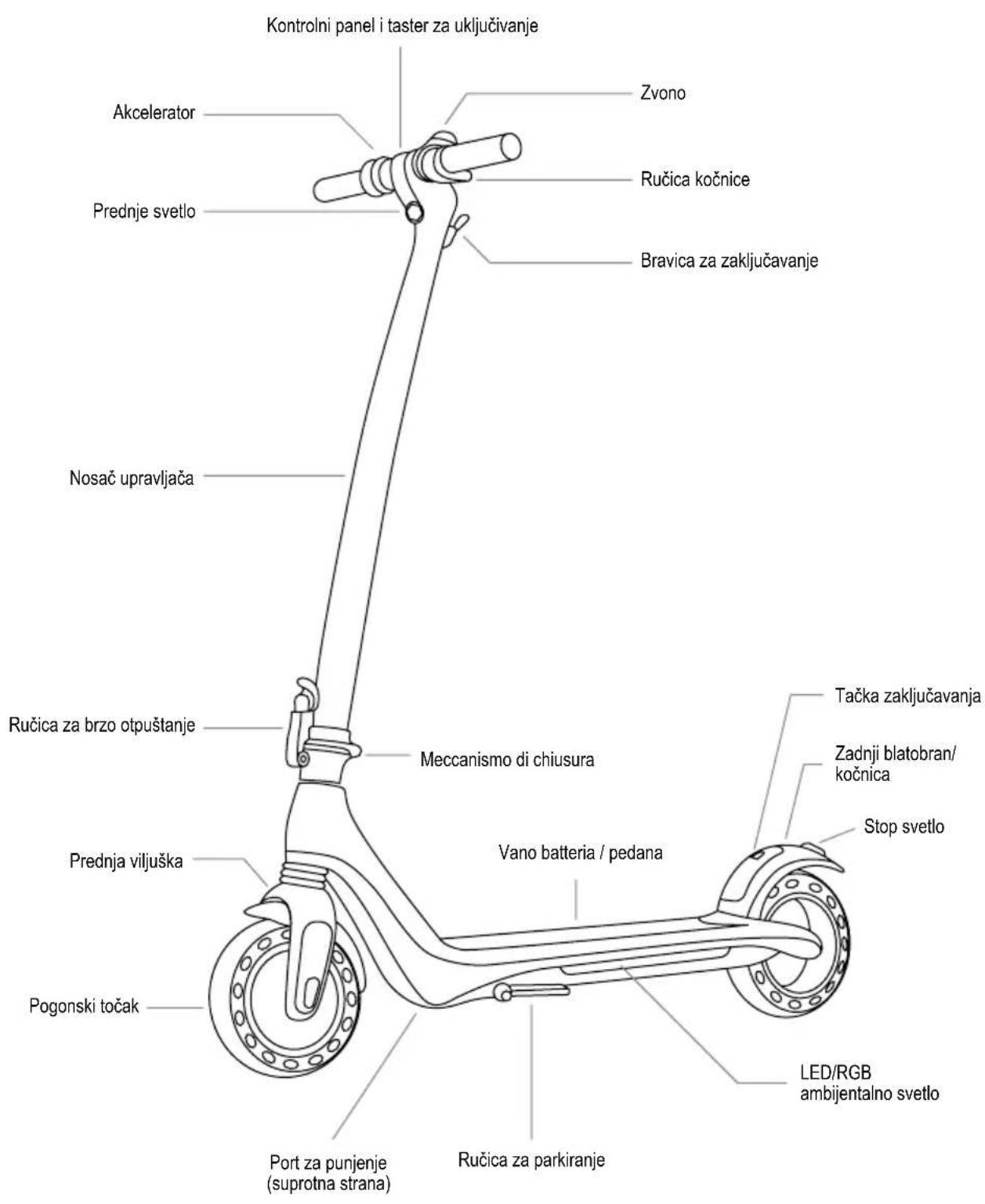

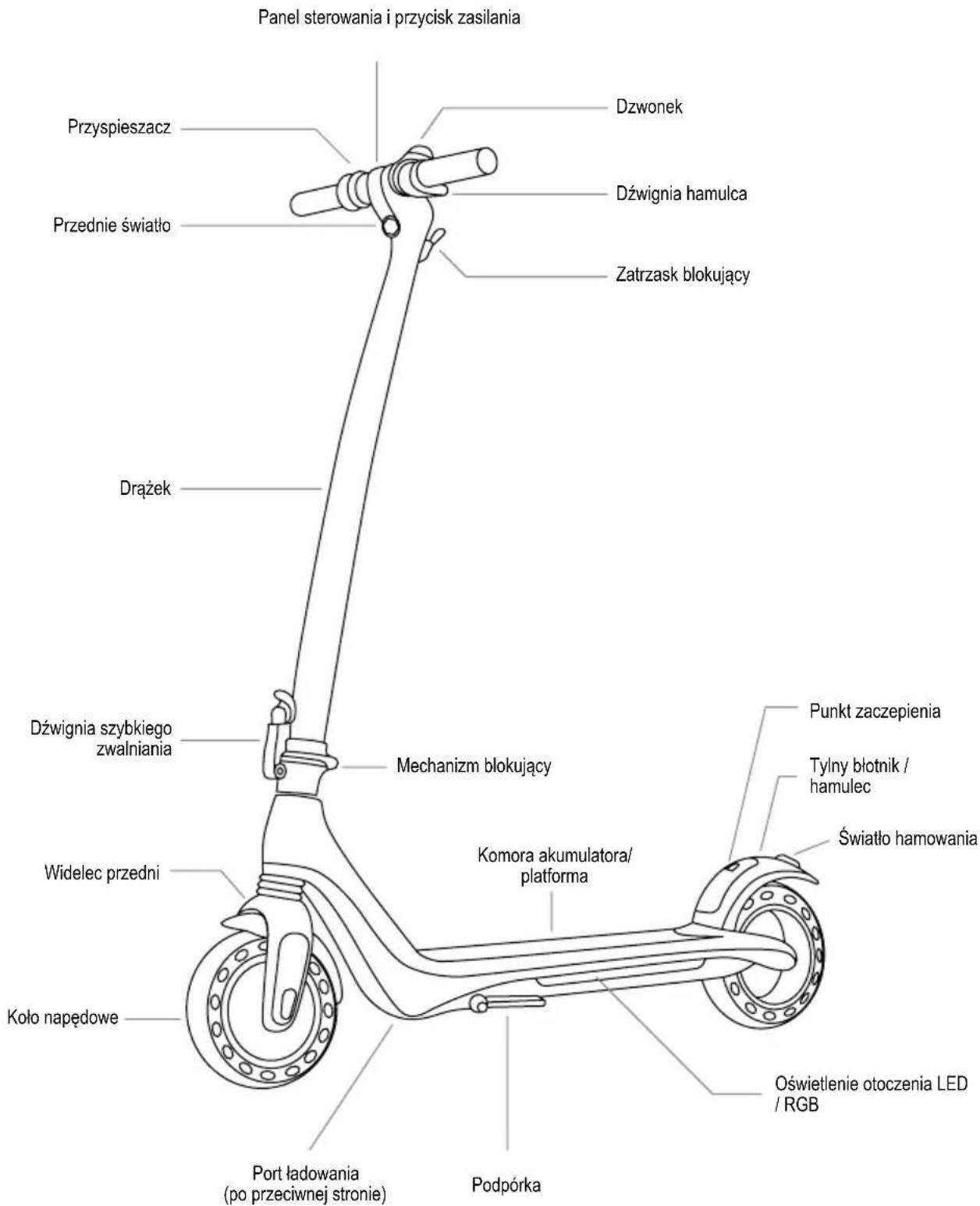

2. PRODUCT OVERVIEW

Control panel and power button Accelerator Front light Rod Quick release lever Front fork Drive wheel Charging port (opposite side) Battery Locking mechanism Locking latch Bell Brake lever Latching point Rear mudguard / brake Brake light LED/RGB ambient light Kickstand

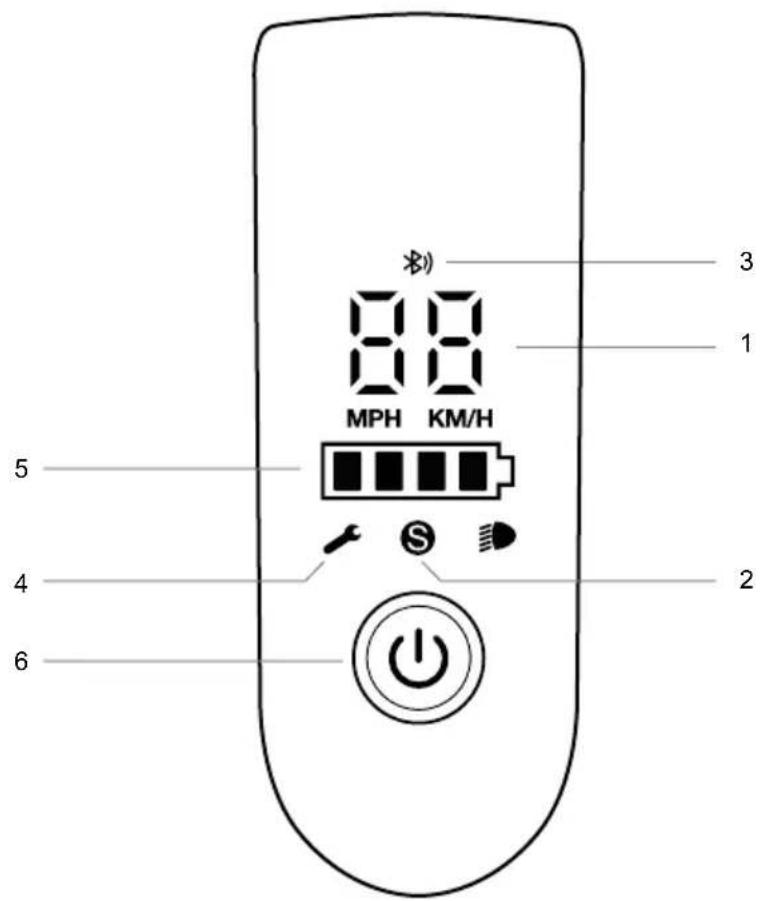

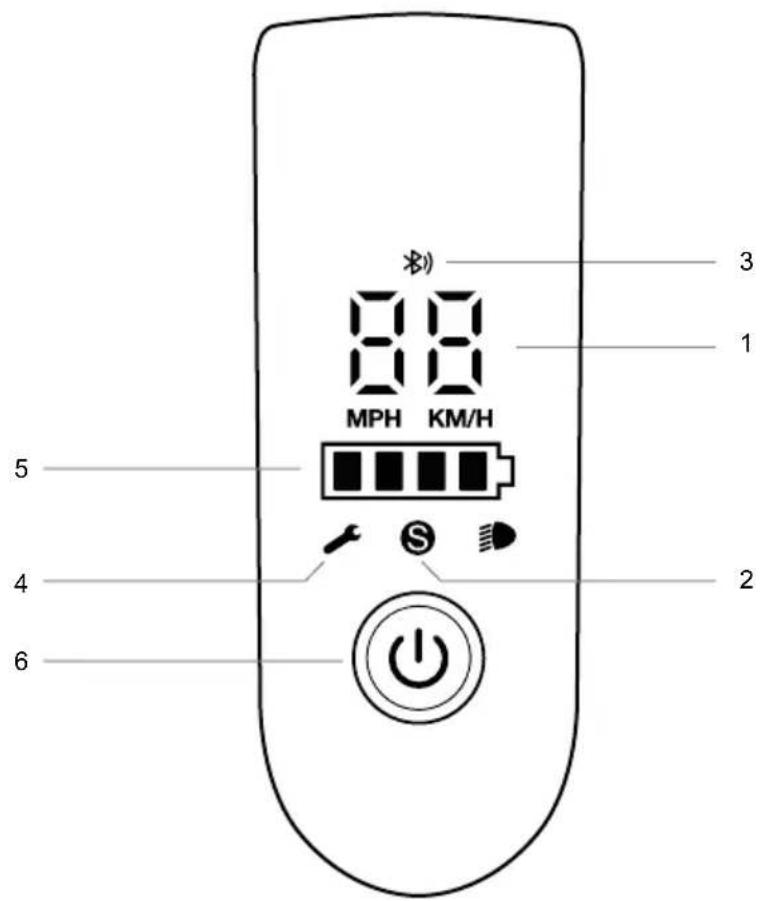

CONTROL INFORMATION / CONTROL PANEL

MPH KM/H 3 1 5 4 2 6

1. Speedometer: displays the current speed of the electric scooter.
2. Modes: there are three driving modes available. "S Black" indicates Energy Saving mode (maximum speed 6 km/h, ideal for beginners), "S White" indicates Standard mode (maximum speed 15 km/h), and "S Red" indicates Sports mode (maximum speed 25 km/h, powerful, only recommended for experienced riders).
3. Bluetooth: the icon indicates that the scooter is connected with the mobile device.
4. Error: the spanner-shaped icon indicates that the scooter has detected an error.
5. Battery level: the battery level is indicated by five bars, each representing approximately 20% of the battery.
6. Power button: press the button to turn the electric scooter on; to turn it off, press and hold the button for three seconds. After switching on, press the button twice consecutively to turn the headlights on/off and press once to switch from one mode to another.

3. ASSEMBLY AND CONFIGURATION

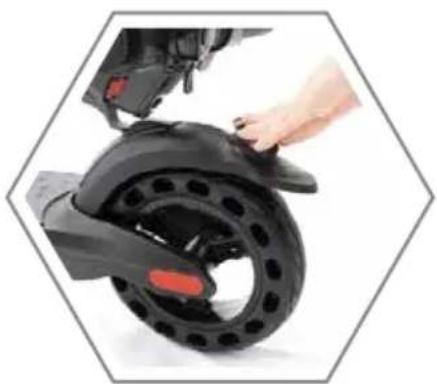

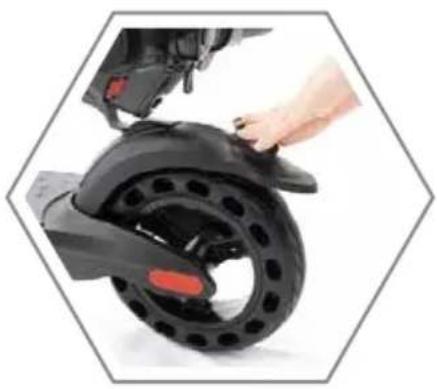

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

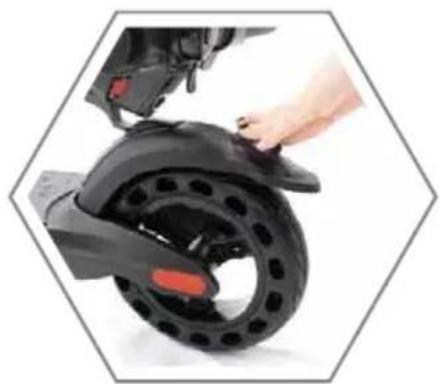

Release the rod by applying pressure to the mudguard

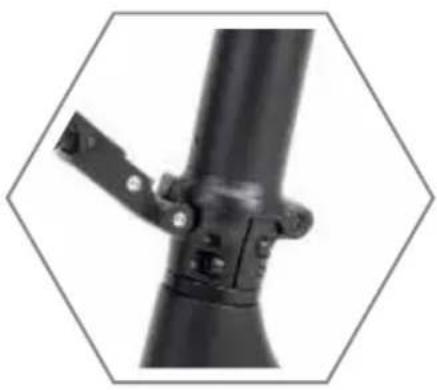

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Put the handlebar rod upright

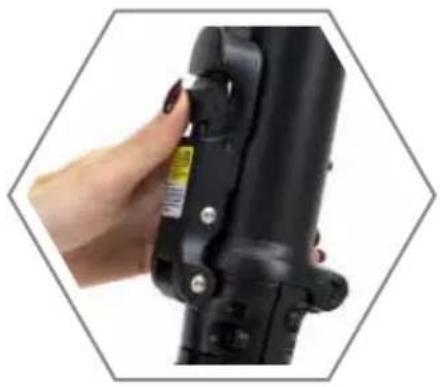

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Fix it as shown in the picture

After assembly, press the power button to check that the electric scooter is working properly.

Simple line drawing of a remote control with a power button (no text or symbols)

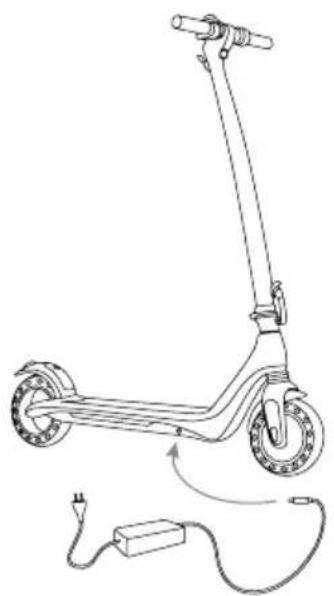

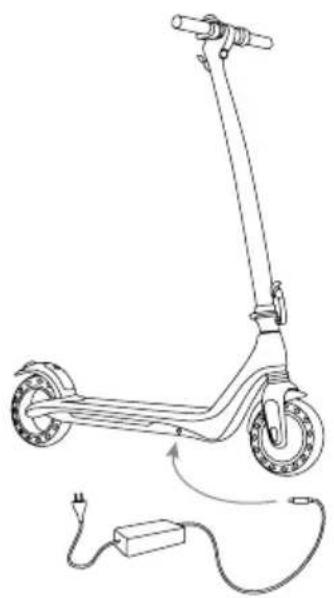

4. CHARGING

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure electrical circuit lines without any symbols

ift the rubber cap

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Insert the power supply into the charging port

Pure geometric diagram of a hexagonal frame with internal lines and a central circular feature (no text or symbols)

When charging is complete, replace the rubber cap

5. APP CONFIGURATION

What can you do with the AL E-MOBILITY APP?

• Start a self-diagnosis
• Set the driving modes
• Set the speed unit of measurement (km/mph)
• Set the start mode
• Set the Cruise Control function
• Set the LED ambient light colour (RGB)
  • View the partial and total kilometres travelled
  • View the remaining battery level
• Display cruising speed
• Display speed modes
  • Display the temperature of the driving wheel

Access the preferred app store to download and install the AL E-MOBILITY APP

AL EMOBILITY

Download on the App Store GET IT ON Google Play

1. Download the app on the smartphone;
2. Turn on the e-scooter and activate the Bluetooth function on the smartphone;
3. Start the app and log in*, connect your smartphone to the electric scooter via Bluetooth within 1-2 metres;

*If this is your first time using this app, fill in the "e-mail" field to register and authenticate by using the verification code.

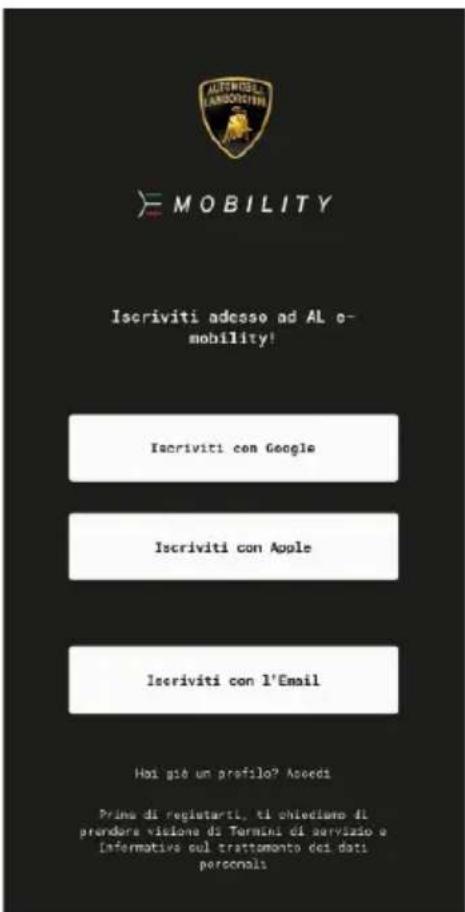

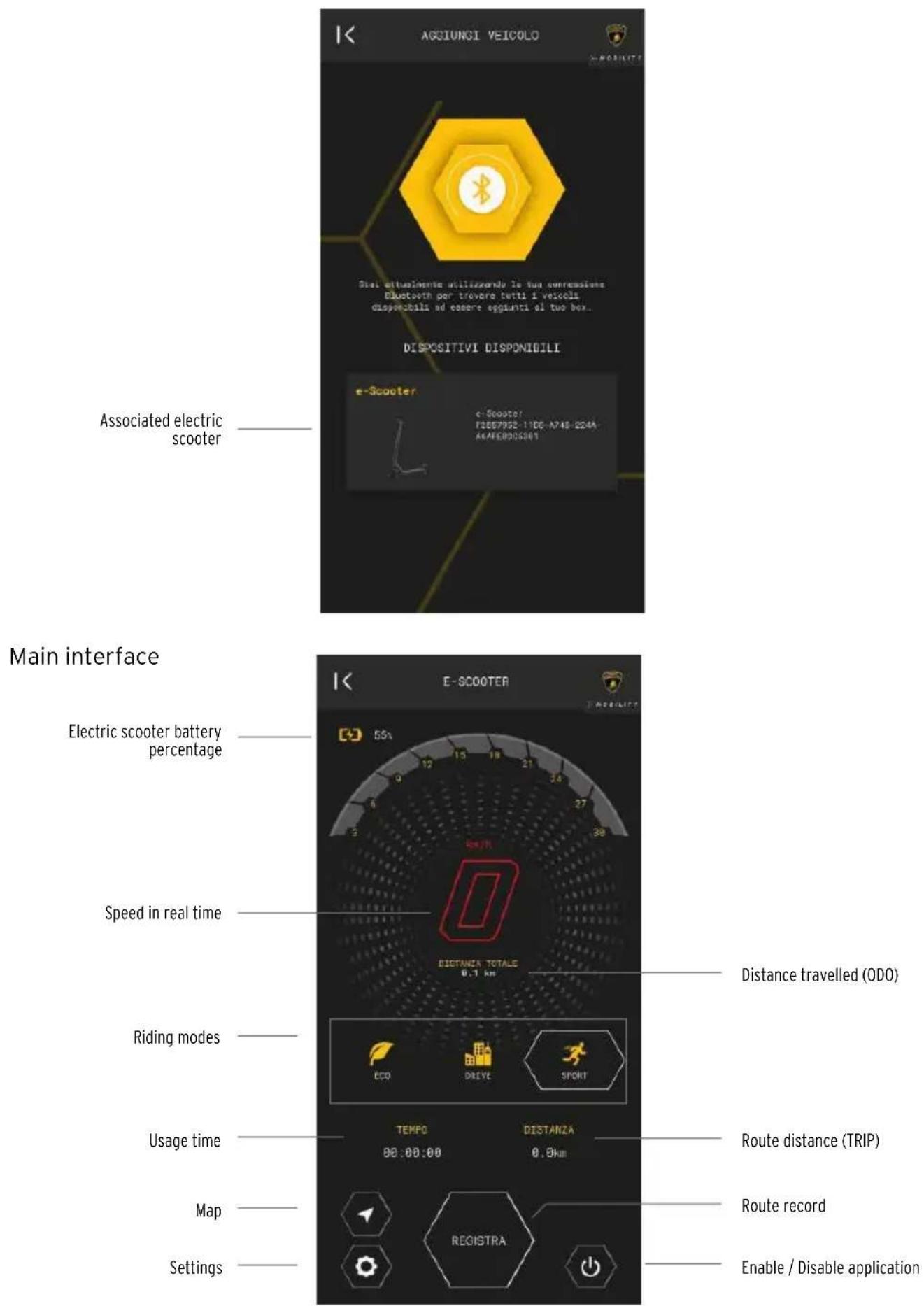

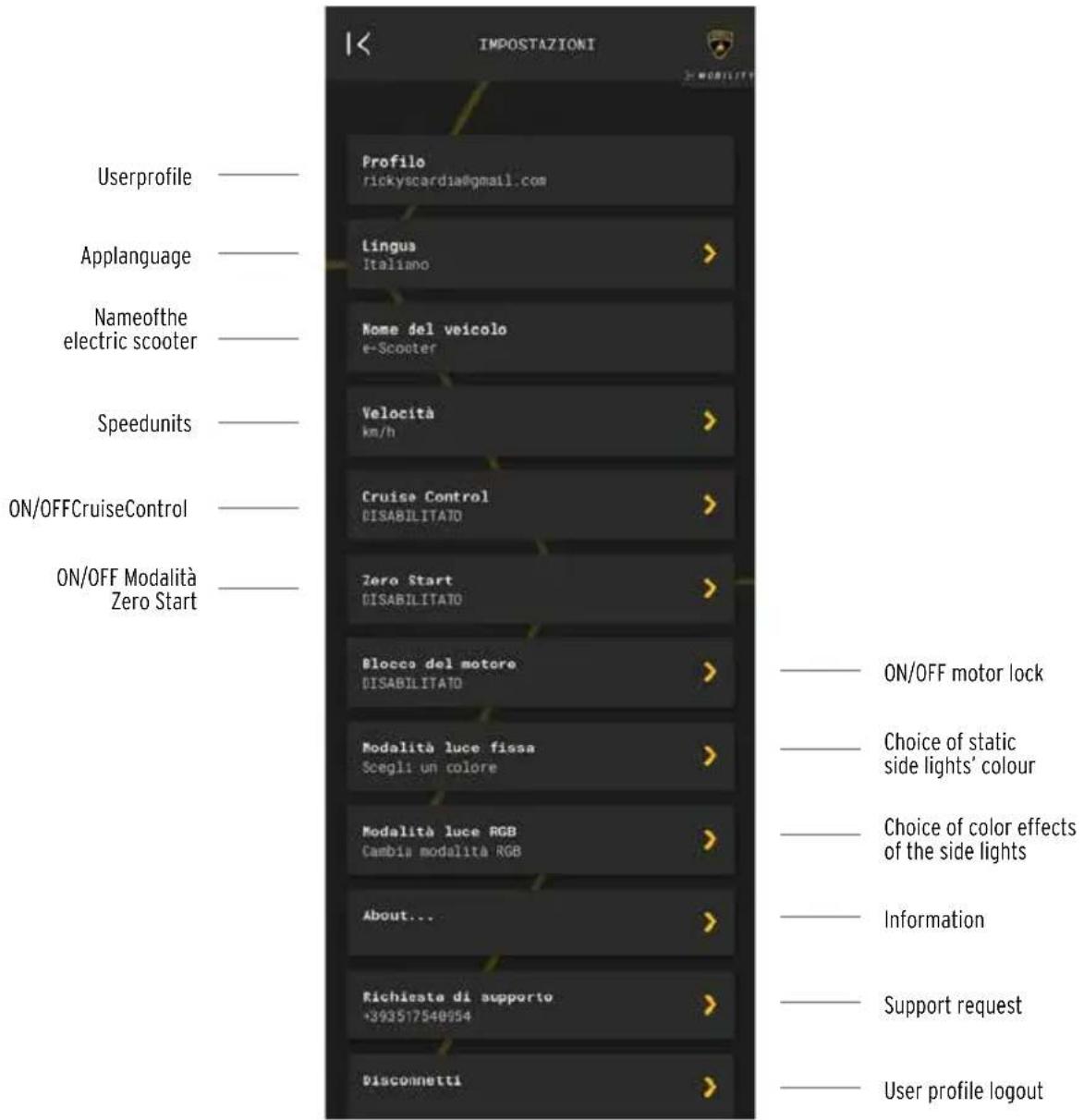

The app's interface appears as follows:

The app's interface with associated electric scooter appears as follows:

The app's interface with associated electric scooter appears as follows:

Activate the "Cruise Control" function in the app, keep the electric scooter at a constant speed (> 8 km/h) and hold down the accelerator lever (right) for five seconds. An acoustic signal will indicate that "Cruise Control" is active, meaning it will not be necessary to keep the accelerator lever (right) held down. Press the accelerator lever or brake lever again to deactivate the function.

Information on the "Zero Start" mode:

The Zero Start mode, if activated, allows you to start the electric scooter by operating the accele- rator without having to push off with the feet.

6. HOW TO RIDE THE ELECTRIC SCOOTER

Two simple line drawings of medical or surgical tools, one showing a cross-sectional view and the other a close-up of a device (no text or symbols)

ollow the safety instructions before riding the electric scooter.

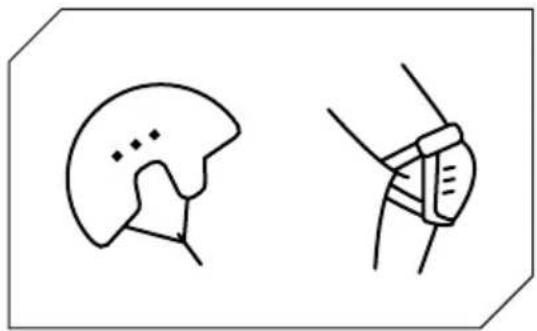

Use approved equipment such as helmets and knee pads.

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Do not use the electric scooter in the rain.

Simple line drawing of two figures standing on a platform with directional arrows (no text or symbols)

The electric scooter cannot be used by more than one person at a time.

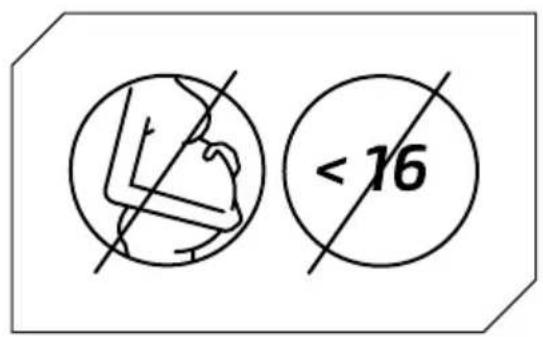

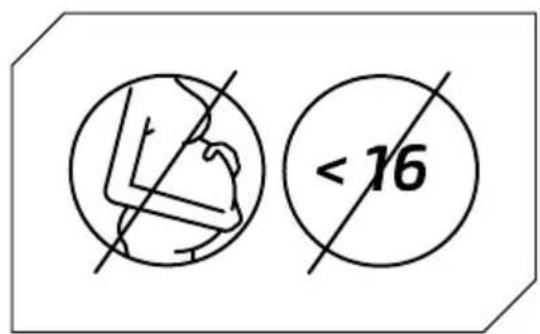

< 16

Children under the age of 16 and pregnant women should not use this electric scooter.

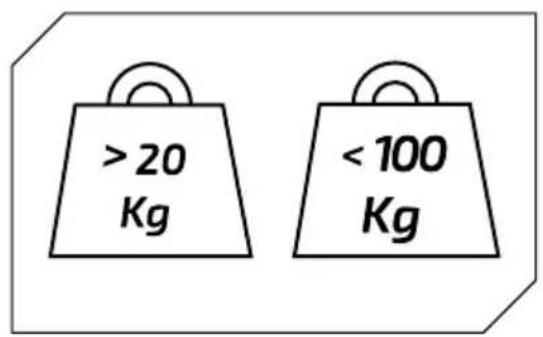

>20 Kg < 100 Kg

Minimum weight allowed on the electric scooter: 20 kg.

Maximum weight allowed on the electric scooter: 100 kg.

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Do not ride the electric scooter if you have been drinking alcohol and/or taking medicines.

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

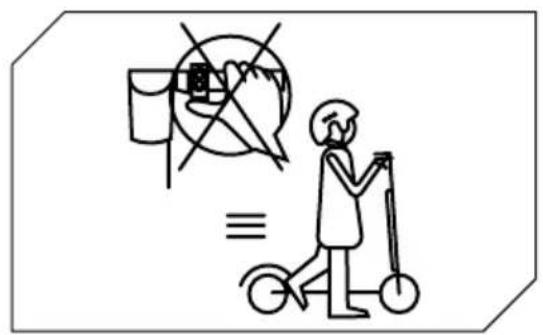

Do not use your phone or listen to music while riding the electric scooter.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

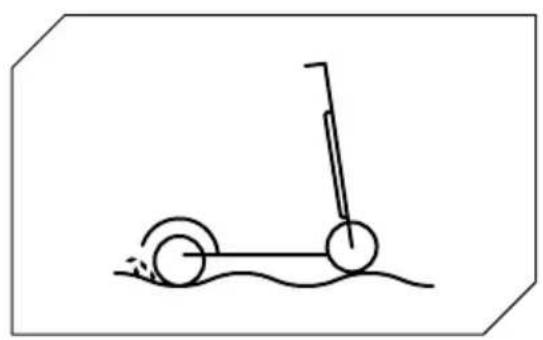

Pay particular attention if you are riding where there are road bumps, sand, puddles, frost, snow or steps, or in dark places and at night or in wet conditions.

Warning symbol with flame inside triangle, indicating safety hazard

Do not use the electric scooter in dangerous areas, in the presence of flammable and/or explosive substances, liquids and/or dirt.

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

This electric scooter is not designed to be ridden on roads and motorways.

To find out where the electric scooter can be ridden, consult the legislative decree in force in the country concerned.

Pure electrical circuit lines without any symbols

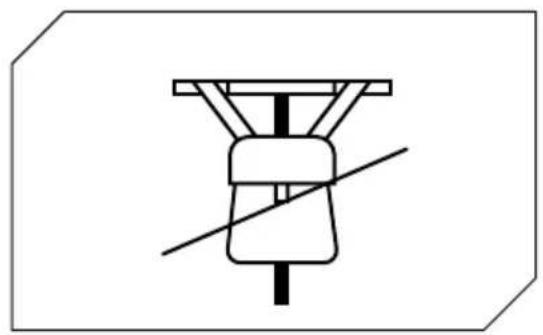

Do not place heavy objects on the handlebar.

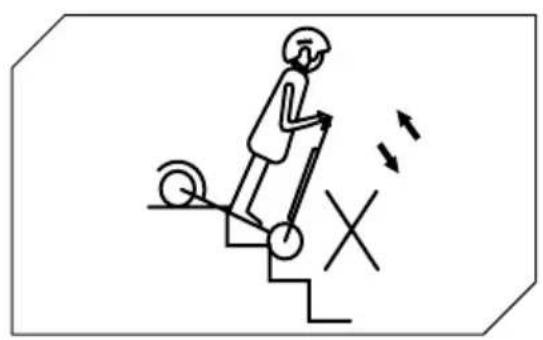

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Avoid going up or down steps with the electric scooter.

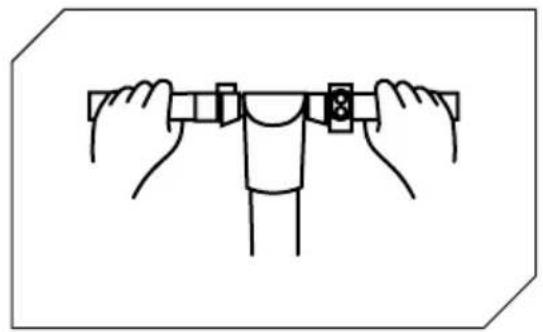

Illustration of two hands holding a tool with a square and cross mark (no text or symbols)

Always ride with both hands on the handlebar.

Simple line drawing of a person using a mobility device (no text or symbols)

Do not ride on the electric scooter standing on just one foot.

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out by a crossed-out device.

Do not press the accelerator when walking with the electric scooter.

Simple line drawing of a person using a mobility device with no text or symbols

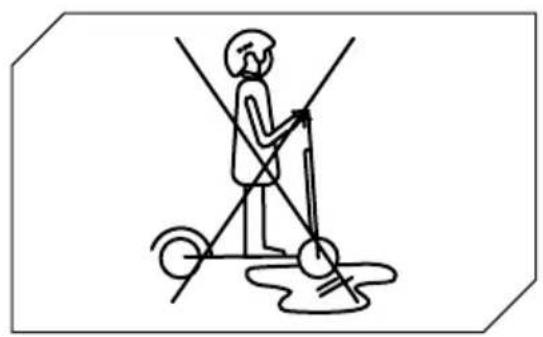

Do not ride the e-scooter in puddles or on wet surfaces.

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Pay attention to your head when passing under canopies, doors and the like.

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

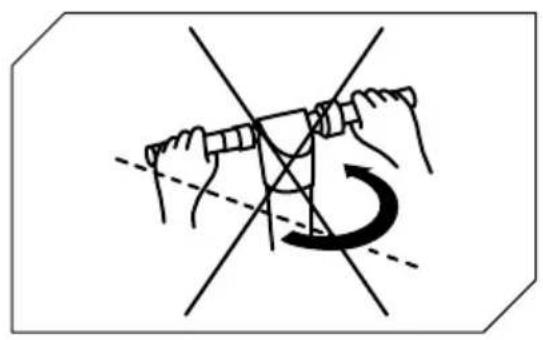

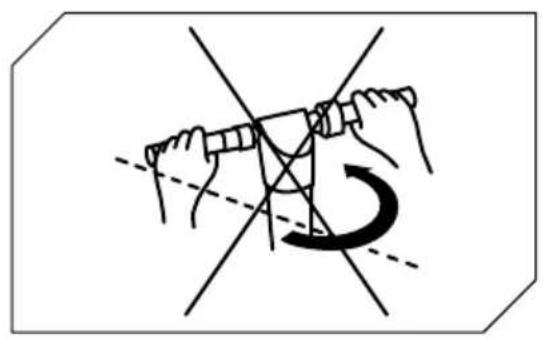

When riding at the highest permitted speed, do not turn the handlebar abruptly.

Illustration of a person using a scooter with a thought bubble showing a device, no text or symbols present

Start braking sufficiently far away to avoid obstacles, bends and areas with uneven surfaces. Remember to release the accelerator before braking.

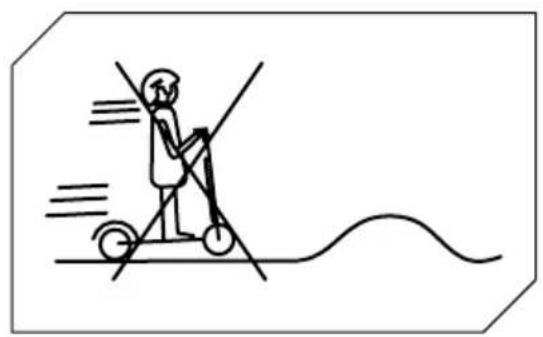

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Do not travel at the highest speed allowed, on obstacles such as steps, borders or bumps.

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

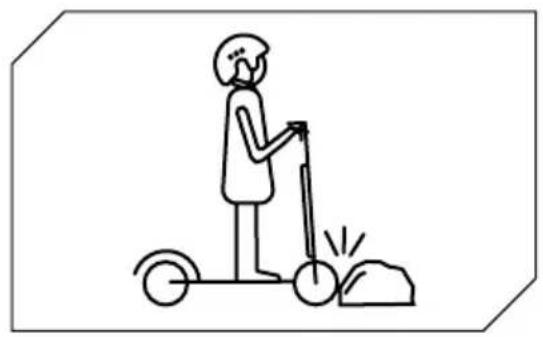

Do not hit obstacles with the wheels.

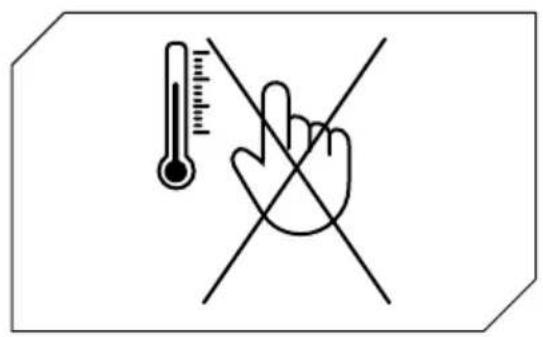

Safety warning symbol showing thermometer and hand crossed with a cross, indicating incorrect thermal resistance.

Do not touch the motor immediately after riding, it could be extremely hot.

5m

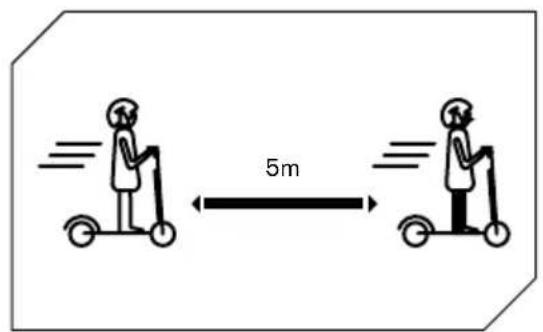

Maintain a minimum safety distance of 5 m from other vehicles.

For your own safety, wear a helmet and knee pads to protect yourself from any falls and injuries.

The rider assumes all risks for not wearing a helmet or other protective gear.

• When you use it for the first time, charge the e-scooter to 100% . Check the battery indicator; if the battery is low, recharge it before use. The e-scooter is a device that requires periodic recharging in order to function.
• Place the electric scooter on a flat surface.

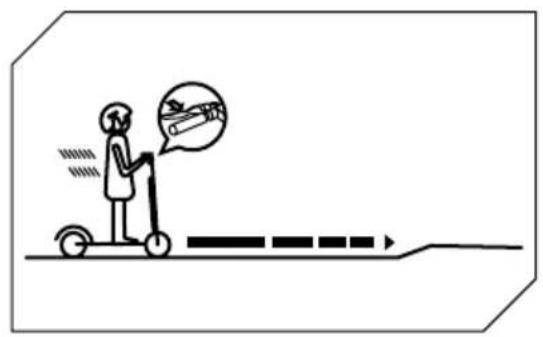

• Put your hands on the handlebar. Step onto the footboard with one foot and use the other to give yourself a gentle push off.

For safety reasons, the electric scooter is initially set up to avoid a standing start.

• When the electric scooter begins to move, place both feet on the footboard and press the accelerator. Note: the accelerator is activated once the forward speed exceeds 3km / h .
• To ride the electric scooter, tilt your body in the direction of travel when turning and slowly turn the handlebar.
• To stop the electric scooter, release the accelerator, press the electronic brake on the left hand side of the handlebar and if necessary press the rear mudguard with your foot.
• Before getting off, bring the electric scooter to a complete stop. Trying to get off the electric scooter while it is in motion can cause injury.
• When changing mode, single click the power button to change the speed mode.
• When driving at night or in dark places, double click the power button to turn on the lights, and wear a reflective vest.

7. BRAKES

The electric brake lever is located on the left-hand side of the handlebar. The electric scooter is also equipped with a foot brake on the rear mudguard. When driving on a slippery road and/or while turning, it is recommended to use the brake with caution, otherwise you may lose control of the electric scooter and fall off. As with other vehicles, higher speeds require longer braking distances. Sudden braking on low-grip surfaces could cause an accident.

Be careful and always keep the necessary safety distance from other people and/or vehicles while riding.

8. RANGE

Maximum range depends on several variables:

Terrain: the range is greater when riding on a smooth surface than when driving on bumpy roads and slopes.

User weight: the heavier the user, the shorter the range.

Temperature: riding the electric scooter in a very cold or very hot environment affects and reduces the range.

Speed and riding style: riding smoothly and at a constant speed extends the range. Acceleration and manoeuvring significantly reduce the range. A lower speed extends the range.

Maintenance: timely recharging and correct maintenance increase the range.

9. STORAGE AND CLEANING

Charge the scooter 50% - 60% before storing it out of season or for extended periods. Recharge it to 50% - 60% every 30 days. If not used daily, it is advisable to store the electric scooter at 15-25°C. Do not expose the electric scooter to low (below 0°C) or high (over 45°C) temperatures. Avoid leaving it out of doors, as it is not water-resistant.

When the scooter gets dirty, clean it with a damp cloth. Before cleaning it, make sure the electric scooter is turned off and cover the charging port to prevent damage to the electronic components. Do not use alcohol, petrol, kerosene or other corrosive and volatile chemical solvents. This can damage both the appearance and the internal structure of the electric scooter. Do not use pressurised water jets or running water for cleaning. The electric scooter is not waterproof.

Do not expose it to rain or water, or immerse it in water to wash it.

10. SAFETY INSTRUCTIONS

• This electric scooter is a motor vehicle. Mastering riding it requires practice.
• This product is an electric scooter for adults. Use is limited to just one person at a time. Do not carry other people at the same time. Children under 18 should use it only under adult supervision. Riding is not permitted for children under 16.
• When riding the electric scooter, wear a safety helmet and other protective equipment.
• Do not ride the electric scooter in unsafe places or in breach of the regulations of the respective government.
• Do not make dangerous movements or ride with one hand; keep your feet on the footboard. Do not turn off the power while the electric scooter is running.
• Before riding, check if fasteners are loose and/or any components are damaged. In this case, it is advisable not to use the product. If this electric scooter emits abnormal sounds or alarms, stop riding immediately and contact your local service centre.
• Do not attempt to climb steps with a gap greater than 3 cm, as this could cause the electric scooter to overturn, resulting in injury to the rider or damage to the vehicle. Avoid steps under 3 centimetres as much as possible.
• In the event of rough or bumpy road conditions, slow down or get off. Do not ride the electric scooter on slippery surfaces, such as in the presence of oil or ice.
• Do not use this product in an environment with a temperature below 0^ .
• Do not immerse the product deeper than 3 cm to avoid damage to the electrical part of the vehicle.
• Avoid driving in bad weather, such as rain, snow, strong winds, etc., so as not to cause damage from environmental factors.
• Only MT Distribution approved parts and accessories may be used. Do not modify the electric scooter. Modifying your electric scooter can affect its operation, causing serious injury and/or damage and compromising your warranty.
  Contact the service centre at www.alemobility.com if you need any spare parts.

11. BATTERY (WARNINGS)

Make sure the electric scooter, charger and charging port are dry.

When the electric scooter is fully charged, the LED light on the charger changes from red (charging) to green (charging completed).

Use only the original charger. Other chargers may damage your device and pose other poten- tial risks.

The electric scooter should not be charged for extended periods. Overcharging reduces battery life and may cause other potential risks.

Charge the electric scooter in a dry environment away from flammable materials (e.g.

materials that could burst into flames), preferably at an internal temperature of 15-25°C, but never below 0°C or above +45°C.

Do not charge in direct sunlight or near a fire.

Do not charge the electric scooter immediately after use. Let the electric scooter cool down for one hour before charging.

Never leave the electric scooter unattended while charging. Thermal risk: never connect the charging socket with metal objects.

Read the charging and storage sections above to ensure you maintain and handle the battery properly. Keep the electric scooter away from open flames or other heat sources to prevent the battery from overheating. Do not leave the electric scooter exposed to freezing temperature. Both excessive heat and cold can drain the battery.

Avoid completely discharging the battery.

It is best to recharge the battery while there is still some charge left. This prolongs the life of the battery. When the charge is too low, it is not possible to drive normally. This may lead to the rider losing control or falling off.

Make sure the battery is charged at regular intervals, even if you do not use the electric scooter for an extended period. This prevents damage to the battery caused by low voltage over an extended period.

Battery precautions:

The battery is made up of lithium-ion cells and chemical elements that are hazardous to health and the environment. Do not ride the electric scooter if it is emitting odours, substances or excessive heat. Do not dispose of the electric scooter or battery with household waste. The end user is responsible for disposing of electrical and electronic equipment and batteries in compliance with all applicable regulations in the country concerned..

What to avoid:

• Opening, dismantling, hitting, throwing or piercing the battery or attaching objects to it.
• Touching any substances leaking from the battery, as it contains hazardous substances.
• Letting children or pets touch the battery.
  • Over-charging, over-discharging or short-circuiting the battery.
• Immersing or exposing the battery to water or other liquid.
• Exposing the battery to excessive heat or cold.
• Exposing the battery to an environment containing explosive gases or flames.
  • Leaving the battery in rain or direct sunlight or in a hot car in direct sunlight.
• Reassembling or refitting the battery.
• Carrying or storing the battery together with metal objects such as hairpins, necklaces, etc.
• Riding the electric scooter while charging.
  • Using any charger other than the original.

12. RESPONSIBILITIES

The rider is obliged to use the electric scooter with the utmost diligence and in full compliance with current legislation regarding the use, operation and riding of the electric scooter which, merely by way of example, is set out in Italian Legislative Decree no. 285/1992 ("Highway Code").

The rider is also obliged to keep the electric scooter clean and in a perfect state of efficiency and maintenance, to diligently carry out the safety checks under their responsibility, as described in the warnings and recommendations section, and to keep all the documentation regarding the maintenance of the electric scooter.

The rider must carefully evaluate atmospheric conditions that could make it dangerous to use the electric scooter. To this end, we recommend moderating your speed and maintaining an adequate braking distance if you are in adverse weather conditions and/or in the case of heavy traffic.

The electric scooter can only be ridden by riders at least 16 years old. Children under 18 are required to wear a suitable protective helmet. For children under the age of 18, it is advisable to use the electric scooter under adult supervision.

In the event of product malfunction for reasons not attributable to incorrect rider behaviour, please contact the support centre on the website www.alemobility.com

13. FOLDING, TRANSPORT AND OPENING

The electric scooter must be turned off before being folded up.

Folding

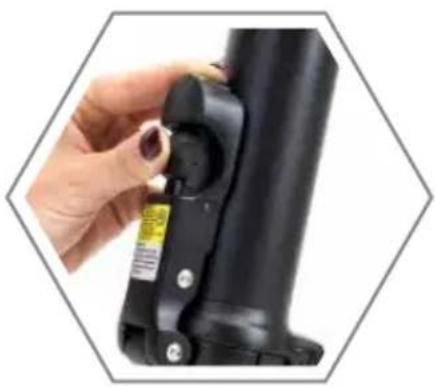

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Press the button located on the lever

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Release the rod by pulling the lever outwards

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Align the latch on the mudguard with the attachment point and connect

Transport

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Hold the handlebar rod with one hand or both hands.

Opening

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel and battery components (no text or symbols visible)

Release the rod by applying pressure to the mudguard

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Put the handlebar rod upright

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Close the quick release lever

14. DAILY MAINTENANCE AND CARE

Cleaning and storage:

If there are stains on the body of the electric scooter, wipe them off with a damp cloth. If stains persist, put toothpaste on them, brush with a toothbrush, then wipe with a damp cloth. If there are scratches on the plastic components, use sandpaper or other abrasive material to remove them. Notes: do not clean the electric scooter with alcohol, petrol, kerosene or other corrosive and volatile chemical solvents, to avoid serious damage. Do not wash the electric scooter with high-pressure water jets.

When cleaning, make sure the electric scooter is turned off, the charging cable disconnected and the rubber cap closed, as a water leak could cause an electric shock or other serious problems. When the electric scooter is not in use, store it indoors in a cool, dry place. Do not store it outdoors for an extended period of time. Excessive sunlight, overheating and excessive cold accelerate tyre ageing and compromise the life of both the electric scooter and the battery.

Battery maintenance:

1. Do not use batteries of other models or brands, as they may pose a safety risk.
2. Do not disassemble, crush or puncture the product. Do not touch the battery contacts. Do not dismantle or puncture the outer casing. Avoid letting the product come into contact with water and fire and do not expose it to temperatures above 45^ C (including heat sources such as stoves, heaters, and so on). Avoid contact between metal objects and battery terminals to prevent short circuits, physical harm or death.
3. Water seeping into the battery can cause damage to internal circuits and risk of fire or explosion. If you are not sure if water has infiltrated the battery,

discontinue use of the electric scooter immediately and return it to the after-sales service at your dealer for inspection.

1. Use only the original charger to avoid potential damage or fire.

2. Improper disposal of used batteries seriously pollutes the environment. Observe the regulations of the country concerned regarding the disposal of batteries, to protect the environment.

3. After each use, fully recharge the battery to extend its useful life. Do not store the battery in an environment where the temperature is above 45^ C or below 0^ C (for example, do not leave the electric scooter or battery in a car in direct sunlight for an extended period of time). Do not throw the battery into flames as this could lead to failure, overheating and even a fire. If you do not plan to use the electric scooter for more than 30 days, recharge the battery to 50/60% and store it in a cool, dry place. Remember to recharge it every 60 days to protect it from any damage excluding it from the limited warranty. Always recharge the battery before it runs out to extend its useful life.

If the battery is not recharged periodically or if the electric scooter is not recharged after the last use, there is a risk of irreversible damage to the battery. This damage is not covered by the limited warranty. Dismantling the battery is prohibited and qualified personnel should be consulted as this could result in electric shock, short circuits or even major safety incidents.

15. TECHNICAL SPECIFICATIONS

Basic info

Frame	Magnesium alloy
Suspension	Front suspension
Speed	ECO: <= 6km/h | D:<= 20km/h | S: <= 25km/h (max speed)*
Maximum gradient	12%
Brakes	Dual brake: electric brake and mechanical brake
Motor	350W
Tyres	8"front and rear honeycomb tyres
Low voltage protection	31V +/- 0.5V
Current limit	13A
Engine type	Brushless
Maximum load	100kg
Safety information	16+ yo / 130-200 cm height max, recommended use with helmet and protection
Working Temperature	0°C / 45°C
Level of protection	IPX5
Charging time	Approximately 3/5 hours
Range	25-30 km (travelling at an average speed of 20 km/h subject to variations based on the rider's weight, road conditions, temperature, etc.)

*In Switzerland, speed limits are 6-15-20 km/hr, as per current legislation.

Electric sistem

Engine	350W Brushless
Brake	Front electric
Display	Smart display with speed, distance, battery power, fault alarm and error code
Battery	36V 7.8Ah 280Wh
Lights	Headlight / taillight / LED side light
Charger	EU Standard DC 2.1 Charger, 42V 2A
App/Bluetooth	Android / iOS

Dimensions and Weights

Net weight	13kg
Gross weight	15kg
Unit size	1180 x 530 x 1160mm

16. TROUBLESHOOTING

Tests to be carried out:

• After a fall, check that the accelerator lever works properly. To do this, accelerate and decelerate several times.
• Check from time to time that the brakes are working properly. To do this, move the electric scooter by pushing it manually and brake suddenly to make sure it re sponds to the command.
• Check that all the components of the electric scooter are in place and securely fastened.
• Check the wear of the tyres.

Error	Cause	Solution
The motor is not running	The battery is dead	Charge the battery
	Electrical problem	Request technical support from your dealer
The motor stops while it is running	Motor overheating	Release the accelerator and wait for it to cool
After it has been charged, the vehicle turns itself off	The battery is damaged	Request technical support from your dealer
The vehicle stops suddenly while it is running	Damaged power cables and controls	Request technical support from your dealer
The battery does not charge or the scooter does not turn on	Connection problems	Request technical support from your dealer
	Damaged/dead battery	Request technical support from your dealer
	Problems with the charger	Request technical support from your dealer

If necessary, contact technical support on the website www.alemobility.com

17. ERROR CODE TABLE

Error Code	Indications
E.0	Brake failure
E.1	Accelerator failure
E.3	Connection failure
E.4	Motor failure
E.5	Motor cable failure
E.6	Control unit failure
E.7	Overcharge
E.8	Power supply failure

WARNING:

Excessive discharge protection

The electric scooter in an excessive discharge protection state must be reactivated by charging. If the electric scooter remains off after charging for half an hour, contact your dealer for assistance.

Check the battery charge level with the vehicle stationary.

Disposing of electrical or electronic devices at the end of their life (applicable in all European Union countries and in other European systems with separate collection systems)

Simple line drawing of a trash bin with no text or symbols

This symbol on the product or packaging indicates that the product should not be considered as normal household waste, but instead taken to an appropriate collection point for recycling electrical and electronic equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate disposal. Recycling materials helps to conserve natural resources.

For more detailed information about recycling this product, you can contact the municipal office, the local waste disposal service or the point of sale where the product was purchased.

Specifically, consumers must not dispose of WEEE as municipal waste, but dispose of it separately, in two possible ways:

1) At municipal collection centres (also called eco-stations, recycling points), directly or via the collection services of municipal companies, where available;
2) At sales outlets selling new electrical and electronic equipment.

Here, very small WEEE (with the longest side less than 25 cm) can be left free of charge, while larger ones can be left on a 1-for-1 basis, i.e. you can leave the old product when you buy a new one with the same function.

In the event of illegal disposal of electrical or electronic equipment, the penalties provided for by current legislation on environmental protection may be applied (Italian legislation; it is necessary to check the regulations in force in the country of use/disposal of the vehicle).

If WEEE contains batteries or accumulators, these must be removed and disposed of via specific separate waste collection.

Disposal of dead batteries (applicable in all European Union countries and in other European systems with separate collection systems)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the product or packaging indicates that the battery pack should not be considered normal household waste. On some types of batteries, this symbol may be used in combination with a chemical symbol.

The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring that battery packs are disposed of correctly, you will help prevent potential negative consequences for the environment and health which could otherwise be caused by inappropriate waste handling. Recycling materials will help to conserve natural resources. Where for safety, performance or data protection reasons, products require a fixed connection to an internal battery/cell, this must only be replaced by qualified service personnel.

At the end of its life, deliver the product to a collection point suitable for the disposal of electrical and electronic equipment: this will ensure that the battery inside is also disposed of correctly.

For more detailed information about disposing of the exhausted battery or the product, contact the municipal office, the local waste disposal service or the point of sale where the product was purchased.

According to Italian Legislative Decree 49/2014, the product falls within the EEE (electrical and electronic equipment) management of WEEE (separate waste collection).

NOTICES

Read the manual and instructions below in full before using the product.

Product name: AL1

Product type: Electric scooter

Year of production: 2020

Note:

• To recharge this electric scooter ONLY use the charger supplied labelled BC266420200 with the following output voltage: 42V, 2A.
  • Using another type of charger can damage the product or pose other potential risks.
• Never leave the product to charge unsupervised.
• The charging time of the product must not exceed four hours. Stop charging after four hours.
  • The product should only be charged at temperatures between 0°C and 45°C.
• If charged at lower or higher temperatures, there is a risk that the battery will offer reduced performance, potentially resulting in damage to the product and personal injury.
  • The product must be used only at temperatures between 0^ C and 45^ C.
• If used at lower or higher temperatures, there is a risk that the battery will offer reduced performance, potentially resulting in damage to the product and personal injury.
• Store the product at temperatures between 0^ and 45^ (the optimum storage temperature is 25^ ).
• Recharge and store in a dry and open place, away from combustibles (i.e. any flammable element).
• Do not recharge in sunlight or near open flames.
• Do not recharge the product immediately after use. Allow the product to cool for an hour before charging.
• If you are away for a certain period of time, for example for holidays, and you entrust the device to a third party, leave it in a partially charged state (20-50% charge). Not fully charged.
• The product is often supplied partially charged. Recharge it before use.

CE

EC Declaration of Conformity (Machinery Directive)

The undersigned MT Distribution s.r.l. based in Via Bargellino 10 c/d, Calderara di Reno (BO)

certifies

that the design and manufacture of this product

Product name:	Automobili Lamborghini
Item name:	AL1
Type of product:	Electric scooter

Machinery Directive 2006/42/EC

Standard MD: EN ISO 12100:2010,

EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A12019+A2:2019,

EN17128:2019, EN300328 v.2.2.2, EN301489-1 v.2.2.3, EN301489-17 v.3.2.2,

EN61000-6-1:20017, EN61000-6-3:2007+A1:2011, EN62479:2010, EN50581:2012

and therefore complies with the essential requirements of the Machinery Directive.

MD 2006/42/EC,

LVD 2014/35/EU,

EMC 2014/30/EU,

RED 2014/43/EU.

Serial number: LMNmmaa000000 to LMNmmaa999999

First and last name: Emanuele Summa

Position: Director

Company: M.T. Distribution S.r.l.

Address: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

Date: 01/06/2020

Emanuele Summa Director

M.T. DISTRIBUTION SRL

Via Bargellino. 10 blc

40012 CALDERARA & RENO (BO)

Ficoll Fiso 91119840377

NORNE NOKOME QUALIFIC

TIMBRO AZIENDALE

AL1

ELECTRIC SCOOTER

Manuale d'uso

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a V-shape (no text or symbols)

(6)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. PANORAMICA DEL PRODOTTO

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, showing red adjustment zones (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a label (no visible text or symbols)

Simple line drawing of a remote control device with a power button (no text or symbols)

4. RICARICA

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame, without any text, numbers, or symbols.

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Two simple line drawings of medical or surgical tools, one showing a cross-sectional view and the other a close-up of a device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool or device with a small square and cross mark (no text or symbols)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols present)

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Diagram showing a thermometer and hand crossed with a cross, indicating incorrect temperature or pressure.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Sganciare l'asta tirando la leva verso l'esterno

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black mechanical joint or bracket with mounting holes, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal rods arranged in a fan-like pattern (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal plug shown (no text or symbols)

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a remote control with a power button (no text or symbols)

4. CARGA

Line drawing of an electric scooter with a battery and plug, showing the side profile and charging cable (no text or symbols)

Pure electrical circuit lines without any symbols

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Pure geometric diagram of a hexagonal frame with internal lines and a central circular feature (no text or symbols)

Download on the App Store GET IT ON Google Play

Two simple line drawings of medical or surgical tools, one showing a cross-sectional view and the other a close-up of a device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on a platform with directional arrows (no text or symbols)

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool with a square and cross symbols (no text or labels)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a stick figure above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a device, no text or symbols present

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Line drawing of a person using a mobility scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black bicycle wheel with red buttons, enclosed in a hexagon (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a V-shape (no text or symbols)

(6)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. PROFIL DU PRODUIT

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a label (no visible text or symbols)

Simple line drawing of a remote control with a power button (no text or symbols)

4. CHARGE

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame (no text or symbols)

Pure mechanical diagram of a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Activer/Désactiver l'application

Two line drawings of medical or surgical tools: a curved device and a segmented tool (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool or device with a small square and cross mark (no text or symbols)

Simple line drawing of a person using a tricycle with no text or symbols

Safety warning illustration showing a person using a scooter with no hand protection symbols

Simple line drawing of a person using a cart with a stick and rope, no text or symbols present

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols present)

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow tag (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black electric vehicle wheel, showing the wheel and suspension components (no text or symbols visible)

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black mechanical joint or bracket with mounting holes, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow label (no visible text or symbols)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Directive relative aux machines 2006/42/CE

Norme MD : EN ISO 12100:2010,

EN 60335-1:2012+AC:2014+A11:2014+A13:2017+A12019+A2:2019,

EN17128:2019, EN300328 v.2.2.2, EN301489-1 v.2.2.3, EN301489-17 v.3.2.2,

EN61000-6-1:20017, EN61000-6-3:2007+A1:2011, EN62479:2010, EN50581:2012

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a fan-like pattern (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. PRODUKTÜBERSICHT

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a remote control with a power button (no text or symbols)

4. AUFLADEN

Line drawing of an electric scooter with a battery and plug, showing the side profile and charging cable (no text or symbols)

Pure electrical circuit lines without any symbols

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Two line drawings of medical or surgical tools: a cross-sectional view and a handheld device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, enclosed in a circle (no text or numbers)

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, resting on water (no text or symbols)

Warning symbol inside a triangle with flame and droplet symbols (no text)

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool with a square and cross symbols (no text or labels)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out by a crossed-out device.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a stick figure above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a device, no text or symbols present

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a V-shape (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. OPIS PRODUKTU

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow tag (no visible text or symbols)

Simple line drawing of a remote control device with a power button (no text or symbols)

4. LADOWANIE

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure electrical circuit lines without any symbols

Pure mechanical diagram of a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a cross-sectional view and a handheld device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool or device with a small square and cross mark on the handle (no text or symbols)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a cart with a stick and rope, no text or symbols present

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols present)

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Line drawing of a person using a wheeled scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black mechanical joint or bracket with mounting holes, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a label (no visible text or symbols)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal rods arranged in a fan-like pattern (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. PŘEHLED PRODUKTU

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, showing red buttons and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a remote control with a power button (no text or symbols)

4. NABÍJENÍ

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure electrical circuit lines without any symbols

Sejměte gumový kryt

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a cross-sectional view and a laparoscopic device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, enclosed in a circle (no text or numbers)

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, resting on water (no text or symbols)

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool with a square and cross symbols (no text or labels)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out by a crossed-out device.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a stick figure above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols present)

Simple line drawing of a person riding a scooter with motion lines indicating speed (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with a crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a V-shape (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. PREHL'AD VÝROBKU

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black brake disc with red buttons, enclosed in a hexagon (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow sticker (no visible text or symbols)

Simple line drawing of a remote control with a power button (no text or symbols)

4. NABÍJANIE

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure electrical circuit lines without any symbols

Pure mechanical diagram of a lever mechanism inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a cross-sectional view and a laparoscopic device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol inside a triangle with a flame and droplet inside, enclosed in a hexagonal border (no text or numbers)

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

S elektrickou kolobežkou nejazdite po schodoch nahor ani nadol.

Illustration of two hands holding a tool or device with a small square and cross mark (no text or symbols)

Jazdite vždy s oboma rukami na riadidlách.

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a cart with a stick and rope, no text or symbols present

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols)

Začnite brzdit' dostatočne d'aleko, aby ste predišli prekážkam, zákrutám a plochám s nerovným povrchom. Pred brzdením nezabudnite povolit' plyn.

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with a crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical lever against a dark cylindrical object (no text or symbols visible)

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Line drawing of a person using a wheeled scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black mechanical joint or bracket with mounting holes, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a fan-like pattern (no text or symbols)

(6)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

2. VISTA GERAL DO PRODUTO

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a remote control with a power button (no text or symbols)

4. CARREGAMENTO

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame (no text or symbols)

Levante a tampa de borracha

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Pure geometric diagram of a hexagonal frame with internal lines and a central circular feature (no text or symbols)

Quando o carregamento estiver concluido, recoloque a tampa de borracha

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a cross-sectional view and a handheld device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, enclosed in a circle (no text or numbers)

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool with a square and cross symbols (no text or labels)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a device, no text or symbols present

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with a cross, indicating incorrect thermal resistance.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagon (no text or symbols visible)

Line drawing of a person using a mobility scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black bicycle wheel with red buttons, enclosed in a hexagon (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal bars arranged in a V-shape (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal connector shown (no text or symbols)

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow tag (no visible text or symbols)

Simple line drawing of a remote control device with a power button (no text or symbols)

4. ΦΟΡΤΙΣΗ

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame (no text or symbols)

Simple line drawing of a mechanical device inside a hexagonal frame (no text or symbols)

Hexagonal diagram showing layered structure with a central circular component (no text or symbols)

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a curved device and a segmented tool (no text or symbols)

Weather symbol with cloud and raindrops crossed out, no text or numbers present

Simple line drawing of two figures standing on poles with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, resting on water (no text or symbols)

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool or device with a small square and cross mark (no text or symbols)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a cart with a stick and rope, no text or symbols present

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols)

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow tag (no visible text or symbols)

Close-up of a hand adjusting a black mechanical clamp or bracket component (no text or symbols visible)

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Line drawing of a person using a mobility scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black mechanical joint or bracket with mounting holes, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow tag (no visible text or symbols)

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Line drawing of a modern electric scooter with two wheels and a side-mounted handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal rods arranged in a fan-like pattern (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a separate cable (no text or symbols)

2. ORIS PRODUKTA

INFORMACIJE ZA UPORABO / NADZORNA PLOŠČA

MPH KM/H 3 1 5 4 2 6

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Spusti palico s pritiskom na zadnji blatnik

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a remote control with a power button (no text or symbols)

4.NAPAJANJE

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame (no text or symbols)

Dvigni gumijasti pokrovček

Pure mechanical diagram showing a lever mechanism inside a hexagonal frame (no text or symbols)

Pure geometric diagram of a hexagonal frame with internal lines and a central circular feature (no text or symbols)

Download on the App Store GET IT ON Google Play

Two line drawings of medical or surgical tools: a cross-sectional view and a handheld device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, enclosed in a circle (no text or numbers)

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Simple line drawing of a wine bottle and glass with a diagonal line crossing (no text or symbols)

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, resting on water (no text or symbols)

Warning symbol with flame inside triangle, indicating safety hazard

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Pure electrical circuit lines without any symbols

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Illustration of two hands holding a tool with a square and cross symbols (no text or labels)

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Ko potujete pri polni hitrosti ne obračajte volana sunkovito.

Illustration of a person using a scooter with a thought bubble showing a device, no text or symbols present

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

S sprednjim kolesom ne zadevajte v ovire.

Safety warning symbol showing thermometer and hand crossed with a crossed line, indicating incorrect thermal protection.

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Pritisnite na gumb, ki se nahaja na ročici.

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Spustite palico § tem, de dvignete ročico

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Zaklopko poravnajte s točko zaklopa na blatniku zadnjega kolesa in pritisnite, da se povežeta

Transport

Line drawing of a person using an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Palico ročaja postavite navpično.

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

MD standard: EN ISO 12100: 2010,

EN 60335-1: 2012 + AC: 2014 + A11: 2014 + A13: 2017 + A12019 + A2: 2019,

EN17128: 2019, EN300328 v.2.2.2, EN301489-1 v.2.2.3, EN301489-17 v.3.2.2,

EN61000-6-1: 20017, EN61000-6-3: 2007 + A1: 2011, EN62479: 2010, EN50581: 2012

Line drawing of a single electric scooter with wheels and handle (no text or symbols)

(4)

Line drawing of five identical L-shaped metal rods arranged in a V-shape (no text or symbols)

(6)

(1)

Simple line drawing of a plug connected to a rectangular box, with a terminal plug shown (no text or symbols)

2. PREGLED PROIZVODA

Kontrolni panel i taster za uključivanje Akcelerator Zvono Prednje svetlo Ručica kočnice Bravica za zaključavanje Nosač upravljača Ručica za brzo otpuštanje Meccanismo di chiusura Vano batteria / pedana Pogonski točak Tačka zaključavanja Zadnji blatobran/ kočnica Stop svetlo Port za punjenje (suprotna strana) Ručica za parkiranje LED/RGB ambijentalno svetlo

MPH KM/H 3 1 5 4 2 6

1. Tachimetro: 1. Brzinomer: prikazuje trenutnu brzinu
2. Režimi: postoje 3 dostupna režima vožnje. "S crno" označava režim štednje energije (maksimalna brzina 6 km/h, idealno za početnike), "S belo" označava standardni režim (maksimalna brzina 15 km/h), i "Scrveno" označava sportski režim (maksimalna brzina 25 km/h, preporučuje se samo za iskusne vozače).
3. Bluetooth: ova ikonica označava da je uređaj povezan sa mobilnim telefonom.
4. Greška: ova ikonica označava da je uređaj detektovao grešku.
5. Nivo baterije: označen je sa 5 crtica, od kojih svaka predstavlja oko 20% kapaciteta baterije.
6. Taster za uključivanje/isključivanje: pritisnite ovaj taster da uključite trotinet; da ga isključite, pritisnite i zadržite na 3 sekunde ovaj taster. Pošto ste uključili uređaj, pritisnite ovaj taster 2 puta da uključite/isključite prednje svetlo; pritisnite ga jednom da se prebacujete od jednog do drugog režima.

3. MONTAŽA I KONFIGURISANJE

Close-up of a hand adjusting a black electric scooter wheel, no visible text or symbols

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Close-up of a hand adjusting a black camera module with a yellow tag (no visible text or symbols)

Simple line drawing of a remote control with a power button (no text or symbols)

4. PUNJENJE BATERIJE

Line drawing of a scooter with wheels and a battery connected to its side (no text or symbols)

Pure diagram of a mechanical component inside a hexagonal frame (no text or symbols)

Podignite gumenu kapicu

Pure mechanical diagram showing a pulley or hook assembly inside a hexagonal frame (no text or symbols)

Hexagonal diagram with horizontal lines and a central circular component (no text or symbols)

Kada je punjenje zavrseno, vratite gumenu kapicu na mesto

5. KONFIGURISANJE APLIKACIJE

Download on the App Store GET IT ON Google Play

1. Preuzmite aplikaciju u smartfon;
   2.Uključite trotinet i aktivirajte Bluetooth funkciju smartfona;
2. Pokrenite aplikaciju i prijavite se *, povežite Vaš smartfon sa trotinetom preko Bluetooth-a (uz rastojanje 1 - 2m)
3. Ako prvi put koristite ovu aplikaciju, popunite polje "e-mail" za registraciju i autentikaciju uz korišćenje verifikacionog koda.

Two line drawings of medical or surgical tools: a cross-sectional view and a laparoscopic device (no text or symbols)

Weather symbol with cloud and raindrops crossed out, enclosed in a circle (no text or numbers)

Simple line drawing of two figures standing on a platform with directional arrows, no text or symbols present

Trotinet ne sme koristiti više od jedne osobe istovremeno.

< 16

Deca mlađa od 16* godina i trudne žene ne treba da koriste trotinet.

Simple line drawing of a wine bottle and glass with a diagonal line crossing through it (no text or symbols)

Ne vozite trotinet ako ste pili alkohol ili uzimali lekove.

Simple line drawing of a smartphone with musical notes and a diagonal line crossing it, no text or symbols present.

Simple line drawing of a scooter with wheels and stick, no text or symbols present

Posebno oprezno vozite ako na putu postoje izbočine, pesak, bare, sneg, led ili stepenice, kao i pri noćnim uslovima, na nedovoljno osvetljenim mestima, ili pri vlažnim uslovima.

Warning symbol with flame inside triangle, indicating safety or hazard

Ne koristite trotinet u opasnim oblastima, blizu zapaljivih i/ili eksplozivnih materija, tečnosti i/ili prašine.

Simple geometric diagram showing a circle with intersecting lines and a perpendicular dashed line, no text or symbols present.

Nije predviđeno da se ovaj trotinet vozi na putevima i autoputevima.

Pure electrical circuit lines without any symbols

Ne kačite teške predmete na upravljač.

Simple line drawing of a person climbing stairs with motion arrows indicating movement (no text or symbols)

Ne koristite trotinet za penjanje uz stepenice ili silazak niz stepenice.

Illustration of two hands holding a tool or device with a small square and cross mark (no text or symbols)

Uvek držite upravljač sa obe ruke.

Simple line drawing of a person using a mobility device (no text or symbols)

Safety warning illustration showing a person using a scooter with a hand holding a phone and crossed out, accompanied by a crossed-out hand gesture.

Ne pritiskajte akcelerator dok hodate sa trotinetom.

Simple line drawing of a person using a mobility device with no text or symbols

Simple line drawing of a person using a scooter with a magnifying glass above, no text or symbols present

Pazite na glavu kad prolazite ispod nadstrešnica, kroz vrata i slično.

Illustration of hands performing a rope knotting operation with a curved arrow indicating rotational motion (no text or symbols)

Illustration of a person using a scooter with a thought bubble showing a vehicle (no text or symbols present)

Počnite sa kočenjem dovoljno rano, kako biste izbegli prepreke, savladavali krivine na putu i oblasti sa neravnom površinom. Ne zaboravite da pre kočenja otpustite taster za brzinu.

Simple line drawing of a person riding a scooter with motion lines indicating speed or pressure (no text or symbols)

Simple line drawing of a person using a scooter with motion lines indicating speed (no text or symbols)

Safety warning symbol showing thermometer and hand crossed with crossed line, indicating incorrect thermal protection

Close-up of a hand adjusting a black mechanical component with a yellow label (no visible text or symbols)

Pritisnite taster koji se nalazi na ručici

Close-up of a hand adjusting a black mechanical bracket (no text or symbols visible)

Close-up of a hand adjusting a black brake wheel with red buttons, enclosed in a hexagonal frame (no text or symbols visible)

Poravnajte bravicu na zadnjem blatobranu sa tačkom za kačenje i povežite

Transport

Line drawing of a person riding an electric scooter (no text or symbols)

Line drawing of a person standing beside a wheeled cart (no text or symbols)

Close-up of a hand adjusting a black electric scooter wheel, showing the wheel rim and mounting bracket (no text or symbols visible)

Close-up of a black metal pipe joint with mounting brackets, enclosed in a hexagon (no text or symbols visible)

Postavite nosač upravljača u uspravni položaj

Close-up of a hand adjusting a black camera lens component, no visible text or symbols

Zatvorite bravicu za brzo oslobađanje

14. REDOVNO ODRŽAVANJE I ČIŠĆENJE

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Ova oznaka na proizvodu ili pakovanju označava da proizvod ne sme biti odlagan zajedno sa kućnim otpadom, već se mora odneti do objekta ovlašćenog za odlaganje električnog i elektronskog otpada (WEEE).

Ispravnim odlaganjem ovog proizvoda pomažete sprečavanje mogućih negativnih uticaja na okolinu i ljudsko zdravlje. Reciklirani materijali će pomoći očuvanju prirodnih resursa.

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

Ovaj simbol na proizvodu ili pakovanju označava da baterija ne treba da se tretira kao obični kućni otpad. Kod nekih tipova baterija ovaj simbol može biti korišćen u kombinaciji sa nekim hemijskim simbolom.

Machinery Directive 2006/42/EC

Standard MD: EN ISO 12100:2010,

EN60335-1:2012+AC:2014+A11:2014+A13:2017+A12019+A2:2019,

EN17128:2019, EN300328 v.2.2.2, EN301489-1 v.2.2.3, EN301489-17 v.3.2.2,

EN61000-6-1:20017, EN61000-6-3:2007+A1:2011, EN62479:2010, EN50581:2012

i stoga je usaglašen sa suštinskim zahtevima Machinery Directive MD 2006/42/EC, LVD 2014/35/EU,

EMC 2014/30/EU,

RED 2014/43/EU.

Serijski broj: LMNmmaa000000 to LMNmmaa999999

Ime i prezime: Emanuele Summa

Pozicija: Direktor

Kompanija: M.T. Distribution S.r.l.

Adresa: Via Bargellino 10, 40012 Calderara di Reno (BO), Italy

Datum: 01/06/2020

Emanuele Summa Direktor

M.T. DISTRIBUTION SRL Via Bargellierto, 10 b/c

40012 CALDERARA & RENO (BÓ)

Firgo Eiso 01119840377

NONLINE 194-04137062/378

TIMBRO AZIENDALE

AUTOMOBILI LAMBORGHINI

MOBILITY

The "Automobili Lamborghini" and "Automobili Lamborghini Bull and Shield" trademarks, copyrights, designs and models are used under license from Automobili Lamborghini S.p.A, Italy.

MT Distribution

Produced and imported by M.T. Distribution Srl

www.mtdistribution.it

Errors and omissions excepted
