Product Type	Electric Fan Heater
Brand	Stanley
Model	STN2000PTC (equivalent ST-22-240-E)
Rated Power	2.0 kW
Airflow	158 m³/h
Recommended Heating Area	Up to 20 m³ / 7 m²
Voltage / Frequency	220-240 V / 50 Hz
Heat Settings	2 positions (medium and full power) + fan only
Thermostat	Mechanical adjustment knob
Overheat Protection	Yes, automatic shut-off with manual reset
Protection Rating	IP20
Appliance Class	I (grounding required)
Weight	1.7 kg
Dimensions (approx.)	25 x 20 x 30 cm
Heating Element Material	Steel with protective coating
Protective Grille	Yes, front and rear
Carrying Handle	Yes, integrated
Adjustable Tilt	Yes, via side knobs
Use	Indoor only, well-insulated spaces
Maintenance	Clean with a soft cloth and mild detergent, do not immerse
Warranty	2 years (according to local legislation)
Country of Manufacture	China (according to manufacturer information)

Frequently Asked Questions - STN2000PTC STANLEY

How to turn on the Stanley STN2000PTC heater?

Plug the device into a suitable wall outlet. Set the thermostat to the maximum position (towards the + symbol). Turn the function selector to the desired position: fan only (fan icon), medium heat or full heat. The power indicator lights up.

Why is my fan heater not heating while the fan is running?

This may be due to several causes:
1. The thermostat is set too low: turn it towards + to increase the set temperature.
2. The ambient temperature has already been reached: the thermostat cuts the heating element, this is normal.
3. The overheat protection has triggered: turn off the device, unplug it, check that the air inlets/outlets are not blocked, wait 10 minutes then plug back in.

Is it safe to leave the heater unattended?

No, it is strongly advised not to leave the device plugged in unattended. The manual indicates in red: NEVER LEAVE THE HEATER UNATTENDED WHILE IT IS PLUGGED INTO A POWER SOURCE.

What is the power of the STN2000PTC model?

The STN2000PTC model has a rated power of 2.0 kW (2000 watts) at 220-240 V. It corresponds to the reference ST-22-240-E in the manual.

How to clean the heater?

Before any cleaning, unplug the device and let it cool completely. Wipe the casing with a soft slightly damp sponge and mild detergent. Never immerse the device in water and do not use solvents like gasoline or acetone. Dry with a clean cloth.

The heater emits a burning smell on first use, is this normal?

Yes, it is normal. New heating elements are coated with a thin layer of protective oil that burns off during the first minutes. This odor disappears after a few uses. Make sure to ventilate the room.

What is the recommended heating area?

For the 2.0 kW model, the recommended area is about 20 m³ (7 m²) in a well-insulated space. For a larger room, choose a higher power model.

How to set the desired temperature?

Turn the thermostat knob: towards the + to increase the temperature, towards the - to decrease it. When the room reaches the set temperature, the thermostat automatically cuts the heating element. For a complete stop, return the thermostat to the minimum position and turn off the device.

Can I use an extension cord with this heater?

Yes, but with caution. Make sure the extension cord supports the device's power (2.0 kW) and that it is fully unrolled to avoid overheating. Use an extension cord with a minimum cross-section of 1.5 mm² and limited length.

What to do if the device turns off by itself during use?

This is likely due to overheating. Unplug the device, check that the air inlet and outlet grilles are not blocked (dust, objects). Let it cool for at least 10 minutes for the safety device to reset, then plug back in and try again.

USER MANUAL STN2000PTC STANLEY

Black STANLEY industrial power supply unit with yellow cord and mesh grille (no visible text or symbols on device body)

Elektrische ventilatorkachel

Prohibition sign with crossed-out document and shield icon, indicating no document or shield use

Technical diagram of a portable air purifier with numbered parts labeled 1 through 8

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 VS

EC REP

Obelis S.A. Geregistreerd adres: Bd. Général Wahis, 53 1030 Brussels, Belgium

STANLEY®

ST-22-240-E / ST-23-240-E / ST-25-400-E

Black STANLEY industrial power heater with yellow cord and mesh grille (no visible text or symbols)

Prohibition sign with crossed-out document and magnifying glass symbol, commonly used to indicate file or document restrictions.

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Domiciliation : Bd. Général Wahis, 53 1030 Brussels, Belgium

STANLEY®

ST-22-240-E / ST-23-240-E / ST-25-400-E

Black STANLEY industrial power supply unit with yellow cord and mesh grille (no visible text or symbols on device body)

Prohibition sign with crossed-out document and shield icon, indicating no document or shield use

Technical diagram of a portable air purifier with numbered parts labeled 1 through 8

Pinnacle Climate Technologies, Inc.

Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A.

1030 Brussels, Belgium

STANLEY®

ST-22-240-E / ST-23-240-E / ST-25-400-E

Black STANLEY industrial power supply unit with yellow cord and mesh grille (no visible text or symbols on device body)

Prohibition sign with crossed-out document and shield icon, indicating no document or shield use

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

Black STANLEY industrial power supply unit with yellow handle and mesh grille (no visible text or symbols on device body)

Prohibition sign with a diagonal line crossing over a document icon, indicating no text or document.

Technical diagram of a portable air purifier with numbered parts labeled 1 through 8

ES

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium

STANLEY®

ST-22-240-E / ST-23-240-E / ST-25-400-E

Black STANLEY industrial power supply device with yellow handle and mesh grille (no visible text or symbols on body)

Prohibition sign with crossed-out document and shield icon, indicating no liability or exclusion

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

Black STANLEY industrial power supply unit with yellow cord and mesh grille (no visible text or symbols on device body)

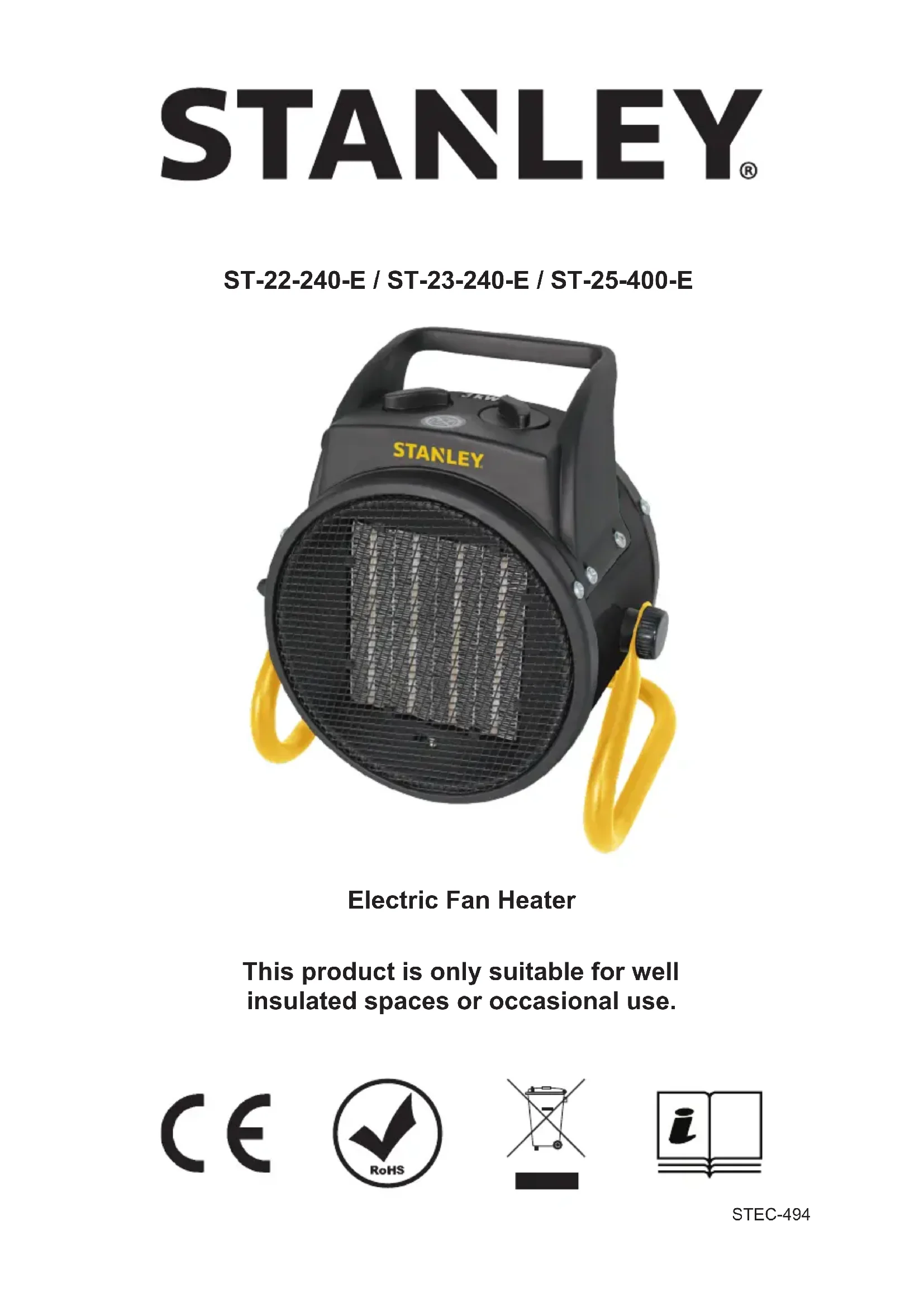

Electric Fan Heater

This product is only suitable for well insulated spaces or occasional use.

CE

RoHS

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

GB

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The heater must not be located immediately below a socket-outlet.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance for other than its intended use. For domestic indoor use only.

- Place the appliance on a flat, stable, heat-resistant surface. Operating the product in any other position could cause a hazard.

- There may be trace of odour during the first few minutes of initial use. This is normal and will quickly disappear.

- Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside.

- CAUTION – if using an extension lead please ensure you do not exceed the maximum rated running wattage/load of the extension lead.

Read the instruction manual: When this symbol is marked on a product, it means that the instruction manual must be read.

Do not use the appliance for other than its intended use. For domestic indoor use only.

Prohibition sign with crossed-out document and shield icon, indicating no document or shield use

WARNING: In order to avoid overheating, do not cover the heater.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

ST-22-240-E / ST-23-240-E / ST-25-400-E

Technical diagram of a portable air conditioner with numbered parts labeled 1 through 8

GB

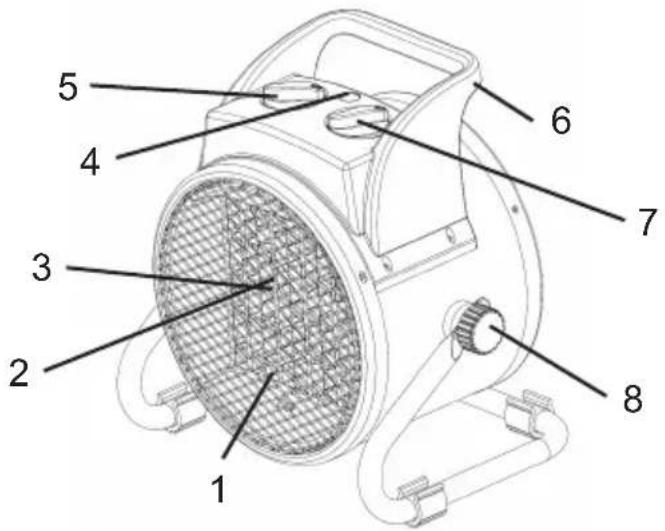

1. Front Guard
2. Fan
3. Heat Coil
4. Power Light
5. Function Selector
6. Handle
7. Thermostat
8. Adjustment Knob (x2)

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

GB

SPECIFICATIONS
Specifications subject to change without notice

	ST-22-240-E ST-23-240-E ST-25		400-E
RATED POWER INPUT (kW) 2.0 3.0 5.0
AIR FLOW ( m^3/h ) 158 217 300
HEATING AREA ( m^3/m^2 ) 20/7 40/12 60/15
RATED VOLTAGE/FREQUENCY (V/Hz)	220-240/50 220-240/50		400/50
HEAT SETTINGS 2	2	2
WEIGHT (kg)	1.7	2.9	4.2
APPLIANCE CLASS	1	1	1
INGRESS PROTECTION RATING (IP)	IP20	IP20	IP20
FUNCTIONS / SETTINGS
Unit is Off	○	○	○
Fan Runs - No Heating	◎	◎	◎
Fan Runs - Half Power Heating	◎	◎	◎
Fan Runs - Full Power Heating	◎	◎	◎
NOTE: The fan will run continuously while the heater is operating.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Safety Information

IMPORTANT: Read and understand all of the safety information and instructions in this manual before operating your heater.

DANGER

RISK OF EXPLOSION! Do Not operate this heater where there are harmful, explosive or flammable gasses, fumes or hazardous substances.

WARNING

RISK OF FIRE! Do Not operate this heater near combustible materials.

WARNING

ELECTRIC SHOCK HAZARD! Do not use this heater in the immediate surroundings of a bath, a shower, or a swimming pool.

WARNING

BURN HAZARD! Do Not touch the front of heater while it is operating. This heater is hot while operating.

WARNING

Risk Of injury! Do Not move heater while it is operating.

WARNING

RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Children should be supervised so they do not play with the appliance.

ALWAYS use only the electrical power (voltage and frequency) specified on the model plate of the heater.

ALWAYS use an extension cord properly rated for this appliance.

ALWAYS ensure that all cords are protected against short circuit and overload.

ALWAYS keep power cord away from hot air outlet.

ALWAYS disconnect heater from power source when not in use.

NEVER place the heater on a small, uneven or unstable surface that may cause the heater to fall.

NEVER connect other appliances to the same electrical outlet as the fan heater.

NEVER operate heater with heater guards removed.

NEVER block hot air outlet while heater is operating.

NEVER cover or obstruct heater.

NEVER use ducting with heater.

NEVER pull or carry heater by the power cord.

NEVER use heater with an external switching device: such as a timer.

If heater is damaged, do not use it. The heater must be serviced by a qualified person or service agent.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Operation

1. Position the fan heater so that it stands upright on a firm, level surface and at a safe distance from wet environments and flammable objects.
2. Connect the fan heater to the proper electrical power.
3. Set the thermostat dial to “+”.
4. The fan heater will switch on when the function selector dial is set to one of the power settings.
5. Once the room reaches the desired temperature, turn the thermostat dial back until heating element turns off.
6. Before you switch off the heater, please turn the thermostat to “-” and turn the switch to the fan position. Let the appliance cool down for two minutes, and only then turn off the heater and pull out the plug from the power supply.

Automatic Overheat Safety Control

- This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off.

Thermostat Instructions

- At first, set the thermostat to “+” and let the heater operate with full power input. When the room temperature reaches the required value, turn the thermostat to the left until it switches off.

• The thermostat will then switch on and off automatically to control the room temperature according to the preset value and keep the room temperature constant.
• When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of steel and was coated with a layer of protective oil during production. The smoke is caused by the leftover oil as it is heated.

Cleaning and Maintenance

• Before cleaning the appliance, disconnect it from the outlet and let it cool down.
• The enclosure is easy to get dirty. Wipe it often with a soft sponge. For very dirty parts, wipe with a sponge dipped in <50^ C water and mild detergent, then dry the heater enclosure with a clean cloth. Be careful not to let the water enter the inside of the appliance
• In order to protect the enclosure, don't splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.
• When you store the heater, let it cool down first and, keep it dry. Then cover it with a plastic bag, put it in the packing box and store it in a dry, ventilated place.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Plug Replacement

WARNING

RISK OF ELECTRIC SHOCK! DISCONNECT FROM POWER BEFORE MAINTENANCE.

NOTE: This section only applies to heaters sold or used in Great Britain.

This appliance is supplied with a BS1363 3 pin plug fitted with a fuse. Should the fuse require replacement, it must be replaced with a fuse with the proper amp rating. (see Technical Specifications page 5) and approved to BS1362.

In the event the mains plug has to be removed/ replaced for any reason, please note:

IMPORTANT: The wires in the mains lead are colored in accordance with the following code:

Blue – Neutral Brown – Live

Green/Yellow – Earth

As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows:

The blue wire must be connected to the terminal marked with an N or colored black. The brown wire must be connected to the terminal marked with an L or colored red. The green/ yellow wire must

be connected to the earthing terminal which is marked with an E or with the earth symbol.

NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket.

WARNING

Never connect live or neutral wires to the earth terminal of the plug.

NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE

Plug Replacement Wiring Diagram

GREEN / YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps CORD CLAMP E L N

Figure 3

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Troubleshooting

Problem Cause Solution
The heater does not run, even when it is plugged in and the thermostat is switched on	1. The plug is loose, bad connection.	1. Pull out the plug, check the connection of the plug and socket. Then connect again.
The heating element is glowing	1. The input voltage is too high or too low2. The air inlet grill is blocked.	1. Use correct power supply stated on the rating label.2. Keep the heater away from items such as; plastic bags, paper, and other items that can cover the air inlet.
The appliance didn't heat up, only the ventilator worked.	1. The switch was not on a heat setting2. Desired room temperature reached3. The self-resetting cut-out initiated	1. Turn the switch to the desired heat setting2. Thermostat will shut off once desired room temperature is reached.Heater is operating correctly.3. Turn the heater off and inspect the blockage of inlet or outlet. Disconnect the plug and wait at least 10 minutes for the protection system to reset before attempting to restart the heater.
Abnormal noise.	1. The appliance is not standing upright.	1. Place the heater on a level surface.

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): PT-02-240-EU; ST-02-240-E; ST-52-241-E; ST-22-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.0	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	2.0	kW		fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ek_B	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): PT-03-240-EU; ST-03-240-E; ST-53-241-E; ST-23-240-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	3.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	1.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	3.0	kW		fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	ekB	N/A	kW		with mechanic thermostat room temperature control	NO
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

Information requirements for electric local space heaters

Model identifier(s): PT-05-400-EU; ST-05-400-E; ST-55-401-E; ST-305-401-E; ST-25-400-E
Item	Symbol	Value	Unit		Item	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	5.0	kW		manual heat charge control, with integrated thermostat	NO
Minimum heat output (indicative)	P_min	2.5	kW		manual heat charge control with room and/or outdoor temperature feedback	NO
Maximum continuous heat output	P_max,c	5.0	kW		fan assisted heat output	NO
Auxiliary electricity consumption					Type of heat output/room temperature control (select one)
At nominal heat output	el_max	N/A	kW		single stage heat output and no room temperature control	NO
At minimum heat output	el_min	N/A	kW		two or more manual stages, no room temperature control	NO
In standby mode	el_SB	N/A	kW		with mechanic thermostat room temperature control	YES
					with electronic room temperature control	NO
					electronic room temperature control plus day timer	NO
					electronic room temperature control plus week timer	NO
					Other control options (multiple selections possible)
					room temperature control, with presence detection	NO
					room temperature control, with open window detection	NO
					with distance control option	NO
					with adaptive start control	NO
					with working time limitation	NO
					with black bulb sensor	NO
Contact details	Name and address of the manufacturer or its authorised representative Obelis S.A Bd. General Wahis, 53 1030 Brussels, Belgium

NEVER LEAVE HEATER UNATTENDED WHILE

CONNECTED TO A POWER SOURCE

STANLEY®

SERVICE

Belgique et Luxemburg	E. Walschaertstraat 14	www.stanleyworks.be	United Kingdom	210 Bath Road; Slough, Berks SL1 3YD	www.stanleytools.co.uk
België en Luxembourg	2800 Mechelen	[e-mail]			Tel: [phone]
	Belgium	BE-NL=[phone]			Fax: [phone]
		BE-FR=[phone]
		BE Fax: [phone]
Danmark Roskildevej 22	2620 Albertslund	www.stanleyworks.dk	Hungary Rotel Kft.	1163 Budapest,Thököly út 17.	www.stanleyworks.hu
		[e-mail]			[e-mail]
		Fax: [phone]			Tel: [phone]
					Fax: [phone]
Deutschland Richard Klinger Str. 11	65510 Idstein	www.stanleyworks.de	Czech Republic	BAND SERVIS CZ s.r.o.	www.stanleyworks.cz
		[e-mail]		K Pasekam 4440	http://www.bandservis.cz
		Tel: [phone]		760 01 Zlin, Czech Republic	Tel.: [phone]
		Fax: [phone]			Fax: [phone]
Ελλός Ημερος Τόπος 2 - Χάνι Αδάμ Ασπρόπυργος	-19300 -Αττική -Αττικής	www.stanley.gr	Slovakia	BAND SERVIS s.r.o.	www.bandservis.sk
		[e-mail]		Paulinska 22	Tel.: [phone]
		Tηλ: [phone]		917 01 Trnava, Slovakia	Fax: [phone]
		Φαξ: [phone]
España Parque de Negocios "Mas Blau"	Edificio Muntadas, c/Bergadá, 1, Of. A6	www.stanleyworks.es	Poland Erpatech	ul. Bakaliowa 26	www.stanleyworks.pl
		[e-mail]		05-080 Mościska	Tel.: [phone]
	08820 El Prat de Llobregat (Barcelona)	Tel: [phone]		Slovenia G-M&M d.o.o.	www.g-mm.si
		Fax: [phone]		Brvace 11	[e-mail]
				1290 Grosuplje Slovenija	T: [phone]
France 5, allée des hêtres	BP 30084, 69579 Limonest Cedex	www.stanleyoutillage.fr	Cyprus	IOANNOU J.	[e-mail]
		[e-mail]		4A Ath.Diakou street	Tel: [phone]
		Tel: [phone]		1046- Nicosia -Cyprus	Fax: [phone]
		Fax: [phone]
Schweiz	In der Luberzen 42	www.stanleyworks.ch	Bosnia-Herzegovina	G-M&M d.o.o.	www.g-mm.si
Suisse	8902 Urdorf	[e-mail]		Brvace 11	[e-mail]
Svizzera		Tel: 044 - 755 60 70		1290 Grosuplje	T: [phone]
		Fax: 044 - 730 70 67		Slovenija	F: [phone]
Ireland 210 Bath Road; Slough, Berks SL1 3YD UK www.stanleytools.co.uk		Tel: [phone]	Bulgaria	TASHEV-GALVING LTD	www.tashev-galving.com
		Fax: [phone]		68 KLIMENT OHRIDSKI BLVD.	T: [phone]
				1756 Sofia, Bulgaria	F: [phone]
Italia Energypark-Building 03 sud, Via Energy Park	6 20871 Vimercate (MB)	www.stanley.it	Croatia G-M&M d.o.o.	Brvace 11	www.g-mm.si
		Tel: [phone]		1290 Grosuplje	[e-mail]
		Fax: [phone]		Slovenija	T: [phone]
Nederlands Stanley Black & Decker Netherlands B.V.	Postbus 83	www.stanleyworks.nl			F: [phone]
	6120 AD Born	[e-mail]
		Tel: [phone]		Mustame tee 44,	www.tallmac.ee/est
		NL Fax: [phone]		EE-10621 Tallinn	T: [phone]
Norge Postboks 4613, Nydalen	0405 Oslo	www.stanleyworks.no	Latvia LIC GOTUS SIA		www.licgotus.lv
		[e-mail]		Ulbrokas Str.	T: [phone]
		Fax: [phone]		LT - 1021 Riga	F: [phone]
Österreich Oberlaerstrasse 248	A-1230 Wien	www.stanleyworks.de	Lithuania	UAB ELREMTA OU	[e-mail]
		[e-mail]		Neries kr. 16E	T: [phone]
		Tel: 01 - 66116 - 0		LT - 48402 Kaunas	F: [phone]
		Fax: 01 - 66116 - 14
Portugal Quinta da Fonte - Edificio Q55 D. Diniz	Rua dos Malhões, 2 e 2A - Piso 2 Esquerdo	www.stanleyworks.pt	Malta Energypark-Building 03 sud, Via Energy Park	6 20871 Vimercate (MB)	www.stanley.it
	2770 - 071 Paço de Arcos	[e-mail]			Tel: [phone]
		Tel: [phone]			Fax: [phone]
		Fax: [phone]
Suomi PL 47	00521 Helsinki	www.stanleyworks.fi	Romania	Stanley Black & Decker	www.stanleyworks.ro
		[e-mail]		Phoenicia Business Center	T: +4021.320.61.04/05
		Puh: 010 400 4333		Strada Turturelelor, nr 11A, Etaj 6, Modul 15, Sector 3 Bucuresti	F: +4037.225.36.84
Sverige Box 94	431 22 Mölndal	www.stanleyworks.se	Serbia	G-M&M d.o.o.	www.g-mm.si
		[e-mail]		Brvace 11	[e-mail]
		Fax: [phone]		1290 Grosuplje	T: [phone]
				Slovenija	F: [phone]

STANLEY®

Pinnacle Climate Technologies, Inc. Sauk Rapids, MN 56379 USA

EC REP

Obelis S.A. Registered Address: Bd. Général Wahis, 53 1030 Brussels, Belgium
