Product type	Blender
Brand	Sogo
Model	SS5565
Pitcher material	Glass
Pitcher capacity	1.5 L
Rated power	500 W
Voltage / Frequency	220-240 V ~ 50-60 Hz
Number of speeds	2 speeds + pulse function
Pulse function	Yes, for ice crushing and pulse mixing
Blade material	Stainless steel
Removable blades	Yes
Seal ring	Yes
Safety locking system	Yes, the blender only works if the pitcher is correctly installed
Dimensions (approx.)	40 x 20 x 20 cm
Weight (approx.)	3 kg
Maximum continuous operation time	1 minute, with pause between cycles
Care and cleaning	Motor base cleaned with a damp cloth; pitcher, lid, and blades washable with warm soapy water
Spare parts available	Pitcher, lid, seal ring, blade, measuring cup
After-sales service	www.sogosat.com / [e-mail] / 0034902222161
Country of origin	People's Republic of China
Intended use	Indoor household use only

Frequently Asked Questions - SS5565 Sogo

How to start the blender?

Make sure the pitcher is properly locked onto the motor base. Plug in the appliance, place ingredients in the pitcher, close the lid and measuring cup, then turn the knob to the desired speed (1, 2, or P for pulse).

Can I blend hot liquids?

It is not recommended to pour hot liquids into the glass pitcher, as sudden steam could eject them. Let the food cool to room temperature before blending.

How to crush ice?

Use the pulse function (position P) by turning the knob counterclockwise. Hold position P until the desired consistency is achieved, then return the knob to 0.

What is the maximum capacity of the pitcher?

The pitcher has a capacity of 1.5 L. Do not fill beyond the maximum marking to avoid overflow and blade jamming.

How long can I use the blender continuously?

The blender must not run for more than 1 minute continuously. If necessary, take a few seconds break between cycles to avoid damaging the motor.

How to clean the blades?

The blades are very sharp. Clean them with a brush or cloth under warm soapy water, or use a cleaning cycle by filling the pitcher halfway with warm water and detergent, then running the appliance at speed 2.

What to do if the blender does not start?

Check that the pitcher is properly engaged on the motor base: the blender is equipped with a safety locking system. Also make sure the control knob is in the 0 position before plugging in.

Can I blend dry and hard ingredients?

No, the appliance is not designed for blending hard and dry substances (e.g., whole coffee beans). This could dull the blades. Cut solid foods into small pieces (2-3 cm) before blending with liquid.

How to detach the blade base?

Gently turn the blade base counterclockwise to unlock it from the pitcher. Then remove it with the seal ring. Watch out for sharp blades.

Where to find spare parts?

Contact Sogo after-sales service via www.sogosat.com or by email at [e-mail]. Phone: [phone].

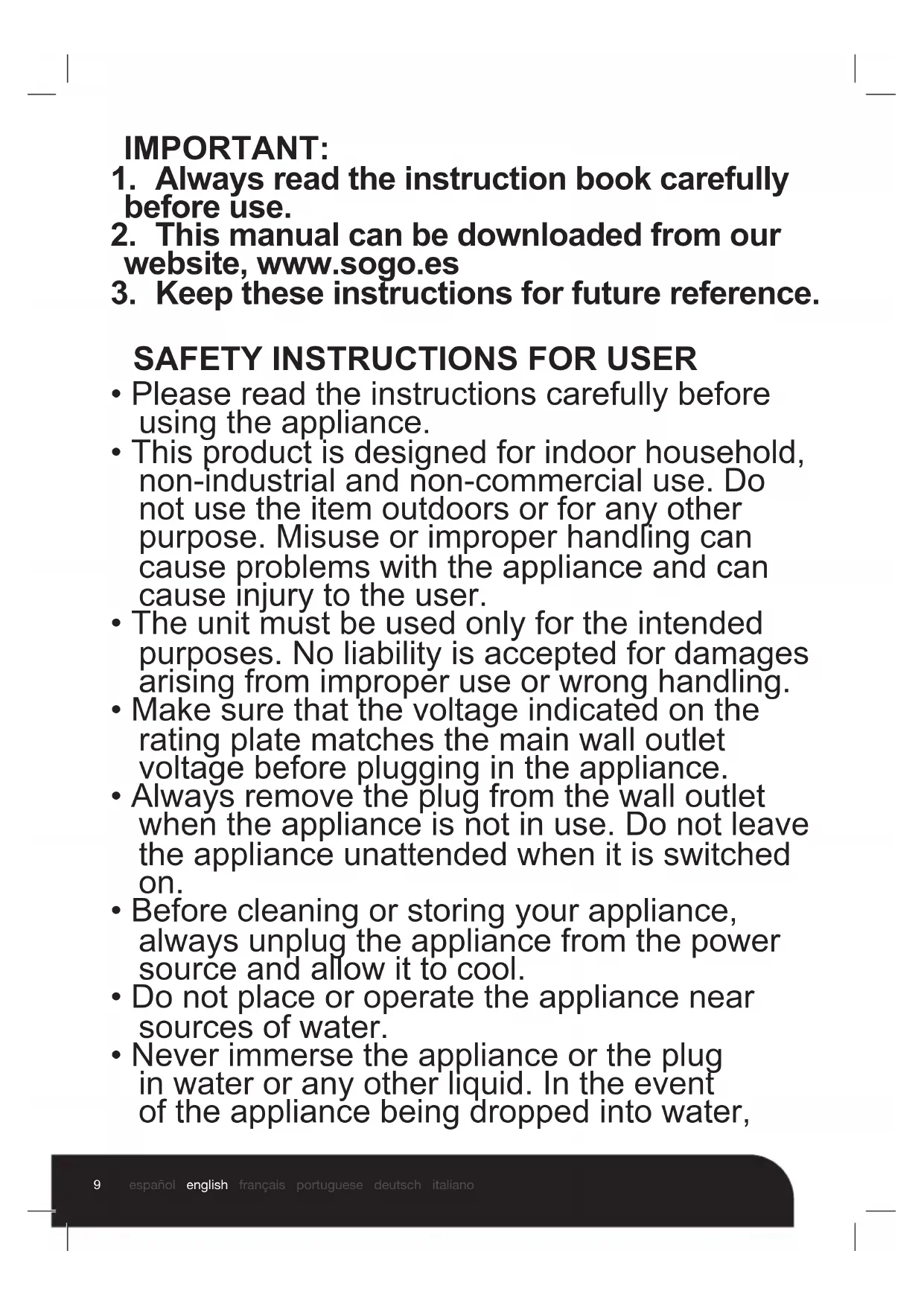

USER MANUAL SS5565 Sogo

1. Always read the instruction book carefully before use.
2. This manual can be downloaded from our website, www.sogo.es
3. Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR USER

• Please read the instructions carefully before using the appliance.
• This product is designed for indoor household, non-industrial and non-commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling can cause problems with the appliance and can cause injury to the user.
• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.
• Always remove the plug from the wall outlet when the appliance is not in use. Do not leave the appliance unattended when it is switched on.
• Before cleaning or storing your appliance, always unplug the appliance from the power source and allow it to cool.
• Do not place or operate the appliance near sources of water.
• Never immerse the appliance or the plug in water or any other liquid. In the event of the appliance being dropped into water,

immediately disconnect it from the main supply and take it to an authorized service agent for repair before using it again.

• Do not place or use the appliance and its power cord on or near hot surfaces (for example, cooktops) or open flames.
• Do not leave the power cord hanging by sharp edges and keep it away from hot objects and flames. Do not wrap the cord around the appliance and do not bend it.
• Do not use the appliance if the cord or plug is damaged. In the event that the cord is damaged, it should only be replaced by the manufacturer, its service agent, or similarly qualified persons, to avoid hazards.
• Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.
• Do not use the appliance with wet hands, on moist floor or when the ambience is humid.
• In the event of a malfunction of the appliance, or if it has been damaged in any way, return the appliance to the nearest authorized service center for examination, repair or adjustment.
• In case of hardware problems, do not try to repair the product yourself. Repairs should only be carried out by qualified technicians.
• To remove the plug from the wall socket, do so by pulling the plug and not by the cord or the appliance itself.
• Make sure your hands are dry before plugging or unplugging.
• This appliance is not intended for used by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a responsible person for their safety.

• Children must be supervised to ensure that they do not play with the appliance.
• Children should not perform cleaning or maintenance without supervision.
• This appliance should not be used by children. Keep the appliance and its cord out of reach of children.
• Children should not perform cleaning or maintenance without supervisión.
• Never use accessories that are not recommended by the manufacturer.
• The appliance cannot be used for blending hard and dry substance, otherwise the blade can be get blunted.
• The use of attachment, including Jar, lid, or any another accessory not recommended or sold by manufacture may cause fire, electric shock or injury.
• Always disconnect the blender from the mains when it is left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• While using the appliance, make sure that the

power cord cannot be caught or crushed.
- Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.
- WARNING: The blades are very sharp!
- Avoid contacting moving parts of the appliance while in function.
- Turn off the appliance and disconnect from the mains supply before changing accessories or approaching movable parts in use.
- Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
- Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
- Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the blender. A scraper may be used but must be used only when the blender is not running.
- To reduce the risk of injury, never place cutting blade on base without mounting with the jar properly.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- The appliances are not intended to be operated by means of an external timer or separate remote-control system.

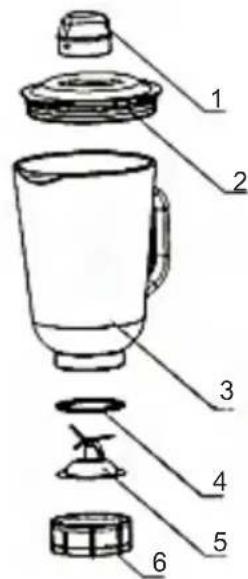

PARTS OF THE BLENDER

1. Measuring Cup + Inner cover
2. Lid
3. Glass Jug of 1.5L
4. Sealing ring
5. Removable Cutting blade of stainless steel
6. Retaining ring
   7.Motor & base
7. Control knob with 2 speeds and pulse function

Knob with speed functions

P - Pulse: Stainless steel blade operate with transitorily highest speed, suitable for ice crushing.
1 Low speed - Stainless steel blade operate with low speed, suitable for elementary blending.
2 High speed - Stainless steel blade operate with high speed, suitable for symmetrical blending.
0—Turn off the unit.

How to use the pulse function.

1. Turn rotary switch to «0» position to turn off the appliance.
2. Press pulse button as long as you want motor to run.

Ice crushing Program:

1. Turn rotary switch anti-clockwise to the P position.
2. The blender starts crushing the ice.
3. To stop the function turn rotary switch to «0» position.

Low speed Fuction

This function can be used for making soups, smoothies and baby foods

1. Turn motor switch clockwise to position speed 1.
2. The blender starts blending.
3. To stop turn rotary switch to «O» position.

Hi-speedfuction.

This function can be used for grinding and blending some kinds of vegetables and fruits.

Special Instructions

1. Never fill the jar with the max. Capacity as overfilling of it can block the operation and also spouting out of the ingredients or liquid, please turn off the unit, disconnect the pluga and take out some of liquid or ingredients and then operate.
2. Do not use the appliance continuously more than 1 minutes and always keep some time difference between two cycles.

Installation of unit before first use

1. Clean the measuring cup, cover and jar(except main body)and before first use and so on every single use.
2. Do not plug in the unit until the jar is ready to be mount on to the motor.
3. Firstly mount the blade base into bottom part of the jar and lock it firmly.
4. Put the jar base on the top of motor mainbody, please pay attention to match the position of jar and the bulge of the motor main body.
5. Put the cover on top of the jar and pus hit town. Insert the closure into the cover and turn till it locks into place.

6. Place the measuring cup on the center of lid and fix it well.

7. This unit have been designed in such a way for safety purpose that it wont work until the jar has been fixed on to the motor.

8. For user safety reasons, this blender has a safety lock system. According to that the blender will not work until the jug does not lock properly with the motor part.

Operational process

The jar blender can be used to blend, grind and mix various type of ingredients and to crush the ice, also one can make soups, shakes, smoothies.

1. Connect the power plug with wall outlet.
2. Fill the jug with the desired food ingredients. To make ensure the quantity of water or any type of liquid shouldn't spill out from jar always try to fill it lesser than the maximum quantity indicated.

WARNING: Do not use the unit without any food ingredients inside the jar.

1. keep the knob position onto the "0" until the jar is mounted on to the motor.
2. close the jar with the lid and Place the measuring cup on the center of lid and lock it properly
3. Turn the knob on to desired speed(P— pulse,1—low speed,2—high speed)

Keep the knob on the chosen speed position until you get the desired thickness of the ingredients and once you get it turn the knob on to the position "0" and take out he plug.

Use advice

Cleaning and storage

• In addition to this, user must refer to the security precautions.
• Do not clean Motor main body, power cord and plug with water.
• Clean the motor base with a soft, wet piece of cloth and some mild cleaning agent.
• Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.
  The Blade base is detachable part of the jar, so carefully turn around the base to detach and Take out from the jar
• Now clean jug, cover, closure, base and blades with sealing ring with hot water and some cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.
• Never use aggressive cleaning agents.
• Ensure the unit is completely cool and dry.
• Do not wrap the cord around the appliance, as this will cause damage.
• Keep the appliance in a cool, dry place and out of reach from children.

WARNING : Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid any type of injury.

WARNING: Do not put hot ingredients into the jar. Before any food preparation, allow food to cool down for a few minutes.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

CAUTION: Maximum time of food processing should not exceed 1 Minute of continuous use. In case the food which needs to be blended further to achieve the required smoothness use the applinace dividing in various cycles with few second pauses in between each cycle to avoid permanent damage to the motor.

Technical specification

Model No.: SS-5560, SS-5565

Voltage / Frequency: 220-240V~50-60Hz

Power: 500W

Jar capacity: 1.5L

IMPORTANT:

Specifications techniques

Numero de modulo: SS-5560, SS-5565

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034 902 222 161
