SS11330 - Popcorn machine Sogo - Free user manual and instructions

Brand	Sogo
Model	SS11330
Product type	Hot air popcorn machine
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W
Maximum capacity per batch	40 g of popcorn kernels
Cooking function	Hot air without oil
Material	Plastic and metal
Color	Black (typical)
Included accessories	Measuring cap
Safety	Do not immerse, use on a flat, heat-resistant surface, do not leave unattended
Care and cleaning	Wipe with a non-abrasive damp cloth, do not put in dishwasher
Special instructions	Let cool for 10 minutes between batches
Compliance	CE (Directives 2014/35/EU, 2014/30/EU, 2015/863/EU, 2009/125/EC)

Frequently Asked Questions - SS11330 Sogo

How to use the Sogo SS11330 popcorn machine?

Pour about 40 g of popcorn kernels into the chamber through the hole in the lid, place a bowl under the outlet, then set the switch to ON. The popcorn will be ready in a few minutes. Turn off the appliance and let it cool for 10 minutes before a new batch.

How much corn should I put?

Use the included measuring cap, which corresponds to about 40 g. Never exceed this amount to avoid overheating and overflow.

Can I add butter or oil to the machine?

No, this appliance works with hot air. Never add butter, oil, water, or seasoning into the chamber. Add toppings after cooking.

How to clean the machine?

Unplug it and wait for it to cool. Wipe the inside and outside with a non-abrasive damp cloth. Never immerse the base in water and do not put parts in the dishwasher.

Why does my machine produce smoke?

This may be due to kernels that are too dry or an excess of kernels. Use fresh kernels and avoid exceeding 40 g. If smoke persists, stop the appliance and let it cool.

Can I use microwave popcorn in this machine?

No, this appliance is designed only for traditional popcorn kernels. Do not use microwave popcorn bags.

How long can I run the machine continuously?

Do not exceed 5 minutes per cycle and let it cool for at least 10 minutes between batches to avoid overheating.

Can I leave the machine unattended?

No, always supervise the appliance during operation. Do not leave it unattended, especially in the presence of children.

What to do if the machine does not turn on?

Check that the plug is connected and the switch is ON. If the problem persists, contact customer service at 0034 902 222 161 or via www.sogosat.com.

Where can I find spare parts?

Contact Sogo customer service or visit www.sogosat.com for spare parts.

USER MANUAL SS11330 Sogo

Black-and-white illustration of a movie theater with a canopy, wheels, and a small cake (no text or symbols visible)

Palomitera Retro Retro Popcorn Machine La Machine Rétrode Pop-corn Máquina de pipocas Retro Popcorn-Maschine Macchina di Popcorn

Caution: please read and preserve these important instructions This manual can be downloaded from our website, www.sogo.es in the following languages. SPANISH, CATALAN, ENGLISH, FRENCH, PORTUGUESE, GERMAN, ITALIAN

ref. SS-11330

Read These Instructions Before Using This Unit!

SAVE THESE INSTRUCTIONS

IMPORTANT WARNING: THIS APPLIANCE IS NOT A TOY

IMPORTANT SAFE GUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH hot surfaces. Always use oven mitts or protective hand coverings to handle hot appliances.
3. To protect against electric shock do not immerse cord, plugs or base of this appliance in water or other liquid.
4. The appliance must be place on a flat, stable and heat resistant surface.
5. Do not operate the appliance in confined area, near heat source or water. Always operate the appliance in well ventilated area, and avoid the unit comes to contact with flammable materials while operating (cloths, curtains, etc)
6. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
7. DO NÓT use outdoors or in damp and humid area.
8. DO NOT let the cord hang over edge of table or counter or touch hot surfaces.
9. DO NOT use appliance for other purpose than

intended use.

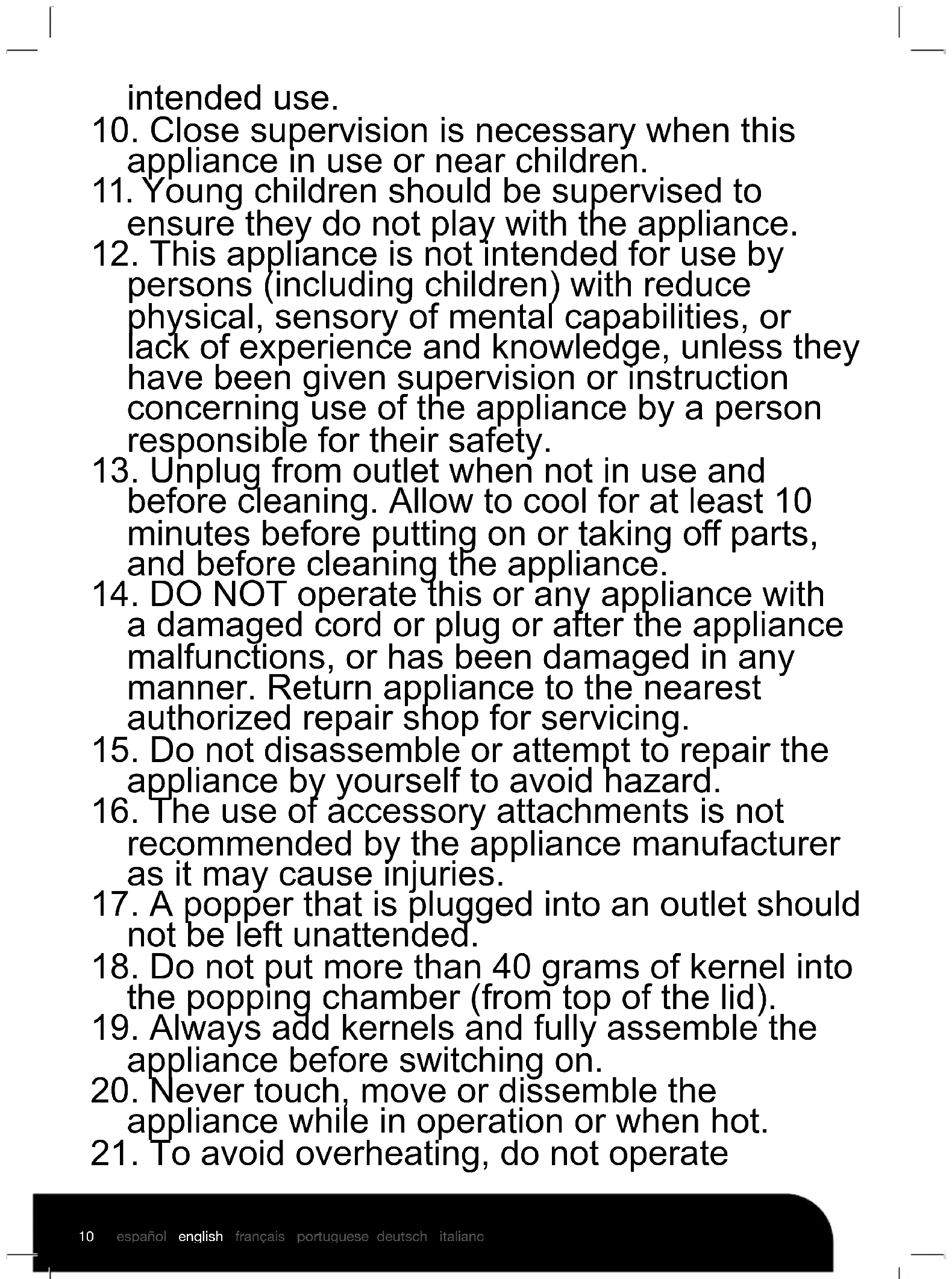

1. Close supervision is necessary when this appliance in use or near children.

2. Young children should be supervised to ensure they do not play with the appliance.

3. This appliance is not intended for use by persons (including children) with reduce physical, sensory of mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

4. Unplug from outlet when not in use and before cleaning. Allow to cool for at least 10 minutes before putting on or taking off parts, and before cleaning the appliance.

5. DO NOT operate this or any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized repair shop for servicing.

6. Do not disassemble or attempt to repair the appliance by yourself to avoid hazard.

7. The use of accessory attachments is not recommended by the appliance manufacturer as it may cause injuries.

8. A popper that is plugged into an outlet should not be left unattended.

9. Do not put more than 40 grams of kernel into the popping chamber (from top of the lid).

10. Always add kernels and fully assemble the appliance before switching on.

11. Never touch, move or dissemble the appliance while in operation or when hot.

12. To avoid overheating, do not operate

more than 5 minutes per popping cycle. It is recommended to allow 10 minutes between each popping cycles to allow unit to cool.

1. Extreme caution must be taken when unloading popcorn.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a long cord.
3. If an extension cord is required in the operation area, please ensure the marked electrical rating of the extension cord is higher than or at least as great as the electrical rating of the appliance.
4. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
5. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
6. Children shall not play with the appliance.
7. Cleaning and user maintenance shall not be made by children without supervision.

Do not use butter, oil, water, seasoning or any other substances other than kernels in the popping chamber.

IMPORTANT PRECAUTIONS:

Important Precautions to Remember:

A. NEVER immerse based in water.
B. NEVER use near water, damp or high humidity area.
C. NEVER use an abrasive sponge or cloth.
D. NEVER use a scouring pad on the unit.
E. NEVER leave the unit unattended while in use.

F. This unit uses hot air. Do not use butter, oil, water or other subsistence other than kernel in the popping chamber.

G. Do not touch hot surfaces. The appliance becomes hot during and after corn popping.

H. Unplug unit from outlet when not in use and when cleaning. Allow to cool for at least 10 minutes or more before taking off any parts.

I. DO NOT operate this appliance with a damaged cord or plug or in the event the appliance ever malfunctioned.

J. 'DO NOT put any parts in dishwasher.

K. Keep out of reach of children and pets.

L. NEVER put your face near the unit while popcorn is popping (Especially near the chute). Stay at least 40 inches (1 meter) in distance from appliance while corn is popping. Extra caution is necessary when using this product near small children or pets

M. NEVER put your hand in the unit while popcorn is popping. Wait at least 10 minutes after the unit has been turned “off.

N. Remove all un-popped kernels in the popping chamber before filling with fresh kernels for next batch.

O. Never use microwave popcorn in this appliance. Use traditional kernel only.
P. 'This unit is intended for HOUSEHÖLD USE ONLY.

Note:

1. Popcorn is produce with kernels quickly turn themselves our under heating condition. During this process it is normal for some un-popped kernels to eject from the chute. DO NOT pick up these kernels as it is very HOT!
2. Stay clear of the chute while the appliance is operating.

This manual can be downloaded from our web page www.sogo.es

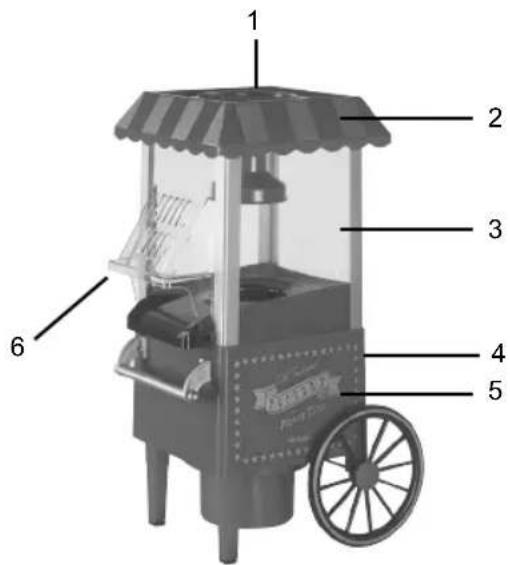

SPECIFICATIONS

Voltage / Frequency: 220-240V\~50-60Hz Power Consumption: 1200W

1. Measuring cap
2. Lid
3. Popping chamber
4. ON/OFF switch
5. Base
6. Chute

1 2 3 4 5 6

INSTRUCTIONS

This popcorn maker is easy to follow these simple instructions.

• Taking the unit out of the box

- The appliance is already fully assembled.

- Before first use, lift the lid off of the base and wipe clean the inside of the unit with a non-abrasive moist sponge or a non-abrasive towel and then wipe with a non-abrasive dry towel.

- After cleaning the inside, put the lid back onto the base.

- Now you are ready to enjoy freshly popped. First find a stable place near an electrical outlet before starting. (Make sure you cord is away from any water source).

• One level measuring cap of kernel will be perfect for each batch (Approx 40 grams).

IMPORTANT - NEVER under fill or over fill the kernel cap. Under filling the cap can cause fewer kernels to pop and more kernels to come out from the chute during popping. Over filling can cause burn and smoke.

• Pour the kernels down the popping chamber via the hole on the top of the lid until the measuring cap is empty.
• Place measuring cap back in position the lid.
• Place a bowl or dish under the chute collect popcorn. Freshly popped popcorn can be very hot, wait for a while before consuming the popcorn.

When selecting a bowl, use a bowl that is large enough (at least 3 liters and Heat resistant) and will fit under the popcorn chute (But not blocking the chute). Bowl with flat side will be better and the flat should be place against the

base (under the chute).

usPlugJust into outlet.

• Turn unit "ON" (position I) and in just minutes, you will have freshly popped popcorn - popped to perfection!
• When kernels have fully popped, turn unit "OFF" (Position O). You can tip the popcorn maker forward at this point to make sure you get all the popcorn out of the machine. (Wear an oven mitt as the lid will be hot).
• Consume the popped popcorn as is or top with your favorite toppings such as: Salt and Pepper, Seasoning Salts, Butter or Margarine, Caramel, Worcestershire Sauce, Food Coloring for fun, Parmesan Salt, and more . . .

*IMPORTANT - ALWAYS allow 10 minutes between popping corn for machine to cool so unit does not overheat and works effectively.

RECIPES SELECTING THE RIGHT POPCORN

of The appliance is designed for all regular and premium brands of popcorn. Yellow popcorn generally pops larger than white kernel. (Organic kernel is not highly recommended for this machine). Please note to use fresh kernel as older dried kernel can scorch and cause smoking in the unit. If your kernel is old and dried out, you can freshen it by putting the kernels into an air tight container leaving some space for shaking. Put in 1 teaspoon of water for each cup of kernel. Shake twice a day for 3 days leaving the container in the

refrigerator. Then the kernel should fresh again.

You can enjoy any flavor popcorn in your own home with this appliance. Here are some sample recipes to get you started.

NOTE: NEVER put any seasoning or oil in the popcorn popping chamber. ALWAYS season your popped popcorn after the popcorn has been popped and removed from the appliance.

• Melt butter or margarine in the microwave or butter cap. Pour over the popped popcorn and toss with salt. (Beware! Do not let butter drop or leak into popping chamber)
• Spray with your favorite flavored vegetable spray and sprinkle with herbs - powder, chili powder, basil or oregano.
  • Toss with grated Parmesan Cheese
• This appliance makes batches of popcorn - fast and easy - for holiday popcorn and caramel balls!
• HANDY TIP: Put freshly popped popcorn in a clean brown paper bag, add your melted margarine and seasonings, shake and enjoy! Works with vegetable spray also.

be water if use for butter melting. Otherwise, wipe with slightly moist non-abrasive sponge or non-abrasive towel.

1. The Lid should be clean with slightly moist non-abrasive sponge or non-abrasive towel with warm water (or with mild detergent when necessary), and must wipe with non-abrasive towel damp with warm water. Then wipe with non-abrasive dry towel.
2. Never use aggressive scouring or steel wool the any part of this appliance.
3. All parts must be dried complete before reassemble (Place lid back on the base).
4. This appliance must be store in a cool dry place.

garlic

CLEANING OR AFTER USE

1. Always switch off (Position O) and disconnect the plug from the mains before cleaning the appliance.
2. Allow the appliance to cool at least 10-15 minutes before lifting the lid for cleaning.
3. The base part, power plug and cord must never immersed into water.
4. Measuring cap can be wash with soapy

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
