USER MANUAL SS11350 Sogo

Exterior view of a modern popcorn and SOGO portable movie theater with open lid (no text or symbols on main body)

Palomitera Retro Retro Popcorn Machine La Machine Rétrode Pop-corn Máquina de pipocas Retro Popcorn-Maschine Macchina di Popcorn

1. Important Note P. 11

2. Symbol definitions P.11

3. Safety instructions for the user P.11

I. General precautions during the use of electrical equipment P. 11
II. Restrictions on use to avoid personal injury P. 12
III. Product use restrictions due to poor condition or breakdown P. 13
IV. Restrictions on use when used with children and elders P. 14
V. IMPORTANT WARNING P. 15
VI. Instructions to follow when using the device P. 15

1. Technical specifications P. 17
2. Parts description P. 17
3. Instructions for use P. 17
4. Cleaning and maintenance P. 18
5. Declaration of conformity P. 52
6. Responsibility for disposal, details of the manufacturer and after-sales service P. 53

ÍNDICE

Line drawing of a mechanical device with transparent casing and mounting brackets (no text or symbols)

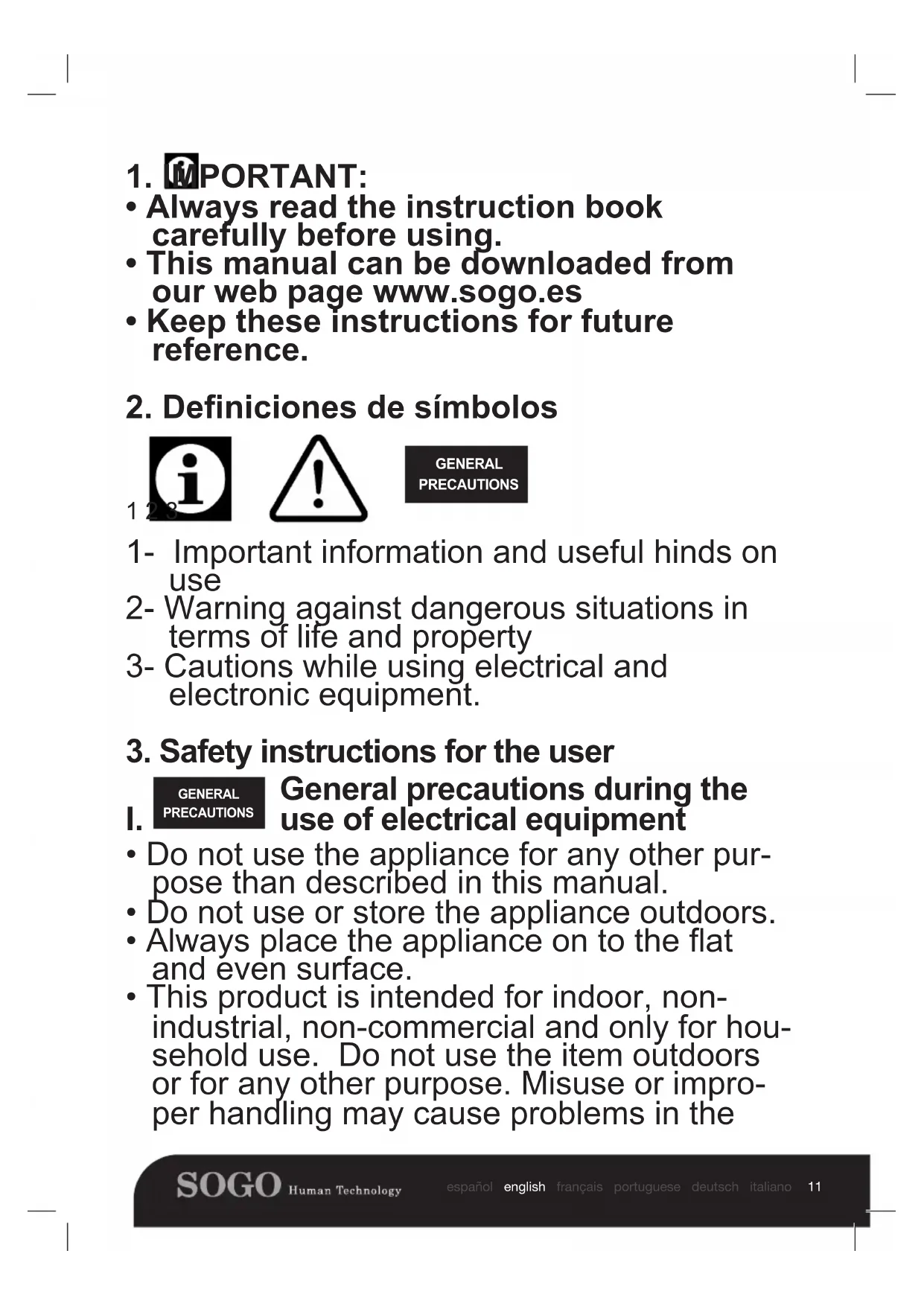

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat and even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the

appliance and cause injury to the user.

• The unit must be used only for the intended purposes. No liability is accepted for damages arising from improper use or wrong handling.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

II. ⚠️! Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

- Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames.

• Do not leave the power cord hanging from sharp edges and keep away from hot objects and flames. Do not wind the cord around the appliance and do not bend it.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III.

Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians.

IV. ⚠️! Restrictions on use when used with children and elders

• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not allow the children to use the appliance.

V. IMPORTANT WARNING

• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.
• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30 Ma in the house installation. Please consult your installing electrician.

VI. ⚠️! Instructions to follow when using the appliance

• DO NOT touch moving parts.
- The manufacturer does not recommend the use of accessory attachments. Use of accessory attachments may cause injuries.
- Keep door of Main Unit closed while operating this appliance.

4. TECHNICAL SPECIFICATIONS

Voltage Power Frequency
220-240V 310W 50 –	60Hz

5. PARTS DESCRIPTION

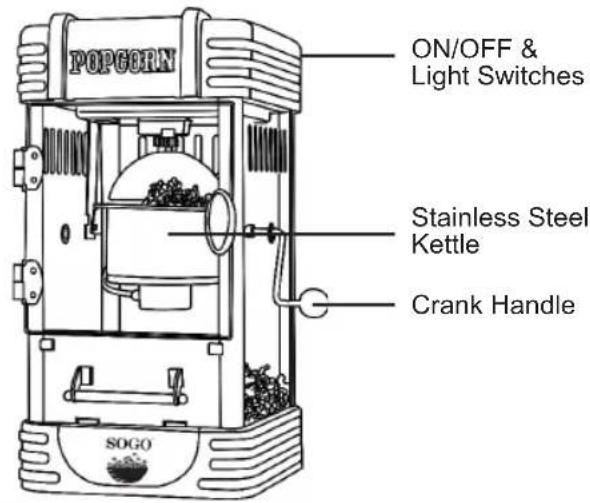

ASSEMBLY

Your RETRO POPCORN MAKER comes fully assembled. Simple insert the Kettle into brackets and screw in the crank handle.

ON/OFF & Light Switches Stainless Steel Kettle Crank Handle SOGO

PARTS

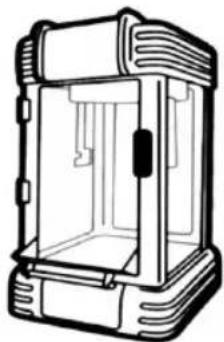

Line drawing of a mechanical device with transparent casing and mounting brackets (no text or symbols)

(A) Main Unit (B) Kettle (C) Kernel

Measuring Cup

(2/3 cup = 2 oz) as well as Oil

measuring spoon (2/3 tbsp)

6. INSTRUCTIONS FOR USE

• Before first use, clean the inside of the unit by wiping with a moist, non-abrasive sponge, towel or cloth and then wipe with a non-abrasive dry towel. Wipe down the inside of the Kettle and be sure it is properly placed in the brackets before starting.
• First, find a flat surface near an electrical outlet before starting. Make sure your cord is away from any water source. It is acceptable to use an extension cord if needed.
• Gather your popcorn making supplies: popcorn, seasoning, bowls or bags for holding the popcorn, cooking oil and 2 in 1 Measuring Cup (to measure corn as well as oil).
• Plug in the appliance while switch is flipped to OFF position.
• Make sure Kettle is properly secured in support brackets.
• Make sure Kettle motor is plugged in.
• Turn appliance ON by flipping the switch on the top of the machine. Allow the appliance to run 3-5 minutes to heat up Kettle.
• Turn unit OFF.
• Use the Oil Measuring Spoon supplied with your RETRO POPCORN MAKER to add 2/3 tablespoon of your favorite popcorn cooking oil to the Kettle. For best popping results, it is suggested to use light vegetable oil.
• Add 2/3 cup (2 oz) of the maiz to the Kettle using supplied Measuring Cup.
• Turn the unit ON and close the door. In no time at all, you will hear the popping begin. Fresh ,hot

popcorn will begin to burst out of the flip lids on the Kettle-just like at the theater!

1. Once the kernels have stopped popping, tip the Kettle using the red knob on the Crank Handle to release the popcorn.

HELPFUL TIPS

SMOKE

If smoke comes out of your POPCORN MAKER during cooking, it may be due to grease build up. In order to reduce smoking, make sure that you clean the inside of the Kettle between uses.

7. CLEANING AND MAINTENANCE

1. Make sure appliance is unplugged before cleaning. Unplug the outer plug to the outlet as the Kettle motor plug inside the Main Unit.
2. Use slightly damp, non-abrasive sponge, towel or cloth to wipe down the inside and outside Of Main Unit, then wipe with a non-abrasive towel to dry.
3. Unplug Kettle motor and remove Kettle from support brackets.
4. Take Kettle out of the Main Unit. After removing Kettle from Main Unit, fill 2/3 of Kettle with hot, soapy water.
5. Let the Kettle sit for 15-20 minutes to cut the grease. (time may vary-use your own judgment depending on the amount of cleaning necessary)
6. Empty water. If necessary, use the scrubber side of a cleaning sponge to scrub inside of Kettle.
7. Rinse inside carefully and dry.
8. Wipe outside of Kettle with damp cloth and dry.

NOTE: To protect the motor plug from getting wet, never immerse the Kettle in any liquid. Never place any parts in the dishwasher. Always wash by hand.

IMPORTANT WARNING: THIS APPLIANCE IS NOT A TOY

1. i IMPORTANT:

Line drawing of a 3D printer case with transparent casing and lid (no text or symbols)

(A) Unité principale (B) bouilloire (C) noyau

Mesure graduée(2/3 tasse = 2 oz)

6. MODE D'EMPLOI

Line drawing of a 3D printer case with transparent casing and mounting brackets (no text or symbols)

Line drawing of a 3D printer case with transparent casing and mounting brackets (no text or symbols)

Line drawing of a 3D-printed mechanical device with transparent casing and mounting brackets (no text or symbols)

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
