Product type	Food processor (stand mixer with hand mixer function)
Brand	Sogo
Model	SS14506 (SS-14506-R / SS-14506-CB)
Power supply	220-240 V~, 50/60 Hz, 350 W
Number of speeds	5 speeds (1 to 5)
Main functions	Mixing, kneading, whisking
Included accessories	2 beaters, 2 dough hooks, stainless steel bowl
Bowl	Stainless steel, removable, lockable
Mixer stand	With swivel arm and unlock button
Usage mode	On stand or as hand mixer (detachable)
Max continuous operation time	5 minutes, then pause of at least 1 minute
Cleaning	Accessories hand washable; motor wipe with damp cloth
Safety	Ejection button, bowl lock, stop before changing accessories
Usage	Domestic only
Compliance	Low Voltage Directive (2014/35/EU), EMC (2014/30/EU), RoHS (2015/863/EU), Ecodesign (2009/125/EC)
After-sales service	www.sogosat.com / [e-mail] / [phone]
Origin	Made in P.R.C., designed by Sogo according to European standards

Frequently Asked Questions - SS14506 Sogo

What is the power of the Sogo SS14506 food processor?

The appliance has a power of 350 W at a voltage of 220-240 V~ and 50/60 Hz.

How long can I use the mixer continuously?

The maximum continuous operation time is 5 minutes. After 5 minutes, let the motor cool down for at least 1 minute before using the appliance again.

How to install the beaters or hooks?

Press the push button on the motor block and lift it backward. Insert the beaters or hooks into the correct hole and make sure they are properly fixed. Release the button to lower the motor.

How to use the appliance as a hand mixer?

Detach the motor block from the stand by pressing the unlock button. Insert the accessories into the motor block, plug in the appliance, hold the handle and dip the accessories into the ingredients. Select the desired speed.

Which accessories to use for kneading dough?

For kneading thick dough, use the dough hooks. For whisking eggs or cream, use the beaters.

How to clean the accessories?

Unplug the appliance and remove the accessories. Clean the beaters, hooks and bowl by hand with a soft sponge and mild detergent. Rinse with clean water and dry. Wipe the motor with a damp cloth, do not immerse.

Can I put the motor in water?

No, never immerse the motor in water or any other liquid to avoid electrical short circuit. Wipe it with a damp cloth.

What to do if the appliance does not work properly?

If the appliance malfunctions or has a damaged cord, send it to an authorized service center. Do not attempt to repair it yourself. Contact after-sales service via www.sogosat.com.

How to lock the bowl on the stand?

Place the bowl on the base and turn it clockwise until it clicks. Use the lock button to secure it. To unlock, turn counterclockwise.

Which speed to use for each task?

Speed 1: folding (flour, butter). Speed 2: mixing (sauces). Speed 3: blending (cakes). Speed 4: creaming (butter and sugar). Speed 5: whisking (eggs, whipped cream). Adjust according to consistency.

USER MANUAL SS14506 Sogo

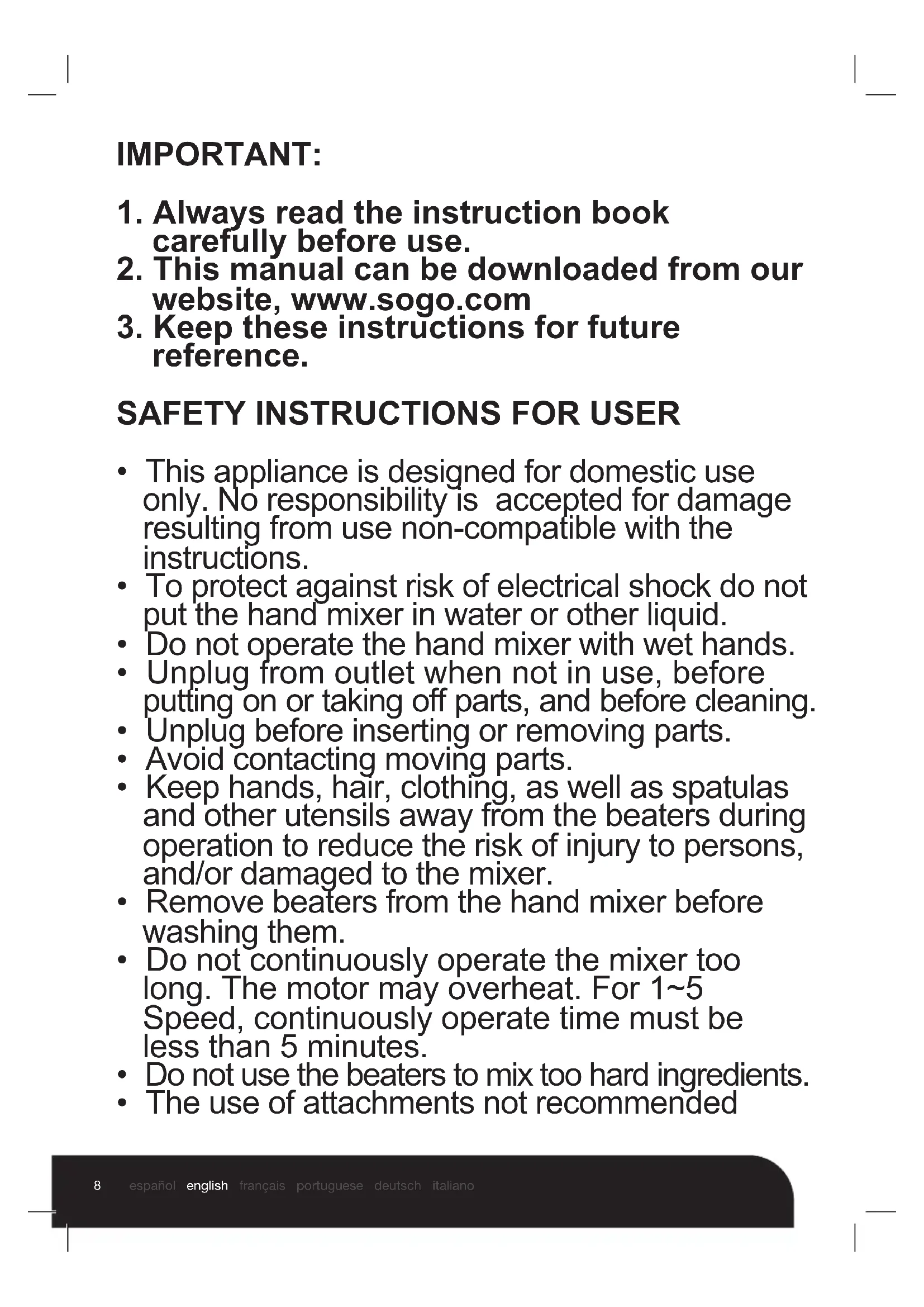

1. Always read the instruction book carefully before use.
2. This manual can be downloaded from our website, www.sogo.com
3. Keep these instructions for future reference.

SAFETY INSTRUCTIONS FOR USER

• This appliance is designed for domestic use only. No responsibility is accepted for damage resulting from use non-compatible with the instructions.
• To protect against risk of electrical shock do not put the hand mixer in water or other liquid.
• Do not operate the hand mixer with wet hands.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Unplug before inserting or removing parts.
• Avoid contacting moving parts.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.
• Remove beaters from the hand mixer before washing them.
• Do not continuously operate the mixer too long. The motor may overheat. For 1 5 Speed, continuously operate time must be less than 5 minutes.
• Do not use the beaters to mix too hard ingredients.
  The use of attachments not recommended

or sold by the manufacturer may cause fire, electric shock or injury.

• Do not let cord contact hot surface, including the stove.
• Do not let cord hang over edge of table or counter.
• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• Do not put it in water.
• Do not use outdoors.
• Switch off the appliance before changing accessories or approaching parts which move in use.
  Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Do not use this appliance with a programmer, counter, remote control or another device which can automatically turn it on because if the appliance is covered or incorrectly positioned there is a danger of fire or serious injury.
• Make sure that the voltage indicated on the rating plate matches the main wall outlet voltage before plugging in the appliance.
• The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
• Children being supervised to not to play with the appliance.
• This appliance can be used by persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervisión.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of the children.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.
• Do not operate after malfunction or cord damage.
• Do not use the appliance if the cord or plug is damaged. In the event that the cord is damaged, it should only be replaced by the manufacturer, its service agent, or similarly qualified persons, to avoid hazards.
• In the event of a malfunction of the appliance, or if it has been damaged in any way, return the appliance to the nearest authorized service center for examination, repair or adjustment.
• In case of hardware problems, do not try to repair the product yourself. Repairs should only

be carried out by qualified technicians.

• Do not pull, twist or wrap the power cord around any objects.

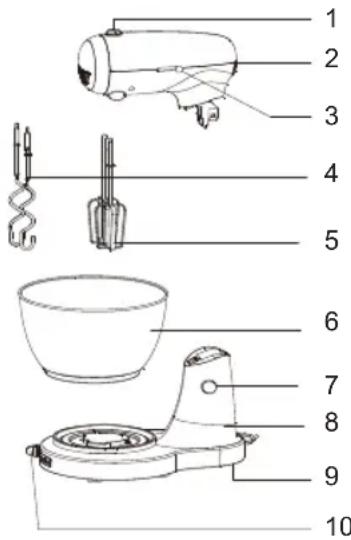

PARTS DESCRIPTION:

1. Ejector knob
2. Motor
3. Speed control
4. Hooks
5. Beaters
6. Stainless steel bowl
7. Stand release button
8. Stand
9. Base
10. Hand shank

MIXING GUIDE

SPEED DESCRIPTION
1 FOLD This is a good starting speed for bulk and dry foods such as flour. butter and potatoes.
2 BLEND Best speed to start liquid ingredients for mixing salad dressings.
3 MIX For mixing cakes. cookies and quick breads.
4 CREAM For creaming butter and sugar. Beating uncooked candy. desserts. etc.
5 WHIP For beating eggs. cooked icings. Whipping potatoes. whipping cream. etc.

Note: Use beaters if beat eggs. Use hooks if mix thick sticky flour.
During mixing dough, add water in bowl first, then add four. Use your hand to rotate bowl for about 2-3 minutes, after that bowl can be rotating itself.

HOW TO MOUNT THE MIXER

INSERTING THE BEATERS OR THE DOUGH HOOKS

Press the push button on to the motor unit and lift it backward. Insert the beaters or dough hooks into the correct hole and make sure that it is fixed well.

FIXING THE BOWL

Press the push button on to the motor unit and lift it backward, Place the bowl on to the base part of the appliance, turn the bowl base clockwise into the main rotating disc and press the lock button to make sure that the bowl is fixed properly. Finally bring back the motor down with the help of same pressing button. Note: To get Good stirring effect it is recommended to put first the liquid ingredients in the bowl followed by adding the dry ingredients.

LOCKING THE BOWL

Move the bowl adjusting button clockwise to lock the bowl

WORKING OF THE UNIT

Plug in the appliance in the wall outlet, turn on the stand mixer, move the speed button and select the desired speed from 1 to 5.

USING YOUR HAND MIXER

1. Fit the beaters or hooks to the beater holes. They have to be fit in the correct position
2. Plug in the appliance.
3. Hold the mixer handle. Lower the beaters or hooks into ingredients.
4. Switch on and select the speed desired. The mixer begins to mix the ingredients in the bowl.
5. When you have finished mixing, stop the mixer by pushing the speed button to "0" immediately.
6. Wait until the beaters/hooks have stopped revolving, press the ejector knob to remove the beaters/hook. "Switch off the appliance before changing accessories or approaching which move in use."
7. Unplug the appliance when you have finished mixing. Clean the beaters/hooks with water. Make them dry, store in the box together with the main body.
8. Hand shank, Stainless steel bowl can move around.
9. Stand release button, Can shake up and down, convenient take material and to take off the fork.

IMPORTANT

Do not use the mixer continuously more than 5 mins. After use of 5 mins, take a pause of at least 1 minute to cool down the motor and use it again.

CLEANING AND MAINTENANCE

Unplug the appliance and remove the detachable accessories.

It is advised to clean or wash all the detachable accessories by hand after detaching from the motor. Do not use solvent or abrasive agents to clean the Appliances and its accessories, always use soft sponge and soft detergent. Rinse it with clean running water and soak with clean cloth.

Wipe the motor with dry and damp cloth, do not immerse the mixer in water or any other liquid to avoid electrical short circuit or to damage appliance.

Always clean the bowl, beaters and hooks with soft detergent and clean water.

PRODUCT SPECIFICATIONS:

Model: SS-14506-R / SS-14506-CB

Rating: 220-240V\~, 50/60Hz, 350W

Work time: 1-5 speed, KB 5 minutes.

IMPORTANT:

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056

C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by

SOGO based on the European Quality

Standards

Customer Service: www.sogosat.com /

[e-mail]/0034902222161
