Allround Finder 4G - GPS device PAJ GPS - Free user manual and instructions

Product Type	GPS Tracker
Brand	PAJ GPS
Model	Allround Finder 4G
Dimensions	106 mm x 63 mm x 23 mm
Weight	140 g
Power Supply	Li-ion battery 3.7 V 5000 mAh non-removable
Battery Life	Approximately 20 days on standby
Initial Charging Time	8 to 12 hours
GPS Accuracy	Up to 5 meters
Network	GSM/GPRS/WCDMA/FDD-LTE/TDD-LTE
Protection Rating	IP65
Operating Temperature	-20 °C to +55 °C
Storage Temperature	-40 °C to +85 °C
Humidity	10 % to 70 %
Package Contents	ALLROUND Finder 4G, charging cable, pre-installed M2M SIM card
Main Functions	Real-time GPS tracking via app or web portal, LED indicators (GSM, GPS, battery)
Maintenance and Cleaning	Clean with a slightly damp cloth, no harsh chemicals
Safety	Do not open, do not expose to heat sources, use only original accessories
Spare Parts and Repairability	Battery not user-replaceable, repairs by customer service
General Information	Warranty and EU conformity available at paj-gps.de

Frequently Asked Questions - Allround Finder 4G PAJ GPS

How to activate the ALLROUND Finder 4G?

Scan the QR code or go to www.start.finder-portal.com and follow the online activation instructions.

What is the battery life?

The battery life is approximately 20 days on standby, but it varies depending on usage (more movement reduces battery life).

How long does it take to charge the tracker?

The first charge takes 8 to 12 hours. Use the provided cable and a USB port. The red LED turns on when charging is complete.

How to check if the tracker is on?

Press the power button once. If the LEDs light up, the tracker is on. Otherwise, it is off.

What do the LEDs mean?

Green LED solid = no GSM signal; blinking = GSM signal available. Blue LED solid = no GPS signal; blinking = GPS signal available. Red LED blinking = low battery; solid = charging; off = charged.

Can I replace the SIM card?

No, the M2M SIM card is already installed and is not replaceable.

Is the tracker waterproof?

Yes, it is certified IP65, so splash-proof. However, avoid prolonged immersion.

How to clean the tracker?

Use a slightly damp cloth without harsh chemicals. Never immerse it in water.

What is the location accuracy?

GPS accuracy is 5 meters under optimal conditions.

What to do if the battery is defective?

The battery is not user-replaceable. Contact PAJ GPS customer service.

USER MANUAL Allround Finder 4G PAJ GPS

Completely black image with no visible content, text, or symbols.

LANGUAGES

1. Deutsch ..... 4
2. English ..... 19
3. Français 34
4. Italiano 48
5. Español 62
6. Português ..... 76

Inhaltsverzeichnis

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1.5 Anschalten

Download on the App Store

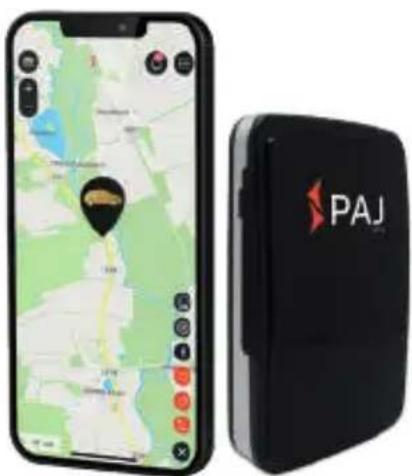

Smartphone displaying a map with location pins and a black PAJ device labeled in the background

1.7 Abbildung

Close-up of a black electronic device with a red arrow pointing to a button, labeled '1x' (no other text or symbols)

Thank you for purchasing our FINDER!

Before starting: Read the instructions carefully,

before using the FINDER for the first time. Please keep this user manual in a safe place in case you may need it in the future.

2.1 Scope of delivery 20
2.2 Product description....21
2.3 Instructions for charging 21
2.4 Activation 21
2.5 Start-up 22
2.6 Use 22
2.7 Illustrations ...... 23
2.8 Meaning LED lights 24
2.9 Technical details 25
2.10 Safety instructions 26
2.11 Disposal of used batteries ....31
2.12 Disposal of electrical devices ....32

NOTE!

We update our user manuals on a regular basis, in order to keep them up to date. The latest version can be viewed at any time at www.paj-gps.de/finder.

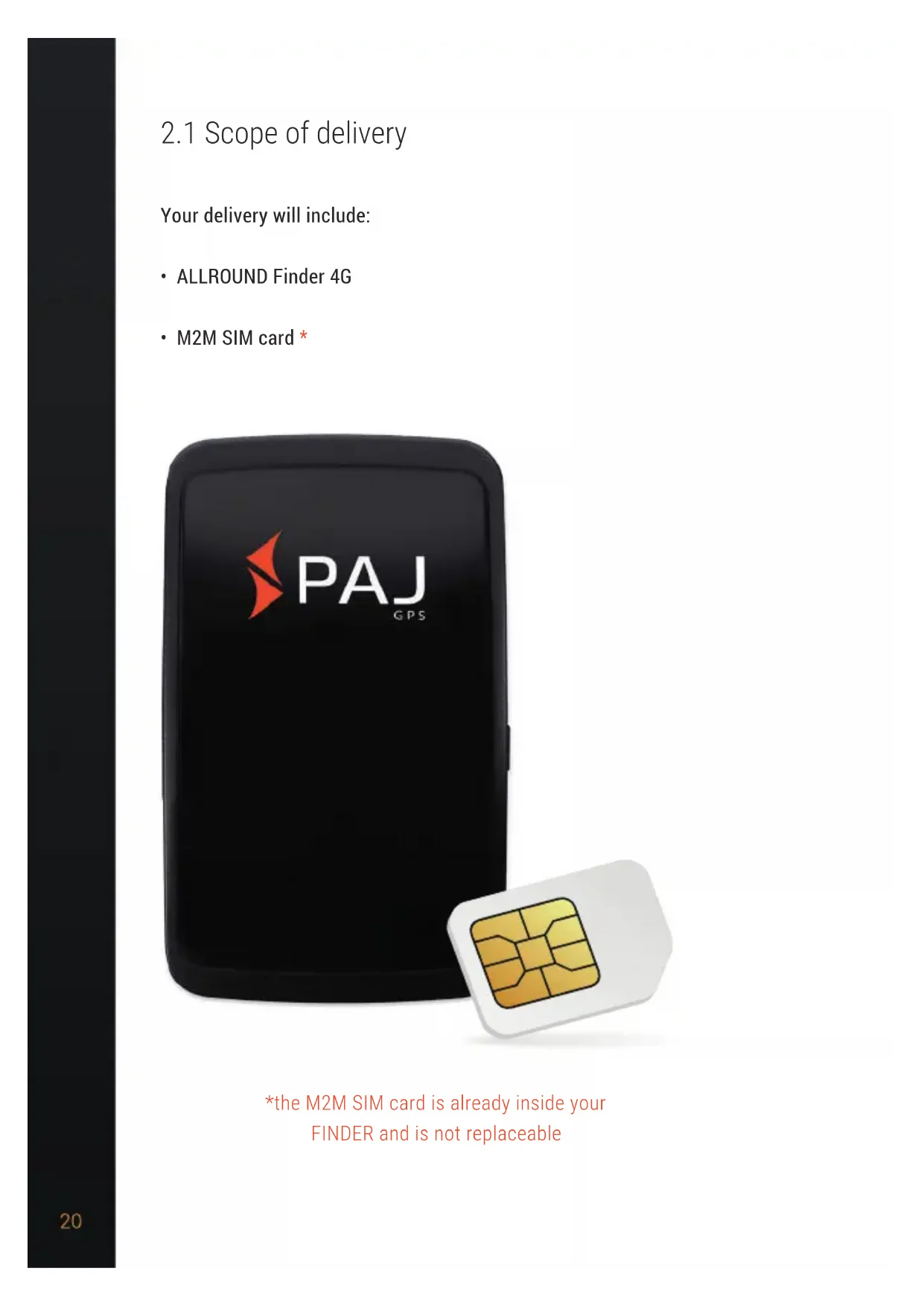

2.1 Scope of delivery

Your delivery will include:

• ALLROUND Finder 4G
  • M2M SIM card *

PAJ GPS

*the M2M SIM card is already inside your

FINDER and is not replaceable

2.2 Product description

SOS button PAJ On/off button Battery connection SIM card slot (SIM card is already inside your FINDER and is not replaceable)

1.3 Instructions for charging

The FINDER must be charged for around 8-12 hours before the first use. Connect the charging cable included in your delivery to your FINDER. Connect this cable to the USB wall plug. Once it has power supply, charge it until the red LED lights.

HINWEIS!

The ALLROUND Finder 4G has a battery duration of approximately 20 days, needless of charging it in between! However, beware that this duration will depend on how much you use your device. The more the ALLROUND Finder 4G is in motion and thus sending data to the portal, the greater the battery usage.

1.4 Activation

In order to use your ALLROUND Finder 4G, you will need to previously activate it online. Scan the QR code or enter the following link and follow the instructions. www.start.finder-portal.com

QR code image containing encoded data, no visible human-readable text

For a detailed explanation of the activation process, you can simply click on the following link or scan the QR code.

QR code image containing encoded data, no visible human-readable text

2.5 Start-up

Once your device has been activated successfully and fully charged, you are ready to turn your device on and start using it! In order to switch the device on press the button for 3 seconds. Please refer to the following illustration for all important information on operating the FINDER (page 23).

NOTE!

We recommend that after you start your device for the first time you move it in an open space (for example during a walk or a short car ride). This can speed up the connection process, meaning that your device will connect to the best available network more quickly. A good network connection is required in order for the device to send and log data in the FINDER Portal.

2.6 Use

As soon as your device has been successfully activated, started up and has sent and logged data for the first time, you can place it wherever you choose and use your phone, tablet or PC to start tracking it! You will be able to do this in our App or enter the following link to the desktop version:

Smartphone displaying a map with location markers and a black PAJ device on the right (no visible text or symbols on device)

www.finder-portal.com

ANDROID APPON Google play

Download on the App Store

2.7 Illustrations

Turning your GPS Tracker ON/OFF

4 sec.

Press the on/off button for

4 seconds and the device will turn on/off.

The LED lights will turn on shortly before the device is completely turned off.

You must wait 1 minute between turning the device on and switching it off.

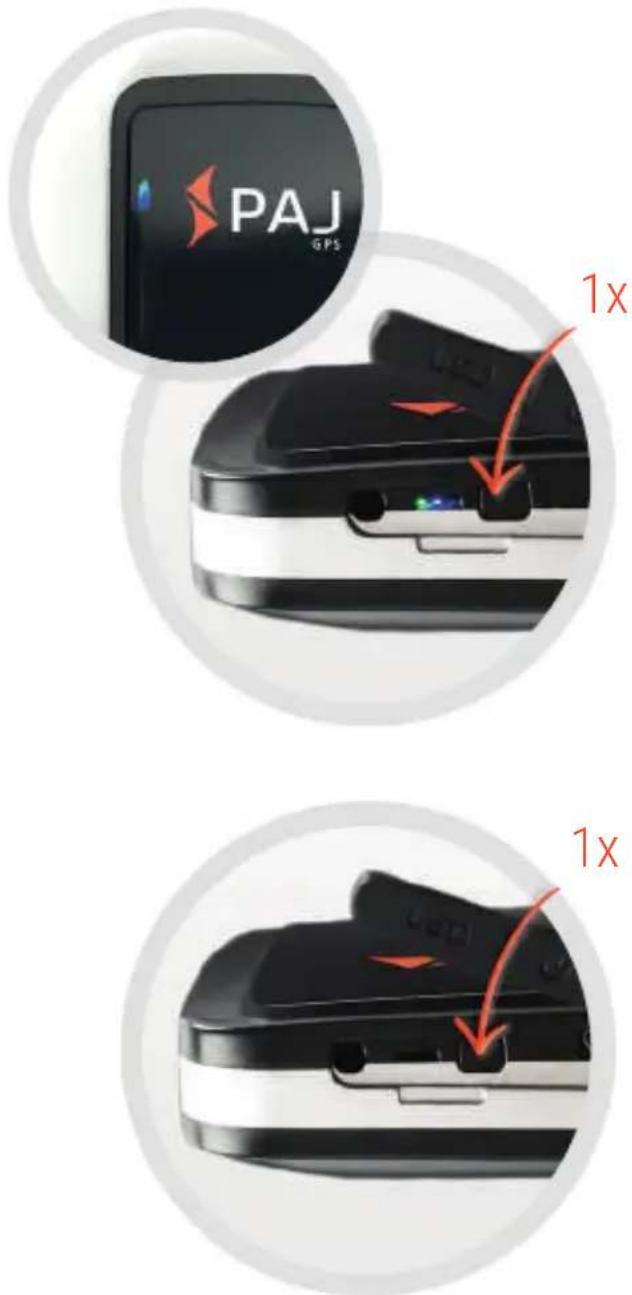

Functionality check

If you would like to check if the GPS Tracker is switched on, press the on/off button once.

SWITCHED ON

If after pressing the on/off button once the LEDs go on, the GPS tracker is switched on (see illustration). Pressing the on/off button again will cause the LEDs to go out. Nevertheless, the tracker is still switched on (If you do not press the button again, the LED lights will turn off automatically after a while).

SWITCHED OFF

If the LED lights do not go on after pressing the on/off button once, the GPS tracker is switched off.

PAJ GPS 1x 1x

2.8 Meaning of the LED lights

Green LED - GSM Status

Signal

Meaning

The green LED is fixed

There is no available GSM signal. The

FINDER is looking for one

The green LED is blinking A GSM signal is available

Blue LED - GPS Status

Signal

Meaning

The blue LED is fixed

There is no available GPS signal. The

FINDER is looking for one

The blue LED is blinking A GPS signal is available

Red LED – Battery Status

Signal

Meaning

The red LED flashes every 1-2 seconds Low battery level

The red LED is on The FINDER is charging

The red LED is off

The FINDER is fully charged or battery level is not empty

LEDs are switched off:

The LEDs only light up when the FINDERS is started. After a few minutes, the LEDs switch off to save power. Even if the GPS Tracker is in standby mode or switched off, the LEDs do not light up.

2.9 Technical Details

Dimensions 106 mm x 63 mm x 23 mm

GPS accuracy Up to 5 meters

Standby Time Approx. 20 days

Battery 3,7 V 5.000 mAh Li-ion

Weight 140 g

Start time	Cold start: 45-120 secondsStandby: 35 secondsOperating/running: 1 second
Network	GSM/GPRS/WCDMA/FDD-LTE/TDD-LTE
Bandwidth	FDD-LTE:B1 B2 B3 B4 B5 B7 B8B12(17) B20 B28TDD-LTE: B38 B39 B40 B41WCDMA:B1 B2 B5 B8GSM 850 MHz (max. 2 W)GSM 900 MHz (max. 2 W)DCS 1800 MHz (max. 1 W)PCS 1900 MHz (max. 1 W)

GPS-Chip SC9820E

GSM-/GPRS-Module MTK6261

GPS Reception -120 dBm

Charger 110-240 V, AC 50 Hz Eingang 5 V, DC Ausgang

Storage temperature From -40 °C to +85 °C

Operating environment From -20 °C to +55 °C

Humidity 10%-70%

2.10 Safety Instructions

Signal words

The following signal words are used in these operating instructions:

NOTE!

This signal word is used to draw your attention to an issue or situation. It also serves as a recommendation for proper use. Possible damage to property or personal injury can be prevented if this is observed.

WARNING!

This classifies a hazard of medium risk level. Failure to observe the warning may result in serious injury or damage.

Proper use

Read these safety instructions for this GPS tracker carefully before using it for the first time in order to use it properly. The intended use of the GPS Tracker to locate an object or a living being is only that described in this manual. Please note that it is a criminal offence to monitor third parties using a GPS tracker without their consent. If you use it in any other way, it will be considered improper and may result in damage to property or even personal injury.

Please note that the GPS Tracker is not a child's toy. In other countries and regions there are different laws concerning digital positioning and tracking of people, animals and/or objects. Salind UG cannot be held responsible if such laws or regulations are violated. The user is held solely responsible for this.

NOTE!

The manufacturer and dealer accept no liability for damage caused by improper or incorrect use.

Safety

WARNING! RISK OF ELECTRIC SHOCK!

A faulty electrical installation or a mains voltage that is too high can lead to an electric shock. Before use, check the mains voltage of the socket with the information on the rating plate. To ensure that you can disconnect the charging cable from the mains as quickly as possible in the event of a fault, connect the mains adapter so that it is easily accessible. If you notice any visible damage to your GPS Tracker or the charging cable, do not use it. Only use the original parts supplied to charge the GPS Tracker. If the charging cable is damaged, replace it only with original accessories from the manufacturer. Never place the GPS Tracker near flames or hot surfaces. The GPS Tracker is waterproof according to IP65. However, we recommend that you use it in dry environments if possible. The charging cable should only be used indoors. Keep it away from moisture and do not bend it. Do not open the housing of the GPS tracker. Leave the repair work to qualified specialists. However, if you carry out repairs yourself, connect the GPS Tracker improperly or operate it incorrectly, liability and warranty claims are excluded.

Hazards for children and vulnerable people

WARNING! DANGER OF SUFFOCATION!

Please do not allow the GPS Tracker to be used unsupervised by people (including children) with reduced physical, sensory or mental capabilities. The exception is if they have been instructed beforehand by the person responsible for their safety of how to use the appliance. Make sure that your child does not handle small parts (e.g. accessories, etc.). These can be swallowed and lead to suffocation.

NOTE!

Inform your child about the dangers and use of the GPS tracker.

The battery

WARNING! EXPLOSION AND FIRE HAZARD!

Hereafter, you will find information and notes regarding the handling of the battery: The GPS Tracker is powered by a lithium polymer battery. This is not replaceable and must not be removed or opened. Keep the GPS Tracker away from heat sources and high temperatures, such as direct sunlight in a vehicle (even when charging the battery). Failure to beware of this warning may result in the destruction of the battery, overheating, explosion and fire. These hazards also exist if you use non-original accessories to charge your device. Do not burn or punch the GPS Tracker. Protect it from mechanical damage. Do not remove, drop, disassemble or modify the battery with pointed or sharp objects. If a child swallows the battery, seek medical help immediately! If you need to have the battery replaced, please contact our support team.

WARNING! RISK OF CHEMICAL BURNS!

Batteries that leak due to damage can cause burns if they come into contact with the skin. Therefore, never open the battery. However, if the battery leaks, please wear protective gloves.

Electromagnetic compatibility

Please observe all prohibitions and switch off the GPS tracker immediately in dangerous areas and if it can cause interference. It should not be used near, for example, medical equipment, fuels and chemicals, or in blasting areas. Mobile devices may cause interference that can affect performance. Transformers and very strong magnetic fields must be avoided. Otherwise, deviations in the transmission may occur.

NOTE!

Failure to observe these recommendations may result in malfunctions or damage to the GPS tracker.

Cleaning

WARNING! RISK OF DAMAGE!

In the following you will find information and instructions on how to clean the GPS tracker. Do not use aggressive cleaning agents or brushes. Do not clean the GPS Tracker with cleaning objects (e.g. knives, metal sponges). This can damage the surface. Never put the GPS Tracker into water, in a dishwasher (or similar) and do not use a steam cleaner. The surface can be wiped with a slightly damp cloth. The GPS Tracker should be wiped completely dry afterwards.

Storage

If you are not going to use the GPS Tracker for a long period of time, switch it off. Place the tracker in its original packaging or in a same size box. Protect the tracker from dirt and moisture.

NOTE!

Keep the FINDER away of children's reach in order to avoid possible damage to property or personal injury.

Declaration of conformity

Hereby, PAJ UG (haftungsbeschränkt) declares that the tracker, ALLROUND Finder 4G, is in conformity with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity can be found at the following Internet address: paj-gps.de/konformitaetserklaerung/

Packaging disposal

Dispose of the packaging according to type. Throw cardboard and paper to the corresponding container. Foil belongs in the recyclables collection.

2.11 Disposal of used batteries

The following note is addressed to those who use batteries or products with products with built-in batteries and who will not resell them in the form in which they were supplied to them (end users).

Free recall of used batteries.

Batteries must not be disposed of with waste. You are legally obliged to return used batteries so that proper disposal can be guaranteed. You can return used batteries to a local collection point or to your local retailer. As a distributor of batteries, we are also to take back used batteries, although our obligation to take back used is limited to the type which we carry or have carried as batteries in our range. Used batteries of the aforementioned type can therefore either be returned to us with sufficient postage or handed in directly to our dispatch warehouse at the following address free of charge:

Meaning of the battery symbols

Batteries are marked with the symbol of a crossed-out dustbin (see illustration). This symbol indicates that batteries must not be disposed of in household waste. Batteries containing more than 0.0005% mercury by mass, more than 0.002% cadmium by mass or more than 0.004% lead by mass are also marked with the chemical name of the pollutant below the dustbin symbol. The abbreviation „Cd“ stands for cadmium, „Pb“ for lead and „Hg“ for mercury.

2.12 Disposal of electrical devices

The Electrical and Electronic Equipment Act (ElektroG) contains a large number of requirements for the handling of electrical and electronic equipment. The most important ones are summarised here.

1. Separate collection of WEEE:

Waste Electrical and Electronic Equipment that has become waste is referred to as WEEE. Owners of WEEE must dispose of it separately from unsorted local waste. In particular, WEEE does not belong in household waste, but in special collection and return systems.

2. Batteries and accumulators:

As a rule, owners of WEEE must separate spent batteries and accumulators that are not enclosed in the WEEE before handing them over at a collection point. This does not apply if the WEEE is handed over to public waste management authorities and separated from other WEEE there for the purpose of preparation for reuse.

3. Options for returning old appliances (WEEE):

Owners of WEEE from private households can hand it in to public waste management authorities or at the collection points set up by manufacturers or distributors as defined by the ElektroG. An online directory of collection and collection points can be found here: https://www.ear-system.de/ear-verzeichnis/sammel-und-ruecknahmestellen.jsf

4. Data Protection:

Old equipment often contains sensitive personal data. This applies in particular to information and telecommunication technology devices such as computers and smartphones. For your own sake, please note that each end-user is responsible for deleting the data on the old equipment to be disposed of.

5. Meaning of the „crossed-out dustbin“ symbol:

The symbol of a crossed-out dustbin regularly displayed on electrical and electronic equipment indicates that the respective device must be separated from unsorted local waste at the end of its service life.

6. Manufacturer registration number

As a manufacturer, within the meaning of the ElektroG, we are registered with the responsible foundation Elektro-Altgeräte Register (Benno-Strauß-Str. 1, 90763 Fürth) under the following registration number: DE33887550.

DO YOU HAVE ANY QUESTIONS?

In this case, please contact us and we will be delighted to help you!

The PAJ GPS Team wishes you to enjoy your ALLROUND Finder 4G!

Contenu

PAJ Bouton SOS Bout

Bouton marche/arrêt

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Smartphone displaying a map with location pins and control buttons, next to a black PAJ device (no readable text or symbols on device)

ANDROID APP ON Google play

Download on the App Store

3.7 Illustrations

VOUS AVEZ DES QUESTIONS?

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Two devices: a smartphone displaying a map with location pins and a black rectangular device labeled 'PAJ' (no visible text or symbols on the device itself)

www.finder-portal.com

ANDROID APP ON Google play

Download on the App Store

4.7 Illustrazioni

mento 4 sec.

Signal
Signification

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Smartphone displaying a map with location markers and a black rectangular device labeled 'PAJ' (no readable text or symbols on the device itself)

www.finder-portal.com

ANDROID APP ON Google play

Download on the App Store

5.7 Ilustraciones

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Download on the App Store

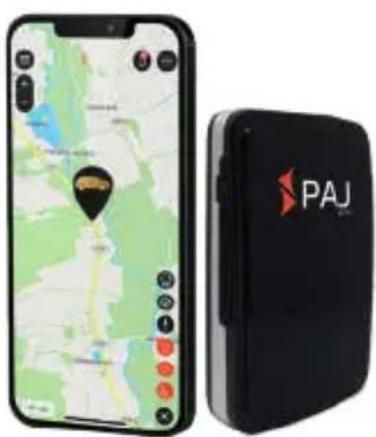

Smartphone displaying a map with location pins and a black PAJ device labeled 'PAJ' on its right side.

6.7 Ilustrações

Ligar e desligar o seu GPS Tracker Rastreador GPS

PS Tracker 4 sec.

LED Verde - Status GSM

Sinal
Significado
