MamaRoo 5 - Rocking chair 4moms - Free user manual and instructions

Product Type	Rocking chair / reclining lounger
Brand	4moms
Model	MamaRoo 5
Maximum child weight	9 kg
Age of use	Until the child sits unassisted or reaches 9 kg (whichever comes first)
Main functions	Preset movements, sound, Bluetooth and WiFi connectivity
Power supply	Electric via included power cord
Control panel	WiFi, Bluetooth, lock indicators, speed indicator, motion and sound controls, volume adjustment
Harness	3-point or 5-point harness
Toy arch	With washable fabric toy balls
Cover	Machine washable (cold water, delicate cycle)
Cleaning the base and parts	Wipe with a soft damp cloth and mild detergent
Operating temperature	16 °C to 27 °C
Compliance	FCC Part 15, IC RSS, EN 62479, EN 50663, etc.
Warranty	12 months from date of purchase (country of origin)
Connectivity	4moms mobile app for control via Bluetooth and WiFi

Frequently Asked Questions - MamaRoo 5 4moms

How to clean the cover and toy balls?

The cover and fabric toy balls are machine washable. Wash them in cold water, delicate cycle. Do not use bleach. Dry them separately on low heat in the dryer and remove promptly.

What is the maximum weight for using the MamaRoo 5?

The maximum child weight is 9 kg. Stop using the product as soon as your child can sit unassisted or has reached 9 kg, whichever comes first.

How to activate Bluetooth?

Press the sound control 5 times total to turn on all 4 LED indicators. On your smart device, go to Bluetooth settings and pair it with MamaRoo®.

What to do if the control panel does not light up?

Check that the power cord is properly plugged in and the outlet works. The screen dims after 90 seconds; press anywhere to wake it. If the problem persists, contact 4moms customer service.

Can the lounger be used on a soft surface?

No, never use on a bed, sofa, cushion, or other soft surface due to risk of suffocation. Use only on a hard, flat surface.

How to lock the screen?

The motion icon flashes when the screen is locked. Refer to the manual for the exact locking procedure. Locking prevents accidental changes to settings.

What is the warranty of the MamaRoo 5?

4moms® warrants the product against defects in materials and workmanship for 12 months from the date of purchase in the original country of purchase. The warranty covers repair or replacement of the defective product.

How to install the harness?

Always use the harness. Adjust as snugly as possible. Restraint can be provided by a 3-point or 5-point harness. Follow the manual instructions for correct installation.

Is the device safe for sleeping?

This lounger is not designed for prolonged sleep periods. If the baby falls asleep, remove them as soon as possible and place them on a firm, flat surface for sleep, such as a crib or bassinet.

Can I use non-4moms accessories?

No, use only accessories or replacement parts approved by 4moms®. Using non-approved accessories may compromise safety and void the warranty.

USER MANUAL MamaRoo 5 4moms

mamaRoo® multi-motion baby swing™

INSTRUCTION MANUAL

IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Simple line drawing of a mechanical component or bracket (no text or symbols)

Two curved pipe fittings with a label '4' on the left side (no text or symbols on the fittings)

EN

1. Toy Bar
2. Toy Balls
3. Seat Assembly
4. Side Rails
5. Central Rail
6. Bose
7. End Cap
8. Power Cord

IT

Diagram of a device with a lock icon and a magnified view showing the lock mechanism (no text or symbols)

Illustration of a medical procedure on a patient's abdomen, showing a curved arrow and magnified view of the insertion step (no text or symbols)

Illustration of a hand holding a device with a lock icon, showing a close-up of its handle (no text or symbols present)

Illustration of a hairdryer with a magnified view showing the tip and base (no text or symbols)

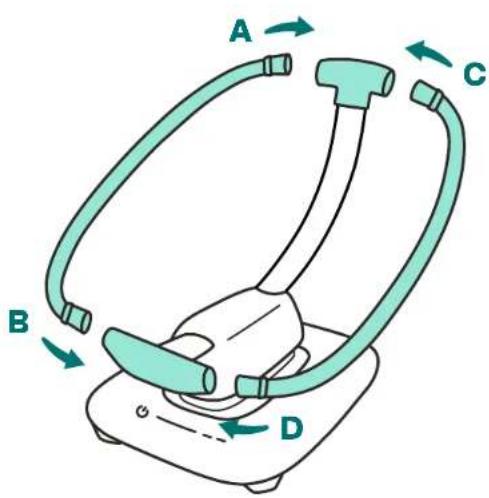

A B C D

Illustration of a satellite dish antenna with a magnified inset showing the internal structure (no text or symbols)

Diagram illustrating a device with a 2x2 ratio adjustment, showing the head and torso views of the device.

Diagram of a mechanical device with a belt buckle and inset showing a belt buckle (no text or symbols)

TOY BAR

Spielbügel / Barra para juguetes / Arceau à jouets / Barra dei giocattoli / Speelgoedbeugel / Barra de brinquedos / Штанга для игрушек / Leksaksribba / Oyuncak Çitası

Illustration of a hairless vacuum cleaner with a blue tube and green bulb, showing internal components and airflow direction (no text or symbols)

90°

RECLINE

Neigungsverstellung / Reclinar / Inclinaison / Reclinare / Verstelbare rugleuning / Reclinar / Откидывание / Lutning / Yaslanma

Diagram illustrating the use of a rotary switch mechanism with labeled parts and directional arrows indicating rotation.

POWER

Einschalttaste / Alimentación eléctrica / Alimentation / Alimentazione / Voeding / Alimentação / Питание / Ström / Güç

Line drawing of a vintage-style mobile phone with earphones and a connected device (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and three-step instructions for lifting or rotating the component.

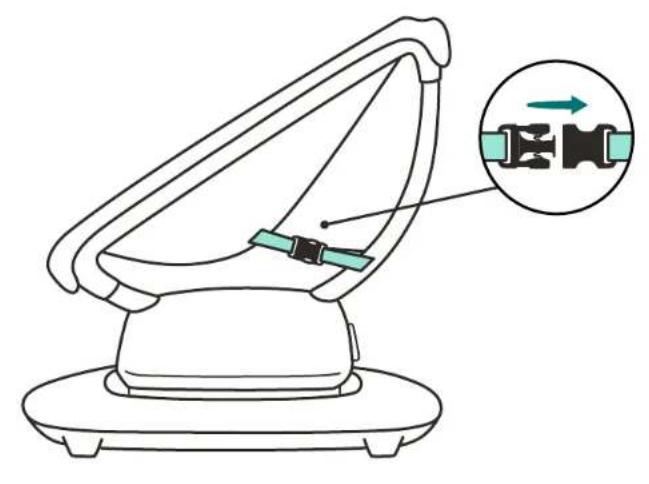

3-POINT HARNESS

3-Punkt-Gurt / Arnés de 3 puntos / Ceinture à 3 points / imbracatura a 3 punti / 3-punts harnasgordel / Arnés de 3 pontos / 3-точечный ремень безопасности / 3-punktssele / 3 Noktali Kemer

Two circular diagrams showing a hand holding a belt switch and a lock mechanism, with no text or symbols present.

Illustration of a car seatbelt device with two arms and a central buckle (no text or symbols)

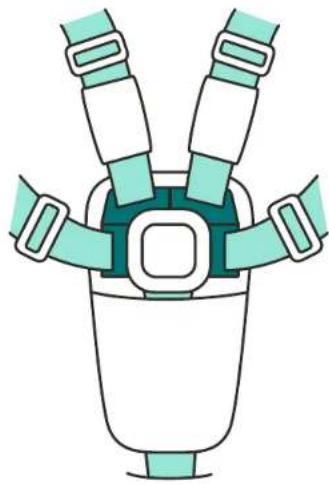

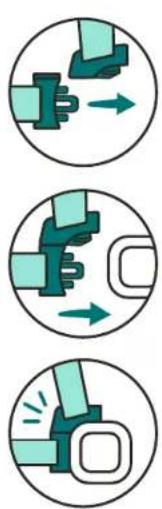

5-POINT HARNESS

5-Punkt-Gurt / Arnés de 5 puntos / Ceinture à 5 points / imbracatura a 5 punti / 5-punts harnasgordel / Arnès de 5 puntos / 5-точечный ремень безопасности / 5-punktssele / 5 Noktali Kemer

Three-step diagram showing a hand holding a piece, with arrows indicating movement and a close button symbol.

Illustration of a medical device with four arms and a central connector (no text or symbols)

CONTROL PANEL OVERVIEW

Hand-drawn diagram showing a finger pressing a button with Wi-Fi signal icons and playback controls

EN: After 90 seconds, screen will dim. Tap anywhere to wake screen.

EN: Tap any motion icon once to start. Tap again to increase speed.

playful melody brown noise nature soothing melody bluetooth streaming

VOLUME

Lautstärke / Volumen / Volume / Volume / Volume / Volume / Грамкость / Volym / Ses Seviyesi

Diagram illustrating audio playback controls with icons for power, signal, sound, and time control

PAIR BLUETOOTH FOR MUSIC STREAMING

Bluetooth-Kopplung Für Musik-Streaming / Vincular Bluetooth Para La Emisión De Música En Continuo / Jumeler Bluetooth Pour La Musique En Streaming / Associa Bluetooth per lo Streaming di Musica / Koppel bluetooth om muziek te streamen / Emparelhar bluetooth para streaming de música / Подключение через bluetooth для потоковой музыки / Koppla bluetooth för strömning av musik / Müzik Yayını İçin Bluetooth Eşleştirme

Simple icon of a music note inside a light blue circle (no text or symbols)

EN: Push the sound control 5 times total so that all 4 LED lights are illuminated. On your smart device, navigate to bluetooth settings and pair to MamaRoo ^® .

Hand-drawn diagram illustrating wireless signal icons and a 5-second timer, likely representing a sound or audio control interface.

EN: Motion icon will flash when screen is locked.

EN: Download for access to Find Your Roo, Wi-Fi smart home integration*, to control product features such as motion, speed, and sound.

*not available in all regions

Diagram illustrating a control interface with power, lock, signal icons, and a 10-second timer.

TABLE OF CONTENTS

Inhaltsverzeichnis / Índice / Table des matières / Sommario / Inhoudsopgave / Índice / Содержание / Innehåll / İçindekiler

English 34-41

Deutsch 42-49

Español....50-57

Français....58-65

Italiano....66-73

Nederlands....74-81

Português....82-89

Русский....90-97

Svenska 98-105

Türkçe 106-113

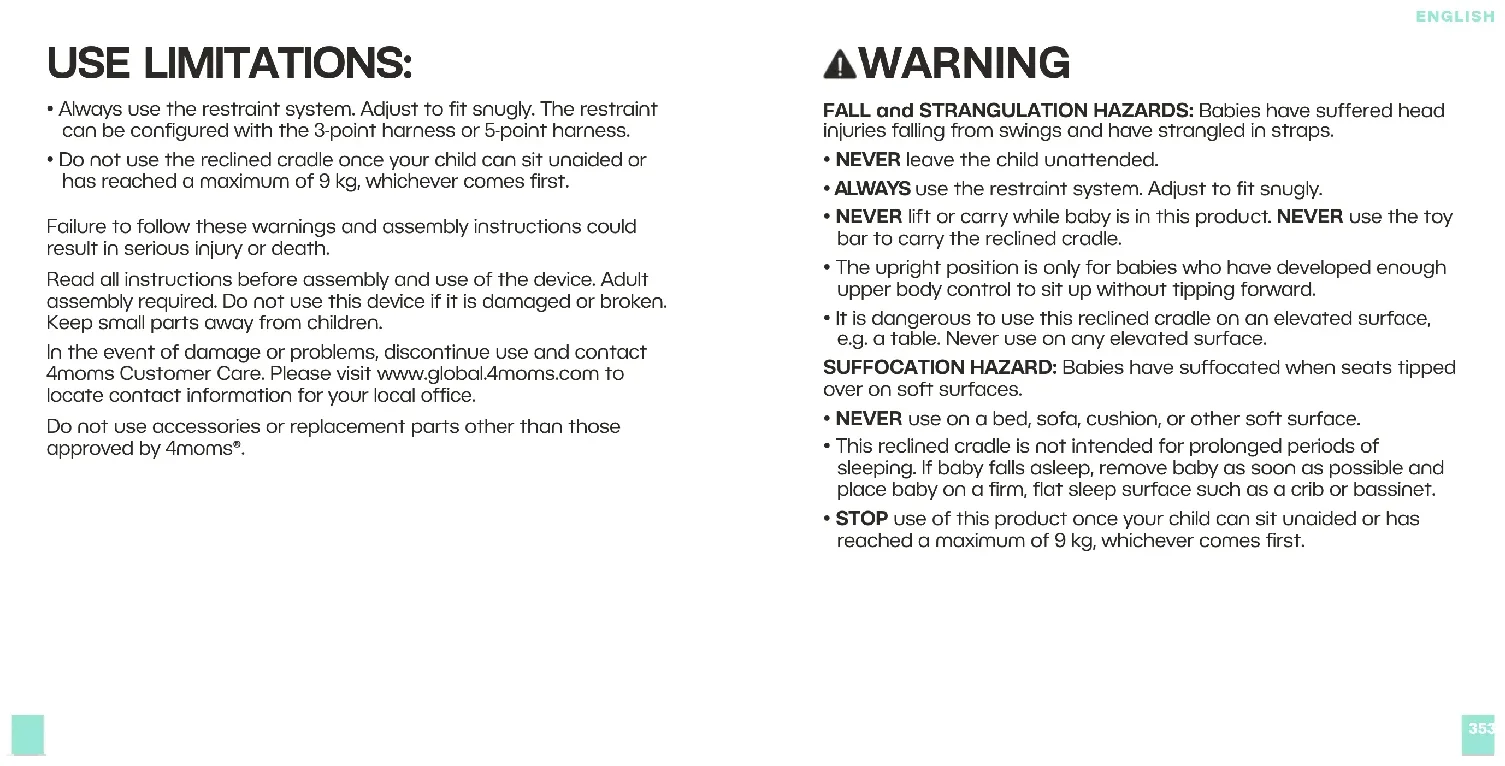

USE LIMITATIONS:

• Always use the restraint system. Adjust to fit snugly. The restraint can be configured with the 3-point harness or 5-point harness.
• Do not use the reclined cradle once your child can sit unaided or has reached a maximum of 9 kg, whichever comes first.

Failure to follow these warnings and assembly instructions could result in serious injury or death.

Read all instructions before assembly and use of the device. Adult assembly required. Do not use this device if it is damaged or broken. Keep small parts away from children.

In the event of damage or problems, discontinue use and contact 4moms Customer Care. Please visit www.global.4moms.com to locate contact information for your local office.

Do not use accessories or replacement parts other than those approved by 4moms ^® .

ENGLISH

▲WARNING

FALL and STRANGULATION HAZARDS: Babies have suffered head injuries falling from swings and have strangled in straps.

• NEVER leave the child unattended.
- ALWAYS use the restraint system. Adjust to fit snugly.
- NEVER lift or carry while baby is in this product. NEVER use the toy bar to carry the reclined cradle.
- The upright position is only for babies who have developed enough upper body control to sit up without tipping forward.
- It is dangerous to use this reclined cradle on an elevated surface, e.g. a table. Never use on any elevated surface.

SUFFOCATION HAZARD: Babies have suffocated when seats tipped over on soft surfaces.

• NEVER use on a bed, sofa, cushion, or other soft surface.
• This reclined cradle is not intended for prolonged periods of sleeping. If baby falls asleep, remove baby as soon as possible and place baby on a firm, flat sleep surface such as a crib or bassinet.
• STOP use of this product once your child can sit unaided or has reached a maximum of 9 kg, whichever comes first.

▲WARNING

• Never add a pillow, comforter or padding. Use only the seat provided by 4moms®. The 4moms® newborn insert may be used with this product.
• If your baby cannot sit in a reclined or upright position or has special needs, check with your doctor about when to start using this product.
• Never use this product as a car seat.
• Do not use product near water. Do not use the base or power supply if either has been exposed to liquid.
• Do not place product in any location where there are cords, such as window blind cords, drapes, phone cords, etc. Strings can cause strangulation. Do not place items with a string around your child's neck, such as hood strings or pacifier cords while using product.
• Do not suspend strings over the product or attach strings to toys. Do not hang toys from the toy bar other than those provided by 4moms® for use with this product.
• Cords can cause strangulation. Keep power cords away from baby.
• Only use the power cord provided.
• Do not use product without the fabric seat cover.
• For indoor use only.

ENGLISH

▲WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The product is in conformity with the following standards and/or other normative documents:

HEALTH & SAFETY (Art. 3(1)(a)): EN 62479:2010, BS EN 62479:2010, EN 50663:2017, BS EN 50663:2017.

EMC (Art. 3(1)(b)):

ETSI EN 301 489-1 V2.2.3:2019, ETSI EN 301 489-17 V3.2.4:2020, EN IEC 55014-1:2021, BS EN IEC 55014-1:2021, EN IEC 55014-2:2021, BS EN IEC 55014-2:2021, EN IEC 62311:2020, BS EN IEC 62311:2020, EN 50665:2017, BS EN 50665:2017, EN IEC 61000-3-2:2019/A1:2021, BS EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A1:2019, BS EN 61000-3-3:2013/A1:2019.

SPECTRUM (Art. 3(2)): ETSI EN 300 328 V2.2.2:2019.

This product shall only be operated in an environmental temperature range between 60°F and 80°F.

See page 114-115 for electrical specifications.

CARE

For your child's continued safety, periodically inspect the product to make sure that all connections are securely fastened, that they do not show signs of wear or abuse, and that they are not damaged or broken. If replacement parts or Instruction is needed, please visit www.global4moms.com to locate contact information for your local 4moms Customer Care team for assistance. Never substitute parts.

CLEANING

• The fabric seat and fabric toy balls are machine washable. Wash them in cold water on the gentle cycle. Do not use bleach. Tumble dry separately on low heat and remove promptly.

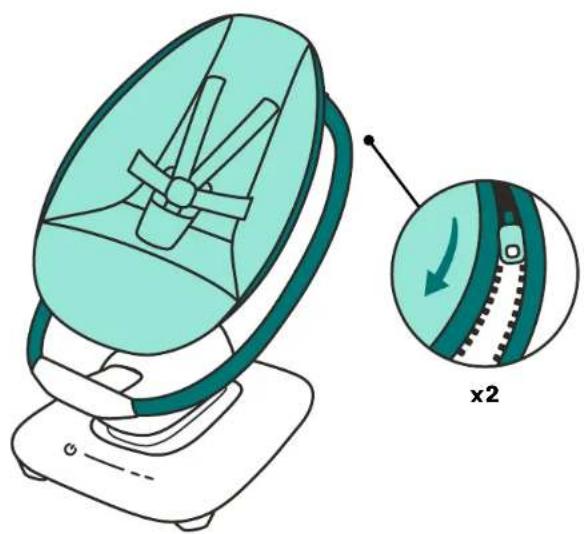

• After washing, zip the seat fabric back onto the seat ring so that the hole for the toy bar is at the top of the seat. Snap the seat fabric into place at both ends. Do not install the seat fabric upside down.
• The base, metal and plastic seat parts, and toy bar can be wiped clean using a mild cleaning solution and a soft, damp cloth. Do not immerse the base, seat parts, or toy bar.
• Disconnect the MamaRoo ^ from the power supply before cleaning the base.

CONTACT CUSTOMER CARE

Please visit www.global.4moms.com

ENGLISH

WARRANTY

4moms ^ warrants to the original purchaser of every new 4moms ^ MamaRoo ^ that the unit will be free from defects in material and workmanship when used properly in accordance with the instructions contained in the instruction manual supplied with each MamaRoo ^ . 4moms ^ obligation under this warranty is limited to a period of twelve (12) months from the date of purchase and applies only in the country of original purchase. The warranty is only valid for a product purchased from a 4moms ^ authorized retailer or distributor. Warranty is invalid for products purchased used. If the unit is determined by 4moms ^ to be defective within twelve (12) months of purchase, the warranty will cover the repair or replacement of the unit, parts, or assemblies. 4moms ^ assumes no liability for parts or labor coverage for component failure or other damage to the unit resulting from improper usage or failure to clean and/or maintain product as set forth in the instruction manual provided with the unit. This warranty does not cover claims resulting from: misuse, abuse, alteration, inflicted damage, accidental damage, normal wear and tear, involvement in an accident, and/or failure to comply with the instructions on assembly, maintenance and use. 4moms ^ does not assume any responsibility for personal injury or property damage incurred as a result of improper use or unauthorized modification of the MamaRoo ^ .

COMPLIANCE

This device contains:

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transceiver must not be co-located or operating in conjunction with any other antenna, transmitter, or external amplifiers.

Unauthorized modification could void authority to use this equipment.

This device complies with Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Warning: Changes or modifications to this unit not expressly approved by Thorley Industries, LLC d.b.a. 4moms ^® could void the user's authority to operate the equipment.

ENGLISH

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3(B)/NMB-3(B)

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

IC: 21098-ESPWROOM32D

QDID: 103832

ID FCC: 2AC7Z-ESPWROOM32D

IC:21098-ESPWROOM32D

QDID : 103832

ID FCC: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

FCC ID: 2AC7Z-ESPWROOM32D

IC: 21098-ESPWROOM32D

QDID: 103832

INFORMATION PUBLISHED VALUE UNIT
Helms-Man(Hui Yang) Electric Ltd.Xin Xu, Hui Yang, Guang Dong, China
SRB1203000V
Input Voltage 100-240 V
Input AC Frequency 50-60 Hz
Output Voltage DC 12.0 V
Output Current 3.0 A
Output Power 36.0 W
Average Active Efficiency 88.52% %
Efficiency at low load (10%) 84.61% %
No-Load Power Consumption	0.09 W

912 Fort Duquesne Blvd

Pittsburgh, PA 15222

www.4moms.com

©2022 Thorley Industries LLC d.b.a. 4moms®

All Rights Reserved.

US and International Patents and Pending Patents

Patent Information Available at www.4moms.com/patents

4moms ^® and MamaRoo ^® are registered or pending

trademarks in the United States and other jurisdictions

owned by Thorley Industries LLC, d.b.a. 4moms®.

EN 12790:2009

Model: 1046

4011808-2: EU
