USER MANUAL Infant Tub 4moms

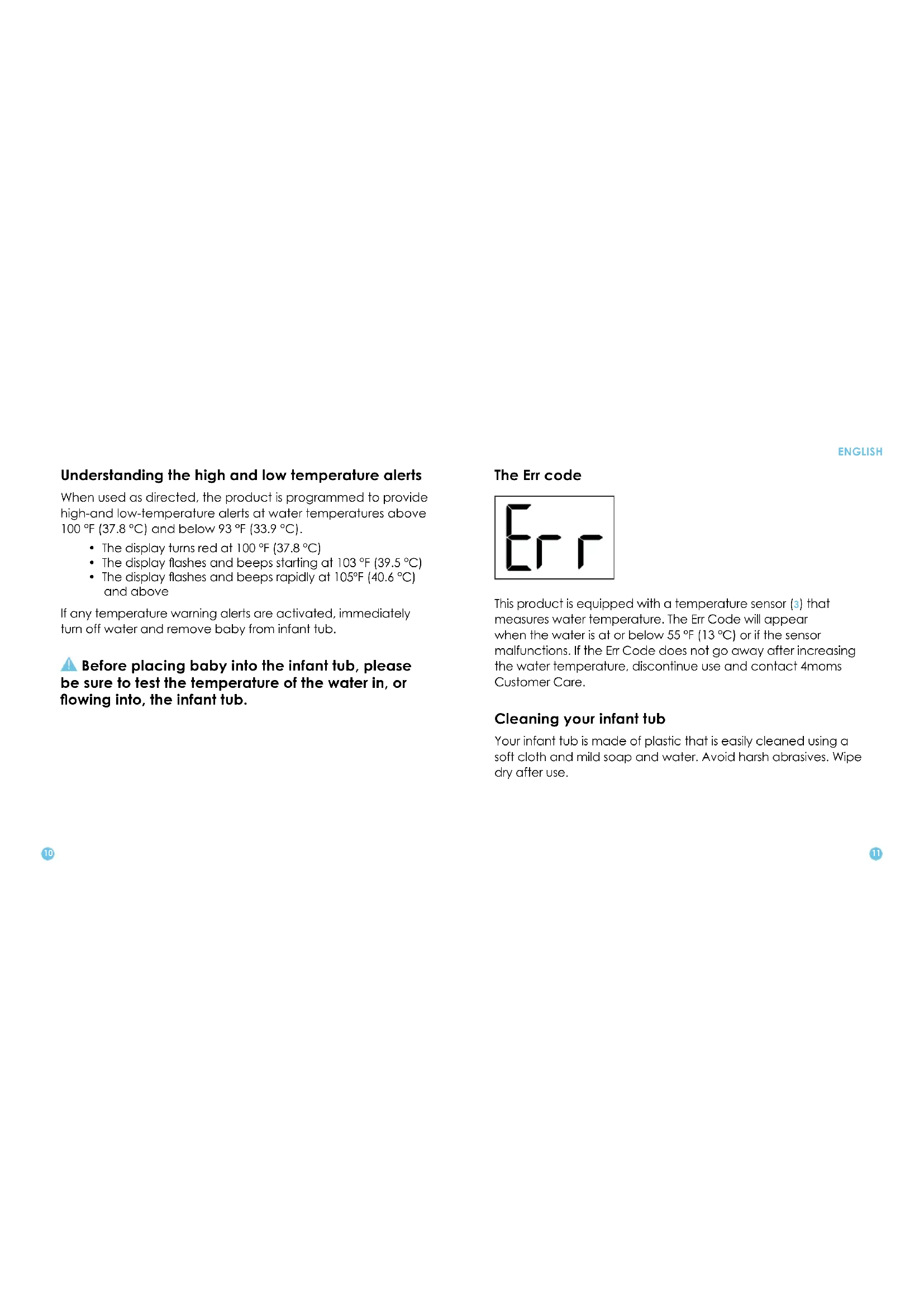

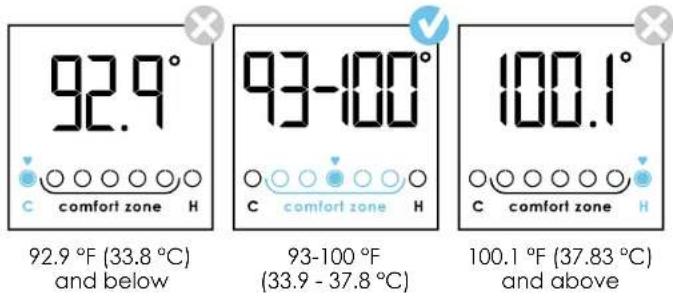

Understanding the high and low temperature alerts When used as directed, the product is programmed to provide high-and low-temperature alerts at water temperatures above 100 °F (37.8 °C) and below 93 °F (33.9 °C).

• The display turns red at 100 °F (37.8 °C)

• The display flashes and beeps starting at 103 °F (39.5 °C)

• The display flashes and beeps rapidly at 105ºF (40.6 °C) and above If any temperature warning alerts are activated, immediately turn off water and remove baby from infant tub. Before placing baby into the infant tub, please be sure to test the temperature of the water in, or owing into, the infant tub. The Err code This product is equipped with a temperature sensor (3) that measures water temperature. The Err Code will appear when the water is at or below 55 °F (13 °C) or if the sensor malfunctions. If the Err Code does not go away after increasing the water temperature, discontinue use and contact 4moms Customer Care. Cleaning your infant tub Your infant tub is made of plastic that is easily cleaned using a soft cloth and mild soap and water. Avoid harsh abrasives. Wipe dry after use.ENGLISH

Troubleshooting Problems Problem Solution LCD screen (1) does not turn on or suddenly turned off. LCD screen(1) does not show a temperature reading. There is too much water in the infant tub for my baby. There is not enough water in the infant tub for my baby. My tub is uneven in my double-basin sink. Batteries may need to be replaced. Replace with two new AAA batteries as described in “Set Up” section of this booklet. Ensure that the water is flowing into the Water Collection Area (4) of the infant tub. Batteries may also need to be replaced. Unplug the Newborn Lower Drain (9). Plug the Newborn Lower Drain (9). Use in a flat, standard adult bath tub with dimensions no smaller than 30 inches wide and 60 inches long. Troubleshooting Problems Problem Solution There is an Err message on the LCD screen (1). The water temperature is at or below 55 °F (13 °C) or the sensor has malfunctioned. If the Err Code does not go away after increasing the water temperature, discontinue use and contact 4moms Customer Care. For customers in the US: If you have any further questions or comments not covered here, please contact 4moms Customer Care at 1-888-614-6667. For international customers: Please visit global.4moms.comENGLISH

Important Safety Instructions Failure to follow these warnings and assembly instructions could result in serious injury or death. Read all instructions before use. Adult assembly required. Do not use this device if it is damaged or broken. In the event of damage or problems, discontinue use and contact 4moms Customer Care. WARNING – DROWNING HAZARD Infants have DROWNED in infant tubs. NEVER leave infant unattended. ALWAYS keep infant within adult’s reach. NEVER lift this product with an infant in it. NEVER place this product in an adult bath tub or sink lled with water. ALWAYS keep the drain open in the adult bath tub or sink. Infants can drown in a very short time in as little as 1 inch (2.5 cm) of water. ALWAYS bathe your infant in as little water as necessary. NEVER allow other children to substitute for adult supervision. This product does not protect against drowning and is no substitute for adult supervision. To prevent scalding, drowning, or accidents, never leave baby unattended in the tub. WARNING NEVER use on any elevated surface other than properly installed in a sink.ENGLISH

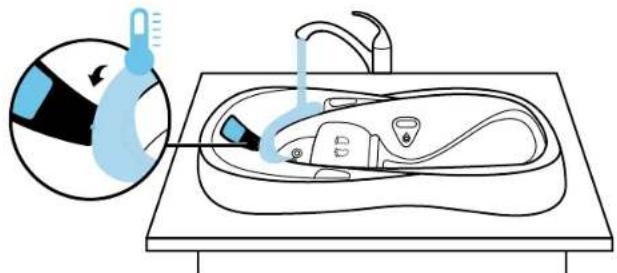

This tub is designed to t in most single- and double-basin kitchen sinks and standard adult bathtubs. Ensure that the tub is stable before placing baby in it. If the tub appears to be uneven in a double-basin sink, it may be considered unsafe. Please contact 4moms Customer Care. Babies are most vunerable to drowning when under 12 months old. This tub is intended for babies from birth to the time just before they can sit up on their own (approximately 5-8 months old). Ideal bath temperature for babies is between 90 and 100°F (32.2 and 37.8°C). For maximum safety, it is recommended that your home’s hot water heater be set at a temperature no higher than 120 °F (49 °C) at the faucet, as recommended by the American Academy of Pediatrics. We recommend that you always check the water temperature with your hand prior to placing the infant into the tub as an added precaution. This product has a built-in thermometer that is intended to display only the temperature of the water coming out of the faucet. It is not intended to be used as a medical thermometer. Temperature Sensor does not control the temperature of the water. Water entering tub must flow over Temperature Sensor (3) in the Water Collection Area (4) for proper water temperature measurement. It will not operate properly if the Temperature Sensor (3) is not in contact with running water. Never run water directly into the Bathing Area (10) of the Tub. Water should not flow over the walls of the Water Collection Area (4) and only pass through the trough into the Clean Water Reservoir (5). Adjust water flow rate accordingly. If you see the message Err on the digital LCD display screen, Temperature Sensor has malfunctioned. Discontinue use and contact 4moms Customer Care. SIDEWALL DRAIN WARNING NEVER attempt to plug the Sidewall drain (8). This tub is equipped to work with the faucet water flowing throughout bath time. Ensure that the water does not reach a level that would jeopardize the safety of the baby.ENGLISH

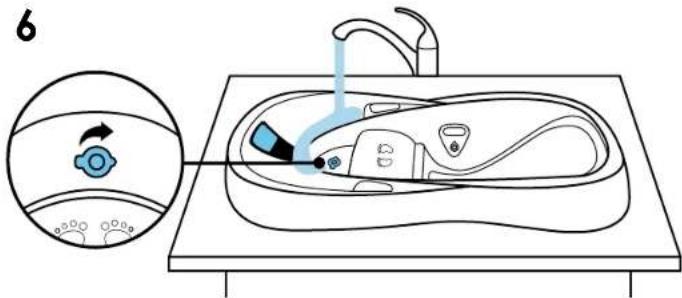

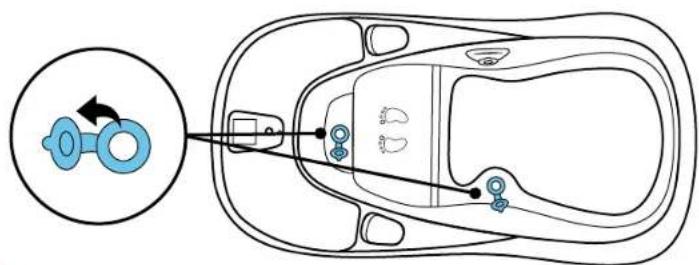

Tub is equipped with two Drain Holes (8-9) on the sidewall to expel flowing water. Plugging the Newborn lower drain hole (9) will raise the water level in the Bathing Area (10). Ensure that the water does not reach a level that would jeopardize the safety of the baby. BATTERY WARNING Use only AAA batteries. Do not mix old and new batteries. Remove batteries when product is stored for long periods of time or when batteries are no longer functioning properly. Dispose of exhausted batteries properly. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Warranty 4moms warrants to the original purchaser of every new 4moms infant tub that the unit will be free from defects in material and workmanship when used properly in accordance with the instructions contained in the instruction manual supplied with each infant tub unit. Subject to applicable law, 4moms’ obligation under this warranty is limited to a period of six (6) months from the date of purchase and applies only in the country of original purchase. The warranty is only valid for a product purchased from a 4moms authorized retailer or distributor. To make a claim under this warranty, contact 4moms at 1-888- 614-6667 or www.4moms.com/support. You will be required to provide such information and documents as 4moms may reasonably require, including proof of purchase with date and location, to investigate and conrm your claim. Any claim under this warranty must be made in writing during the period covered by the warranty. If the unit is determined by 4moms to be defective within six (6) months of purchase, the warranty will cover the repair or replacement (at 4moms’ sole discretion) of the unit, parts, or assemblies. Warranty is invalid for products purchased used. 4moms assumes no liability for parts or labor coverage for component failure or other damage to the unit resulting from improper usage or failure to clean and/or maintain product as set forth in the instruction manual provided with the unit. This For U.S. & Canada Customers OnlyENGLISH

warranty does not cover claims resulting from: (i) modications, alterations, repair or servicing by any party other than 4moms’ authorized representatives, (ii) misuse, abuse, inflicted damage, accidental damage, or any Acts of God, (iii) normal wear and tear, and/or (iv) handling, storage, assembly, installation, testing or use not in accordance with the instruction manual. 4moms does not assume any responsibility for personal injury or property damage incurred as a result of improper use or unauthorized modication of the infant tub unit. In no event will (a) 4moms be liable for any consequential, incidental, exemplary or special damages arising from or relating to this warranty or the infant tub unit or (b) 4moms’ total cumulative liability arising from or related to this warranty or the infant tub unit exceed the amount actually paid for the unit by the original purchaser. Subject to applicable law, this warranty replaces and supersedes any and all other representations, warranties and conditions, explicit or implicit, statutory or other and any implied warranty of merchantability or tness for a particular purpose on the infant tub unit is limited in duration to the duration of this warranty for the infant tub unit. Some jurisdictions do not allow the exclusion of implied warranties, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights and you may also have other rights which vary from jurisdiction to jurisdiction. The disclaimers, exclusions and limitations of liability under this warranty will not apply to the extent prohibited by applicable law. For U.S. & Canada Customers Only Registration 4moms does extensive testing above and beyond that required by law. However, if through some unforeseen circumstance we need to issue a recall, we ask that you please register your infant tub. We have three easy ways to register: either ll out the enclosed registration card, register through the 4moms mobile app, or register online at www.4moms.com. Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modications to this unit not expressly

approved by Thorley Industries, LLC d.b.a. 4moms could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable For U.S. & Canada Customers OnlyENGLISH

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. CAN ICES-3 (B)/NMB-3 (B) For International Customers All 4moms products are covered by a warranty of at least twelve (12) months. The warranty may vary by country and is subject to the conditions set forth in the country of original purchase, in order to comply with applicable law. Where permitted by law, the warranty is only valid in the country of original purchase, and for new products purchased from a 4moms authorized retailer or distributor. Forcomplete details or to make any warranty claim, please contact the local 4moms authorized distributor in the country of original purchase. A list of distributors can be found at global.4moms.com.FRANÇAIS

All Rights Reserved. US and International Patents and Pending Patents Patent Information Available at www.4moms.com/patents 4moms

is a are registered or pending trademarks in the United States and other jurisdictions owned by Thorley Industries LLC, d.b.a. 4moms
