Zitrus TowerAdjust Easy - Blender CECOTEC - Free user manual and instructions

Brand	Cecotec
Model	Zitrus TowerAdjust Easy
Product type	Blender / Juicer
Power	350 W
Voltage / Frequency	230 V / 50 Hz
Juice container capacity	Not specified (estimate: 1 L)
Number of juicing cones	2 (large and small)
Pulp regulator	Yes, adjustable
Filter	Stainless steel (Black Inox model) or standard
Anti-drip spout	Yes
Operation	By pressing fruit onto the cone
Maximum cycle	15 seconds operation, then 15 seconds rest, up to 10 cycles
Dishwasher-safe parts	Lid, cones, filter, pulp regulator, juice container
Motor base cleaning	Damp cloth, do not immerse
Safety	Automatic stop when pressure stops
Warranty	2 years
Origin	Made in China, designed in Spain
References	04123 (Black Inox) / 04119 (White)

Frequently Asked Questions - Zitrus TowerAdjust Easy CECOTEC

How to use the Zitrus TowerAdjust Easy juicer?

Cut the fruits in half, place a glass under the spout, adjust the pulp regulator to your preference, then press the fruit against the cone to start. The appliance stops as soon as you stop pressing.

What is the power of the appliance?

The Cecotec Zitrus TowerAdjust Easy juicer has a power of 350 watts and operates at 230 V / 50 Hz.

Can I wash the parts in the dishwasher?

Yes, the lid, juicing cones (large and small), filter, pulp regulator, and juice container are dishwasher-safe. The motor base should be cleaned with a damp cloth.

How long can I use the appliance continuously?

Do not exceed 15 seconds of continuous use. Let it rest at least 15 seconds between cycles. You can repeat up to 10 cycles, then let it cool for 30 minutes.

Is the anti-drip spout adjustable?

Yes, you can close the spout to hold the juice in the container, or open it to pour into your glass.

How to adjust the amount of pulp in the juice?

Use the pulp regulator located on the filter. The larger the openings, the more pulp will be in the juice. Adjust it to your taste.

What to do if the appliance does not work?

Check that the appliance is plugged in correctly and the socket is powered. Make sure to press a fruit onto the cone to activate it. If the problem persists, contact Cecotec After-Sales Service at [phone].

Is the appliance safe for children?

The appliance should not be used by children under 8 years. Children over 8 years can use it under constant supervision. Do not leave the appliance unattended while it is running.

What accessories are included?

Included: a lid, a large cone, a small cone, a pulp regulator, a filter, a juice container, an axis, the main unit, and an anti-drip spout. The Black Inox model includes an additional stainless steel filter.

How to maintain the juicer?

Unplug and let cool before cleaning. Clean the motor base with a soft damp cloth. Other parts can be washed in the dishwasher or with soapy water. Dry thoroughly before storing.

USER MANUAL Zitrus TowerAdjust Easy CECOTEC

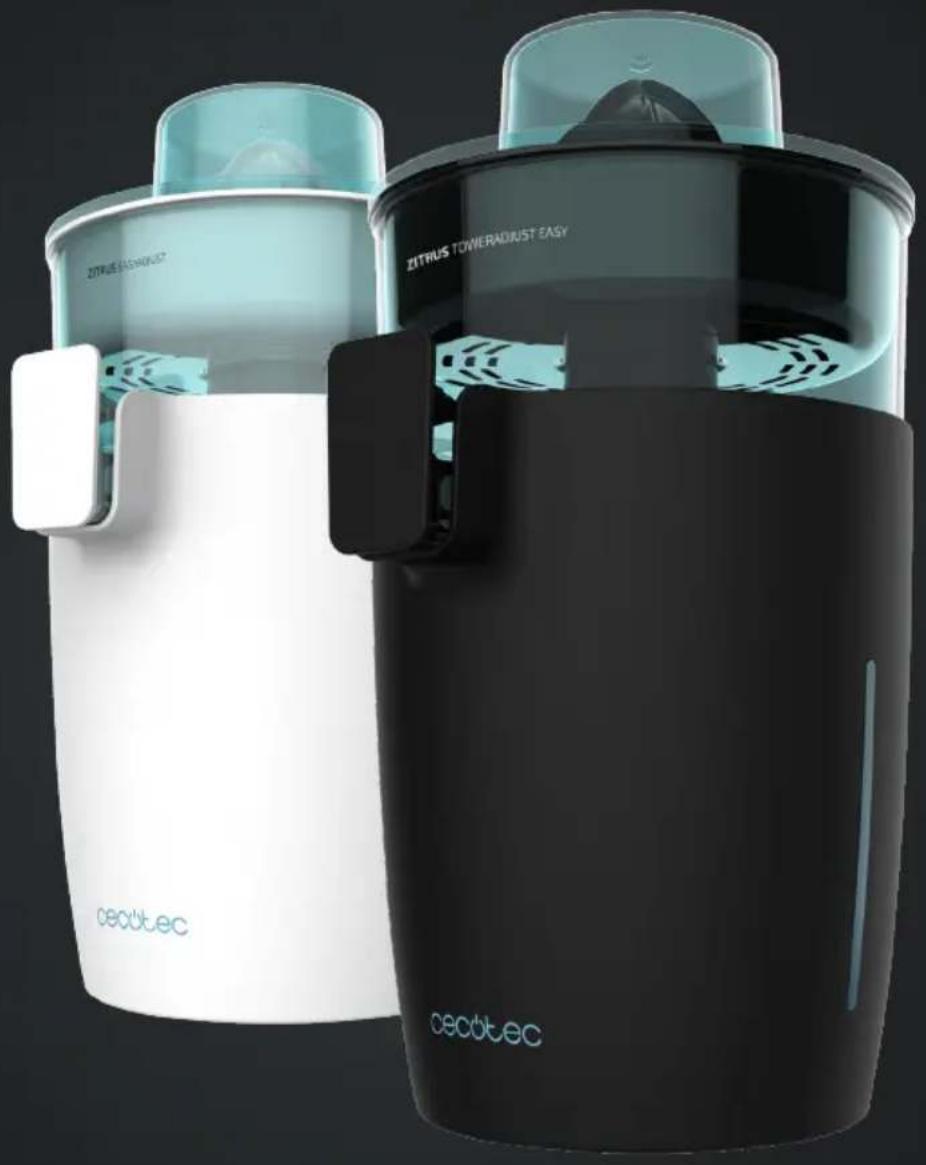

Zitrus TowerAdjust Easy Black Inox/White

Exprimidor/Citrus juicer

1. Safety instructions / 10
2. Parts and components / 12
   3.Before use /12
3. Operation /13
4. Cleaning and maintenance /13
5. Technical specifications /14
6. Disposal of old electrical appliances /14
7. Technical support service and warranty /14

SOMMAIRE

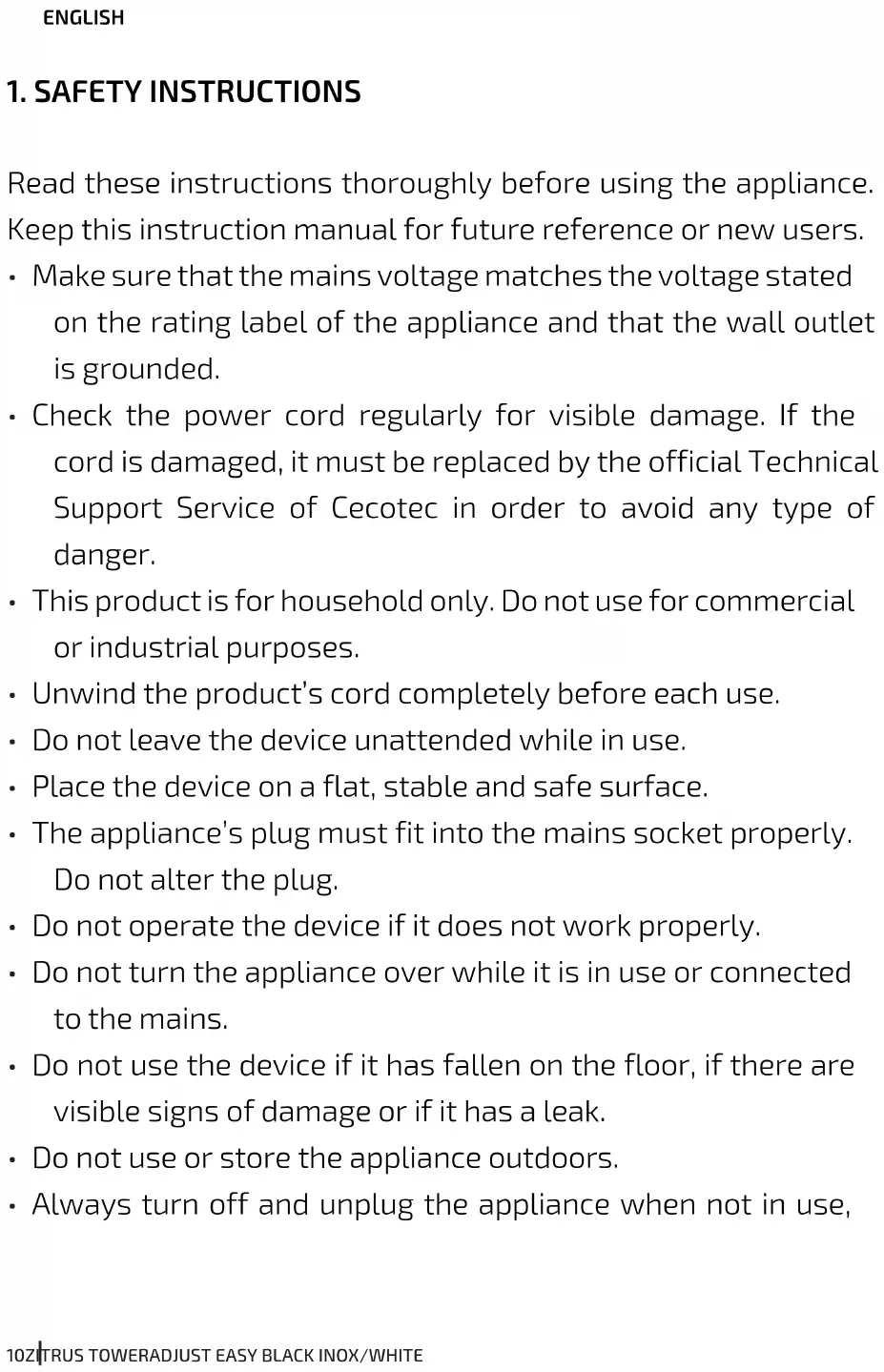

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.
• This product is for household only. Do not use for commercial or industrial purposes.
• Unwind the product's cord completely before each use.
• Do not leave the device unattended while in use.
• Place the device on a flat, stable and safe surface.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug.
• Do not operate the device if it does not work properly.
• Do not turn the appliance over while it is in use or connected to the mains.
• Do not use the device if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use or store the appliance outdoors.
• Always turn off and unplug the appliance when not in use,

when changing accessories, assembling or disassembling the device and before moving it to a new location. Pull from the plug, not the cord, to disconnect it from the outlet.

• Disconnect the device from the power supply before cleaning or carrying out cleaning tasks.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use any accessory that has not been recommended by Cecotec, as it could cause damage.
• The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

ENGLISH

2. PARTS AND COMPONENTS

1. Cover
2. Large juicer cone
3. Small juicer cone
4. Pulp strainer
5. Filter
6. Juice container
7. Axes
8. Main body

9. Anti-drip nozzle

10. The black model includes an extra stainless-steel filter.

3. BEFORE USE

• Take the product out of the box and remove all packaging materials.
• Check for any visible damage, if any is observed, contact as soon as possible the Technical Support Service of Cecotec for advice or reparation.
• Before using the product for the first time, clean the parts that will come into contact with food.
• Place the juicer on a flat and stable surface.

12ZTRUS TOWERADJUST EASY BLACK INOX/WHITE

• Unroll the cord completely.
• Connect the appliance to a power outlet.

4. OPERATION

1. Cut fruits to be squeezed in half.
2. Place a glass under the anti-drip juice outlet.
3. To control the amount of pulp you want in your juice, place the pulp strainer on top of the filter in the desired position. Adjust it according to the amount of pulp desired; the wider the holes formed by both pieces, the more pulp.
4. Turn on the appliance by pressing the piece of citrus fruit against the juicer cone.
5. Close the anti-drip nozzle to keep the juice inside the container, open it to let the juice pour out into the cup.
6. When you have finished juicing fruit, stop pressing it on the cone. The juicer will stop operating as soon as no pressure is applied on the cone.
7. If a large quantity of fruit is juiced, clean periodically the filter and remove the remains of the pulp.

Operating times

• Operate the device for a maximum of 15 continuous seconds.
• Allow the device to rest for 15 seconds.
• Repeat these 2 steps as a cycle for a maximum of 10 times.

Note: Once the device has been operated for 10 times in a row, allow it to rest for 30 minutes.

Note: If the device has been used to juice a large quantity of fruits, clean periodically the filter and tank to remove pulp rests.

Once operation is over, unplug the appliance from the power supply.

5. CLEANING AND MAINTENANCE

• Always turn off and unplug the appliance to cool down before cleaning.
• Do not use abrasive scouring pads, powders or cleaners to clean the product.
• Use a soft, dampened and clean cloth with water and a few drops of washing-up liquid to clean the product's outer housing.
  Do not immerse the appliance in water or any other liquid, or place it under running water.
• It is suggested to carry out the cleaning process periodically to remove fruit rests.
• All parts and components except for the mains connection and cord can be washed with

ENGLISH

detergent and water. Rinse thoroughly to remove all traces of detergent.

• The following parts can be washed in the dishwasher:

Cover
- Small juicer cone
Large juicer cone
- Filter
Pulp strainer
- Juice container

• Make sure the device is completely dry before storing or using it again.

6. TECHNICAL SPECIFICATIONS

Product name: Zitrus TowerAdjust Easy Black Inox/White

Products reference: 04123/04119

350W,230V,50Hz

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they

contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

8. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any

ENGLISH

other fault attributable to the customer.

• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
• Faults deriving from the normal wear and tear of its parts, due to use.
• The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].

FRANÇAIS

1. INSTRUCTIONS DE SECURITE

Quart de Poblet, Valencia (Spain)

GE02190904
