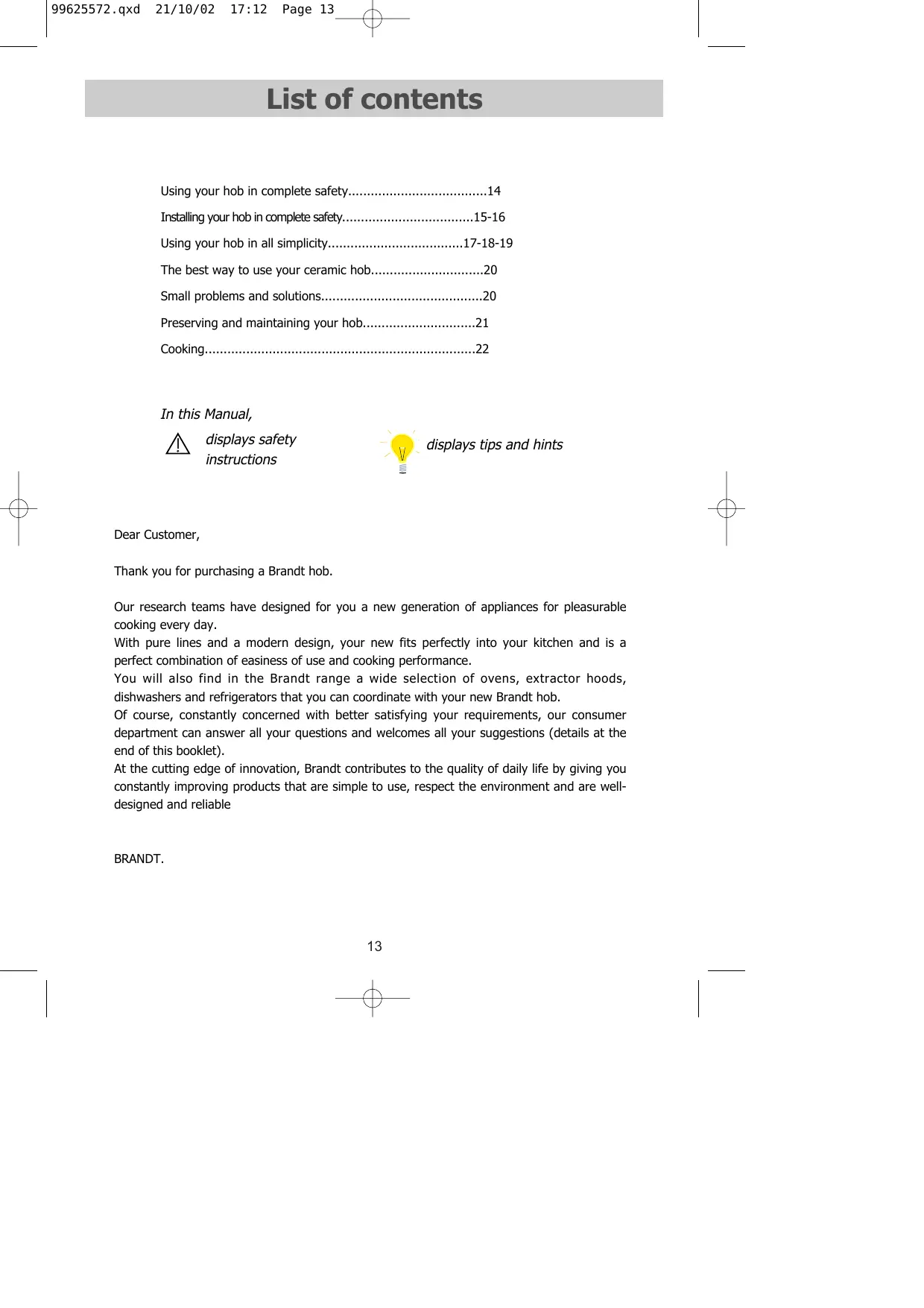

• 99625572.qxd 21/10/02 17:12 Page 13 List of contents Using your hob in complete safety p. 14
• Installing your hob in complete safety p. 15
• -16 Using your hob in all simplicity p. 17
• -18-19 The best way to use your ceramic hob p. 20
• Small problems and solutions p. 20
• Preserving and maintaining your hob p. 21
• Cooking In this Manual, displays safety instructions displays tips and hints Dear Customer, Thank you for purchasing a Brandt hob. Our research teams have designed for you a new generation of appliances for pleasurable cooking every day. With pure lines and a modern design, your new fits perfectly into your kitchen and is a perfect combination of easiness of use and cooking performance. You will also find in the Brandt range a wide selection of ovens, extractor hoods, dishwashers and refrigerators that you can coordinate with your new Brandt hob. Of course, constantly concerned with better satisfying your requirements, our consumer department can answer all your questions and welcomes all your suggestions (details at the end of this booklet). At the cutting edge of innovation, Brandt contributes to the quality of daily life by giving you constantly improving products that are simple to use, respect the environment and are welldesigned and reliable BRANDT. p. 22

99625572.qxd 21/10/02 17:12 Page 14 Using your hob in complete safety We have designed this hob for private use in homes. With a view to constantly improving our products, we reserve the right to make any changes to their technical, program or aesthetic features connected with their technical evolution. These hobs are exclusively designed for cooking drinks and foodstuffs and contain no asbestos based components. If a crack appears in the glass surface, disconnect the appliance immediately to avoid any risk of electric shock. For disconnecting, remove the fuses or use the cutout switch. Do not re-use your hob until the glass surface has been changed. Your hob must never be used as a storage space for any products whatsoever. When cooking never use aluminium foil and never place products wrapped in aluminium foil or products deep-frozen in aluminium packs on the hob. The aluminium will melt and damage your appliance irreparably. Leave pans on your frame or plate (depending on the model). Do not connect electrical appliances on plugs close to the hob. Make sure that the power cable is not in contact with any heating zones.

99625572.qxd 21/10/02 17:12 Page 15 Installing your hob in complete safety Choice of installation

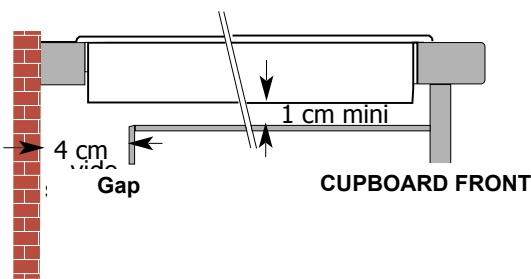

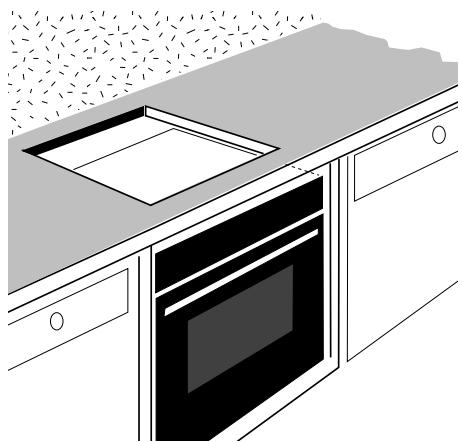

According to the layout of your kitchen, you should install your hob: Above an oven Above a cupboard 1 cm mini 4 cm vide Gap sanitaire CUPBOARD FRONT AVANT MEUBLE The unit must be installed so that the mains plug is easily accessible. The hob can be fitted directly into the worktop above an oven placed in its upper position (Minimum distance 10 mm). Fitting

A seal exists for preventing any humidity getting under the hob. -Stick the seal under the rim of the hob and lower the hob into position on the worktop. -This seal is supplied in the sachet; stick it in place beneath the hob. 4,1 55,5 48,8

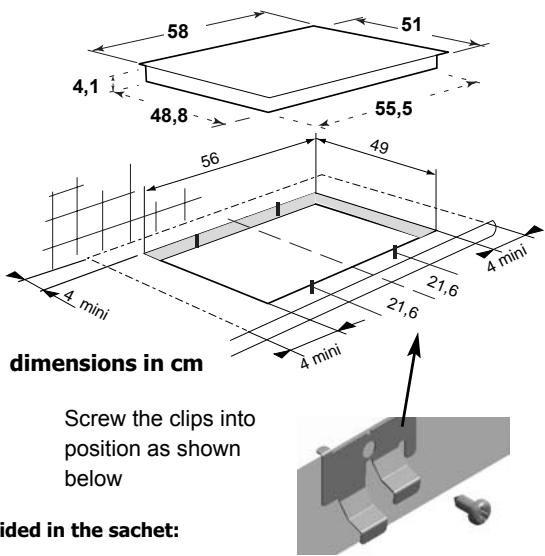

min dimensions in cm fix the clips onto the hob Screw the clips into position as shown below Depending on the clip model provided in the sachet:

99625572.qxd 21/10/02 17:12 Page 16 Installing your hob in complete safety Connection When the power is switched on, or after a long power failure, a light code appears on the control panel. This disappears automatically after about 30 seconds or as soon as any touch control is touched on the panel. This is normal, as the display is for use by the after-sales service when required. The user must not take this into account under any circumstances.If the unit has a 3 phase 400 V2N connection, and is not working correctly, check that the neutral wire is correctly connected. This precaution should also be taken for all your other electronic apparatus. Your hob must be connected to the mains with: 400v 2N 230V - A H05RRF type cable with three 2.5 mm² conductors or five 1.5 mm² conductors (including a yellow / green earth wire)

- A plug that complies to CEI 83 recommendations or an all-pole circuit breaker with contacts that open by at least 3 mm.

You must use a 32 You must use a 16 Amp fuse on your ins- Amp fuse on your installation tallation ∼ 50 Hz 230 V∼ Total energy consumption: TV222.....6,4 kW TV224.....6,3 kW TV282.....6,9 kW

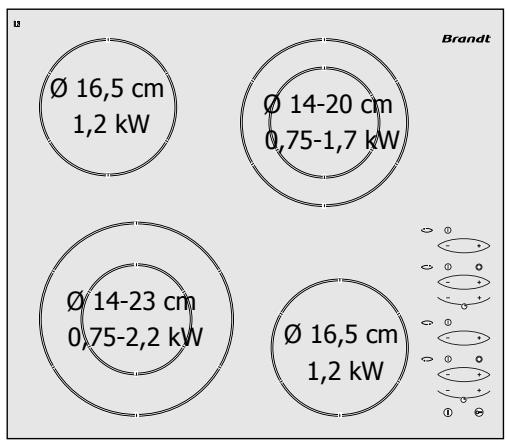

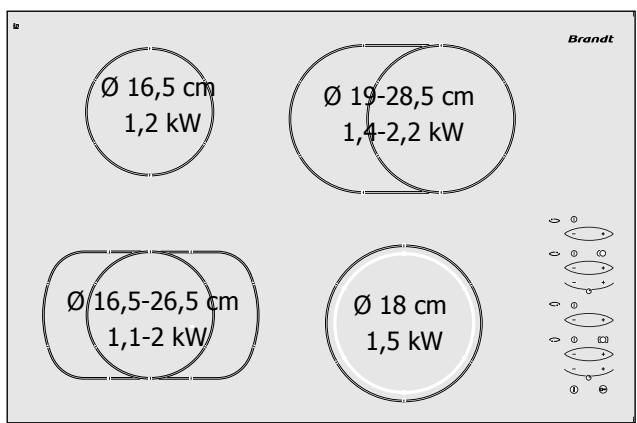

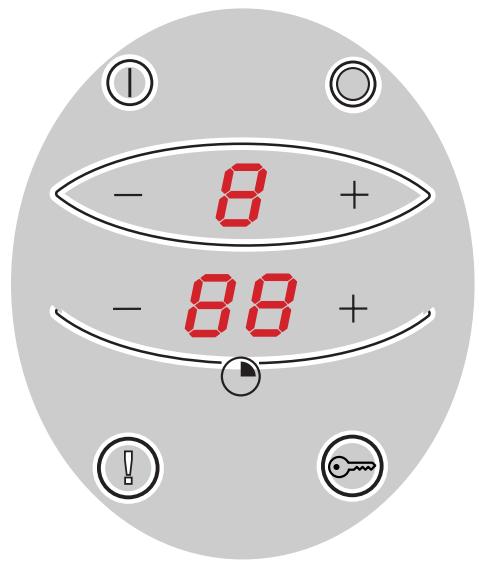

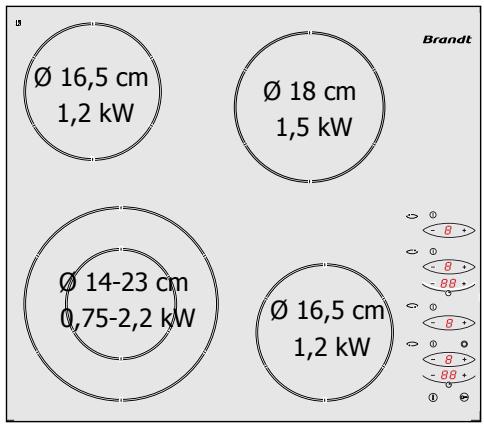

99625572.qxd 21/10/02 17:12 Page 17 What your hob looks like?

99625572.qxd 21/10/02 17:12 Page 18 Using your hob in all simplicity Start/Stop Child safety A beep and a flashing 0 show that the zone concerned has been lighted. You can then choose the desired power. If you do not set the power, the cooking zone will turn itself off automatically. Unlocked Locked

blee 3 , 4 sec 3 , 4 sec Setting manual power Controls can be locked: - Either when turned off (cleaning) - Or during use (the operations in progress continue and the settings displayed stay active). However when in the locked position, the "STOP" touch control has priority and cuts off the power to the oven.The display turns off after a few seconds. It can be reactivated by touching any touch control.

Residual heat indicator Automatic-Stop Automatic stop is a safety function for your hob. It starts up automatically if ever you forget to turn off your cooking. Power consumed Between 1....4 Between 5....7 Between 8....Max

The heating zone goes out automatically after The display shows 8 hours 2 hours 1 hour

After a prolonged power cut, a light display may appear. It will turn itself of after pressing any key for a while. However, the temperature of the cooking areas may remain high. The letter A is displayed for the heating zone concerned and the hob will bleep for about 2 minutes. The A will continue to be displayed until any control of the zone in question is touched. The hob will then bleep twice to confirm your action. WARNING Do not touch these areas, risk of burns.

99625572.qxd 21/10/02 17:12 Page 19 Using your hob in all simplicity General stop button Additional zone The general stop button turns off all cooking zones Operates when main cooking zones are working bip bip start 3 , 4 sec Setting the timer 9mn

stop Turning of the heat automatically turns off the extension Operates when cooking zones concerned are working. You can modify cooking times and any time. manual stopping automatic stopping

bip bip To stop the beep press any control key in the cooking zone concerned. It will stop by default after about 1 minute.

99625572.qxd 21/10/02 17:12 Page 20 The best way to use your ceramic hob Pans and casseroles must be designed for use with electric hobs. Use pans with flat bases that have good surface contact with the cooking zone surface. They must be made out of: - Stainless steel with a thick tri-metal or "sandwich" bottom. - In aluminium with a thick smooth bottom. - In enamelled steel. For easy use, we have provided cooking zones specially adapted to your needs, nevertheless: However, higher temperatures may be required for: - Large quantities - Cooking with a non-covered casserole. - Using a glass or ceramic casserole. And lower temperatures are required for: To finish off cooking turn the knob back to 0 and leave the pan in place to use up all the accumulated heat (which saves energy). Use a lid whenever possible to reduce any loss of heat through evaporation. Automatic cooking zone temperature adjustment The radiant cooking zone is self-regulating, It switches itself on and off so as to remain at the programmed power. Under these conditions the temperature remains constant and is correctly adapted to the food you are cooking. The frequency of self-regulation depends on the power being used. - Cooking food products that tend to burn easily (start with a low temperature that can always be increased if possible). - In case of overflowing (take the lid off, or remove the pan from the heat, then lower the temperature). Energy saving: Minor troubleshooting

When you switch on, the fuse blows When you switch on, only one side of the hob works When you switch on, the display lights up The hob doesn't work. The display lights don't come on The hob has stopped during use and is giving out a bleep The display reads Message E POSSIBLE CAUSES WHAT SHOULD YOU DO? Your hob is connected incorrectly Your hob is connected incorrectly Check the connection and make sure it complies with requirements. The hob is working normally NOTHING: see chapter Remarks on connections The apparatus is not under p o w e r . There is a power or connection problem. - Something has overflowed and or an object is touching the control panel. Inspect the fuses and the cut-out switch. The electronic circuits have overheated. The hob has gone into its overheating protection mode.

Clean the hob or remove the object in question and start cooking again. Leave to cool. 99625572.qxd 21/10/02 17:12 Page 21 Preserving and maintaining your hob ● You must: ● You must not Avoid any shocks with recipients etc.: The glass surface is highly resistant but not unbreakable. Put plastic utensils on the cooking surface when it is hot. Store MAINTENANCE or INFLAMMABLE products in the cupboard under your hob. Leave an empty recipient on a heating zone. Avoid rubbing with recipients etc. as in time this will deteriorate the markings on the top of your ceramic hob. Avoid using recipients with rough or dinted bases: They may hold and transport matter liable to stain or scratch the hob. Heat up a closed can. It may burst; this recommendation applies to all methods of cooking. Leave a casserole or a pan containing hot fat or oil unattended on the cooking zone. Any such faults, which are not the cause of breakdowns nor make the hob impossible to use, are not included in the guarantee conditions. Place your recipient in the middle of the heating zone. Use a pan of the right size. The diameter of the base must be as big as, or bigger than the cooking zone surface area marked on the ceramic plate. It is very easy to clean your countertop hob, especially if you follow these few recommendations:

Minor Soak the area to be cleaned with hot water, then wipe it. Cleaning sponges Accumulated burnt-on stains Soak the area to be cleaned with hot water, use a special ceramic hob scraper to remove the worst, finish off with the rough side of a cleaning sponge, then wipe it clean. Cleaning sponges special ceramic hob scraper Rings and traces of limescale Apply hot white spirit vinegar on the stain, leave to act then wipe off with a soft cloth.- Use a commercial cleaner. Special ceramic hob cleaning paste Burnt-on stains following sugar spillage, melted aluminium or plastic. - Apply a special ceramic hob cleaner on the surface, preferably one which contains silicone (protective action). powder abrasive-backed sponge cream

Special ceramic hob cleaner ordinary sponge or special sponge for delicate items STOCK FROZEN

THICK, MADE WITH FLOUR

WARM KEEPING 99625572.qxd 21/10/02 17:13 slow cooking Page 22 maximum power is reserved for frying and quick boiling. boil or fry fast cooking
