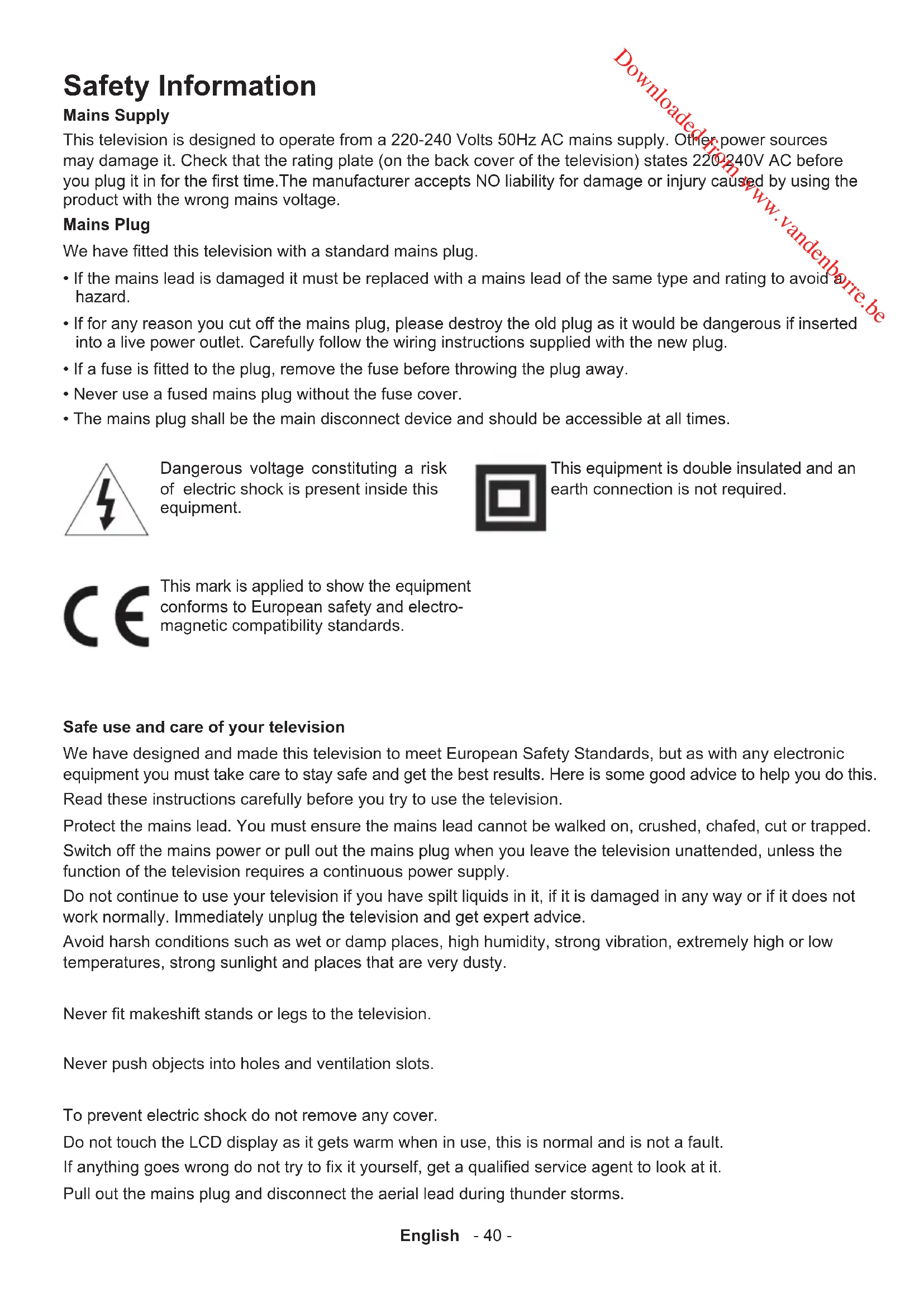

• Darty Plc © UK: EC1N 6TE 26/05/2014 Downloaded from www.vandenborre.beEnglish - 39 - Safety Information To operate your TV in extreme ambient conditions may cause the damage of the device. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Contents Safety Information p. 39
• Safety Precautions p. 43
• Getting Started p. 44
• Notications & Features & Accessories p. 44
• Features p. 44
• Control Buttons on the TV p. 44
• Connect Power p. 45

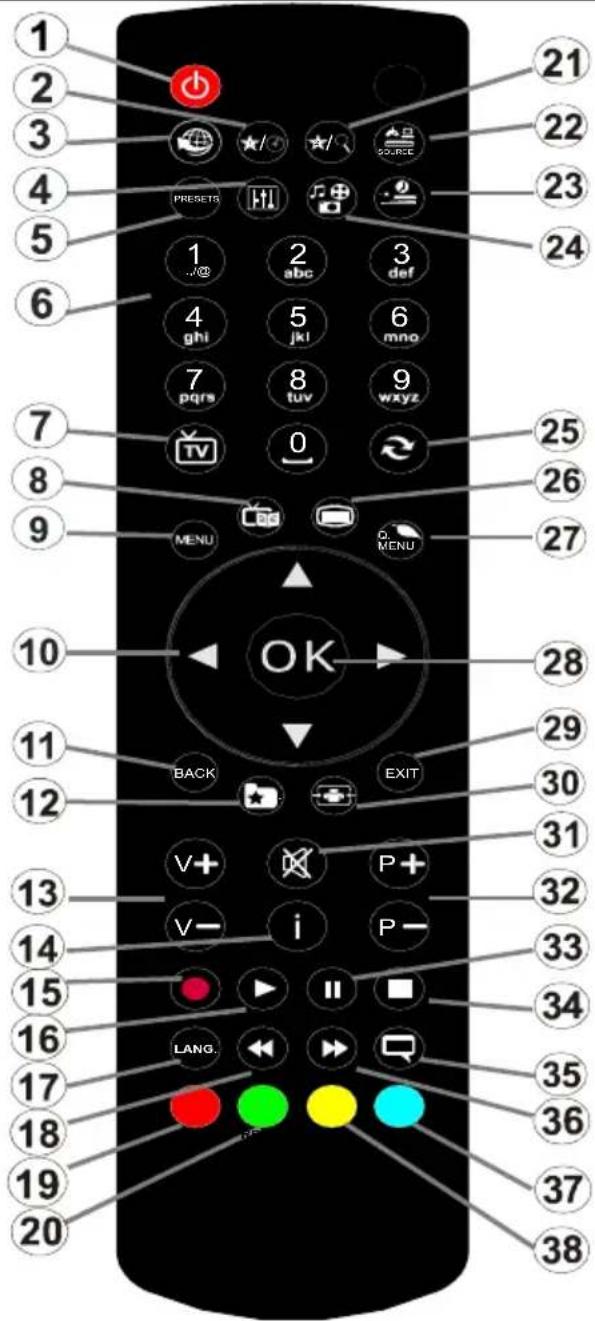

• Remote Control p. 46
• Connections p. 47
• Media Browser Menu p. 50
• TV Menu Features and Functions p. 51
• Conguring parental settings p. 53
• Electronic Programme Guide (EPG) p. 54
• General TV Operation p. 55
• Software Upgrade p. 55
• Troubleshooting & Tips p. 55
• PC Input Typical Display Modes p. 57
• Supported File Formats for USB Mode p. 57
• AV and HDMI Signal Compatibility Information for Users on Disposal of Old Equipment and Batteries [European Union only] These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling. Notice: The sign Pb below the symbol for batteries indicatesthat this battery contains lead.ProductsBattery Downloaded from www.vandenborre.beEnglish - 40 - Safety Information Mains Supply This television is designed to operate from a 220-240 Volts 50Hz AC mains supply. Other power sources may damage it. Check that the rating plate (on the back cover of the television) states 220-240V AC before you plug it in for the rst time.The manufacturer accepts NO liability for damage or injury caused by using the product with the wrong mains voltage. Mains Plug We have tted this television with a standard mains plug. p. 57

• If the mains lead is damaged it must be replaced with a mains lead of the same type and rating to avoid a hazard.

• If for any reason you cut off the mains plug, please destroy the old plug as it would be dangerous if inserted into a live power outlet. Carefully follow the wiring instructions supplied with the new plug.

• If a fuse is tted to the plug, remove the fuse before throwing the plug away.

• Never use a fused mains plug without the fuse cover.

• The mains plug shall be the main disconnect device and should be accessible at all times. Safe use and care of your television We have designed and made this television to meet European Safety Standards, but as with any electronic equipment you must take care to stay safe and get the best results. Here is some good advice to help you do this. Read these instructions carefully before you try to use the television. Protect the mains lead. You must ensure the mains lead cannot be walked on, crushed, chafed, cut or trapped. Switch off the mains power or pull out the mains plug when you leave the television unattended, unless the function of the television requires a continuous power supply. Do not continue to use your television if you have spilt liquids in it, if it is damaged in any way or if it does not work normally. Immediately unplug the television and get expert advice. Avoid harsh conditions such as wet or damp places, high humidity, strong vibration, extremely high or low temperatures, strong sunlight and places that are very dusty. Never t makeshift stands or legs to the television. Never push objects into holes and ventilation slots. To prevent electric shock do not remove any cover. Do not touch the LCD display as it gets warm when in use, this is normal and is not a fault. If anything goes wrong do not try to x it yourself, get a qualied service agent to look at it. Pull out the mains plug and disconnect the aerial lead during thunder storms. Dangerous voltage constituting a risk of electric shock is present inside this equipment. This equipment is double insulated and an earth connection is not required. This mark is applied to show the equipment conforms to European safety and electro- magnetic compatibility standards. Downloaded from www.vandenborre.beEnglish - 41 - Ventilation Place the television on a hard at surface away from direct sunlight or heat sources. If it is in a cabinet allow at least a 10cm gap all around. Do not obstruct the ventilation slots, including those underneath with soft furnishings. Overheating will shorten the life of the television and increase the risk of re. Cleaning Disconnect the mains supply and use only a lightly dampened soft cloth. Do not use chemical solvents or strong detergents as these may damage the cabinet or screen. Never allow water droplets to remain on the screen as moisture can cause permanent discolouration. Greasy marks must only be removed with a commercial cleaner specically recommended for LCD screens. Eye Fatigue When using this product as a computer monitor, health and safety experts recommend short frequent breaks rather than occasional longer breaks. For example a 5-10 minute break after an hour of continuous screen work is considered to be better than a 15 min break every 2 hours. Do not use the monitor against a bright background or where sunlight or other bright light sources will shine directly onto the screen. CAUTION: Connect headphones with the volume set low and increase if required. Prolonged listening through headphones at high volume settings can result in hearing damage. Batteries Remove batteries when the remote control is not to be used for a long time. Batteries left in equipment may cause damage through deterioration and corrosive leakage, invalidating the guarantee. To protect the environment use local recycling facilities for battery disposal. Dispose of used batteries according to the instructions. CAUTION: Risk of explosion if batteries are replaced by an incorrect type. WARNINGS:

• This appliance is intended for domestic household use only and should not be used for any other purpose or on any other application, such as for non-domestic use or use in a commercial environment.

• If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• This apparatus shall not be exposed to dripping or splashing.

• No objects lled with liquids, such as vases, shall be placed on the apparatus.

• No naked ame sources, such as lighted candles should be placed on the apparatus.

• The ventilation should not be impeded by covering the ventilation openings, with items such as newspapers, tablecloths, curtains etc.

• WARNING: To prevent injury, this apparatus must be securely attached to the oor/wall in accordance with the installation instructions.

• This apparatus is not suitable for use in a tropical climate. Downloaded from www.vandenborre.beEnglish - 42 - Wall Mounting the TV The TV can be mounted on a wall using a 75X75 mm VESA mounting kit supplied separately. Remove the base stand as shown. Mount the TV according to the instructions supplied with the kit. Beware of electrical cables, gas and water pipes in the wall. In case of any doubt please contact a qualied installer. The screw thread length must not exceed 8 mm into the TV. Contact the store where you purchased the product for information on where to purchase the VESA kit. Removing the base stand To remove the base stand, protect the screen and lay the TV at on its face on a stable table with the base over the edge.

• Press the locking button and pull the stand away from the TV. Downloaded from www.vandenborre.beEnglish - 43 - Safety Precautions Please read these instructions fully before installing or operating. Preparation Place the device on a solid even surface. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 0ºC up to 40ºC, 85% rel. humidity max. (not blocking ventilation openings). Intended Use This device is used to receive and display TV programmes.The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Power source

• The TV should be operated only from a 220-240 V AC, 50 Hz outlet.

• Warning: Do not leave your TV in standby or operating mode when you leave your house. Positioning the TV

• For ventilation, please leave a clear space of at least 10cm all around the TV.

• Do not block the ventilation openings.

• Do not place the TV on sloping or unstable surfaces, the TV may tip over.

• To prevent damage to the TV, do not place any objects on top of the TV. Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.

• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

• Do not place the TV, furniture, etc. on the power cord or pinch the cord.

• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

• Never make a knot in the power cord or tie it with other cords.

• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.

• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualied personnel. Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).

• Do not expose this TV to rain or water, as this may be dangerous.

• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualied personnel before operating it any further. Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.

• To prevent overheating, these openings must not be blocked or covered in anyway. Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.

• The TV should not be placed near to open ames and sources of intense heat such as an electric heater. Downloaded from www.vandenborre.beGetting Started English - 44 - Notications&Features&Accessories Environmental Information This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps: If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode. The Power Save Mode settings can be found In the ‘Picture’ section of the Main Menu. Note that some picture settings will be unavailable to be changed. If the right navigation button is pressed when Eco is displayed, the message “Screen will be off in 15 seconds” will appear on the screen. The screen will be off immediately. Press any button on the remote control to enable the screen again. When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption. StandbyNotications

1. If the TV does not receive any input signal (e.g.

from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch- on, the following message will be displayed: “TV switched to stand-by mode automatically because there was no signal for a long time.” Press OK to continue.

2. If the TV has been left on and not been operated

for a while, the TV will go into standby. When you next switch-on, the following message will be displayed. “TV switched to stand-by mode automatically because no operation was made for a long time.” Press OK to continue. Features

• Remote controlled colour TV.

• Fully integrated digital/cable TV (DVB-T/C)

• HDMI inputs are for connecting a device that has a HDMI socket.

• USB port (with digital video recording function).

• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)

• Headphone connection.

• Automatic programming system.

• Automatic power down after up to six hours.

• PLL (Frequency Search).

• Game Mode (Optional). Accessories Included

• Batteries not included

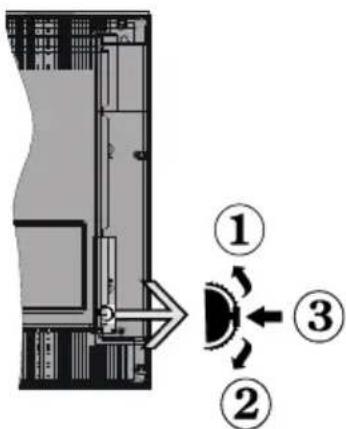

switch The Control button allows you to control the Volume/ Programme/ Source and Standby-On functions of the TV. To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down. To change channel: Press the middle of the button, the channel information banner will appear on screen. Scroll through the stored channels by pushing the button up or down Getting Started Downloaded from www.vandenborre.beEnglish - 45 - To change source: Press the middle of the button twice, the source list will appear on screen. Scroll through the available sources by pushing the button up or down. To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode. Inserting the Batteries into the Remote Slide back the battery cover of the remote control. Insert two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover. Please note that batteries are not supplied with this television. Connect Power IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. Antenna/Cable Connection Connect the “aerial” or “cable TV” plug to the AERIAL INPUT (ANT) socket located on the back of the TV. Notication Manufactured under license from Dolby Laboratories. TRADEMARK ACKNOWLEDGMENT “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. “HDMI, the HDMI logo and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.” Specication TV Broadcasting PAL B/G D/K K Receiving Channels

Number of Preset Channels

Channel Indicator On Screen Display RF Aerial Input 75 Ohm (unbalanced) Operating Voltage 220-240V AC, 50Hz. Audio German+Nicam Stereo Audio Output Power (WRMS.) (10% THD) 2 x 2,5 Power Consumption 45W Weight with stand 3.80 kg TV Dimensions DxLxH (with stand) 134 x 562 x 382 mm TV Dimensions DxLxH (without stand) 56 x 562 x 345 mm Operation temperature and operation humidity: 0ºC up to 40ºC, 85% humidity max Downloaded from www.vandenborre.beGetting Started English - 46 - Teletext Press button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen. Digital Teletext (for UK only) Press button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the button is pressed again, the TV returns to television broadcast. Remote Control

22. Source selection

28. OK / Select / Hold (in TXT mode) / Channel List (DTV mode)

*Using My button 1 Press MY BUTTON 1 for ve seconds when on a desired source, channel or link, until the “MY BUTTON IS SET” message is displayed on the screen. This conrms that the selected MY BUTTON is now associated with the selected function. **Using My Button 2 Press MY BUTTON 2 for ve seconds when on a desired source, channel or link, until the “MY BUTTON IS SET” message is displayed on the screen. This conrms that the selected MY BUTTON is now associated with the selected function. Footnote: Red, green, blue and yellow buttons are multi-function; please follow on-screen prompts and section instructions. Downloaded from www.vandenborre.beGetting Started English - 47 - NOTE: When connecting a device via the YPbPr or Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input. |You cannot use VGA and YPbPr at the same time. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. Connector Type Cables (not supplied) Device Scart Connection (back) VGA Connection (back) SIDE AV PC/YPbPr Audio Connection (side) Side Audio YPbPr or PC Connection Cable HDMI Connection (back) SPDIF Connection (back) SIDE AV Side AV (Audio/Video) Connection (side) HEADPHONE Headphone Connection (side) YPbPr Video Connection (back) PC to YPbPr Connection Cable USB Connection (side)

Connection (side) CAM module Connections Downloaded from www.vandenborre.beGetting Started English - 48 - Switching On/Off To Switch the TV On Connect the power cord to the 220-240V AC, 50 Hz. To switch on the TV from standby mode either: Press the “ ” button, P+ / P- or a numeric button on the remote control. Press the side control button so that the TV comes on from standby. To Switch the TV Off Press the “ “ button on the remote control or press the side control button until the TV switches to standby mode. To power down the TV completely, unplug the power cord from the mains socket. Note: When the TV is in standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode. First Time Installation IMPORTANT: When you select Country option as France or Italy, you will be asked to set and conrm a PIN number. Selected PIN number cannot be 0000. Enter a PIN number and conrm it by entering once more. Press OK button to continue. If the two PIN numbers match, your master PIN number will be set. Note: you are advised to write down this code on your instruction manual so that you can remember it when you need to use it.

WARNING: When you are required to enter a PIN

number for any menu operation you should use the PIN that you have previously dened during the rst time installation. If you have forgotten the PIN number you have set during the rst time installation, you should use the master PIN code, 4725. When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when nished, press OK to continue. You can activate Store mode option to be available in “Other settings” menu and your TV’s features will be illustrated on the top of the screen. A conrmation screen will be displayed. Select YES to proceed. If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue. Demo Mode If you want to use your television at home, you are advised to select the Home mode. If you choose the Store mode, you will have to conrm your choice by pressing the OK button on the remote control. Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234. Aerial Installation If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts. NOTE: You can press MENU button to cancel. Once all available channels have been saved, the Channel List will be displayed on the screen. If you would like the channels to be sorted according to the LCN (*), please select “Yes” and then press OK. Press MENU button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available). Cable Installation If you select CABLE option and press OK button on the remote control, you can set the frequencies manually. To continue, please select YES and press OK. To cancel operation, select NO and press OK. Enter the frequency range manually by using the numeric buttons. Note: Searching duration will change depending on the selected search step. Media Playback via USB Input You can connect a 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB input of the TV. IMPORTANT! Back up your files before making any connections to the TV. Manufacturer will not be responsible for any le damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks. While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. Do not repeatedly quickly plug and unplug the drive. This First Time Installation - USB Connections Downloaded from www.vandenborre.beEnglish - 49 - may cause physical damage to the USB player and USB device itself. Never remove a USB disk while playing a le. Recording a Programme IMPORTANT: When using a new USB hard disk drive, it is recommended that you rst format the disk using your TV’s “Format Disk” option. Note : To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. The connected USB disk should have at least 1 GB capacity (a minimum capacity of 4GB is recommended) and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed. Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these les will not be available to be played on a computer. You can play the recordings only via your TV. Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours. Recorded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufcient, the recording may fail and the timeshifting feature may not be available. It is recommended to use USB devices that are HD compatible. Do not disconnect the USB/HDD during a recording. This may harm the connected USB/HDD. Multipartition support is available. The television can support a maximum of two different partitions. The rst partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features. Some stream packets may not be recorded because of signal problems, so sometimes video may freeze during playback. Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback. Timeshift Recording Press (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button or the (PAUSE) button again to resume the paused programme from where you stopped. Press the STOP button to stop timeshift recording and return to the live broadcast. Note: Timeshift cannot be used while in radio mode. Note : You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option. Instant Recording Press (RECORD) button to start instant recording of a programme while you’re watching it. You can press (RECORD) button on the remote control again to record the next events on the EPG. In this case, an OSD will be displayed, indicating the programmes scheduled for recording. Press (STOP) button to cancel instant recording. Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufcient. Watching Recorded Programmes Select the Recordings Library from the Media Browser menu. Select a recorded item from the list. Press the OK button to view the Play Options. Select an option then press OK button. Note: Viewing main menu and menu items will not be available during the playback. Press the (STOP) button to stop a playback and return to the Recordings Library. Slow Forward If you press (PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed. RecordingConguration Select the Recording Configuration item in the Settings menu to congure the recording settings. Format Disk: You can use Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature (default pin is 0000). Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost. Note: If “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB Downloaded from www.vandenborre.beEnglish - 50 - disk does not meet the speed requirements. Try connecting another USB disk. Media Browser Menu You can play photo, music, and movie les stored on a USB disk by connecting it to your TV. Connect a USB disk to the USB port located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings submenu. Loop/Shufe Mode Operation Start playback with and activate * TV plays next file and loops the list. Start playback with OK and activate * The same le will be played in a loop (repeat). Start playback with OK/ and activate * The les will be read randomly.

• using the Green button Quick Menu Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features. Downloaded from www.vandenborre.beEnglish - 51 - TV Menu Features and Functions Mode You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Natural,Cinema, Game and Dynamic. Contrast Sets the lightness and darkness values of the screen. Brightness Sets the brightness value for the screen. Sharpness Sets the sharpness value for the objects displayed on the screen. Colour Sets the colour value, adjusting the colours. Power Save Mode Sets the Power Save Mode as Eco, Picture Off or Disabled. (When the Mode is Dynamic, Power Save Mode is automatically set as disabled.) Backlight (Optional) This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game. Noise Reduction If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise. Advanced Settings Dynamic Contrast You can change the Dynamic Contrast ratio to desired value. Colour Temp Sets the desired colour tone. Picture Zoom Sets the desired picture size from picture zoom menu. Note: Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching) Film Mode Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching lms to see the fast motion scenes clearly. Skin Tone Skin tone can be changed between -5 and 5. Colour Shift Adjust the desired colour tone. RGB Gain You can congure the colour temperature values using the RGB Gain feature. HDMI True Black(optional) When you watch television from the HDMI source, this option is visible in the Picture setting menu. You can use this option to increase image blackness. PC Position Autoposition (in PC mode) Automatically optimizes the display. Press OK to optimize. H Position (in PC mode) This item shifts the image horizontally to the right hand side or left hand side of the screen. V Position (in PC mode) This item shifts the image vertically towards the top or bottom of the screen. Dot Clock (in PC mode) Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. Phase (in PC mode) Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method. Reset Resets the picture settings to factory default settings. (Except Game Mode) While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

PICTURE MENU CONTENTS

Downloaded from www.vandenborre.beEnglish - 52 - Volume Adjusts the volume level. Equalizer Selects the equalizer mode: User, Music, Movie, Speech, Flat, Classic.Custom settings can be made only when in user mode. Balance This setting is used for emphasizing left or right speaker balance. Headphone Sets headphone volume. Sound Mode You can select a sound mode (if supported by the selected channel): STEREO, DUAL I, DUAL II. AVL (Automatic Volume Limiting) Sets the sound to obtain xed output level between programmes. Digital Out Sets digital out audio type.

SETTINGS MENU CONTENTS

Conditional Access Controls conditional access modules when available. Language Congures language settings (may change depending on the country selected). Preferred and current settings will be available. Current settings can be changed only if supported by the broadcaster. Parental Congures parental settings. Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock (may change depending on the country selected) and child lock in this menu. You can also set a new pin number. Timers Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes. (USB Record) Recording Conguration Displays the recording conguration menu (USB connection required) Date/Time Sets date and time. You can adjust the time zone if Time Setting Mode is set to Manual. Sources Enables or disables selected source options. Other Settings Displays other setting options of the TV set. Menu Timeout Changes timeout duration for on-screen menus. Scan Encrypted Channels When this setting is on, the search process will locate the encrypted channels as well. Blue Background Activates or deactivates the blue background system when the signal is weak or absent. Software Upgrade Displays software version and allows you to enable or disable the automatic scanning for upgrades or to launch a scan for upgrades manually. Application Version Displays application version. Hard of Hearing Enables any special feature sent from the broadcaster Audio Description Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature only if the broadcaster supports that additional narration track. Note: Audio description sound feature cannot be available in recording or time shifting mode. Auto TV Off You can set the timeout value of auto off feature. When the TV has not been operated for the specied amount of time, it will go into standby mode. Standby Search (Optional) If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, an on-screen menu will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process.

Downloaded from www.vandenborre.beEnglish - 53 - Store Mode (optional) If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available. Power Up Mode This setting congures the power up mode preference.

INSTALL AND RETUNE MENU CONTENTS

Automatic Channel Scan (Retune) (If available) Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations. Manual Channel Scan This feature can be used for direct broadcast entry. Network Channel Scan Searches for the linked channels in the broadcast system. Analogue Fine Tune You can use this setting for ne tuning analogue channels. This feature is not available if no analogue channels are stored. First Time Installation Deletes all stored channels and settings, resets TV to factory settings. CHANNEL LIST Edit Channel List Allows you to congure the channel list by moving, deleting, renaming and locking channels to your liking. Favourites Allows you to set your favourites within the list of channels available. Active Channel List Allows you to set active stations to be listed. MEDIA BROWSER (only with USB device) Videos Shows a list of all video contents available. Photos Shows a list of all picture contents available. Music Shows a list of all music contents available. All Shows a list of all contents available. Recordings Library Shows a list of all recorded contents available. Settings Allows you to congure view style, slideshow interval and all settings for subtitles. Conguringparentalsettings To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system. To display the Parental Settings menu options (accessible from Settings menu under Parental), the PIN number should be entered. The factory default PIN number is 0000*. After coding the correct PIN number, the Parental Settings menu will be displayed. Menu Lock: Menu lock setting enables or disables the menu access. Maturity Lock: When the Maturity Lock option is set, it gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast. Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work. Set PIN: Denes a new PIN number. *Default PIN code can change depending on the selected country. If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234. Other TV Functions Downloaded from www.vandenborre.beEnglish - 54 - Electronic Programme Guide (EPG) Some, but not all channels send information about the current and next programmes. Press the button to view the EPG menu. Through this menu, you will have the following options: Red button (Prev Day): Displays the programmes of the previous day. Green button (Next day): Displays the programmes of the next day. Yellow button (Zoom): Expands programme information. Blue button (Filter): Displays ltering options. (SUBTITLE): Press button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted. i (Info): Displays or hides detailed information on the programme selected. Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons. OK: Displays Event options (Select Channel, Record, and if the programme is later, Set Timer on Event). (Search): Displays “Guide Search” menu. (Now) : Shows the current programme. (RECORD): The TV will start to record the selected programme. You can press again to stop the recording while in EPG menu; otherwise, you have to press STOP button to stop the recording.. P+P- : More event info IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature. Note: Switching to a different broadcast or source is not available during a recording. Programme Options In EPG menu, press the OK button to enter the Event Options menu. Select Channel In EPG menu, using this option, you can switch to the selected channel. Record / Delete Record Timer After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme. To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled. Set Timer / Delete Timer After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select “Delete Timer” option. The timer will be cancelled. Note: It is not possible to record two channels at the same time. Downloaded from www.vandenborre.beEnglish - 55 - General TV Operation Software Upgrade Your TV is capable of nding and updating automatically via the Aerial/Cable signal. Software upgrade search via user interface Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade. 3 AM search and upgrade mode While the TV is connected to an aerial signal, if Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up , it will have the new software version. Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again. Troubleshooting&Tips Tv will not turn on Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV. Poor picture

• Have you selected the correct TV system?

• Low signal level can cause picture distortion. Please check antenna access.

• Check if you have entered the correct channel frequency if you have done manual tuning.

• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices. No picture

• No Picture means that your TV is not receiving a transmission. Have you pressed the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.

• Is the antenna connected properly?

• Is the antenna cable damaged?

• Are suitable plugs used to connect the antenna?

• If you are in doubt, consult your dealer. No sound

• Has the TV been set to mute? To cancel mute, press the “ ” button, or increase the volume level.

• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section. Remote control - does not operate

• The batteries may be exhausted. Replace the batteries. Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected.

• Check the AV cables and connections if you have tried to connect a device.

• Check that the required input source is enabled (Menu – Settings – Sources). Recording unavailable To record a programme, you should rst connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device. USB is too slow If a “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk. Teletext Press the button to enter teletext mode. Press again to enable the Mix mode. Press one more time to exit. Follow the instructions displayed on the digital teletext screen. Downloaded from www.vandenborre.beEnglish - 56 -
