USER MANUAL B2420HD BRANDT

Downloaded from www.vandenborre.be Brandt

FR MANUEL D'UTILISATION

NL HANDLEIDING

GB INSTRUCTION MANUAL

CZ NÁVOD K POUŽITÍ

SK NÁVOD NA POUŽITIE

B2420HDLED

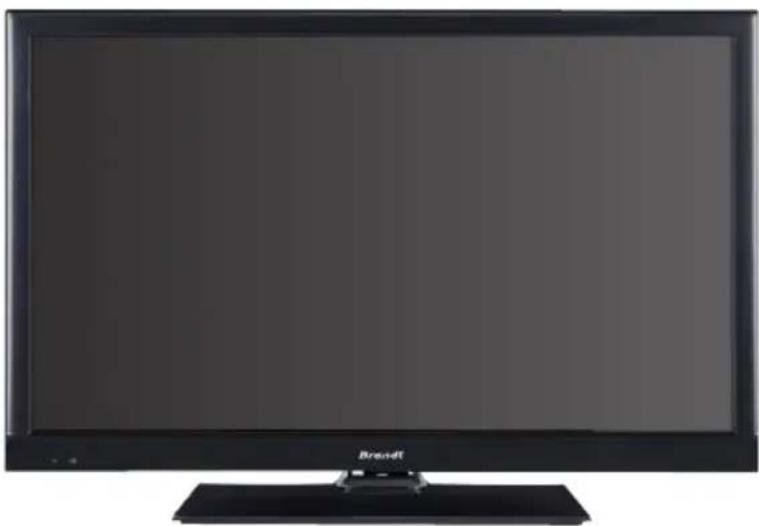

Front view of a black flat-screen TV with a brand mark and 'Brandt' logo on the front (no additional text or symbols visible)

Table des matières

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

ATTENTION : POUR ÉVITER TOUT RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE COUVERCLE (OU L'ARRIÈRE). L'ENTRETIEN DES PIÈCES INTERNES EST INTERDIT AUX UTILISATEURS. VEUILLEZ CONFIER L'ENTRETIEN A UN PERSONNEL QUALIFIE.

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Close-up of a black remote control case with a tool inserted, showing three steps: before, after, and after (no text or symbols visible)

Downloaded from www.vandenborre.be

Standby power consumption (approx.) <	0.50 W
Screen resolution 1366 x 768

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

Three-step illustration of a black remote control case with a screwdriver, showing internal components and directional arrows (no text or symbols)

Sluit de stroom aan

Downloaded from www.vandenborre.be

Standby power consumption (approx.) <	0.50 W
Screen resolution 1366 x 768

PC-invoer normale weergavemodi

Safety Precautions 43

Getting Started 44

Notifications & Features & Accessories......44

Features 44

Control Buttons on the TV 44

Connect Power 45

Remote Control 46

Connections....47

Media Browser Menu....50

TV Menu Features and Functions....51

Configuring parental settings....53

Electronic Programme Guide (EPG) 54

General TV Operation 55

Software Upgrade....55

Troubleshooting & Tips....55

PC Input Typical Display Modes 57

Supported File Formats for USB Mode ....57

AV and HDMI Signal Compatibility ....57

Safety Information

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To operate your TV in extreme ambient conditions may cause the damage of the device.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

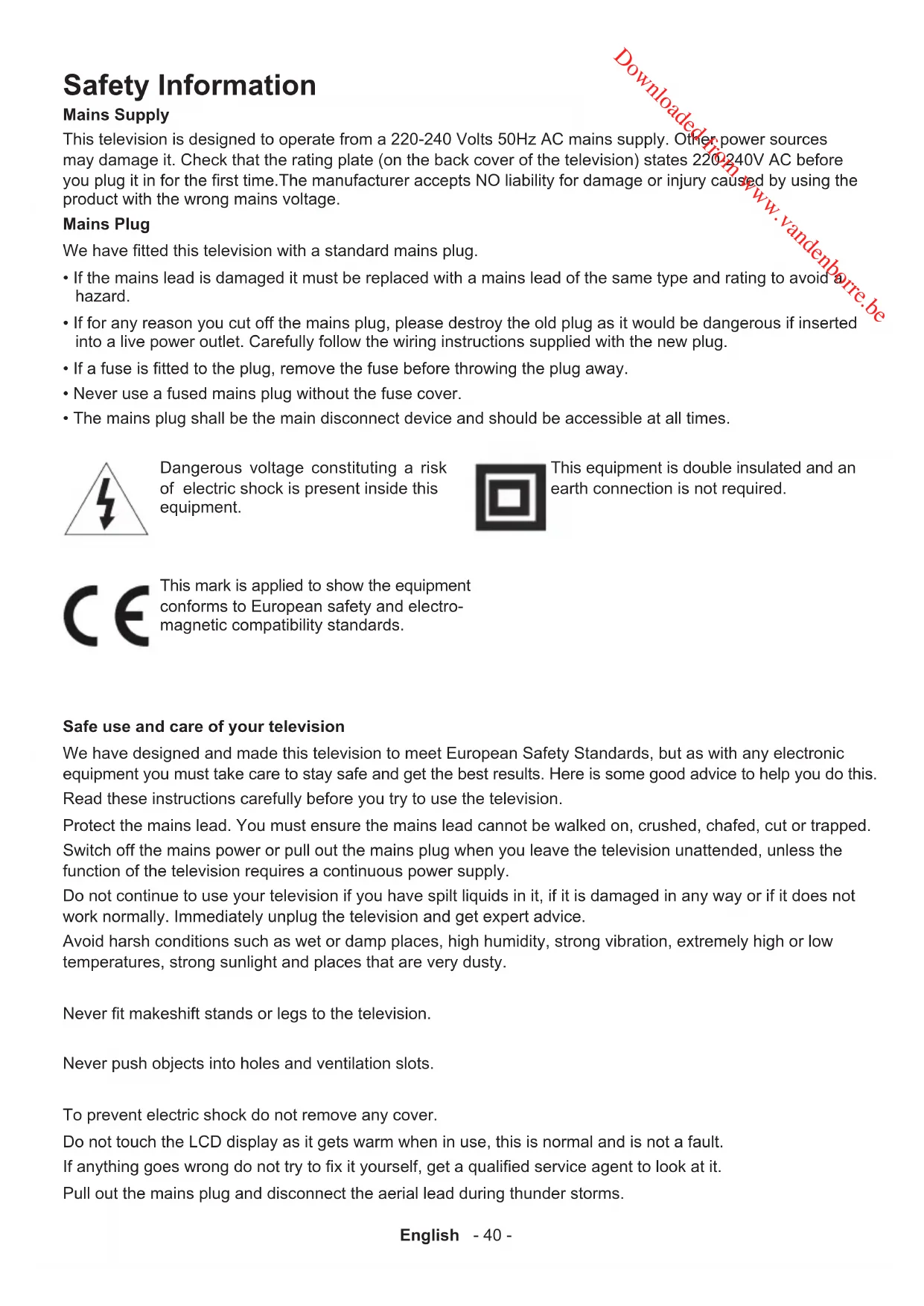

Safety Information

Mains Supply

This television is designed to operate from a 220-240 Volts 50Hz AC mains supply. Other power sources may damage it. Check that the rating plate (on the back cover of the television) states 220-240V AC before you plug it in for the first time. The manufacturer accepts NO liability for damage or injury caused by using the product with the wrong mains voltage.

Mains Plug

We have fitted this television with a standard mains plug.

• If the mains lead is damaged it must be replaced with a mains lead of the same type and rating to avoid a hazard.
• If for any reason you cut off the mains plug, please destroy the old plug as it would be dangerous if inserted into a live power outlet. Carefully follow the wiring instructions supplied with the new plug.
• If a fuse is fitted to the plug, remove the fuse before throwing the plug away.
• Never use a fused mains plug without the fuse cover.
• The mains plug shall be the main disconnect device and should be accessible at all times.

Dangerous voltage constituting a risk of electric shock is present inside this equipment.

This equipment is double insulated and an earth connection is not required.

This mark is applied to show the equipment conforms to European safety and electromagnetic compatibility standards.

Safe use and care of your television

We have designed and made this television to meet European Safety Standards, but as with any electronic equipment you must take care to stay safe and get the best results. Here is some good advice to help you do this. Read these instructions carefully before you try to use the television.

Protect the mains lead. You must ensure the mains lead cannot be walked on, crushed, chafed, cut or trapped. Switch off the mains power or pull out the mains plug when you leave the television unattended, unless the function of the television requires a continuous power supply.

Do not continue to use your television if you have spilt liquids in it, if it is damaged in any way or if it does not work normally. Immediately unplug the television and get expert advice.

Avoid harsh conditions such as wet or damp places, high humidity, strong vibration, extremely high or low temperatures, strong sunlight and places that are very dusty.

Never fit makeshift stands or legs to the television.

Never push objects into holes and ventilation slots.

To prevent electric shock do not remove any cover.

Do not touch the LCD display as it gets warm when in use, this is normal and is not a fault. If anything goes wrong do not try to fix it yourself, get a qualified service agent to look at it.

Pull out the mains plug and disconnect the aerial lead during thunder storms.

Ventilation

Place the television on a hard flat surface away from direct sunlight or heat sources. If it is in a cabinet allow at least a 10cm gap all around. Do not obstruct the ventilation slots, including those underneath with soft furnishings.

Overheating will shorten the life of the television and increase the risk of fire.

Cleaning

Disconnect the mains supply and use only a lightly dampened soft cloth. Do not use chemical solvents or strong detergents as these may damage the cabinet or screen.

Never allow water droplets to remain on the screen as moisture can cause permanent discolouration.

Greasy marks must only be removed with a commercial cleaner specifically recommended for LCD screens.

Eye Fatigue

When using this product as a computer monitor, health and safety experts recommend short frequent breaks rather than occasional longer breaks. For example a 5-10 minute break after an hour of continuous screen work is considered to be better than a 15 min break every 2 hours.

Do not use the monitor against a bright background or where sunlight or other bright light sources will shine directly onto the screen.

CAUTION: Connect headphones with the volume set low and increase if required.

Prolonged listening through headphones at high volume settings can result in hearing damage.

Batteries

Remove batteries when the remote control is not to be used for a long time. Batteries left in equipment may cause damage through deterioration and corrosive leakage, invalidating the guarantee.

To protect the environment use local recycling facilities for battery disposal.

Dispose of used batteries according to the instructions.

CAUTION: Risk of explosion if batteries are replaced by an incorrect type.

WARNINGS:

• This appliance is intended for domestic household use only and should not be used for any other purpose or on any other application, such as for non-domestic use or use in a commercial environment.
• If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This apparatus shall not be exposed to dripping or splashing.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles should be placed on the apparatus.
• The ventilation should not be impeded by covering the ventilation openings, with items such as newspapers, tablecloths, curtains etc.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• This apparatus is not suitable for use in a tropical climate.

Wall Mounting the TV

The TV can be mounted on a wall using a 75X75 mm VESA mounting kit supplied separately.

Remove the base stand as shown.

Mount the TV according to the instructions supplied with the kit. Beware of electrical cables, gas and water pipes in the wall. In case of any doubt please contact a qualified installer.

The screw thread length must not exceed 8 mm into the TV.

Contact the store where you purchased the product for information on where to purchase the VESA kit

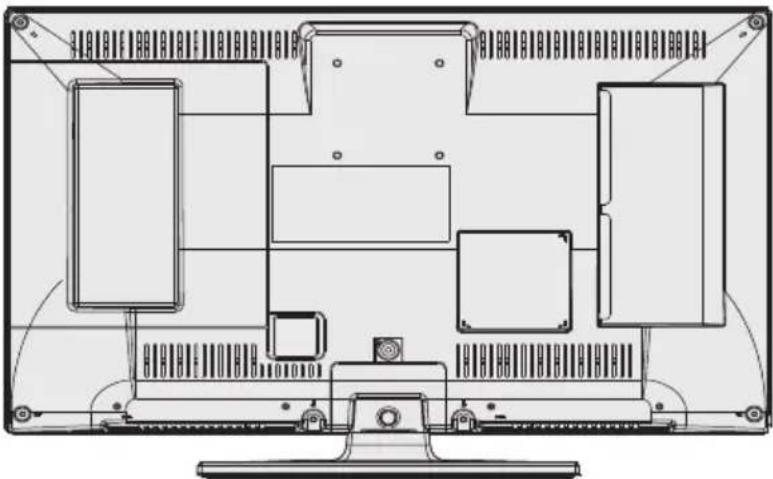

Removing the base stand

To remove the base stand, protect the screen and lay the TV flat on its face on a stable table with the base over the edge.

- Press the locking button and pull the stand away from the TV.

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

Safety Precautions

Please read these instructions fully before installing or operating.

Preparation

Place the device on a solid even surface. To prevent any fault and unsafe situations, do not place any objects on top of the set. Use this device in moderate climates. Operation temperature and operation humidity: 0^ C up to 40^ C, 85% rel. humidity max. (not blocking ventilation openings).

Intended Use

This device is used to receive and display TV programmes. The different connection options make an additional expansion of the reception and display sources possible (various external devices). This device is only suitable for the operation in dry interiors. This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LCD TV in extreme ambient conditions may cause the damage of the device.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Power source

• The TV should be operated only from a 220-240 V AC, 50 Hz outlet.
• Warning: Do not leave your TV in standby or operating mode when you leave your house.

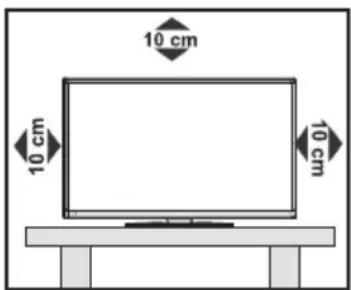

Positioning the TV

10 cm 10 cm 10 cm

• For ventilation, please leave a clear space of at least 10cm all around the TV.

• Do not block the ventilation openings.

• Do not place the TV on sloping or unstable surfaces, the TV may tip over.

• To prevent damage to the TV, do not place any objects on top of the TV.

Power cord and plug

• The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.
• The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
• Do not place the TV, furniture, etc. on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Never make a knot in the power cord or tie it with other cords.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

• Do not use this TV in a humid or damp place (avoid bathrooms, the sink in the kitchen, and near the washing machine).
• Do not expose this TV to rain or water, as this may be dangerous.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

• The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
• To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

• Do not expose the TV to direct sunlight or other heat sources.
• The TV should not be placed near to open flames and sources of intense heat such as an electric heater.

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps:

If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode. The Power Save Mode settings can be found In the 'Picture' section of the Main Menu. Note that some picture settings will be unavailable to be changed.

If the right navigation button is pressed when Eco is displayed, the message “Screen will be off in 15 seconds” will appear on the screen. The screen will be off immediately. Press any button on the remote control to enable the screen again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

1. If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.
2. If the TV has been left on and not been operated for a while, the TV will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

Features

• Remote controlled colour TV.
• Fully integrated digital/cable TV (DVB-T/C)
• HDMI inputs are for connecting a device that has a HDMI socket.
• USB port (with digital video recording function).
• OSD menu system.
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.

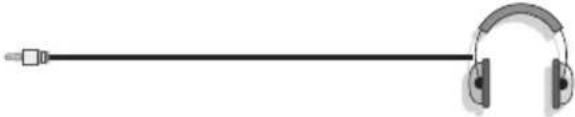

  • Headphone connection.
  • Automatic programming system.
• Manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.

• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting)
- PLL (Frequency Search).
- PC input.
- Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7, Windows 8.
- Game Mode (Optional).

Accessories Included

• Remote Control
• Batteries not included
• Instruction Book

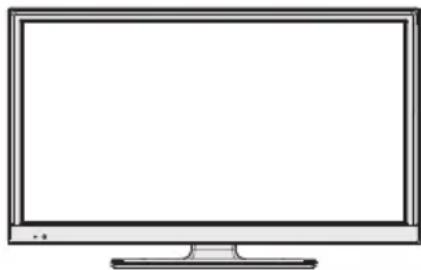

Control Buttons on the TV

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

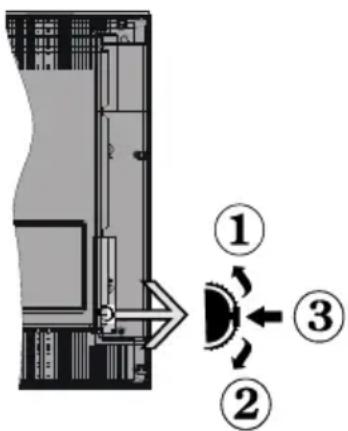

TV Control Switch & Operation

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch

The Control button allows you to control the Volume/Programme/ Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the channel information banner will appear on screen. Scroll through the stored channels by pushing the button up or down

To change source: Press the middle of the button twice, the source list will appear on screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

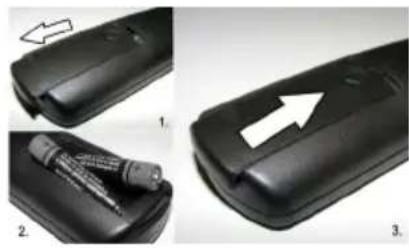

Inserting the Batteries into the Remote

Slide back the battery cover of the remote control. Insert two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover. Please note that batteries are not supplied with this television.

Three-step illustration of a black remote control case with a pen inserted, showing step 1, step 2, and step 3 (no text or symbols)

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna/Cable Connection

Connect the "aerial" or "cable TV" plug to the AERIAL INPUT (ANT) socket located on the back of the TV.

ANT.

Notification

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Specification

TV Broadcasting PAL B/G D/K K
Receiving Channels	VHF (BAND I/III) - UHF(BAND UP HYPERBAND
Number of Preset Channels	1000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 2,5
Power Consumption 45W
Weight with stand 3.80 kg
TV Dimensions DxLxH (with stand)	134 x 562 x 382 mm
TV Dimensions DxLxH (without stand)	56 x 562 x 345 mm
Operation temperature and operation humidity:	0°C up to 40°C, 85% humidity max

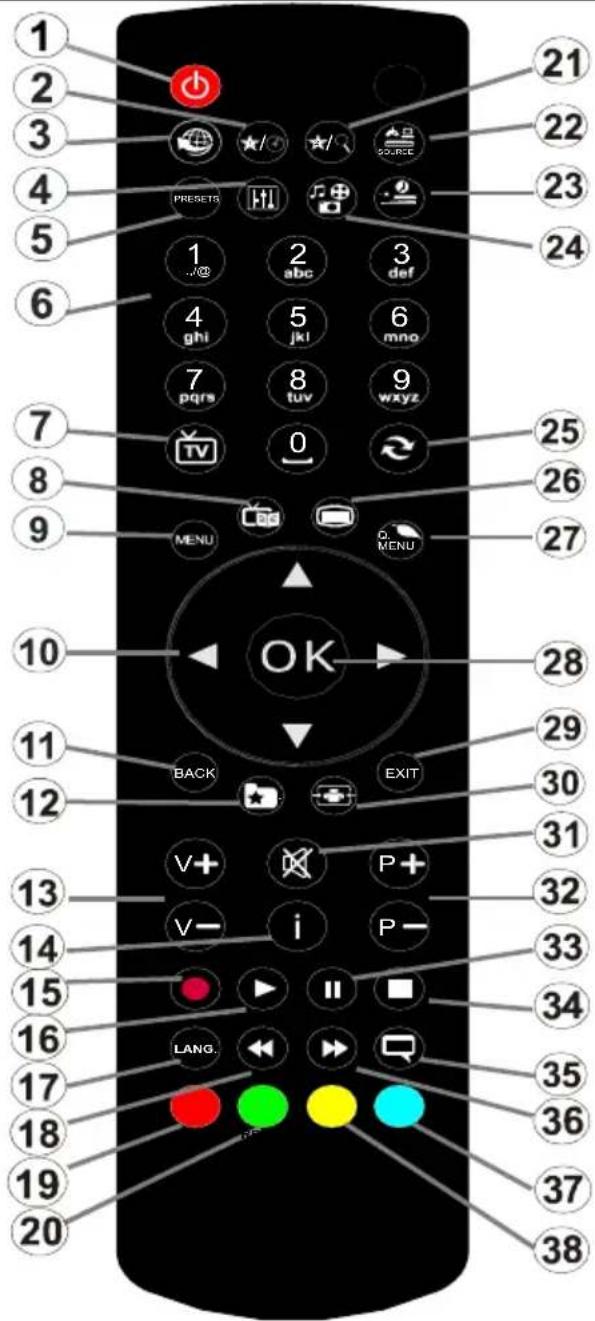

Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 OK BACK EXIT V+ P+ V- i P- LANG. I S TUV 0 pqs ghi ghi abc def gki jkl mno 7 wxyz MENU MENU

Teletext

Press button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen.

Digital Teletext (for UK only)

Press button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen.

When the button is pressed again, the TV returns to television broadcast.

1. Standby
2. My button 1 *
3. No Function
4. Changes equalizer modes
5. Picture mode selection
6. Numeric buttons
7. TV Button
8. Electronic programme guide (EPG)
9. Menu
10. Navigation buttons (Up/Down/Left / Right-TXT Subpage)
11. Back
12. Favourites
13. Volume Up / Down
14. Info
15. Record programme
16. Play
17. Current language
18. Rapid reverse
19. Red button / IDTV Page up (See footnote)
20. Green button / IDTV Page down (See footnote)
21. My button 2 **
22. Source selection
23. Sleep timer
24. Media browser
25. Channel swap
26. Teletext
27. Q. Menu (quick settings)
28. OK / Select / Hold (in TXT mode) / Channel List (DTV mode)
29. Exit / Return / Index page (in TXT mode)
30. Image size
31. Mute
32. Programme Up / Down
33. Pause
34. Stop
35. Subtitles
36. Rapid advance
37. Blue button (See footnote)
38. Yellow button (See footnote)

\*Using My button 1

Press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

\*\*Using My Button 2

Press MY BUTTON 2 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

Footnote:

Red, green, blue and yellow buttons are multi-function; please follow on-screen prompts and section instructions.

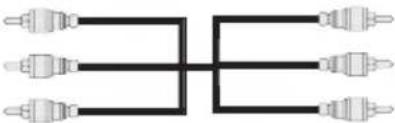

Connections

Connector Type	Cables (not supplied) Device
	Scart Connection (back)
	VGA Connection (back)

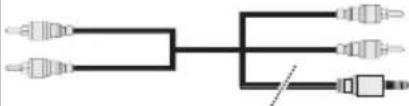

	PC/YPbPr Audio Connection (side)	Side Audio YPbPr or PC Connection Cable
	HDMI Connection (back)
SPDIF	SPDIF Connection (back)
	Side AV (Audio/Video) Connection (side)		[DSGG]
HEADPHONE	Headphone Connection (side)
	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the supplied connection

cables to enable connection. See the illustrations above. | You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input. | You cannot use VGA and YPbPr at the same time. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings.

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the "button, P+ / P- or a numeric button on the remote control.

Press the side control button so that the TV comes on from standby.

To Switch the TV Off

Press the "button" button on the remote control or press the side control button until the TV switches to standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is in standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

IMPORTANT: When you select Country option as France or Italy, you will be asked to set and confirm a PIN number. Selected PIN number cannot be 0000. Enter a PIN number and confirm it by entering once more. Press OK button to continue. If the two PIN numbers match, your master PIN number will be set.

Note: you are advised to write down this code on your instruction manual so that you can remember it when you need to use it.

WARNING: When you are required to enter a PIN number for any menu operation you should use the PIN that you have previously defined during the first time installation. If you have forgotten the PIN number you have set during the first time installation, you should use the master PIN code, 4725.

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when finished, press OK to continue.

You can activate Store mode option to be available in "Other settings" menu and your TV's features will be illustrated on the top of the screen. A confirmation screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue.

Demo Mode

If you want to use your television at home, you are advised to select the Home mode.

If you choose the Store mode, you will have to confirm your choice by pressing the OK button on the remote control.

Default PIN code can change depending on the selected country.

If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

Once all available channels have been saved, the Channel List will be displayed on the screen. If you would like the channels to be sorted according to the LCN (*), please select "Yes" and then press OK.

Press MENU button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on the remote control, you can set the frequencies manually. To continue, please select YES and press OK. To cancel operation, select NO and press OK.

Enter the frequency range manually by using the numeric buttons.

Note: Searching duration will change depending on the selected search step.

Media Playback via USB Input

You can connect a 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB input of the TV.

IMPORTANT! Back up your files before making any connections to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. Do not repeatedly quickly plug and unplug the drive. This

may cause physical damage to the USB player and USB device itself. Never remove a USB disk while playing a file.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

Note : To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

The connected USB disk should have at least 1 GB capacity (a minimum capacity of 4GB is recommended) and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.

It is recommended to use USB devices that are HD compatible.

Do not disconnect the USB/HDD during a recording. This may harm the connected USB/HDD.

Multipartition support is available. The television can support a maximum of two different partitions. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freeze during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If recording starts from timer when teletext is ON teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk.

Press ▶ (PLAY) button or the ⚪ (PAUSE) button again to resume the paused programme from where you

stopped. Press the STOP button to stop timeshift recording and return to the live broadcast.

Note: Timeshift cannot be used while in radio mode.

Note : You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.

Instant Recording

Press (RECORD) button to start instant recording of a programme while you're watching it. You can press (RECORD) button on the remote control again to record the next events on the EPG. In this case, an OSD will be displayed, indicating the programmes scheduled for recording. Press (STOP) button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

Select the Recordings Library from the Media Browser menu. Select a recorded item from the list. Press the OK button to view the Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available during the playback.

Press the ■STOP) button to stop a playback and return to the Recordings Library.

Slow Forward

If you press (PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use button to slow forward. Pressing button consecutively will change slow forwarding speed.

Recording Configuration

Select the Recording Configuration item in the Settings menu to configure the recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature (default pin is 0000).

Default PIN code can change depending on the selected country.

If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725.0000 or 1234.

IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB

disk does not meet the speed requirements. Try connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to the USB port located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings submenu.

Loop/Shuffle Mode Operation
Start playback with ▶ and activate	TV plays next file and loops the list.
Start playback with OK and activate	The same file will be played in a loop (repeat).
Start playback with OK/▶ and activate	The files will be read randomly.

* using the Green button

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites and Sleep Timer options. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

PICTURE MENU CONTENTS

Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Natural,Cinema, Game and Dynamic.
Contrast	Sets the lightness and darkness values of the screen.
Brightness	Sets the brightness value for the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colours.
Power Save Mode	Sets the Power Save Mode as Eco, Picture Off or Disabled.(When the Mode is Dynamic, Power Save Mode is automatically set as disabled.)
Backlight(Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dynamic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp	Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching)
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift	Adjust the desired colour tone.
RGB Gain	You can configure the colour temperature values using the RGB Gain feature.
HDMI True Black(optional)	When you watch television from the HDMI source, this option is visible in the Picture setting menu. You can use this option to increase image blackness.
PC Position
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
Reset	Resets the picture settings to factory default settings. (Except Game Mode)
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

SOUND MENU CONTENTS

Volume	Adjusts the volume level.
Equalizer	Selects the equalizer mode: User, Music, Movie, Speech, Flat, Classic.Custom settings can be made only when in user mode.
Balance	This setting is used for emphasizing left or right speaker balance.
Headphone	Sets headphone volume.
Sound Mode	You can select a sound mode (if supported by the selected channel): STEREO DUAL I, DUAL II.
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Digital Out	Sets digital out audio type.

SETTINGS MENU CONTENTS

Conditional Access	Controls conditional access modules when available.
Language	Configures language settings (may change depending on the country selected). Preferred and current settings will be available. Current settings can be changed only if supported by the broadcaster.
Parental	Configures parental settings. Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock (may change depending on the country selected) and child lock in this menu. You can also set a new pin number.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes. (USB Record)
Recording Configuration	Displays the recording configuration menu (USB connection required)
Date/Time	Sets date and time. You can adjust the time zone if Time Setting Mode is set to Manual.
Sources	Enables or disables selected source options.
Other Settings Displays	other setting options of the TV set.
Menu Timeout	Changes timeout duration for on-screen menus.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as well.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade	Displays software version and allows you to enable or disable the automatic scanning for upgrades or to launch a scan for upgrades manually.
Application Version	Displays application version.
Hard of Hearing	Enables any special feature sent from the broadcaster
Audio Description	Audio description refers to an additional narration track for blind and visually impair viewers of visual media, including television and movies. You can use this feature only if the broadcaster supports that additional narration track.Note: Audio description sound feature cannot be available in recording or time shifting mode.
Auto TV Off	You can set the timeout value of auto off feature. When the TV has not been operated for the specified amount of time, it will go into standby mode.
Standby Search (Optional)	If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, an on-screen menu will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process.
Store Mode(optional)	If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Power Up Mode	This setting configures the power up mode preference.

INSTALL AND RETUNE MENU CONTENTS

Automatic Channel Scan (Retune)(If available)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

Other TV Functions

CHANNEL LIST

Edit Channel List	Allows you to configure the channel list by moving, deleting, renaming and locking channels to your liking.
Favourites	Allows you to set your favourites within the list of channels available.
Active Channel List	Allows you to set active stations to be listed.

MEDIA BROWSER (only with USB device)

Videos	Shows a list of all video contents available.
Photos	Shows a list of all picture contents available.
Music	Shows a list of all music contents available.
All Shows a list of all contents available.
Recordings Library Shows a list of all recorded contents available.
Settings Allows you to configure view style, slideshow interval and all settings for subtitles.

Configuring parental settings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

To display the Parental Settings menu options (accessible from Settings menu under Parental), the PIN number should be entered. The factory default PIN number is 0000*. After coding the correct PIN number, the Parental Settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When the Maturity Lock option is set, it gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

*Default PIN code can change depending on the selected country.

If you are asked to enter a PIN code for viewing a menu option, use one of the following codes: 4725, 0000 or 1234.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the button to view the EPG menu.

Through this menu, you will have the following options:

Red button (Prev Day): Displays the programmes of the previous day.

Green button (Next day): Displays the programmes of the next day.

Yellow button (Zoom): Expands programme information.

Blue button (Filter): Displays filtering options.

(SUBTITLE): Press Button to view Select Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

i (Info): Displays or hides detailed information on the programme selected.

Numeric buttons (Jump): Jumps to the preferred channel directly via numeric buttons.

OK: Displays Event options (Select Channel, Record, and if the programme is later, Set Timer on Event).

(Search): Displays "Guide Search" menu.

(Now) : Shows the current programme.

(RECORD): The TV will start to record the selected programme. You can press again to stop the recording while in EPG menu; otherwise, you have to press STOP button to stop the recording..

P+P- : More event info

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

General TV Operation

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial/Cable signal.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade.

3 AM search and upgrade mode

While the TV is connected to an aerial signal, if Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up, it will have the new software version.

Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a transmission. Have you pressed the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press the "button, or increase the volume level.
• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

• The batteries may be exhausted. Replace the batteries.
• If you cannot select an input source, it is possible that no device is connected.
• Check the AV cables and connections if you have tried to connect a device.
• Check that the required input source is enabled (Menu – Settings – Sources).

Input sources - can not be selected

Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slow

If a “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Teletext

Press the button to enter teletext mode. Press again to enable the Mix mode. Press one more time to exit. Follow the instructions displayed on the digital teletext screen.

Product fiche

Downloaded from www.vandenborre.be

ENERG Y UA ENERGIA · EVEPUEIA IE IA BRANDT B2420HDLED A+ A B C D E F ENERGIA · EHEPTEIA ENERGIJA ENERGY · ENERGIE ENERGI 25 Watt 36 kWh/annum 61 cm 24 inch 2010/1062 - 2014 50277908

Standby power consumption (approx.) <	0.50 W
Screen resolution 1366 x 768

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution	Frequency
1 800x600	56 Hz
2 800x600	60 Hz
3 1024x768	60 Hz
4 1280x768	60 Hz
5 1360x768	60 Hz
6 1280x960	60 Hz
7 1280x1024	60 Hz
8 1600x1200	60 Hz
9 1920x1080	60 Hz

AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P 60Hz O
	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P 50Hz,60Hz O
HDMI1HDMI2	480I 60Hz O
	480P 60Hz O
	576I, 576P 50Hz O
	720P 50Hz,60Hz O
	1080I 50Hz,60Hz O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media File Extension	Format		Remarks
	Video	Audio	(Maximum resolution/Bit rate etc.)
mpg, mpeg	MPEG1, MPEG2		MPEG1: 768x576 @30PMPEG2:1920x1080 @ 30P
vob	MPEG2		1920x1080 @ 30P
mp4	MPEG4, Xvid , H.264
mkv H.264, MPEG4,VC-1
avi MPEG2, MPEG4, Xvid , H.264
flv	H.264/VP6/Sorenson		H.264/VP6:1920x1080 @ 30PSorenson: 352x288 @30P
3gp	MPEG4 , H.264		1920x1080 @ 30P
Music	.mp3	-	MPEG 1 Layer 1 / 2 (MP3)
photo	.jpg .jpeg	Baseline JPEG	-
	.	Progressive JPEG	-
	.bmp	-	-
Subtitle	.sub .srt	-	-

Darty Plc © UK: EC1N 6TE

26/05/2014

Obsah

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Diagram showing a device with labeled components and directional arrows, including numbered parts ①, ②, and ③.

Close-up of a black remote control case with a pen inserted, showing three steps: adding a cable to the lid (no text or symbols visible)

Připojení napájení

Downloaded from www.vandenborre.be

Standby power consumption (approx.) <	0.50 W
Screen resolution 1366 x 768

Darty Plc © UK: EC1N 6TE 26/05/2014.

Obsah

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

Line drawing of a flat-screen computer monitor with blank screen (no text or symbols)

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating flow or movement.

Close-up of a black remote control case with two views showing internal components (no text or symbols visible)

pripojit' napájania

Downloaded from www.vandenborre.be

Standby power consumption (approx.) <	0.50 W
Screen resolution 1366 x 768

Downloaded from www.vandenborre.be
