Dinner4two Pure 104020 - Teppanyaki plate PRINCESS - Free user manual and instructions

Product type	Teppanyaki plate
Brand	Princess
Model	Dinner4two Pure 104020
Power supply voltage	220-240 V, 50-60 Hz
Plate material	Ceramic coating
Base material	Bamboo
Number of plates	1 (grill plate)
Multi-unit connection	Up to 4 units max
Power indicator	Yes
Release button	Yes
Recommended preheating	10 minutes
Plate cleaning	Dishwasher (hand washing recommended)
Base cleaning	Do not put in dishwasher, clean with a damp cloth
Recommended utensils	Wooden spatulas provided, avoid metal utensils
Usage	Indoor, domestic
Safety	Do not immerse, hot surface, damaged cord to be replaced by a professional
Spare parts	Available at www.princesshome.eu
Included accessories	Wooden spatulas
Plug type	Plug for connection cord
Compatible foods	Meat, fish, vegetables, etc.

Frequently Asked Questions - Dinner4two Pure 104020 PRINCESS

How to clean the teppanyaki plate?

Unplug the appliance and let it cool down. The plate can go in the dishwasher, but hand washing with a soft cloth is recommended. Do not use abrasive cleaners or scouring pads. The bamboo base is not dishwasher safe; clean it with a damp cloth.

Can I put the plate in the dishwasher?

Yes, the grill plate can go in the dishwasher. However, we recommend hand washing to extend the product's lifespan. Caution: the bamboo base should not be put in the dishwasher.

How to assemble the grill plate onto the base?

Place the plate pins into the mounting clips of the base at a 20° angle. Hold the plate with one hand and press down with the other until you hear a click. To remove, press the release button.

Can I connect multiple units together?

Yes, you can connect up to 4 units together. Plug the power cord into the front and a connection cord into the back of each unit.

What is the power supply voltage of the appliance?

The appliance operates on a voltage of 220-240 V with a frequency of 50-60 Hz. Ensure that the local voltage matches before plugging in.

What to do if the power cord is damaged?

If the cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid any electrical hazard.

Can I cook frozen food on the plate?

No, never put frozen food on the heating plate. Thermal shock could damage the plate. Thaw food before cooking.

Should I preheat the appliance before use?

Yes, it is recommended to preheat the appliance for 10 minutes before placing food on it. Lightly grease the plate with oil.

What utensils to use with this plate?

Use the provided wooden spatulas or heat-resistant plastic utensils. Avoid metal utensils that could scratch the non-stick coating.

Where to find spare parts for this appliance?

Spare parts are available on the website www.princesshome.eu. You will also find additional product information there.

USER MANUAL Dinner4two Pure 104020 PRINCESS

Two rectangular electronic devices with black and white panels, one with a black arrow pointing to the top panel (no visible text or symbols)

EN Instruction manual

Two stacked electronic devices with labeled components (6 and 5), no visible text or symbols on the devices themselves.

Pure mechanical linkage diagram without any text, numbers, or symbols

SAFETY

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• The user must not leave the device unattended while it is connected to the supply.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Only use the appropriate connector for this device.
• The appliance is to be connected to a socket-outlet having an earthed contact (for class I appliances).
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

re liable to get hot during
- This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments.
- By clients in hotels, motels and other residential type environments.
- Bed and breakfast type environments.
- Farm houses.

Cleaning and maintenance

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Never pour cold water on a hot plate, this could damage the device and can cause splashing hot water.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.

• Never use harsh and abrasive cleaners, scouring pad or steel wool, on other parts of the device. Use a damp cloth to clean instead.

• Never immerse the electrical device in water or any other liquid.

• The table grill is dishwasher safe. However, we recommend to wash the table grill by hand as this will be beneficial for the lifetime of the product. Pay attention! The bamboo housing is not dishwasher safe.

PARTS DESCRIPTION

1. Bamboo base
2. Grill plate
3. Ceramic plate
4. Power cord
5. Power indication light
6. Release button
7. Plug for connection cord

NOTE: See page 2

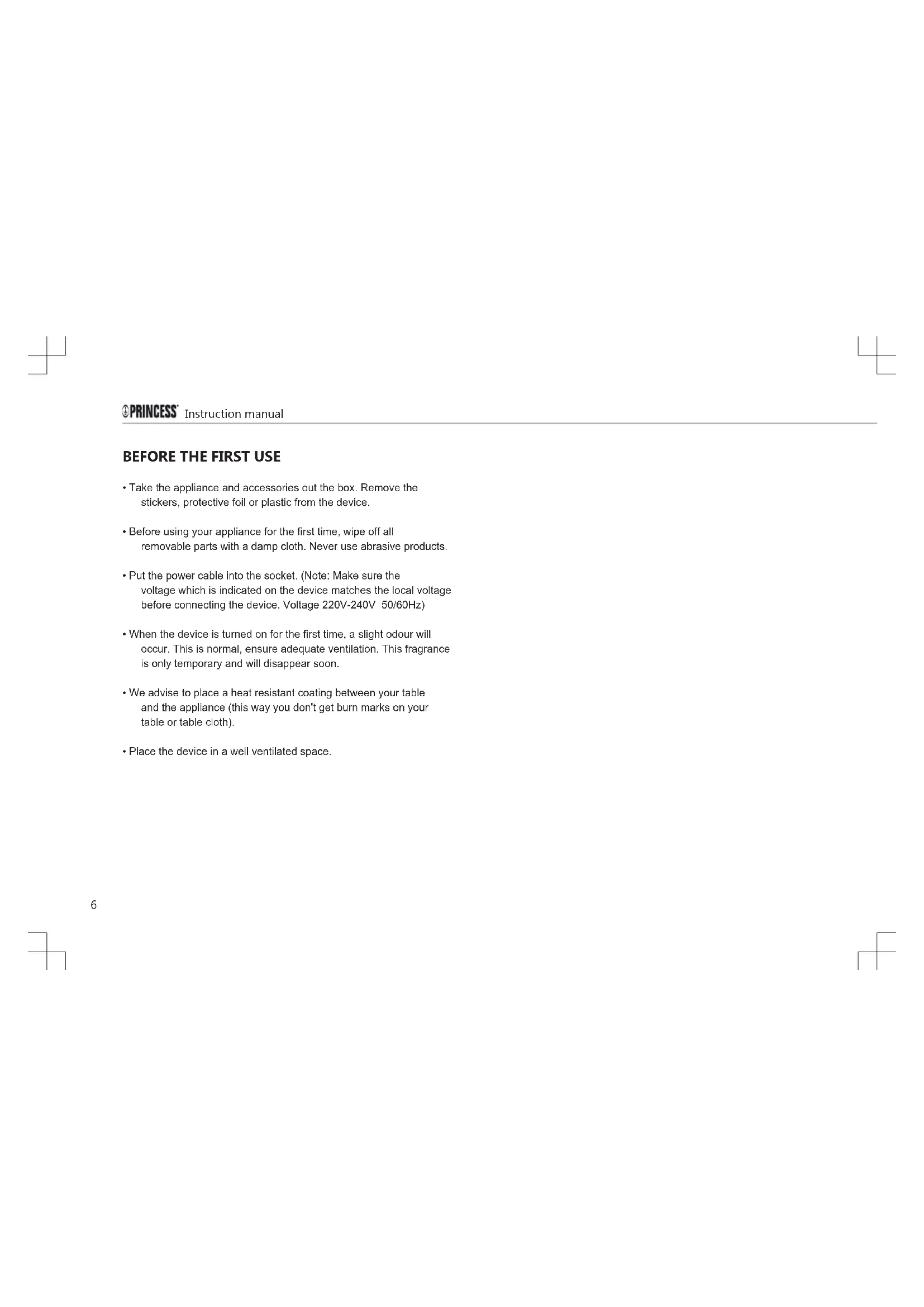

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
- Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz)
- When the device is turned on for the first time, a slight odour will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
- We advise to place a heat resistant coating between your table and the appliance (this way you don't get burn marks on your table or table cloth).
- Place the device in a well ventilated space.

ASSEMBLY OF THE GRILL PLATES

Illustration 1: Place baking plate

Illustration 2: Press to fasten

1. To remove the grill plate, press the release button.
   You can connect multiple main units to each other.
2. On the front side of the main unit you can plug in the power cord.
3. On the back of side of the main unit you can plug in a connection cord.
4. NOTE: the maximum amount of units connected to one another is 4.

To assemble the grill plates follow the steps below:

1. To attach the grill plate to the base, put the pins in the mounting clips in an angle of 20^ . (See illustration 1)
2. Gently press the grill plate down. Use one hand to steady the plate at the mounting side, use the other to press it down until you hear a click. (See illustration 2)

PRINCESS

Instruction manual

USE

• Pre-heat your appliance for 10 minutes before using it.
• Grease the grill plate and the pans with a little oil.
• Do not use anything metal, to avoid damaging the non-stick coating. You can use the included wooden spatulas to turn your food.
• When you put your food on the grill, make sure you turn it regularly.
• Small pieces of meat and/or fish cook quicker than big pieces.
• Do not pierce the meat; this makes it lose some of its juices and some of its flavour.
• During cooking, any bits of food left behind should be removed immediately to prevent them from sticking onto the plate.
• Never put frozen food on the grill plate, the heat shock could damage the plate.

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!
