Brand	Princess
Model	353120
Product Type	Dehumidifier
Power Supply	220-240 V ~ 50 Hz
Refrigerant	R290
Refrigerant Quantity	0.05 kg
Operating Modes	Dehumidification, Fan, Laundry
Humidity Setting	Continuous (CO), Comfort (AU), 30-90%
Programmable Timer	1 to 24 hours (on/off)
Louver Oscillation	Yes
Wi-Fi Connectivity	Yes, via HomeWizard Climate app
Child Lock	Yes (key lock)
Full Tank Protection	Automatic shut-off with alarm
Automatic Defrost	Yes
Filter	Washable with warm water
Operating Temperature	5°C to 35°C

Frequently Asked Questions - 353120 PRINCESS

How to empty the water tank?

When the tank is full, the appliance emits an alarm and stops. Press on the sides of the tank, pull it out, empty it over a sink. Replace it firmly. Do not remove the float from the tank.

What to do if the appliance does not turn on?

Check that the cord is properly plugged in, that the tank is correctly placed (the full indicator light should not be on), and that the ambient temperature is between 5°C and 35°C. If the child lock is activated, press and hold the lock button for 5 seconds.

How to clean the filter?

Remove the filter from the appliance. Gently vacuum dust or wash it with warm water and mild detergent. Dry it completely before reinstalling. Do not use chemicals.

Can I use an extension cord?

No, to avoid any risk of power outage or fire, do not use an extension cord with this appliance.

What does error code E1 mean?

Code E1 indicates a short circuit or open circuit of the coil sensor. Check connections or replace the sensor. Contact a qualified technician.

How to set the timer?

Press the timer button. While running, set the scheduled stop (1-24h). While off, set the scheduled start.

How to pair the appliance with the Climate app?

Ensure the appliance is powered on. Open the HomeWizard Climate app, create an account or log in. Click 'Add new Climate Device', select your dehumidifier and follow the instructions. Press and hold the Wi-Fi button for 6 seconds until 3 beeps for pairing mode.

Humidity does not decrease, why?

Check that the filter is not clogged, that the air inlet and outlet are clear, and that the room is not too large for the appliance's capacity. Also ensure the ambient temperature is within the operating range.

The dehumidifier stops by itself, what to do?

This may be due to a full tank, automatic defrost, or out-of-range temperature. Check the tank, wait for defrost to finish, or check ambient temperature. The compressor has a 3-minute protection before restart.

How to activate child lock?

Press and hold the child lock button for 5 seconds to enable or disable the lock.

USER MANUAL 353120 PRINCESS

White industrial air purifier with black lid and digital display (no visible text or symbols)

Smart Dehumidifier

01.353120.01.001 / 01.353130.01.001

PRINCESS

PARTS DESCRIPTION / ONDERDELENBESCHRIJVING / DESCRIPTION DES PIÈCES / TEILEBESCHREIBUNG / DESCRIPCIÓN DE LAS PIEZAS / DESCRIÇÃO DOS COMPONENTES / DESCRIZIONE DELLE PARTI / BESKRIVNING AV DELAR / OPIS CZĘŚCI / POPIS SOUĆASTÍ / POPIS SÚĆASTÍ / ОПИСАНИЕ ЗАПЧАСТИ

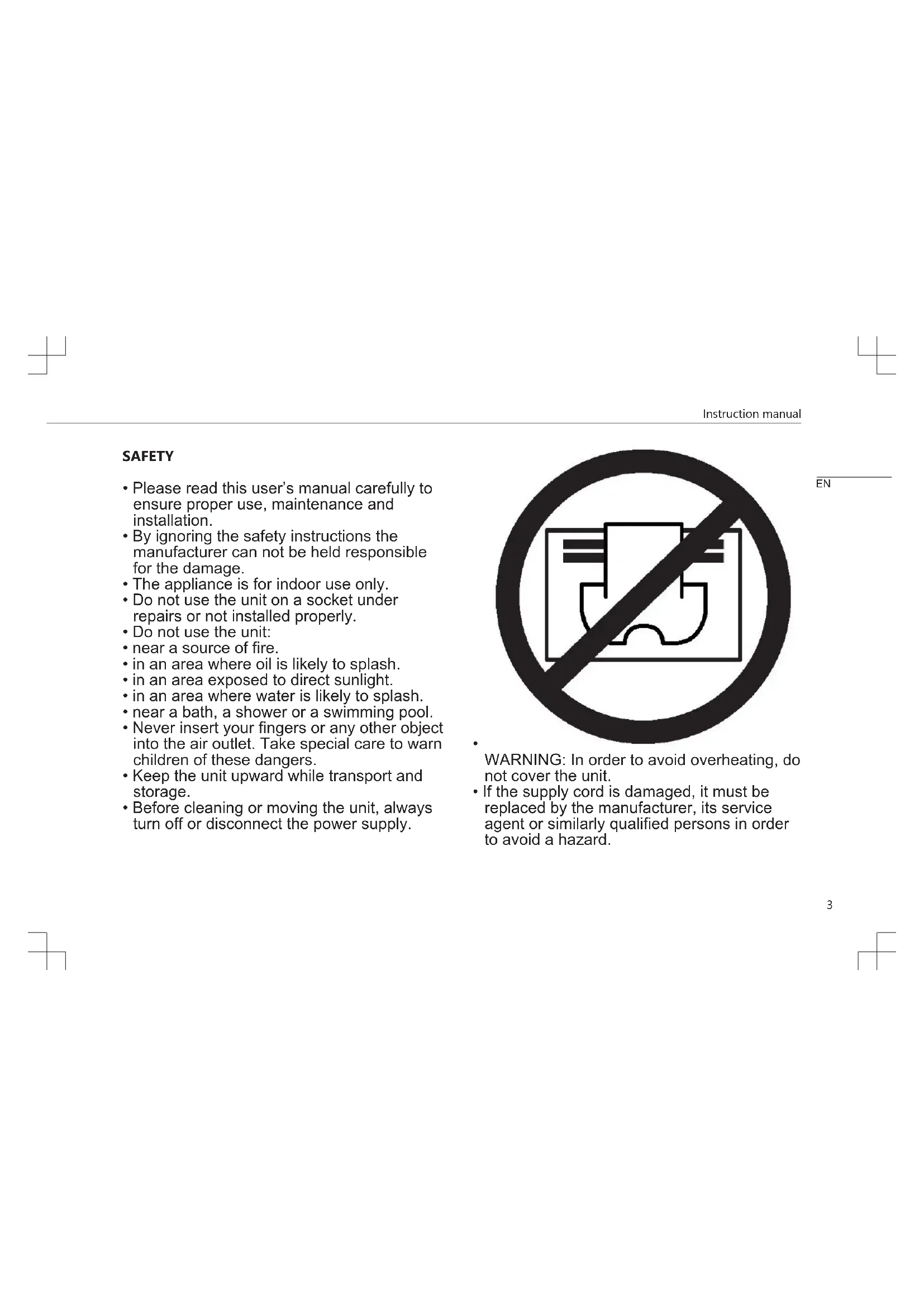

SAFETY

• Please read this user's manual carefully to ensure proper use, maintenance and installation.
• By ignoring the safety instructions the manufacturer can not be held responsible for the damage.
  • The appliance is for indoor use only.
• Do not use the unit on a socket under repairs or not installed properly.
• Do not use the unit:
• near a source of fire.
  • in an area where oil is likely to splash.
  • in an area exposed to direct sunlight.
  • in an area where water is likely to splash.
• near a bath, a shower or a swimming pool.
• Never insert your fingers or any other object into the air outlet. Take special care to warn children of these dangers.
• Keep the unit upward while transport and storage.
• Before cleaning or moving the unit, always turn off or disconnect the power supply.

EN

WARNING: In order to avoid overheating, do not cover the unit.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

PRINCESS

Instruction manual

• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• The appliance shall be installed in accordance with national wiring regulations.
• Notes:
• Contact the dealer or a designated repair shop if any parts are damaged;
• In case of any damage, please turn off the unit, disconnect the power supply and contact the dealer or a designated repair shop.
• In any case, the power cord shall be firmly grounded.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised. Warning

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odor.
• Contact authorized service technician for repair or maintenance of this unit.
• Do not pull, deform or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.
• Compliance with national gas regulations shall be observed.

- Keep ventilation openings clear of obstruction.

- Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

- Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

- Do not operate or stop the unit by inserting or pulling out the power plug, it may cause electric shock or fire due to heat generation.

- Unplug the unit if strange sounds, smell, or smoke comes from it.

Two symbolic icons: a warning triangle with flame and a stack of an open book (no text or labels)

Caution

- Please make sure the product ventilates all the time, make sure the inlet and outlet ventilation are not blocked in any way.

- Operate this unit on a horizontal surface to avoid water leakage.

- Do not operate this unit in an explosive or corrosive atmosphere.

- Operate this unit in an ambient of 35 degree centigrade or less.

- When the unit is shut off, please wait at least 3.5 minutes before restarting. This to prevent the compressor from being damaged.

- To avoid the household electricity block out, please do not use any extension cord for this unit.

Refrigerant

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.

PRINCESS

Instruction manual

• When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.
• The appliance must be placed in an area without any continuously sources of ignition (for example: open flames, gas or electrical appliances in operation).
• Do not puncture and do not burn.
• This appliance contains Y g (see rating label back of unit) of R290 refrigerant gas.
• R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.
• If the appliance is installed, operated or stored in a non ventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
• The appliance must be stored in such a way as to prevent mechanical failure.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited

organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.

- Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

(CE) N 842/2006: This dehumidifier contains the refrigerant R290. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your air conditioner does not have been refilled with refrigerant if used properly and has an undamaged coolant circuit. GWP: R290: 3

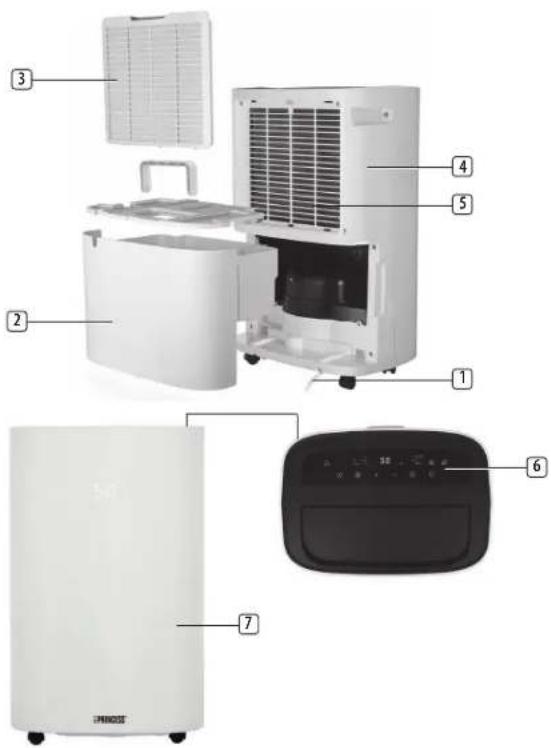

PARTS DESCRIPTION

1. Supply cord
2. Tank
3. Filter
4. Back
5. Air outlet
6. Display

7. Front

8. Do not place the unit in full sun as it might shut down due to overheat and the color of the unit may soon fade out.

9. Do not place the unit in a humid place.
10. A distance of 20cm minimum must be kept between the unit and the wall or any other obstacles.

BEFORE THE FIRST USE

• Place the unit in the correct upright position before unpacking.
  • Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Please ensure the unit is not placed against objects which will obstruct air intake e.g. furniture or curtains as this will affect its performance dramatically.
• Please don't place or operate the unit in a narrow place

- Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50Hz).

FUNCTIONS OF CONTROL PANEL

- Power distribution: Press to turn unit "ON" or "OFF". The current humidity level will be displayed with the defaults of the continuous mode "CO" and the compressor will then start immediately dehumidification with the power indicator lamp on, when the compressor stops the light will flash.

- Mode: use to switch between the different modes.

- Dehumidify

- Fan

- Laundry

- Up-Down (hum+, hum-): Set the

required humidity: "CO" (continuous), 30 to 90% and "AU" (comfort). The default mode is "CO". Note: Press up and down at the same time to convert the display from temperature (°C) to humidity (%).

- Speed of the speed can be switched between high or low. Note: In comfortable mode ("AU") with a room temperature above 27 degree and in Laundry mode the fan speed is fixed and cannot be adjusted.

- Timer (pargular time range 01-24 hours): - In the power on state press timer to set the timer for scheduled shutdown. - In the off state press timer to set the timer for scheduled start of the dehumidifier.

- Swing Swing function on/off, pressing the button when the dehumidifier is on will let the louver swing continuously, press the button again to let the louver stop moving.

- Chilled: press 5 seconds to activate the child lock function, all other functions will not work when activated, to disable the child lock press the same button again for 5 seconds.

- Wi-Fi button the dehumidifier in pair mode, press and hold the Wi-Fi button until you hear 3 beeps, it could take about 6 seconds.

USE

• When the dehumidify mode is set to "CO" the dehumidifier will continue to operate regardless of the humidity level.
• When the dehumidifier is set to a required humidity level the compressor and fan will run if the indoor humidity level is higher or equal to 3% or more of the set humidity. After the humidity in the room drops below 2% of the set humidity level, the compressor is turned off and the dehumidification stops. The ok indicator lamp will turn on. If the dehumidifier stops dehumidifying and the room humidity rises above or equals 3% or more of the set humidity, the compressor starts dehumidifying again. Note that the compressor will only work again after the protection status of three minutes has expired. The indoor humidity is maintained at the set humidity level by the above cycle operation.

• Comfort "AU" function

• Between 5^ and 20^ room temperature, the automatic selection is set to 60% humidity.

• Between 20^ and 27^ room temperature, the automatic selection is set to 55% humidity.
• If the room temperature is above 27^ the humidity is set to 50% .
• The dehumidifier stops working when the room temperature comes below 5^ .

- Laundry mode, with this function enabled, the dehumidifier will continue to operate (compressor, fan operation) regardless of the humidity level. The fan speed is locked at high speed and cannot be adjusted.

• Fan mode, The compressor does not work. The fan can choose two operating modes: high fan speed and low fan speed. Humidity setting button cannot be pressed in fan mode.
• Full water protection, the dehumidifier will stop working when the water tank is full, the full indicator will go on and the machine will make an alarm sound. By pressing any key the alarm sound will stop immediately. Please empty the drainage tank, see "Empty the water tank" section. After emptying the water tank the original machine's operating status is restored. (Note that the compressor will only work again after the protection status of three minutes has expired.)
• Defrost function, when the machine turns automatically into the defrosting mode, the compressor is turned off, the fan is defrosted by high winds and the defrost indicator will go on. To protect the dehumidifier and remove more water from the air, the dehumidifier must sometimes stop cooling to melt the ice. A sensor detects the formation of ice, activates a switch that turn off the compressor. The fan keeps running so that the air flow from the room can pass and help with the defrosting process. Once the defrosting process has finished the original machine's operating status is restored. (Note that the compressor will only work again after the protection status of three minutes has expired.)

USING THE DEHUMIDIFIER WITH CLIMATE APP

The dehumidifier can be used manually with its built-in controls or you can use a smart phone to control it. Before you begin, ensure the Homewizard Climate app is downloaded. The Homewizard Climate app is available on Android and iOS.

Pair your dehumidifier to HomeWizard Climate app

• Make sure your dehumidifier is powered.
- Open HomeWizard Climate APP.
- Create an account or if you already have a HomeWizard account, please log in using those details.
- Click "Add new Climate Device" to add a new device.
- Select the device you wanted to connect.
- Follow the instructions on the app to connect the dehumidifier.

EMPTY THE WATER TANK

• When the drainage tank is full, the tank full indicator light will turn on, the operation will stop automatically and the buzzer will beep 15 times.
  • Gently press on the sides of the tank and pull the tank out with both hands.

• Empty the water tank above a sink.
- Do not remove the float from the water tank, otherwise the water sensor cannot detect the water level, causing the unit to malfunction.

• If the tank is dirty, use water for cleaning. Do not use gasoline or other chemicals, because it may damage the water tank and cause water leakage.
• Press the tank tightly with both hands to put it into place.
• If the water tank is not positioned correctly, the full water sensor will remain active and the dehumidifier will not work.

FILTER CLEANING

• Take the filter out of the unit.

• Clean the filter using a vacuum cleaner to gently absorb dust on the filter screen surface.
• Use some warm water and a mild detergent if it is very dirty. Make sure the filter is completely dry before you put it back.

Two identical diagrams showing a person standing on a grid-like platform, with no text or symbols present.

- Push the two hooks to put the filter back into the unit.

CLEANING MAINTENANCE

• Before cleaning, be sure to disconnect the unit from any electric supply outlet.
• First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.
• Do not use gasoline or other chemicals to clean the unit.

TROUBLESHOOTING

Problem Possible causes Suggested solution
The machine doesn't work.	Is the power line properly connected?	Connect the plug into the socket.
	Full water indicator light is on (water tank full or not in the right place).	Drain the water in the tank and put it in place.
	The room temperature is above 35 degrees or under 5 degrees.	The protection is started and the machine will not work.
	Is the lock on? If the lock is on, please unlock by press and hold the lock button for 5 seconds.

Instruction manual

Dehumidification function cannot start.	Is the filter blocked? Clean the filter (screen) according to the cleaning instructions.
	Is the air inlet or outlet blocked?	Remove the obstruction from the air inlet or outlet.
The machine makes noise.	Is the machine tilted? Move the machine to a flat, horizontal surface.
	Is the filter blocked? Clean the filter (screen) according to the cleaning instructions.
E1 Code Coil sensor	short circuit or open circuit	Check if the line is loose or replace the coil sensor.

STORAGE

• Empty the water in the tank.
- Roll up the power cord.
- Clean the filter.
- Store the unit in a cool and dry place.

THE PRODUCT OR EQUIPMENT CONTAINS FLUORINATED GREENHOUSE GAS.

Art.nr. 353120 / 353130

Coolant: R290

Quantity in kg: 0.05 / 0.09

Global Warming Potential: 3

CO2 Equivalent in tonnes: 0.00015 / 0.00027

DECLARATION OF CONFORMITY

- Hereby, Smartwares Europe declares that the radio equipment type 353120 / 353130 are in compliance with Directive 2014/53/EU

- The full text of the EU declaration of conformity is available at the following internet address: www.princesshome.eu/doc

ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling of used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Support

You can find all available information and spare parts at www.princesshome.eu!

VEILIGHEID

Line drawing of a portable air purifier with 20cm height dimension标注 (no text or symbols on device)

Two identical diagrams showing a person standing on a grid surface and another holding a bowl, both without any text or symbols.

Line drawing of a portable air purifier with 20cm height dimension标注 (no text or symbols on device)

Two identical diagrams showing a person standing on a grid and another holding a bowl, both without any text or symbols.

DÉCLARATION DE CONFORMITÉ

Line drawing of a portable air purifier with 20cm height annotations (no text or symbols on the device itself)

Two identical diagrams showing a person standing on a grid-like platform, with another figure partially visible below (no text or symbols)

Line drawing of a portable air purifier with 20cm height dimension标注 (no text or symbols on device)

Two identical diagrams showing a person standing on a grid in front of a platform, and another person sitting on a platform above it (no text or symbols)

Line drawing of a portable air purifier with 30-degree angle and 20-degree angle annotations (no text or symbols on the device itself)

Two identical diagrams showing a person standing on a grid surface and another holding a bowl, both without any text or symbols.

Line drawing of a portable air purifier with 20cm height dimension标注 (no text or symbols on device)

Two identical diagrams showing a person standing on a grid-like platform, with no text or symbols present.

Two identical grid-patterned objects with small figures above them, no text or symbols present.

Line drawing of a portable air purifier with 20cm height dimension标注 (no text or symbols on device)

Two simple line drawings of a grid-patterned object, one with a small object above it and the other with a bowl below (no text or symbols)

Line drawing of a portable air purifier with 20cm height annotations (no text or symbols on the device itself)

Line drawing of a portable air conditioner unit with 30cm and 20cm measurement annotations (no text or symbols on the device itself)

Two identical grid-patterned objects with small figures on top, no text or symbols present

Line drawing of a portable air conditioner unit with 20cm height dimension标注 (no text or symbols on device)

Two identical diagrams showing a person standing on a grid surface and another holding a bowl, both without any text or symbols.

Operating frequency: 2.4GHz

Max. radio-frequency power: 20.5dBm

© Copyright 2019
