USER MANUAL IFDA2 TASCAM

• TASCAM is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.

• Audinate®, the Audinate logo and Dante are trademarks of Audinate Pty Ltd. www.audinate.com/patents.

• Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners. TEAC MEXICO, S.A. de C.V. http://teacmexico.net/ Phone: [phone] Río Churubusco 364, Colonia Del Carmen, Deleg- ación Coyoacán, CP 04100, México DF, México

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communica- tions. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user’s authority to operate this equipment. For U.S.A. For Canada THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. This product complies with the European Directives request and the other Commission Regulations. CE Marking Information EN55103-2 a) Applicable electromagnetic environment: E1,E2,E3,E44 TASCAM IF-DA2 Declaration of Conformity Model Number: IF-DA2 Trade Name: TASCAM Responsible party: TEAC AMERICA, INC. Address: 7733 Telegraph Road, Montebello, California, U.S. A. Telephone number: 1-323-726-0303 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference recieved, including interference that may cause undesired operation.

For European Customers Disposal of electrical and electronic equipment (a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via desig- nated collection facilities appointed by the government or the local authorities. (b) By disposing of the electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment. (c) Improper disposal of waste equipment can have serious effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment. (d) The crossed out wheeled dust bin symbol indicates that electrical and electronic equipment must be collected and disposed of separately from household waste. (e) The return and collection systems are available to the end users. For more detailed information about disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.TASCAM IF-DA2

Introduction Thank you very much for purchasing a TASCAM IF-DA2 Dante interface card. Before connecting and using this card, please take time to read this manual thoroughly to ensure you understand how to properly set it up and connect it, as well as the operation of its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference. You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/). Features of these cards

Capable of sending and receiving uncompressed digital audio signals 44.1/48/96 kHz, 24-bit: 2 channels Models compatible for installation Before installing this card, check the TEAC Global Site (http:// teac-global.com/) for the latest information about the models in which it can be installed. Contents

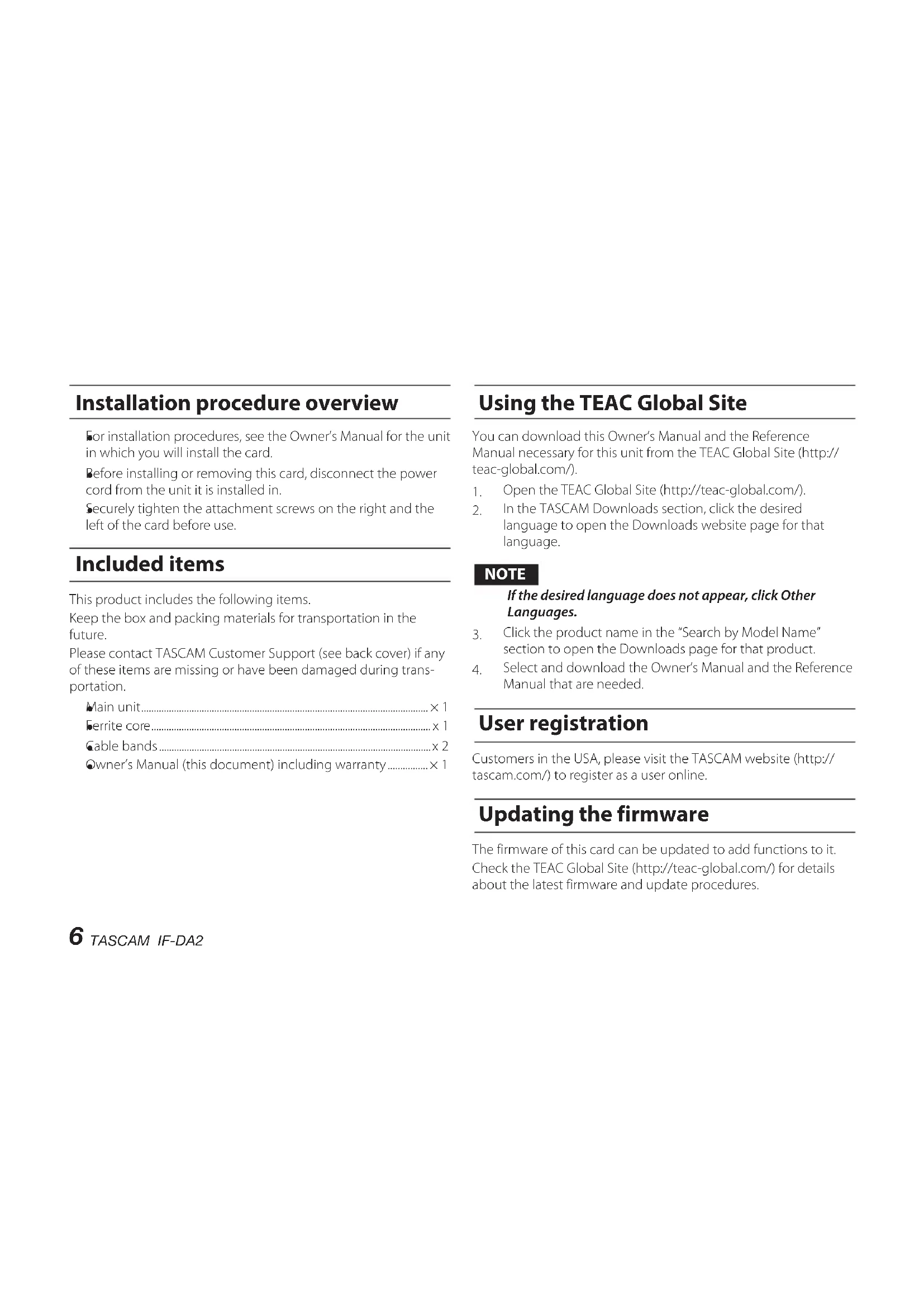

For installation procedures, see the Owner’s Manual for the unit in which you will install the card.

Before installing or removing this card, disconnect the power cord from the unit it is installed in.

Securely tighten the attachment screws on the right and the left of the card before use. Included items This product includes the following items. Keep the box and packing materials for transportation in the future. Please contact TASCAM Customer Support (see back cover) if any of these items are missing or have been damaged during trans- portation.

Owner’s Manual (this document) including warranty ................ × 1 Using the TEAC Global Site You can download this Owner’s Manual and the Reference Manual necessary for this unit from the TEAC Global Site (http:// teac-global.com/).

In the TASCAM Downloads section, click the desired language to open the Downloads website page for that language. NOTE If the desired language does not appear, click Other Languages.

Click the product name in the “Search by Model Name” section to open the Downloads page for that product.

Select and download the Owner’s Manual and the Reference Manual that are needed. User registration Customers in the USA, please visit the TASCAM website (http:// tascam.com/) to register as a user online. Updating the firmware The firmware of this card can be updated to add functions to it. Check the TEAC Global Site (http://teac-global.com/) for details about the latest firmware and update procedures.TASCAM IF-DA2

Notes about Dante Dante is a transmission protocol developed by Audinate. Using networks based on gigabit Ethernet standards, it enables multi- channel (512 IN/512 OUT) transmission and high precision, for example. Check the Audinate website for details about Dante. https://www.audinate.com/

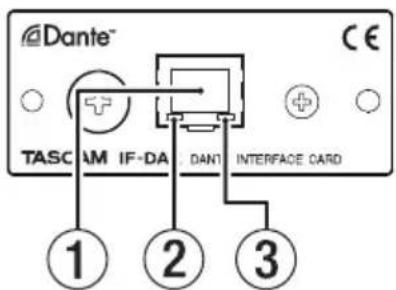

This card includes a Dante module circuit board made by Audinate. See “Software Licensing” on page 63 for details about the open source software used by the Dante module circuit board. Names and functions of parts This card has RJ-45 connectors that support 100Mbps Ethernet. Use LAN cables to connect these connectors to other devices that support Dante or a Dante network. Rear panel 1 RJ-45 connector This is the main Dante transmission connector. Use this to connect to a Dante network all the time. 2 Link status/activity indicator Green indicates that a link is established between the devices. Blinking indicates that signals are being transmitted between the devices. 3 100Mbps link status indicator Orange indicates that a 100Mbps Ethernet link has been established.8 TASCAM IF-DA2 Connecting to a Dante network In order to set up and use this card, you must also set up the Ethernet network that it is connected to, a computer that runs Dante Controller and other devices that support Dante.

LAN cables used for connections Use LAN cables that are category 5e or faster. Both crossover and straight cables can be used. CAUTION This unit is not compatible with 100Mbps Ethernet switching hubs. Always use switching hubs that support Layer 2 and Gigabit Ethernet. Even though this product is 100Mbp, the speed require- ments of the Dante System as a whole normally neces- sitate the use of Gigabit Ethernet Switches. NOTE

Set the computer to set the IP address automatically.

Restarting the computer might be necessary if a previous network setting is still active on the computer. LAN cables used for connections Use LAN cables that are category 5e or faster. Both crossover and straight cables can be used. CAUTION We recommend using an STP cable (shielded LAN cable) to prevent electromagnetic interference. When using a UTP cable (unshielded LAN cable), attach the included ferrite core to the cable. Attach the ferrite core to the LAN cable as shown in the illus- tration. Use the included cable bands to attach the ferrite core to the LAN cable at a position 20–50 mm from its plug. Attach cable bands Place ferrite core betweenTASCAM IF-DA2

Using Dante Controller Dante Controller overview This card uses the Dante Controller application, which is available at the Audinate website, to connect with other devices that support Dante. Download the latest version of the Dante Controller application and an operation manual from the Audinate website. Audinate download page https://www.audinate.com/products/software/dante-controller Make at least the following settings using a computer that has Dante Controller installed.

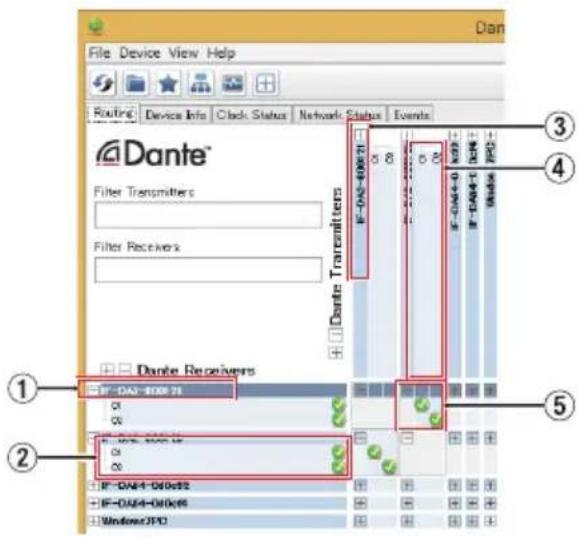

Set the audio routing.

Adjust the sampling frequency and bit depth of each Dante device. NOTE Settings made using Dante Controller are stored in the built-in memory of each Dante device. Unless settings are modified, connections will not change even if Dante Controller is quit or the computer is discon- nected from the Dante network. Audio routing settings When Dante Controller is launched, the Network View screen shown below will open. On this screen, you can set and monitor conditions related to the Dante network. 1 Receiving device name This is the name of a receiving device on the Dante network.10 TASCAM IF-DA2 2 Receiving device channels These are the names of the channels of the receiving device on the Dante network. 3 Transmitting device name This is the name of a transmitting device on the Dante network. 4 Transmitting device channels These are the names of the channels of the transmitting device on the Dante network. 5 Audio routing Route the audio channels of the transmitting and receiving devices that you want to connect here. Left-click the intersection of the channels you want to connect on the matrix to connect them. NOTE While pressing the computer keyboard Ctrl key, left-click the “-” at the intersection of device names to connect all connectable channels at once. Changing sampling frequencies and bit depths with Dante Controller Double-click a device name on the Network View screen to open the Device View screen. On this screen, you can set and monitor conditions related to devices on the Dante network. Click the Device Config tab to open the page where you can change the sampling frequency, bit rate and other settings of the device selected in 1 shown in the illustration below.TASCAM IF-DA2

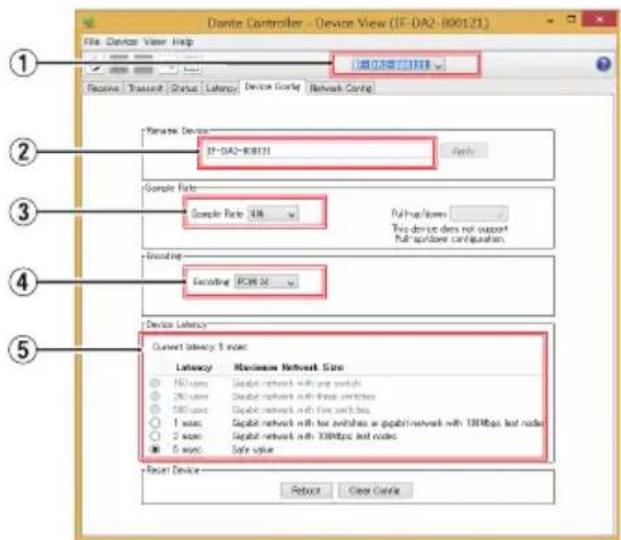

1 Device name This is the name of the device that can have its settings changed in the current Device View. 2 Change device name Edit the device name. 3 Sampling frequency Set the sampling frequency. 4 Bit depth Set the bit depth. 5 Latency setting Set the latency. Use the following guidelines to change the latency setting. Selectable latency value Connected network setup guideline 1msec There are up to 10 layers of gigabit switch between transmitting device and receiving device. 2msec There are 100Mbps transmitters or receivers connected to a Gigabit network. 5msec Use this maximum selectable latency value when creating a large-scale network. CAUTION

Changing the name of a device will clear audio routing settings. For this reason, we recommend changing device names to names that are easy to identify before setting audio routings.

Depending on network connection conditions, setting the latency to a value higher than the guideline might be necessary. NOTE

Set the sampling rate and bit depth to the same values as the other Dante devices that send and receive audio signals. Also set the unit in which the IF-DA2 is installed to the same values.

When using a switched (daisy chain) connection, which does not use a switching hub, set the latency according to the number of Dante devices that signals pass-through as shown below.

Switched (daisy chain) connection example Passes through 2 devices Transmitting device

IF-DA2 or other receiving device Passes through 1 device Transmitting device

1st device IF-DA2 or other receiving device12 TASCAM IF-DA2 Specifications Ratings

Sampling rate and number of channels 44.1/48/96 kHz, 2 channels. Input/output ratings

Dimensions 73 × 31 × 112.6 mm (width × height × depth, including protrusions)

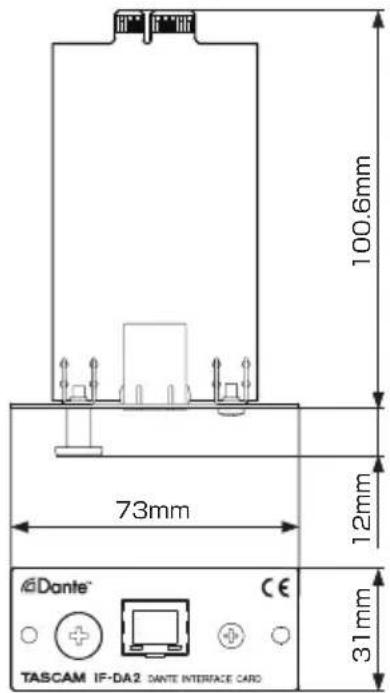

Dimensional drawings 73mm 31mm 12mm 100.6mm

Illustrations in this manual might differ in part from the actual product.

Specifications and external appearance might be changed without notification to improve the product.TASCAM IF-DA2

https://www.audinate.com/

Software Licensing Precision Time Protocol daemon (v1b2) http://sourceforge.net/projects/ptpd/files/ Copyright (c) 2009-2012 George V. Neville-Neil, Steven Kreuzer, Martin Burnicki, Jan Breuer, Gael Mace, Alexandre Van Kempen Copyright (c) 2005-2008 Kendall Correll, Aidan Williams All Rights Reserved Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. THIS SOFTWARE IS PROVIDED BY THE AUTHORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. mdnsd - embeddable Multicast DNS Daemon https://github.com/cooljeanius/mdnsd The mdnsd source code is licensed by the BSD License - text provided below. Copyright (c) 2007, Jer - [e-mail] All rights reserved. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.64 TASCAM IF-DA2 IwIP (v1.3.2, v1.4.1) http://savannah.nongnu.org/projects/lwip/ lwIP is licenced under the BSD licence: Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright

notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above

copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or

promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE AUTHOR `AS IS' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT, INDIRECT,

INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL

DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. FreeRTOS (v6.0.4) tropicssl (v6a6997f) http://gitorious.org/tropicssl/ Copyright (c) 2009, StackFoundry LLC < support@stackfoundry. com >. Based on XySSL: Copyright (c) 2006-2008, Christophe Devine. Based on PolarSSL: Copyright (c) 2009, Paul Bakker <polarssl_ maintainer at polarssl dot org> All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• Neither the names of PolarSSL or XySSL nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERSTASCAM IF-DA2

AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.< In the United States > This warranty gives you specic legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.

WHAT IS AND IS NOT COVERED

Except as specied below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.

2. Damages resulting from accident, misuse, abuse or neglect.

3. Damage resulting from failure to perform basic daily maintenance and/or

calibration or otherwise resulting from failure to follow instructions contained in your owner’s manual.

4. Damage occurring during shipment of the product. (Claims must be presented

5. Damage resulting from repair or attempted repair by anyone other than TEAC

or an authorized TASCAM service station.

6. Damage resulting from causes other than product defects, including lack of

technical skill, competence, or experience of the user.

7. Damage to any unit which has been altered or on which the serial number has

been defaced, modied or is missing.

WHO MAY ENFORCE THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted to ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer. You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTIES

Any implied warranties, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC’s liability for any defective product is limited to repair or replacement of the product, at TEAC’s option. TEAC shall not be liable for:

Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss; or

2. Any other damages, whether incidental, consequential or otherwise.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. To locate an Authorized Service Center in Your Area

If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAM Distributor in your country. A list of TASCAM Distributors can be found on our website at: http://teac-global.com/Model / 型名Serial No. / 機番Date of purchase / お買い上げ日 http://teac-global.com/ Owner’s name / お名前Address / ご住所Dealer’s name / 販売店Dealer’s address /
