OWNER'S MANUAL

ENGLISH

MODE D'EMPLOI

FRANÇAIS

MANUAL DEL USUARIO

ESPAÑOL

BEDIENUNGSANLEITUNG

DEUTSCH

• TASCAM is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.
- Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.

ティアック株式会社

http://tascam.jp/

1834 Gage Road, Montebello, California 90640

USA

2

TASCAM IF-MA64/EX / IF-MA64/BN

TEAC MEXICO, S.A. de C.V.

http://teacmexico.net/

Phone: [phone]

2 Huxley Road, Surrey Research Park, Guildford,

GU2 7RE, United Kingdom

TEAC EUROPE GmbH

http://tascam.eu/

Phone: [phone]

Room 817, Block A, Hailrun Complex, 6021 Shennan Blvd., Futian District, Shenzhen 518040, China

OWNER'S MANUAL

IMPORTANT SAFETY PRECAUTIONS

For U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CAUTION

Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user's authority to operate this equipment.

For the customers in Europe

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.CET

APPAREIL NUMERIQUE DE LA CLASSE A EST CONFORME A LA NORME NMB-003 DU CANADA.

DECLARATION OF CONFORMITY

We, TEAC EUROPE GmbH. Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany declare in own responsibility, the TEAC product described in this manual is in compliance with the corresponding technical standards.

CE Marking Information

EN55103-1/2

a) Applicable electromagnetic environment: E4

IMPORTANT SAFETY INSTRUCTIONS

- If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired.

For European Customers

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
(b) By disposing of the electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.

(c) Improper disposal of waste equipment can have serious effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment.
(d) The crossed out wheeled dust bin symbol indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) The return and collection systems are available to the end users. For more detailed information about disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Contents

IMPORTANT SAFETY PRECAUTIONS 3

IMPORTANT SAFETY INSTRUCTIONS....4

Introduction 6

Features of these cards....6

Models compatible for installation....6

Installation procedure overview....6

Included items....6

Using the TEAC Global Site 7

User registration 7

Names of parts 7

Rear panel 7

Specifications....9

Ratings....9

Digital audio input/output ratings 9

Other....9

Dimensional drawings....10

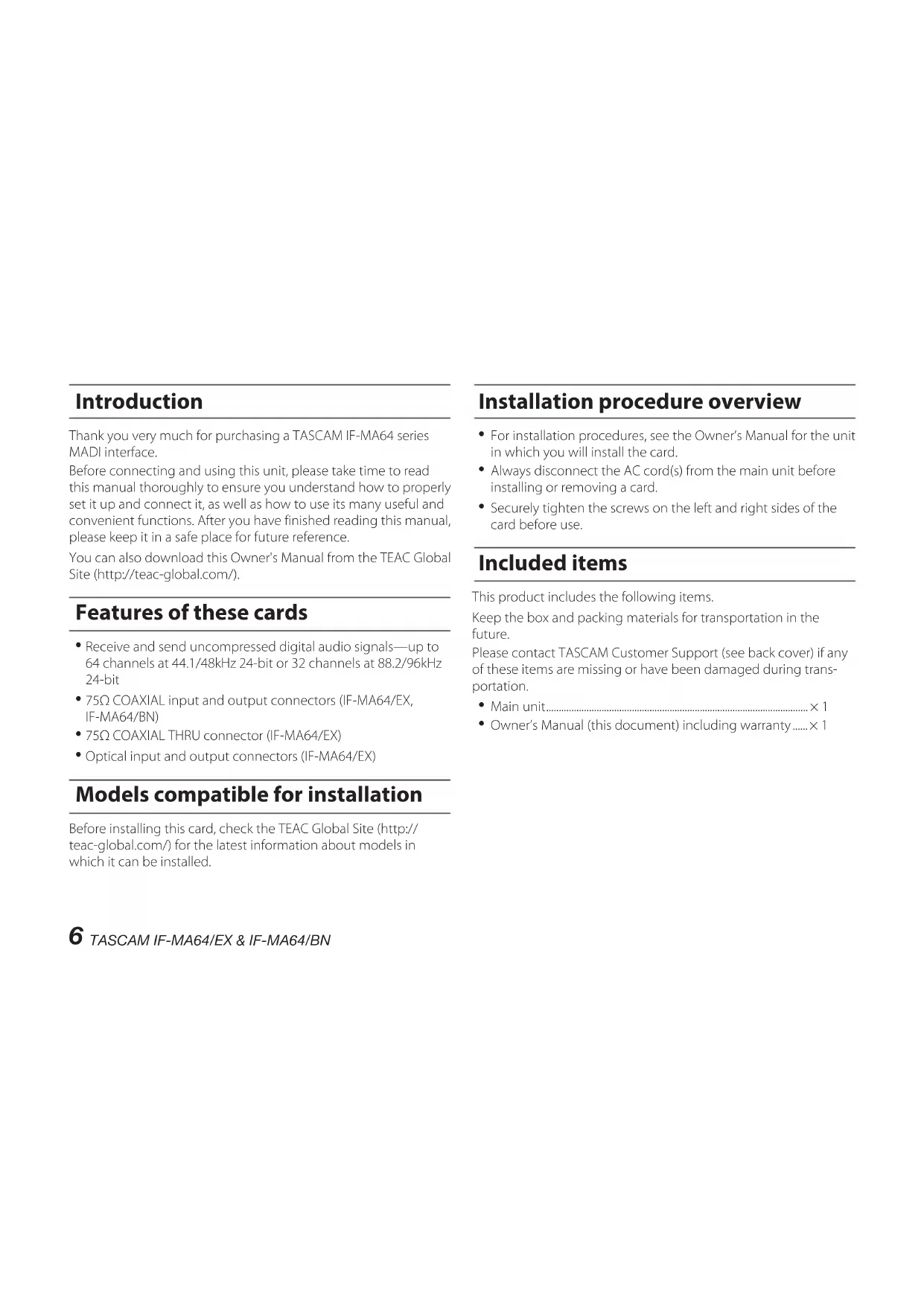

Introduction

Thank you very much for purchasing a TASCAM IF-MA64 series MADI interface.

Before connecting and using this unit, please take time to read this manual thoroughly to ensure you understand how to properly set it up and connect it, as well as how to use its many useful and convenient functions. After you have finished reading this manual, please keep it in a safe place for future reference.

You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/).

Features of these cards

• Receive and send uncompressed digital audio signals—up to 64 channels at 44.1/48kHz 24-bit or 32 channels at 88.2/96kHz 24-bit
• 75Ω COAXIAL input and output connectors (IF-MA64/EX, IF-MA64/BN)
• 75Ω COAXIAL THRU connector (IF-MA64/EX)
  • Optical input and output connectors (IF-MA64/EX)

Models compatible for installation

Before installing this card, check the TEAC Global Site (http://teac-global.com/) for the latest information about models in which it can be installed.

Installation procedure overview

• For installation procedures, see the Owner's Manual for the unit in which you will install the card.
• Always disconnect the AC cord(s) from the main unit before installing or removing a card.
• Securely tighten the screws on the left and right sides of the card before use.

Included items

This product includes the following items.

Keep the box and packing materials for transportation in the future.

Please contact TASCAM Customer Support (see back cover) if any of these items are missing or have been damaged during transportation.

- Main unit....x 1

- Owner's Manual (this document) including warranty .....×1

Using the TEAC Global Site

You can download this Owner's Manual and the Reference Manual necessary for this unit from the TEAC Global Site (http://teac-global.com/).

1. Open the TEAC Global Site (http://teac-global.com/).
2. In the TASCAM Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

1. Click the product name in the "Search by Model Name" section to open the Downloads page for that product.
2. Select and download the Owner's Manual and the Reference Manual that are needed.

User registration

Customers in the USA, please visit the TASCAM website (http://tascam.com/) to register as a user online.

Names of parts

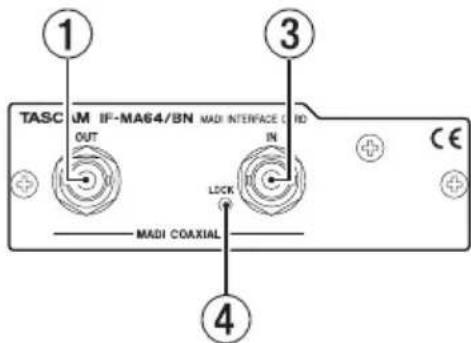

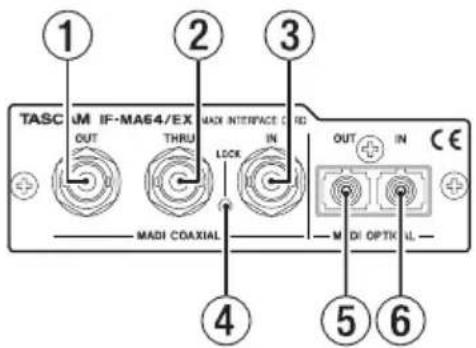

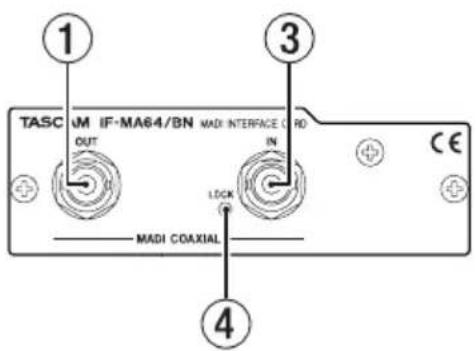

Rear panel

IF-MA64/EX

IF-MA64/BN

TASCAM IF-MA64/EX & IF-MA64/BN

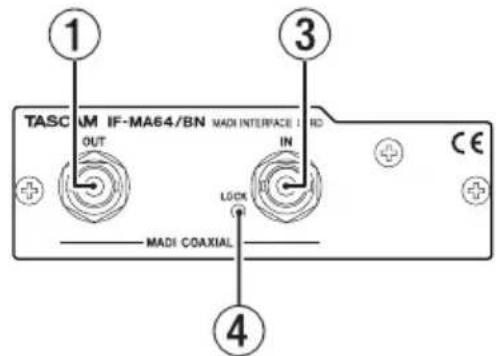

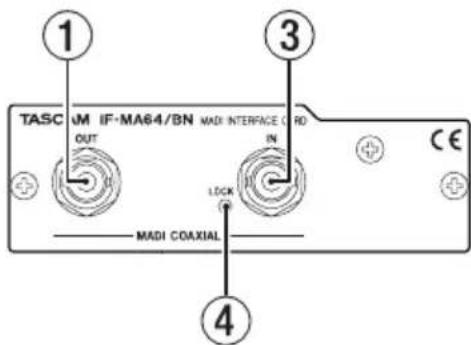

① MADI COAXIAL OUT connector

This is a BNC connector for digital audio output in AES10-2008 format.

Use a 75Ω coaxial cable to connect an external MADI device and transmit digital audio and control signals.

② MADI COAXIAL THRU connector (IF-MA64/EX only)

This is a BNC connector for digital audio output in AES10-2008 format.

The MADI COAXIAL IN connector signal is thru output.

Use a 75Ω coaxial cable to connect an external MADI device and transmit digital audio and control signals.

NOTE

The signal from the MADI COAXIAL IN connector is output through the MADI COAXIAL THRU connector whether the unit is on or off.

When the unit is turned on/off, however, the signal output from the MADI COAXIAL THRU connector will be momentarily interrupted. For this reason, time turning the unit on/off carefully when the signal output from the MADI COAXIAL THRU connector is being used by a connected device.

③ MADI COAXIAL IN connector

This is a BNC connector for digital audio input in AES10-2008 format.

Use a 75Ω coaxial cable to connect an external MADI device and receive digital audio and control signals.

④ LOCK indicator

This indicator lights when a valid signal is being input through the connector selected in the card setting menu (MADI INPUT SELECT item COAXIAL or OPTICAL setting).

NOTE

This will not light when receiving signals with sampling frequencies that are different from the main unit's setting.

⑤ MADI OPTICAL OUT connector (IF-MA64/EX only)

This is an SC connector for digital audio output in AES10-2008 format.

Use a multi-mode optical fiber cable to connect an external MADI device and transmit digital audio and control signals.

Attach the included rubber cap when not in use to prevent dust from entering.

⑦ MADI OPTICAL IN connector (IF-MA64/EX only)

This is an SC connector for digital audio input in AES10-2008 format.

Use a multi-mode optical fiber cable to connect an external MADI device and receive digital audio and control signals.

Attach the included rubber cap when not in use to prevent dust from entering.

Specifications

Ratings

Channels and formats

Sampling Frequency

44.1/48 kHz: 48k frame, 56/64 channels

88.2/96 kHz: 48k frame, 28/32 channels

96k frame, 28/32 channels

Digital audio input/output ratings

ADI COAXIAL IN connector

Connector: BNC coaxial 75Ω

Format: AES10-2008

■ADI OPTICAL IN connector (IF-MA64/EX only)

Connector: FDDI duplex SC connector (62.5μm core diameter/125μm clad diameter or 50μm/125μm multi-mode optical fiber cable)

Format: AES10-2008

■ADI COAXIAL OUT connector

Connector: BNC coaxial 75Ω

Format: AES10-2008

■ADI COAXIAL THRU connector (IF-MA64/EX only)

Connector: BNC coaxial 75Ω

Format: AES10-2008

MADI OPTICAL OUT connector (IF-MA64/EX only)

Connector: FDDI duplex SC connector (62.5μm core diameter/125μm clad diameter or 50μm/125μm multi-mode optical fiber cable)

Format: AES10-2008

Other

■mensions

107 x 34 x 164.4 mm (width × height × depth, including protrusions)

Weight

166 g (IF-MA64/EX), 137 g (IF-MA64/BN)

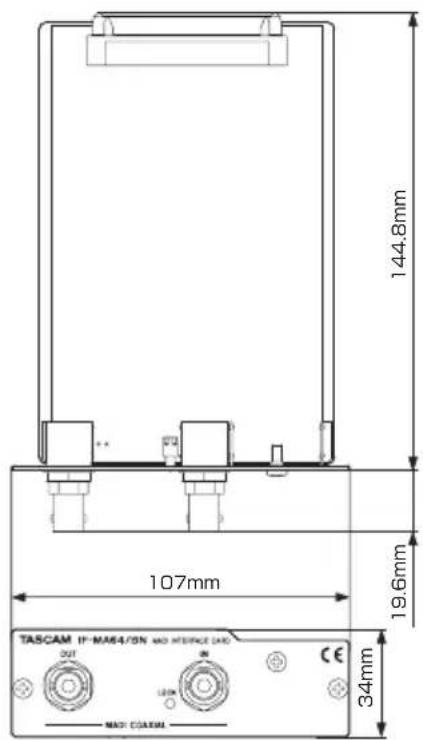

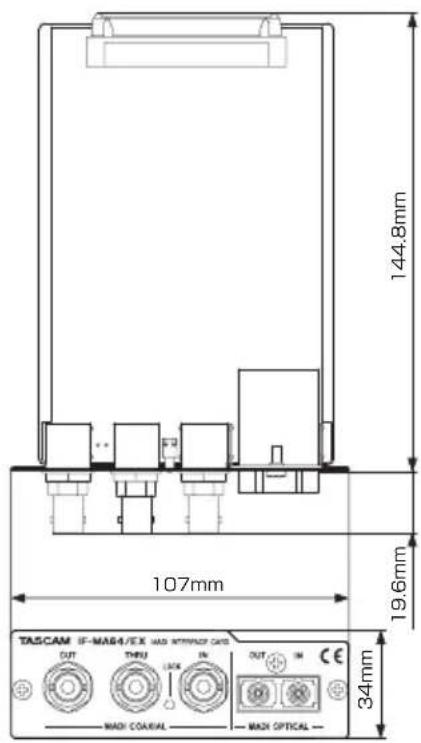

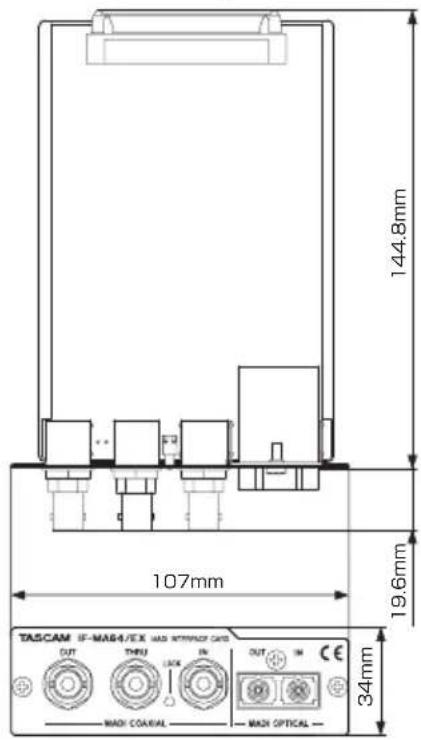

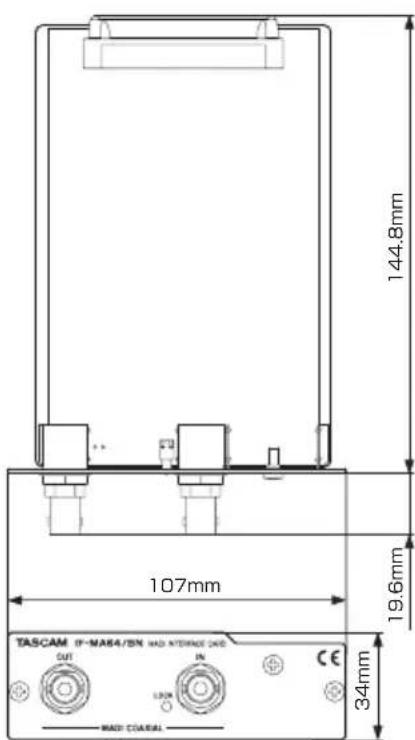

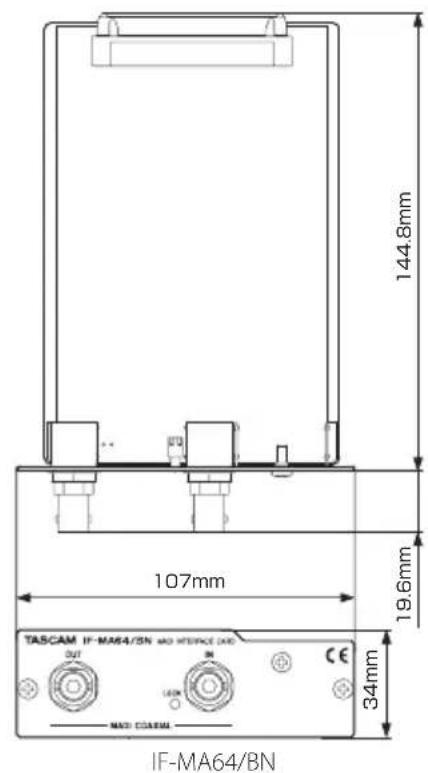

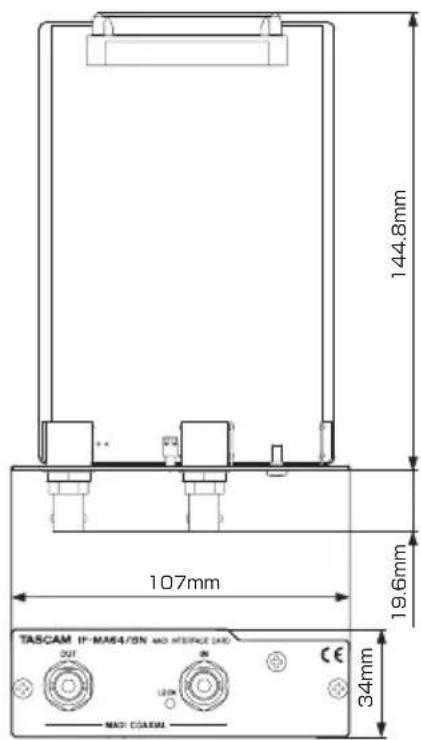

Dimensional drawings

IF-MA64/EX

IF-MA64/BN

• Illustrations in this manual might differ in part from the actual product.
- Specifications and external appearance might be changed without notification to improve the product.
