CS10MD2 - Detector VELLEMAN - Free user manual and instructions

Product type	Metal detector
Brand	Velleman
Model	CS10MD2
Dimensions	430 x 82 x 51 mm
Weight	350 g
Power supply	1 x 9 V alkaline battery (not included)
Battery type	6LR61C
Silent operation	Yes, with headphones
Low battery indication	Yes, continuous beep and LEDs off
Sensitivity	≥ 5 cm for a 50-cent coin
Operating frequency	50 kHz ± 10% (sine wave)
Headphone jack	3.5 mm
Operating current	< 50 mA
Operating voltage	7.2 V to 9 V
Operating temperature	0 °C to +40 °C
Sensitivity adjustment	Yes, via internal potentiometer
Reset button	Yes
Green LED	Indicates ready
Red LED	Indicates alarm (metal detection)
Audio discrimination	Soft beep for small object, loud beep for large object
Maintenance and cleaning	Clean regularly with a soft cloth, without chemicals. Remove battery if not used for a long time.
Safety	Keep out of reach of children. Do not expose to moisture. No user-serviceable parts.
Spare parts and repairability	No user-repairable parts. Order spare parts from the retailer.
Warranty	24 months for consumers (EU), conditions in manual

Frequently Asked Questions - CS10MD2 VELLEMAN

How to turn on the CS10MD2 metal detector?

To turn on the device, slide the switch to the 'on' position. Wait for the green LED to light up, indicating the device is ready to use.

How to adjust the sensitivity of the detector?

Use a small screwdriver to turn the potentiometer located in the 'SENS ADJ' slot. Turn clockwise to increase sensitivity, counterclockwise to decrease. Adjust until the alarm sounds, then reduce slightly.

What do the green and red LEDs mean?

The green LED lights up when the device is ready. The red LED lights up along with an audible beep when a metal object is detected.

How to change the battery of the detector?

Open the battery compartment with a screwdriver. Insert a 9 V alkaline battery respecting polarity. Close the compartment.

Can the detector detect gold?

Yes, the detector can detect any metal, including gold, provided it is sufficiently massive. The sensitivity is at least 5 cm for a 50-cent coin.

What is the maximum detection depth?

Detection depth depends on the size and type of metal. For a small coin, the advertised sensitivity is at least 5 cm. Larger objects may be detected deeper.

What to do if the device emits a continuous beep without detection?

A continuous beep usually indicates a low battery. Replace the battery with a new one. If the problem persists, check the sensitivity settings.

How to use headphones?

Connect headphones (not included) with a 3.5 mm jack to the headphone jack on the device. Sound will then be audible via headphones, useful in noisy environments and saves batteries.

How to clean the detector?

Clean the device with a soft, dry cloth. Do not use harsh chemicals, solvents, or strong detergents. Remove the battery if the device is not used for a long period.

Is the detector waterproof?

No, the device is not waterproof. It must be protected from rain, humidity, and water splashes. Do not use it in the rain or near water.

USER MANUAL CS10MD2 VELLEMAN

HAND-HELD METAL DETECTOR DRAAGBARE METAALDETECTOR DÉTECTEUR DE MÉTAUX PORTATIF DETECTOR DE METALES PORTÁTIL HAND-METALLDETEKTOR RÉCZNY WYKRYWACZ METALI DETECTOR DE METAIS PORTÁTIL

Security Wand

USER MANUAL 3

HANDLEIDING 7

MODE D'EMPLOI 11

MANUAL DEL USUARIO 15

secum ON OFF ON 6

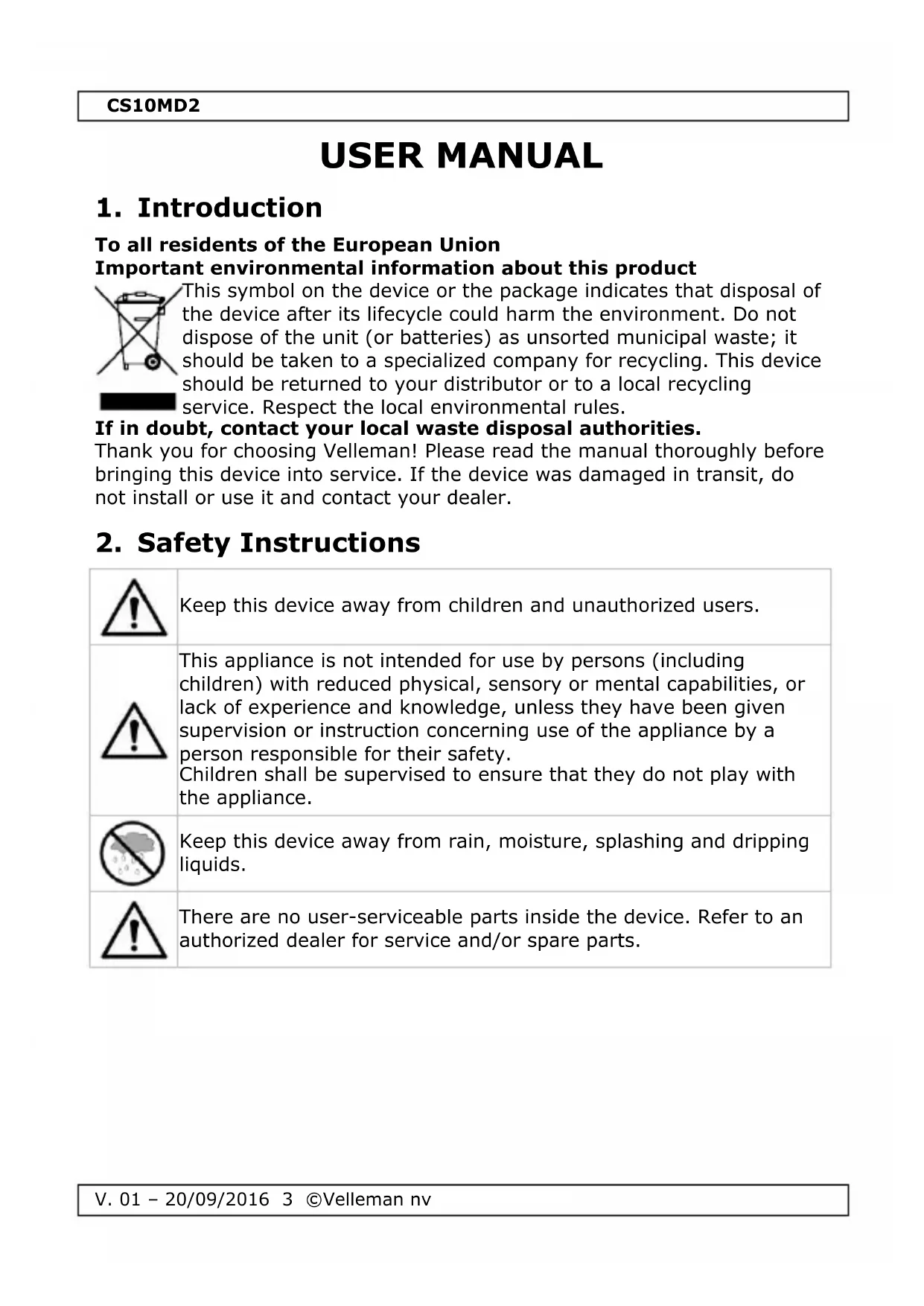

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.Children shall be supervised to ensure that they do not play with the appliance.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from dust and extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Keep this manual for future reference.

4. Features

• silent operation with earphones
- low-battery indication

5. Overview

Refer to the illustrations on page 2 of this manual.

1	reset button
2	ready LED
3	alert LED

4	sensitivity hole
5	phone input
6	on-off-low switch

6. Battery

1. Open the battery compartment using an appropriate screwdriver.
2. Insert one 9 V alkaline battery according to the correct polarity.
3. Close the battery compartment.

Warning: Do not puncture batteries or throw them in fire as they may explode. Do not attempt to recharge non-rechargeable batteries (alkaline). Dispose of batteries in accordance with local regulations. Keep batteries away from children.

7. Operation

7.1 Basic Operation

1. Hold the device by the handle and switch it on. Wait for the device to finish the initialisation. The device is ready-for-use when the green LED burns.
2. Sweep the device over the body: it will beep and the alert LED will burn when a metal object is found.
3. Switch off after use.

7.2 Functions

Audio Tone Discrimination

The device beeps quietly when it detects a small metal object; it will beep loudly when a larger metal object is detected.

Sensitivity

Insert the tip of a small screwdriver into the SENS ADJ. hole. To set the ideal sensitivity rate, slowly rotate clockwise to increase or anti-clockwise to decrease the sensitivity, until both the audio and visual alarms signal continuously. Then slightly turn anti-clockwise.

Reset

Press the reset knob to reset the device.

Low-Battery Indication/Earphones

Replace the battery if the device beeps continuously and the LEDs do not burn.

Using earphones will help you hearing the audible alarm in noisy environments. Also, the batteries will last longer.

8. Cleaning and Maintenance

The device does not need any particular maintenance. However, it is advisable to clean it occasionally to keep it looking like new. Do not use harsh chemicals, cleaning solvents or strong detergents. Remove the battery if the device will not be used for a long time.

9. Technical Specifications

headphone jack....3.5 mm operating frequency....50 kHz ± 10% (sine wave) sensitivity....≥ 5 cm (for a 50 eurocent coin) operation current....< 50 mA operation voltage....7.2 V to 9 V operating temperature....0 °C to +40 °C power supply....1 x 9 V battery (6LR61C, not included) dimensions....430 x 82 x 51 mm weight....350 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

R&TTE Declaration of Conformity Hereby, Velleman NV declares that the radio equipment type [CS10MD2] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.

© COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
