USER MANUAL AirBreeze 360UV Laserliner

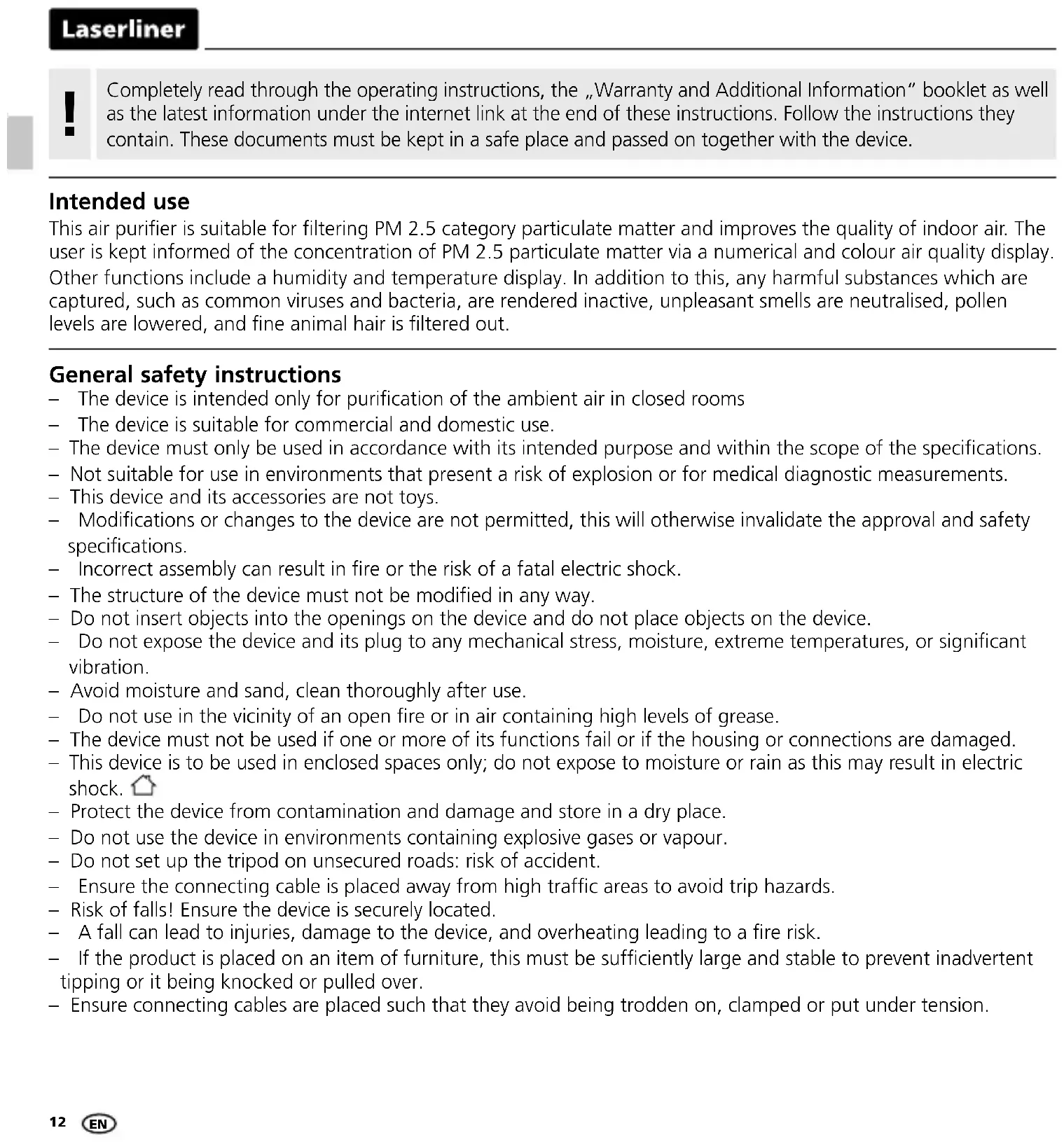

EN13 AirBreeze 360UV Observe the safety instructions. Ignoring the safety instructions puts people, the environment and the product at risk.

– Donotlaythemainscableundercarpets,oorcoverings,orfurniture/otherdevices.Firerisk! – Take particular care to protect the plug connections to the device and sockets. – Thedeviceisintendedforuseonasecure,atsurface. – Risk of overheating! Do not block or cover any of the ventilation openings on the device during operation. – Donotuseinthevicinityofopenamesorotherheatsources(heatingsystems,ovens,ampliers,etc.). Overheatinghasadetrimentaleffectontheservicelifeandcanrepresentariskofre. – Always disconnect the device from the power supply during thunder storms or if the device is left unused for an extended period of time. – The mains plug must always be easily accessible. – When removing a plug from a socket, always pull the plug and never the cable in order to avoid electric shocks andtheriskofreduetodamage. – Clean the mains plug at regular intervals. – Ensure the mains plug is always fully inserted into the socket. – Depositsandconnectionscanleadtoshortcircuits,overheating,andtheriskofre. – Ensure your hands are dry when handling the mains cable and plug. – Disconnect the device from the mains immediately if any of the following circumstances occur: - a switch, the display or a function is no longer working correctly. - an RCD, circuit breaker or a fuse has blown. - the mains cable or plug has overheated. - the device is making unusual noises or vibrations or emitting unusual smells. - any other unusual responses or defects. – Disconnectfromthemainsbeforechangingthelterorcleaningthedevice. – Donotoperatetheairpurierwithoutalter. – Theltersmustberemovedfromtheirpackagingbeforetting. – Thedeviceindicateswhenthelterneedstobechangedbutcanstillbeoperatednormallywiththisdisplay. – Typical incorrect uses to be avoided by users: - Use: - in wet areas (such as bathrooms, sanitary areas) -asstorage,particularlyplacementofcontainerslledwithliquids. - in the immediate vicinity of wet objects - outside the permitted environmental conditions - outside -inexplosiveorammableatmospheres - Covering the ventilation openings. - Inserting conductive objects into the ventilation slots. - Tampering with or bypassing safety equipment. – If safety instructions are ignored, this can result in electric shocks, burns and/or severe injury. EN14 Safety instructions Usingarticial,opticalemission(OStrV) – The device has a UV-C light source with a wave length of 253.7 nm to sterilise the air. –AppropriatetechnicalmeasuresensuretheUV-Cradiationcannotescape,evenifthehousingisopen. – Damage to the housing can lead to dangerous UV-C radiation escaping. – UV-C radiation can damage eyes and skin even in low doses. Devices which are obviously damaged must not beoperated. Do not look into the light source. – Read the maintenance instructions before opening the device. – Disconnect the device from the mains before replacing the UV-C light source. The UV-C light source must be disposed of separately. Safety instructions Dealing with electromagnetic disturbances – The device complies with the provisions and limit values for safety and electromagnetic compatibility in accordance with the Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. – Umarex GmbH & Co KG hereby declares that the electronic device AirBreeze 360UV complies with the requirements andotherconditionsoftheEuropeanLowVoltageDirective2014/35/EU(LVD)andtheEMCDirective2014/30/EU. The complete text of the EC declaration of conformity is available at the following internet address: https://laserliner.com – Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference. ENAirBreeze 360UV

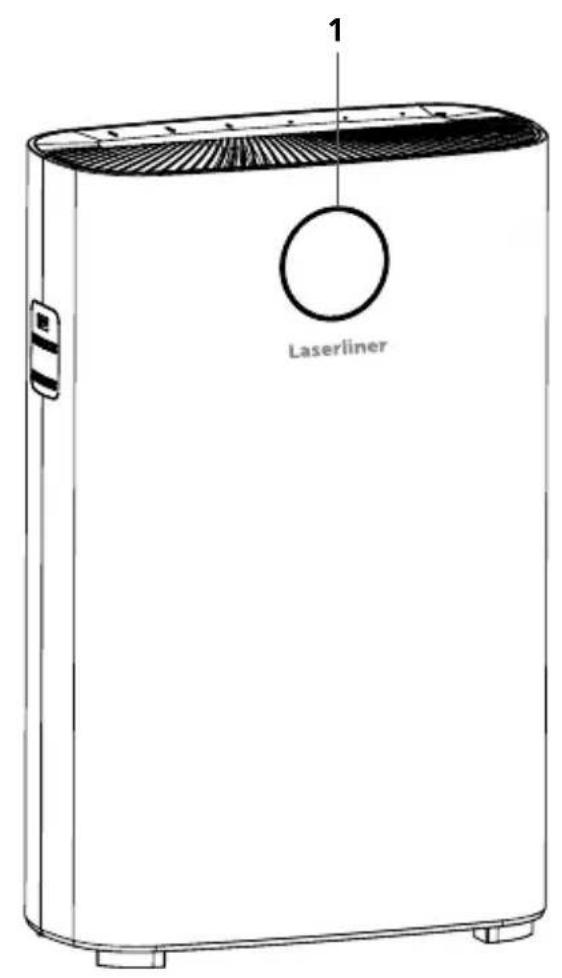

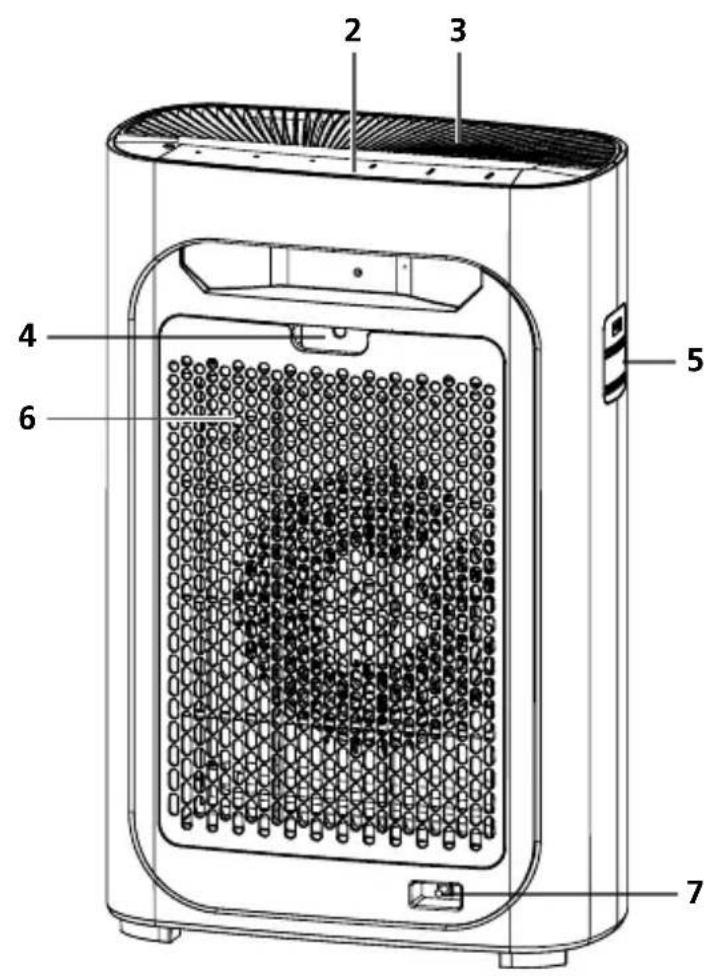

4 Opening to remove theltercover 5 Air quality sensor 6 Filter cover 7 Mains connection Warning signals Risk of electric shockHot surface 1 The air quality is indicated with a colour readout and the PM 2.5 value, temperature and humidity are automatically updated on the display 2 Control panel 3 Air outlet EN16

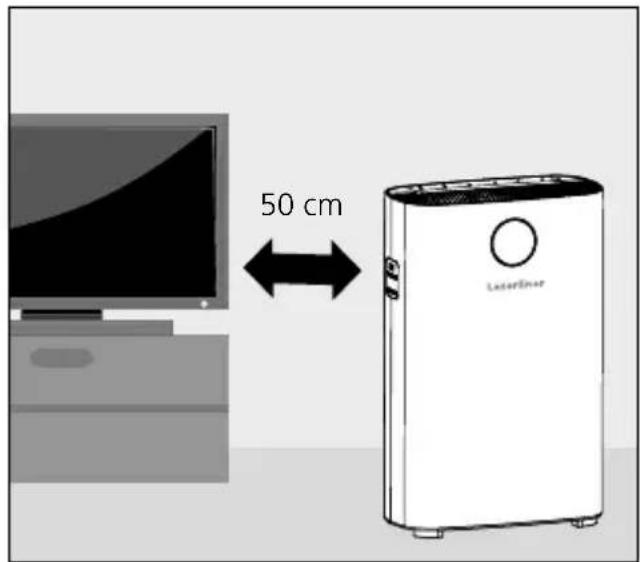

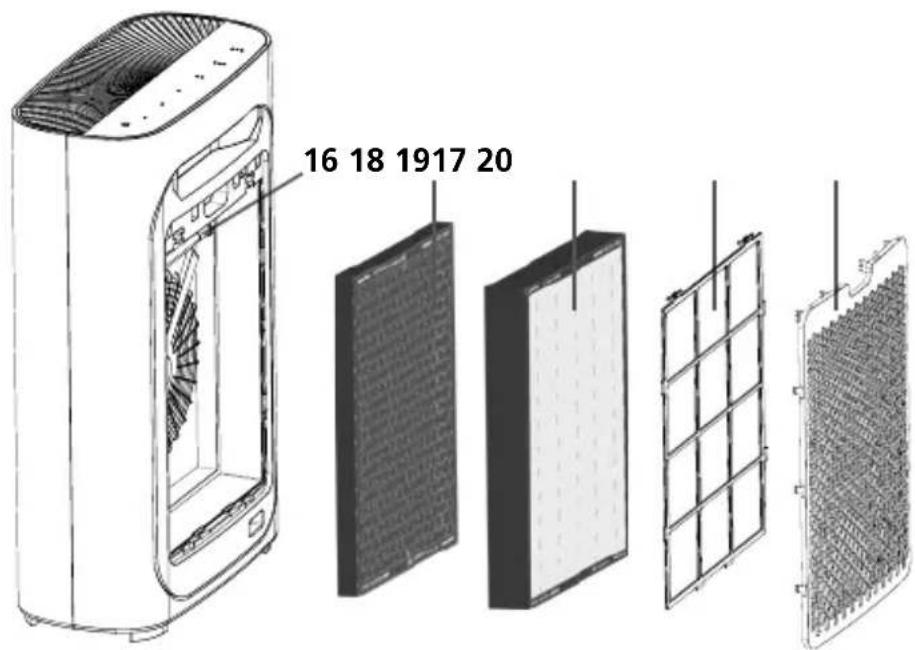

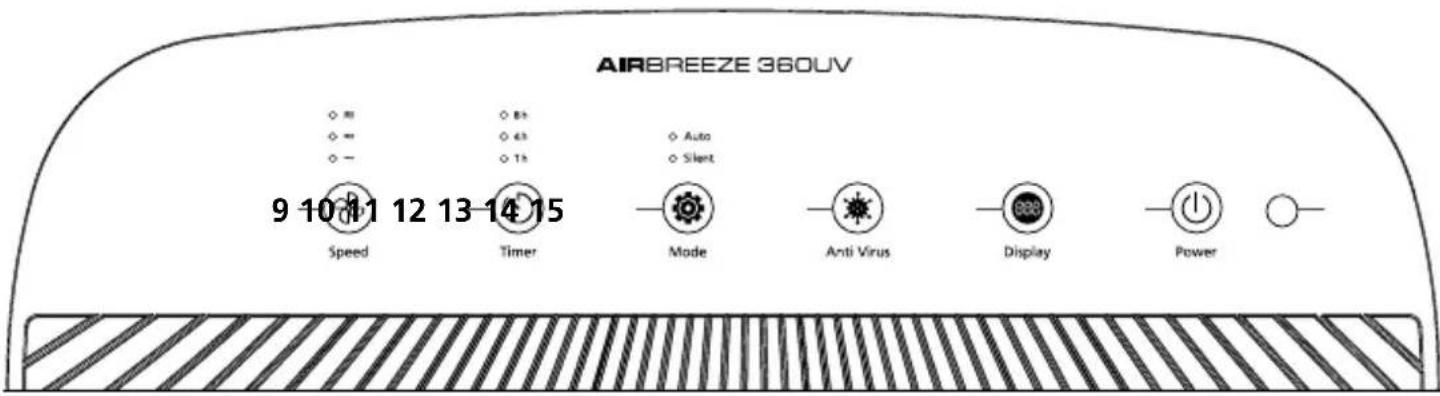

9 Fan speed 12 UV-C radiation ON/OFF button 14 ON/OFF button 10 Timer function 13 Display light ON/OFF button Filter reset button 15 Sleep mode brightness sensor 11 Automatic and night mode 16 UV-C disinfection lamp: inhibits the propagation of common bacteria and viruses 17 Activatedcarbonlter 18 HEPA13lter 19 Pre-lter 20 Filter cover EN17 AirBreeze 360UV 50 cm Theairqualitydisplayasheswhenthedeviceisstarted.ThecorrectPMvalueisdisplayedafterveseconds.The air quality is detected as automatic mode starts up. Ensurethepurierispositionedatleast50cmtotheside and 10 cm to the rear away from adjacent objects and electrical devices. The performance of radios and televisions can be negatively affected if their mains plug ispluggedintothesamesocketstripastheairpurier’smains plug. Use a separate power source for this reason. Toensureperfectoperation,donotcovertheairpurier or build constructions above it. Correct setup of the air purier

The UV-C disinfection lamp (16) inhibits the propagation of many common bacteria and viruses. The activated carbonlter(17)removesvolatileorganiccompounds(VOCs)andgasesfromtheair.Particlesinjurioustohealth, includingparticulatematter,pollen,dustmitesandsmokeparticles,areremovedbytheHEPA13lter(18). Thepre-lter(19)preventstheingressofparticleslargerthan2.5mm.Thisextendstheservicelifeofthelter behind it. Operation

Insert the mains plug into the socket. The stand-by light shines red after a short tune has been played and all the displays ashtwice.Automaticmodeisactivatedbypressingthe ON/OFF button (14). Filter EN18 Filter reset Toresettheltersaturationdisplay,pressandholdtheDisplaybutton(13)for5seconds. Thisfunctionisonlyavailableafterthedevicehasregisteredthelterhasbeenchanged. Display lighting To switch the air quality colour display on and off, press the Display button (13). UV-C function (including ionisation) Press the Anti-virus button (12) to start UV-C radiation and disinfection. Press and hold the button for vesecondstostarttheioniser. Adjusting the fan speed Fourfanspeedscanbeselected. Functions

Coloured indicator blue green purple red Status perfect good normal poor PM2.5neparticulatematterincludesindustrialemissionswhichcanpenetratedeepintotherespiratorytractdue to their extremely small size, causing long-term damage to the lungs. Note: Press the Display button (13) if you want to switch off the air quality display.

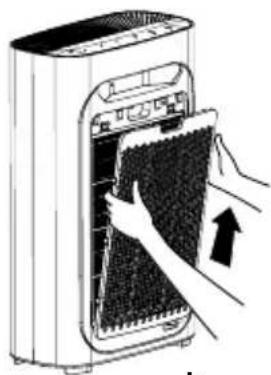

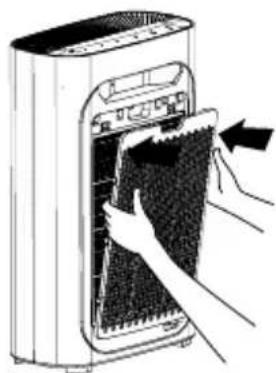

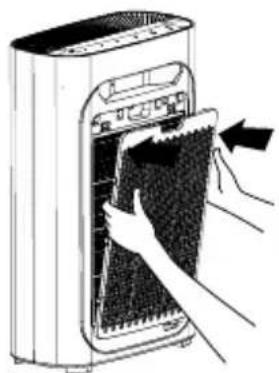

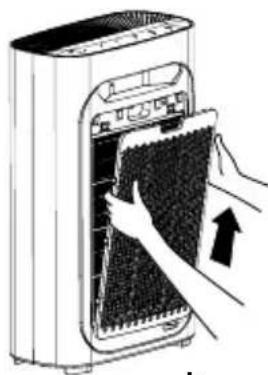

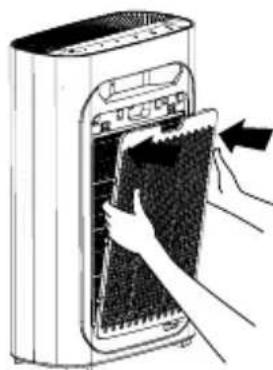

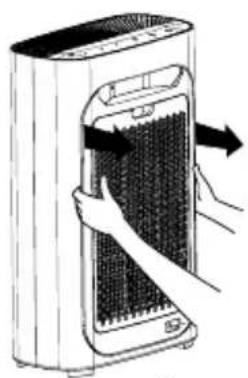

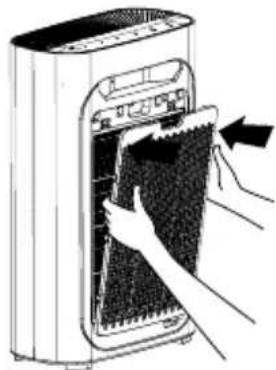

1.AashingDisplaybutton(13)indicatesthelterisdue for replacement. 2.Switchofftheairpurieranddisconnectfromthemains. 3.Removetheltercoverbypullingthetabsonthetop(a+b). 4.Removethepre-lter,theHEPA13lter,andtheactivated carbonlterinthatorderbypullingthetabs(d)provided for this purpose. 5.Removeallpackagingfromthenewlterbeforeinstalling. 6.Fittheactivatedcarbonlter,HEPA13lter,andpre-lter(c). Makesurethepre-lterisrmlyseatedatallsixlocking points. 7.Rettheltercoverintheloweropenings.Pushthelter cover carefully forwards into the locking points until is if rmlyseated(e). 1.Puttheairpurieronaatsurfaceandremoveall packaging. 2.Removetheltercoverbypullingthetabsonthetop(a+b). 3.Removethepre-lter,theHEPA13lter,andtheactivated carbonlterinthatorderbypullingthetabs(d)provided for this purpose. 4.Removeallpackagingfromthelter. 5.Rettheactivatedcarbonlter,HEPA13lter,andpre-lter (c).Makesurethepre-lterisrmlyseatedatallsixlocking points. 6.Rettheltercoverintheloweropenings.Pushthelter cover carefully forwards into the locking points until is if rmlyseated(e). Fitting the lters before the device is used for the rst time

Coloured indicator blue green purple red Status perfect good normal poor EN20

Energy use and environmental considerations State-of-the art, energy-efficient technology has been fitted in this device to conserve increasingly scarce natural resources in our environment. This means that incorrect usage can increase energy consumption. Switch the device off if the air quality is already good, there is external ventilation, or there are no people in the room. Remove the mains plug if the device is not in use for extended periods. Note:Usealowsettingonthevacuumcleanertoavoiddamagetothepre-lter.

Cleaning the pre-lter

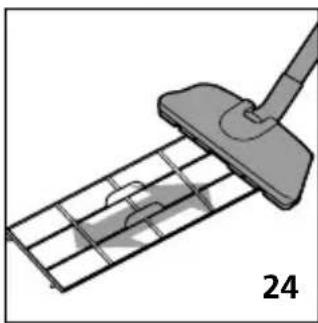

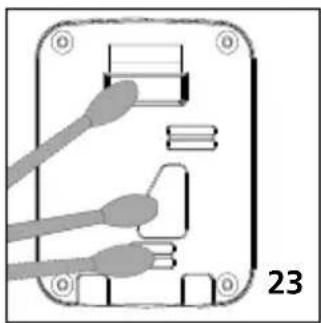

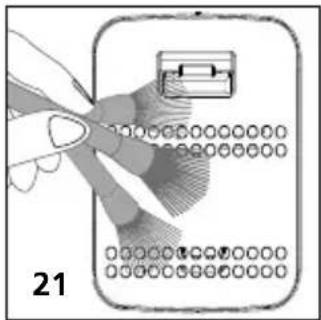

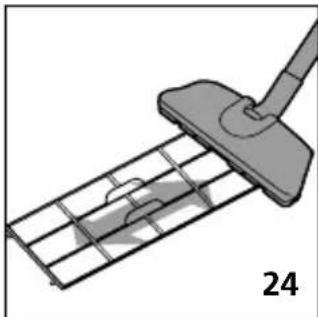

Use a soft brush or a vacuum cleaner to remove dirt particles(24).Theltercanalsobecleanedwithjust waterorsoapywater.Ensurethelteriscompletelydry beforerettingintheairpurier. Cleantheairpuriereverytwomonthswithasoft brush (21) to ensure optimum performance. Remove the protective cover (22) and carefully clean the inlet and outlet of the air quality sensor with a moist cotton bud (23).Whenusingtheairpurierinverydustyconditions, clean the device more frequently. Cleaning the air quality sensor

Information on maintenance and care Clean the housing with a damp cloth and do not use cleaning agents, scouring agents and solvents. Cleaning and/ or maintenance work may only be carried out when the device has been disconnected from the mains. Protect the device from contamination and damage and store in a dry place. EN21 AirBreeze 360UV Technical data (Subject to technical changes without notice.Rev22W28) Variable Concentration of particular matter PM2.5 , Ambient temperature, Humidity Fine particulate matter Measuring range Accuracy 0…5000μg/m
