USER MANUAL KBP40 H.KOENIG

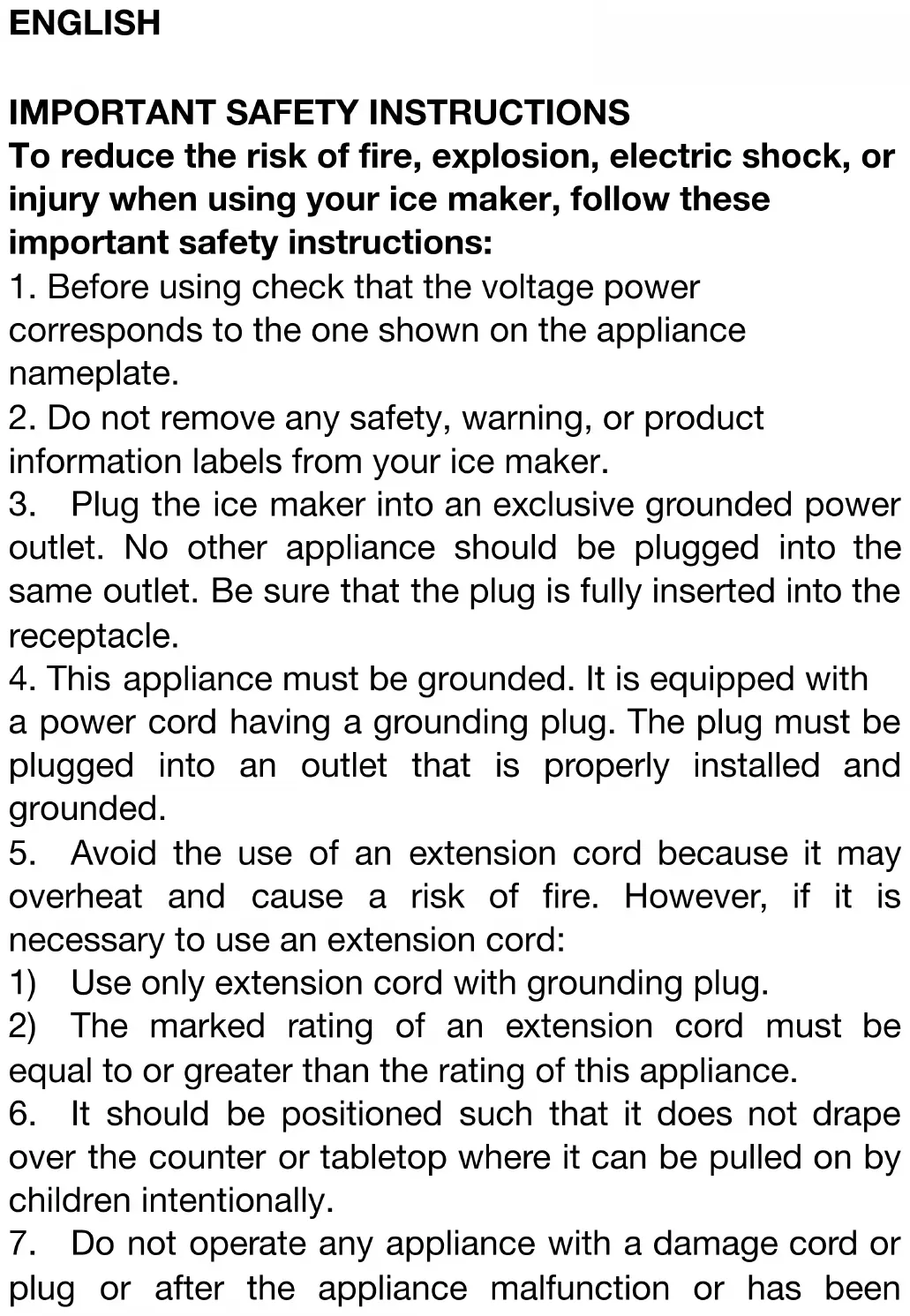

To reduce the risk of fire, explosion, electric shock, or injury when using your ice maker, follow these important safety instructions:

1. Before using check that the voltage power

corresponds to the one shown on the appliance nameplate.

2. Do not remove any safety, warning, or product

information labels from your ice maker.

3. Plug the ice maker into an exclusive grounded power

outlet. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted into the receptacle.

4. This appliance must be grounded. It is equipped with

a power cord having a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

5. Avoid the use of an extension cord because it may

overheat and cause a risk of fire. However, if it is necessary to use an extension cord:

1) Use only extension cord with grounding plug.

2) The marked rating of an extension cord must be

equal to or greater than the rating of this appliance.

6. It should be positioned such that it does not drape

over the counter or tabletop where it can be pulled on by children intentionally.

7. Do not operate any appliance with a damage cord or

plug or after the appliance malfunction or has beendamaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

8. If the supply cord is damaged, it must be replaced by

the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

9. Do not let cord hang over edge of table or counter.

10. Do not place on or near a hot gas or electric burner,

or in a heated oven.

11. Place power cord in such a way it cannot be pulled

on by children or cause a tripping hazard.

12. Place power cord in such a way that it is not in

contact with hot surfaces.

13. The use of attachment not recommended or sold by

manufacturer may cause fire, electric shock or injury.

14. Do not touch the evaporator when using the ice

maker or making ice to avoid being suffer from frostbite.

15. Do not immerse any part of the product in water.

16. To disconnect, turn any control to “OFF”, then remove

plug from wall outlet.

17. Do not plug or unplug product with wet hands.

18. Unplug the product before cleaning, maintaining and

19. Do not use with water that is microbiologically unsafe

or of unknown quality.

20. Do not clean your ice maker with any flammable

fluids. The fumes may create a fire hazard or explosion.

21. Do not overturn the ice maker. If the ice maker is

overturned accidentally, make it stand steadily for 2 hours before power it on again.22. If the ice maker is brought in from outside in wintertime, do not use for a few hours, allowing the unit to warm up to the room temperature before operating.

23. Never put flammable, explosive and corrosive

articles into the ice maker.

24. Never use the ice maker when there is flammable gas

near the ice maker to avoid any fire.

26. Unplug the ice maker before moving it to avoid

damaging the refrigerating system.

27. Do not attempt to disassemble, repair, modify, or

replace any part of your product.

28. This appliance may be used by persons with reduced

physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.

29. Children shall not play with the appliance.

30. Close supervision is necessary when any appliance is

used by or near children.

31. Do not leave the appliance unattended while in use.

32. Do not use outdoors.

33. Do not use the appliance for other than intended use.

34. Please dispose of the appliance for its flammable

refrigerant and blowing gas according to local regulations.

35. WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear ofobstruction.

36. WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

37. WARNING: Do not damage the refrigerant circuit.

38. WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

39. Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

40. Warning: Risk of fire/flammable materials.

41. WARNING: When positioning the appliance, ensure

the supply cord is not trapped or damaged.

42. WARNING: Do not locate multiple portable socket-

outlets or portable power supplies at the rear of the appliance.

43. This appliance is intended for use in domestic and

similar applications such as - kitchen areas in shops, offices and other working environments - farmhouses - in hotels, motels and other residential environments - guest rooms.

44. Save these instructions.

45. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

46. Cleaning and maintenance should not be carried out

by children unless they are at least 8 years of age and aresupervised by an adult.

47. Keep the appliance and its power cord out of reach of

children under 8 years of age.

48. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

49. The device must not be used if it has been dropped,

it obvious signs of damage are visible or if it has leaks. Refrigerant : The refrigerant gas contained in the circuit of this appliance is isobutane (R 600a), a low-polluting but flammable gas. - When transporting and installing the appliance, take care not to damage any part of the refrigerant circuit. - Do not use any sharp or pointed tools to defrost the unit. - Do not use any electrical appliances inside the unit. If the refrigeration system is damaged: -Do not use a flame near the appliance. Avoid sparks - do not light any electrical appliance or electric lamp. Ventilate the room immediately.KNOW YOUR ICE MAKER CONTROL PANEL Key (with indicator) Function The indicator lights in green when select large ice. The indicator lights in green when select small ice. The indicator lights in green when the appliance needs to be cleaned. Start or stop the appliance Select the ice size The indicator lights in green when making ice. The indicator lights in red when the water reservoir is lack of water. The indicator lights in red when the ice basket is full.BEFORE FIRST USE

1. Unpack the appliance, then check and make sure that all the accessories including ice

basket and ice scoop etc. are complete. Please contact with the client service department if some accessories are missed.

2. Please ensure the ice maker is level and on a stable table or platform to avoid

3. The incline angle of the ice maker cabinet should not exceed 45°during transportation or

use. Do not turn the ice maker upside down. Doing so could cause the compressor or refrigerating system to operate incorrectly. Please allow time for the fluids in the compressor to settle after the ice maker is moved or transported. Before using the ice maker for the first time, please wait for 2 hours after the unit has been leveled and positioned in the proper place.

4. The appliance must be placed on a dry and level surface with sufficient ventilation, far

from heat sources such as ovens, heaters and corrosive gases. Leave an 8-inch (20cm) clearance on all sides of the ice maker for proper ventilation.

5. Do not fill the water reservoir with hot water. This may damage the ice maker. It is best to

fill the water reservoir with water of room temperature or lower.

6. Do not use the appliance at a very cold environment (lower than 5℃).

7. Clean the appliance by following the operation of “CLEANING AND MAINTENANCE”

1. Ensure that the drain plug at the bottom of water reservoir is closed well.

2. Plug the ice maker into the wall outlet, the “ ” indicator blinks.

NOTE: Please make the ice maker be rested for 30 minutes before plug if it has been moved.

3. Open the top lid and remove the ice basket.

4. WARNING: Fill the water reservoir with potable water only.

NOTE: Do not fill above the MAX water level mark.

5. Alternatively, you can operate the Ice Maker under the condition that it is supplied with

water continuously by following the operation as below: (1) Firstly prepare a 1/4 water tube (outer diameter:φ6.35mm) about 2m in length and then insert its one end into the water inlet of Ice Maker. (2) Check and make sure that the three-way ball valve equipped is compatible with the water tube and water faucet in your home. (3) After checking, connect the three-way ball valve with the tap water. (4) Connect the other end of the 1/4 water tube with the 1/4 tube connector of the three-way ball valve. (5) Check and make sure all the connection of water tubes are tightly connected and then open the three-way ball valve after confirmation.

6. Replace the ice basket and close the top lid.

7. Press “ ” key to select the ice size, “ ” means small ice while “ ” means large ice.

8. Press the “ ” key and the “ ”indicator lights solidly.

9. The ice-making cycle will last approximately 7-15 minutes, depending on the ambient

temperature and water temperature 10. The ice-making cycle starts with water being pumped into the ice tray situated below theevaporator. Over the next 7-15 minutes ice forms on the evaporator. Once this has completed, the ice tray will tilt backwards and the remaining water in the ice tray is drained back into the water reservoir. The ice cubes are then dropped from the evaporator and pushed forward into the ice basket by the ice shovel. The ice tray will automatically move back into position under the evaporator and start the next cycle.

11. The “ ” indicator will light up when the ice basket is full and then the ice maker will

stop the ice-making cycle automatically. Gently remove the ice from the ice basket with the ice scoop. About 5 seconds later, the ice maker will restart its ice making function automatically.

12. The “ ” indicator will light up when the water reservoir is lack of water and the

ice-making cycle will stop automatically. At that time, remove the ice basket and add water to the water reservoir, and then press “ ” key again to restart the ice-making cycle. And the “ ” indicator will not light up if the Ice Maker is operated under the condition that it is supplied with water continuously.

13. When you have got your desired amount of ice, stop the ice making cycle by pressing the

“ ” key and unplug the unit from the wall outlet.

14. Open the top lid and transfer the ice to a freezer.

NOTE: The ice will last in the ice maker for up to a 18 hour period, depending on the ambient temperature.

15. Allow the ice maker to wall up to room temperature.

16. Suggest replacing the water every a week. Please empty the water reservoir if the ice

maker is not used for a long time.CLEANING AND MAINTENANCE To keep your ice tasting fresh and your ice maker looking great, we recommend cleaning your ice maker at least once per week.

1. Stop the ice-making cycle by pressing the “ ”

key, unplug the ice maker from the wall outlet and allow it to warm up to room temperature.

2. If residual water is found in the ice tray, gently push

the ice tray back so that all water drains into the water reservoir.

3. Move the appliance forward to a place 60mm away

from the working table and open the drain plug to drain out excess water (see Fig.1, Fig.2 and Fig.3).

4. Check and make sure the drain plug must be closed

well. Fill the water reservoir with clean water, press “ ” until the ‘ ’ indicator flashes, then press the “ ” key , the pump will start to pump water and keep running for 6 minutes, and it will enter into standby condition after running for 6 minutes, finally, open the drain plug and empty the water.

5. Remove the ice basket.

6. Clean the ice maker interior with a soft cloth soaked

with warm water and vinegar, then rinse with clean water and then drain all the water.

7. Replace the drain plug well in position. Wash the ice

basket and ice scoop in warm soapy water. Rinse and dry.

8. Clean the exterior of the ice maker with a soft damp

cloth. Use a mild dishwashing soap, if necessary.NOTE: Do not use organic solvent, boiled water, detergent, strong acid and strong alkali etc. for cleaning.

9. Please empty the water reservoir and dry it for

storage if the ice maker is not used for a long time. Fig.1 Fig.2 Fig.3 TROUBLESHOOTING Problem Possible causes Solution indicator turns on

1. Low water level or lack of water

2. The water screen at the bottom

of water reservoir is blocked.

3. Pump malfunction.

4. The water inlet of Ice Maker is

not connected with external water source, or the external water source is closed.

1. Stop making ice, refill water and then press key to

restart ice-making cycle.

3. Send it to the authorized department for repair.

4. Check and make sure the external water source is

connected well or opened. indicator lights up

1. Ice basket is full and the infrared

light is blocked by the ice.

2. Infrared light-emitting diode &

light-receiving diode do not work

1. Remove the ice from ice basket.

2a. Wipe up the foreign objects on the infrared light-emitting diode & light-receiving diode and restart the ice maker. 2b. Call Customer Service if the infrared light-emitting diode & light-receiving diode still can not work after wiping up the foreign objects on them and restarting the ice maker.indicator blinks The ice shovel is blocked. Please remove the ice if the ice shovel is blocked by ice, otherwise, call customer service for consultation. The ice maker stops working. The ice tray is not in the right position.

1. Remove the ice in the ice tray and press the

“ ” key to restart the appliance.

2. Call Customer Service if the appliance still can

not work after restart. The ice basket is full but the

indicator does not illuminate. The “ice full” condition can not be detected as the infrared light module is interfered by the sunlight. Unplug the appliance and move it to a place which is not exposed to the sunlight, then plug the appliance and activate it again. The ice collects together. Making ice takes too much time. Stop making ice and restart the ice-making cycle after the ice melts. The water in the water reservoir is of too low temperature. Fill the water reservoir with water ranges between 8℃ and 25℃. The ice-making cycle seems normal but no ice is produced. The ambient temperature or water temperature is too high. Start the ice-making cycle at a environment with an ambient temperature less than 32°C and fill the water reservoir with some cold water. Refrigerating system leaks Call customer service Refrigerating system blocks Call customer service Poor ice-making result

1. Poor heat dissipation.

2. The water temperature is too

3. The ambient temperature is too

1. Leave an 8-inch (20cm) clearance on all sides

of the ice maker for proper ventilation.

2. Fill the water reservoir with water ranges

1. Operate the ice maker at a environment with

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross. Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - https://en.hkoenig.com - Tél: [phone]FRANÇAIS
