Product type	Backpack with integrated back protector
Brand	EVOC
Model	Trail Pro
Volume	20 L (estimated)
Areas of use	Cycling, mountain biking, snowboarding, skiing (no motorized sports)
Back protector	Certified EN 1621-2-2014, levels 1 and 2
Operating temperature	-20°C to +40°C
Carrying system	Adjustable shoulder straps, adjustable height chest strap, adjustable flexible hip belt
Buckles	Chest strap buckle, hip belt buckle
Available sizes	L/XL (torso 41-48 cm, height 155-180 cm) and (torso 48-53 cm, height 180-200 cm)
Care	Manual cleaning with fresh water max 30°C, mild soap, air drying, no machine
Storage	Cool, dry, dark place, protected from UV and moisture
Recommended service life	5 years from date of purchase
Spare parts	Buckles and parts available from EVOC dealers
Manufacturer	EVOC Sports GmbH, Munich, Germany
Back protector manufacturer	SAS-TEC GmbH, Markgröningen, Germany
Notified body	TÜV Süd, Munich (No. 0123)
PPE standard	EU Regulation 2016/425, category 2

Frequently Asked Questions - Trail Pro EVOC

What is the area of use of the EVOC Trail Pro backpack?

The backpack is exclusively designed for cycling, mountain biking, snowboarding, and skiing. It is not suitable for motorized sports such as motorcycling or ATV.

How to correctly adjust the backpack for optimal protection?

First loosen the shoulder straps, chest strap, and hip belt. Put on the backpack, position the hip belt snugly against the ischium, close it, and tighten. Adjust the shoulder straps so that the back protector is centered vertically and horizontally. Finally, close the chest strap above the chest and tighten so the backpack hugs the back.

What are the care instructions for the backpack?

Clean the backpack manually with fresh water at max 30°C using mild soap. Do not machine wash. Air dry away from heat sources. Store it dry in a cool, dry, dark place.

What is the service life of the backpack and when should it be replaced?

The recommended service life is 5 years from the date of purchase. After a major impact or if in doubt about the integrity of the protection, replace it immediately.

What to do after a fall or impact?

After a fall, carefully check the condition of the back protector, seams, shoulder straps, and buckles. If you notice any damage or doubt, do not use the backpack and contact EVOC Sports GmbH ([e-mail]). The back protector can be replaced.

What objects should not be carried in the backpack?

Do not carry sharp or cutting objects without protection, nor gas bottles, flammable liquids or corrosives. Hard objects must be packed and oriented away from the body.

Is the back protector removable for cleaning?

No, the back protector must not be removed from the backpack for cleaning. The care instructions are the same as for the backpack: manual washing at max 30°C.

What safety standard does the back protector comply with?

The back protector is certified according to EN 1621-2-2014 (levels 1 and 2). It is classified as personal protective equipment (PPE) category 2 according to EU regulation 2016/425.

Can I use this backpack for motorcycling or other motorized sports?

No, the EVOC Trail Pro backpack is excluded for motorized sports (motorcycling, snowmobiling, ATV). It is designed only for cycling, mountain biking, snowboarding, and skiing.

How to choose the right backpack size?

Measure your torso length (from the base of the neck to the waist). The size chart indicates: for a torso of 41 to 48 cm (height 155-180 cm) choose size L/XL; for a torso of 48 to 53 cm (height 180-200 cm) choose the larger size.

USER MANUAL Trail Pro EVOC

Anatomical line drawing of a human head and neck region, showing vertebral alignment and spinal cord (no text or labels)

TUV SOD GS pearlite dichwelt

TRAIL PRO 10 / 16 / 26 INSTRUCTION MANUAL

CE

Materials and protective function have been tested and certified according to the regulation EU 2016/425 for personal protective equipment (PPE), category 2.

English 04

Deutsch 13

Español 22

Français 31

Italiano 40

Svenska 49

Norsk 58

Russkiy 67

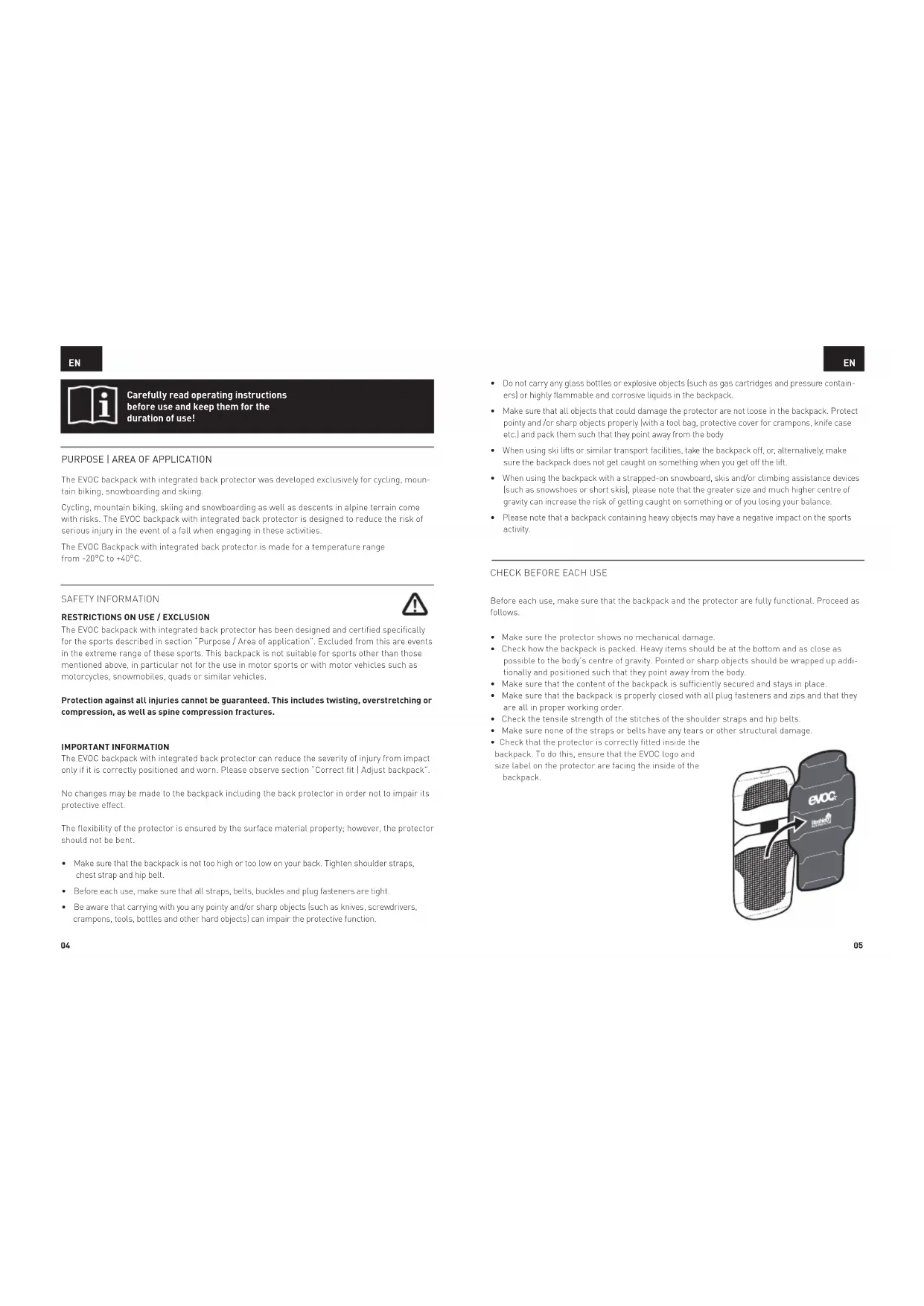

EN

Carefully read operating instructions before use and keep them for the duration of use!

PURPOSE | AREA OF APPLICATION

The EVOC backpack with integrated back protector was developed exclusively for cycling, mountain biking, snowboarding and skiing.

Cycling, mountain biking, skiing and snowboarding as well as descants in alpine terrain come with risks. The EVOC backpack with integrated back protector is designed to reduce the risk of serious injury in the event of a fall when engaging in these activities.

The EVOC Backpack with integrated back protector is made for a temperature range from -20°C to +40°C.

SAFETY INFORMATION

RESTRICTIONS ON USE / EXCLUSION

The EVOC backpack with integrated back protector has been designed and certified specifically for the sports described in section "Purpose / Area of application". Excluded from this are events in the extreme range of these sports. This backpack is not suitable for sports other than those mentioned above, in particular not for the use in motor sports or with motor vehicles such as motorcycles, snowmobiles, quads or similar vehicles.

Protection against all injuries cannot be guaranteed. This includes twisting, overstretching or compression, as well as spine compression fractures.

IMPORTANT INFORMATION

The EVOC backpack with integrated back protector can reduce the severity of injury from impact only if it is correctly positioned and worn. Please observe section "Correct fit | Adjust backpack".

No changes may be made to the backpack including the back protector in order not to impair its protective effect.

The flexibility of the protector is ensured by the surface material property; however, the protector should not be bent.

• Make sure that the backpack is not too high or too low on your back. Tighten shoulder straps, chest strap and hip bell.
• Before each use, make sure that all straps, belts, buckles and plug fasteners are tight.

• Be aware that carrying with you any pointy and/or sharp objects (such as knives, screwdrivers, crampons, tools, bottles and other hard objects) can impair the protective function.

• Do not carry any glass bottles or explosive objects (such as gas cartridges and pressure containers) or highly flammable and corrosive liquids in the backpack.

• Make sure that all objects that could damage the protector are not loose in the backpack. Protect pointy and/or sharp objects properly (with a tool bag, protective cover for crampons, knife case etc.) and pack them such that they point away from the body
• When using ski lifts or similar transport facilities, take the backpack off, or, alternatively, make sure the backpack does not get caught on something when you get off the lift.
• When using the backpack with a strapped on snowboard, skis and/or climbing assistance devices (such as snowshoes or short skis), please note that the greater size and much higher centre of gravity can increase the risk of getting caught on something or of you losing your balance.
• Please note that a backpack containing heavy objects may have a negative impact on the sports activity.

CHECK BEFORE EACH USE

Before each use, make sure that the backpack and the protector are fully functional. Proceed as follows.

• Make sure the protector shows no mechanical damage.
- Check how the backpack is packed. Heavy items should be at the bottom and as close as possible to the body's centre of gravity. Pointed or sharp objects should be wrapped up additionally and positioned such that they point away from the body.
• Make sure that the content of the backpack is sufficiently secured and stays in place.
- Make sure that the backpack is properly closed with all plug fasteners and zips and that they are all in proper working order.
- Check the tensile strength of the stitches of the shoulder straps and hip belts.
• Make sure none of the straps or belts have any tears or other structural damage.

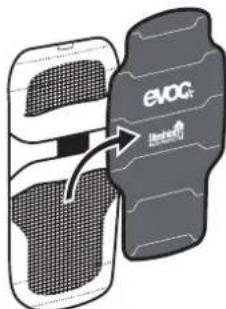

- Check that the protector is correctly fitted inside the
backpack. To do this, ensure that the FVOC logo and size label on the protector are facing the inside of the backpack.

eVOC Internet

EN

CHECK AFTER EACH FALL OR IMPACT

After each impact or fall, make sure that the backpack and the protector are fully functional. Pay particular attention to ensure there is no mechanical damage to the protector, the straps and belt, the seams and the plug fasteners. If in doubt, stop using the backpack and contact EVOC Sports GmbH immediately. EVOC Sports GmbH can replace the protector after a fall.

Contact: servicedevocsports.com evocsports.com/de/service/garantie

CARE AND STORAGE

• Clean the backpack by hand with fresh water no hotter than 30°C.
• The care instructions are the same for protector and backpack. The protector must not be removed from the backpack for cleaning.
• Only use gentle detergents (natural soap).
• Leave the backpack to air dry.
• Do not dry it mechanically or use mechanical heat sources.
• Please note that machine washing voids all warranty claims.
  • Store the dry backpack in a cool, dry and dark place.
• Do not expose the backpack to UV radiation or moisture in the place of storage.
• Keep the backpack away from caustic or aggressive agents
• Do not bend the protector and/or store it under load.

DISPOSAL

The backpack does not contain any hazardous or harmful substances. However, it is made from various plastic composite materials which cannot be separated. Dispose of the backpack in accordance with local regulations.

INFORMATION ON SERVICE LIFE | SPARE PARTS

Improper care, incorrect use or environmental influences have an effect on wear and tear and thus on service life. Prolonged exposure to UV light, extreme temperatures or chemical contamination have a particularly negative effect. It can have adverse effects on material quality, and the functionality of the plug fasteners and hook and loop fasteners. Replace the backpack after 5 years of service life from the date of purchase to guarantee its continued functionality. The date of manufacture of the protector can be found on the back of the protector.

Plug fasteners and other spare parts are available from the sales partners in your country on request.

evocsports.com/de/shopsuche/distributoren

LIABILITY

EVOC Sports GmbH is not liable for damages, injuries or death caused by improper use, repairs by unauthorised persons or the use of non-original spare parts. EVOC Sports GmbH is not responsible for any direct, indirect or accidental consequences or any other type of damage that occurs during the use of its products or that result from their use.

LABELLING

Manufacturer TRAIL PRO

EVOC SPORTS GMBH

Tegernseer Landstrasse 37A

81543 Munich

Germany

Manufacturer of Liteshield Plus Back

Protector

SAS-TEC GmbH

Volmarstraße 5

71706 Markgröningen

Germany

Testing institute

TÜV Süd

Ridlerstraße 65

80339 Munich

Germany

Notified Body: 0123

Test program: PPP 63046C:2014

Materials and protective function of the TRAIL PRO were tested and certified according to EU Regulation 2016/425 for personal protective equipment (PSA), category 2. Declaration of conformity to download: www.evocsports.com.

EN

RESULT OF IMPACT DAMPING

Average measurement results of the impact damping test for the four different conditionings including classification according to Level 1 and Level 2.

Level 1: no single value exceeds 24kN and is on average less than 18kN

Level 2: no single value exceeds 12kN and is on average less than 9kN

IMPACT DAMPING VALUES
BACK	T+ T-		ENVIRONMENT	MOISTURE
LEVEL 1
LEVEL 2	XXX

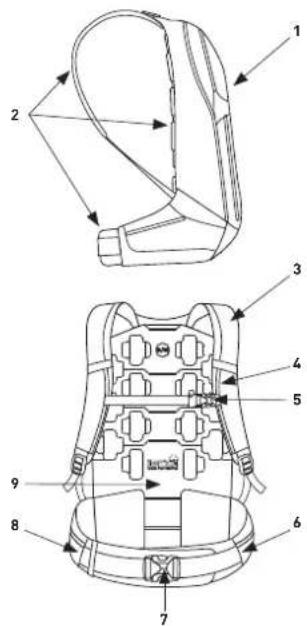

ASSEMBLY | COMPONENTS

1 | Backpack volume
2 | Carrier system - back section incl. protector
3 | Shoulder strap adjustable
4 | Height adjustable chest strap
5 | Chest strap plug fastener
6 Flexible hip belt
7 | Hip bell plug fastener
8 | Hip belt strap - adjustable
9 Lileshield plus back protector (internal)

Technical diagram of a helmet with numbered parts for identification and assembly reference.

CORRECT FIT | ADJUST BACKPACK

The back protector only provides protection of the areas covered by it in accordance with the EN 1621-2:2014 standard. This protection is only guaranteed when the EVOC backpack with integrated back protector is in the right and intended position.

Put on the backpack with shoulder strap, chest strap and hip belt loosened. Place the height-adjustable and flexible hip belt on the hip bone and close the hook and loop fastener. For height adjustment, see Figure 2. Now close the hip belt plug fastener and pull the hip belt until it fits snugly.

Tighten the shoulder straps, making sure that you tighten the backpack only until the padded back section lies vertically and horizontally centred against the back. The hip belt must not move up from the hip.

Adjust the height-adjustable chest strap such that it is above the chest. Close the plug fastener of the chest strap and tighten it such that the backpack fits as tightly and snugly as possible on the back. Make sure that straps and belts with buckles and plug fasteners are closed and fit tightly to avoid getting caught on something!

1

Line drawing of a person wearing a full-body harness and belt (no text or symbols)

2

Line drawing of a person wearing a full-body safety harness (no text or symbols)

3

Line drawing of a person wearing a full-body belt with a belt adjusting the chest (no text or symbols)

EN

LABELLING

The EVOC backpack with integrated back protector was developed exclusively for cycling, mountain biking, snowboarding and skiing.

The EVOC backpack with integrated back protector is made for a temperature range from 20°C to +40° and designed as a full-back protector according to EN 1621-2:2014.

CHOOSING THE RIGHT SIZE

The size of the EVOC backpack with integrated back protector must be chosen based on torso length and body size in order to be able to fulfil its protective function. Please consult the size chart on the following page. The height information serves only as an additional reference.

S/M

Torso length Torso length

41 cm - 48 cm

Body size Body size

155 cm - 180 cm

EVOC size

L/XL

Torso length Torso length 48 cm - 53 cm

Body size Body size 180 cm - 200 cm

EVOC size

EVOC Sports GmbH will not be held liable for any damage that results or has resulted from using a backpack of the wrong size.

EXPLANATION OF PICTOGRAPHS AND SYMBOLS

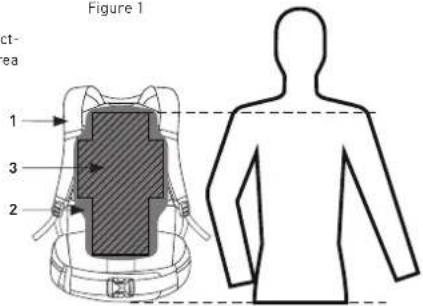

Figure 1

Dimensions and location of the protected zone in relation to the coverage area of the entire product.

1 | Backpack
2 | Back protector
3 | Minimum protected zone

Figure 1

Figure 1 act- ea 1 3 2

Figure 2

Minimum dimensions of the protected zones

Table 1

Dimensions of the minimum protected zone for back protectors

Dimensions in Figure 2
A	B	C	D
72%	29%	44%	29%
PLEASE NOTE: All dimensions refer to the waist-shoulder distance (100%) of the largest user

D B D = D A - - D C

EN

EXPLANATION OF PICTOGRAPHS AND SYMBOLS

1 | Torso length, size range to select (the right protector (distance from waist to shoulder))
2 | Prolector category and type: Total back area
3 | Impact test at low temperature (1-20°C) passed.
4.1 Impact test at high temperature (+40°C) passed
5 | Performance level of impact damping is fulfilled
6 | Test programme labelling
7 | Identification of test program

FB 2 T+ T- 5 4 3 7 2 1 PPP 63046C:2014 6 EU 2016/425

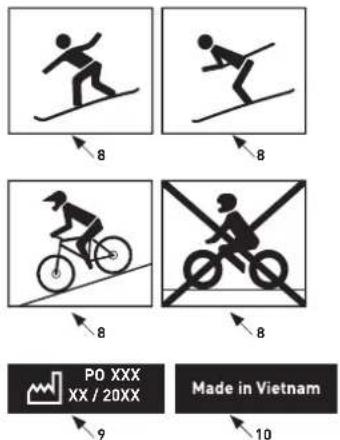

8 | PSA - personal protective equipment for skiing, snowboarding, mountain biking. Motorcyclists excluded. [ISO 7000-2618]
9 | Production number (PO#) and production date | 📋
10 | Country of manufacture

8 8 8 8 PO XXX XX / 20XX 9 Made in Vietnam 10
