TECHNICAL AND ENERGY CHARACTERISTICS

Brand: LE CHAIModels LB420X (42 bottles Max)Voltage/Frequency220-240V~ 50HzSize (L*W*H) (mm)525x632x825Weight39 kgDefrostingAutomaticClimate class N : This device is designed for use at ambient temperatures between 16°C and 32°C Installation typeFreestanding The product information fiche according to regulation 2019/2016 / EU is available via Wesite QR-code LB420X https //eprel.ec.europa/qr/365891 ModelEN-19

INTRODUCING THE WINE CABINET LB340 / LBN340

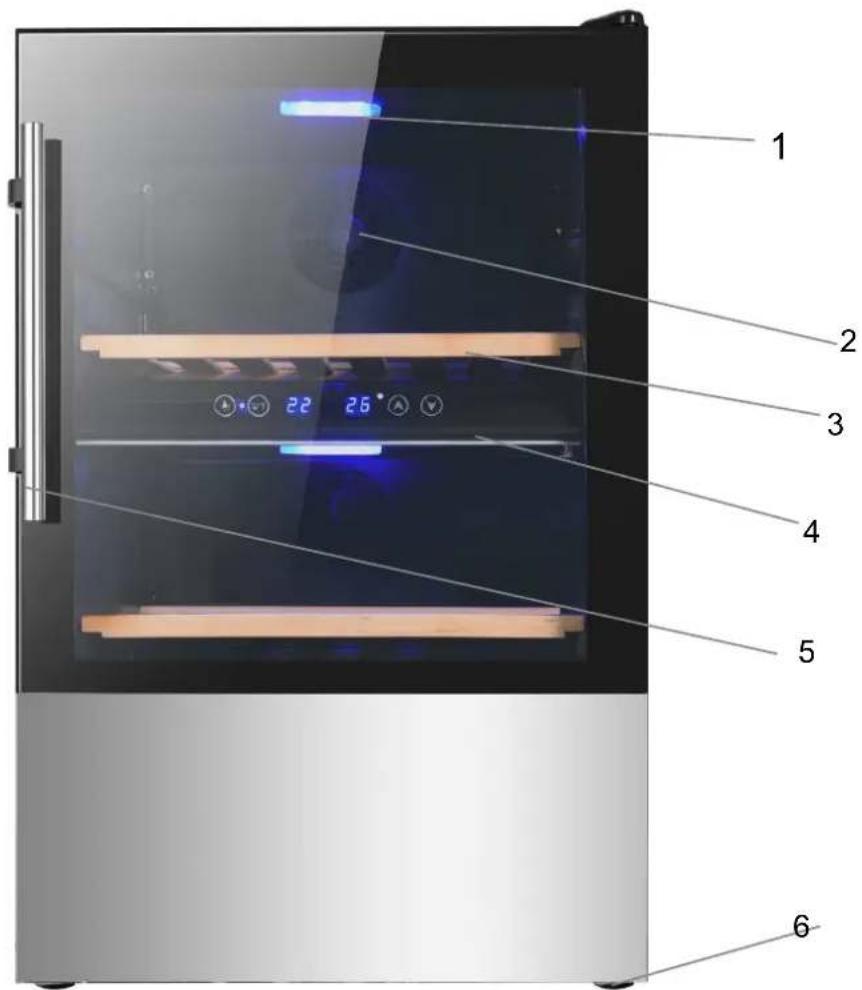

1 – Light 2 – Ventilation 3 –Shelves 4 – Control Panel 5 – Handle and glass door 6 – Adjustable feet

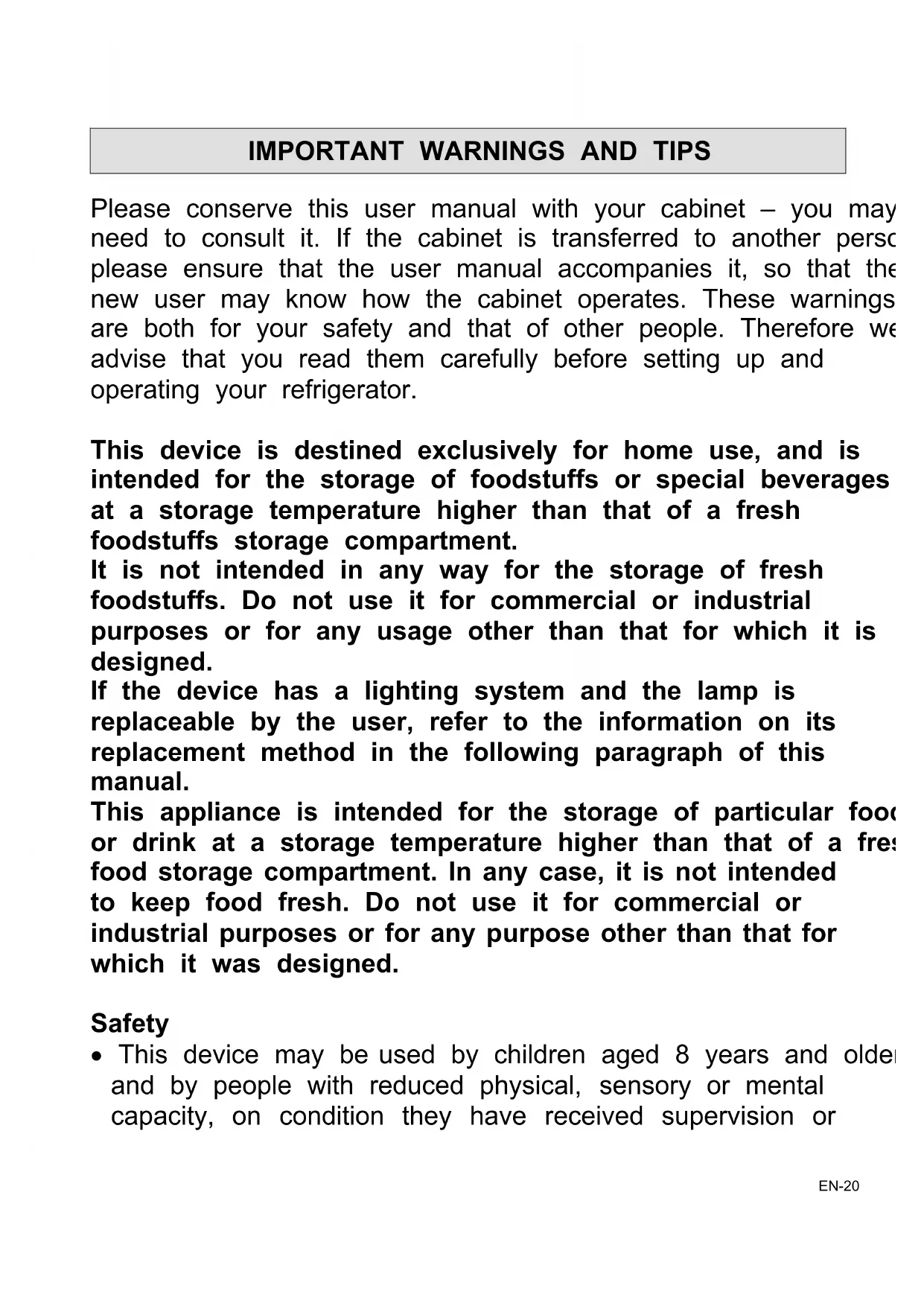

Please conserve this user manual with your cabinet – you may need to consult it. If the cabinet is transferred to another person, please ensure that the user manual accompanies it, so that the new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore we advise that you read them carefully before setting up and operating your refrigerator. This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment. It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it is designed. If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual. This appliance is intended for the storage of particular food or drink at a storage temperature higher than that of a fresh food storage compartment. In any case, it is not intended to keep food fresh. Do not use it for commercial or industrial purposes or for any purpose other than that for which it was designed. Safety This device may be used by children aged 8 years and older and by people with reduced physical, sensory or mental capacity, on condition they have received supervision orEN-21 instruction concerning use of the device in all safety, and that they understand the risks. Children should not be allowed to play with the device. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the illuminating lamp; before moving the device or before cleaning the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.

WARNING: Do not damage the refrigeration circuit.

WARNING: Do not use electrical equipment inside the

foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.

WARNING: Do not use mechanical tools or other means to

speed up defrosting, unless they are recommended by the manufacturer.

WARNING: Keep the cabinet's ventilation openings clear in

the enclosure or the built-in space around the cabinet.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged. Do not connect the device to a power supply without overload protection (protected by an electrical fuse). Never use power-strips or extension cords to connect the device to the mains. This device is not destined for use with an outside timer or remote control system or any device that switches it on automatically. Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas. After installing the cabinet, ensure that it is not resting on the power cord.EN-22 If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards. The device is heavy; be careful when moving it. If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it. In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains. Ensure that you put your cabinet in a place that can support its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg). Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support beneath it. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. This refrigeration appliance is not suitable for freezing foodstuffs. Servicing – repairs

• It is dangerous to modify or attempt to modify the characteristics of the device.

• If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.

• In the event of a breakdown, do not attempt to repair the appliance yourself. Repairs by unqualified personnel may cause damage.EN-23 Refrigerant Warning; Risk of fire / flammable materials. The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is flammable.

When transporting and installing the device, take care not to damage any part of the refrigerating circuit.

Do not use a pointed or sharp edged tool to defrost the device.

Do not use any electrical devices inside the cabinet. If the refrigerating circuit is damaged: Do not allow any open flame near the device. Avoid sparks – do not switch on any electrical appliances or lamps nearby. Immediately ventilate the room. Disposal This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way. For more information please contact your local or regional government. Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances. This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.

• It is dangerous to modify or attempt to modify the characteristics of the device.

• appliance yourself. Repairs by unqualified personnel may cause damage.

• Contact your dealer's Customer Care Service.

• In the event of a breakdown, do not attempt to repair the appliance yourself. Repairs by unqualified personnel may cause damage.

• In the event of a breakdown, contact your dealer's service department. The manufacturer offers a minimum warranty of 2 years from the date of purchase. The actual duration is stated on your purchase invoice. You can also find out how long the parts needed to repair the appliance are available from your dealer.EN-24

SETTING UP THE CABINET

Si cet appareil, muni d’une fermeture magnétique, est destiné à en remplacer un autre muni d’une fermeture à ressort, nous vous conseillons de rendre cette dernière inutilisable avant de le mettre au rebut. Cela évitera que des enfants puissent s’y enfermer et mettre ainsi leur vie en danger. If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. This will prevent children from locking themselves inside it and endangering their lives. Location Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation of the device, the ambient room temperature should be between +16°C and +38°C (class ST). Outside these limits, the device will not operate properly. – Ensure that air can circulate freely behind the device: do not place it too close to a wall, in order to avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption. THIS APPLIANCE IS NOT FOR BUILT-IN : leave at least 10 cm of space on each side, above and behind the unit. Failure to observe these instructions may result in malfunction and/or damage to the appliance, which cannot be covered by the warranty. – The device must be installed in such a way that the electric plug is accessible. After installing the cabinet, make sure that it is not resting on the power cord. – Level the device by using the 2 adjustable feet. Connecting the power supply Your cabinet is designed for operation with 230 V single-phase. It must be connected to a wall socket equipped with earthing and protected by a 10 A fuse in compliance with the standard NF C15-100 and in compliance with your electricity supplier's prescriptions. For better preservation and to avoid food waste To avoid spoilage of the wine, it is important that the temperature in the cellar remains stable, avoid frequent opening of the door and blocking of the interior vents. To avoid the appearance of mould, please avoid having too much humidity in the cellar.EN-25 SPECIFIC INFORMATION - We recommend that you install your wine cabinet in a temperate room. - If the inside light remains on, please note that the inside temperature will be higher. - Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained. - In order to keep your wines at a stable temperature, avoid leaving the door open for long periods. - Do not install your wine cabinet close to a heat source; avoid direct sunlight. - In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations. - Do not store perishable foodstuffs inside your wine cabinet. - The wine cabinet is not designed for use in a garage, outside, or in the open air. - The following (approximate) temperatures are recommended for wine drinking: o Great Bordeaux wines – Red 16 – 17°C o Great Burgundy wines – Red 15 – 16°C o Great vintages dry white wines 14 – 16°C o Red wines, fruity wines, young wines 11 – 12°C o Rosé wines from Provence, early-to-market wines o Dry white wines and local red wines o Local white wines o Champagnes o Liqueur wines 10 – 12°C 10 – 12°C 8 – 10°C 7 – 8°C 6°C - Temperature stability is of the greatest importance when storing wine. - Exposure to light, vibrations, temperature variations or humidity can spoil the wine. The cooling system According to specialists, the ideal temperature for wine storage is around 12°C, in the range of 10 to 14°C. Do not confuse with the operating temperature, which varies depending on the specificity of each type of wine from 5 to 18°C. It is especially important to avoid sudden temperature changes. Designed by specialists, for wine lovers, this device, unlike the single refrigerator, electronically ensures constant average temperature control. The anti-vibration system: The compressor is equipped with special shock (silent-blocks) and the inner tank is isolated from the body by a thick layer of polyurethane foam. These features can prevent the transmission of vibrations to the wines. The humidification system: This device is equipped with a tray (depending on model) which maintains the correct level of humidity. If the humidity is too low, fill the tank level to ¾ of its capacity. Check the water level time to time and add water if necessary. Make sure the tank always contains water. The tray is placed on the shelf under the fan at the bottom to provide a minimum humidity. Be careful to control the water level if you store your wines for a long time and you do not dedicate the unit to their implementation at operating temperature only (with rapid rotations of your bottles). The UV system: The light accelerates aging of your wines. In full doors cellars, the wines are naturally immune subject of course limited openings). This model glass door was subject of a particular treatment, which filters harmful ultraviolet rays; the wines are perfectly safe. Defrost: This product does not produce frost (No-Frost). There is no frost or ice; so, no operation is required to remove it.EN-26

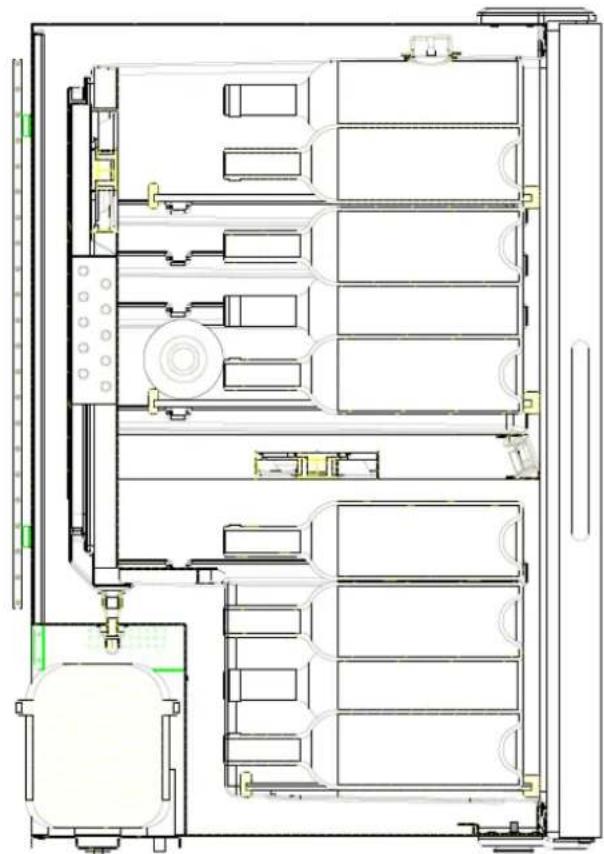

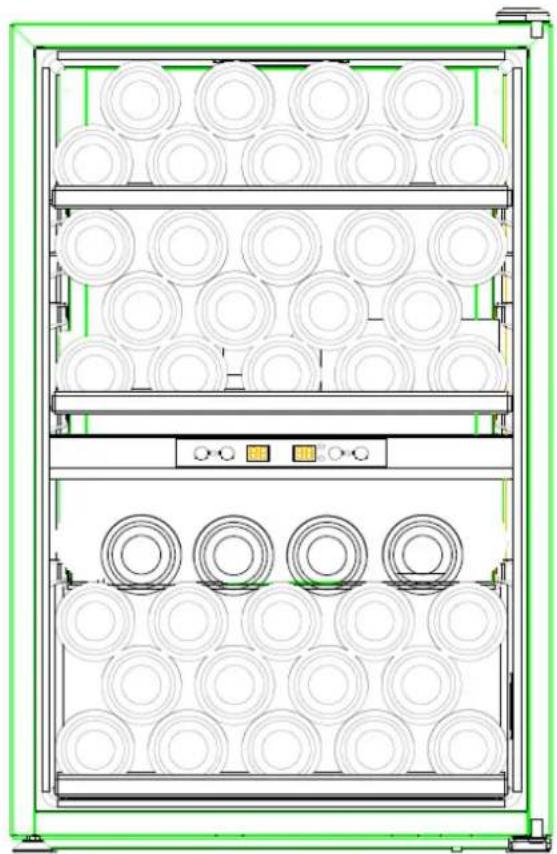

Shelves To remove or position the shelves, tilt the shelf as shown in the diagram and pull or push as appropriate. LOADING The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device. The information comes from tests carried out using standard bottles; in reality, in extreme conditions it would be possible to load a greater number of bottles without racks, but a "diverse wine cellar” is used in many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. Therefore you will probably load fewer bottles then the given maximum numbers. How to load and care for your wine cabinet: Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes. There are many other types, with various volumes and of all shapes. Note the different ways they are stored depending on the height and diameter of the bottles as well as the interleaving method used.Loading for Max capacities : 42 bottles max For better conservation and avoid food waste To avoid spoiling the wine, it is important that the temperature remains stable in the cavity, avoid frequently opening the door and blocking the interior vents. To avoid the appearance of mold, please avoid having too much humidity in the cavity. The maximum amount of storage is based on standard 0.75 litre bottles of Bordeaux.. EN-27EN-28 USAGE Starting up the device Once the wine cabinet is properly installed, we advise that you clean the inside using warm water with a low concentration of dish washing liquid. Do not use abrasives or scouring powder; they may scratch the surface finish. USAGE CAUTION! Wine cabinets are intended only for storing and preserving wine. IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L capacity. It can contain larger bottles; however care must be taken that they do not prevent the door from closing properly. - When closing the door ensure that it does not touch any of the bottles. - If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature. - In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails. Adjusting the temperature Control panel

2. Compressor operation indicator

3. Temperature unit change

4. Upper zone temperature

7. Knob to adjust the temperature of the upper

8. Resistor operation indicator

9. knob to adjust the temperature of the lower

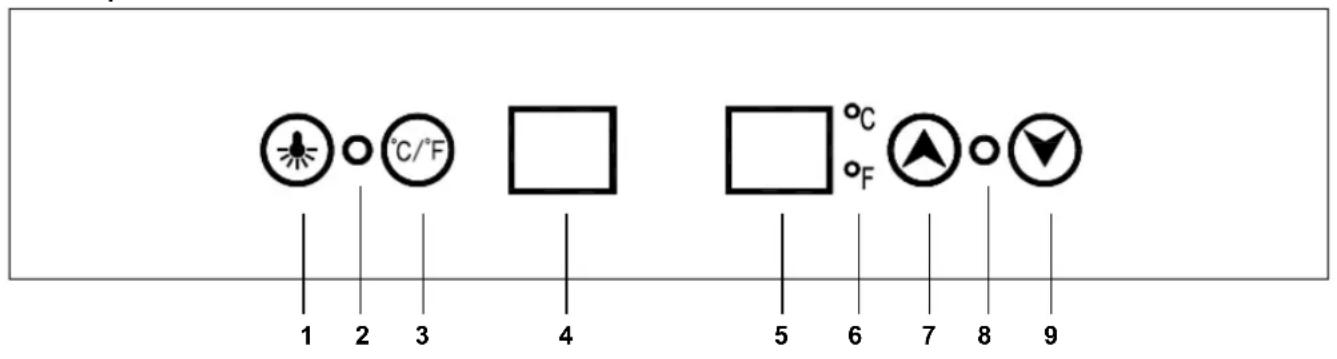

zone To switch the wine cellar on or off, press buttons 7 and 9 simultaneously. To change the temperature unit, press button 3 for a few seconds. The corresponding light 6 will indicate the selected temperature unit (°C or °F). To switch the interior light on or off, press button 1 The light (LED) is suitable for storing wine. However, it is advisable to turn the light off during normal use. It is possible to adjust the temperature degree by degree; the temperature is set with the or located to the right of the temperature indicator. Each press of the increments by one degree. Similarly, each press of the Decreases by one degree. To obtain a lower temperature than that indicated, press repeatedly until the display shows the desired temperature.EN-29 After selecting the temperature, the display will flash for 5 seconds, and will show the set temperature. NOTE: The default temperature is 12°C. NOTE: The temperature range for this wine cellar is 5°C to 22°C. To avoid excessive condensation when the room temperature is above 28°C, do not set the temperature below 7°C. Control lock : The unit will automatically lock the controls after 1 minute of inactivity. The buttons will then be inoperative. To unlock the control panel, press and hold the . The buttons will then be operational. NOTE: The display shows the temperature inside the cellar. When you increase or decrease this temperature, the display will show the desired temperature. After a few moments, the display will show the temperature in the cellar again. NOTE: When the wine cellar is used for the first time or after a long period of inactivity, the temperature inside the cellar will not immediately be the same as the temperature displayed on the indicator; in fact, it is necessary to wait a few hours for the wine cellar to reach an even temperature. To avoid excessive condensation when the ambient temperature is above 28°C, do not lower the temperature below 7°C IMPORTANT: after unplugging or switching off the appliance or after a power cut, it is imperative to wait 10 minutes before switching it on again. Otherwise, the wine cellar may not switch on or will not function properly.EN-30

CARE OF YOUR CABINET

DEFROSTING The defrosting of your wine cellar is fully automatic and takes place whenever the compressor stops. You do not need to do anything. During operation, condensation or ice drops may appear on the rear wall. These will be removed during the automatic defrosting. The water produced will flow out through the drain hole and be collected in the tray located on the compressor from where it will evaporate. Important: Keep the drain hole and gutter clean to avoid clogging and water flowing into the cabinet. CLEANING Before any cleaning, unplug the device from the mains. Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet.

Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dish washing liquid for example); rinse with bleach water and carefully dry off. Wash the inside walls in the same way; pay particular attention to the rack supports Wash the door seal as well as under the seal.

Plug the wine cabinet into the mains. From time to time, dust off the condenser behind the device; accumulated dust may reduce the efficiency of your wine cabinet. In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.

CHANGING DOOR OPENING SIDE

Due to its construction it is not possible to change the opening direction of the door.

REPLACING THE ILLUMINATING LAMP

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair. -This product contains a light source of energy efficiency class 'F'. - The light source of this product may only be replaced by qualified personnel.EN-31 TROUBLESHOOTING You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below. PROBLEM POSSIBLE CAUSE No operation

Check your installation's power supply Check your circuit breaker A fuse has blown Not cold enough

Check the setting temperatureAmbient temperature requires readjustmentof the temperatures The door is open too often The door is not closed properly The door seal is not air-tight There is not enough space around thedevice No interior lightNo display on the LCD screen

Contact your Customer Care Service There appears to be a loud noise

Check the device levelling Verify that a piece of paper or part of thepackaging has not remained stuck in thedevice. The door does not close properly Check the device levelling The seal is in poor repair The feet have "moved" The light (LED) does not come on The control panel is not working Printed circuit problem Mains plug problem Contact your Customer Care Service LED display error Poor display The temperature value is not shown Contact your Customer Care Service The fans are not working Control Panel to be replaced by yourCustomer Care Service GUARANTEE Repairs and spare parts available The manufacturer's guarantee is applicable to cet appareil pendant for a period of 2 years. In case of dysfunctional pendant cette période, toute demande de Prize en Charge doit être faite auprès du service après-vente de votre reseller. Outside the warranty period, all information concerning a request for repair or the order of replacement parts of origin, to obtain it in contact with the seller. In accordance with the regulations on the eco-conception, the replacement parts will be available for 7 years after the date of arrival of your appareil. The list of replacement parts and the ordering procedure are available on the manufacturer's web sites. In case of need, please contact your reseller. Imported by SIDEME SA / BP200 – 92306 Levallois-Perret cedex – FranceINSTRUCCIONES DE USO
