USER MANUAL PRO1880BC LE CHAI

Introducing the wine cabinet Page 17 Important warnings and tips Page 18 Setting up the cabinet Specific information Page 21 Page 22 Usage Page 24 Care of your cabinet Page 25 Changing door opening side Page 26 Troubleshooting Page 26 Terms of Warranty & After-Sales Service Page 27

Brand: CAVISS Household refrigeration device class: 2 Model PRO1990MC (199 bottles) Model PRO1880BC (188 bottles) Foodstuffs 220 V-240V / 50 Hz 220 V-240V / 50 Hz Size (L*W*H) (mm) 595x690x1730 Weight 74 kg 76 kg Energy efficiency class Class C Yearly energy consumption (AEc) * 255 kWh/yr 285 kWh/yr Utilisation compartment volume 428 L 418 L Defrosting Without frost Without frost Climate class N-ST: This device is designed for use at ambient temperatures between 16°C and 38 °C Acoustic emissions into air 42 dB(A) re 1pW 43 dB(A) re 1pW Installation type Free standing Free standing

• Consumption calculated on the basis of 24 hours usage under standardised test conditions. Real energy consumption depends on usage conditions and where the cabinet is located.

The cabinet is exclusively designed for storing wine.

Real energy consumption depends on installation and usage conditions.

This device complies with European Directive requirements: 2014/35/UE pertaining to electrical safety 2014/30/UE pertaining to electromagnetic compatibility17

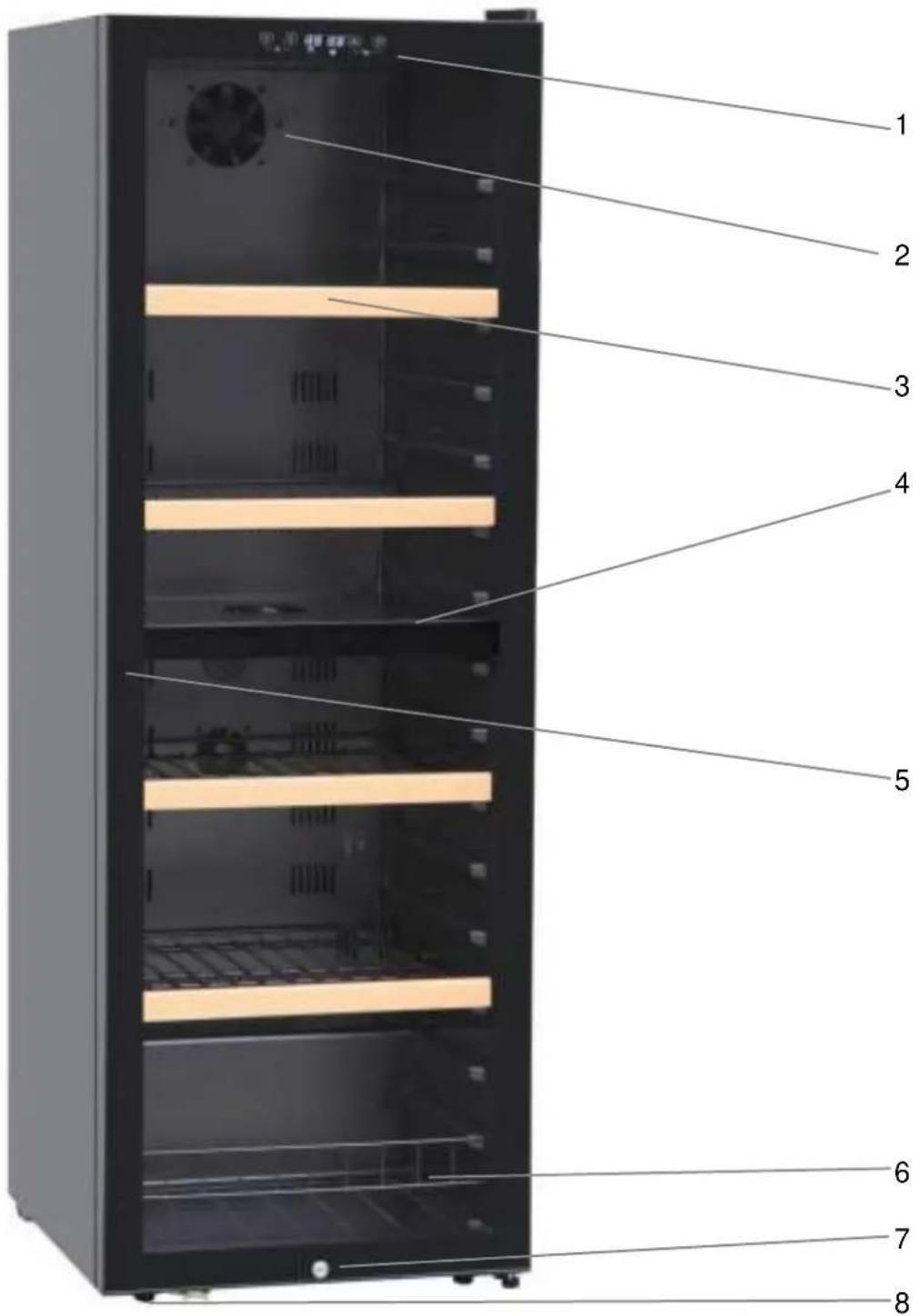

Control Panel 2 – Inside ventilation 3 – Racks 4 – Space separator (PRO1880B only) 5 – Handle 6 – Presentation support 7 – Lock 8 – Adjustable feet

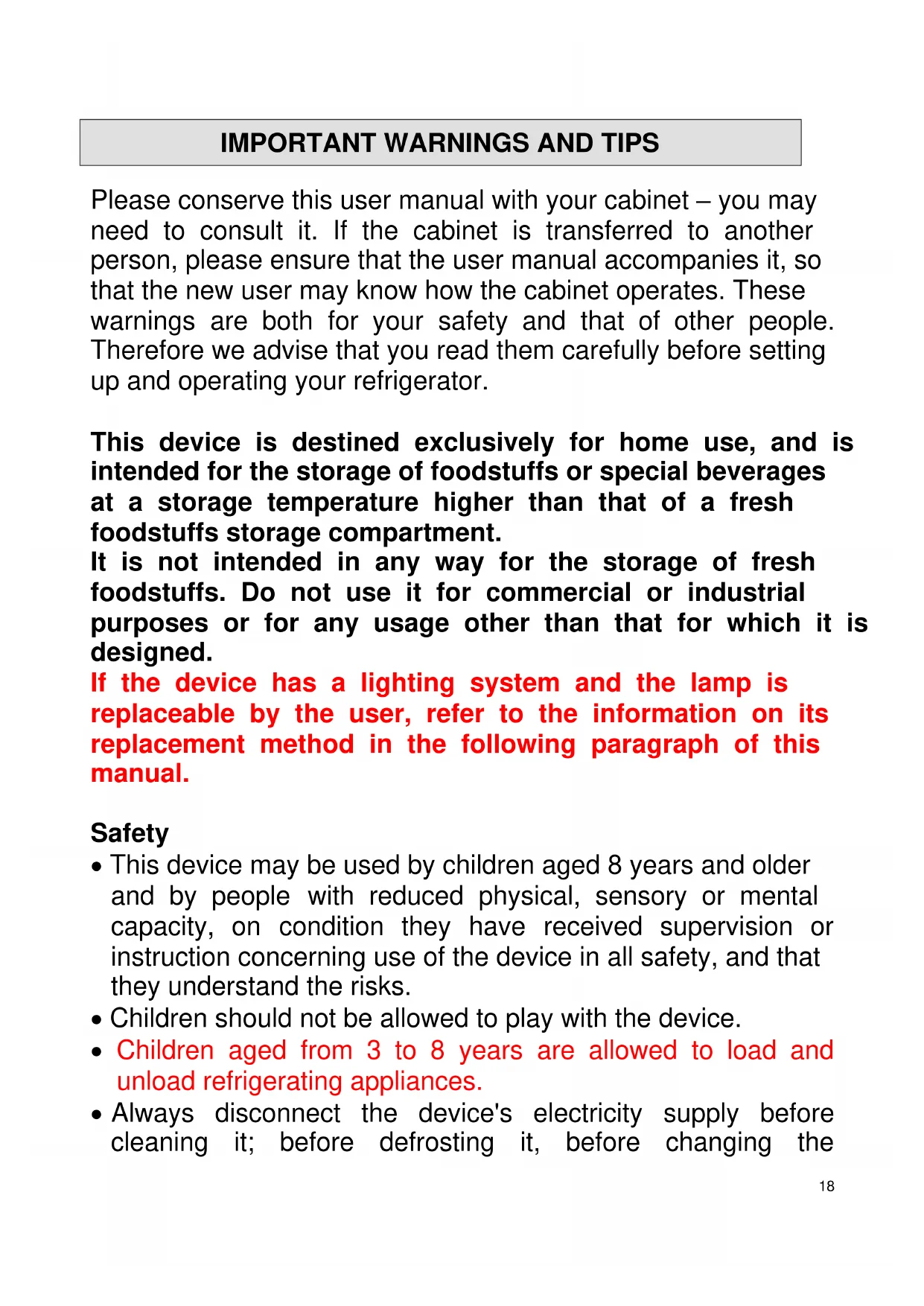

Please conserve this user manual with your cabinet – you may need to consult it. If the cabinet is transferred to another person, please ensure that the user manual accompanies it, so that the new user may know how the cabinet operates. These warnings are both for your safety and that of other people. Therefore we advise that you read them carefully before setting up and operating your refrigerator. This device is destined exclusively for home use, and is intended for the storage of foodstuffs or special beverages at a storage temperature higher than that of a fresh foodstuffs storage compartment. It is not intended in any way for the storage of fresh foodstuffs. Do not use it for commercial or industrial purposes or for any usage other than that for which it is designed. If the device has a lighting system and the lamp is replaceable by the user, refer to the information on its replacement method in the following paragraph of this manual. Safety This device may be used by children aged 8 years and older and by people with reduced physical, sensory or mental capacity, on condition they have received supervision or instruction concerning use of the device in all safety, and that they understand the risks. Children should not be allowed to play with the device. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Always disconnect the device's electricity supply before cleaning it; before defrosting it, before changing the19 illuminating lamp; before moving the device or before cleaning the floor underneath it. Cleaning and care by the user should not be done by children unless under supervision.

WARNING: Do not damage the refrigeration circuit.

WARNING: Do not use electrical equipment inside the

foodstuffs storage compartment, unless it is of a type recommended by the manufacturer.

WARNING: Do not use mechanical tools or other means to

speed up defrosting, unless they are recommended by the manufacturer.

WARNING: Keep the cabinet's ventilation openings clear in

the enclosure or the built-in space around the cabinet.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged. Do not connect the device to a power supply without overload protection (protected by an electrical fuse). Never use power-strips or extension cords to connect the device to the mains. This device is not destined for use with an outside timer or remote control system or any device that switches it on automatically. Do not use the device to store explosive substances such as aerosols that contain flammable propulsion gas. After installing the cabinet, ensure that it is not resting on the power cord. If the power cord is damaged, it must be replaced by the manufacturer, by customer care service, or by similarly qualified personnel in order to prevent electrical hazards. The device is heavy; be careful when moving it. If your cabinet was laid down in a horizontal position during transportation, wait 48 hours before operating it.20 In the event of accidental liquid spillage (broken bottles or other) on electrical components (motor or other), immediately unplug the device from the mains. Ensure that you put your cabinet in a place that can support its weight when loaded (1 bottle containing 75 cl weighs approximately 1.3 kg). Your cabinet must be placed on a level surface. If you have placed it on a rug or on carpeting, insert a support beneath it.

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Servicing – repairs It is dangerous to modify or attempt to modify the characteristics of the device. If it breaks down, do not try to repair the device yourself. Repairs made by unqualified personnel can cause damage. Contact your dealer's Customer Care Service.21 Refrigerant Warning; Risk of fire / flammable materials. The refrigerant gas contained in this device is isobutane (R 600a), it is low-polluting but is flammable. - When transporting and installing the device, take care not to damage any part of the refrigerating circuit. - Do not use a pointed or sharp edged tool to defrost the device. - Do not use any electrical devices inside the cabinet. If the refrigerating circuit is damaged: Do not allow any open flame near the device. Avoid sparks – do not switch on any electrical appliances or lamps nearby. Immediately ventilate the room.

Disposal This device carries the selective waste sorting symbol for electrical and electronic equipment disposal. This means that the product must be picked up by a selective collection system in compliance with European Directive 2012/19 EU so that it will either be recycled or dismantled in an environment-friendly way. For more information please contact your local or regional government. Electronic products that are not properly and selectively recycled are potentially dangerous for the environment and for human health because they contain dangerous substances. This device contains flammable foaming agents. When the refrigerator reaches the end of its life cycle, it must be disposed of in a suitable place, where refrigerators can be recycled. For this purpose please contact your town hall or municipality. Under no circumstances must the refrigerator be disposed of in public areas.22

If this device, which uses magnetic door closing, replaces a device equipped with a spring closing system, we advise you to destroy the spring closing system before disposing of the old device. This will prevent children from locking themselves inside it and endangering their lives. Location Place your cabinet well away from heat sources (heater, cooker, direct sunlight). For proper operation of the device, the ambient room temperature should be between +16°C and +38°C (class N-ST). Outside these limits, the device will not operate properly. – Ensure that air can circulate freely behind the device: do not place it too close to a wall, in order to avoid noise from vibration. Ensure that air can circulate freely all around the device. Insufficient ventilation will lead to poor operation and increased energy consumption. Leave at least 2 cm between the walls and the wine cabinet and 3 cm minimum between the rear of the wine cabinet and the wall. Leave at least 10 cm free space above the device. – The device must be installed in such a way that the electric plug is accessible. After installing the cabinet, make sure that it is not resting on the power cord. – Level the device by using the 2 adjustable feet.

Connecting the power supply Your cabinet is designed for operation with 230 V single-phase. It must be connected to a wall socket equipped with earthing and protected by a 10 A fuse in compliance with the local standard and in compliance with your electricity supplier's prescriptions. Important Note: During installation of the handle on the glass door, it is mandatory to use the specific gaskets supplied and screw without forcing. Failure to comply with these requirements may result in breakage of the glass and will not be supported by the manufacturer's warranty.23

- We recommend that you install your wine cabinet in a temperate room. - If the inside light remains on, please note that the inside temperature will be higher. - Temperature inside the wine cabinet may vary depending on the type and the number of bottles contained. - In order to keep your wines at a stable temperature, avoid leaving the door open for long periods. - Do not install your wine cabinet close to a heat source; avoid direct sunlight. - In order to guarantee your safety, and to prevent your wine being spoilt, do not place the cabinet in humid locations. - Do not store perishable foodstuffs inside your wine cabinet. - The wine cabinet is not designed for use in a garage, outside, or in the open air. - The following (approximate) temperatures are recommended for wine drinking: o Great Bordeaux wines – Red 16 – 17°C o Great Burgundy wines – Red 15 – 16°C o Great vintages dry white wines 14 – 16°C o Red wines, fruity wines, young wines 11 – 12°C o Rosé wines from Provence, early-to-market wines 10 – 12°C o Dry white wines and local red wines 10 – 12°C o Local white wines 8 – 10°C o Champagnes 7 – 8°C o Liqueur wines 6°C - Temperature stability is of the greatest importance when storing wine. - Exposure to light, vibrations, temperature variations or humidity can spoil the wine.

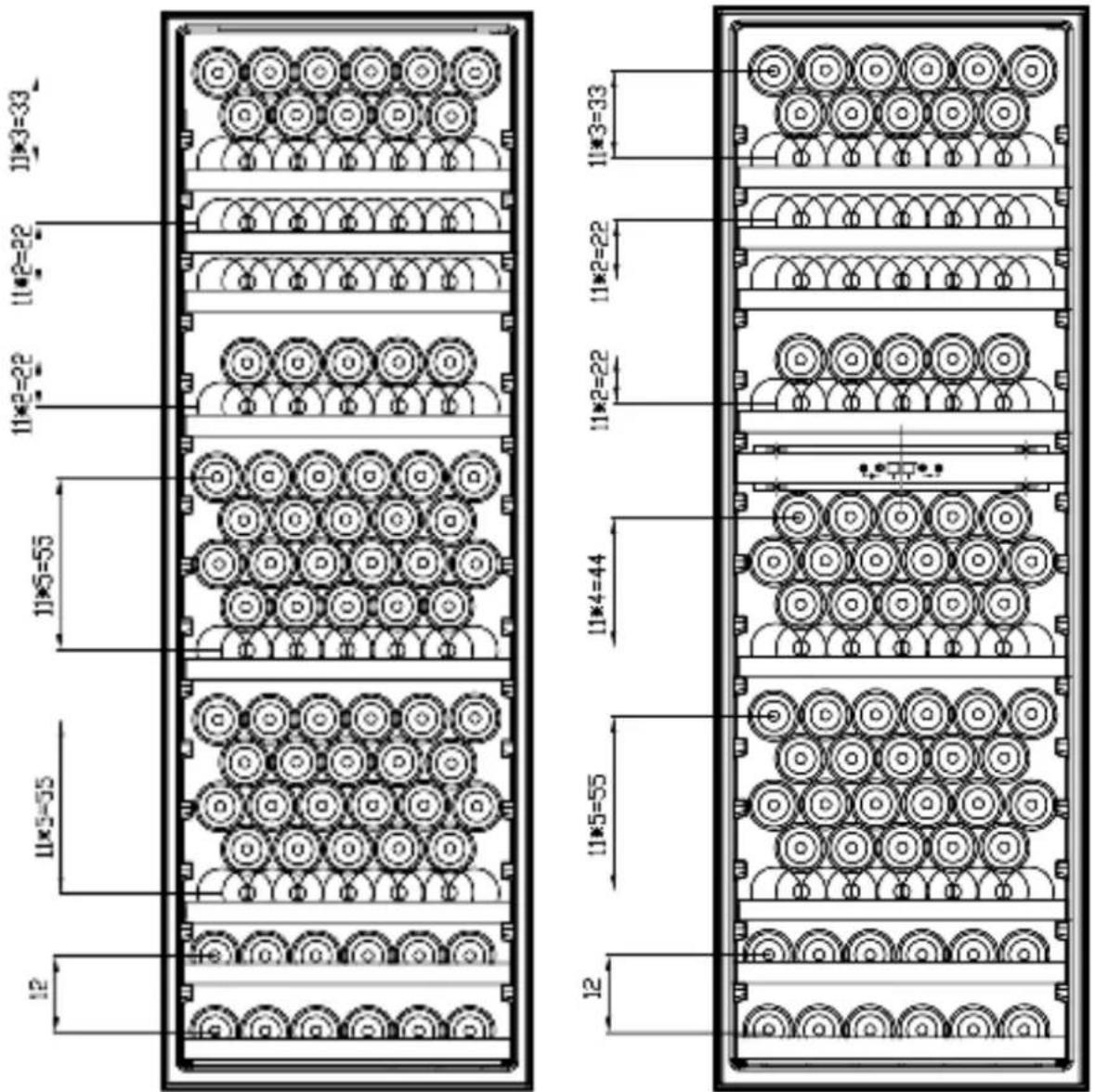

LOADING The maximum number of bottles that can be loaded into the cabinet are for information only; this information is not contractual; it provides a means for rapidly estimating the size of the device. The information comes from tests carried out using standard bottles; in reality, in extreme conditions it would be possible to load a greater number of bottles without racks, but a "diverse wine cellar” is used in many different ways; the daily use of a wine cabinet means that it must carry fewer bottles. Therefore you will probably load fewer bottles then the given maximum numbers. How to load and care for your wine cabinet: Here we see 4 types of 75 cl bottles, Burgundy and Bordeaux, of different sizes. There are many other types, with various volumes and of all shapes. Note the different ways they are stored depending on the height and diameter of the bottles as well as the interleaving method used.24 Loading for a 199 bottle capacity… … and 188 bottles

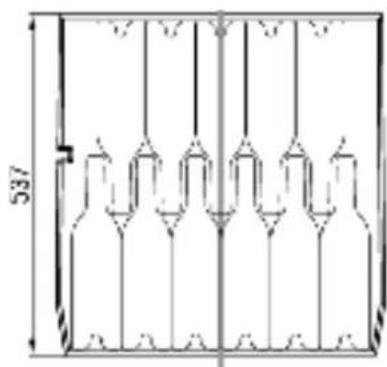

The maximum number of stored bottles is based on standard Bordeaux bottles containing 0.75 L.25

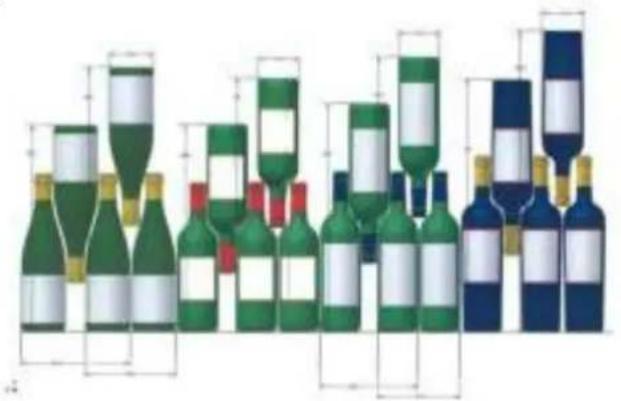

Starting up the device Once the wine cabinet is properly installed, we advise that you clean the inside using warm water with a low concentration of dishwashing liquid. Do not use abrasives or scouring powder; they may scratch the surface finish. USAGE CAUTION! Wine cabinets are intended only for storing and preserving wine. IMPORTANT: Your wine cabinet is ideally suitable for holding Bordeaux type bottles of 0.75 L capacity. It can contain larger bottles; however care must be taken that they do not prevent the door from closing properly. - When closing the door ensure that it does not touch any of the bottles. - If you load several bottles at a time, it will take longer before the cabinet reaches the desired temperature. - In order to avoid damaging the door seal, ensure that the door is fully open before moving the racks along the compartment rails. Adjusting the temperature Control Panel C1199CBE

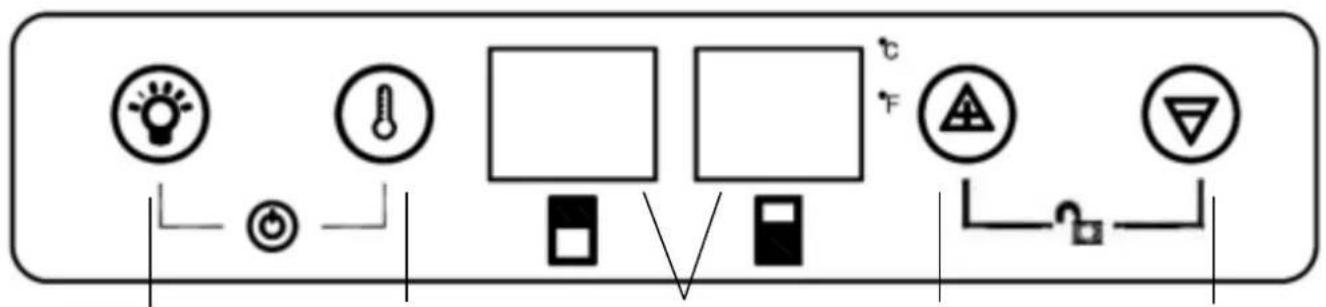

1 – Lamp button 2 – Space selection button 3 – Display screens 4 – Button for raising temperature 5 – Button for lowering temperature26 To switch the wine cabinet on or off, either press button 1, or simultaneously press buttons 1 and 2. The wine cabinet's temperature range is between 5°C and 18°C. The temperature can be adjusted 1° at a time; adjust the temperature using buttons or to the right of the temperature indicator. For model C2188CBE, you need to first select the desired space by pressing button 2. To switch the wine cabinet on or off, either press button 1 or 2. The LED light is appropriate for wine preservation. Nevertheless it is advisable to switch the light off during normal operation. IMPORTANT: the control panel automatically locks up after 30 seconds. In order to unlock the control panel and adjust the temperature, press buttons 4 and 5 simultaneously until you hear a beep. NOTE: the temperature display shows the temperature inside the wine cabinet. When you increase or lower the temperature, the temperature display will show the desired temperature. After a few moments, the temperature display will switch to the real temperature inside the cabinet. NOTE: when first operating the wine, or switching it on after a long period of non-use, the inside temperature will not immediately be the temperature shown on the temperature indicator; it will take a few hours before the wine cabinet reaches an evenly distributed temperature. In order to avoid excessive condensation when the ambient temperature is greater than 28°C, do not set the temperature below 7°C.

DEFROSTING Defrosting of your wine cabinet is fully automatic. It requires no action on your part. During operation, you may notice condensation drops forming on the rear inside wall of the cabinet. They will be eliminated during automatic defrosting. CLEANING Before any cleaning, unplug the device from the mains. Never use abrasives or a scraper sponge when cleaning the inside or the outside of your wine cabinet. Remove all accessories (racks, etc.). Wash them using lukewarm water to which has been added a gentle unscented detergent (dishwashing liquid for example); rinse with bleach water and carefully dry off. Wash the inside walls in the same way; pay particular attention to the rack supports Wash the door seal as well as under the seal. Plug the wine cabinet into the mains. From time to time, dust off the condenser behind the device; accumulated dust may reduce the efficiency of your wine cabinet. In the event of a prolonged absence, empty and clean out the device; maintain the door slightly open during the period of non-use.27

CHANGING DOOR OPENING SIDE

Due to the design, the door opening side cannot be changed.

The device uses light emitting diodes (LEDs). This type of diode cannot be changed by the user. The life cycle of the LEDs is long enough so that they do not need to be changed. If however, in spite of the care taken by the manufacturer, the LEDs do fail, please contact your Customer Care Service for any repair.

TROUBLESHOOTING You can resolve many of the problems that may arise without having to call Customer Care Service. Please try the suggestions below.

PROBLEM POSSIBLE CAUSE No operation Check your installation's power supply Check your circuit breaker A fuse has blown Not cold enough Check the setting temperature Ambient temperature requires readjustment of the temperatures The door is open too often The door is not closed properly The door seal is not air-tight There is not enough space around the device No interior light No display on the LCD screen Contact your Customer Care Service There appears to be a loud noise Check the device levelling Verify that a piece of paper or part of the packaging has not remained stuck in the device. The door does not close properly Check the device levelling The seal is in poor repair The feet have "moved" The light (LED) does not come on The control panel is not working Printed circuit problem Mains plug problem Contact your Customer Care Service LED display error Poor display The temperature value is not shown Contact your Customer Care Service The fans are not working Control Panel to be replaced by your Customer Care Service
