Ultimate Pure FV9834 - Iron TEFAL - Free user manual and instructions

Product type	Steam iron
Brand	Tefal
Model	Ultimate Pure FV9834
Power supply	220-240 V ~ 50/60 Hz
Power	Up to 3000 W
Water tank capacity	300 ml
Soleplate	Ceramic or similar soleplate (not exactly specified)
Steam function	Continuous steam and steam shot
Anti-scale function	Anti-scale system and self-cleaning (Self Clean)
Automatic shut-off function	Yes, automatic safety shut-off
Recommended water type	Tap water; for very hard water, mix 50% tap water + 50% demineralized water
Maintenance and cleaning	Regular self-cleaning; clean soleplate with a non-abrasive cloth
Safety	Do not leave unattended; unplug before filling; hot surface
Spare parts and reparability	Repair only by an authorized service center; power cable replaceable only by a professional
Dimensions (approx.)	30 x 15 x 20 cm
Weight (approx.)	1.5 kg

Frequently Asked Questions - Ultimate Pure FV9834 TEFAL

What type of water should I use in my Tefal Ultimate Pure FV9834 iron?

Use tap water. If your water is very hard, mix 50% tap water with 50% store-bought demineralized water. Never use water with added perfume, starch or other additives, nor condensation water (from dryer, refrigerator, air conditioner, rain).

Why does my iron produce brown stains on laundry?

Brown stains may come from using chemical descaling products or the wrong type of water. Perform a self-cleaning (Self Clean) and use only tap water or the recommended mixture. Do not pour any additives into the tank.

How to clean the soleplate of my iron?

Clean the soleplate after cooling with a soft damp cloth. Never use abrasive or metallic pads, as this would scratch the soleplate. For brown residues, you can use a little diluted white vinegar, then rinse with a damp cloth.

My iron produces little or no steam, what should I do?

This is often due to scale buildup. Clean the anti-scale rod if present and perform a self-cleaning cycle (Self Clean). Follow the instructions in the user manual to descale the appliance regularly.

Can I leave my iron plugged in unattended?

No, never leave the iron unattended while plugged in. Unplug it after each use and let it cool for about an hour before storing. The appliance is equipped with automatic shut-off, but caution is advised.

How to store my iron after use?

Unplug the iron and wait for it to cool completely (about 1 hour). Empty the water tank. Store it on its heel, never flat on the metal iron rest, to avoid damaging the soleplate. Keep the cord coiled without bending.

What to do if the soleplate is scratched or damaged?

If the soleplate is scratched, it may snag fabrics. Avoid placing the iron flat on a metal surface. Always use the heel. For light scratches, you can polish the soleplate with a special product, but if the damage is severe, contact an authorized service center.

My iron spits water from the soleplate, why?

This happens if you use the steam function when the iron is not hot enough. Wait for the temperature light to go off before activating the steam. Also check that you have not overfilled the tank.

How to descale my Tefal Ultimate Pure iron?

Use the self-cleaning function (Self Clean) as described in the user manual. Generally, fill the tank, set the temperature to maximum, then press the Self Clean button while holding the iron over a sink. Never pour chemical descaler into the tank.

What to do if the power cord is damaged?

If the cable is damaged, it must be replaced immediately by an authorized service center to avoid any danger. Do not use the appliance with a damaged cord. Do not attempt to repair it yourself.

USER MANUAL Ultimate Pure FV9834 TEFAL

EN • Safety instructions

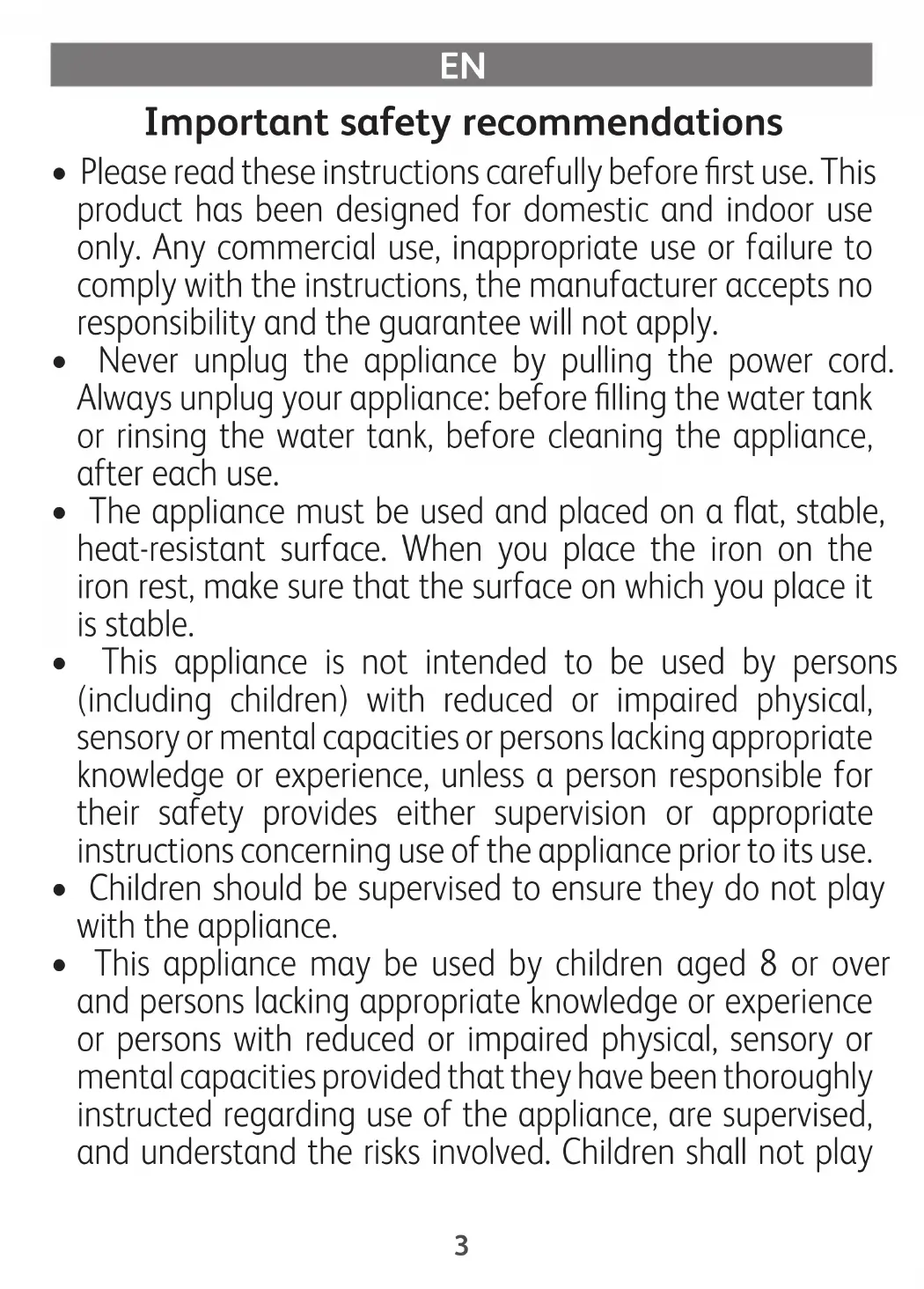

Important safety recommendations

• Please read these instructions carefully before first use. This product has been designed for domestic and indoor use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Never unplug the appliance by pulling the power cord. Always unplug your appliance: before filling the water tank or rinsing the water tank, before cleaning the appliance, after each use.
• The appliance must be used and placed on a flat, stable, heat-resistant surface. When you place the iron on the iron rest, make sure that the surface on which you place it is stable.
• This appliance is not intended to be used by persons (including children) with reduced or impaired physical, sensory or mental capacities or persons lacking appropriate knowledge or experience, unless a person responsible for their safety provides either supervision or appropriate instructions concerning use of the appliance prior to its use.
• Children should be supervised to ensure they do not play with the appliance.
• This appliance may be used by children aged 8 or over and persons lacking appropriate knowledge or experience or persons with reduced or impaired physical, sensory or mental capacities provided that they have been thoroughly instructed regarding use of the appliance, are supervised, and understand the risks involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- The surfaces of your appliance can reach very high temperatures when functioning, which may cause burns. Do not touch the hot surfaces of the appliance (accessible metal parts and plastic parts adjacent to the metallic parts).

• Never leave the appliance unattended when it is connected to the mains. Before storing the appliance, once it is unplugged, please wait until it has cooled down (around 1 hour).
• The appliance must not be used if it has been dropped, if it has any visible damage, if it leaks, or if it functions abnormally in any way. Do not attempt to dismantle your appliance: have it examined at an Approved Service Centre to avoid any danger.
• The iron should only be used with the base provided (for cordless irons).

• Check the electrical power for sign of wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an Approved Service Centre to avoid any danger.

• The iron must always be placed on its base and never on its heel (for cordless irons)

• Your iron and its base must be used and placed on a stable surface. When you place the iron on its base, ensure that the surface on which the base is placed is stable.
• For your safety, this appliance conforms to all applicable regulations (Low Voltage Directive, Electromagnetic Compatibility, Environment, etc).
• Your steam iron is an electrical appliance: it must be used under normal conditions of use. It is designed for domestic use only.
  • Always plug your steam iron:
• into a mains circuit with voltage between 220 V and 240 V,

• into an earthed electrical socket.
  Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your guarantee. If you are using a mains extension lead, ensure that it is correctly rated (16A) with an earth, and is fully extended.

• Completely unwind the power cord before plugging into an earthed socket.

• The soleplate of your iron can reach extremely high temperatures, and can cause burns: do not touch them. Never touch the electrical power cords with the soleplate of the iron.
• Your appliance emits steam, which can cause burns. Always handle the iron with care, especially when ironing vertically. Never direct the steam towards people or animals.
• Never immerse your steam iron in water or any other liquid. Never place it under a running tap.
• The plug must be removed from the socket-outlet before the water reservoir is filled with water.

Before first use

When you first use the iron, some smoke or a harmless odour may be produced or there may be a small discharge of particles. This will not affect the use of the iron and will disappear quickly.

What water to use?

Your iron has been designed to use tap water. However, the self-clean function must be performed regularly on the steam chamber to remove limescale.

If your water is very hard, mix 50% tap water and 50% bottled demineralised water.

Never use water containing additives (starch, perfume, aromatic substances, softeners, etc.), or condensation water (for example water from tumble dryers, water from refrigerators, water from air conditioning units, rainwater). This water contains organic waste materials or minerals that concentrate under the effect of heat and cause spitting, brown colouring or premature ageing of your appliance.

PLEASE RETAIN THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Environment protection first !

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

Problems with your iron?

PROBLEM POSSIBLE CAUSES SOLUTIONS
Brown water is dripping from the soleplate and soiling your clothes.	You are using chemical descaling products.	Do not put any descaling product into the water tank.
	You are not using the right water. Perform a self-clean and consult the "What water to use?" section.
The soleplate is dirty or brown and may soil clothes.	The temperature is too high. Clean the soleplate as indicated in the user guide Use a lower temperature.
Your iron produces little or no steam. Your iron has limescale. Clean the anti-limescale valve and perform a self-clean.
The soleplate is scratched or damaged. You have positioned your iron flat on the metallic iron support.You have cleaned your soleplate with an abrasive cloth or steel wool.		Always place your iron in the support base Clean the soleplate as indicated in the user guide.
Your soleplate emits particles.	Limescale is starting to build up on your soleplate.	Perform a self-clean .
Water drips from the holes in the soleplate.	You are using steam while the iron is not hot enough.	Wait until the thermostat light goes out.

DE

Important notice for ≥ 3000W models only :

Under unfavorable mains conditions, phenomena like transient voltage drops or lighting fluctuations can happen. Therefore, it is recommended that the iron is connected to a power supply system with a maximum impedance of 0,29 Ω. If necessary, the user can ask the public power supply company for the system impedance at the interface point.
