Tycam 1100 - Surveillance Camera DELTA DORE - Free user manual and instructions

Product type	Indoor surveillance camera
Brand	Delta Dore
Model	Tycam 1100
Dimensions (L x H x D)	103 mm x 66 mm x 33 mm
Weight	128 g
Power supply	12 V DC (power adapter included 100-240 V~ 50-60 Hz)
Power consumption	7 W
Resolution	Full HD 1920x1080 pixels at 25 fps
Viewing angle	Horizontal 108°, Vertical 59°, Diagonal 129°
Night vision	EXIR 2.0 infrared LED, range 10 m
Network connectivity	Wi-Fi 802.11 b/g/n 2.4 GHz or Ethernet RJ45 10/100 Mbps
Storage	Micro SD/SDHC/SDXC card up to 128 GB (class 10 required)
Audio	Two-way audio (built-in microphone and speaker)
Motion detection	Video analysis with detection zones and passive infrared (PIR) detection
Smart features	Line crossing and area detection, digital zoom x4
Built-in siren	Yes, up to 85 dB
Mobile app	Tydom (iOS and Android)
Maximum number of cameras	8 per Tydom account
Operating temperature	-10°C to +40°C
Protection rating	IP20 (indoor use only)
Box contents	Camera, mount, power adapter (EU/UK plugs), RJ45 cable 1.5 m, installation guide
Warranty	Refer to the regulatory documentation provided

Frequently Asked Questions - Tycam 1100 DELTA DORE

How to install the Tycam 1100 camera?

To install the camera, follow the provided guide: attach the mount to the wall or ceiling, orient the camera, insert the memory card if necessary, then connect it to your network via the Tydom app. Make sure to follow the installation recommendations (minimum height 2 m, avoid backlight).

How to connect the camera via Wi-Fi?

Two methods: use WPS mode if your router supports it (press the WPS button on the router then the RESET/WPS button on the camera) or pair via QR Code in the Tydom app. Wi-Fi must be 2.4 GHz (5 GHz is not compatible).

What to do if the camera does not connect to the network?

Check that the indicator is solid blue (connected). If it blinks red, ensure the router broadcasts a 2.4 GHz Wi-Fi network, DHCP is enabled, and the camera is within signal range. Restart the camera and router. If the problem persists, reset the camera by holding the RESET button for 10 seconds.

How to configure motion detection?

In the Tydom app, go to camera settings then motion detection. You can define grid zones, line crossing, or intrusion zones. Adjust the sensitivity and perform a detection test to validate the setting.

What is the available recording duration?

The duration depends on the Micro SD card capacity: for example, 8 GB allows about 12 hours of continuous recording, 32 GB about 2.5 days. The provided card is 8 GB. You can use a card up to 128 GB (class 10 required).

How to view recordings?

Open the Tydom app, select the camera then the 'Recordings' tab. Videos are stored on the SD card and accessible only through your account. Detection recordings last 35 seconds (starting 5 seconds before the event).

Can I use the camera without an SD card?

Yes, you can view the live stream and use audio functions, but recording and detection alerts require a memory card to store videos.

How to reset the camera to factory settings?

Press and hold the RESET/WPS button (located under the protective cover) for about 10 seconds until the indicator rapidly blinks red/blue. The camera will restart and be ready for a new pairing.

What to do in case of false motion alerts?

Check that the camera is not exposed to heat sources, changing light, or vibrations. Clean the lens with a soft cloth. Adjust the detection sensitivity in the app or modify the detection zones to exclude reflective surfaces.

Is it possible to speak through the camera?

Yes, the Tycam 1100 has a built-in microphone and speaker for two-way audio communication. Enable this function in the app by pressing the microphone icon during live viewing.

USER MANUAL Tycam 1100 DELTA DORE

Tycam 1100 - Tycam 2100

FR Guide d'installation
EN Installation guide
DE Installationsanleitung
IT Guida di installazione
ES Manual de instalación
PL Instrukcja instalacji
NL Installatiegids
NO Bruksanvisning
FI Asennusopas

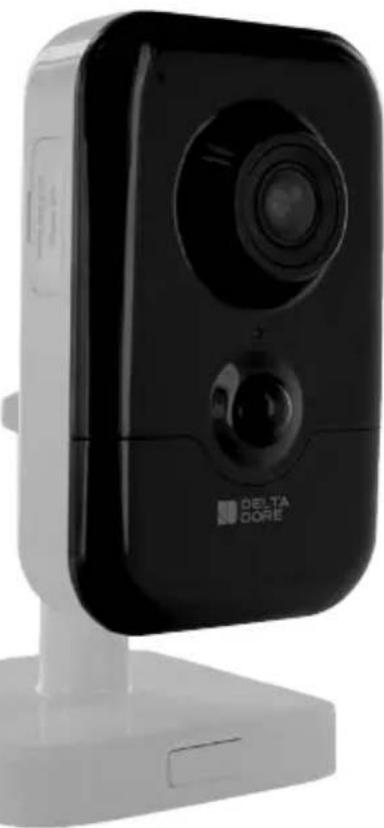

Tycam I100 Indoor

Black Delta Core device with a circular lens and stand (no visible text or symbols on the device body)

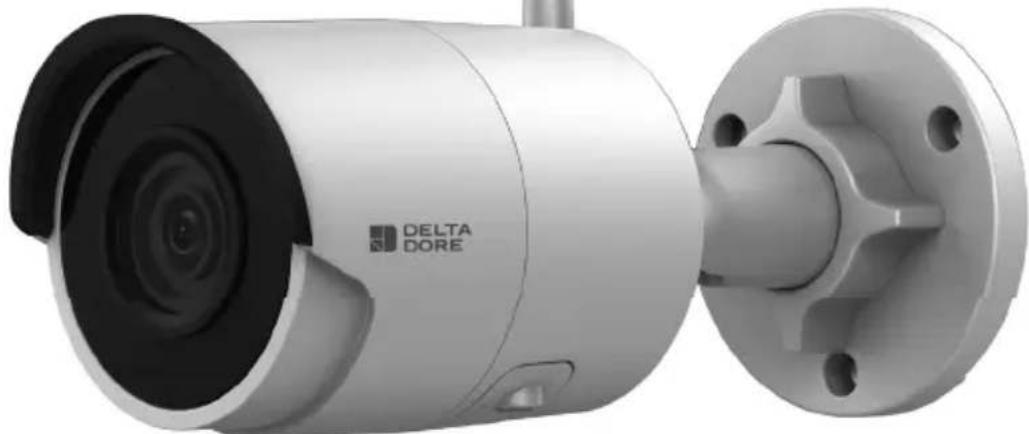

Tycam 2100 Outdoor

Exterior view of a modern security camera with mounted lens and mounting flange (no visible text or symbols)

Mentions juridiques

Technical line drawing of a mechanical valve or fitting (no text or symbols)

5 - Tycam 1100 Indoor 8

5.1 Contenu 8

5.2 Description 8

6 - Tycam 2100 Outdoor 10

6.1 Contenu 10

6.2 Description 10

6.3 Fixation 11

6.4 Réglage 11

6.5 Carte Mémoire 11

Interior view of a modern living room with a TV, sofa, lamp, and wall art (no text or symbols)

Tycam 2100 Outdoor - h : 4m minimum

h

Silhouette of a person standing with a large X-shaped cross symbol, accompanied by a small human figure below (no text or symbols)

Silhouette of a person standing next to a checkmark symbol (no text or labels)

Top-down view of a car parked on a paved lot with trees and a person walking nearby (no visible text or symbols)

Illustration of a car parked in a parking lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Contenu

Diagram showing seven types of electronic devices with numbered labels, including a camera, cable, and plug.

5.2 Description

Diagram showing two mechanical components with screws and holes, no text or symbols present

Hand inserting a small component into a device panel (no text or symbols visible)

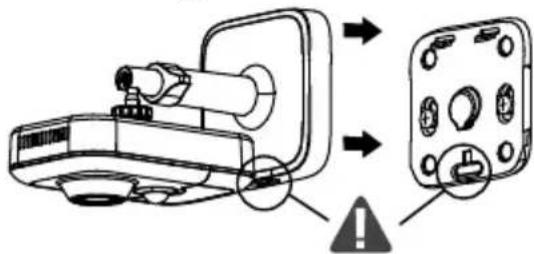

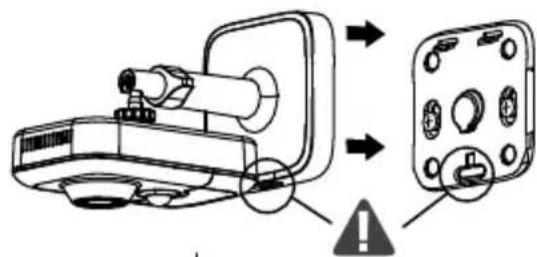

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

5.5 Réglage

Diagram showing a camera module being inserted into a device, with no visible text or symbols

6 - Tycam 2100 Outdoor

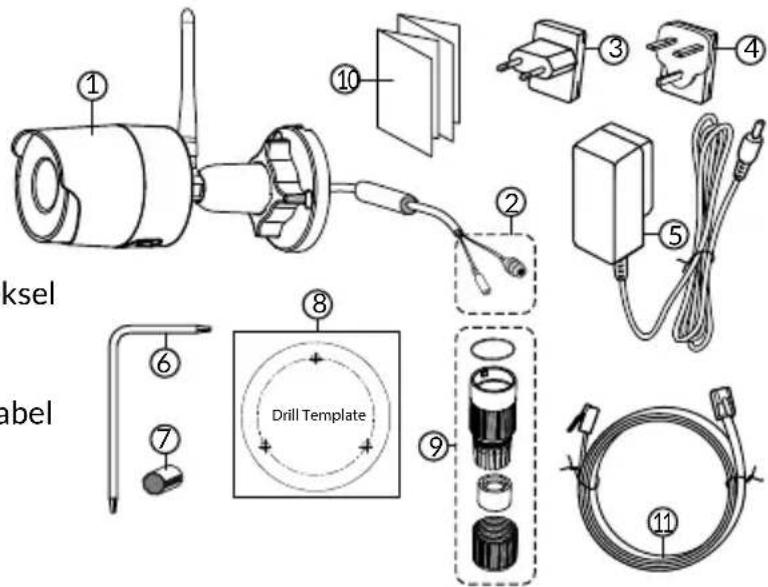

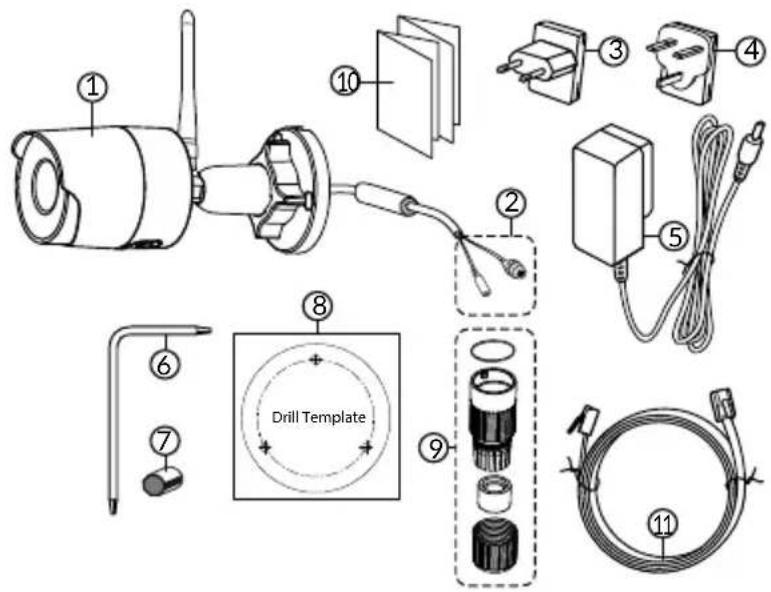

6.1 Contenu

Technical diagram of a drill device with labeled components including motor, drill template, and cable assembly

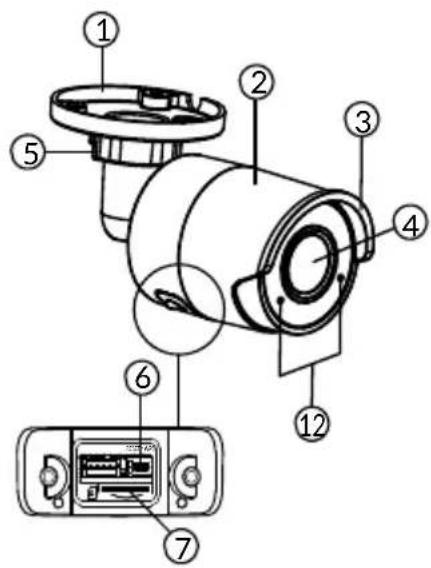

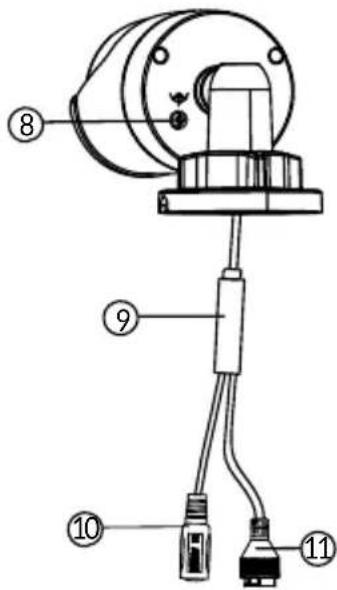

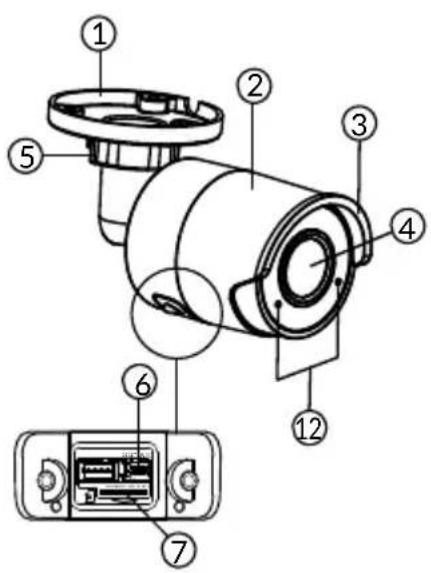

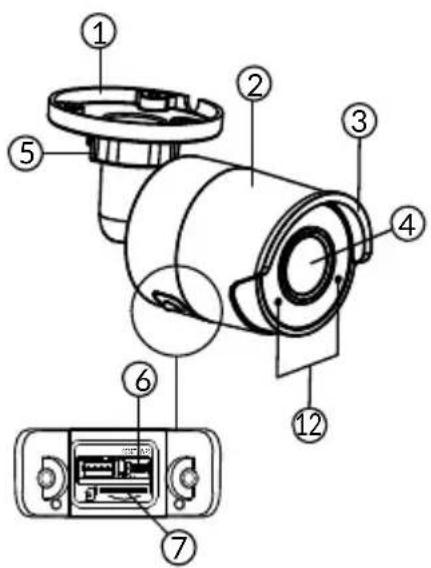

6.2 Description

Technical diagram of a device with numbered components, including a control panel and internal wiring.

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

Exploded view diagram of a multi-core cable showing numbered components from inner to outer connectors

Technical diagram showing exploded and assembled views of a plug-in connector with numbered parts and directional arrows indicating assembly.

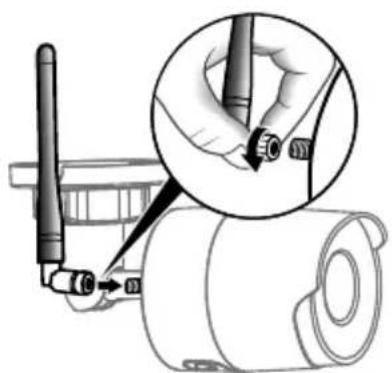

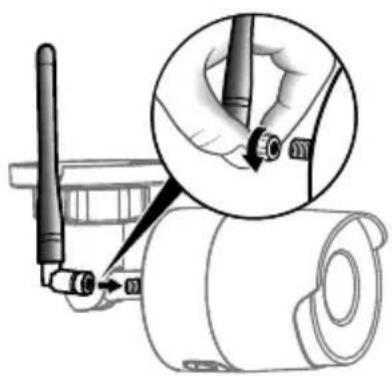

6.8 Antenne

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

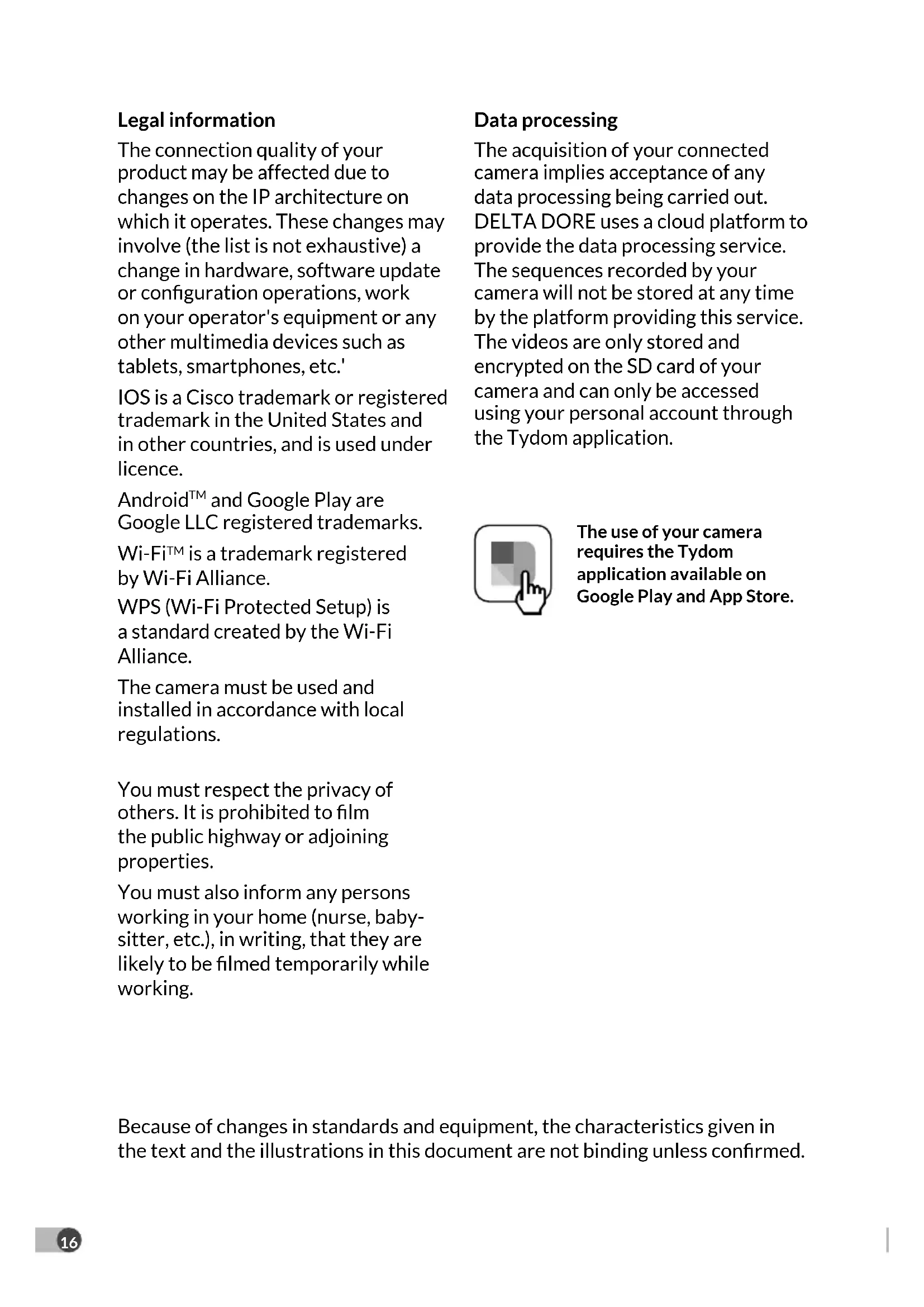

8 - Application Tydom

The connection quality of your product may be affected due to changes on the IP architecture on which it operates. These changes may involve (the list is not exhaustive) a change in hardware, software update or configuration operations, work on your operator's equipment or any other multimedia devices such as tablets, smartphones, etc.'

IOS is a Cisco trademark or registered trademark in the United States and in other countries, and is used under licence.

Android ^TM and Google Play are Google LLC registered trademarks.

Wi-Fi ^™ is a trademark registered by Wi-Fi Alliance.

WPS (Wi-Fi Protected Setup) is a standard created by the Wi-Fi Alliance.

The camera must be used and installed in accordance with local regulations.

You must respect the privacy of others. It is prohibited to film the public highway or adjoining properties.

You must also inform any persons working in your home (nurse, baby-sitter, etc.), in writing, that they are likely to be filmed temporarily while working.

Data processing

The acquisition of your connected camera implies acceptance of any data processing being carried out. DELTA DORE uses a cloud platform to provide the data processing service. The sequences recorded by your camera will not be stored at any time by the platform providing this service. The videos are only stored and encrypted on the SD card of your camera and can only be accessed using your personal account through the Tydom application.

The use of your camera requires the Tydom application available on Google Play and App Store.

Because of changes in standards and equipment, the characteristics given in the text and the illustrations in this document are not binding unless confirmed.

1 - Installation recommendations 19

2 - Camera operation 19

3 - Operation of motion detection in one or several zoness 20

4 - Operation of image analysis (SMART DETECT) 20

4.1 Selecting the detection mode 21

5 - Tycam 1100 Indoor 22

5.1 Contents 22

5.2 Description 22

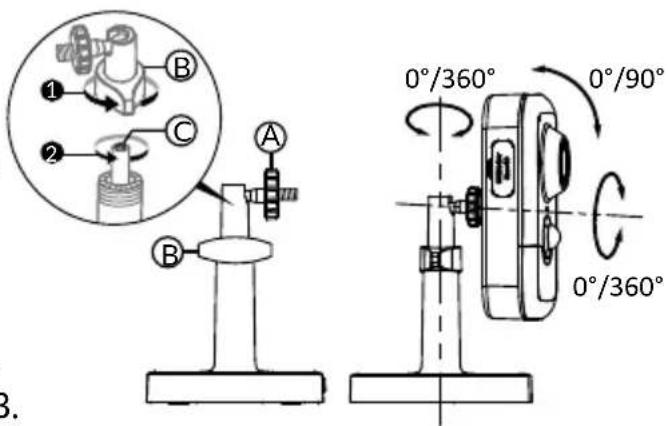

5.3 Support assembly 22

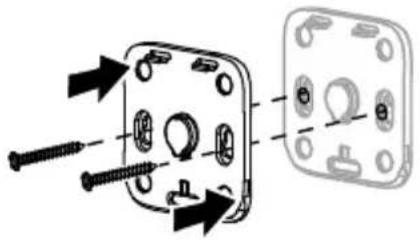

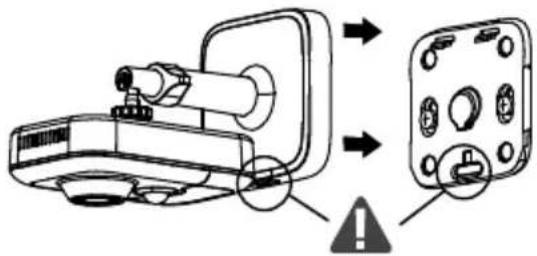

5.4 Mounting 23

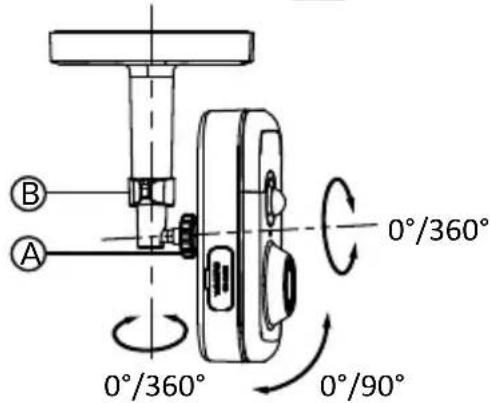

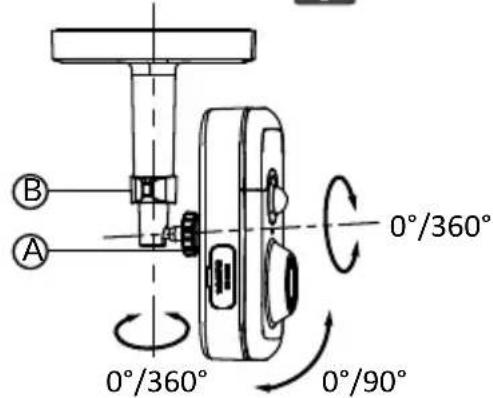

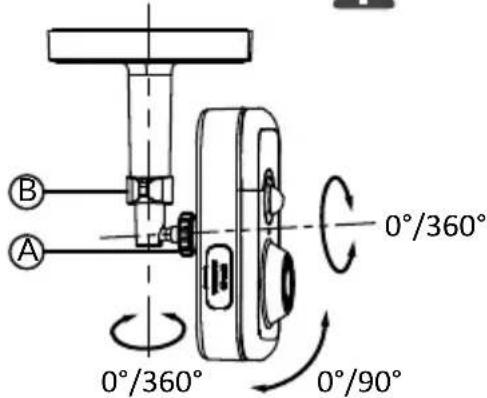

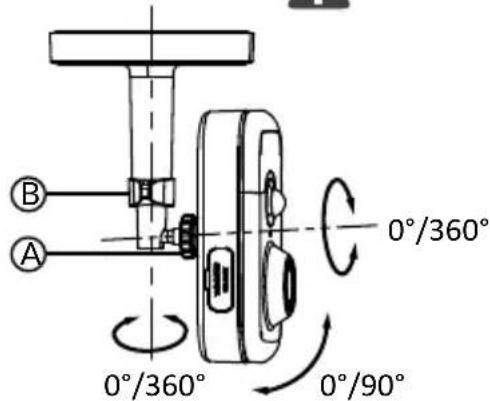

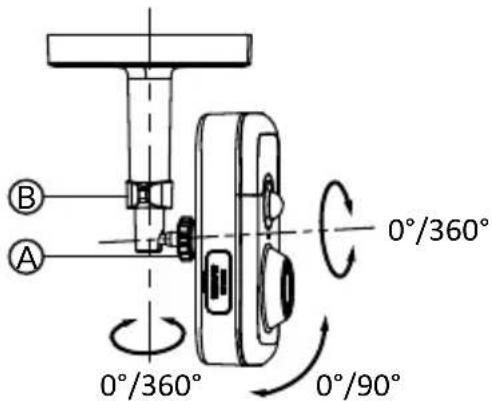

5.5 Setting 23

5.6 Memory card 23

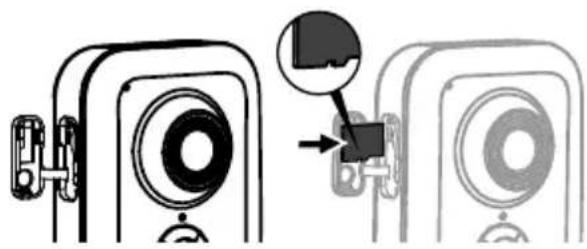

5.7 Replacing the memory card 23

6 - Tycam 2100 Outdoor 24

6.1 Contents 24

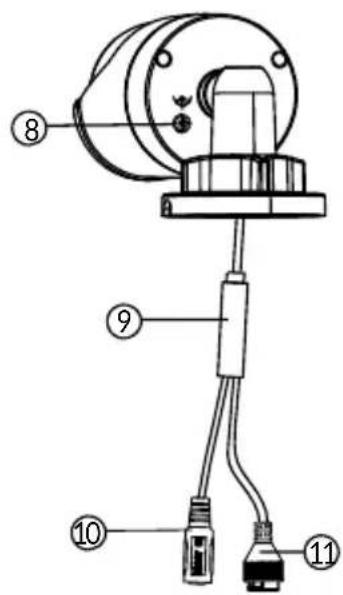

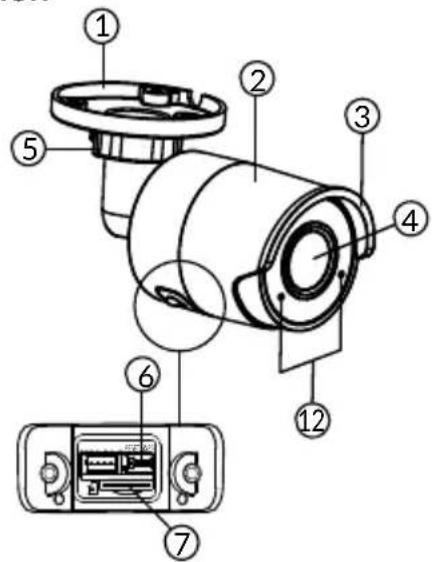

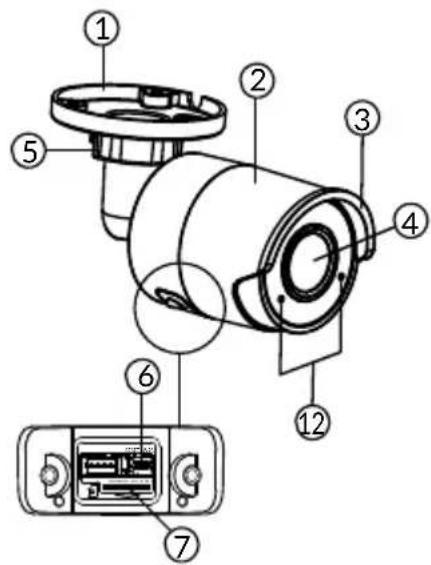

6.2 Description 24

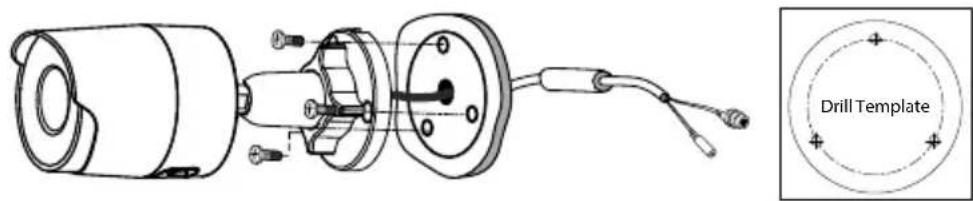

6.3 Mounting 25

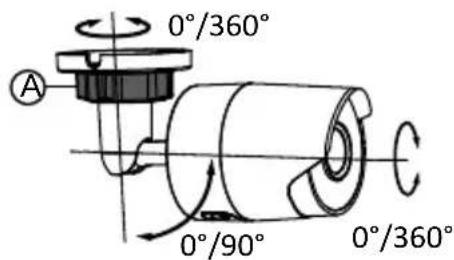

6.4 Setting 25

6.5 Memory card 25

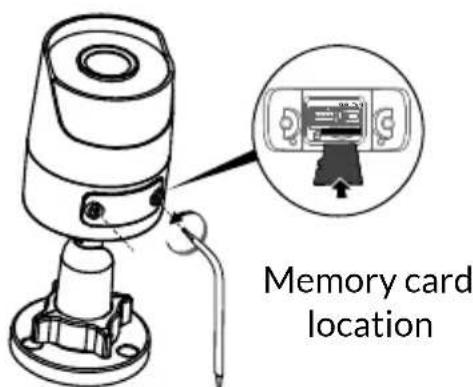

6.6 Replacing the memory card 25

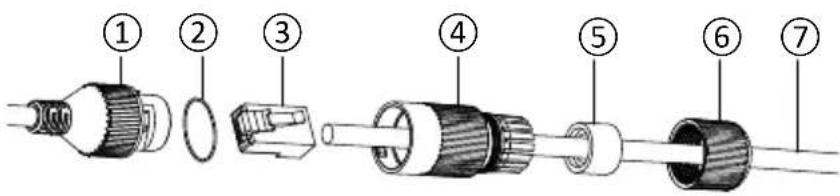

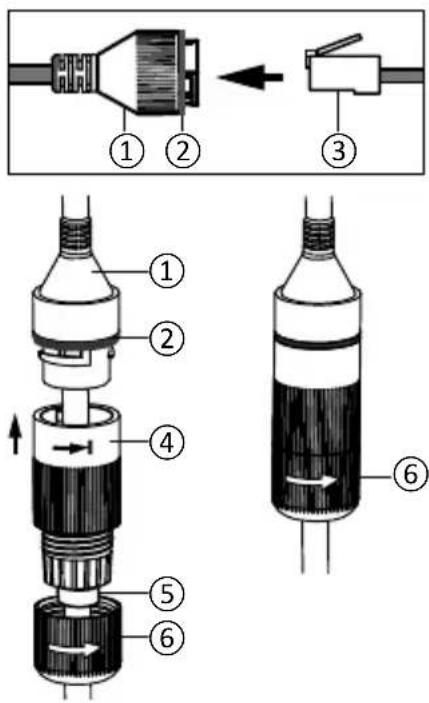

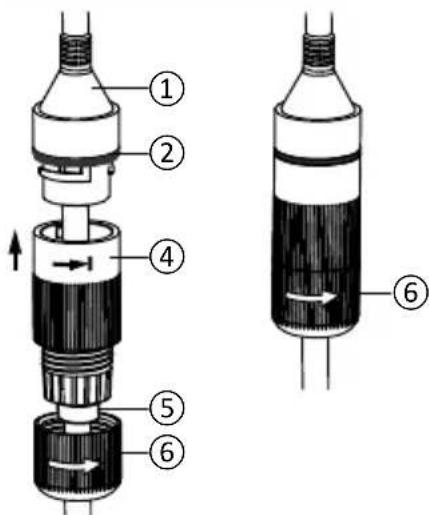

6.7 Impervious sheath for RJ 45 cable 26

6.8 Antenna 26

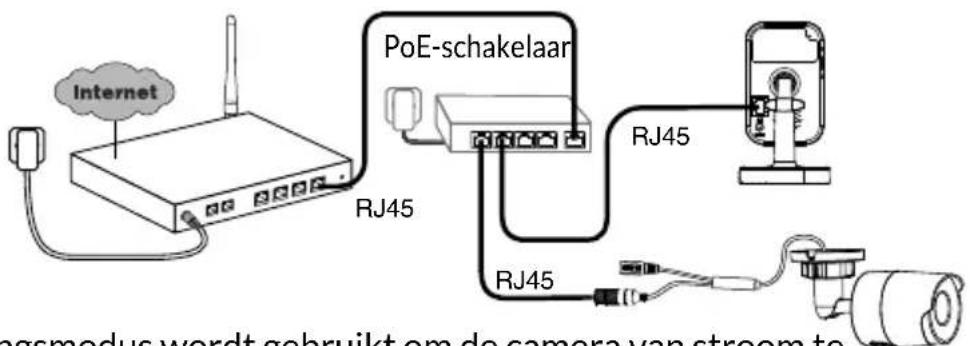

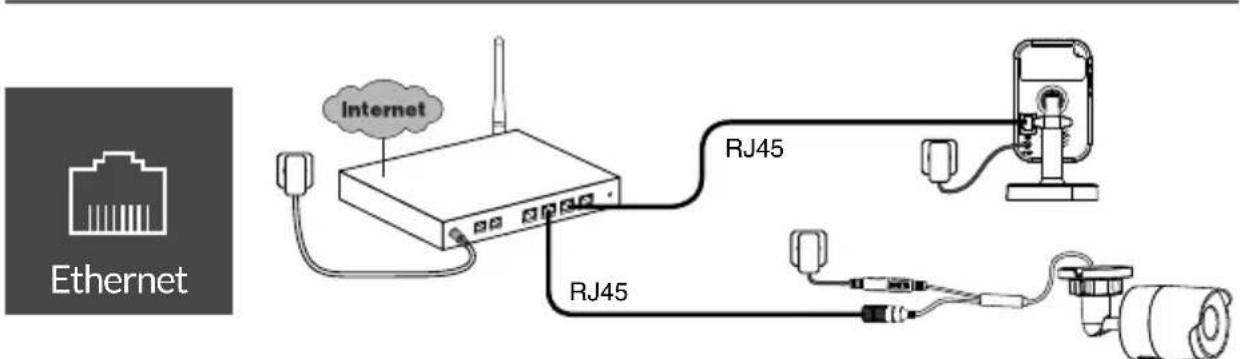

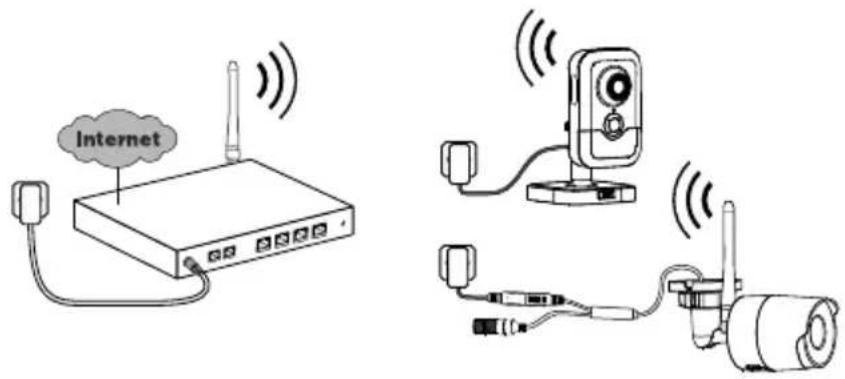

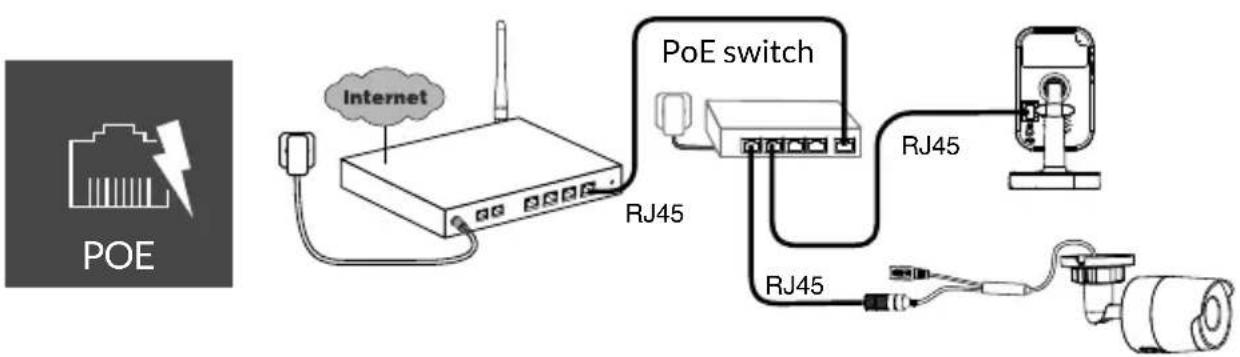

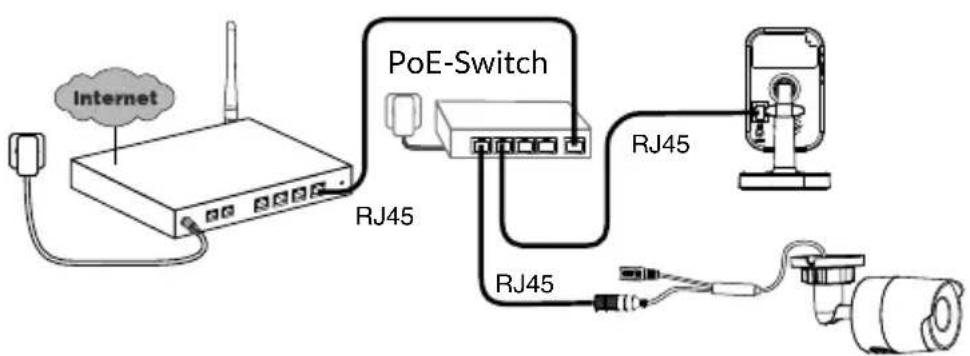

7 - Camera connection 27

8 - Tydom application 28

9 - Delete the camera 28

10 - Technical characteristics 29

The Tycam 1100 Indoor and Tycam 2100 Outdoor cameras feature a new generation of high resolution sensors providing a great quality image whatever the lighting conditions.

Connected to your wireless router, the camera enables you to view your home on your smartphone and record videos and photos vial the Tydom application.

Remotely, you can:

• Observe and listen (*).
• Start a recording instantly.
• Speak with your family and relatives (*).
• View the recorded videos.
• Receive notifications in case of detection.

Image analysis functions

- Motion detection

The camera detects any movement in one or several predefined grid zones.

• Crossing line detection.

The camera detects any person that crosses a predefined detection line.

• Intrusion zone detection

The camera detects any person entering or leaving a predefined detection zone.

The 2 crossing detection modes require specific installation conditions: see §4

Other functions

• Remote surveillance
  • Surveillance mode setting
• Automatic recording on detection
• Continuous recording
• Recording management (backup, deletion, etc.)
• Notification of events
  • Viewing of detection alerts
• Intercom (*)
• Digital Zoom x4
• Night vision
• Reversal of captured image
• Backlight compensation
• Photo capture
• Privacy mode
  • 8 cameras max per TYDOM
• Embedded siren (*)
  • Possible association by QR Code

(*) TYCAM 1100

1 - Installation recommendations

To achieve optimum operation:

• Avoid installing the camera in an area with strong changes in brightness (backlighting) or one that is too dark.
• Ensure that there is no reflecting surface too near the camera lens.
• Do not install the camera on an unstable support that creates vibrations.
• Avoid proximity to a heat source.
• Do not touch the lens with your finger.
• Do not expose the camera to direct sunlight.

• Do not subject the camera to impacts.
  • Install the Tycam 1100 Indoor camera in dry, well ventilated place.

• Electromagnetic radiation can affect video data transmission and image quality. Do not install the camera near a source of electromagnetic radiation.

• The installation must conducted using the best practice of video surveillance.
• Ensure that all the associated devices are switched off during the installation.
• For equipment connected to the power grid, the socket outlet must be installed close to the equipment and readily accessible.

The 2 crossing detection modes require specific installation conditions: see §4

2 - Camera operation

Maintenance of Tycam 2100 Outdoor cameras:

• Regularly check that there are no insects or spider webs that could trigger false alarms. Use a soft, slightly damp cloth to clean the lens of the outdoor camera.
• Periodically check the wiring and connections of your camera.

Video recording

• The videos are automatically deleted after 30 days.

• When the storage limit of the card is reached, the oldest videos are deleted automatically.

• The recording time can vary according to the movement in the image. These values are given for information only and cannot be guaranteed.

• The lifetime of the memory card will depend on the SD card used. Only the SD card supplied with the camera ensures an operational life of 2 years.

Videos are recorded in "medium" resolution quality.

Each video recorded upon detection starts 5 seconds before the event for a total duration of 35 seconds

3 - Operation of motion detection in one or several zoness

Tycam 1100/2100 cameras monitor the zone or zones via video analysis to detect any motion.

Tycam 1100 also features heat detection by a passive infrared sensor (PIR).

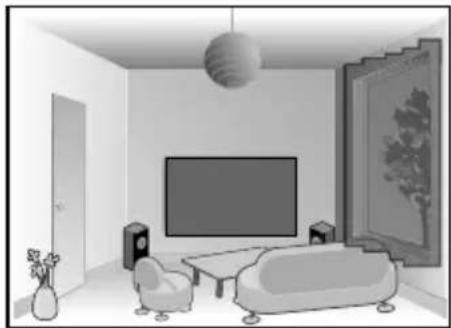

Materialize the zone or zones to be excluded according to a grid in the Tydom application.

This detection mode requires no specific installation conditions.

Interior view of a modern living room with TV, sofa, lamp, and vase (no text or symbols)

4 - Operation of image analysis (SMART DETECT)

To obtain an optimum analysis of motion in its field of vision, position the camera at a sufficient height and distance from the zone to monitor.

Camera height

Tycam 1100 Indoor - h: 2 m minimum

Tycam 2100 Outdoor - h: 4 m minimum

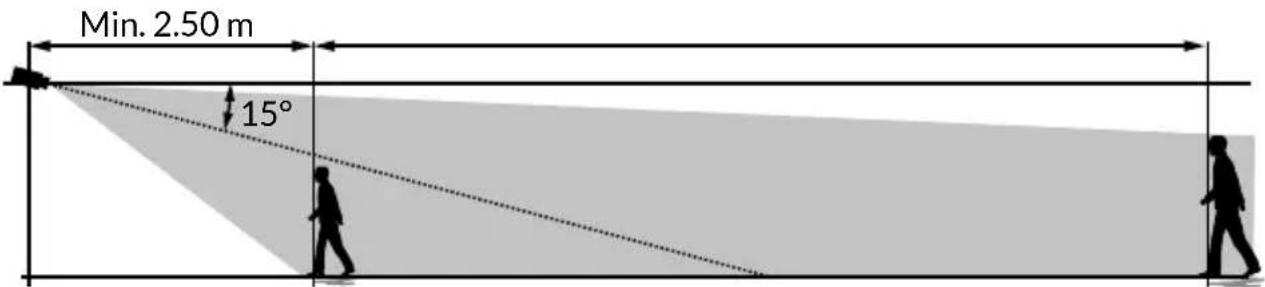

Distance from the zone to monitor

Recommended fields of vision :

Minimum: 2.5 m/Maximum: 10m (TYCAM

Minimum angle of camera axis: 15^ .

Min. 2.50 m 15°

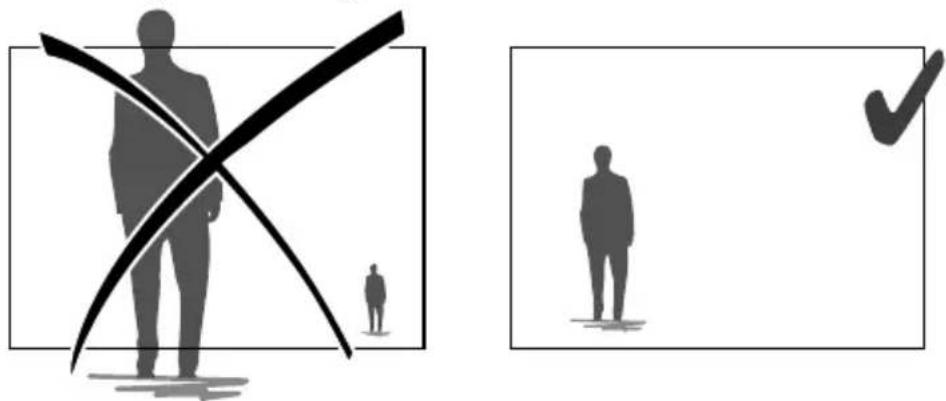

Ensure that a person detected does not appear too small nor too large in the image.

Two abstract diagrams: one showing a cross over a human figure, the other showing a checkmark with a checkmark (no text or symbols)

4.1 Selecting the detection mode

Using the Tydom application, select the detection mode suited to the monitored zone.

EN

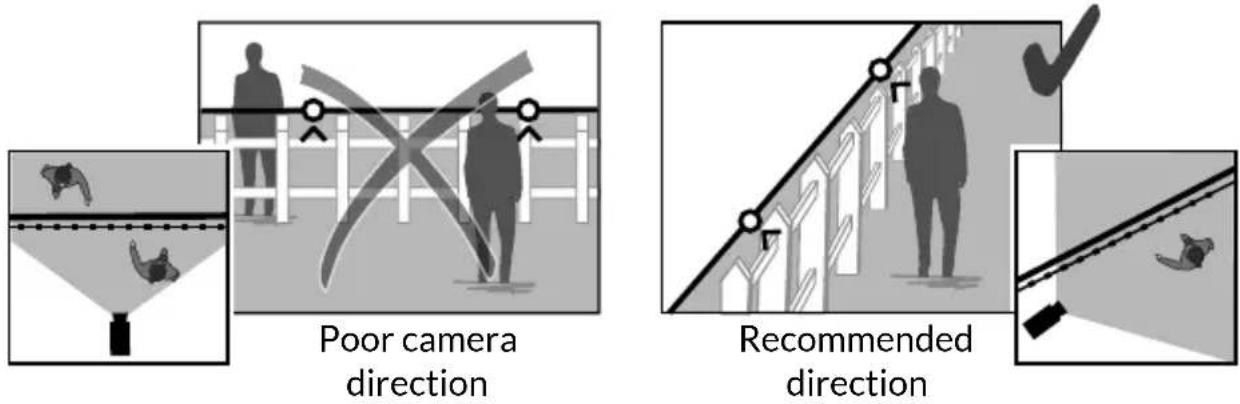

4.1.1 Crossing zone detection

This mode is recommended for external cameras.

Direct and position the camera at the recommended height to ensure reliable crossing detection.

Define a crossing line in the Tydom application, any person crossing this line is detected.

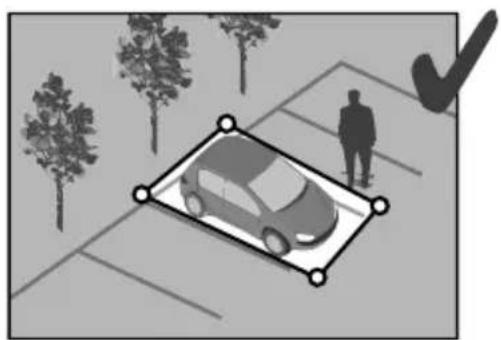

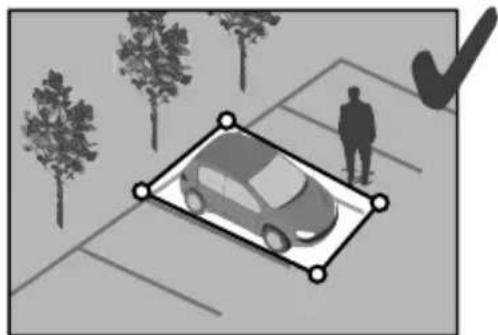

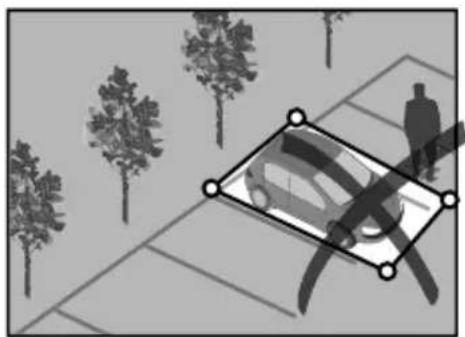

4.2.2 Intrusion zone detection

Move the corners of the rectangle in the Tydom application to define an intrusion zone. Any person entering the zone is detected.

To ensure reliable detection, ensure that the zone to monitor is not at the edge of the image.

Black-and-white illustration of a car parked on a paved path with trees and a person walking nearby (no text or symbols)

Illustration of a car parked on a paved lot with trees and a person standing nearby (no text or symbols)

- Follow the installation guidelines to get the best use out of the camera: Height/Distance/Camera position angle.

- Whatever the operating mode chosen, you can adjust the detection sensitivity using the Tydom application.

- When you finish configuring the camera, it is vital to run a detection test to ensure that camera correctly analyses the scene to monitor and effectively detects movements.

5 - Tycam 1100 Indoor

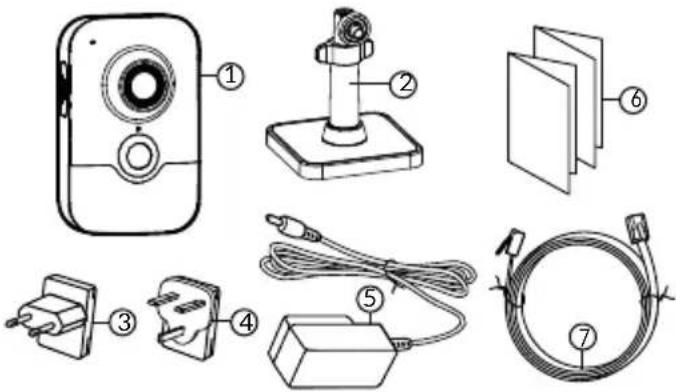

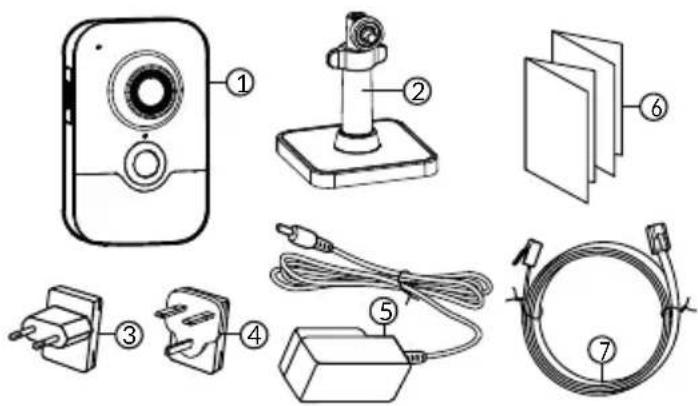

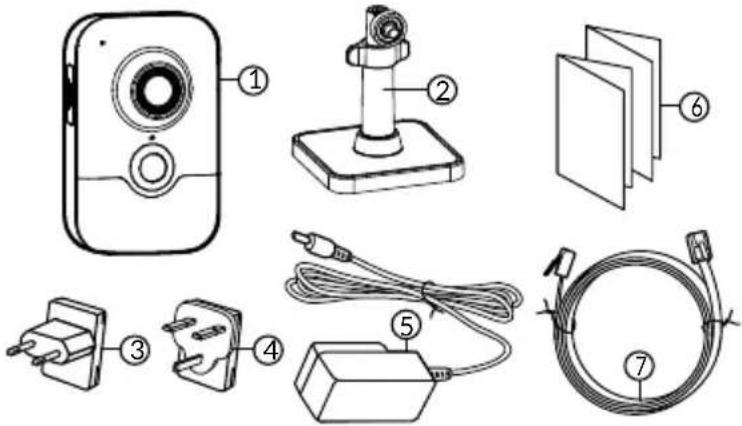

5.1 Contents

1- Camera
2- Support
3- EU plug
4- UK plug
5- Mains adaptor (1m50)
6- Installation guide Regulatory documents
7- RJ 45 cable (1m50)

Diagram showing seven types of household appliances and accessories with numbered labels

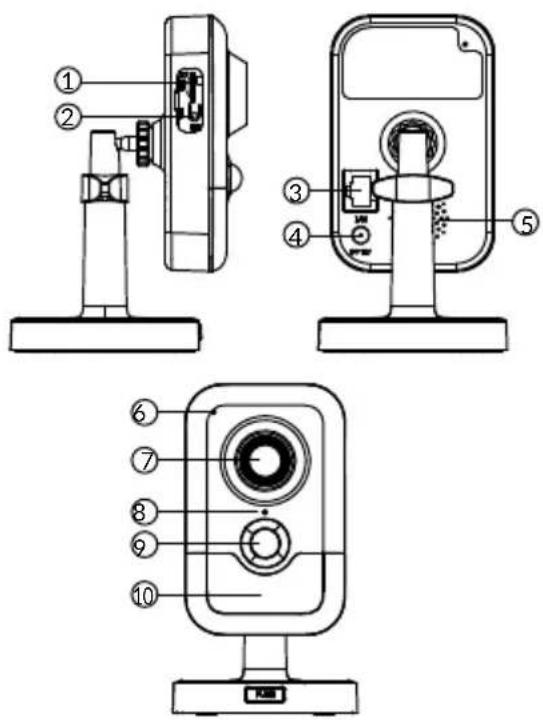

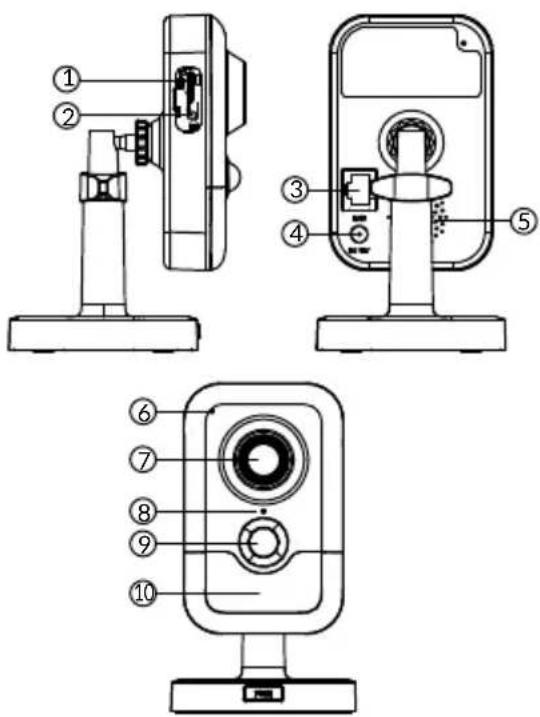

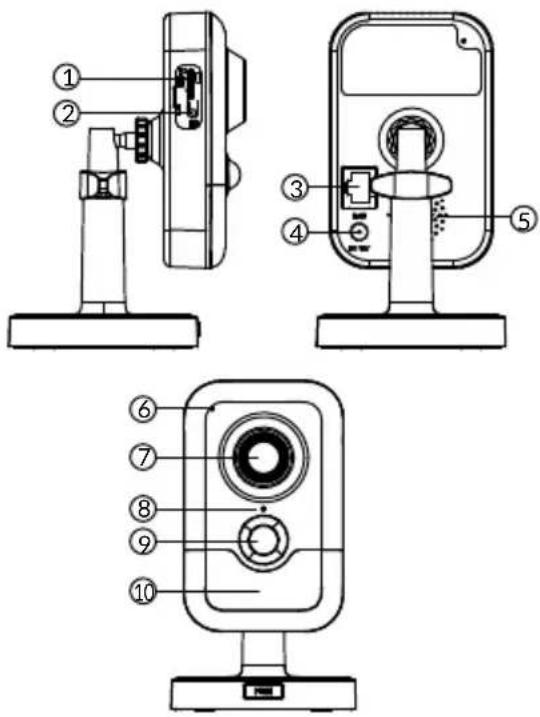

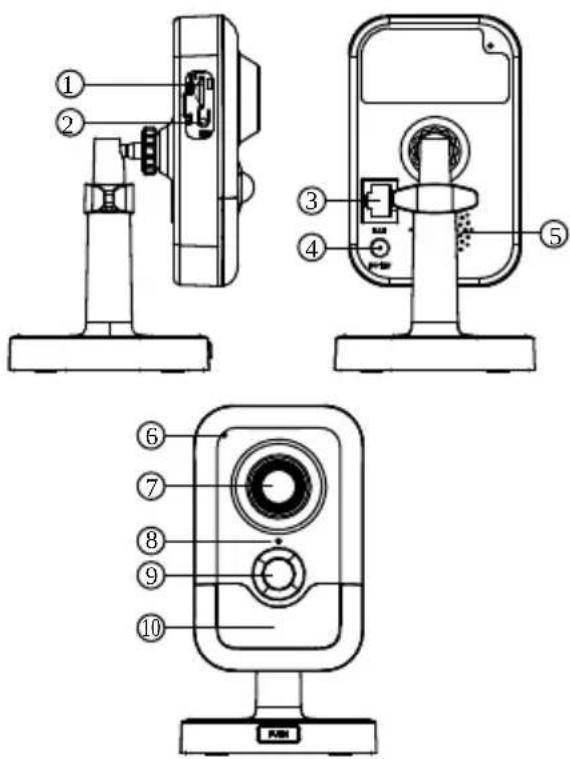

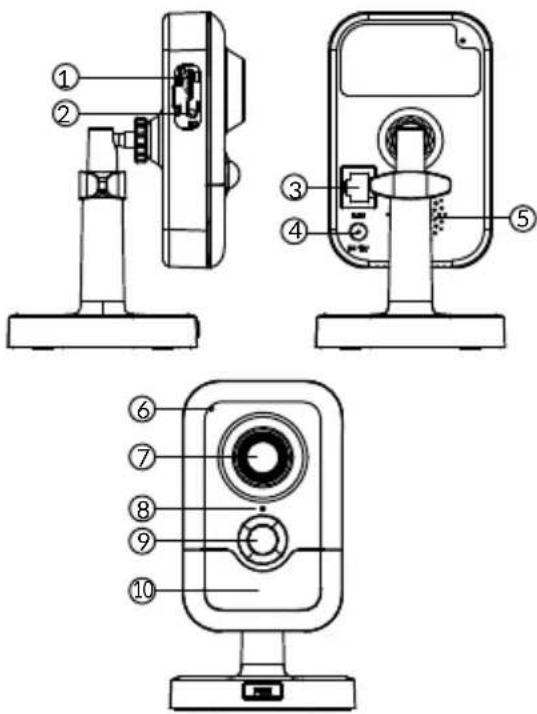

5.2 Description

Technical diagram of a device with numbered parts for identification and assembly reference.

1- Memory card location
2- RESET/WPS button (Open the protective cover).
3- RJ45 Network Connector
4- Power supply socket
5- Loudspeaker
6- Microphone
7- Lens
8- Status LED

Red and steady: Camera start.

Blue and steady: The camera is connected to the network.

Slow flashing red: No connection to the server (check the firewall and parental controls).

Slow flashing blue: Camera is communicating on network.

Fast flashing red: Safety installation.

Fast flashing blue: Camera updating.

Red/Blue alternative Waiting to read QR Code flashing:

flashing: or no assigned IP address. (check that the DHCP function is activated on your router and that the Wi-Fi network is in range).

9- PIR (passive infrared sensor)
10- Infrared LED (night vision)

5.3 Support assembly

• Screw the support to the back of the camera.
• Place the camera on a flat surface.
• Loosen nut B,
• Point the camera correctly then tighten nuts A and B.
• If the camera is not held correctly, loosen screw C to tighten the nut B.

1 B 2 C A B 0°/360° 0°/90° 0°/360° 3.

5.4 Mounting

You can mount the camera on a wall or ceiling.

• Press the 'PUSH' button to separate the support from the base.
• Drill the base mounting holes.
• Mount the base with suitable screws for the support.
• Clip the support onto the base by aligning the 3 stops.

Diagram showing two mechanical components with screws and fasteners, no text or symbols present

Hand inserting a USB into a device component (no text or symbols visible)

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

5.5 Setting

• Loosen nuts A and B,
• Point the camera correctly then tighten nuts A and B.

B A 0°/360° 0°/360° 0°/90°

5.6 Memory card

The Tycam 1100 Indoor camera is already fitted with a memory card.

This card records encrypted videos that can only be read by the Tydom application. You can increase the recording capacity by installing a card with a greater capacity (Micro SD/ SD HC/ SD HX class 10 required).

Note: Videos recorded on another card model will not be encrypted.

Memory card	Continuous recording time
8 GB 12h
16 GB 24h
32 GB 2,5 days
64 GB 5 days
128 GB 10 days

5.7 Replacing the memory card

• Turn off the camera power supply.
• Open the protective cover.
• Insert the new memory card in the direction indicated.
• Format the card using the Tydom application.

Diagram showing a camera module being inserted into a device, with no visible text or symbols

6 - Tycam 2100 Outdoor

6.1 Contents

1- Camera
2-Connectors
3- EU plug
4- UK plug
5- Mains adaptor (1m50)
6- Memory card cover key
7- Antenna socket plug
8- Drill template
9- Impervious sheath for RJ 45 cable
10- Installation guide Regulatory documents
11- RJ 45 cable (1m50)

Exploded diagram of a drill device with numbered components including motor, socket, and cable assembly

6.2 Description

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

1- Base
2- Camera
3- Sun visor
4- Lens
5- Clamping screw
6- RESET/WPS button (Remove the 2 screws from the cover using the key supplied).
7- Memory card location
8- Earth connection (Optional connection)
9- PoE cable

10- Power supply socket
11- RJ45 Network Connector
12- Infrared LED (night vision)
Slow flashing: QR Code reading confirmation/
Security set up
Fast flashing: Pending QR Code reading for Wi-Fi association / Updating the camera.

6.3 Mounting

• Drill the mounting holes using the drill template.
• Mount the base with suitable screws for the support.

Drill Template

6.4 Setting

• Loosen nut A,
• Point the camera correctly then tighten nut.

0°/360° A 0°/90° 0°/360°

For installations that require wiring for outdoor sockets, a external connection box is available as an option.

BRE Tycam 2100 Outdoor - Ref: 6417008

6.5 Memory card

The Tycam 2100 Outdoor camera is already fitted with a memory card.

This card records encrypted videos that can only be read by the Tydom application. You can increase the recording capacity by installing a card with a greater capacity (Micro SD/ SD HC/ SD HX classe 10 obligatoire).

Note: Videos recorded on another card model will not be encrypted.

Memory card	Continuous recording time
8 GB 12h
16 GB 24h
32 GB 2,5 days
64 GB 5 days
128 GB 10 days

6.6 Replacing the memory card

• Turn off the camera power supply.
• Remove the 2 screws from the cover using the key supplied.
• Insert the new memory card in the direction indicated.
• Format the card using the Tydom application.

Memory card location

6.7 Impervious sheath for RJ 45 cable

If necessary, you can fit the sealing accessory for the RJ 45 cable.

Exploded view diagram of a multi-core cable showing numbered components from pin 1 to pin 7

1- Camera network interface socket
2- Seal
3- Network plug
4- Seal plug
5- Rubber seal
6- Clamping nut
7- Network cable from the wireless router

1. Pass the network cable (7) (without plug) through the clamping nut (6), the rubber seal (5) (inner edge of the rubber seal must be opposite the seal plug), then through the seal plug (4), in this order.
2. Crimp an RJ-45 network plug (3) onto the end of the cable, taking care to insert the twisted pairs of wires in the right order.
3. Place the seal (2) on the tip of the camera network interface socket (1).
4. Insert the network plug (3) into the camera network interface socket (1).
5. Insert the rubber seal (5) into the seal plug (4), then screw the clamping nut (6) onto the seal plug (4) without tightening it completely.
6. Align the seal plug snap-fit system (4) with the notch on the camera network interface socket (1), then screw the seal plug (4) a quarter turn on the camera network interface socket (1).
7. Tighten nut 6, the sealed connection of the RJ45 plug is complete.

Diagram showing three labeled components of a cable or connector, with arrows indicating direction of movement.

Technical diagram of a mechanical device with numbered components and directional arrows indicating flow or movement.

6.8 Antenna

If you are using the Wi-Fi mode to connect the camera to your local network (see § 4), screw the antenna manually onto the camera.

If you are using another connection mode, fit the antenna socket plug to ensure the antenna socket is sealed.

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

7 - Camera connection

Select your connection mode:

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

• The RJ45 cable is briefly required for this mode.

WPS

Internet

Connection modes by Wi-Fi link (2.4 Ghz).

The local Wi-Fi network must be secure.

WPS connection: Check the compatibility of your Wireless router.

Internet Ethernet RJ45 RJ45

Connection mode by Ethernet RJ45 link (Cat. 5E, max. 100m).

The PoE connection mode is used to power the camera by the Ethernet RJ45 link. It requires a Switch or PoE Injector to be installed as well as a category 6 Ethernet cable (not supplied).

Type and max. length according to the switch used (Poe SW4: 250m max)

PoE switch option: Poe SW4 Ref: 6417010

Bitrate

The resolution of the camera is automatically adjusted according to the available bit rate.

If you have difficulty connecting remotely, you can change the resolution of your camera in the app. This setting can only be accessed remotely.

The router requires 100 kbit/s for its own operation.

Setting the resolution	Upstream rate used by camera
High 900	kbit/s
Average 450	kbit/s
Low 300	kbit/s

8 - Tydom application

Switching on for the first time

- When switching the camera on for the first time or after deleting the camera, the time needed to set up the connection with the secure server is around 2 minutes. It can take up to 7 minutes if a software update is required.

Associate your camera with the Tydom application, making sure that your smartphone or tablet is connected to the local network.

Run the Tydom application and follow the instructions.

You can associate up to 8 cameras.

9 - Delete the camera

To remove the camera from the system, launch the Tydom application.

Menu> My devices> Camera> Delete

10 - Technical characteristics

	Tycam 1100 Indoor Tycam	2100 Outdoor
Power supply	INPUT: 100-240V~50-60 Hz 0,3A OUTPUT: 12V --- 1A Or PoE (802.3af Class3)
Consumption 7 W 5 W
RJ45 Network Ethernet 10/100 Mbps
Wi-Fi network W	Wi-Fi IEEE 802.11 b/g/n 2.4 Ghz (5Ghz not compatible)
Optical sensor/Focal distance	1/2.8" 2 Megapixels HD CMOS/f 2.8mm	1/2.5" 2 Megapixels HD CMOS/f 2.8mm
Viewing angle H	108°/V 59°/Diag: 129° H 107° / V 56° /Diag: 127°
Minimum light intensity	0 Lux (with infrared LED)
Night vision EXIR 2.0 Automatic - Range: 10 m		EXIR 2.0 Automatic - Range: 30 m
Resolution	→ Full HD -1920x1080 pixels @25 ips (image per second) depending on connection quality
Video compression	H.265
Micro SD card/SD HC/ SD XC	Can be extended up to 128 GB - (Class 10 obligatory)
Customised detection	●	●
Bidirectional audio	●	-
Embedded siren	Max 85 db -
Operating temperature and humidity	-10°C/+40°C 10% ~ 95% without condensation	-30°C/+60°C 10% ~ 95% without condensation
Storage temperature and humidity	-20°C/+60°C - 0% ~ 90% without condensation
Degree of protection	-	Water spray resistant IP 67
Dimensions 103 mm x 66 mm x 33 mm ∅ 70 mm x 165 mm
Weight	128 gr	410 gr

EN

Rechtliche Hinweise

Technical line drawing of a mechanical valve or fitting (no text or symbols)

1 - Installationshinweis 33

6 - Tycam 2100 Outdoor 38

6.1 Inhalt 38

6.2 Beschreibung 38

6.3 Montage 39

6.4 Einstellung 39

8 - Tydom application 42

Top-down view of a parking lot with trees and a car, no visible text or symbols

Illustration of a car parked on a paved lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Inhalt

Diagram showing seven types of electronic devices with numbered labels, including a camera, switch, and cable.

5.2 Beschreibung

Technical diagram of a device with numbered parts for identification and assembly reference.

Diagram showing two mechanical components with screws and fasteners, no text or symbols present

H ↓

Diagram showing a device with warning indicators and a labeled component, likely illustrating a safety or hazard detection mechanism.

5.5 Einstellung

Diagram showing a camera module being inserted into a device, with no visible text or symbols

6 - Tycam 2100 Outdoor

6.1 Inhalt

Exploded diagram of a drill device with numbered components including motor, socket, and cable assembly

6.2 Beschreibung

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

Diagram of a multi-section mechanical component with numbered parts for identification

Technical diagram showing exploded and assembled views of a mechanical connector with numbered parts and directional arrows indicating assembly.

6.8 Antenne

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Internet RJ45 RJ45 RJ45 (Rev 17) (Oct 27 Sep 18)

Ethernetverbindung (RJ45) (Cat. 5E, max. 100m).

POE

Internet PoE-Switch RJ45 RJ45 RJ45

8 - Tydom application

Technical line drawing of a mechanical component with flanged ends and a cylindrical body (no text or symbols)

5 - Tycam 1100 Indoor 50

6 - Tycam 2100 Outdoor 52

Interior view of a modern living room with TV, sofa, lamp, and wall art (no text or symbols)

Two abstract diagrams: one showing a cross over a person silhouette, the other showing a checkmark with a checkmark (no text or symbols)

Top-down view of a car parked on a paved lot with trees and a person walking nearby (no visible text or symbols)

Illustration of a car parked in a parking lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Contenuto

Technical diagram of a device with numbered components, showing front and side views of a device with labeled parts.

⑥ ⑦ ⑧ ⑨ ⑩ PAN

Diagram showing seven types of household appliances and accessories with numbered labels

Hand pointing at a small electronic component with a button labeled 'USB', no text or symbols present

Diagram showing two mechanical components with screws and fasteners, no text or symbols present

5.5 Regolazione

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

B A 0°/360° 0°/360° 0°/90°

Diagram showing a device with a magnified inset view of a component, no text or symbols present

6 - Tycam 2100 Outdoor

6.1 Contenuto

Exploded diagram of a portable electric drill system with labeled components including motor, socket, and cable assembly

6.2 Descrizione

Technical diagram of a device with numbered components, including a control panel and display unit

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

Diagram of a multi-section mechanical component with numbered parts for identification

Technical diagram showing exploded and assembled views of a mechanical connector with numbered parts and directional arrows indicating assembly.

6.8 Antenna

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Tycam 1100 Indoor Tycam 2100 Outdoor

Alimentazione

INPUT: 100-240V\~50-60 Hz 0,3A

OUTPUT: 12V 1A

O PoE (802.3af Classe 3)

Consumo 7 W 5 W

Rete RJ45 Ethernet 10/100Mbps

Rete Wi-Fi Wi-Fi IEEE 802.11 b/g/n 2,4 Ghz (5 Ghz non compatibile)

Sensore ottico /

Focale

1/2,8" 2 Megapixel

HD CMOS / f 2,8 mm

1/2,5" 2 Megapixel

HD CMOS / f 2,8 mm

Technical line drawing of a mechanical valve or fitting component (no text or symbols)

6 - Tycam 2100 Outdoor 66

Interior view of a modern living room with a TV, sofa, lamp, and wall art (no text or symbols)

Silhouette of a person standing with a large X symbol, accompanied by a smaller human figure below (no text or symbols present)

Silhouette of a person standing next to a checkmark symbol (no text or labels)

Black-and-white architectural sketch of a car parked on a paved path with trees and a person walking nearby (no text or symbols)

Illustration of a car parked in a parking lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Contenido

Diagram showing seven types of household appliances and accessories with numbered labels

5.2 Descripción

Diagram showing two mechanical components with screws and mounting holes, no text or symbols present

5.5 Ajuste

Hand inserting a USB into a device component (no text or symbols visible)

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

B A 0°/360° 0°/360° 0°/90°

Diagram showing a camera module being inserted into a device, with no visible text or symbols.

6 - Tycam 2100 Outdoor

6.1 Contenido

Exploded diagram of a portable electric motor with labeled components including power supply, socket, and drill template.

6.2 Descripción

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

9 - Cable PoE

Exploded view diagram of a multi-core cable showing numbered components from inner to outer connectors

Technical diagram showing exploded and assembled views of a plug-in connector with numbered parts and directional arrows indicating assembly.

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Technical line drawing of a mechanical component with flanged ends and a cylindrical body (no text or symbols)

5 - Tycam 1100 Indoor 78

5.1 Zawartość 78

5.2 Opis 78

6 - Tycam 2100 Outdoor 80

6.1 Zawartość 80

6.2 Opis 80

6.3 Mocowanie 81

6.4 Regulacja 81

6.5 Karta pamięci 81

Interior view of a modern living room with TV, sofa, lamp, and wall art (no text or symbols)

Two abstract diagrams: one showing a cross over a person silhouette, the other showing a checkmark with a checkmark (no text or symbols)

Top-down view of a car parked on a paved lot with trees and a person walking nearby (no visible text or symbols)

Illustration of a car parked on a paved lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Zawartość

Diagram showing exploded view of a device with labeled parts including a camera, cable, and socket

5.2 Opis

Technical diagram of a device with numbered parts for identification and assembly reference.

Diagram showing two mechanical components with screws and holes, no text or symbols present

Hand inserting a USB into a device component (no text or symbols visible)

PL

5.5 Regulacja

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

B A 0°/360° 0°/360° 0°/90°

5.6 Karta pamięci

Diagram showing two camera modules with a magnified inset highlighting a component (no text or symbols present)

6 - Tycam 2100 Outdoor

6.1 Zawartość

Exploded diagram of a drill device with numbered components including motor, socket, and cable assembly

6.2 Opis

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

Exploded view diagram of a multi-core cable showing numbered components from inner to outer connectors

Technical diagram showing exploded and assembled views of a plug-in connector with numbered parts and directional arrows indicating assembly.

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Technical line drawing of a mechanical component with flanged ends and a cylindrical body (no text or symbols)

5 - Tycam 1100 Indoor 92

5.1 Inhoud 92

5.2 Beschrijving 92

5.3 Montage van steun 92

5.4 Bevestiging 93

5.5 Instelling 93

6 - Tycam 2100 Outdoor 94

6.1 Inhoud 94

6.2 Beschrijving 94

6.3 Bevestiging 95

6.4 Instelling 95

6.5 Geheugenkaart 95

Interior view of a modern living room with TV, sofa, lamp, and vase (no text or symbols)

Tycam 2100 Outdoor - h: Min. 4m

Silhouette of a person with a large X-shaped cross symbol, accompanied by a small human figure below (no text or symbols present)

Silhouette of a person standing next to a checkmark symbol (no text or labels)

Top-down view of a car parked on a paved lot with trees and a person standing nearby (no visible text or symbols)

Illustration of a car parked in a parking lot with trees and a checkmark symbol (no text or labels)

5 - Tycam 1100 Indoor

5.1 Inhoud

1- Camera
2- Steun
3- EU-stekker
4- UK-stekker
5- Voedingsadapter (1m50)
6- Handleiding Wettelijke documentatie
7- RJ45-kabel (1m50)

Diagram showing seven types of electronic devices and connectors with numbered labels

5.2 Beschrijving

Technical diagram of a device with numbered parts for identification and assembly reference.

Diagram showing two mechanical components with arrows indicating assembly or movement, no text or symbols present.

Diagram showing a hand pressing a button labeled '按钮' (button) with an arrow indicating downward motion.

5.5 Instelling

• Draai de moeren A en B los,
• Richt de camera correct en draai de moeren A en B vast.

5.6 Geheugenkaart

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

B A 0°/360° 0°/360° 0°/90°

Diagram showing two camera modules with a magnified inset highlighting a component (no text or symbols present)

6 - Tycam 2100 Outdoor

6.1 Inhoud

Exploded diagram of a drill device with numbered components including motor, socket, and cable assembly

6.2 Beschrijving

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

BRE Tycam 2100 Outdoor - Ref: 6417008

6.5 Geheugenkaart

Diagram of a multi-core cable connector with numbered parts for identification

Technical diagram showing exploded and assembled views of a mechanical component with numbered parts and directional arrows.

6.8 Antenne

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Internet RJ45 RJ45 us via RJ45 Ethernet (Cat. 5E, max. 100m)

Verbindingsmodus via RJ45 Ethernet (Cat. 5E, max. 100m).

POE

Technical line drawing of a mechanical component with flanged ends and a cylindrical body (no text or symbols)

5 - Tycam 1100 Indoor 106

5.1 Innhold 106

5.2 Beskrivelse 106

6 - Tycam 2100 Outdoor 108

6.1 Innhold 108

6.2 Beskrivelse 108

6.3 Festing 109

6.4 Innstilling 109

6.5 Minnekort 109

Interior view of a modern living room with TV, sofa, lamp, and wall art (no text or symbols)

Denne detekteringsmodusen krever ingen spesielle monteringsbetingelser.

Tycam 2100 Outdoor- h: 4 m minimum

h

Two abstract diagrams: one showing a cross over a human figure, the other showing a checkmark with a checkmark (no text or symbols)

Aerial view of a parking lot with trees and a car silhouette overlay (no text or symbols)

Illustration of a car parked in a parking lot with trees and a person standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Innhold

Diagram showing seven types of household appliances and accessories with numbered labels

5.2 Beskrivelse

Technical diagram of a device with numbered parts for identification and assembly reference.

1 - Minnekortets plass
2 - RESET- / WPS-knapp (Åpne beskyttelsesdekselet).
3 - RJ45 nettverkskonnektor
4 - Strømkontakt
5 - Høyttaler
6 - Mikrofon
7 - Linse
8 - Statuslampe

Diagram showing two views of a mechanical component with screws and holes, no text or symbols present

Hand inserting a USB into a device component (no text or symbols visible)

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

5.5 Innstilling

Diagram showing a camera module being inserted into a device, with no visible text or symbols

6 - Tycam 2100 Outdoor

6.1 Innhold

1 - Kamera
2 - Kontakter
3 - EU-kontakt
4 - UK-kontakt
5 - Adapter for strømnettet (1m50)
6 - Nøkkel til minnekortets deksel
7 - Deksel til antennekontakt
8 - Boremal
9 - Vanntett kappe til RJ 45-kabel
10 - Installasjonsveiledning Regelverksdokumentasjon
11 - RJ45-kabel (1m50)

1 2 3 4 5 6 7 8 Drill Template 9 10 11 ksel abel

6.2 Beskrivelse

Technical diagram of a device with numbered components, including a control panel and labeled parts.

Technical diagram of a mechanical or electrical component with numbered parts labeled 8, 9, 10, and 11.

9 - PoE-kabel
10 - Strømkontakt
11 - RJ45 nettverkskonnektor
12 - Infrarød LED (nattsyn)

Blinker sakte:

Technical line drawing of a mechanical assembly with a Boremal component, showing internal components and wiring (no text or symbols beyond label)

6.4 Innstilling

Diagram of a multi-section cable assembly with numbered parts for identification

1 - Kameraets nettverksgrensesnittkontakt
2 - Vanntett pakning
3 - Nettverkskontakt
4 - Vanntett deksel
5 - Vanntett gummipakning
6 - Strammemutter
7 - Nettverkskabel fra trådlås router

1. Før nettverkskabelen (7) (uten kontakt) gjennom strammemutteren (6), den vanntette gummipakningen (5) (gummipakningens innvendige kant skal vende mot det vanntette dekselet), deretter tres den igjennom det vanntette dekselet (4). Denne rekkefølgen må følges.
2. Monter en nettverkskontakt RJ 45 (3) på kabelenden. Sørg for at de tvinnede ledningsparene blir ført inn i riktig rekkefølge.
3. Sett den vanntette pakningen (2) på enden av kameraets nettverkskontakt (1).
4. Sett nettverkskontakten (3) inn i kameraets (1) nettverksgrensesnittkontakt.
5. Sett den vanntette gummipakningen (5) inn i det vanntette dekselet (4), og skru strammemutteren (6) på dekselet (4) uten å stramme helt til.
6. Sett dekselets (4) lukkesystem på linje med hakket på kameraets nettverksgrensesnittkontakt (1), og skru deretter det vanntette dekselet (4) en 1/4 gang på grensesnittkontakten (1).
7. Stram mutteren 6, og den vanntette tilkoblingen av RJ45-kontakten er utført.

Technical diagram showing exploded and assembled views of a plug-in connector with numbered parts and directional arrows indicating assembly.

6.8 Antenne

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)

Technical line drawing of a mechanical component with flanged ends and a cylindrical body (no text or symbols)

6 - Tycam 2100 Outdoor 122

Interior view of a modern living room with a TV, sofa, lamp, and vase (no text or symbols)

Silhouette of a person with a large X-shaped cross symbol, accompanied by two smaller human figures below (no text or symbols)

Silhouette of a person standing next to a checkmark symbol (no text or labels)

4.1 Ilmaisutilan valinta

Two identical grayscale images showing a car on a paved path with trees and two silhouettes of people standing nearby (no text or symbols)

5 - Tycam 1100 Indoor

5.1 Sisältö

Diagram showing seven types of electronic devices with numbered labels, including a digital camera and cable assembly.

5.2 Kuvaus

Technical diagram of a device with numbered parts for identification and assembly reference.

Hand inserting a USB into a device component (no text or symbols visible)

Diagram showing two mechanical components with screws and holes, no text or symbols present

5.5 Säätö

Diagram showing a device with labeled components and warning symbol, likely illustrating a safety or hazard detection mechanism.

B A 0°/360° 0°/360° 0°/90°

5.6 Muistikortti

Diagram showing a device with a magnified inset view of its internal components (no text or symbols present)

6 - Tycam 2100 Outdoor

6.1 Sisältö

Exploded diagram of a drill device with numbered components including motor, socket, and cable assembly

6.2 Kuvaus

Technical diagram of a device with numbered components, likely an electrical or mechanical assembly.

Technical diagram of a mechanical device with numbered components labeled 8, 9, 10, and 11.

Exploded view diagram of a multi-core cable showing numbered components from outer sheath to inner sheath.

Technical diagram showing exploded and assembled views of a mechanical component with numbered parts and directional arrows indicating assembly or movement.

6.8 Antenni

Technical illustration of a mechanical assembly with a magnified inset showing a hand holding a tool (no text or symbols present)

WiFi icon with Wi-Fi signal symbol and 'WiFi' text below (no additional symbols or text)
