Brand	Chauvet
Model	Hurricane 1600
Category	Effect Machine (Fog Machine)
Power Supply	120 VAC, 60 Hz or 230 VAC, 50 Hz depending on model
Power (estimated)	1600 W (inferred from name)
Tank Capacity	Not specified (built-in tank with level indicators)
Fog Output	Variable (0-100%)
Control	DMX, manual, wired remote FC-T (included), optional remotes FC-M and FC-W
DMX Channels	1 channel (fog output)
DMX Address	1-512
Warm-up	Indicated by red LED (heating)
Max Ambient Temperature	40 °C (104 °F)
Distance from Adjacent Surfaces	At least 50 cm (20 inches)
FC-T Remote Functions	Timer, continuous, manual, duration and interval adjustment
Recommended Cleaning	Every 90 days with FCQ (Fog Cleaner Quart)
Fuse Replacement	Same type and rating
Safety	Unplug before cleaning; do not touch when operating; hot surface; do not open; no user-serviceable parts
Mounting	On flat surface, do not tilt
Weight	Not specified (portable by handle)
Dimensions	Not specified
Included Accessories	FC-T remote, warranty card, reference manual

Frequently Asked Questions - Hurricane 1600 Chauvet

How to turn on and prepare the Hurricane 1600?

Plug the unit into a protected and grounded outlet. Fill the tank with a compatible fog liquid. Turn on the unit: the red LED indicates warm-up. When the LED turns blue, the machine is ready.

How to use the wired FC-T remote?

The FC-T remote allows control of fog in manual, continuous, or timer mode. Use the rotary knobs to adjust interval, duration, and output. The 'manual' and 'continuous' buttons activate the corresponding modes.

Can I use a DMX controller with this machine?

Yes, the Hurricane 1600 can be controlled via DMX on a single channel (fog output). Set the starting DMX address in the menu (A 1 to A 512) and connect the DMX cable.

How to clean the fog machine?

Use Chauvet's FCQ (Fog Cleaner Quart). Clean at least every 90 days to optimize lifespan. Pour the FCQ into the tank and run the machine until empty, then rinse with fog liquid.

What to do if the machine does not produce fog?

Check that the tank is full. Make sure the machine is sufficiently warmed up (blue LED). Check the fuse and replace if necessary. Verify the remote or DMX controller settings.

What type of fog liquid should I use?

Use a water-based fog liquid compatible with Chauvet fog machines. Do not use other liquids (e.g., scented oils) as they may damage the pump and heater.

Can the machine overheat?

The unit gets very hot during operation. Do not touch it while in use and after shutdown. Keep at least 50 cm away from flammable surfaces. In case of overheating, unplug immediately.

How to replace the fuse?

Unplug the unit. Turn the fuse holder cover counterclockwise to remove it. Replace the blown fuse with a fuse of the same type and rating. Replace and plug back in.

Can I use the machine continuously for long periods?

Yes, continuous mode is possible. However, liquid consumption increases and the machine may perform intermittent heating cycles if the output is set above 6 (on the remote). Continuous run time depends on tank size.

What accessories are included with the Hurricane 1600?

The machine comes with a wired FC-T remote, a warranty card, and a reference manual. Optional remotes (FC-M wired manual and FC-W wireless) are available separately.

USER MANUAL Hurricane 1600 Chauvet

HURRICANE™

1600

Quick Reference Guide

About This Guide	The HurricaneTM 1600 Quick Reference Guide (QRG) contains the product's connection, mounting, and operation information. Download the User Manual fromwww.chauvetlighting.comfor more details.
Disclaimer	The information and specifications contained in this QRG are subject to change without notice.

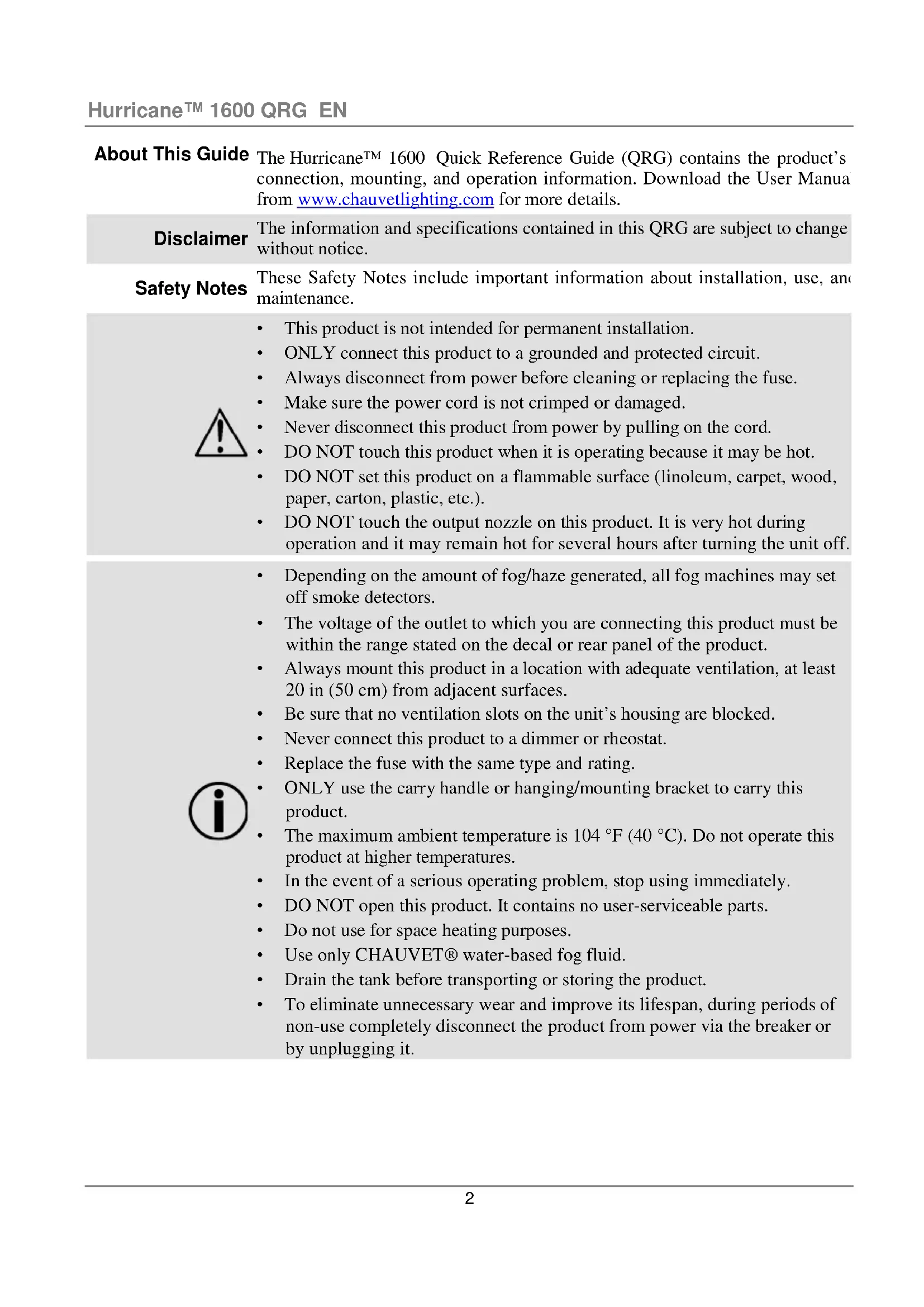

Safety Notes	These Safety Notes include important information about installation, use, and maintenance.
	This product is not intended for permanent installation.ONLY connect this product to a grounded and protected circuit.Always disconnect from power before cleaning or replacing the fuse.Make sure the power cord is not crimped or damaged.Never disconnect this product from power by pulling on the cord.DO NOT touch this product when it is operating because it may be hot.DO NOT set this product on a flammable surface (linoleum, carpet, wood, paper, carton, plastic, etc.).DO NOT touch the output nozzle on this product. It is very hot during operation and it may remain hot for several hours after turning the unit off.
	Depending on the amount of fog/haze generated, all fog machines may set off smoke detectors.The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.Be sure that no ventilation slots on the unit's housing are blocked.Never connect this product to a dimmer or rheostat.Replace the fuse with the same type and rating.ONLY use the carry handle or hanging/mounting bracket to carry this product.The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.In the event of a serious operating problem, stop using immediately.DO NOT open this product. It contains no user-serviceable parts.Do not use for space heating purposes.Use only CHAUVET® water-based fog fluid.Drain the tank before transporting or storing the product.To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via the breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What is Included

- Hurricane™ 1600

- Warranty Card

• FC-T Timed Remote Control

- Quick Reference Guide

To Begin

Unpack your Hurricane™ 1600 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Remote or Manual Operation

The Hurricane™ 1600 can be operated manually, or with the included timer remote control. Two other remote controls are also available as options: a manual wired remote (FC-M) and a wireless remote (FC-W). Details can be found in the User Manual, available at www.chauvetlighting.com.

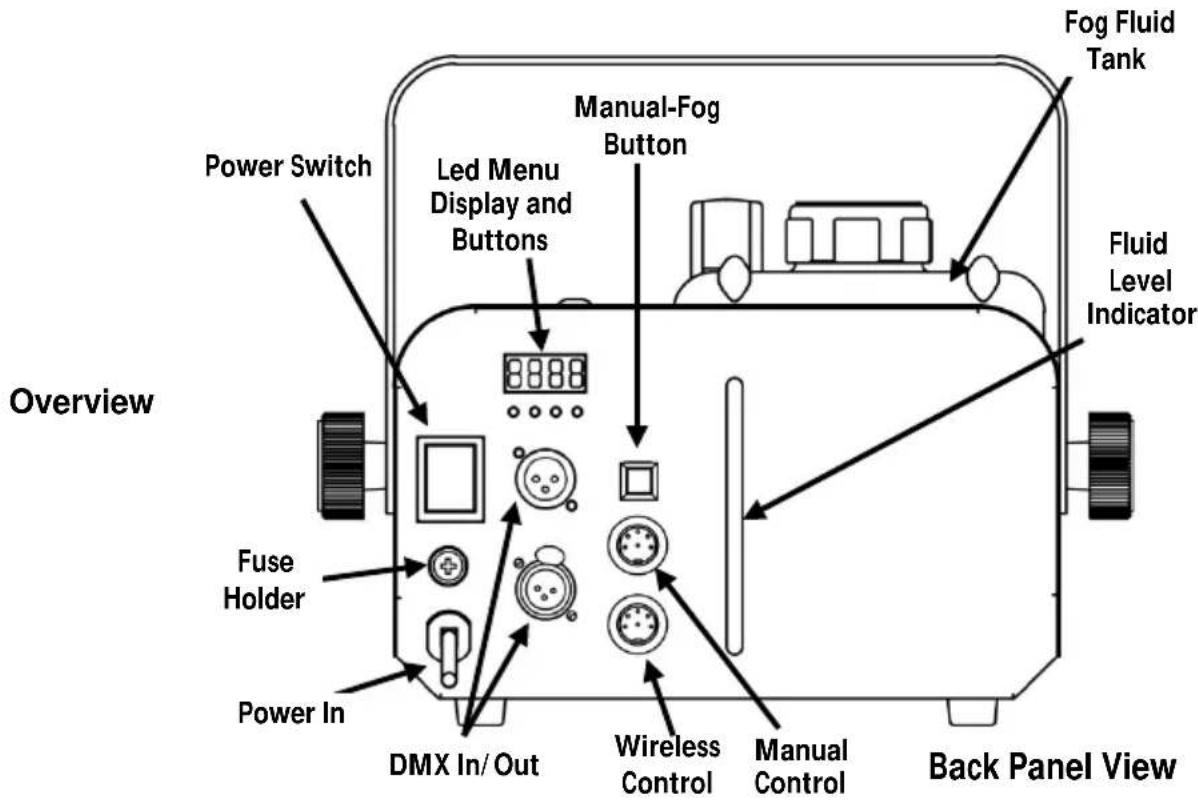

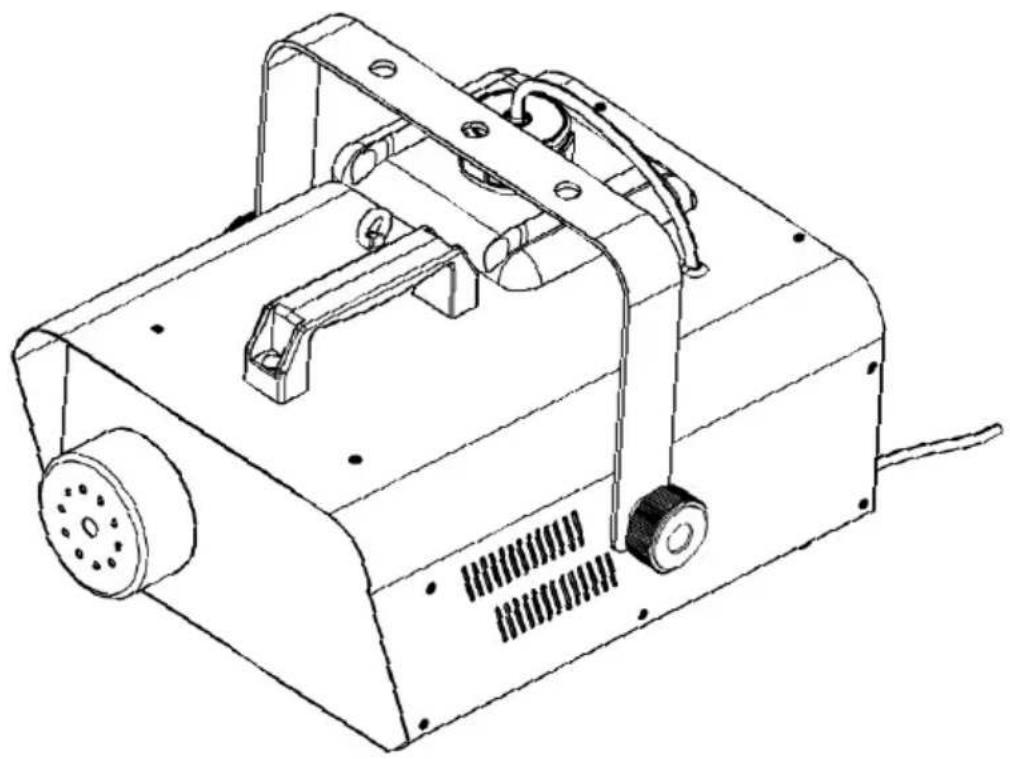

Description

The Hurricane ^™ 1600 is a lightweight, high output fog machine that creates a smoky atmosphere to enhance any light show.

Fluid Tank Indicator Lights

Indicator LEDs show the status of the fill tank, as follows:

• Red - the heater is currently warming up
• Flashing Red - the heater is currently warming up and requires refilling
• Blue - the hazer is ready
- Flashing Blue - the heater is warmed but the fluid tank requires refilling

AC Power

This product has a fixed voltage power supply and it can work with an input voltage of either 120 VAC, 60 Hz or 230 VAC, 50 Hz, depending on the specific model.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Fuse

1. Disconnect the product from power.
2. Twist the fuse holder cap counterclockwise to loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Replacement

FCQ (Fog Cleaner Quart) was specifically developed by Chauvet to clean your Hurricane™ 1600. Make sure you use FCQ regularly, no longer than 90 days between cleanings, to increase the life of your product.

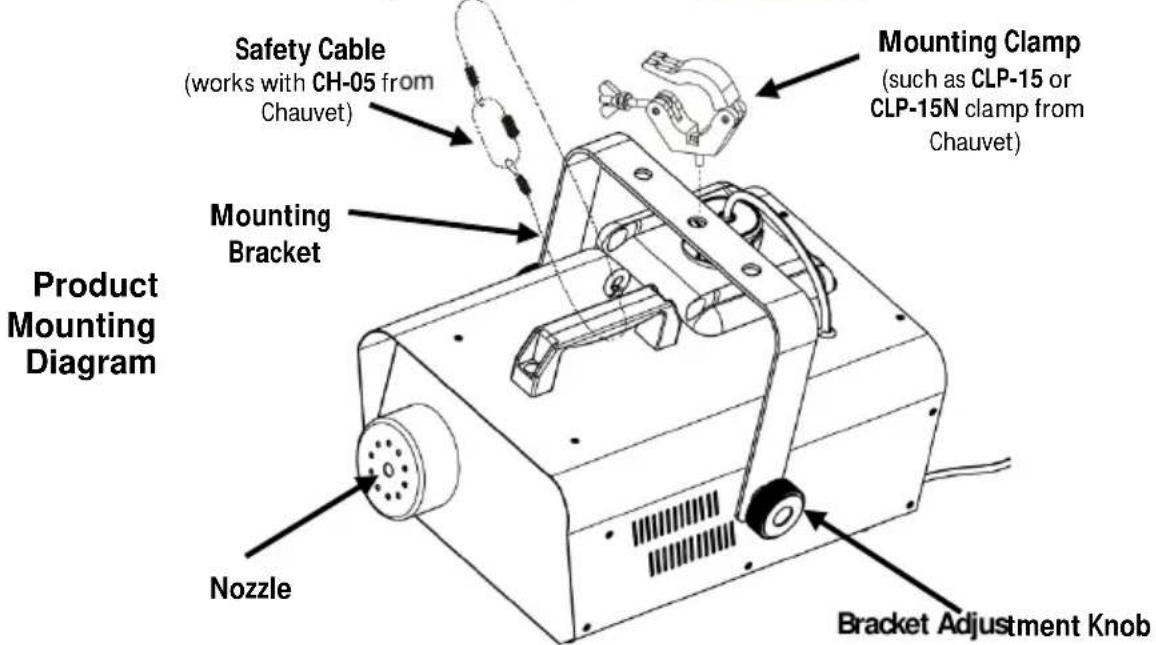

Mounting Before mounting this product, read the Safety Notes.

This product may NOT be tilted. This product should be level when on a surface or when mounted.

While operating the Hurricane™ 1600, make sure there is adequate fog fluid in the machine to prevent pump and heater damage. When the fog fluid level becomes low, simply add more fog fluid to continue using the Hurricane™ 1600.

Control Panel Description	Button Function
		Exits from the current menu or function
		Navigates upwards through the menu list and increases the numeric value when in a function
		Navigates downwards through the menu list and decreases the numeric value when in a function
		Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Options

Feature	Programming Levels		Description
DMX Mode	Addr	A 1–A512	Sets DMX starting address
Temperature	Ht	Hxxx	Displays product current temperature

DMX Linking

The Hurricane ^™ 1600 can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.

Starting Address

To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 512.

FC-T Remote

The FC-T wired timer controller allows you to automatically trigger fog output by setting interval, continuous, or duration time LED indicator lights display the machine and controller's current state. Rotary knobs set interval output, and duration times, while manual and continuous buttons allow overriding control. For more information, download the user manual from the Chauvet website www.chauvetlighting.com.

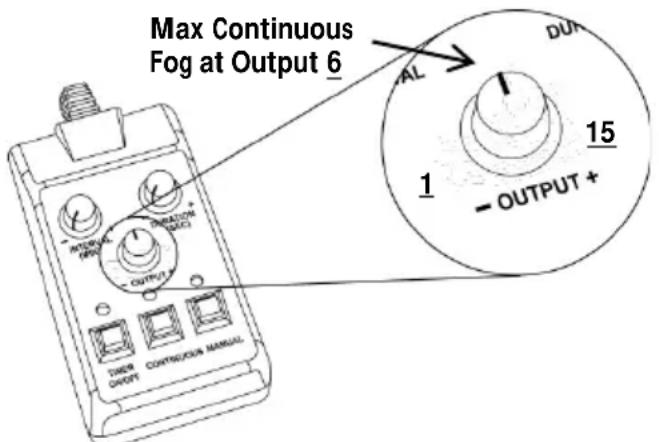

FC-T Remote Overview

• The duration of Continuous fog output is based on the capacity of the fluid tank and the position of the OUTPUT knob.
• The duration of Manual fog (the default MAX output) is based on the capability of the fog machine. (See the product's User Manual for specifications)
• Fluid consumption will be significantly increased during Continuous Output mode.
• MAXIMUM Continuous Output setting recommended is 6. All levels above 6, the fogger will cycle itself with intermittent bursts of fog during reheat program.

DMX Values

1-CH Channel	Function	Value	Percent/Setting
1 Fog	Output	000 Ü 005	No function
		006 Ü 255	0–100%

Note: Fog output is variable, depending upon the status of the heater and environment.
