OBEY6 - Controller Chauvet - Free user manual and instructions

Product type	DMX512 Controller
Brand	Chauvet
Model	OBEY6
Number of controllable units	6 (individually)
Number of channels per unit	6 (maximum)
Control protocol	DMX512
Power supply	External power supply 9-12 VDC, 500 mA
Input voltage range	100-240 VAC, 50/60 Hz
Approximate dimensions	200 × 150 × 60 mm
Approximate weight	0.6 kg
Control modes	Manual (RGBA+UV), Automatic, Chase, Color fade, Color macro, Sound active, Strobe, Blackout
Preset color buttons	18 buttons
Faders	Speed, Fade, Master dimmer, Strobe, White dimmer, UV dimmer
DMX input	No (output only)
DMX output	1 x XLR 3-pin
Included accessories	External power supply, reference manual
Usage	Indoor only (IP20)
Maximum ambient temperature	40 °C
Safety distance to surfaces	50 cm (20 inches)
Warranty	Limited warranty (see terms on Chauvet website)

Frequently Asked Questions - OBEY6 Chauvet

How to set DMX addresses of fixtures with the Obey 6?

Use the address table in the manual: Fixture 1 gets address 1, Fixture 2 address 7, Fixture 3 address 13, etc. Set each fixture to its corresponding DMX address.

How to reset the Obey 6?

There is no hardware reset. To restore default settings, turn off the unit, wait a few seconds, then turn it back on.

How to activate sound activation mode?

Press the Sound button (LED indicator). Use the sound sensitivity knob to adjust reactivity. The lights will react to the beat of the music.

How to create custom colors with the faders?

Enable Manual RGBA+UV operation mode (corresponding button). Use the Red, Green, Blue, Amber, White, and UV faders to create the desired color.

How to use the strobe effect?

Press the Strobe button (LED indicator). Adjust the flash rate with the strobe speed fader.

How to connect multiple fixtures to the Obey 6?

Daisy chain the fixtures using XLR connectors. Ensure each fixture has a unique DMX address within the Obey 6 range (1, 7, 13, 19, 25, 31).

What to do if a fixture does not respond to commands?

Check DMX wiring, the fixture's DMX address, and ensure the Obey 6 is powered on. Try replacing the DMX cable or test on another fixture.

How to clean the Obey 6?

Unplug the unit. Use a dry or slightly damp cloth (no chemicals) to clean the casing. Do not use solvents.

How to replace the fuse of the Obey 6?

Unplug the unit. Locate the fuse holder next to the power input. Replace the blown fuse with a fuse of the same type and rating (see label).

Is the Obey 6 under warranty?

Yes, Chauvet offers a limited warranty. Visit www.chauvetlighting.com/warranty-registration for the USA and Mexico, or www.chauvetlighting.eu/warranty-registration for Europe.

USER MANUAL OBEY6 Chauvet

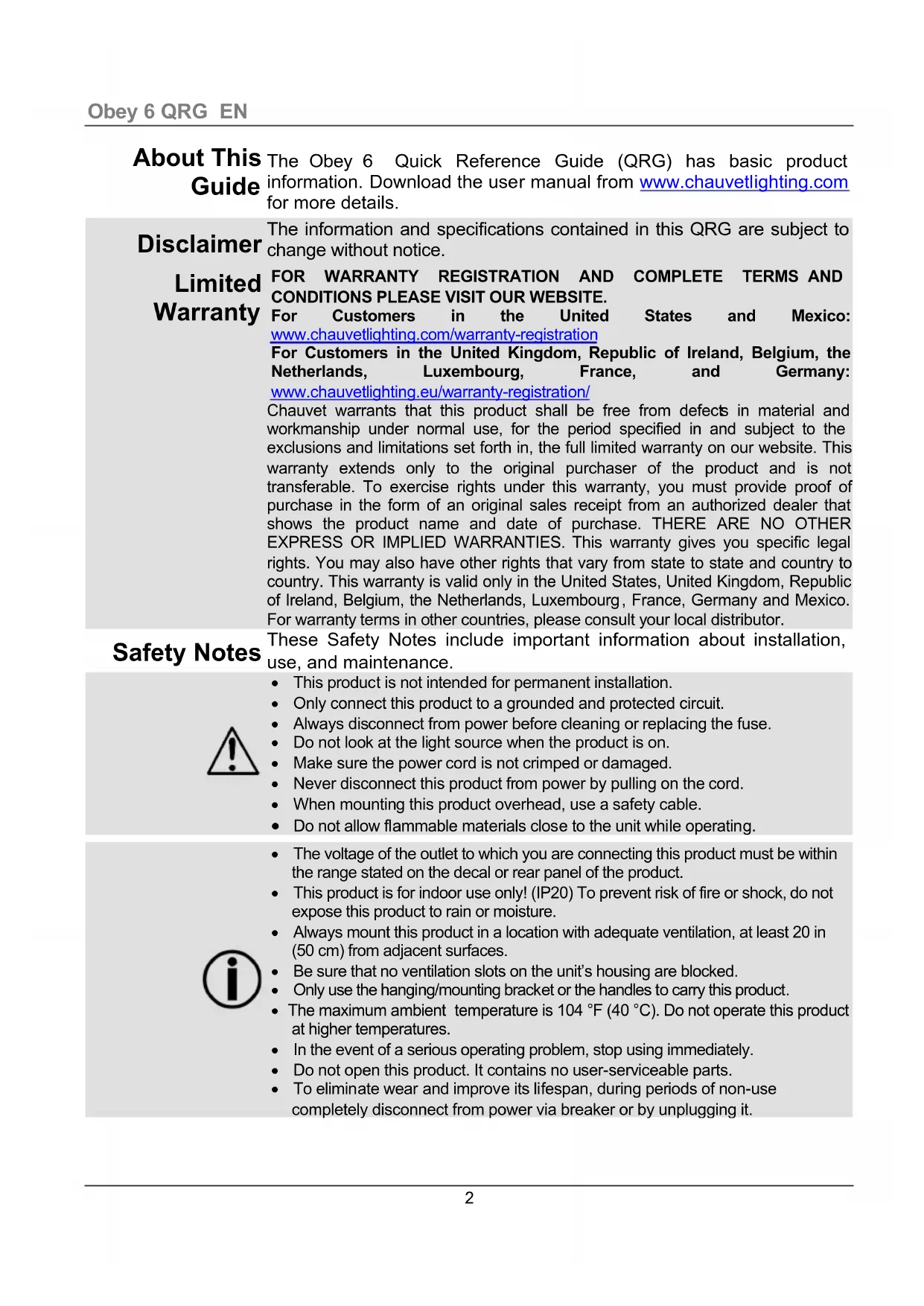

About This The Obey 6 Quick Reference Guide (QRG) has basic product information. Download the user manual from www.chauvetlighting.com for more details.

Disclaimer Limited Warranty

The information and specifications contained in this QRG are subject to change without notice.
FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• Only connect this product to a grounded and protected circuit.
  Always disconnect from power before cleaning or replacing the fuse.
• Do not look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, use a safety cable.
• Do not allow flammable materials close to the unit while operating.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Only use the hanging/mounting bracket or the handles to carry this product.
• The maximum ambient temperature is 104^ (40^) . Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• Do not open this product. It contains no user-serviceable parts.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact

Outside the US, United Kingdom, Ireland, France, Germany, Mexico, or Benelux contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What Is

Obey 6

• Quick Reference Guide

Included

• External power supply

To Begin

Unpack your Obey 6 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Product Description

The Obey 6 is a universal compact DMX-512 controller ideal for LED fixtures. It controls up to 6 fixtures individually with up to 6 channels per fixture. Preset color buttons let you quickly and effortlessly select colors on the fly. Quick Color buttons allow easily added layered effects. Playback options include manual RGBAW+UV, automatic mode, Sound-Active mode, chases, color macros, color fade, and color fade delay. Increase control with adjustable audio sensitivity, strobe, and blackout effects.

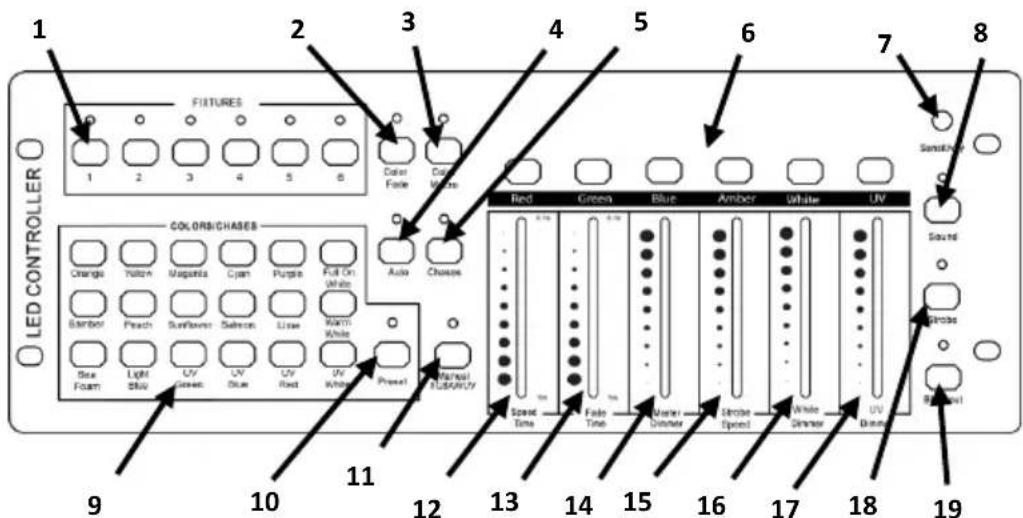

Product Overview

Item	Button or Fader
1	Fixture selection buttons with indicator LEDs
2	Color fade button with indicator LED
3	Color macro button with indicator LED
4	Auto button with indicator LED
5	Chases button with indicator LED
6	Momentary buttons/Quick Color buttons
7	Sound sensitivity adjustment knob
8	Sound button with indicator LED
9	Preset Colors/Chases
10	Preset colors button with indicator LED
11	Manual RGBAW+UV button with indicator LED
12	Speed time/red fader
13	Fade time/green fader
14	Master dimmer/blue fader
15	Strobe speed/amber fader
16	White dimmer/white fader
17	UV dimmer/UV fader
18	Strobe button with indicator LED
19	Blackout button with indicator LED

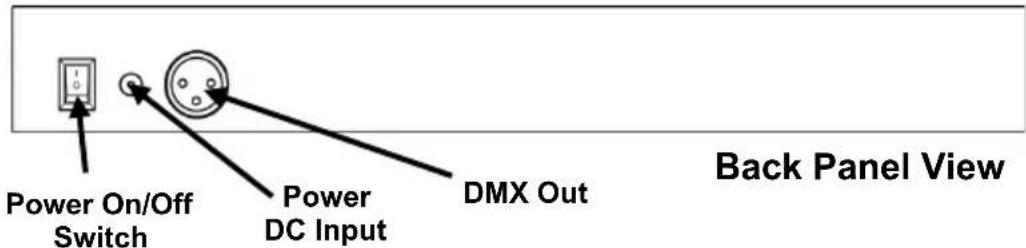

Power

This product has an auto-ranging, external power supply that can work with an input voltage range of 100 to 240 VAC, 50/60Hz ; it runs on 9 to 12 VDC, 500mA .

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

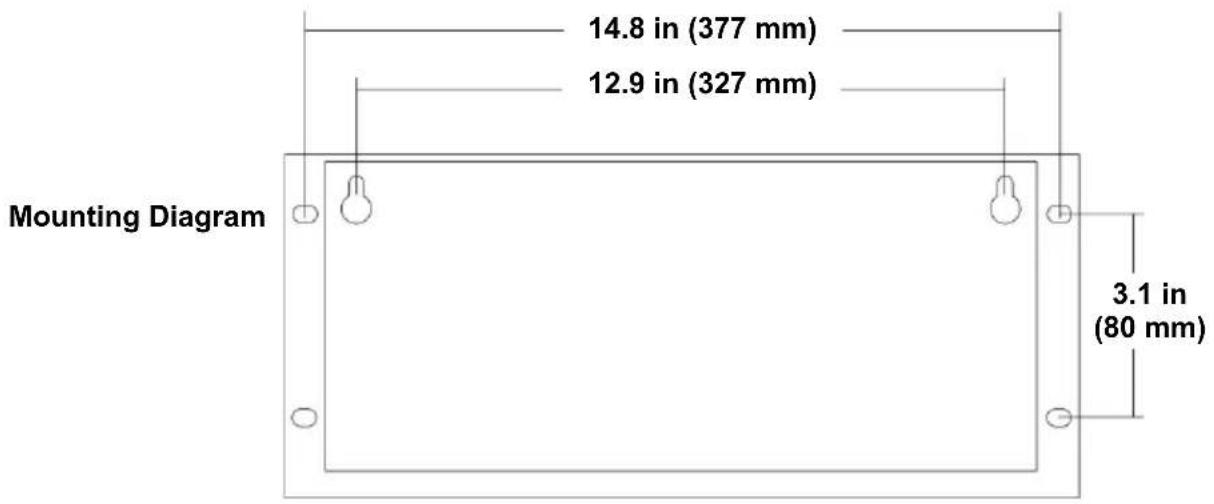

Mounting

Before mounting this product, read the Safety Notes. The dimensions for mounting are included here to aid in installation.

Fixture Addressing

The Obey 6 uses DMX addressing. The board controls lights with specific DMX addresses and the lights must be addressed correctly for the board to control them.

More than one light can have the same DMX address, but lights with the same DMX address should be the same type of light.

Below is a chart showing the Obey 6 DMX addresses and the corresponding fixture buttons.

Address	Fixture Button
1	<FIXTURES 1>
7	<FIXTURES 2>
13	<FIXTURES 3>
19	<FIXTURES 4>
25	<FIXTURES 5>
30	<FIXTURES 6>

Controller Modes The Obey 6 has the following operating modes. For detailed instructions on how to use these modes, and how each mode interacts with other modes, read the user manual available from www.chauvetlighting.com.

Preset Colors The 18 preset color buttons assign a color to each addressed fixture or fixture group.

Auto This mode uses built-in programs to change each fixture independently among random colors.

Chases These preset chases offer several color combinations that cycle the LEDs on and off so that the lights appear to move along a string.

Color Fade This built-in color fade program creates a serial chase through fixtures 1-6.

Color Macro These preset color macros have varying intensities.

Sound This feature creates a sound-activated show using the Color Fade, Auto, and Chase modes.

Momentary/ An all-red, all-green, all-blue, all-amber, all-white or all-UV operating mode can create a stable wash or spot for varying lighting needs. When in Preset mode, these are single-color buttons.

Strobe This mode produces flashes of light at regular intervals. These intervals are set by moving the strobe speed fader.

Blackout Darkens all fixtures.

Manual Set this mode to use a manually selected custom color combination determined by the positions of the red, green, blue, amber, white, and UV faders.

To operate any of the modes that offer amber, white, or UV color options, the selected fixture must be capable of outputting that corresponding color light.
