USER MANUAL Intimidator Wash Zoom 450 IRC Chauvet

Technical line drawing of a multi-light radar or optical instrument with circular components and mounting base (no text or symbols)

About This Guide The Intimidator Wash Zoom 450 IRC Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer The information and specifications contained in this QRG are subject to change without notice.

LIMITED FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes These Safety Notes include important information about installation, use, and maintenance.

• Only connect this product to a grounded and protected circuit.
  • Always disconnect from power before cleaning or replacing the fuse.
• Do not look at the light source when the product is on.
  • Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, use a safety cable.
• Do not allow flammable materials close to the unit while operating.

• Do not touch this product when it is operating because it may be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with another of the same type and rating.
• Only use the handles or attached mounting clamp of appropriate weight capacity to carry this product.
• The maximum ambient temperature is 104 °F ( 40 °C ). Do not operate this product at higher temperatures.
• In the event of a serious operating problem, stop using immediately.
• Do not open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact Outside the U.S., United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- Intimidator Wash Zoom 450 IRC

- Power Cord

- Hanging Bracket with Mounting Hardware

- Quick Reference Guide

To Begin

Unpack your Intimidator Wash Zoom 450 IRC and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Infrared Remote Control 6 (IRC-6)

The Intimidator Wash Zoom 450 IRC is compatible with the Infrared Remote Control 6 (IRC-6) from Chauvet.

The following IRC-6 buttons are used with the Intimidator Wash 450 IRC:

• - turns LED on/off
• - selects auto program mode (scrolling)
• - selects Sound-Active mode
• - strobing (0–20 Hz)
• - Pan/Tilt Auto program speed
• - selects sound sensitivity
• <%> - LED dimmer
• - white (RGB) LED manual control
• - Press once for Fade color change/Press twice for Snap
• - red LED manual control
• - green LED manual control
• - blue LED manual control
• - white LED manual control
• - Zoom manual adjustment
• <+> - Increase
• <-> - Decrease
• <0> to <9> - Select Auto Program by Number

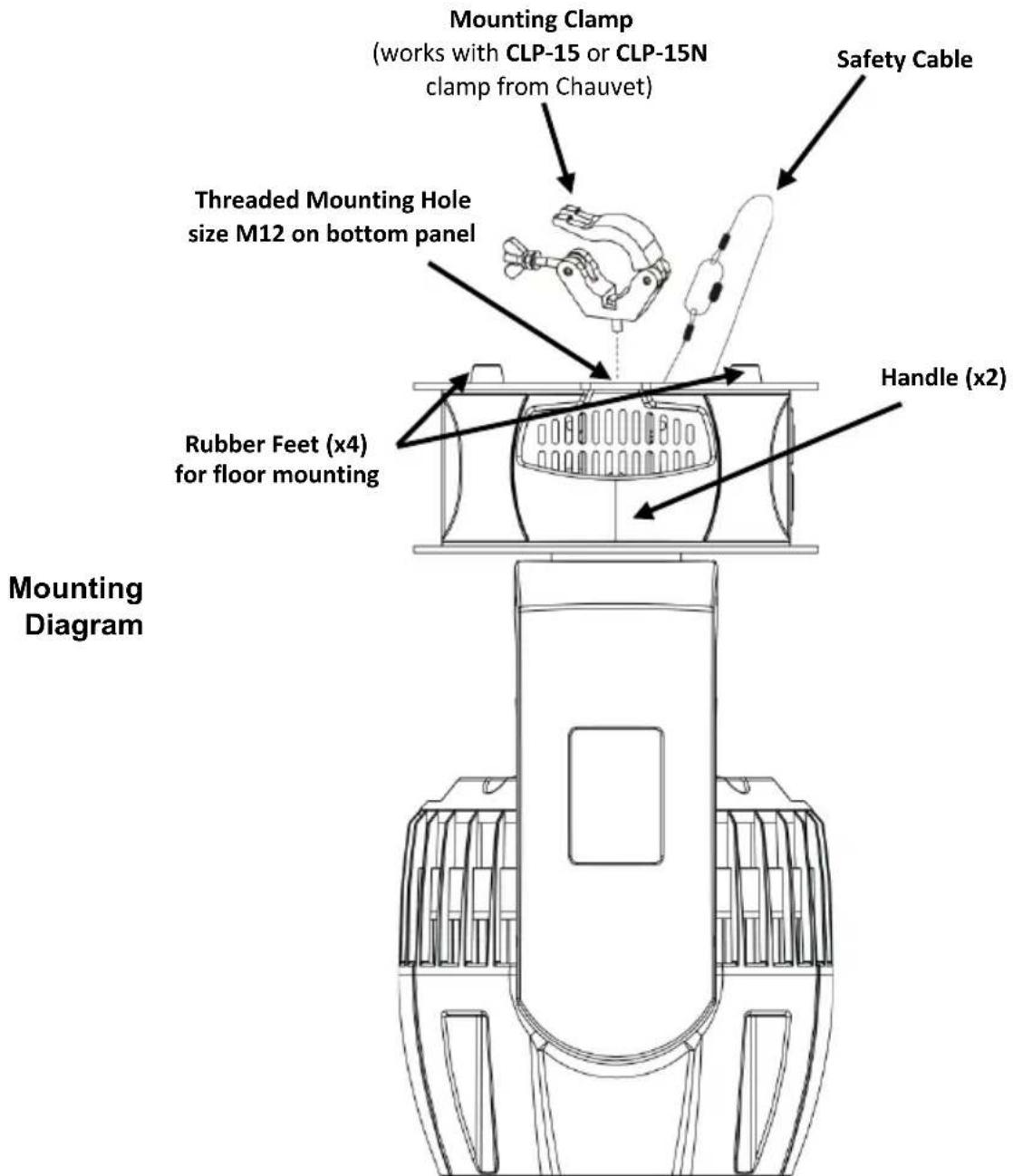

Mounting Before mounting this product, read the Safety Notes.

Mounting Clamp (works with CLP-15 or CLP-15N clamp from Chauvet) Safety Cable Threaded Mounting Hole size M12 on bottom panel Handle (x2) Rubber Feet (x4) for floor mounting Mounting Diagram

When using only one mounting clamp, be sure to use a clamp with a captive bolt to prevent accidental loosening.

Control Panel Description	Button Function
		Exits from the current menu or function
		Navigates upwards through the menu list and increases the numeric value when in a function
		Navigates downwards through the menu list and decreases the numeric value when in a function
		Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Options

Main Function	Programming Levels		Description
Address	001-512		Sets the DMX starting address
Run Mode	DMX	14CH	Selects DMX mode
		29CH
	Auto	Auto01-Auto16	Selects auto program
	Sound		Selects Sound-Active mode
	Slave		Selects Slave mode
	IR		Selects infrared control
Setup	Pan Reverse	OFF	Normal pan operation
		ON	Reverse pan operation
	Tilt Reverse	OFF	Normal tilt operation
		ON	Reverse tilt operation
	Pan Angle	540	Selects the 540° pan angle range
		360	Selects the 360° pan angle range
		180	Selects the 180° pan angle range
	Tilt Angle	270	Selects the 270° tilt angle range
		180	Selects the 180° tilt angle range
		90	Selects the 90° tilt angle range
	P/T Speed	Normal	Selects the panning/tilting speed
		Fast
		Slow
	Fans	Auto	Sets fan speed according to temperature
		Full	Fan speed set to full speed
	Display	OFF	Display background light turns off after inactivity
		ON	Display background light stays on
	Screen Rev	OFF	Normal display
		ON	Reverse display
	Dimmer Curve	Square	Selects the dimmer curve mode
		I Square
		SCurve
		Linear
	Dimmer Speed	Fast	Selects the dimmer speed
		Smooth
	Color Balance	RED	Selects color balance (100 to 255)
		GREEN
		BLUE
		WHITE
	Sensitivity	001-100	Sets sound sensitivity
	Reset		Resets the product
	Factory Set		Loads factory defaults
Sys Info	Ver VX		Displays the software version
	Running Mode XXXXX		Displays the current running mode
	DMX Address XXX		Displays the current DMX address
	Temperature XXX		Displays the LED temperature in Celsius

DMX Linking

Starting Address

Master/Slave Connection

The Intimidator Wash Zoom 450 IRC can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.

To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 484.

The Intimidator Wash Zoom 450 IRC uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

DMX Values

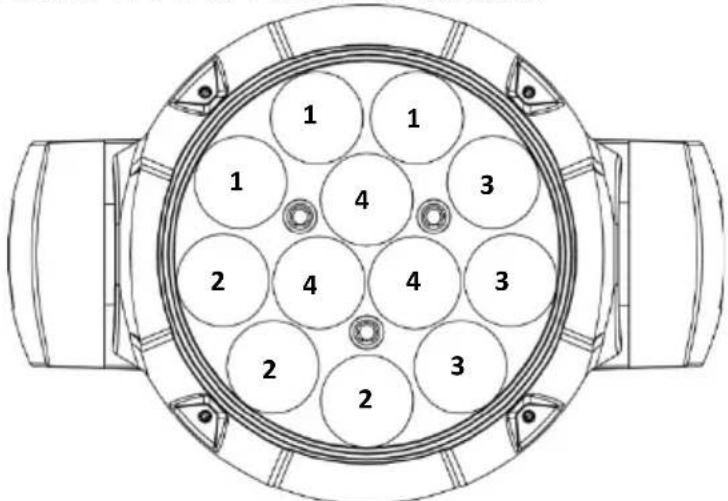

Intimidator Wash Zoom 450 IRC Zones of Control

1 1 1 4 3 2 4 4 3 2 2 3

29CH	Channel	Function	Value	Percent/Setting
	1	Pan	000 ⇔ 255	0 to 540°
	2	Fine Pan	000 ⇔ 255	Fine control of panning
	3	Tilt	000 ⇔ 255	0 to 270°
	4	Fine Tilt	000 ⇔ 255	Fine control of tilting
	5	Speed	000 ⇔ 255	Pant/Tilt speed (fast to slow)
	6	Red	000 ⇔ 255	0 to 100%	Zone 1
	7	Green	000 ⇔ 255	0 to 100%
	8	Blue	000 ⇔ 255	0 to 100%
	9	White	000 ⇔ 255	0 to 100%
	10	Red	000 ⇔ 255	0 to 100%	Zone 2
	11	Green	000 ⇔ 255	0 to 100%
	12	Blue	000 ⇔ 255	0 to 100%
	13	White	000 ⇔ 255	0 to 100%
	14	Red	000 ⇔ 255	0 to 100%	Zone 3
	15	Green	000 ⇔ 255	0 to 100%
	16	Blue	000 ⇔ 255	0 to 100%
	17	White	000 ⇔ 255	0 to 100%
	18	Red	000 ⇔ 255	0 to 100%	Zone 4
	19	Green	000 ⇔ 255	0 to 100%
	20	Blue	000 ⇔ 255	0 to 100%
	21	White	000 ⇔ 255	0 to 100%

29CH (cont.)	Channel	Function	Value	Percent/Setting
	22 Colors		000 ⇔ 004	No function
			005 ⇔ 009	Color 1
			010 ⇔ 014	Color 2
			015 ⇔ 019	Color 3
			020 ⇔ 024	Color 4
			025 ⇔ 029	Color 5
			030 ⇔ 034	Color 6
			035 ⇔ 039	Color 7
			040 ⇔ 044	Color 8
			045 ⇔ 049	Color 9
			050 ⇔ 054	Color 10
			055 ⇔ 059	Color 11
			060 ⇔ 064	Color 12
			065 ⇔ 069	Color 13
			070 ⇔ 074	Color 14
			075 ⇔ 079	Color 15
			080 ⇔ 084	Color 16
			085 ⇔ 089	Color 17
			090 ⇔ 094	Color 18
			095 ⇔ 099	Color 19
			100 ⇔ 104	Color 20
			105 ⇔ 109	Color 21
			110 ⇔ 114	Color 22
			115 ⇔ 119	Color 23
			120 ⇔ 124	Color 24
			125 ⇔ 129	Color 25
			130 ⇔ 134	Color 26
			135 ⇔ 139	Color 27
			140 ⇔ 144	Color 28
			145 ⇔ 149	Color 29
			150 ⇔ 154	Color 30
			155 ⇔ 159	Color 31
			160 ⇔ 164	Color 32
			165 ⇔ 169	Color 33
			170 ⇔ 174	Color 34
			175 ⇔ 179	No function
			180 ⇔ 201	Clockwise color change (fast to slow)
			202 ⇔ 207	Stop (color stays in the current color)
			208 ⇔ 229	Counter-clockwise color change (slow to fast)
			230 ⇔ 234	No function
			235 ⇔ 249	Color jump (fast to slow)
			250 ⇔ 255	Sound-Active colors
23 Built-in Control		000 ⇔ 015	No function
		016 ⇔ 031	Zone macro 1
		032 ⇔ 047	Zone macro 2
		048 ⇔ 063	Zone macro 3
		064 ⇔ 079	Zone macro 4
		080 ⇔ 095	Zone macro 5
		096 ⇔ 111	Zone macro 6
		112 ⇔ 127	Built-in 7 (zone macros 1—6)
		128 ⇔ 143	Built-in Auto 1
		144 ⇔ 159	Built-in Auto 2
		160 ⇔ 175	Built-in Auto 3
		176 ⇔ 191	Built-in Auto 4
		192 ⇔ 207	Built-in Auto 5
		208 ⇔ 223	Built-in Auto 6
		224 ⇔ 239	Built-in Auto 7
		240 ⇔ 255	Built-in 8 (built-in auto 1—7)
24	Built-in Speed	000 ⇔ 255	Zones and built-in auto speed (slow to fast)
25	Dimmer	000 ⇔ 255	0 to 100%
26 Shutter		000 ⇔ 019	Closed
		020 ⇔ 024	Open
		025 ⇔ 064	Strobe effect (decreasing speed)
		065 ⇔ 069	Open
		070 ⇔ 084	Fast on, slow off (decreasing speed)
		085 ⇔ 089	Open
		090 ⇔ 104	Slow on, fast off (decreasing speed)
		105 ⇔ 109	Open
		110 ⇔ 124	Random shutter (decreasing speed)
		125 ⇔ 129	Open
		130 ⇔ 144	Random fast on, slow off (decreasing speed)
		145 ⇔ 149	Open
		150 ⇔ 164	Random slow on, fast off (decreasing speed)
		165 ⇔ 169	Open
		170 ⇔ 184	Pulse effect 1 (decreasing speed)
		185 ⇔ 189	Open
		190 ⇔ 204	Pulse effect 2 (decreasing speed)
		205 ⇔ 209	Open
		210 ⇔ 224	Gradually on and off (decreasing speed)
		225 ⇔ 229	Open
		230 ⇔ 244	Pulse effect 3 (decreasing speed)
		245 ⇔ 255	Open
27	Zoom	000 ⇔ 255	Zoom in and out
28 Control Functions		000 ⇔ 009	No function
		010 ⇔ 014	Blackout while panning/tilting
		015 ⇔ 049	No function
		050 ⇔ 054	Reset pan
		055 ⇔ 059	Reset tilt
		060 ⇔ 064	Reset zoom
		065 ⇔ 069	No function
		070 ⇔ 074	Reset all
		075 ⇔ 079	No function
		080 ⇔ 084	Reverse pan/tilt
		085 ⇔ 089	Reverse pan
		090 ⇔ 094	Reverse tilt
		095 ⇔ 099	Cancel reverse pan
		100 ⇔ 104	Cancel reverse tilt
		105 ⇔ 109	Cancel reverse pan/tilt
		110 ⇔ 114	Pan/Tilt normal speed
		115 ⇔ 119	Pan/Tilt fast speed
		120 ⇔ 124	Pan/Tilt slow speed
		125 ⇔ 129	Fan (full speed)
		130 ⇔ 134	Fan (auto)
		135 ⇔ 139	Dimmer, fast
		140 ⇔ 144	Dimmer, smooth
		145 ⇔ 255	No function
29 Movement Macros		000 ⇔ 007	No function
		008 ⇔ 023	Automatic movement macro 1
		024 ⇔ 039	Automatic movement macro 2
		040 ⇔ 055	Automatic movement macro 3
		056 ⇔ 071	Automatic movement macro 4
		072 ⇔ 087	Automatic movement macro 5
		088 ⇔ 103	Automatic movement macro 6
		104 ⇔ 119	Automatic movement macro 7
		120 ⇔ 135	Automatic movement macro 8
		136 ⇔ 151	Sound-Active movement macro 1
		152 ⇔ 167	Sound-Active movement macro 2
		168 ⇔ 183	Sound-Active movement macro 3
		184 ⇔ 199	Sound-Active movement macro 4
		200 ⇔ 215	Sound-Active movement macro 5
		216 ⇔ 231	Sound-Active movement macro 6
		232 ⇔ 247	Sound-Active movement macro 7
		248 ⇔ 255	Sound-Active movement macro 8
14CH Channel	Function	Value	Percent/Setting
1	Pan	000 ⇔ 255	0 to 540°
2	Tilt	000 ⇔ 255	0 to 270°
3	Speed	000 ⇔ 255	Pan/Tilt (fast to slow)
4	Red	000 ⇔ 255	0 to 100%
5	Green	000 ⇔ 255	0 to 100%
6	Blue	000 ⇔ 255	0 to 100%
7	White	000 ⇔ 255	0 to 100%
8 Built-in Control		000 ⇔ 015	No function
		016 ⇔ 031	Zone macro 1
		032 ⇔ 047	Zone macro 2
		048 ⇔ 063	Zone macro 3
		064 ⇔ 079	Zone macro 4
		080 ⇔ 095	Zone macro 5
		096 ⇔ 111	Zone macro 6
		112 ⇔ 127	Built-in 7 (zone macros 1—6)
		128 ⇔ 143	Built-in Auto 1
		144 ⇔ 159	Built-in Auto 2
		160 ⇔ 175	Built-in Auto 3
		176 ⇔ 191	Built-in Auto 4
		192 ⇔ 207	Built-in Auto 5
		208 ⇔ 223	Built-in Auto 6
		224 ⇔ 239	Built-in Auto 7
		240 ⇔ 255	Built-in 8 (built-in auto 1—7)
9	Built-in Speed	000 ⇔ 255	Zones and built-in auto speed (slow to fast)
10	Dimmer	000 ⇔ 255	0 to 100%
11 Shutter		000 ⇔ 019	Closed
		020 ⇔ 024	Open
		025 ⇔ 064	Strobe effect (decreasing speed)
		065 ⇔ 069	Open
		070 ⇔ 084	Fast on, slow off (decreasing speed)
		085 ⇔ 089	Open
		090 ⇔ 104	Slow on, fast off (decreasing speed)
		105 ⇔ 109	Open
		110 ⇔ 124	Random shutter (decreasing speed)
		125 ⇔ 129	Open
		130 ⇔ 144	Random fast on, slow off (decreasing speed)
		145 ⇔ 149	Open
		150 ⇔ 164	Random slow on, fast off (decreasing speed)
		165 ⇔ 169	Open
		170 ⇔ 184	Pulse effect 1 (decreasing speed)
		185 ⇔ 189	Open
		190 ⇔ 204	Pulse effect 2 (decreasing speed)
		205 ⇔ 209	Open
		210 ⇔ 224	Gradually on and off (decreasing speed)
		225 ⇔ 229	Open
		230 ⇔ 244	Pulse effect 3 (decreasing speed)
		245 ⇔ 255	Open
12	Zoom	000 ⇔ 255	Zoom in and out

14CH (cont.)	Channel	Function	Value	Percent/Setting
	13 Control Functions		000 ⇔ 009	No function
			010 ⇔ 014	Pan/Tilt blackout
			015 ⇔ 049	No function
			050 ⇔ 054	Reset pan
			055 ⇔ 059	Reset tilt
			060 ⇔ 064	Reset zoom
			065 ⇔ 069	No function
			070 ⇔ 074	Reset all
			075 ⇔ 079	No function
			080 ⇔ 084	Reverse Pan/Tilt
			085 ⇔ 089	Reverse pan
			090 ⇔ 094	Reverse tilt
			095 ⇔ 099	Cancel reverse pan
			100 ⇔ 104	Cancel reverse tilt
			105 ⇔ 109	Cancel reverse pan/tilt
			110 ⇔ 114	Pan/Tilt normal speed
			115 ⇔ 119	Pan/Tilt fast speed
			120 ⇔ 124	Pan/Tilt slow speed
			125 ⇔ 129	Fan (full speed)
			130 ⇔ 134	Fan (auto)
			135 ⇔ 139	Dimmer, fast
			140 ⇔ 144	Dimmer, smooth
			145 ⇔ 255	No function
	14 Movement Macros		000 ⇔ 007	No function
			008 ⇔ 023	Automatic movement macro 1
			024 ⇔ 039	Automatic movement macro 2
			040 ⇔ 055	Automatic movement macro 3
			056 ⇔ 071	Automatic movement macro 4
			072 ⇔ 087	Automatic movement macro 5
			088 ⇔ 103	Automatic movement macro 6
			104 ⇔ 119	Automatic movement macro 7
			120 ⇔ 135	Automatic movement macro 8
			136 ⇔ 151	Sound-Active movement macro 1
			152 ⇔ 167	Sound-Active movement macro 2
			168 ⇔ 183	Sound-Active movement macro 3
			184 ⇔ 199	Sound-Active movement macro 4
			200 ⇔ 215	Sound-Active movement macro 5
			216 ⇔ 231	Sound-Active movement macro 6
			232 ⇔ 247	Sound-Active movement macro 7
			248 ⇔ 255	Sound-Active movement macro 8

Acerca de esta guía

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.

Intimidator Wash Zoom 450 IRC QRG - Rev. 2 ML6

© Copyright 2020 Chauvet and Sons, LLC

All rights reserved.

Printed in the P. R. C.

CE RoHS
