IAN 290615 - Lighting Livarno Lux - Free user manual and instructions

Product type	LED strip for bathroom
Brand	Livarno Lux
Model	IAN 290615
Power supply (transformer)	220-240 V~ 50/60 Hz
Power supply (lamp)	SELV 24 V d.c.
Total power	5,5 W
LED power	4 W
Output current	0,2 A
Protection class (transformer)	II
Protection class (lamp)	III
Lighting function	Touch switch with dimming
Mounting	Suction cups
Use	Indoor, dry rooms
Replaceable LEDs	No
Cleaning	Dry lint-free cloth
Warranty	36 months
Customer service	Tel. [phone], [e-mail]
Safety	Do not look directly at LEDs, do not use with dimmer
Compliance	CE declaration of conformity

Frequently Asked Questions - IAN 290615 Livarno Lux

How to install the Livarno Lux IAN 290615 lamp?

Choose a clean, dry, and degreased mounting surface (e.g., a mirror). Place the suction cups on the surface, then snap the lamp into the holders. Connect the connection cable to the plug-in transformer observing polarity, then plug the transformer into a nearby power outlet.

Can I use this lamp with a dimmer?

No, the fixed LEDs are not suitable for dimmers or electronic switches. Use only the integrated touch switch for on/off and dimming.

Are the LEDs replaceable?

No, the LEDs are not replaceable. If they reach the end of their life, the entire luminaire must be replaced.

How to clean the lamp?

First unplug the plug-in transformer from the outlet. Clean the lamp with a dry lint-free cloth. Do not use solvents, gasoline, or similar products.

What to do if the lamp does not turn on?

Check that the plug-in transformer is properly connected and that the power outlet works. Make sure the connection plug is properly inserted with correct polarity. If the problem persists, contact customer service.

Can I use this lamp in a bathroom with a shower?

The lamp is designed for indoor use in dry, enclosed rooms. It is not intended for direct use in the wet area of a shower. Mount it out of reach of water splashes.

What is the total power of the lamp?

The total power is 5,5 W (of which 4 W for the LEDs).

How to adjust the brightness?

Press and hold the touch switch to continuously dim the light. When you turn off and then on, the lamp resumes the last stored level.

Does the lamp have a physical switch?

Yes, it has an integrated touch switch on the strip. Briefly press to turn on/off.

How to contact customer service?

You can reach customer service by phone at +49 (0) 2961 / 97 12-800 or by email at [e-mail]. Have the item number 14125304L ready.

USER MANUAL IAN 290615 Livarno Lux

PDF online www.lidl-service.com

MAKE-UP-LICHT / MAKE-UP LIGHT / RÉGLETTE À LED POUR SALLE DE BAINS

DE AT CH

MAKE-UP-LICHT

Assembly, operating and safety instructions

NL BE

MAKE-UP-LAMP

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Intended Use Page 13

Scope of delivery....Page 13

Description of Parts Page 13

Technical Data Page 13

Safety Page 13

Safety notes......Page 13

Before Use......Page 14

Installing the light Page 14

Switching the light on/off......Page 15

Dimming the light Page 15

Maintenance and Cleaning......Page 15

Disposal Page 15

Warranty and Service......Page 15

Warranty Page 15

Service address......Page 16

Declaration of Conformity....Page 16

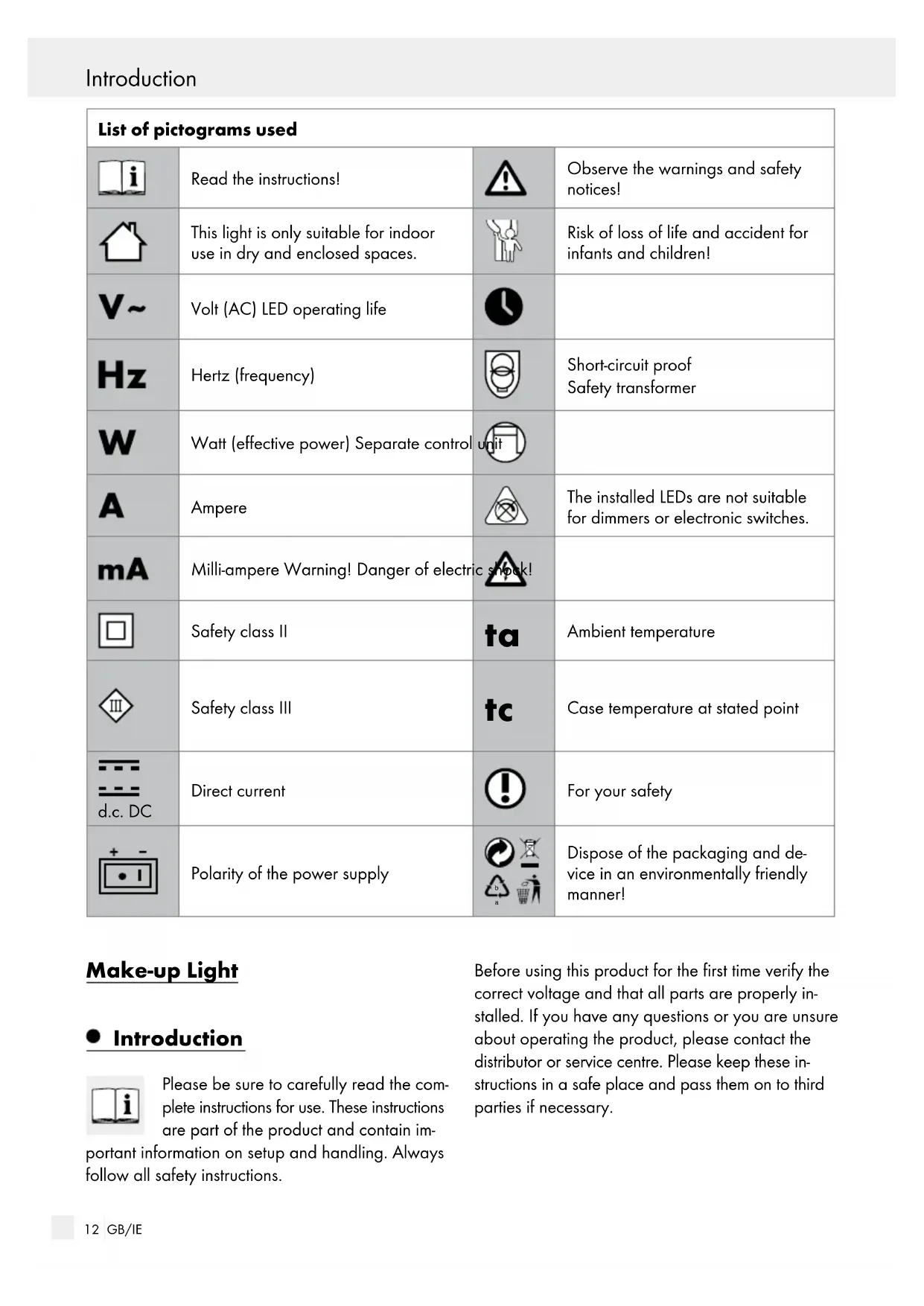

List of pictograms used
	Read the instructions!		Observe the warnings and safety notices!
	This light is only suitable for indoor use in dry and enclosed spaces.		Risk of loss of life and accident for infants and children!
	Volt (AC) LED operating life
	Hertz (frequency)		Short-circuit proofSafety transformer
	Watt (effective power) Separate control
	Ampere		The installed LEDs are not suitable for dimmers or electronic switches.
	Milli-ampere Warning! Danger of electric	!
	Safety class II		Ambient temperature
	Safety class III		Case temperature at stated point
	Direct current		For your safety
	Polarity of the power supply		Dispose of the packaging and device in an environmentally friendly manner!

Make-up Light

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain im-

portant information on setup and handling. Always follow all safety instructions.

Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

IntendedUse

This light is only suitable for indoor use in dry and enclosed spaces. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.

Scope of delivery

Check that all the parts are present and that the device is in perfect condition immediately after unpacking.

1 Make-up light
2 Suction cups
1 Instructions for use

• Description of Parts

1 Light
2 Suction cup
3 Touch switch
4 Plug-in transformer
5 Connecting plug
6 Supply cable
7 Bracket
8 Protective film

Technical Data

Itemno.:14125304L

Make-up light

Operating voltage: 220-240V\~50/60Hz

Total output wattage: 5.5 W

Protection class: II /

Itemno.:14125304L-1/light

Operating voltage: SELV 24 V d.c

Output wattage: LED 4 W

Protection class: III /

Power adapter

Operating voltage:220-240VAC \~ 50/60 Hz 0.075 A

Output voltage/

current: 4.8 WDC---0.2A, max. 24V

or

4.8 WDC==24V, max. 0.2A

Protection class: II/☐

LED non-replaceable

Safety

Safety notes

Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety instructions!

DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the product.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the lamp for possible damage before every use. Never use the light if it shows any signs of damage.

CAUTION!

A damaged supply cable poses a danger to life by electric shock. The device's supply cable cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

Before use, verify that the available mains voltage corresponds with the required operating voltage of the item (see „Technical Data“).
■ Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the electrical equipment or insert objects into these. This will pose a risk of fatal injury from electric shock.
- Do not install the light on damp or conductive surfaces.
- Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not secure with sharp staples or nails.
■ Always unplug the plug-in transformer from the socket before installation, removal or cleaning.
■ Never touch the plug-in transformer with wet hands.
■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.
The installed LEDs are not suitable for dimmers or electronic switches.

Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).

For your safety

• Install the light so that it is protected from dirt and excessive heat.
  ■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the light if you are having difficulty concentrating or do not feel well.
• Familiarise yourself with all instructions and diagrams in this manual as well as with the light itself before use.
  ■ To disconnect the lamp completely from the power supply, the plug-in transformer must be removed from the mains socket.

- Before Use

☐ Remove all packaging materials before first use. Please remove the protective film 8 from the light.
☐ The light should not be connected to the supply network while it is still in its packaging.

- Installing the light

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the suction cups may be impaired.

Note: Ensure that a plug socket is located in close proximity to the installation area.

☐ Choose a suitable installation area (mirror etc.).
☐ Press the suction cup 2 onto the installation surface.
☐ Verify it is positioned correctly and securely.
□ Clip the light 1 into the holder 7 of the suction cup 2.
☐ Ensure that the light ☐ is positioned correctly.

☐ Connect the supply cable 6 with the plug-in transformer 4 via the connecting plug 5.
☐ Ensure that the polarity of the connecting plug 5 and the plug-in transformer 4 is correct.
☐ Plug the transformer 4 into the mains socket.
☐ If the suction cups 2 should alter their position over time, the light must be re-installed.

Your light is now ready to use.

- Switching the light on/off

☐ Switch the light 1 on or off using the touch switch 3.

Dimming the light

☐ Press and hold the touch button 3 until the light is set to the desired brightness.
☐Thelight 1 dimmer function is continuous (stepless).
☐ If the light 1 is switched off while it is dimmed, it will use the same dimmer setting when switched on again.

● Maintenance and Cleaning

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Before performing any work, first disconnect the light from the mains power. Unplug the plug-in transformer 4 from the socket.

• Do not use solvents, petrol, etc. Otherwise the lamp will be damaged.
  □ Clean the light 1 with a dry, lint-free cloth.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and Service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14125304L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

Declaration of Conformity

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

CE
