VORWORT

Close-up of a black cylindrical mechanical component with flanged ends and a central circular opening (no text or symbols visible)

MONTAGE DER OBJEKTIV- SCHUTZDECKEL\*

Black binoculars with no visible text or symbols on the devices themselves

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Black binoculars with visible lens and screen (no text or symbols)

Black binoculars with red directional arrows indicating rotation (no text or symbols)

Black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black ULTRAVID 7x42 600 binoculars (no text or symbols on the bin cover itself)

hinweise:

Black binoculars with dual lenses and a central knob (no text or symbols visible)

PFLEGE/REINIGUNG

Worldwide, the name Leica stands for superb optical quality, close-tolerance precision engineering, absolutereliability, and longproduct life.

We wish you a great deal of enjoyment and success with your new Leica Ultravid bino - culars.

So that you can use them properly, we recommend that you first of all read these instructions.

SCOPE OF DELIVERY

• Binoculars
• Carrying strap
• Ever-ready case
• Eyepiece protection cover
• 2 lens caps (only with HD-models)
• Instructions
• Warranty Card
• Test certificate

NOMENCLATURE

1. Eyepiece cups
   Position a: unscrewed for viewing without glasses
   Position b: screwed in for viewing with glasses
2. Eyelets for carrying strap
3. Lockable diopter adjustment ring
4. Central focusing ring
5. Hinged joint for adjusting the eyebase

taBLe of contents

Foreword 13

Scope of delivery 13

Nomenclature 13

Possible applications....15

Attaching the carrying strap and the protective eyepiece cover....15

Attaching the protective lens caps 15

Adjusting the eyecups / Use with and without glasses....16

Adjusting the eyebase....17

Focusing / Diopter adjustment....18

Indications on the scale....19

Care and maintenance....20

Accessories 20

Replacements....20

Trouble shooting guide....21

Technical data 22-23

Leica in the Internet and Leica Academy....24

Leica Information Service....24

Leica Customer Care 24

warning notices

• Never look directly at the sun or other sources of bright light with your binoculars! This could cause eye damage!
• Never use your binoculars while you are walking! You might overlook obstacles!

POSSIBLE APPLICATIONS

The Leica Ultravid binoculars have hermetically sealed and nitrogen-filled magnesium housings. They are therefore suited for rough outdoor use. There is no need to be concerned with moisture as they are 100% waterproof to a depth of 5m and the internal optical system is not subject to fogging.

ATTACHING THE CARRYING STRAP AND THE PROTECTIVE EYEPIECE COVER

See illustration on the rear cover flap.

Note:

If you want to attach the protective eyepiece cover to the carrying strap, this must be done while attaching the carrying strap to the binoculars.

Close-up of a black cylindrical mechanical component with flanges (no text or symbols visible)

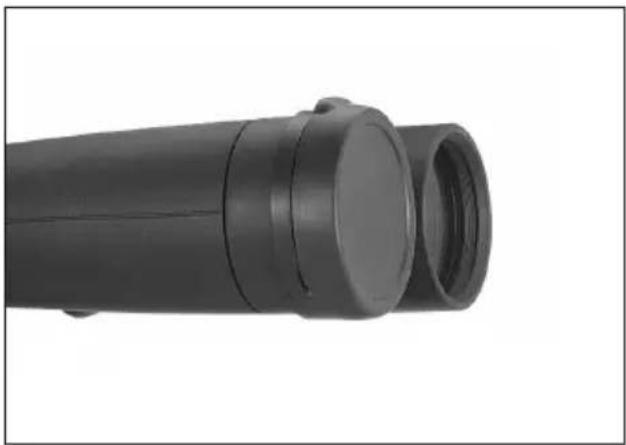

ATTACHING THE PROTECTIVE LENS CAPS

To attach the caps, their rubber ring is pulled over the binoculars from the lens side.

Black binoculars with no visible text or symbols on the devices themselves

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

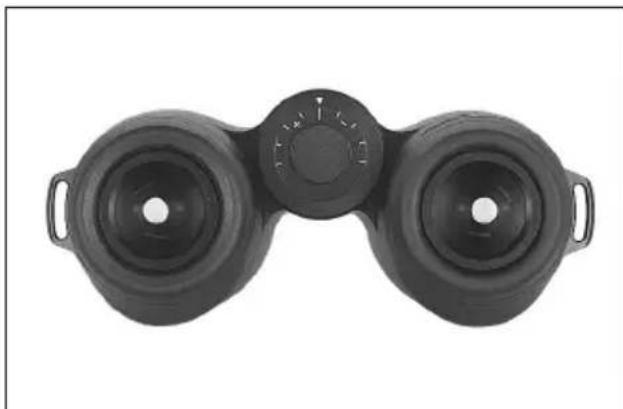

adjusting the eyecups / use with and without gLasses

The eyepiece cups (1) can be easily adjusted by turning them and they lock securely into the selected positions. They can also be completely removed for thorough cleaning.

For viewing with eyeglasses (image A) they remain in the fully screwed-in position.

For viewing without eyeglasses, they are un screwed by turning them anticlockwise.

Two positions are available for optimum adjustment (images B, C).

If the eyepieces are very dirty, it is recom - m ended to remove the cups for cleaning (image D). To do this, they are simply pulled off while in the fully unscrewed position.

Top-down view of a black binoculars with red directional arrows indicating rotation (no text or symbols)

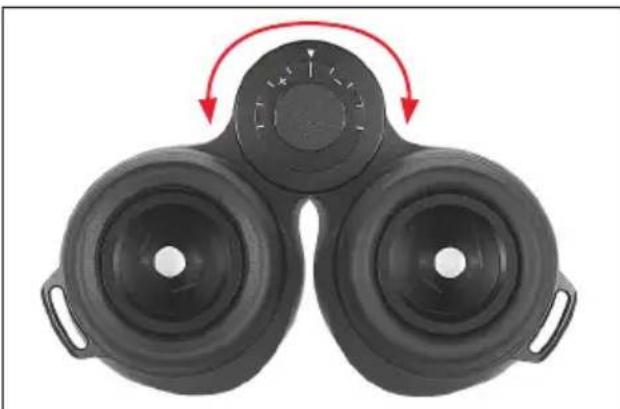

To set the eyebase, adjust the binoculars at the hinged joint. The left and right fields of view must merge and produce a single circular image.

Black binoculars with dual lenses and a central dial (no text or symbols visible)

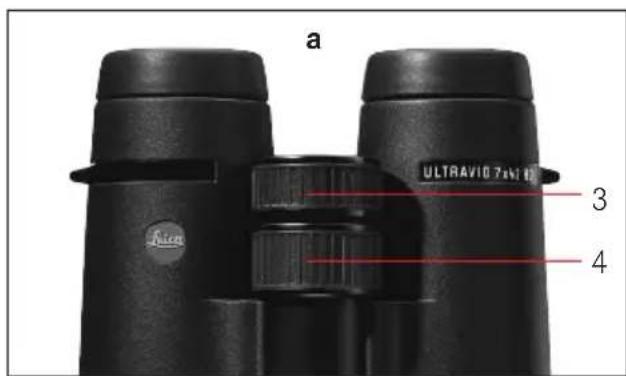

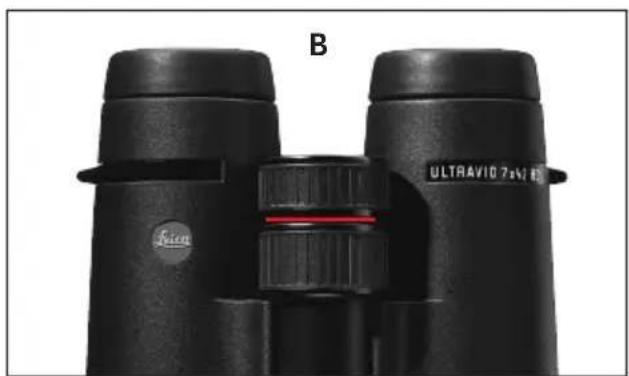

FOCUSING / DIOPTER ADJUSTMENT

With the Leica Ultravid binoculars the central focusing ring (4) is used to set the focus for variously distant objects.

Compensation for individual defective vision for viewing without eyeglasses is made using the diopter ring (4), which is normally locked (Figure A). To unlock the two rings the diopter ring is pulled up (Figure B). Now, the central focusing ring only effects the focus of the left optical system, the diopter ring only that of the right system.

a ULTRAVIO 7x10 L 3 4

Using one of the rings, then focus the respective barrel on the desired subject. Continue by setting the optimal focus for the second barrel with the other ring. Pressing the diopter ring back down locks the set value. The set value can be conveniently read from the accurate scale on the diopter ring.

Close-up of black ULTRAVIO 7x4/2 85 binoculars with a red cover (no text or symbols on the bin itself)

notes:

- The diopter ring rotates freely, i.e. it can accidentally be rotated by more than 360° with respect to the central focusing ring. Depending on the latter's previous setting, the combined system's focusing range can be limited considerably by this. Therefore, take care to turn the diopter ring only as far as necessary for the eyesight adjustment.

- For viewing on just the left or the right side, the other eye should be kept closed or the appropriate half of the binoculars simply covered at the front on the lens.

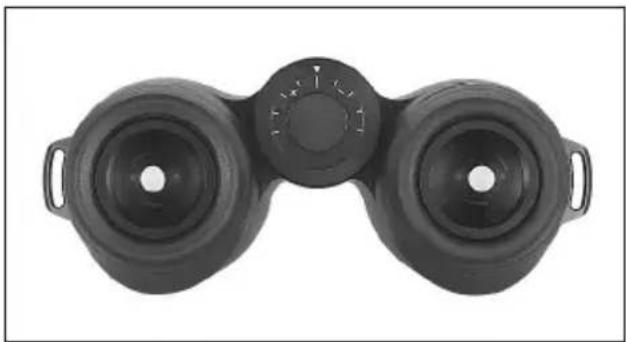

INDICATIONS ON THE SCALE

As long as the two halves of the drive are coupled together, the binoculars are permanently adjusted to your eyesight, irrespective of the focusing distance to an object. You need to make the adjustment only once. If other people use your binoculars, they may have to alter the setting. Simply note your personal setting on the scale; when someone else has used them, you can reset the binoculars in a matter of seconds.

The distance between two divisions on the scale represents a difference of approx. one diopter of correction being applied to the left and right eye.

Black binoculars with dual lenses and a central dial (no text or symbols visible)

CARE AND MAINTENANCE

Your Leica Ultravid binoculars need no special maintenance. Use a soft lens brush or a blower to remove large particles of dirt, sand, etc. To remove fingerprints etc., first wipe the eyepiece and lens with a damp cloth, then dry them with a piece of clean, soft chamois leather or lint-free cloth. If the binoculars, particularly the rotating eyecups, are very dirty, simply rinse them under a running fau -c-et. Always rinse off salt water.

Moisture inside the central focusing unit (visible through the scale window) will dry quickest when the two rings (3/4) are unlocked. Alcohol and other chemical solutions must not be used.

Attention!

Do not apply too much pressure when wiping strongly soiled lens surfaces. Even though the coating is very tough, sand and salt crystals can cause scratches.

ACCESSORIES Order No.

Tripod adapter with 1/4" thread .... 42220 Floating carrying strap, orange.... 42163

REPLACEMENTS

Should you need replacements for your binoculars, such as eyecups, covers, or a strap, please turn to our Customer Care department or your national Leica agent. The addresses are listed in the Warranty Card.

TROUBLE SHOOTING GUIDE...

Problem

Cause

Solution

- The image seen through a) The binoculars are not a) Hinge the binoculars more the binoculars is not properly adjusted to your or less at their centerline, concentric. personal eyebase. as necessary, until the left and right image merges.

b) Your pupils are not prop- b) Check the position or erly aligned with the exit your head, eyes and pupils of the binoculars. the binoculars.

c) The eyepieces are not set for the correct viewing conditions with or without eyeglasses. c) Correct the setting of the eyepieces: If you wear glasses, screw in the eye-piece tubes, if you do not wear glasses, unscrew the tubes.

- Fogging due to water in the scale window. together when you cleaned the binoculars

- The two-piece drive was not properly coupled moisture to dry. There is no risk of damage. under running water.

- Disengage the two halves of the drive. Allow the

TECHNICAL DATA8x32HD	LEICA ULTRAVID10x32HD 7x42HD 8x42HD/BL	LEICA ULTRAVID	LEICA ULTRAVID	LEICA ULTRAVID
Magnification 8x	10x 7x 8x
Lens diameter	32mm	32mm	42mm	42mm
Exit pupil 4mm	3.2mm 6mm	5.25mm
Twilight factor	16		17.9
Geometric light value	16	10.24	36	27.56
Field of view	135m/1000m7.7°	120m/1000m6.8°	140m/1000m8°	130m/1000m7.4°
Close focusing limit(at 0 dioptr.)	approx. 2.20m	approx. 2.10m	approx. 3.30m	approx. 3.10m
Exit pupil longitudinal distance	13.3mm	13.5mm	17mm	15.9mm
Eyebase	56-74mm
Type of prism	Roof
Coatingon lenseson prisms	High Durable Coating (HDC ^TM ) and hydrophobic AquaDura coating on outer lens surfacesHigh Lux System (HLS ^TM ) and phase correction coating P40
Diopter compensation	±4 Dioptr.
Operating temperature	-25° to +55°
Storage temperature	-40° to +85°
Waterproofing	0.5 bar (up to approx. 5m water depth)
Housing	Magnesium housing with titanium axle / HD models rubber-armored
Dimensions (W ^1 x H ^2 x D ^1 )	117x55x119mm	117x55x119mm	121x67x142mm	121x67x142mm (HD)121x63x141mm (BL)
Weight	approx. 560g	approx. 595g	approx. 765g	approx. 790g/710g (HD/BL)

^1 With eyebase set to 65mm
^2 With eyecups screwed in

TECHNICAL DATA	LEICA ULTRAVID10x42HD/BL	LEICA ULTRAVID8x50HD	LEICA ULTRAVID10x50HD	LEICA ULTRAVID12x50HD
Magnification	10x	8x	10x	12x
Lens diameter	42mm	50mm	50mm	50mm
Exit pupil	4.2mm	6.25mm	5mm	4.2mm
Twilight factor		20.5		20
Geometric light value	17.64	39.06	25	17.64
Field of view	110m/1000m6.3° (wide-angle)	115m/1000m6.6°	115m/1000m6.6° (wide-angle)	100m/1000m5.7° (wide-angle)
Close focusing limit(at 0 dioptr.)	approx. 2.95m	approx. 3.60m	approx. 3.35m	approx. 3.25m
Exit pupil longitudinal distance	15.8mm	18.1mm	14.6mm	13.2mm
Eyebase	56-74mm	58-74mm	58-74mm	58-74mm
Type of prism		Roof
Coatingon lenseson prisms	High Durable Coating (HDCTM) and hydrophobic AquaDura coating on outer lens surfacesHigh Lux System (HLSTM) and phase correction coating P40
Diopter compensation		±4 Dioptr.
Operating temperature		-25° to +55°
Storage temperature		-40° to +85°
Waterproofing		0.5 bar (up to approx. 5m water depth)
Housing	Magnesium housing with titanium axle / HD models rubber-armored
Dimensions (W1 x H2 x D1)	121x67x147mm (HD)121x63x146mm (BL)	125x70x183mm	125x70x178mm	125x70x183mm
Weight	approx. 765g/695g (HD/BL)	approx. 1010g	approx. 1010g	approx. 1050g

^1 With eyebase set to 65mm
^2 With eyecups screwed in

Leica information serVice

Should you have any technical questions regarding the use of Leica products, the Leica Information Service will be happy to answer in writing or by phone, fax, or e-mail:

Leica Camera AG

For service of your Leica equipment and in case of neccessary repairs please contact the customer services of Leica Camera AG or of any national Leica agency (see Warranty Card for address list). Ask your authorized dealer and Leica specialist for advice.

Leica Camera AG

Customer Care

Chère cliente, Cher client,

Close-up of a black cylindrical mechanical component with flanges (no text or symbols visible)

MONTAGE DU COUVERCLES DE PROTECTION D'OBJECTIF

Black binoculars with no visible text or symbols on the devices themselves

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Black binoculars with visible lens and screen (no text or symbols)

Black binoculars with red circular adjustment rings (no text or symbols)

RÉGLAGE DE LA DISTANCE INTERPUPILLAIRE

Black binoculars with dual lenses and a central dial (no text or symbols visible)

MISE AU POINT / COMPENSATION DIOPTRIQUE

Close-up of black ULTRAVID 7x42 800 binoculars with a red cover (no text or symbols on the bin itself)

Remarques:

Black binoculars with dual lenses and a central dial (no text or symbols visible)

ENTRETIEN/NETTOYAGE

Close-up of a black cylindrical mechanical component with flanged ends and a rounded top (no text or symbols visible)

MONTAGE VAN DE OBJECTIEF-BESCHERM-DEKSEL

Black binoculars with no visible text or symbols on the devices themselves

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Top-down view of a black binoculars with red directional arrows indicating rotation (no text or symbols)

INSTELLEN VAN DE OOGAFSTAND

Black binoculars with dual lenses and a central dial (no text or symbols visible)

INSTELLEN VAN DE SCHERPTE / DIOPTRIE-COMPENSATIE

Close-up of black ULTRAVID 7x42 800 binoculars with a red cover (no text or symbols on the bin itself)

opmerkingen:

Black binoculars with dual lenses and a central dial (no text or symbols visible)

ONDERHOUD/REINIGING

Close-up of a black cylindrical mechanical component with flanges (no text or symbols visible)

MONTAGGIO DEI COPERCHI DI PROTEZIONE DELL'OBIETTIVI

Close-up of black binoculars with no visible text or symbols

Black binoculars with no visible text or symbols on the device itself

Black binoculars with visible lens and screen (no text or symbols)

Top-down view of a black binoculars with red directional arrows indicating rotation (no text or symbols)

Black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black ULTRAVID 7x42 800 binoculars with a red cover, labeled B (no additional text or symbols visible)

avvertenze:

Black binoculars with adjustable dial (no text or symbols visible)

Close-up of a black cylindrical mechanical component with flanged ends and a central circular opening (no text or symbols visible)

MONTAJE DE LAS TAPAS PROTECTORAS DE OBJETIVO

Black binoculars with no visible text or symbols on the devices themselves

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Black binoculars with no visible text or symbols on the device itself

Top-down view of a black binoculars with red control knobs (no text or symbols visible)

Black binoculars with dual lenses and a central dial (no text or symbols visible)

Close-up of black ULTRAVID 7x42 800 binoculars with a red cover, labeled B (no additional text or symbols visible)

Notas:

Black binoculars with dual lenses and a central dial (no text or symbols visible)

CUIDADO/LIMPIEZA
