DFi Hub - Controller Chauvet - Free user manual and instructions

Product Type	Wireless DMX Controller (transmitter/receiver)
Brand	Chauvet
Model	DFi Hub
Power Supply	9 VDC, 500 mA via power adapter (100-240 VAC, 50/60 Hz)
D-Fi Channels	16 manual or automatic channels
Transmission Modes	Manual or automatic (transmit/receive)
Connections	DMX input, DMX output, DC power
Antenna	Robust integrated with storage compartment
Mounting	Hook-and-loop straps, hanging notches, M10/M12 threaded holes
Protection	IP20 (indoor use only)
Max. Ambient Temperature	40 °C (104 °F)
Package Contents	D-Fi Hub, reference manual, power cord
Warranty	Limited (see website for details)
Compliance	FCC Class B, R&TTE directives
Maintenance	Disconnect before cleaning; do not open
Fuse	Replace with same type and rating
Safety Instructions	Must be grounded; use a safety cable when mounting overhead

Frequently Asked Questions - DFi Hub Chauvet

How to set up the D-Fi Hub for wireless transmission?

Connect the hub to your DMX console via a DMX cable, then plug in the power. In the Settings menu, select Transmit Manual or Transmit Auto to choose a D-Fi channel. Confirm with the Enter button.

What is the difference between manual and automatic modes?

In manual mode, you choose a specific D-Fi channel (01-16). In automatic mode, the hub detects a free channel and synchronizes to it automatically. Use the Sync button to activate automatic detection.

How to set up the D-Fi Hub to receive a wireless signal?

Connect the hub to your DMX lighting units via a DMX cable, then plug in the power. In the Settings menu, choose Receive Manual or Receive Auto and select the channel matching your transmitter.

What is the maximum number of receivers or D-Fi compatible units?

The D-Fi Hub can synchronize an unlimited number of receivers and D-Fi compatible units simultaneously.

How to reset the D-Fi Hub to factory settings?

The manual does not mention a reset function. You can restore default values by navigating through menus and manually selecting the desired options.

Can I use multiple D-Fi hubs together?

Yes, you can use multiple hubs by setting them to the same D-Fi channel to extend range or for multiple zones.

What is the wireless range of the D-Fi Hub?

The typical range is about 300 m in line of sight. Obstacles and interference may reduce this distance.

How to mount the D-Fi Hub?

Use the supplied hook-and-loop straps, hanging notches, or threaded mounting holes (M10/M12). Ensure you use a safety cable when mounting overhead.

What to do if the D-Fi Hub does not detect any signal?

Check that all devices are on the same D-Fi channel. Ensure the hub is properly powered and DMX cables are correctly connected. Also verify that the mode (transmit/receive) is correctly selected.

How to replace the fuse of the D-Fi Hub?

Unplug the device, then open the fuse compartment. Replace it with a fuse of the same type and rating. Never use a fuse of a different value.

USER MANUAL DFi Hub Chauvet

D-Fi™ Hub

Quick Reference Guide

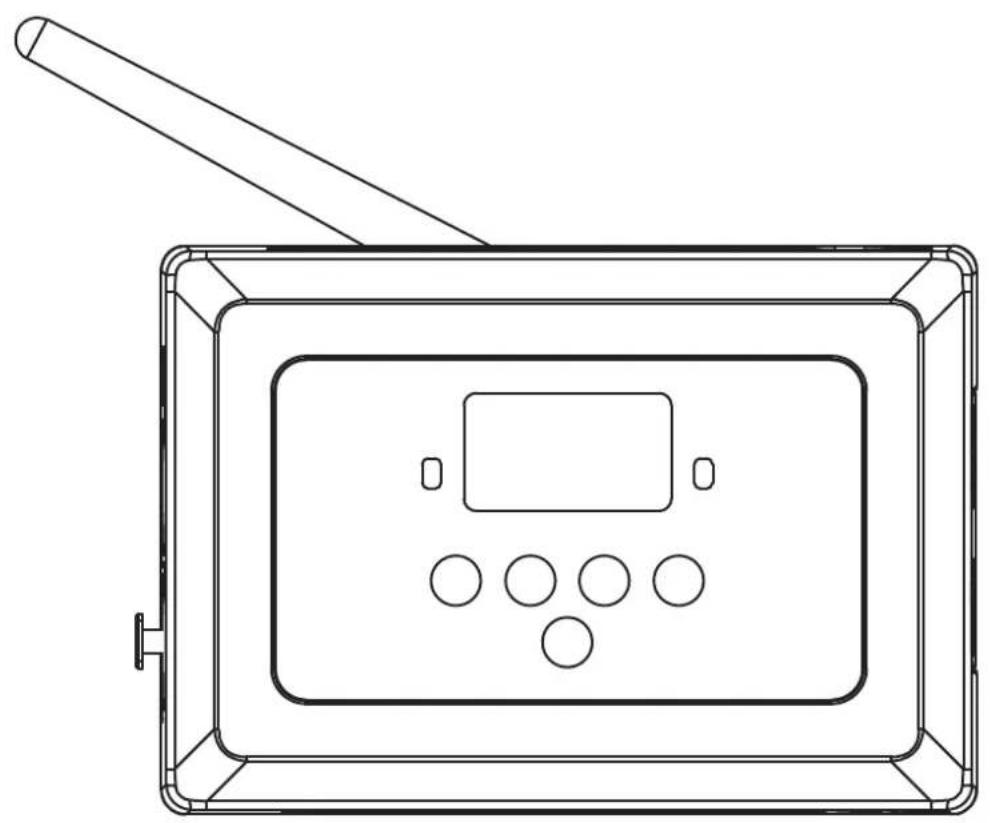

Line drawing of a rectangular electronic device with a handle and control panel (no text or symbols)

Abstract geometric pattern with black dots forming a triangular shape (no text or symbols)

CHAUVET3

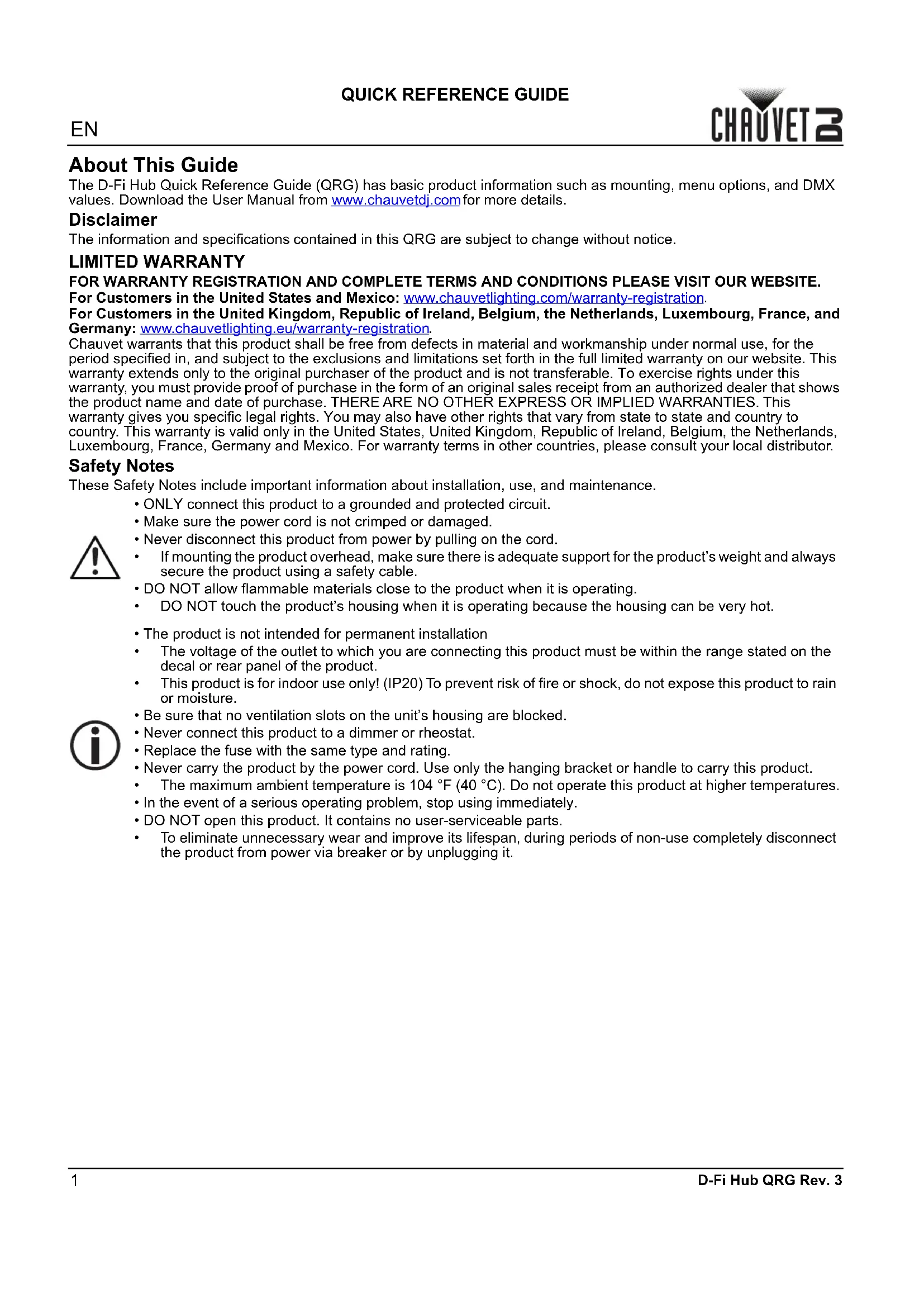

About This Guide

The D-Fi Hub Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• If mounting the product overhead, make sure there is adequate support for the product's weight and always secure the product using a safety cable.

• DO NOT allow flammable materials close to the product when it is operating.
  DO NOT touch the product's housing when it is operating because the housing can be very hot.

• The product is not intended for permanent installation

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• D - F i H u b
- Quick Reference Guide
- Power supply

To Begin

Unpack your D-Fi Hub and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

Description

The D-Fi Hub is a transmitter and receiver that either receives D-Fi signals and transmits via a DMX cable, or receives data via a DMX cable and transmits D-Fi signals. It wirelessly synchronizes an unlimited number of D-Fi-ready fixtures and receivers simultaneously. It is small and compact with sturdy antenna. Built-in options include manual or automatic channel selection. Mounting options include a built-in hook and loop fastener strap, keyhole mounting holes and threaded mounting holes. The D-Fi Hub is fully FCC/RTTE compliant.

Overview

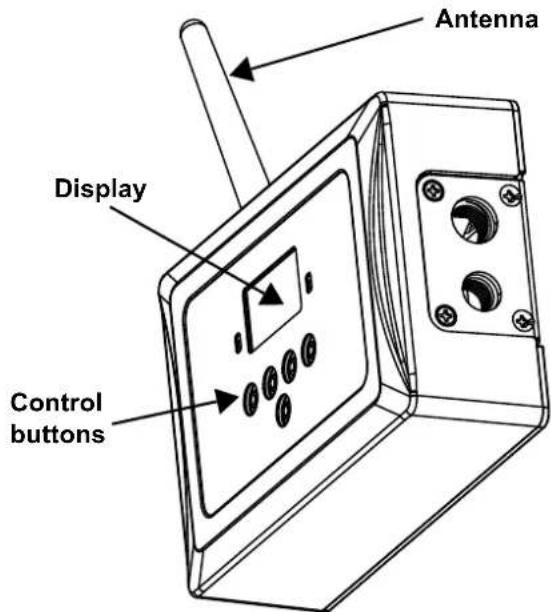

Antenna storage DC power input DMX in DMX out

Antenna Display Control buttons

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. It runs on 9 VDC, 500 mA.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Mounting

Before mounting this product, read the Safety Notes.

Mounting Diagram

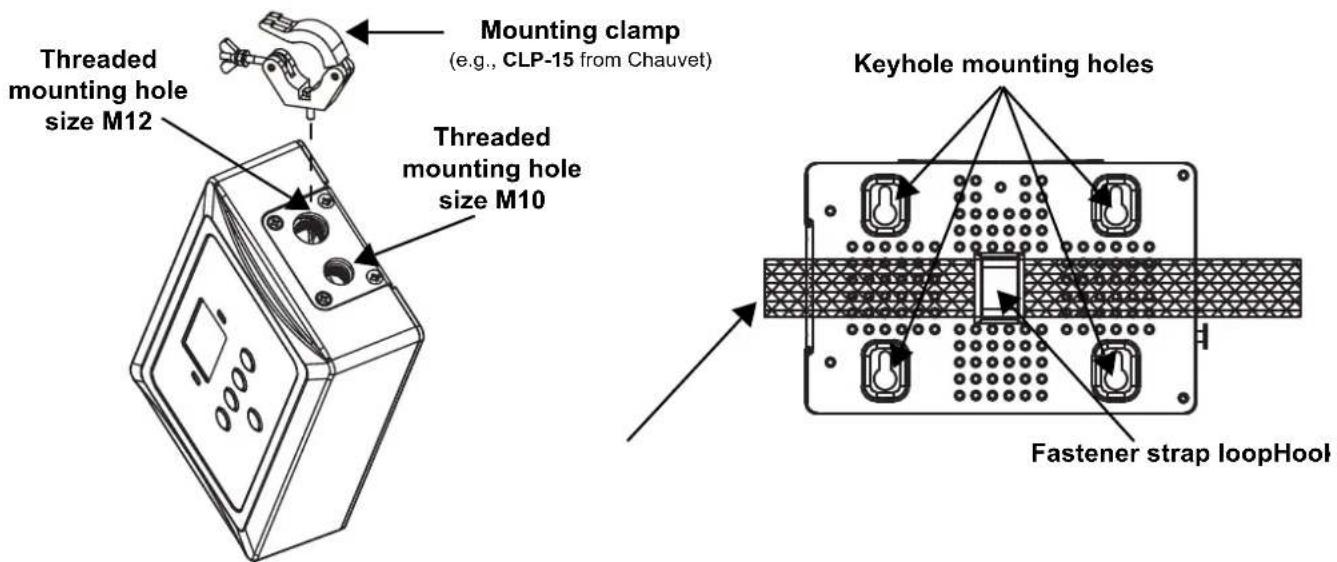

Threaded mounting hole size M12 Mounting clamp (e.g., CLP-15 from Chauvet) Threaded mounting hole size M10 Keyhole mounting holes Fastener strap loopHool

Control Panel Description

Button Function
	Selects the menu or exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Detects the D-Fi signal for synchronization of products

Menu Map

Main Level Programming Levels Description
Settings	Receive Manual CH01	-16	Allows selection of a specific D-Fi channel for receiving signal
	Transmit Manual CH01	-16	Allows selection of a specific D-Fi channel for transmitting signal
	Receive Auto		Triggers the D-Fi Hub to auto-select a channel for receiving signal
	Transmit Auto		Triggers the D-Fi Hub to auto-select a channel for transmitting signal

Configuration

The D-Fi™ Hub can be used two ways:

• It can be connected to any DMX controller and transmit to D-Fi™-compatible lights.
• It can be connected to any DMX lights and receive from a D-Fi™-compatible controller.

To transmit

To connect the D-Fi™ Hub to a DMX controller and configure it to transmit to D-Fi™-compatible lights, do the following:

1. Connect the hub to the controller using a DMX cable.
2. Connect the hub to power.
3. If the display shows Transmit Manual , where XX is a value between 01 and 16, the hub is already configured for manual transmission.
4. Press and the display shows Settings with 2 words underneath.
5. Press and the 2 words become highlighted.
6. Use or to cycle through the highlighted options until the display shows Transmit Manual.

Selecting Transmit Auto automatically detects a transmission signal when used in conjunction with .

1. Press and the display shows Transmit Manual with highlighted, where XX is a value between 01 and 16.
2. Use or to cycle through the highlighted channel options and select the channel to use for D-Fi™ transmission.
3. Press and the display shows Transmit Manual , where XX is the channel selected in step 8.

The hub is now configured for manual signal transmission.

All the lights must be set to the D-Fi channel shown on the hub's display.

To receive

To connect the D-Fi™ Hub to any DMX lights and configure it to receive D-Fi™ signals from a D-Fi™-compatible hub, do the following:

1. Connect the hub to the lights using a DMX cable.
2. Connect the hub to power.
3. If the display shows Receive Manual , where XX is a value between 01 and 16, the hub is already configured for manual reception.
4. Press and the display shows Settings with 2 words underneath
5. Press and the 2 words become highlighted.
6. Use or to cycle through the highlighted options until the display shows Receive Manual.

Selecting Receive Auto automatically detects a transmission signal when used in conjunction with .

1. Press and the display shows Receive Manual with highlighted, where XX is a value between 01 and 16.
2. Use or to cycle through the highlighted channel options and select the channel to use for D-Fi™ transmission.
3. Press and the display shows Receive Manual , where XX is the channel selected in step 8.

The hub is now configured for manual signal reception.

The controller must be set to the D-Fi channel shown on the hub's display.

• Information about using D-Fi lights and controllers is in the product manuals at the Chauvet website: http://www.chauvetlighting.com/product-manuals-literature/.
• Information about DMX is in the Chauvet DMX Primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf
