USER MANUAL 14164900L Livarno Lux

PDF ONLINE www.lidl-service.com

LED-BAND 10M/10 M LED LIGHT STRIP/RUBAN LED 10 M

DE AT CH

LED-BAND10M

Assembly, operating and safety instructions

NL BE

LED-BAND10M

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Assembly, operating and safety instructions Page 15

1500mm 7 6 5 10mm 200mm 10000mm

4

12 13 x1 x1

B

3 11

200mm 200mm

C 9

D 12 11

Intended use Page 17

Scope of delivery Page 17

Parts description Page 17

Technical data......Page 18

Safety Page 18

Safety instructions......Page 18

Safety instructions for batteries/rechargeable batteries......Page 19

Initial use Page 20

Replacing/inserting batteries ......Page 20

Trimming the LED tape Page 20

Installing the LED strip Page 20

Switching the LED strip on/off......Page 21

Controlling light effects with the remote control....Page 21

Maintenance and cleaning......Page 21

Disposal Page 21

Warranty and service......Page 22

Warranty Page 22

Service address......Page 22

Declaration of conformity....Page 22

Manufacturer......Page 22

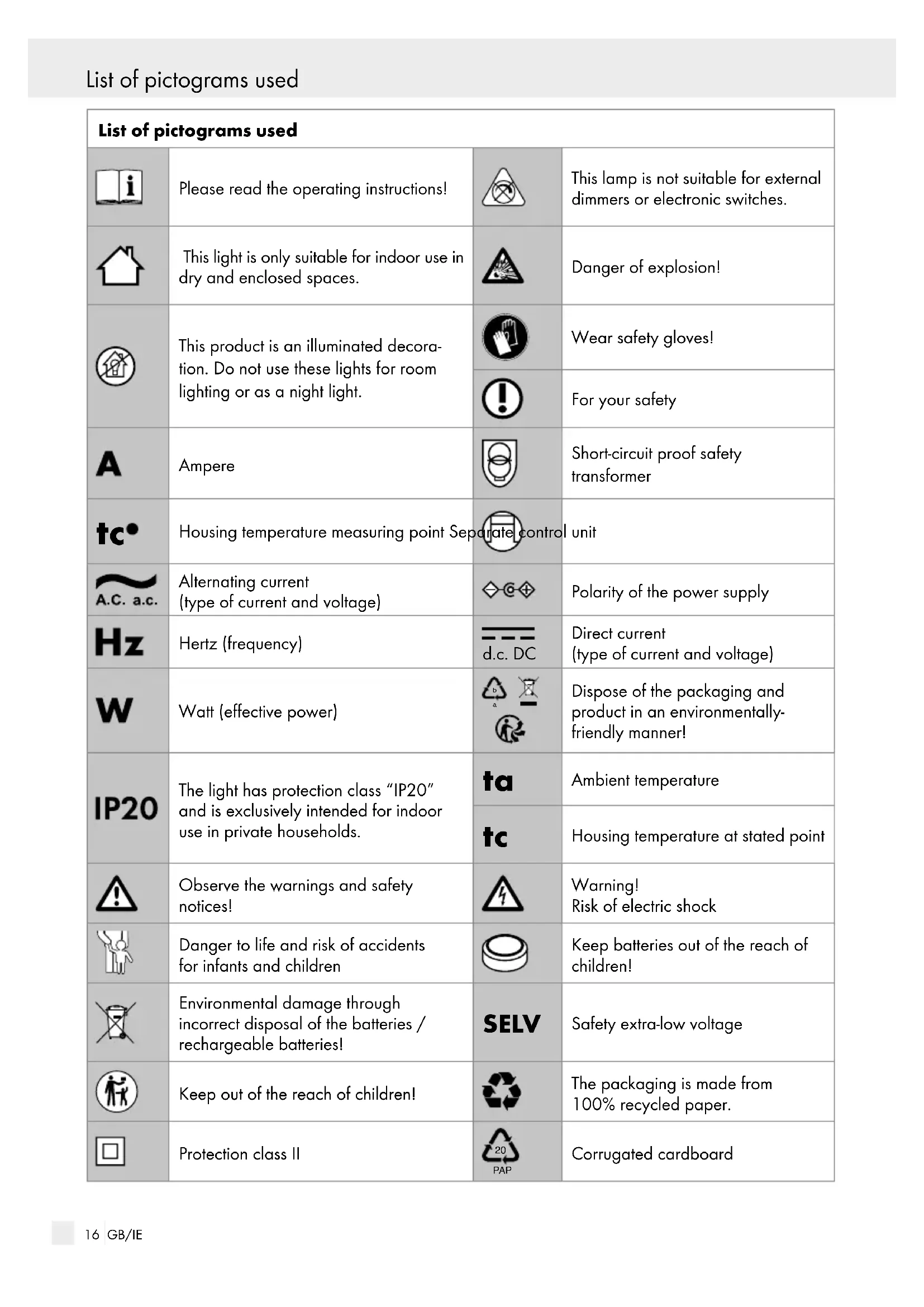

List of pictograms used
	Please read the operating instructions!		This lamp is not suitable for external dimmers or electronic switches.
	This light is only suitable for indoor use in dry and enclosed spaces.		Danger of explosion!
	This product is an illuminated decoration. Do not use these lights for room lighting or as a night light.		Wear safety gloves!
			For your safety
A	Ampere		Short-circuit proof safety transformer
	Housing temperature measuring point Sep control unit
A.C. a.c.	Alternating current (type of current and voltage)		Polarity of the power supply
	Hertz (frequency)		Direct current (type of current and voltage)
	Watt (effective power)		Dispose of the packaging and product in an environmentally-friendly manner!
	The light has protection class "IP20" and is exclusively intended for indoor use in private households.		Ambient temperature
			Housing temperature at stated point
	Observe the warnings and safety notices!		Warning! Risk of electric shock
	Danger to life and risk of accidents for infants and children		Keep batteries out of the reach of children!
	Environmental damage through incorrect disposal of the batteries / rechargeable batteries!		Safety extra-low voltage
	Keep out of the reach of children!		The packaging is made from 100% recycled paper.
	Protection class II	PAP	Corrugated cardboard
	Other plastics including polycarbonate (PC), polyamide (PA), acrylonitrile-butyadiene-styrene (ABS), polymethyl methacrylate (PMMA) and polylactide (PLA).		Polyethylene (low density)
	The lamp should only be operated with the supplied plug-in mains adapter "XY24LE-240100VH-EW".	[DXEA]	Safety information Instructions for use

10 m LED light strip

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This luminaire is only suitable for indoor use, in dry and enclosed rooms. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc. This product is intended for normal operation.

This product is an illuminated decoration. Do not use these lights for room lighting or as a night light.

Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED strip (10 m), model 14164900L
1 power supply (incl. mains cable)
1 remote control unit including battery (lithium)
1 cable holder
1 adhesive strip
1 set of operating instructions

Partsdescription

1 Mains connection cable
2 Mains adapter
3 LED strip

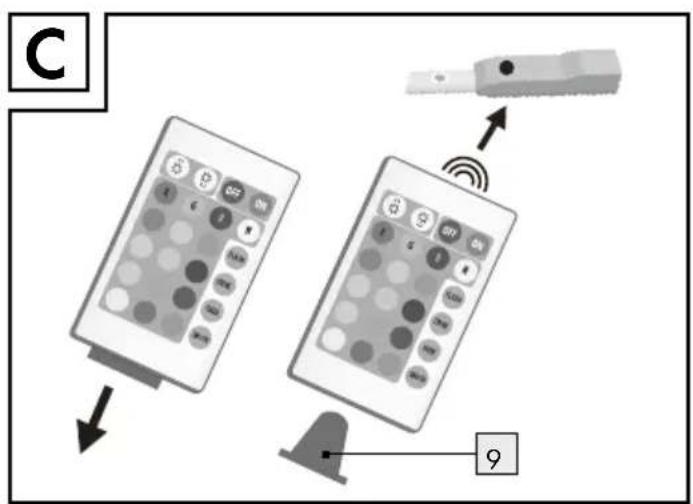

4 Remote control
5 Receiver
6 Socket
7 Plug
8 Battery compartment
9 Insulating strip
10 Battery
11 Protective film
12 Cable holder
13 Adhesive strip

- Technicaldata

Light:

Model no.: 14164900L

Operating voltage: 230-240V \~ 50Hz

Max. rated power: max. 22 W

Protection class: II/

IP rating: IP20

Mains plug:

Model no.: XY24LE-240100VH-EW

Operating voltage: 220-240V \~, 50Hz, 0.4A

Protection class: II/

IP rating: IP20

Output power: 24V ===, 1A; 24W

Remote Control:

Battery: 1 x CR2025

- Safety

Safety instructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

RISKID WARNING!

INJURY AND ACCIDENT HAZ- ARD FOR TODDLERS AND

SMALL CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the

associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.

WARNING!

A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician. The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

■ Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see "Technical Data").

■ Never allow the live power leads and contacts to come into contact with water or other liquids.

Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.

Do not use the LED strip if it is covered with objects or is inlaid into a surface.

Do not install the lamp on damp or conductive surfaces.

This LED strip must not be connected electronically with other LED strips.

■ Do not secure with sharp staples or nails.

■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.

- Avoid excessive bending of the LED strip.

- Never touch the mains plug or the LED strip with wet hands.

■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.

The external flexible cord on this lamp is not replaceable; if the cord is damaged, the lamp must be disposed of.

The light's illuminant is not replaceable. The entire light needs to be replaced if the illuminant reaches the end of its service life.
- Never connect the LED strip to the power supply while it is in the packaging. Lay out the item completely before you connect it to the power supply.
■ Exposure to certain strobe lights or lighting effects can cause epileptic seizures or unconsciousness in some people. If you experience symptoms of an epileptic seizure, seek immediate medical attention.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user.

This lamp is not suitable for external dimmers or electronic switches.

Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).

Safe working

• Install the light so that it is protected from dirt and excessive heating.
  ■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
  Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
  To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.

Safety instructions for batteries/rechargeable batteries

KEEP BATTERIES OUT OF THE REACH OF CHILDREN!

Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention.

DANGER TO LIFE!

Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

Never throw batteries/rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.

If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

Safety/Initial use/Installing the LED strip

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!
Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
Clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Initial use

□ Remove all packaging materials before first use.

□ Never connect the LED strip to the mains power supply whilst in the packaging.

Note: Ensure that a plug socket is located in close proximity to the installation area.

● Replacing/inserting batteries

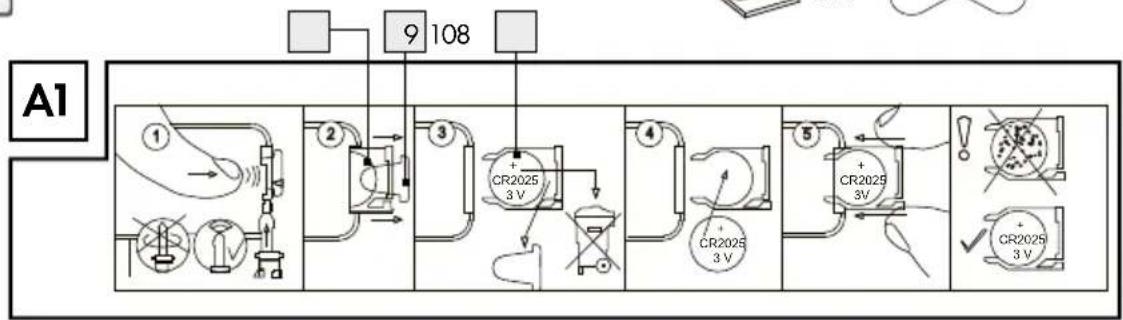

Note: Before first use, pull the insulating strip 9 out of the battery compartment 8.

☐ If the range of the remote control 4 reduces, the battery 10 needs to be replaced. To do so, slide the battery compartment out of the remote control 4. Remove the old battery 10 and insert a new one.

Note: The correct polarity is indicated on the reverse side of the remote control 4.

☐ Slide the battery compartment back into the remote control 4 (see fig. A1).

Trimming the LED tape

The LED tape may be trimmed to size.

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3. Unplug the mains adapter 2 from the socket to do so.

☐ Choose the desired LED strip length.

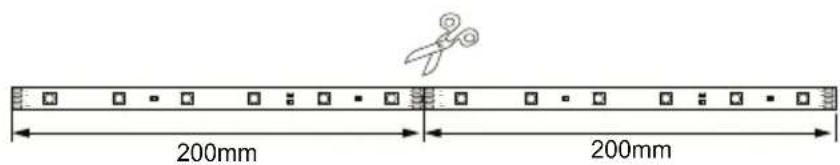

Note: Ensure that you trim the LED strip at the right place. The cutting point is exactly in the middle of the poles and is marked with a black line/scissors (+ 12 V, blue, red, green) (see fig. B).

□ Shorten the LED strip 3 using a pair of scissors.

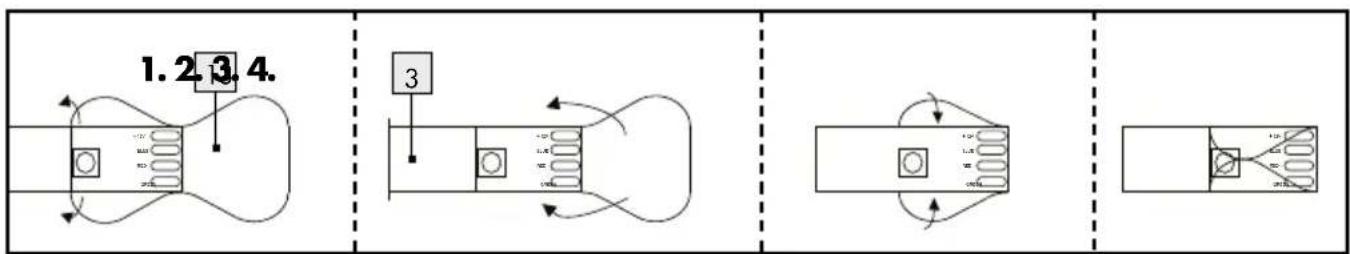

☐ Be sure to cover the open end of the LED tape 3 with the adhesive strip 13 (see Fig. 1-4).

● Installing the LED strip

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

Note: Ensure that a plug socket is located in close proximity to the installation area.

Connect the mains cable 1 with the receiver 5 using the plug 7 and socket 6, if these have not been pre-installed.
☐ Choose a suitable installation area.

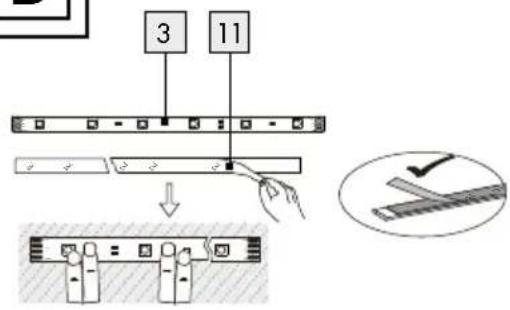

☐ Remove the protective foil 11 from the reverse side of the LED strip 3 and the receiver (see fig. B).

☐ Stick the LED strip 3 and the receiver with the adhesive strip onto the installation area and press it on firmly.
☐ Remove the protective foil 11 (see Fig. D) from the reverse side of the cable holder 12.

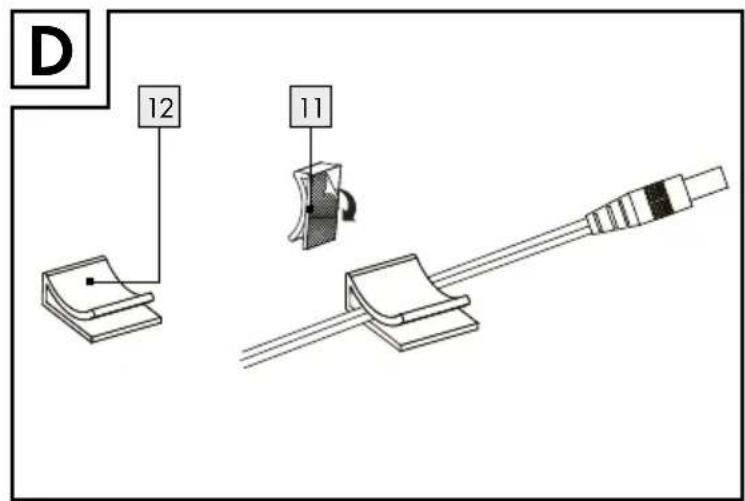

□ Stick the cable holder 12 onto the desired position.
☐ Insert the mains adapter 2 into the plug socket.

Your light is now ready to use.

- Switching the LED strip on/off

☐ Press the ON button on the remote control 4, to switch on the LED strip 3. Press the OFF button on the remote control 4, to switch off the LED strip 3.

Note: the OFF button on the remote control 4 is only suitable to temporarily switch off the LED strip 3. Unplug the mains adapter 2 from the socket to switch off the LED strip 3 permanently.

- Controlling light effects with the remote control

Note: the transmitter for the remote control 4 is located on the opposite end of the battery compartment 8.

Ensure there are no obstacles between the transmitter and the receiver.

The range of the remote control is approx. 5 m (see fig. C).

Choose from the following functions:

Increase brightness (press button briefly)/ increase speed of colour changes (hold button down)

Decrease brightness (press button briefly)/decrease speed of colour changes (hold button down)

ON: Switch on LED strip

OFF: Switch off LED strip

R: Set red light / different red tones

G: Set green light / different green tones

B: Set blue light / different blue tones

w. Set white light

FLASH: Colour change (3 colours)

STROBE: Flowing colour change (3 colours)

FADE: Flowing colour change (7 colours)

SMOOTH: Colour change (7 colours)

● Maintenance and cleaning

WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3. Unplug the mains adapter 2 from the socket to do so.

- Do not use solvents, benzene or similar substances. They could damage the light.

☐ Use a dry, lint-free cloth to clean the LED strip 3.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Old devices can also be returned to retailers who offer devices for purchase.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

● Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects.

In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14164900L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Free service number:

Tel.: [phone]

IAN 389716\_2201

Please have your receipt and the product number (IAN 389716_2201) available for all queries as proof of purchase.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKA- VICE!

Pooblaščeni serviser:
