Product type	Food processor (chopper)
Brand	Beko
Model	CHP 62522 W
Power supply	220-240 V~, 50-60 Hz
Power	500 W
Bowl capacity (approx.)	Approximately 0.5 liters
Maximum food quantity	100 g beef, 5 seconds
Main functions	Chopping, mixing (pulse)
Materials	Plastic (bowl, lid), stainless steel (blade)
Speeds	Variable (press and hold)
Included accessories	Chopping bowl, spacer lid, chopper blade, anti-slip base
Safety	Lockable motor unit, protected sharp blade, automatic stop
Cleaning	Bowl, blade and lid dishwasher safe (top rack)
Maintenance	Wipe motor unit with a damp cloth, dry all parts
Maximum continuous use	5 seconds, then 2 minutes rest
Weight (approx.)	Approximately 1.5 kg
Dimensions (approx.)	20 x 20 x 25 cm
Warranty	Standard manufacturer (2 years)
Spare parts	Blade, bowl, lid available from Beko after-sales service
Repairability	Repairability index not provided
Environmental information	Compliant with WEEE, recyclable packaging

Frequently Asked Questions - CHP 62522 W BEKO

How to use the Beko CHP 62522 W chopper?

Install the blade on the fixed shaft, place food in the bowl, replace the lid and motor unit, plug in and press the pulse button. Do not exceed 5 seconds of continuous use.

Can I chop bones or very hard foods?

No, remove bones and pits. The appliance is not suitable for dry or hard foods that could dull the blade.

How to clean the appliance?

Unplug, remove the motor unit. The bowl, blade, and spacer lid are dishwasher safe (top rack). Clean the motor unit with a damp cloth. Never immerse the motor unit in water.

Is the blade removable?

Yes, hold the blade by the plastic part and turn it a quarter turn to remove it from the fixed shaft. Be careful as it is very sharp.

What is the power of the appliance?

500 W, power supply 220-240 V~, 50-60 Hz.

Can I leave the appliance on for a long time?

No, use in pulses of maximum 5 seconds, then let it cool for 2 minutes. For soft foods, one-second bursts are sufficient.

Can the bowl be washed in the dishwasher?

Yes, the chopping bowl, blade, and spacer lid are dishwasher safe (top rack). Dry well before reassembling.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer, its after-sales service or a qualified person for replacement.

What types of food can I chop?

Raw meat in small pieces (max 100 g beef), onions, parsley, garlic, etc. Do not chop foods that are too hard or hot.

Where to find spare parts?

Spare parts (blade, bowl, lid) are available from Beko customer service or authorized dealers. Use only original parts.

USER MANUAL CHP 62522 W BEKO

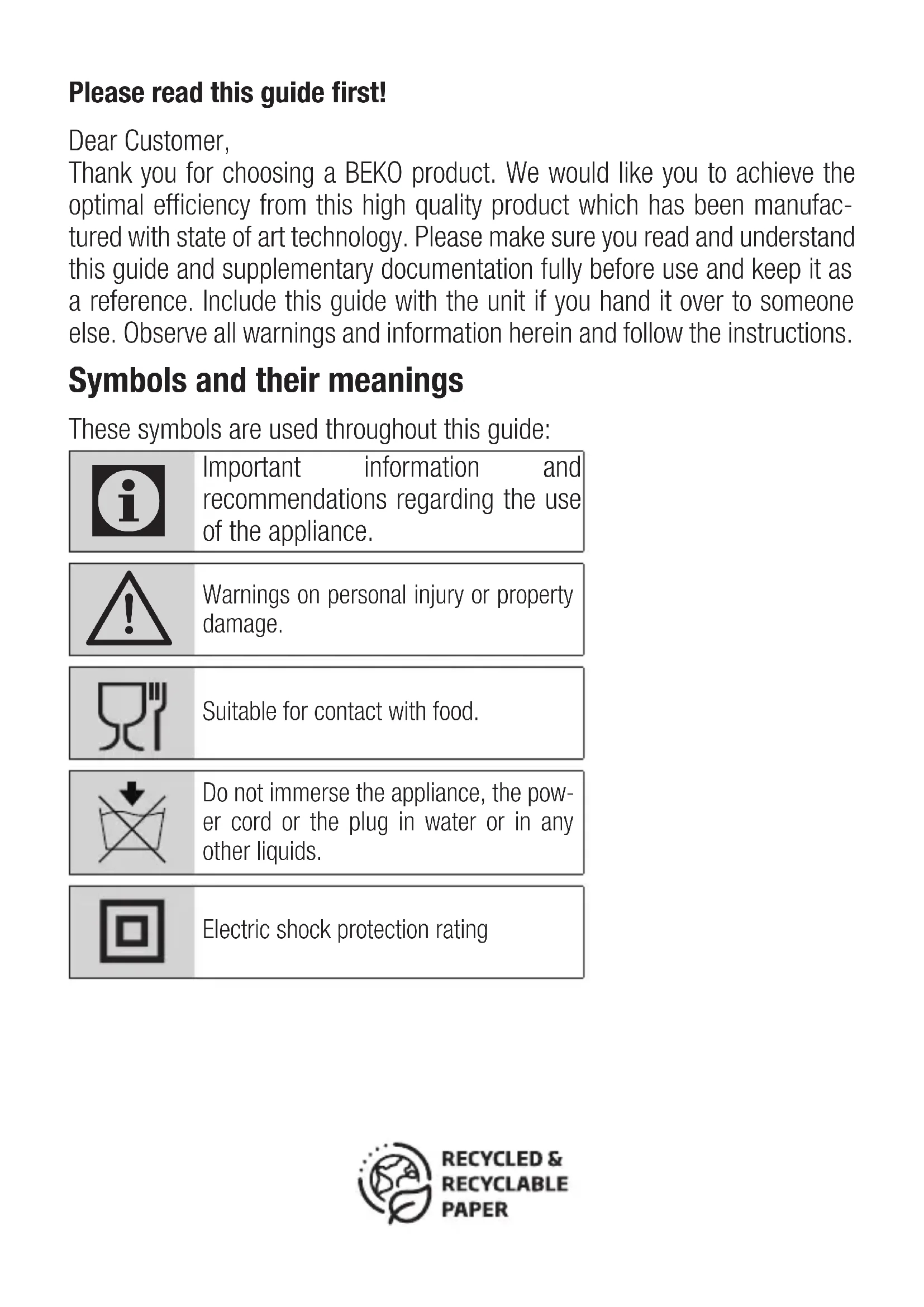

Please read this guide first!

Dear Customer,

Thank you for choosing a BEKO product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and recommendations regarding the use of the appliance.

Warnings on personal injury or property damage.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage. Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• Appliance may be used by persons with limited physical, perceptual or mental abilities or persons with a lack of experience and knowledge if they are supervised or given instructions on the operation of the appliance and any relevant risks they may be encountered. Children shall not play with the appliance.
  This appliance cannot be used by children.
• Do not use the appliance if the power cord, appliance or the appliance blade is damaged. Contact authorized service.
• If unsupervised, unplug the appliance during accessory mounting/removal or prior to cleaning.

1 Important safety and environmental instructions

Use only original parts or parts recommended by the manufacturer.
- Do not disassemble the appliance.
- Your mains power supply shall be in align with the specified information on the type tag.
- Do not use the appliance with an extension cord.
- Do not unplug the appliance by pulling on the cord.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- Do not touch the plug of the appliance while your hands are damp or wet.
- Do not use the appliance for hot food.
- Use the appliance only with the provided rubber base or the chopping bowl.
- Do not operate the appliance with the empty bowl.
- To avoid damaging the blades and the appliance, remove bones and seeds from foods.

1 Important safety and environmental instructions

• The appliance is not suitable for dried or rough food that may lead the blades to become blunt very rapidly.
• To prevent overheating, do not use the appliance continuously for more than 5 seconds. Cool the appliance for 2 minutes between each 5 seconds of operation.
• To prevent injuries due to misuse, observe all warnings.
• Misuse during emptying the bowl, cleaning or contacting the chopper blades with bare hands may cause serious injuries. Exercise caution by trying to hold the chopper blade only from its plastic part.
  After cleaning, prior to energizing or assembling the parts, dry the appliance and all of its parts.
• Do not immerse the appliance, the power cord on the plug in water or in any other liquids.
• Do not operate the appliance or the parts on or near hot surfaces or do not place them on hot surfaces.
  If you keep the packaging materials, keep them out of the reach of children.

1 Important safety and environmental instructions

• Store the appliance and its power cord out of the reach of children.
  Always use the appliance on a stable, flat, clean and dry surface.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments,

• farm houses, by clients in hotels, motels and other residential type environments,

• bed and breakfast type environments

• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.

Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the "Cleaning" section.

1 Important safety and environmental instructions

• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.
• Be careful when handing the sharp cutting blades, emptying the bowl and during cleaning
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer

where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of

1 Important safety and environmental instructions

used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local

authorities.

2 Your Chopper

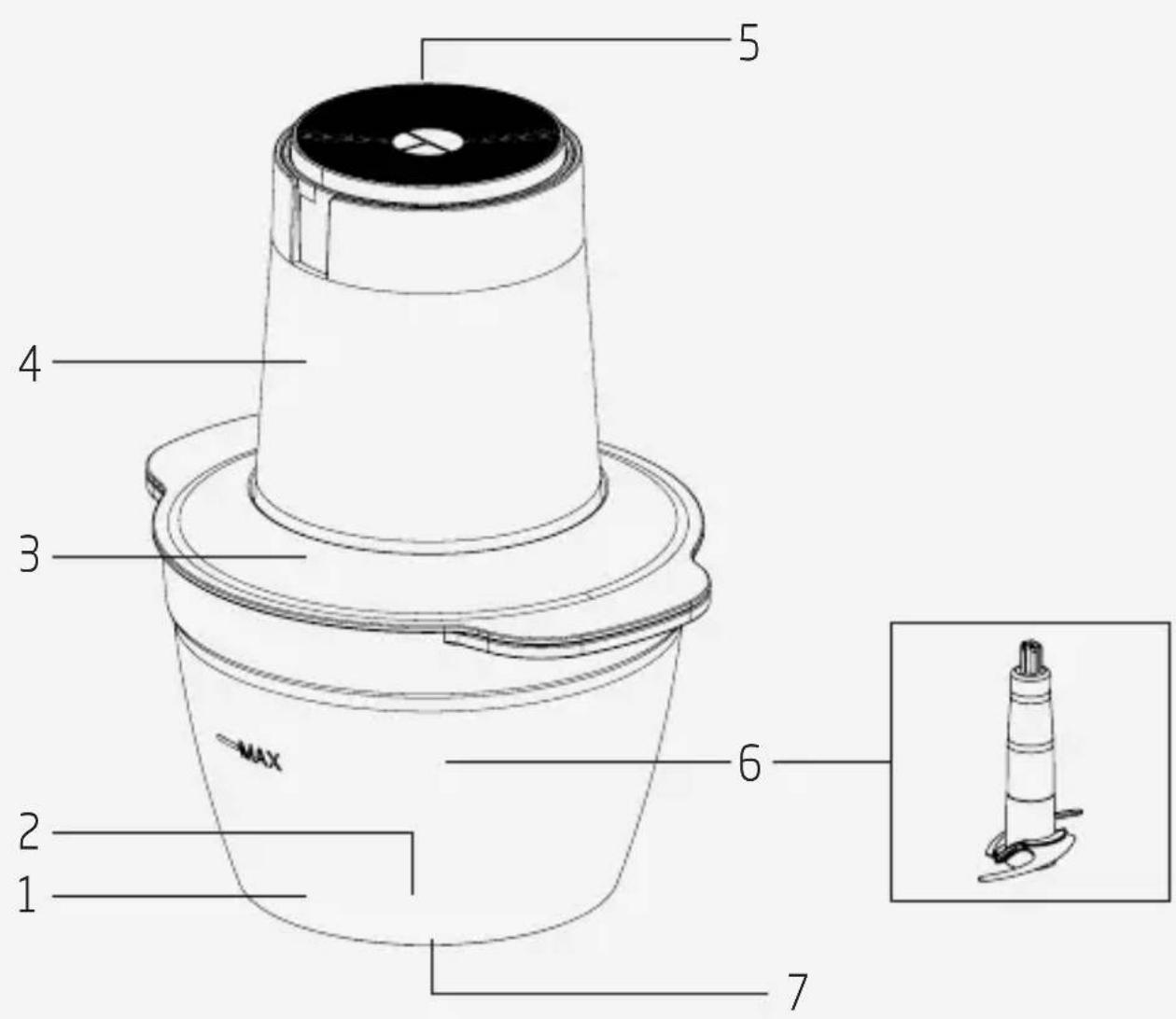

2.1 Overview

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

2 Your Chopper

1. Chopping bowl
2. Fixed shaft
3. Lid
4. Motor unit
5. Operation button
6. Chopper blade
7. Anti slip base

2.2 Technical data

Power supply:

220-240 V\~, 50-60 Hz

Power: 500 W

The rights to make technical and design changes are reserved.

3 Operation

3.1 Intended use

The appliance is intended for domestic use only, it is not suitable for professional use.

The appliance is designed for chopping small amounts of solid food.

3.2 First operation

Clean the parts of the appliance before the first use (see 4.1).

3.3 Start Up

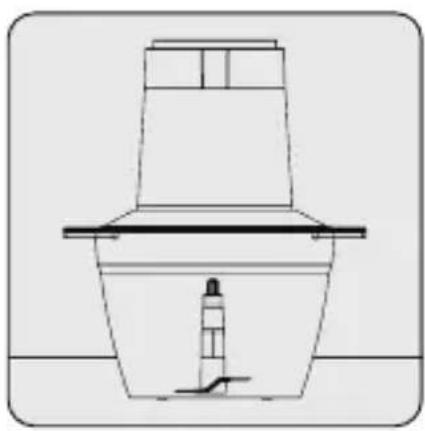

Place the appliance on a fixed and level surface, on the anti-slip base.

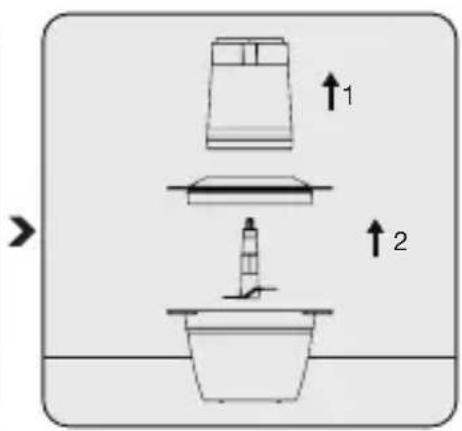

Remove the motor unit (4) and lid (3) from the chopping bowl.

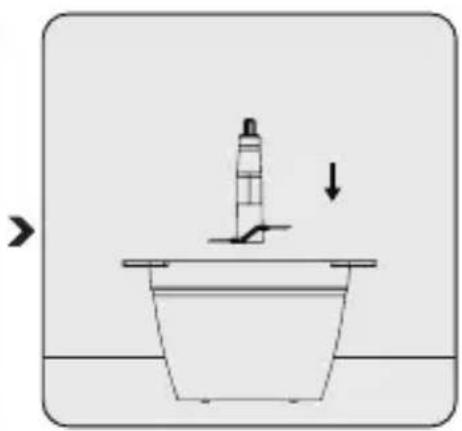

Place the chopper blade (6) on the fixed shaft (2) by holding the blade from the plastic section.

3 Operation

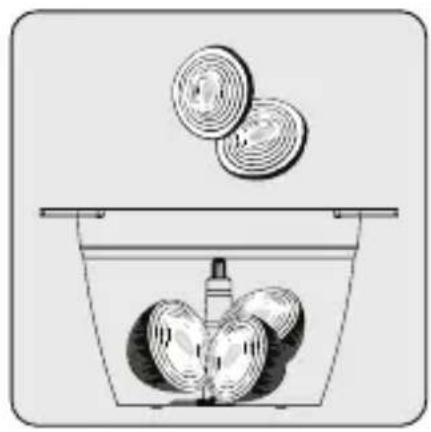

Place the ingredients that you want to prepare into the chopping bowl (1).

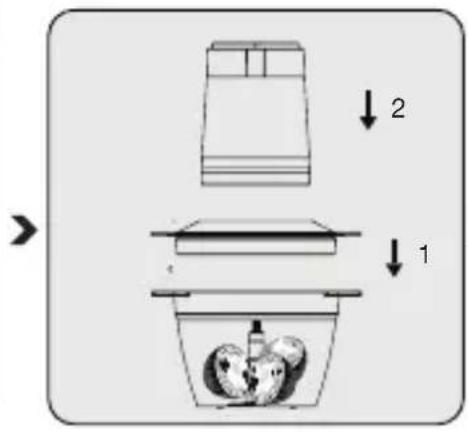

After placing the lid (3) (with the silicon gasket facing down) on the chopping bowl (1), place the motor unit (4) on the assembly.

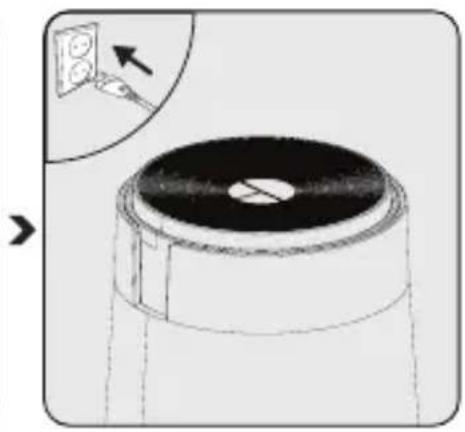

Plug in the appliance. Run the appliance by pressing the operation button (5).

• Place the lid (3) right on the chopping bowl. Otherwise, the motor unit (4) will not be placed correctly and the appliance will not run.

• In continuous use under 10 seconds, you can proceed using by a few second intervals until the process is completed.
• For softer food such as parsley or onion, one second bursts may be used.

3 Operation

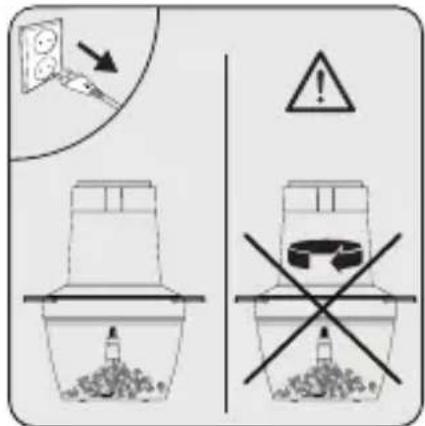

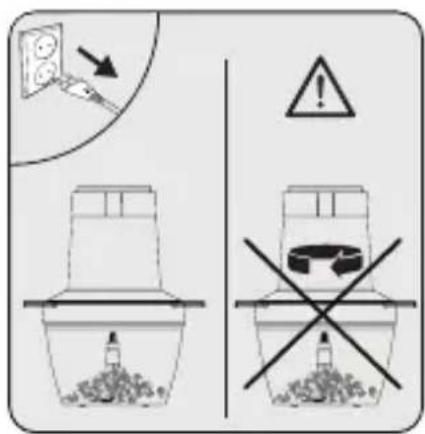

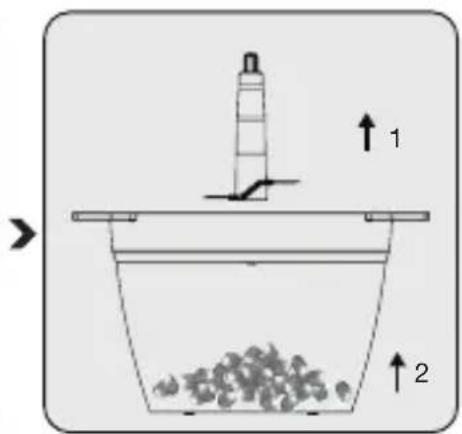

When the operation is completed, stop pressing the operation button. Unplug the appliance and wait until the blade is completely stops.

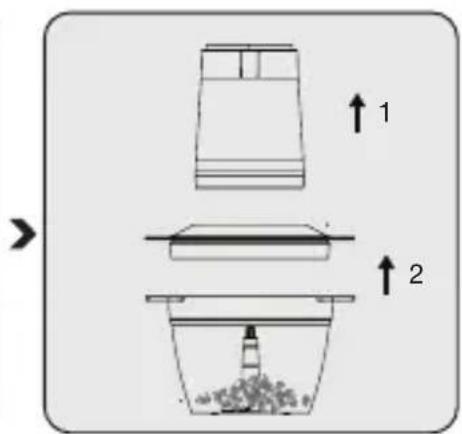

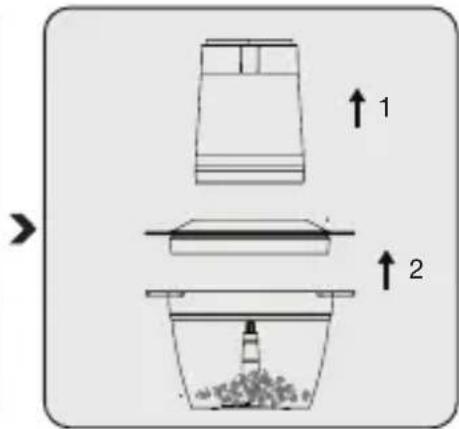

First pull and remove the motor unit (4), then the lid (3).

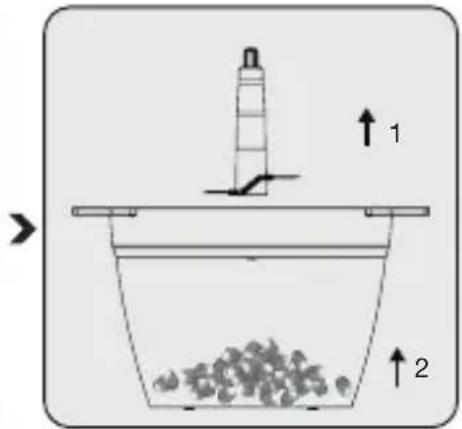

Hold the chopper blade (6) from the plastic part and remove it from the chopping bowl (1).

Remove the processed food from the chopping bowl (1).

• The internal section of the blade has a spring. You may feel a spring action as you place the blade on the fixed shaft. If you turn the blade a quarter of a rotation to the right or to the left, the blade would be fixed.
• To remove the blade from the shaft, turn the blade a quarter of a rotation to the right or to the left; then the blade will be released.

Do not touch the blades with bare hands.

3 Operation

3.4 Maximum amounts and processing time

The table below provides a general view for various foods in terms of maximum amounts and the average periods for suitable chopping process. The recommended times and amounts should be taken as reference.

Material Max. amount Processing time
Beef 100 g. 5 secs

3.5 What to do for energy saving

Observe the recommended periods specified in the manual during use. Unplug the appliance after each use.

4 Cleaning and maintenance

4.1 Cleaning

• Prior to cleaning, unplug the appliance and ensure that the blades are completely stopped.
• Never use gasoline, solvent, abrasive cleaners, metal objects or hard brushes to clean the appliance.
• Exercise caution when cleaning the chopper blade (6); it is sharp.
• Do not submerge the motor unit or the power cord in water or any other type of liquid.

The chopping bowl, chopper blade and lid can be washed on the upper rack of the dish washer.

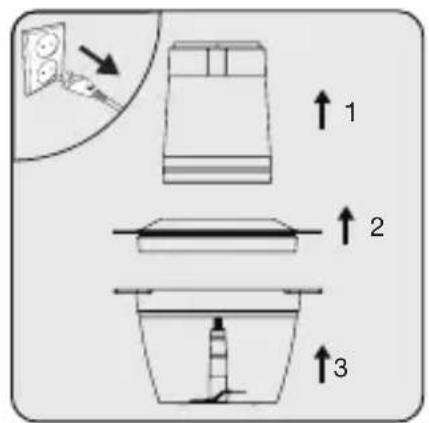

Unplug the appliance. Remove the motor unit (4), lid (3) and then the blades (6).

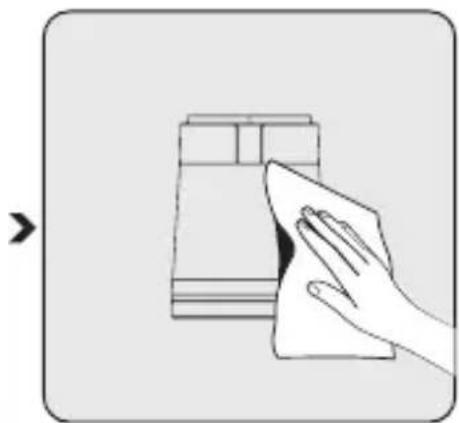

Use a slightly damp cloth to clean the outside of the motor unit (4).

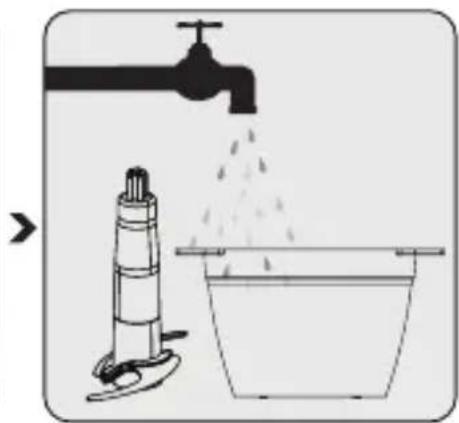

You can wash the chopping bowl, chopper blade and the lid with detergent and warm water.

After cleaning, thoroughly dry all parts of the appliance.

4 Cleaning and maintenance

4.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance before storing.

• Store the appliance in a cool dry place.
• Store the appliance and its cord out of the reach of children.

4.3 Transport and shipping

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

4.3 Transport i otprema

• Za vreme transporte i otpreme, uredaj nosite u originalnom pakovanju. Ambalaža uredaja ga štiti od fizickih ostecenja.
• Nemojte stavljati teske predmete na uredaj ili njegovu ambalažu. U suprotnom, uredaj se moze ošetiti.
• Ako urejad padne, urejad要考虑 raditi ili besoin do trajnih ostecenja.

Ju lutei lexoni ne fillim kete udhezues!

I dashur client,

Ako He rncIeIte OBne yPnATCTBa, rapaHcJataKe n3ry6n BaxKHOCT.

1.1 Onstata 6e36eHocT

Oboj anapat e BO coIaHocT co MeIyHapOndHnTe cTaHdapDn 3a 6e36eHNocT.
Oboj anapat moxe da ro kopnctaT Inca co HamaJIeHn 0n3nUKN, cTeJIHN nIIM MeNTaJIHn CnOCo6HocTN nIIN He ce DOBOJHO NCKUsHn UNaTeHn, HO camo aKO Ce IOD HeuN j HaD3Op nIIN aKO ce 3aNo3HaEHN Co yNaTCTBaTa BO Bpcka co 6e36eJHOTo KopncTeHbe Ha anapaTOT n CO ONaCHOCHTte WTO Ce BKJyUeHN npntoa. DeaTa He cMeat Da cn Irpaat co OBOJ anapat.
Oboj anapat He cmeaT da ro KopncTaT deca.

1 BaxkHn yPntCTBa 3a 6e36eDnOcTa n KINBOTHaTa CpeDnHa

He ro kopncTeTe anapatot ako eIektpnHnot ka6eI, camnot anapat nIIn HeROBOTO ceuNIO ce OwTeTeHN. JaBeTe Ce BO OBlaacteHnot cepBnC.
- Изва对接е го прикпунокот на anapatot od Штекер дODEka Г сtabate/вадитудогаTOUHTe Или пedingда го чстinte.
- Kopnctete Гсамо opngнahlnte DeIOBn NIIДeIOBte StTO ГпрenopayBa Ipon3BvBaoyT.
He ro packlonybajte anapatot.
-Ельектуната мрека тpe6а дa 6идe ВОCKлад со Инфорmaциnte habe徳н HaO3HaKaTа со TINOT Ha anapatOT.
Anapatot He cMee da ce Kopnctn co npodjxnteH k6eI.
He ro BaideTe npKnyokOT Ha anapatot od sttekep Bneuejkn ro ka6eIOT.
- Ппед за то чистende anapatot подам вадито постende дадоцinte, n3вадete Г понлунокот odшт ekр почekajte anapatot сocemaда пестанe

1 BaxkHn ynpaTcTbA 3a 6e36eDnOcTa n KINBOTHaTa CpeDnHa

co pa6ota.

He ro do npajte npiknyokot ha anapatot dokeka paute Bn ce BnaJHn nIIMOKpn.
He ro kopncTeTe anapatOT 3a Jxekn jaedeHb.
Kopinctete ro anapatot camo co HeroBaTa rymeHa noIIOra n caI 3a ceIkaHbe.
He pakybajte co anapatotdoideka caidot e npa3eH.
3a Да He ce oштета Т ceилata n anapatot, otctpahe Te T Kockte N CeMKTe OxpaHata.
Anapatot He e norojeH 3a cyBn nIIN TBpDn npexpambeHn npoJyKtn KOn MoKe 3a KpaTko BpeMe da rN OTanat ceuJnata.
3a da He ce nperepee anapatot, He ro Kopnctete HON-CTOn nOdoJro od 20 cekyHd. Octabete anapatot da ce oJa2 MInHyTmery cekoja ynoTppe6a od 20 cekyHdN.
3a Da He Ce NobpeiTe nopadn Porigsha ynoTpe6a, cIeJeTe rN cHTe

1 BaxkHn yPntCTBa 3a 6e36eDnOcTa n XNBOTHaTa CpeiHa

празуразува.

-Поради порешина улотpeба при праЗнебеTO на садOT, при чисецeto на anapatot ил поади долиразье на сechILAТа со гол паце, може заdoes do серно3н Nobрedi. Бидete вима teлии Трудete ceда Г джITE счлOTO само 3a Herobnot пл actueh DeI.
- Otkaco Ke ro nchntte anapatot n nped da ro Bknyute BO ctpya nn da rN coctabnte HeROBNTe DeIOBN, Ncuyte Ro anapatot n cHTe HeROBn DeIOBN.
He ro notonybajte anapatot, eJeKtpnHnot Ka6eI nII npNKnyOKOT BO BODa nII NBO Hekoja dpyra TeuHocT.
He pakybaije co anapatot nIi co heroBnte KOMnoHENTn Had nIi BO 6IINHa Ha XeShKn IOBpUHHn I He rN CTaBajTe Bp3 XeShKn IOBpUHHn.
-Акгий чува对接 opигиналнite матерпajи od ambалжату,_heka бидах boH дофат на.Deцa.

1 BaxkHn yPntCTBa 3a 6e36eDnOcTa n KINBOTHaTa CpeDnHa

Anapatot n HeroBnot eJeKtpnueH ka6eJyBaJTe rN BOH doaT Ha deca.
- Cekoraш корисе то anapatot настбилна, рамна, чиста и сува поршни.
Oboj ypeE haMeHET 3a ynoTppe6a Bo domaKINcTBOTO nIi Ha MeCTa KaKO ITO ce:

-Чajни Куjni 3a ВрабOTeHITe BO Пробавни,kanцеларни и другп рабOTн. сре din,
- Фарми и od Клпенти BO XOTeЛи, MOTEЛи I dpyг n ctaнбен n cpeДиНи,
-панснои Слични Средин

He npitnckajte nIIN BNTkajte ro kabeJOT 3a ctpya n He TpNJTe ro od ocTpr pa6oBN 3a Da cnpeHTe KaKBa 6nlo stet. DpxTe ro kabelot eoJaNeky OJ XeShKn NOBpHNN I OD OTBOpeH PamaH.
- Празда ro уnotpe6nte anapatot npBnat, nCunCTeTe rN BHNMaTeJnHO cHTe DeIOBn KOn DoaAaT BO KOHTaKT Co xpaHa. Bndete rN DeTaJIHnTe yNaTcTBaTa

1 BaxkHn ynpaTcTbA 3a 6e36eDnOCTa n KINBOTHaTa CpeDnHa

3 Pa6oTeHbe co anapaTOT

Kora Ke 3aBpHnTe co
pa60Ta, ppeCTaHete
da ro npHTnCKaTe
KoIyTe 3a
BKnUyuBaHbe. N3BaJeTe
ro npNKnyOKOT od
uTEkep I noyeKaJte
ceuIIOTo COcema Da
npecTaHe co pa60Ta.

Hajhanpei noBleyeTe ro n 3BaTeTe ro KyKnSteTo (4), a notoa nokloneot (3).

Држete ro ceuHnTo (6) 3a nlaactnHnot DeIи n3BaTeTe ro od caI 3a ceKaHe (1). N3BaTeTe ro nceUKaHTo jaJeHbe od caI 3a ceKaHe (1).

BHaTpeuHnOT DeI Ha CeuNtO To IMa fep. MoKe Da NouyBCTByBaTe 3aTeRaHe Ha fepoT OdoEka Ro CTaBaTe CeuNtO Ha qHKcHaTa Ocka. Ako Ro CBPTITE CeuNtO YoETBpT Kpyr Haecho NII NaJeBO, CeuNtO Ke Ce HameCTn.
3a da ro n3BaInte ceuIIOTo oJ OCKaTa, CBpTeTe ro ueTbPT Kpyr HaeCHO IJIH HajeBO; ceuIIOTo Ke ce n3BaI.

He r n donnpajte ceunilata co rojn paue.

3 Pa6oTe№ co anapaTOT

3.4 MaKcImaJIHn KoJIuYeCTBa I BpeMe Ha ceYkaJIbe

Bo doJha TaBeHa e daJeH onWt npeIeJ ha pa3nUHn npexpam6eHn pOdyKTH BO Ondoc Ha MaKcImaJIHnTe KOJIueCTBa I npOceHOTO BpeMeTpaEHe Ha CeyKaHbeto. PpenopayAHte BpeMeHsKn nepNoi N KOJIueCTBa ce camo opneHTaCNOHn.

PykoBoDCTBO NOIb3OBaTeJIa

CHP 62522 W

RU

• Ecnn npn6op yrhoHntb, OH moXeT nepeCTaTb pa6oTaTb, nIIM moXeT npOn3OHTn Heo6paTnMoE NOBpeJdEHe.

Празибовпель: "Arcelik A.S."

(Guangdong XINBAO Electrical Appliances Holdings Co., Ltd.
South Zhenghe Road, Leliu Town, Shunde District, Foshan City, Guangdong, China Tel: [phone]) Kita

Импорту на терптори PФ: OOO «БЕКО»

IOpndnueckn aDpec: 601021 Poccn, BnaMnpcka o6JI.,

Knpkauchn p-H, dep. FeOpOBCKoe, yI. CeIbcka, d. 49

DeyCTByET TOnbko Ha TeppitOpn PΦ/Valid for Russian Federation only

TAPAHNTN2TODA

Ampc: 109004, Pocn, MockBa, yI. CtaHncnabckoro, 21, cTp 1. http://www.beko.ru

TepeonTopeyenlinn8-800-200-23-56(3BOHOK6ecnTbHaBcN TeppuToPi Pocnn)

TapaHTnHbI TaNoH cepra RUS No

Modenb

CepnHbH Homep

Dara npodaxn

Data yctaHOBKn

Kompanna

KomnaHn

Ponncb npoabua

Iopnnbc MacTepa

NEATB

NEATb

Teneon

Famunn,Am,Orueemed

H3dennepoBepnocb B npncytCTBnn noKynatae;

NokynatEnbycnoBnramrapaHTnn 03hakomne

Iodnucu Iokymamna

Ompbienhe kynonbl zapanmuho manohraenomc cpedcmaom omemhcmu 0 bInonneu cepauchbim uempom zapanmuhbx paobm. Kynon u3bimaemcr u3 zapanmuho2o manoha nocne ydoanemepenra Bauux npemeh3ui.

CepnRUS No

Data npodaxn

CepnRUSN

Data npodaKn

CepnRUSN

Data npodaxn

aalil 1n aaiiial aably lce aeol oiaol alglll jldl ldd

aillll llll g jiall paa aagall

:

lll lll lll lll lll

.

gaii gai i jilj jal jia jial

ailll lll 111 111 111

J 1

.

Jybi jiljai y

J 1

Jg 100

1. 18 5 6 7 = 4

1

iiil 1 aabJgaiy

g aag jall aalball ocll g w jglaiy

i

1

Jz

. jles

1

jaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

5 5

J 1

eolj y jy i 1 g w aaii cllal

.

J 10000000000000000000000000000000000000000000000000

aale 1.1

1

y

1 1

121 ￥！

1
