Product type	Amplified subwoofer
Brand	Loewe
Model	Reference Sound
Dimensions (W x H x D)	43 x 37 x 43 cm
Weight	28 kg
Power supply	220 - 240 V, 50/60 Hz
Max. power consumption	900 W
Nominal power consumption	170 W
Standby power	0 W
Output stages	6 digital channels
Speaker principle	1 active driver 250 mm, 1 passive driver 250 mm
Subwoofer transmission range	27 Hz - 300 Hz (-6 dB)
Channel transmission range	5 x 100 W, 5 Hz - 50 kHz (-3 dB)
Bass intensity	±12 dB
Adjustable crossover frequency	50 Hz - 250 Hz
Phase inverter	Yes
Power switch	Yes
Auto/Manual mode	Yes
Audio Link connection	25-pole D-Sub
Dolby Digital decoder inputs	Yes
Speaker terminals	Front, Center, Rear
Package contents	Subwoofer, Audio Link cable 6 m, 2 elastic pads, 1 Velcro strap, user manual
Optional accessories	Audio Link cables 1.5 m and 10 m, 6-pole jack cable 6 m, black fabric sheathing
Recommended cleaning	Soft damp cloth, without corrosive products

Frequently Asked Questions - Reference Sound LOEWE

How to connect the subwoofer to the Loewe TV?

Use the supplied Audio Link cable (6 m) to connect the 25-pole connector of the TV (from chassis L27xx) to the subwoofer. Make sure the TV is equipped with an AC3 module.

How to adjust the equalizer?

The Equalizer knob adjusts the lowest frequencies (20 Hz to 50 Hz). Turn to min if the subwoofer is near a corner, to middle if near a wall, and to max if in the center of the room.

How to use the phase inverter?

The Phase switch optimizes bass reproduction. Start playback with a lot of bass and toggle the phase switch while listening from your seat to choose the setting with the best reproduction.

How to adjust the crossover frequency?

Use the Crossover Frequency control to adjust the crossover frequency between 50 Hz and 250 Hz. For a Loewe audio system, set to 250 Hz as the crossover frequency is controlled by the source.

What is the nominal power of the subwoofer?

The nominal power consumption is 170 W, with a maximum power of 900 W. Standby power is 0 W.

How to activate automatic mode?

Set the Mode switch to Auto. The subwoofer turns on and off automatically with the Loewe TV. In Manu position, use the Power switch manually.

What to do in case of condensation?

If you move the subwoofer from a cold to a warm place, let it rest for about one hour before turning it on to avoid internal damage.

How to clean the subwoofer?

Clean only with a damp, soft, clean cloth without any corrosive cleaning products.

What accessories are available?

Optional accessories: Audio Link cable 1.5 m (ref. 89952.001), Audio Link cable 10 m (ref. 89952.003), 6-pole jack cable 6 m (ref. 90421.931), and black fabric sheathing (ref. 31947.004/005).

How to dispose of the device at end of life?

Do not throw the device in normal trash. In accordance with European directive 2002/96/EC, dispose of it free of charge at a recycling center or at your specialized dealer when purchasing a similar new device.

USER MANUAL Reference Sound LOEWE

Exterior view of a modern rectangular electronic device with a glossy black panel and metallic base (no text or symbols visible)

Bedienungsanleitung

Operating instructions

Mode d'emploi

Exterior view of a modern white cube with a black textured side, placed on a gray base (no text or symbols visible)

Subwoofer

Phase AudioLink Left Subw Right Rear Left Right Line In 180V 0° -3dB Equalizer 160V 50Hz Crossover Frequency 250Hz min Bass Intensity max Front-Rear Left Right Left Right Center Speaker Out 230V-50/90Hz Power Mode OFF ON Auto Manu. ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Subwoofer

GB Audio Link socket for Loewe TV/Audio sets

GB Rotary knob for equalizer

GB Knob for subwoofer crossover frequency

GB Knob for bass intensity

GB Terminals for connecting speakers (Front / Center / Rear)

Email [e-mail]

AUS

International Dynamics

Australasia Pty Ltd

129 Palmer Street

Richmond 3121, Victoria,

Australia

Tel +61 - 3 - 94 29 08 22

Fax +61 - 3 - 94 29 08 33

Email mail@international

dynamics.com.au

B NL L

Loewe Opta Benelux NV/SA

Uilenbaan 84

BASYS CS SPOL. S.R.O

Sodomkova 8/1478

Customer Care Center

Industriestraße 11

Email [e-mail]

EST

TEDRA TRADING OY

Kuusemetsa 3

Saue 76506, Estonia

Tel +372 - 50 14 817

Fax +372 - 67 09 611

Email [e-mail]

F

Loewe Opta France SAS

13 rue du Dépôt,

Parc del l'Europe, BP 10010

Century Court, Riverside Way

Riverside Business Park, Irvine,

Ayrshire

KÁ11 5DJ, UK

Tel +44 - 1294 315 000

Fax +44 - 1294 315 001

Email [e-mail]

GR

EISAGOGIKI EMBORIKI ELLADOS

S.A.

321 Mesogion Av.

152 31 Chalandri-Athens, Hellas

Tel +30 - 210 672 12 00

Fax +30 - 210 674 02 04

Email [e-mail]

H

Basys Magyarorszagi KFT

Tó park u.9

Email [e-mail]

①

Loewe Italiana SRL

Largo del Perlar, 12

37135 Verona (VR), Italia

Tel +39 - 045 82 51 611

Fax +39 - 045 82 51 622

Email Stefano.Borgognoni@

loewe.it

IL

PL Trading (pz 2004) Ltd.

1. Aliat Hanoar St.

Givatajiim 53401, Israel

Tel +972 - 3 - 57 27 155

Fax +972 - 3 - 57 27 150

Email [e-mail]

IRL

Origo Ltd

Unit 23 Magna Drive

Magna Business Park, City West

Dublin 24, Republic of Ireland

Tel [phone]

Fax [phone]

Email [e-mail]

KSA

SALEM AGENCIES & SERVICES CO.

Hamad Al Haqueel Street,

Rawdah, Jeddah

Kingdom of Saudi Arabia

Tel [phone] ext: 666

Fax [phone]

Email [e-mail]

LT

A Cappella

Ausros Vartu 5, Pasazo skg.

01129 Vilnius, Lithuania

Tel +370 - 52 12 22 96

Fax +370 - 52 62 66 81

Email: [e-mail]

M

DONEO CO. LTD

34/36 Danny Cremona Street

Hamrun, HMRO2, Malta

Tel +356 - 21 - 22 53 81

Fax +356 - 21 - 23 07 35

Email [e-mail]

MA

SOMARA S.A.

377, Rue Mustapha El Maani

20000 Casablanca, Morocco

Tel +212 - 22 22 03 08

Fax +212 - 22 26 00 06

Email [e-mail]

N

PCE. PREMIUM CONSUMER

ELECTRONICS as

Ostre Kullerod 5

International Dynamics (NZ) Pty

Ltd

PO Box 109 317, Newmarket

Auckland, New Zealand

Tel [phone]

Fax [phone]

Email: enquiries@international

dynamics.co.nz

P

Mayro Magnetics Portugal, Lda.

Email [e-mail]

DI

FL DSV

DSV TRADING SA Bloc Kaczubski 9

Service Center Loewe

ul. Verkhnaya Maslovka, d. 29

Email [e-mail]

S

Kjaerulff 1 AB

Ridbanegatan 4, Box 9076

Email [e-mail]

SK

BaSys Czech & Slovak s.r.o.

Stará Vajnorská 17/A

831 04 Bratislava, Slovakia

Tel + 421 2 49 10 66 18

Fax + 421 2 49 10 66 33

Email: [e-mail]

TR

ENKAY ELEKTRONIK SAN. Ve Tic.

Ltd. Sti

Alemdaq Cad: Site Yolu No.: 10

81230 Ümraniye/ Istanbul, Türkiye

Tel +90 - 216 634 44 44

Fax +90 - 216 634 39 88

Email [e-mail]

UAE

Dubai Audio Center

P.O. Box 32836, Sheik Zayed Road

Dubai, UAE

Tel +971 - 4 343 14 41

Fax +971 - 4 343 77 48

Email [e-mail]

ZA

THE SOUNDLAB (PTY) LTD

P.O. Box 31952, Kyalami 1684

Republic of South Africa

Tel +27 - 1 14 66 47 00

Fax +27 - 1 14 66 42 85

Email [e-mail]

© by Loewe Opta 091208

Herzlich willkommen

Vielen Dank,

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Illustration of a flat-screen monitor with a small square display and a base stand (no text or symbols)

20 mm 20 mm

Aufstellen

Exterior view of a gray server room unit with open lid and internal components (no visible text or symbols)

Interior view of a device chassis showing front panel, control panel, and wiring (no visible text or symbols)

Illustration of a monitor with a small square button and a numbered label (⑨) pointing to the screen area (no text or symbols on the device itself)

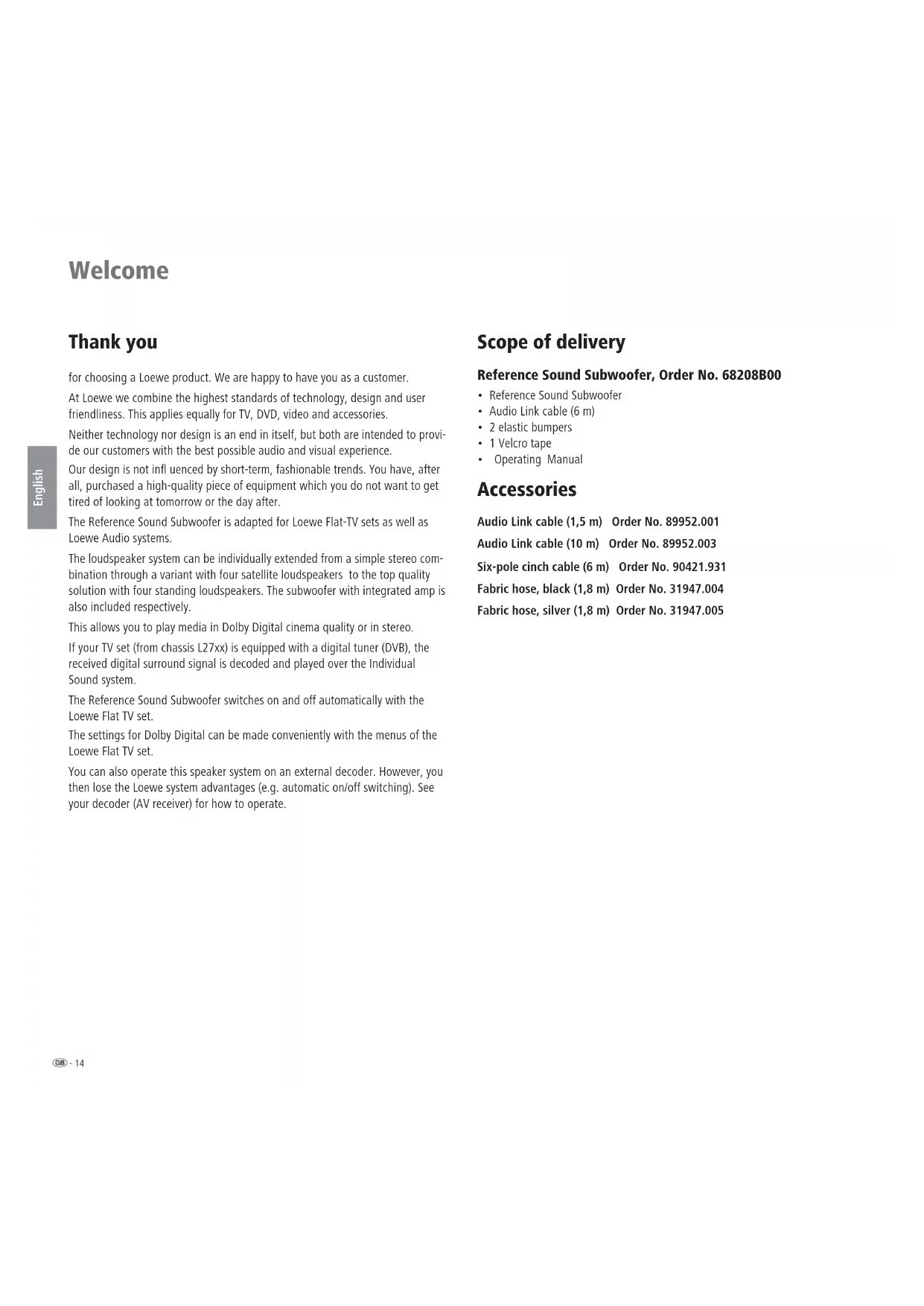

for choosing a Loewe product. We are happy to have you as a customer.

At Loewe we combine the highest standards of technology, design and user friendliness. This applies equally for TV, DVD, video and accessories.

Neither technology nor design is an end in itself, but both are intended to provide our customers with the best possible audio and visual experience.

Our design is not influenced by short-term, fashionable trends. You have, after all, purchased a high-quality piece of equipment which you do not want to get tired of looking at tomorrow or the day after.

The Reference Sound Subwoofer is adapted for Loewe Flat-TV sets as well as Loewe Audio systems.

The loudspeaker system can be individually extended from a simple stereo combination through a variant with four satellite loudspeakers to the top quality solution with four standing loudspeakers. The subwoofer with integrated amp is also included respectively.

This allows you to play media in Dolby Digital cinema quality or in stereo.

If your TV set (from chassis L27xx) is equipped with a digital tuner (DVB), the received digital surround signal is decoded and played over the Individual Sound system.

The Reference Sound Subwoofer switches on and off automatically with the Loewe Flat TV set.

The settings for Dolby Digital can be made conveniently with the menus of the Loewe Flat TV set.

You can also operate this speaker system on an external decoder. However, you then lose the Loewe system advantages (e.g. automatic on/off switching). See your decoder (AV receiver) for how to operate.

Scope of delivery

Reference Sound Subwoofer, Order No. 68208B00

• Reference Sound Subwoofer
• Audio Link cable (6 m)
- 2 elastic bumpers
• 1 Velcro tape
- Operating Manual

Accessories

Audio Link cable (1,5 m) Order No. 89952.001

Audio Link cable (10 m) Order No. 89952.003

Six-pole cinch cable (6 m) Order No. 90421.931

Fabric hose, black (1,8 m) Order No. 31947.004

Fabric hose, silver (1,8 m) Order No. 31947.005

Welcome

Disposal

Cardboard box and packaging

You have opted for a durable and technically sophisticated product. In line with national regulations regarding the disposal of packaging materials, we pay a fee to authorised recyclers who collect packaging from dealers. However, we recommend that you keep the original cardboard box and the rest of the packaging materials so that the unit can, if necessary, be transported in the safest possible conditions.

The unit

Important: The EU Directive 2002/96/EG governs the proper re-acceptance, handling and recycling of used electronic appliances.

Old electronic appliances must therefore be disposed of separately. Never throw this set in the normal domestic waste. You can hand in your old set free of charge at identified collection points or at your dealer if you buy a similar new set. Other details about re-acceptance (also for non-EU countries) are available from your local administration.

Cleaning

Only clean your Reference Sound loudspeaker system with a damp, soft, clean cloth (without aggressive cleaning agents).

For your safety

For your safety and to avoid unnecessary damage to your TV set, please read and observe the following safety instructions:

• Your Reference Sound speaker system is designed exclusively for playing audio signals.
• Always switch off your system (Reference Sound speaker system, TV set and any other connected components) before connecting or disconnecting other equipment or speakers.
• Never operate the Reference Sound speaker system unsupervised. Switch off the power switch or pull out the mains plug during longer periods of absence.

Protect your Reference Sound speaker system against ...

• Damp, moisture, rain, splashing water or dew
- Knocks and mechanical stresses
• Magnetic and electrical fi elds
• Higher electrical powers than specified
• Cold, heat, direct sunlight and extreme temperature variations
- Dust
- Covering which obstructs air circulation – especially the rear
- Manipulations inside the set

Do not place any containers filled with liquids or lit candles on top of the unit.

Your Reference Sound speaker system was designed exclusively for private use in a domestic environment. The warranty conditions only cover this intended use.

WARNING: TO RULE OUT DANGER OF ELECTRIC SHOCK, NEVER REMOVE THE AMPLIFIER COVER. THERE ARE NO PARTS INSIDE THE HOUSING WHICH CAN BE REPAIRED BY THE USER. HAVE REPAIRS DONE ONLY BY YOUR LOEWE DEALER.

If you have moved your Reference Sound speaker system from a cold to a warm environment, leave it standing for about one hour before switching on because of the possible formation of condensation. Do not switch on until it has reached room temperature. This avoids seriously damaging the components.

Setting up

Installing the Reference Sound speaker system

Caution: THE ALUMINIUM SURFACE OF THE REFERENCE SOUND SUBWOOFER IS VERY SENSITIVE TO SCRATCHING AND IMPACT. AVOID ALL CONTACT WITH SHARP OBJECTS. DO NOT PLACE VASES, CANDLES OR OTHER OBJECTS ON TOP OF THE SUBWOOFER.

Basic information

• Place subwoofer, standing speaker and satellite speakers with stand on a firm, level base.
• Do not place the subwoofers and speakers near to strong sources of heat or in direct sunlight.
• When installing on a wall, in a cabinet or a closed shelf: Leave about 10 cm free space around the subwoofer to allow air to circulate unhindered and avoid build up of heat or acoustic pressure.
• Pull out the power cable during thunderstorms. Surge voltages caused by lightning strikes can damage the TV through the antenna system and the mains.
• Also remove the antenna and mains plugs in long periods of absence.
• The power plug of the TV set must be easily accessible so that the TV can be disconnected from the power supply at all times.
• Lay the speaker and power cables in such a way that they cannot be damaged. The power cable may not be kinked or laid over sharp edges, not stood on and not exposed to chemicals; the latter also applies to the system as a whole. A power cable with damaged insulation can lead to electric shocks and is a fi re risk and must therefore be changed by qualifi ed service personnel before operation of the set continues.
• When removing the power plug, pull the plug housing and not the cable. The wires in the plug could be damaged and cause a short circuit the next time it is plugged in.
• The speakers generate magnetic dispersion fi elds which act in the vicinity of the housing. We recommend a minimum distance of >0.5 m from magnetically sensitive equipment such as CRT-TV sets, magnetic data media etc.

Subwoofer

You can position the subwoofer anywhere on the floor. We recommend the front area of the room but in such a way that the bass tones can radiate freely to the side and downwards.

3D rendering of a rectangular metallic cabinet or enclosure with a flat base (no text or symbols visible)

Important: Never obstruct the air vents on the back of the subwoofer. Makes sure it is far enough away (> 10 cm) from the floor or wall.

Mount the two enclosed elastic buffers on the bottom rear of the subwoofer so that the air circulation cannot be obstructed by slipping against the wall.

Diagram of a rectangular device with a central square and two 20 mm base dimensions labeled (no text or symbols on the device itself)

Setting up

Suggestion for positioning solution (from L27xx)

Loewe Flat-TV Front left Front right Reference Sound Subwoofer Rear left Rear right

Connection

Wiring Loewe Flat-TV (from L27xx) – Reference Sound Subwoofer

The TV set must be equipped with an AC3 module. If this has not been done at the factory, please consult your dealer and ask him for the suitable Loewe AC3 upgrade kit.

Remove the cover from the back of the subwoofer to gain access to the setting elements and interfaces.

Exterior view of a gray industrial machine enclosure with internal components and a lid (no visible text or symbols)

Mount the Audio Link cable with the 25-pin plug on the TV set and subwoofer.

back of the subwoofer to gain access to the setting Reference Sound Subwoofer AudioLink Line In Speaker Out Power Mode 201.1V/40.5V/40.5V — Audio-Link cable with the 25-pin plug on the TV set and subwoofer. Loewe Flat-TV HDMI cable Loewe BluTech Vision Video 2CH AUDIO S+VIDEO COMPONENT VIDEO OUT AV OUT CENTER S+LCH AUDIO OUT Service OPTICAL DIGITAL AUDIO OUT

Connection

Connecting the speakers to the subwoofer

Connect the speaker cable to the speaker according to the appropriate installation instructions. One of the two wires of the speaker cable is marked black in the usual way. Connect this black marked cable respectively with the black screw terminal to the subwoofer ⑦ (connection diagram see figure right) and the black terminal on the speaker.

Turn the screw connection of the respective terminal on the subwoofer anticlockwise about 5 turns for this. Feed the wire end into the screw terminal (top right hand side) and close the screw terminal in clockwise direction. Connect the unmarked wires with the red terminals.

Laying the cables

Feed all cables down through the slot in the housing of the subwoofer. Bundle the cables with the Velcro tape provided. You can feed the cables tidily out of the subwoofer with the fabric hose available as an accessory.

Interior view of a device chassis showing front panel, control panel, and display unit (no visible text or symbols)

Connecting the subwoofer to the mains

Plug the mains plug of the subwoofer into a 220-240 V 50-60 Hz AC socket.

Front left t Front right English Reference Sound Subwoofer Line In Photo Audio Link Squiver Audio Link Wireless Wireless Line Right Line Right Speaker Out Rear left Power Mode OFF OF AUTO MUNI Rear right

Commissioning and setting

Before beginning with start-up and operation, make sure that all the cables are connected correctly.

Switching the subwoofer on/off

Switch the Power switch ⑨ to the ON position to switch on the energy supply (mains 230V/50Hz) for the Reference Sound Subwoofer. Set the switch to OFF to switch off the subwoofer completely.

Illustration of a monitor with a small screen and a labeled pointer (no text or symbols on the screen)

Automatic or manual operation

If the subwoofer is connected as described on page 8 and the Mode switch ⑩ is in the Auto position, you no longer need to switch the subwoofer on and off separately. After switching on the subwoofer for the first time it is switched on and off automatically with the Loewe TV set.

If the subwoofer is operated on other devices than the Loewe Flat-TV, the Mode switch ⑩ must be switched to the Manu. position. The subwoofer must then be switched on/off manually with the Power switch ⑨.

Settings on the Loewe TV set

Log in the new devices as described in the operating manual of your Loewe TV set in the chapter "Operating additional equipment – Connecting audio amplifiers".

Setting the equalizer

Using the knob Equalizer ④ you can set the lowest frequency ranges (20 Hz - 50 Hz) for bass playback to be raised or lowered.

• If the Subwoofer is near the corner of the room, then set the knob Equalizer more in the direction min.
• If the Subwoofer is near a wall, then set the knob Equalizer more in the middle position.
• If the Subwoofer is freely positioned in the room, then set the knob Equalizer more in the direction max.

Phase switch

With the phase converter Phase ③ you have the option of optimising the bass playback. However, you can easily make this setting in connection with a Loewe Flat TV (from chassis L27xx with integrated AC3 decoder onwards) using a remote control via the TV menu in the sound component assistant (see operating instructions under „Setting loudspeaker system”). The phase converter is designed for systems where settings can not be made using the TV.

We recommend you to proceed as follows:

• Start DVD playback for example and select a title with bass parts.
• Have a second person activate the phase switch whilst you sit and listen.
• Decide for yourself which switch position reproduces the best bass sound.

Bass intensity

Using the controller Bass-Intensity ⑥ you can set the basic bass volume to suit you.

Setting the crossover frequency

The Crossover Frequency knob ⑤ gives you the possibility of setting the limit frequency for bass reproduction between 50 Hz and 250 Hz depending on which speakers you have connected.

The knob should be set to 250 Hz for Loewe Audio Systems because the crossover frequency is set in the Loewe audio sources (TV).

Cover on the subwoofer

After you have made the settings described in "Commissioning and setting", replace the cover on the rear of the subwoofer.

Technical Data

Subwoofer

Dimensions of subwoofer in cm (W x H x D) 43 x 37 x 43

Weight subwoofer in kg 28

Digital output stages 6 channels

Principle 1 way, active 250 mm; 2 way, passive 250 mm

Mains voltage 220 – 240 Volt; 50/60 Hz

Max. power consumption 900 Watts

Nominal power consumption 170 Watts

Power consumption on standby 0 Watt

Bass intensity ±12 dB

Transmission range subwoofer 300 W 27 Hz - 300 Hz - 6dB

Transmission range channels 5 x 100 W 5 Hz - 50 kHz - 3dB

Phase switch yes

Power switch yes

Mode switch yes

System link Audio Link 25-pole D-Sub

Line In RCA socket 6x: FL, Center, FR, RL, Subw, RR

Masthead

Loewe Opta GmbH is a public limited company of German law with its Head Office in Kronach.

Industriestrasse 11, 96317 Kronach

Telephone: [phone] / 99-0

Fax: [phone] / 99-500

E-mail: [e-mail]

Trade Register: Municipal Court Coburg, No. HRB 42243

Issue 08.09. 2 ^nd edition

© Loewe Opta GmbH, Kronach

All rights reserved including translation.

Design and technical specifications are subject to change without notice.

Bienvenue

Exterior view of a modern office building (no signage)

Diagram of a monitor setup with a small square display and base mount (no text or symbols)

20 mm 20 mm

Mise en place

Exterior view of a gray industrial machine casing with internal components and a lid (no visible text or symbols)

Interior view of a device chassis showing front panel, control panel, and wiring (no visible text or symbols)

Illustration of a monitor with a small screen and a labeled pointer (no text or symbols on the screen)

Line In Prise RCA 6x : FL, Center, FR, RL, Subw, RR

Notice

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Illustration of a flat-screen monitor with a small square display and control buttons at the base (no text or symbols)

20 mm 20 mm

Installazione

Exterior view of a gray industrial control box with internal components and a lid (no visible text or symbols)

Loewe BluTech Vision V2, Power Line, 6.01.65 and 6.02.65. V2, Power Line under Noise from 370, 80, under noise in the line. Following V2, Power Line, 6.01.65 and 6.02.65 are the main components of the Loewe BluTech Vision. The power line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400V power line and a 90V power line. The output line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400V power line and a 90V power line. The output line is a single output line with a 400V power line and a 100V power line. The output line is a single output line with a 400W/400A/400B/400C/400D/400E/400F/400G/400H/400I/400J/400K/400L/400M/400N/400O/400P/400Q/400R/400S/400T/400U/400V/400W/400X/400Y/400Z/400A/400S/400T/400U/400V/400W/400X/400Y/400Z/400A/400S/400T/400U/400V/400W/400X/400Y/400Z/400A/400S/400U/400V/400W/400X/400Y/400Z/400A/400S/400T/400U/400V/400W/400X/400Y/400Z/400A/400S/400T/400U/402W/422A/422B/422C/422D/422E/422F/422G/422H/422I/422J/422K/422L/422M/422N/422O/422P/422Q/422R/422S/422T/422U/422V/422W/422X/422Y/422Z/422A/422S/422T/422U/422V/422W/422X/422Y/422Z/422A/422S/422T/422U/423W/433A/333B/333C/333D/333E/333F/333G/333H/333I/333J/333K/333L/333M/333N/333O/333P/333Q/333R/333S/333T/333U/333V/333W/333X/333Y/333Z/333A/333S/333T/333U

Collegamento

Interior view of a device chassis with labeled ports and connectors (no readable text or symbols)

Diagram of a monitor with a small square object on top, no text or symbols present

Line In Presa RCA 6x: FL, Center, FR, RL, Subw, RR

Impressum

Exterior view of a modern office building (no signage)

Diagram of a flat-screen monitor with a small square display and control buttons at the base (no text or symbols)

20 mm 20 mm

Colocación

Exterior view of a gray industrial machine cabinet with open lid (no visible text or symbols)

Interior view of a device chassis showing front panel, control panel, and display unit (no visible text or symbols)

Illustration of a computer monitor with a small screen and a labeled component (no text or symbols on the screen)

Line In Casquillo RCA 6x: FL, Center, FR, RL, Subw, RR

Pie de imprenta

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Diagram of a rectangular device with a central square and two 20 mm dimensions labeled below (no text or symbols on the device itself)

Installatie

Exterior view of a gray industrial machine enclosure with open lid and internal components (no visible text or symbols)

Interior view of a device chassis showing front panel, control panel, and display unit (no visible text or symbols)

Front links Front rechts Reference Sound Subwoofer Line In Audio/Link Speaker Line In Speaker Out Power Mode OFF-OUT Main Rear links Rear rechts

Illustration of a monitor with a small square button and a numbered label (⑨) pointing to the screen area (no text or symbols on the device itself)

Krachtonneming in stand-by 0 Watt

Line In RCA-ingang 6x: FL, Center, FR, RL, Subw, RR

Impressum

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Illustration of a flat-screen monitor with a small square display and control buttons at the base (no text or symbols)

20 mm 20 mm

Opstilling

Exterior view of a gray industrial machine with open lid and internal components (no visible text or symbols)

Loewe BluTech Vision Pw/Cr VDDO CENTER EMPOWER SCH AUDIO S-VIDEO AV OUT FRONT AUROUND COMPONENT VIDEO OUT AV OUT LEACH AUDIO OUT LPG Configuration, 4.0GHz/12.0 GHz The device includes a few units from 376 MHz, under any or above the ceiling. 12.5 GHz, 10.0 GHz, and 12.0 GHz are connected to a 12.5 GHz network. The device has been connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected to a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a 12.5 GHz network. The device is connected with a digital audio output SERVICE COALAW OPTICAL DIGITAL AUDIO OUT AC IN

Tilslutning

Interior view of a device showing front panel, control panel with buttons, and wiring (no visible text or symbols)

Illustration of a monitor with a small screen and a labeled pointer (no text or symbols on the screen)

Automatisk eller manuel drift

Line In RCA-bøsning 6x: FL, Center, FR, RL, Subw, RR

Kolofon

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Diagram of a monitor setup with a small square display and base mount (no text or symbols)

20 mm 20 mm

Asentaminen

Exterior view of a gray server rack unit with open door and internal components (no visible text or symbols)

Loewe BluTech Vision Pw/Cs Pw/Cs COMPONENT VIDEO OUT AV OUT 2CH AUDIO S-VIDEO CENTER 3-SMOFERT R L FRONT 51CH AUDIO OUT U.S. Power Line, QSPI 600 and QSPI 700 Max received audio output from PWR, the user screen of the Loewe BluTech Vision. The output is a 100% power line (400V) and the 100% output is a 100% power line (400V). The output is a 100% power line (400V) and the 100% output is a 100% power line (400V). The output is a 100% power line (400V). The output is a 100% power line (400V). The output is a 100% power line (400V). The output is a 100% power line (400V). The output is a 100% power line (400V). The output is a 100% power line (400M) Service COAVAL OPTICAL DIGITAL AUDIO OUT AC IN.

©

Illustration of a monitor with a small square display and a numbered label (⑨) pointing to it, mounted on a stand (no text or symbols on the screen)

3D rendering of a rectangular metallic object with a flat base (no text or symbols visible)

Illustration of a flat-screen monitor with a small square button and control panel at the base (no text or symbols)

20 mm 20 mm

Uppställning

Exterior view of a gray server rack unit with open lid and internal components (no visible text or symbols)

Front view of a gray electronic device with connected ports and control panels (no visible text or symbols)

Illustration of a blank screen with a small black square and an arrow pointing to it, placed on a stand (no text or symbols)

Automatisk eller manuell drift

Line In RCA-uttag 6x: FL, Center, FR, RL, Subw, RR

Impressum
