230268 - Dishwasher Hendi - Free user manual and instructions
Find the device manual for free 230268 Hendi in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Professional dishwasher |
| Brand | Hendi |
| Model | 230268 |
| Dimensions (W x D x H) | 600 x 600 x 800 mm |
| Net weight | 50 kg |
| Power supply | 230 V ~ 50 Hz |
| Total power | 3000 W |
| Capacity (baskets) | 2 baskets |
| Number of cycles | 6 (including pre-wash, wash, rinse, drying) |
| Water consumption per cycle | 3.5 L |
| Maximum washing temperature | 65 °C |
| Tank material | Stainless steel |
| Drying program | By residual heat |
| Main functions | Washing, rinsing, drying, automatic stop |
| Maintenance and cleaning | Clean filters after each use, descale every 3 months |
| Safety | Leak protection, door lock, overheat shutdown |
| Spare parts and repairability | Available from Hendi after-sales service (pump, heating element, seal, etc.) |
| General information | Compliant with CE standards, energy class C |
Frequently Asked Questions - 230268 Hendi
How to install the Hendi 230268 dishwasher?
Place the appliance on a flat and stable surface. Connect it to the cold water supply (3/4 inch) and the drain. Plug the power cord into a 230 V/50 Hz outlet. Consult the manual for connection diagrams.
What detergents to use?
Use detergents specifically for professional dishwashers, in liquid or powder form. Avoid foaming products. Rinsing requires an appropriate rinse aid.
Why does my dishwasher not start?
Check that the door is properly closed, that the program is selected and the on/off button is pressed. Make sure the power supply is present and the circuit breaker has not tripped.
How to clean the filters?
Remove the baskets, then unscrew the central filter. Clean it under running water with a soft brush. Reassemble. It is recommended to do this daily to prevent blockages.
What to do if water does not drain?
Check that the drain hose is not kinked or blocked. Clean the trap and the drain filter. If the problem persists, the drain pump may be defective.
How to descale the appliance?
Use a special dishwasher descaler. Pour it into the detergent compartment and run an empty cycle at 65 °C. Perform this operation every 3 months (or more often if the water is hard).
What programs are available?
The appliance usually offers 6 programs: pre-wash, normal wash, intensive wash, economy wash, rinse, and drying. The choice depends on the degree of soiling.
The appliance makes noise during operation, is this normal?
A slight noise from the pump and water jets is normal. If the noise becomes abnormal (grinding, banging), check that the baskets are properly loaded and that nothing is blocking the wash arms.
How to replace the door seals?
The seals must be replaced if worn. Remove the old seal by pulling it, clean the groove, then insert the new seal by pressing evenly. Order the appropriate reference from Hendi.
Where to find spare parts?
Spare parts (pump, heating element, control board, etc.) are available from Hendi after-sales service or on their website. Have the model number 230268 ready to order.
User questions about 230268 Hendi
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Dishwasher in PDF format for free! Find your manual 230268 - Hendi and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 230268 by Hendi.

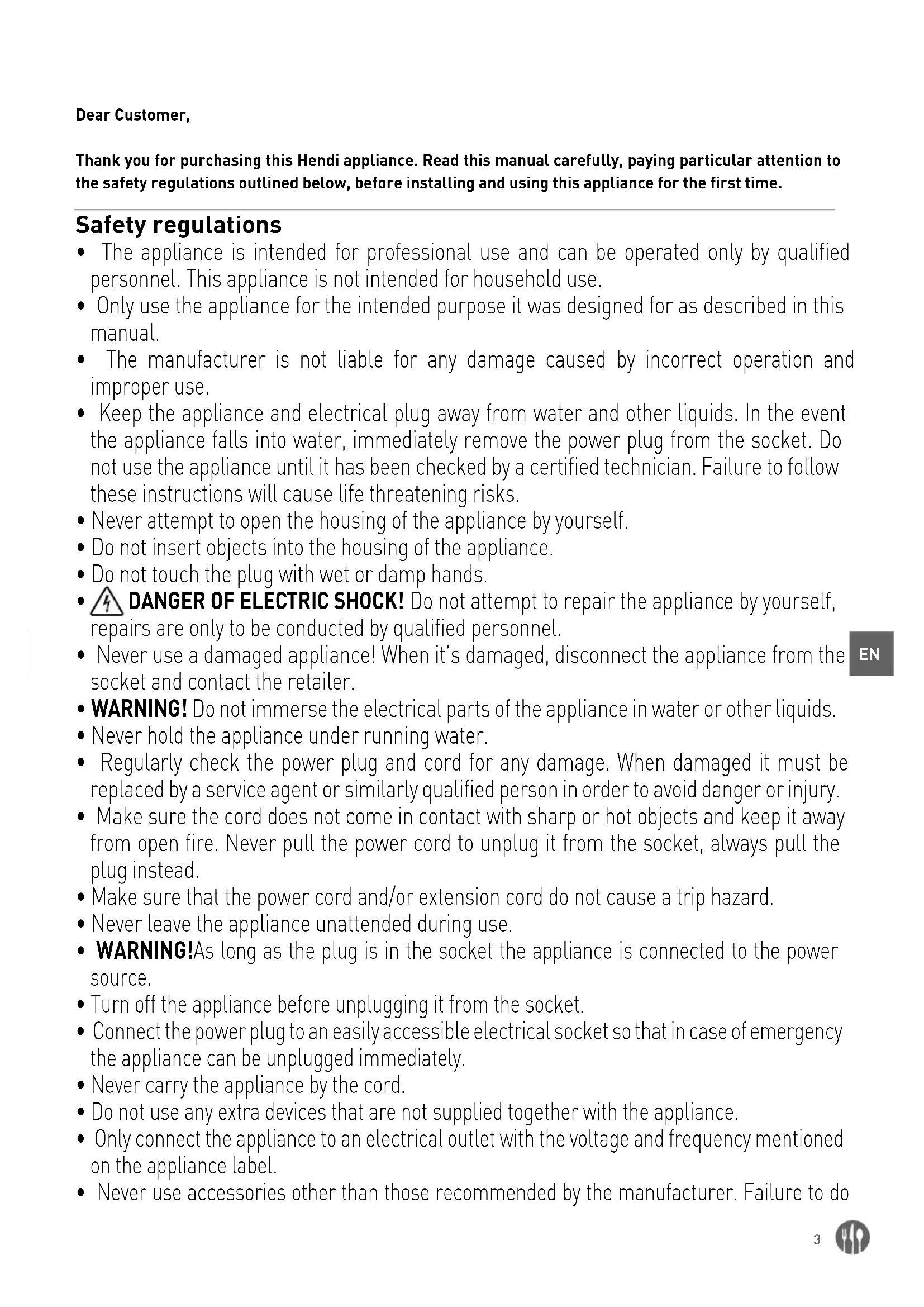

USER MANUAL 230268 Hendi
