POWX04960 - Polisher PowerPlus - Free user manual and instructions

Product type	Polisher
Brand	PowerPlus
Model	POWX04960
Use	Polishing and buffing of lacquered car bodywork
Dimensions (diameter)	240 mm
Weight	2.2 kg
Rated voltage	230 V
Rated frequency	50 Hz
Power consumption	120 W
Protection class	Class II (double insulation)
Speed	3500 min⁻¹
Sound pressure (LpA)	64 dB(A) (K=3)
Sound power (LwA)	85 dB(A) (K=3)
Vibration (aw)	8.1 m/s² (K=1.5)
Power supply	Mains
Included accessories	1 textile polishing bonnet, 1 finishing bonnet, 1 wool polishing cloth, 1 terry cloth cover
Maintenance	Clean the ventilation slots; wash the bonnets by hand and air dry
Safety	Double insulation, on/off switch, do not immerse, read the manual
Warranty	36 months
Standards	CE, EN62841-1, EN62841-2-4, EN55014, EN61000
Recycling	Do not dispose of with household waste, recycle electrical waste

Frequently Asked Questions - POWX04960 PowerPlus

What is the PowerPlus POWX04960 polisher used for?

It is designed for buffing and polishing of lacquered car bodywork.

How to turn the polisher on and off?

Set the on/off switch to 'I' to turn on and to '0' to turn off. The machine must rest on the surface to be polished when starting or stopping.

What accessories are included with the polisher?

Included are: a textile polishing bonnet, a finishing bonnet, a clean wool cloth and a terry cloth cover.

How to apply polishing compound correctly?

Apply the compound evenly on the polishing pad, not directly on the car body. Let the polisher glide without applying pressure.

What is the power and voltage of the device?

Voltage: 230 V, frequency: 50 Hz, power consumption: 120 W, double insulation (class II).

How to maintain the polisher after use?

Clean the ventilation slots regularly. Wash the bonnets by hand and let them air dry. Store the machine with the polishing pad facing upward if not used for a long time.

What safety precautions are essential?

Use the polisher in a clean and dry environment. Do not immerse it. Do not wear loose clothing. Wear safety glasses. Disconnect before any adjustment.

What to do if a part is missing or damaged?

Contact your dealer. Keep the packaging materials until the end of the warranty period.

What is the warranty period?

The warranty is 36 months from the date of purchase by the first user. It covers manufacturing defects but not normal wear or damage due to misuse.

How to dispose of the polisher at the end of its life?

Do not dispose of it with household waste. Take it to a recycling point for electrical waste. Ask your local authority or dealer.

USER MANUAL POWX04960 PowerPlus

Yellow power plant power amplifier with black handle and circular base (no visible text or symbols)

i

NL	NEDERLANDS	VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING
FR	FRANÇAIS	TRADUCTION DU MODE D'EMPLOI D'ORIGINE
EN	ENGLISH	ORIGINAL INSTRUCTION MANUAL
DE	DEUTSCH	ÜBERSETZUNG DER ORIGINALBETRIEBSANLEITUNG
ES	ESPAÑOL	TRADUCCIÓN DEL MANUAL DE INSTRUCCIONES ORIGINAL
IT	ITALIANO	TRADUZIONE DEL MANUALE DI ISTRUZIONI ORIGINALE
PT	PORTUGUÊS	TRADUÇÃO DO MANUAL DE INSTRUÇÕES ORIGINAL
NO	NORSK	OVERSETTELSE AV ORIGINAL BRUKERVEILEDNING
DA	DANSK	OVERSÆTTELSE AF DEN ORIGINALE BRUGSVEJLEDNING
SV	SVENSKA	ÖVERSÄTTNING AV DEN URSPRUNGLIGA BRUKSANVISNINGEN
FI	SUOMI	ALKUPERÄISEN OHJEKIRJAN KÄÄNNÕS
EL	Ελληνικά	Μετάφραση του πρωτότυπου εγχειριδίου οδηγιών
HR	HRVATSKI	PRIJEVOD ORIGINALNOG PRIRUČNIKA S UPUTAMA ZA RAD
SR	SRPSKI	PREVOD ORIGINALNOG UPUTSTVA ZA UPOTREBU
CS	ČESKY	PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ
SK	SLOVENČINA	PREKLAD NÁVODU NA POUŽÍVANIE Z ORIGINÁLU
RO	ROMÂNÃ	TRADUCEREA MANUALULUI DE INSTRUCTIUNI ORIGINALE
PL	POLSKI	TŁUMACZENIE ORYGINALNEJ INSTRUKCJI OBSŁUGI
HU	MAGYAR	AZ EREDETI KEZELÉSI UTASÍTÁS FORDÍTÁSA
RU	РУССКИЙ	ОРИГИНАЛЬНАЯ ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
BG	БЪЛГАРСКИ	ПРЕВОД НА ОРИГИНАЛНОТО РЬКОВОДСТВО

POWERPLUS 1 2 3 4

POWERPLUS® HIGH QUALITY TOOLS

POWX04960 NL

1 TOEPASSING 2
2 BESCHRIJVING 2
3 INHOUD VAN DE VERPAKKING 2
4 TOELICHTING VAN DE SYMBOLEN 2
5 ALGEMENE VEILIGHEIDSVOORSCHRIFTEN 2
5.1 Werkplaats....3
5.2 Elektrische veiligheid ....3
5.3 Veiligheid van personen....3
5.4 Zorgvuldige omgang met en gebruik van elektrisch gereedschap....4
5.5 Service....4
6 SPECIFIEKE VEILIGHEIDSVOORSCHRIFTEN VOOR POETS-/POLIJSTMACHINE 4
7 GEBRUIK 5
8 ONDERHOUDSTIPS....6
9 TECHNISCHE GEGEVENS 6
10 GELUID 6
11 ONDERHOUD 6
12 GARANTIE 7
13 MILIEU 7
14 CONFORMITEITSVERKLARING 8

POLIJSTMACHINE 120W - 240MM POWX04960

1 TOEPASSING

Illustration of a hand holding a bowl over a container with a bottle nearby (no text or symbols)

Illustration of hands using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration of hands cleaning a circular object with a mesh-like pattern (no text or symbols)

Line drawing of a hand gripping a car wheel (no text or symbols)

Illustration of hands holding a piece of bread or cereal, showing a slice cut (no text or symbols)

07/09/2021, Lier - Belgium

Illustration showing a cleaning or cleaning process with labeled steps including mixing, grinding, and cleaning.

Illustration of hands holding a piece of bread or cheese (no text or symbols)

POWX04960 FR

14 DÉCLARATION DE CONFORMITÉ

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIQUE, déclare que :

appareil: POLISSEUSE

marque : PowerPlus

modèle : POWX04960

07/09/2021, Lier - Belgium

1 APPLICATION....2
2 DESCRIPTION (FIG A) 2
3 PACKAGE CONTENT LIST....2
4 SYMBOLS 2
5 GENERAL POWER TOOL SAFETY WARNINGS ....3
5.1 Working area....3
5.2 Electrical safety....3
5.3 Personal safety 3
5.4 Power tool use and care....4
5.5 Service....4
6 SPECIAL SAFETY INSTRUCTIONS FOR POLISHING TOOL .....4
7 OPERATION....5
8 CARE TIPS....6
9 TECHNICAL DATA 6
10 NOISE....6
11 MAINTENANCE 6
12 WARRANTY....7
13 ENVIRONMENT 7
14 DECLARATION OF CONFORMITY 8

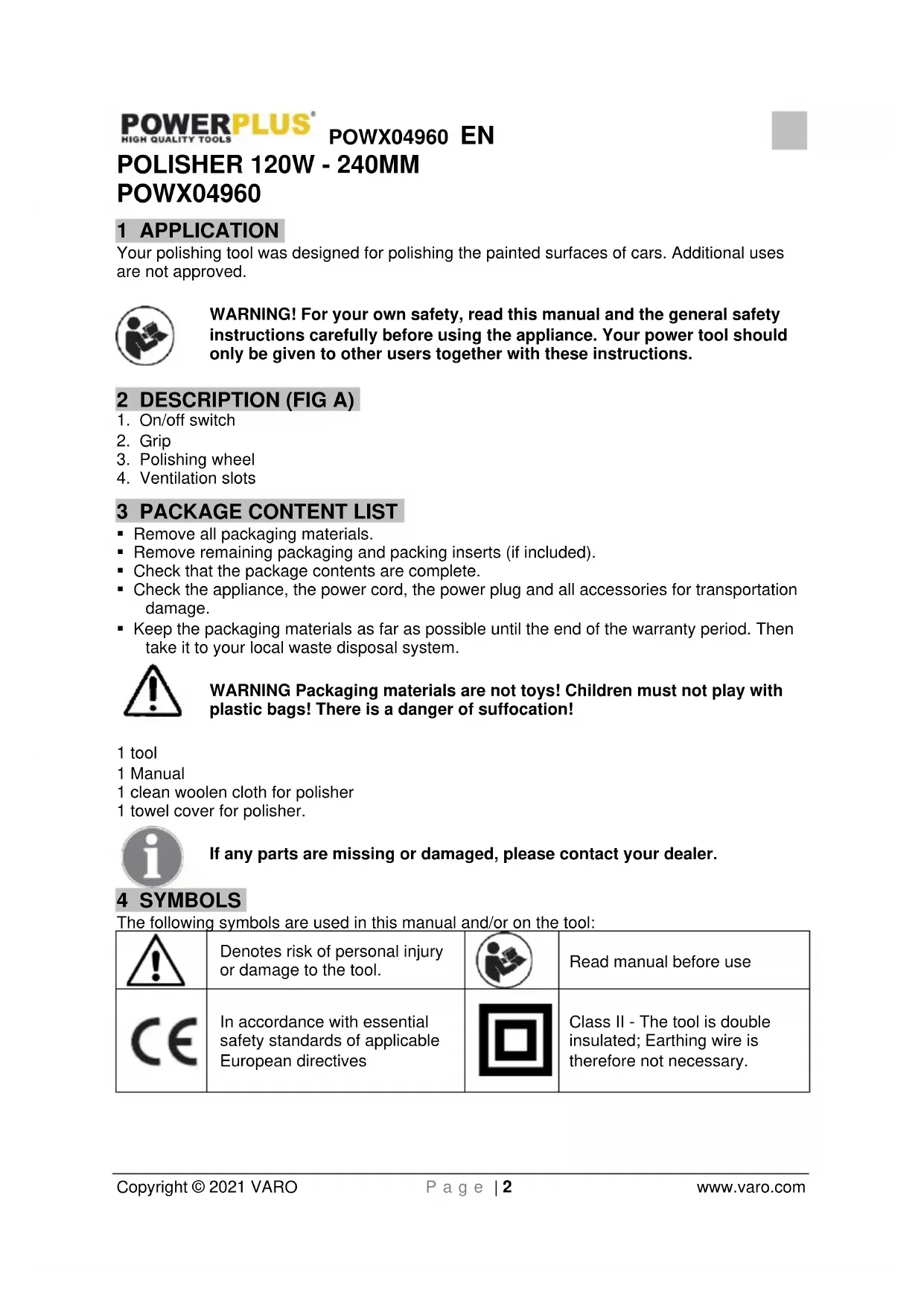

POLISHER 120W - 240MM

POWX04960

1 APPLICATION

Your polishing tool was designed for polishing the painted surfaces of cars. Additional uses are not approved.

WARNING! For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions.

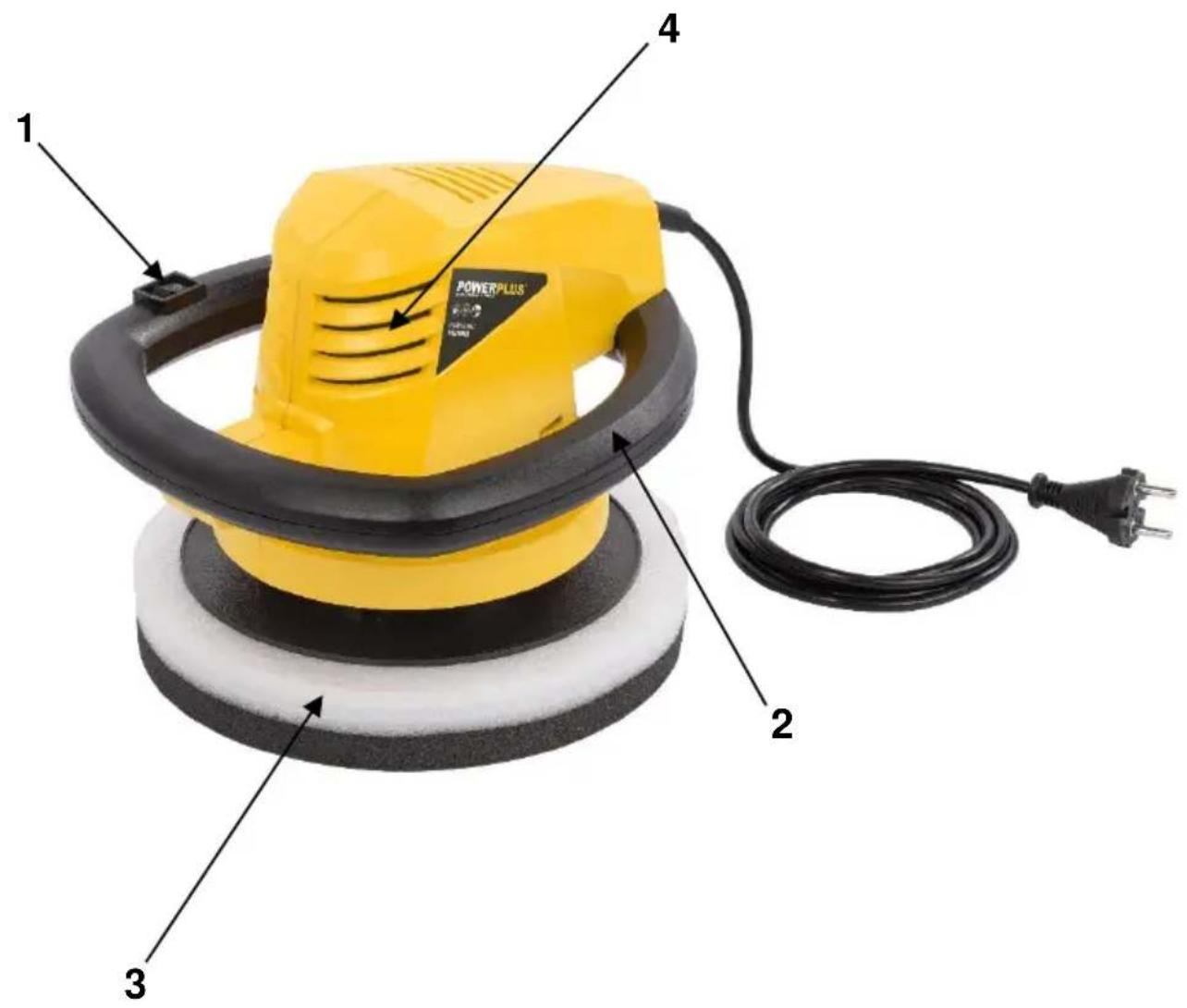

2 DESCRIPTION (FIG A)

1. On/off switch
2. Grip
3. Polishing wheel
4. Ventilation slots

3 PACKAGE CONTENT LIST

■ Remove all packaging materials.
- Remove remaining packaging and packing inserts (if included).
- Check that the package contents are complete.
- Check the appliance, the power cord, the power plug and all accessories for transportation damage.
- Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your local waste disposal system.

WARNING Packaging materials are not toys! Children must not play with plastic bags! There is a danger of suffocation!

1 tool
1 Manual
1 clean woolen cloth for polisher
1 towel cover for polisher.

If any parts are missing or damaged, please contact your dealer.

4 SYMBOLS

The following symbols are used in this manual and/or on the tool:

	Denotes risk of personal injury or damage to the tool.		Read manual before use
	In accordance with essential safety standards of applicable European directives		Class II - The tool is double insulated; Earthing wire is therefore not necessary.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

5.1 Working area

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.
• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.

5.2 Electrical safety

Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of a lethal electric shock.
• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of a lethal electric shock if your body is earthed.
• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of a lethal electric shock.
• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of a lethal electric shock.
• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of a lethal electric shock.
• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of a lethal electric shock.

5.3 Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.
• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.
• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.
• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

- If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

- Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

- Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

- Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

- Maintenance. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

- Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

5.5 Service

- Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 SPECIAL SAFETY INSTRUCTIONS FOR POLISHING TOOL

• Use the polishing tool only in a clean and dry environment.
• The polishing tool should be placed on the intended surface before being switched on or off.
• Keep children away by taking the appropriate precautions.
• Avoid switching on the tool accidentally.
• If the tool is plugged into the mains keep your finger off the switch when carrying the tool from one place to another.
• Never carry or pull the tool by its power cable.
• Protect the cable from heat, oil and sharp edges.
• Check the cable for damage before each use.
• Do not apply too much pressure when polishing, but simply allow the tool to glide over the surface.
• Check the housing and switch for damage.
• Do not use the polishing tool if the housing or switch is defective.

7 OPERATION

■ Switching on and off (fig. A)
- To switch the tool on, set the on/off switch (1) to 'I'.
- To switch the tool off, set the on/off switch (1) to '0'.

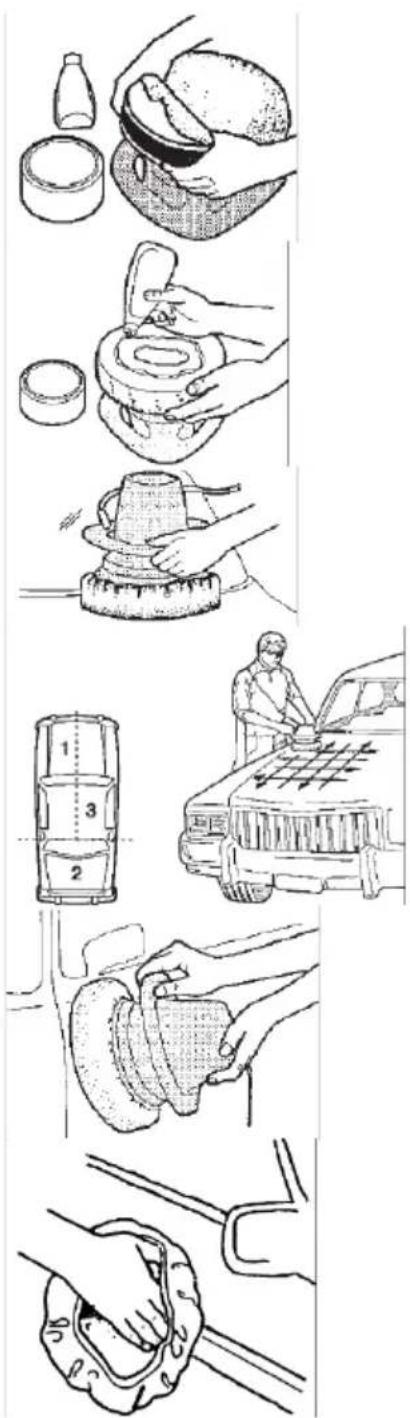

When using wax and polishes, please observe the manufacturers' instructions

Illustration showing steps to clean a car, including cleaning, washing, and cleaning with labeled components.

Pull the textile polishing cap over the polishing pad. Make sure the polishing cap is completely clean.

Spread the polish evenly over the polishing pad. Do not apply the polish directly to the car bodywork

Switch the tool on and off only when it is resting on the car bodywork.

Place the mains cable over your shoulder and work first on large, flat surfaces such as the bonnet, boot lid and roof. Keep your movements as regular as possible. Important! Allow the polishing tool to glide over the polishing surface. Do not apply pressure!

Next work on the smaller surfaces (doors, for example). Allow the mains cable to hang from the appliance and hold the tool as illustrated.

For the areas that cannot be easily reached (for example, rear view mirrors, bumpers and door handles) remove the polishing cover and polish these areas by hand.

Illustration of a hand holding a sliced fruit or vegetable, no text or symbols present

Now replace the textile polishing cap with the fine polishing cap and stretch the latter over the polishing pad. Make sure it is completely clean. Remove the layer of polish in the same order as it was applied. Important! Do not apply pressure on the polishing tool!

8 CARE TIPS

• For optimum paintwork protection, you should polish your car 2 to 3 times a year.
• Wash your car at least every 2 weeks. Avoid using household detergents as these can damage the paintwork and remove the layer of wax.
• Wash your car with a clean sponge, working from top to bottom.
• Remove all insects, bird droppings and tar stains from the paintwork daily.
• If you use any window-cleaning agents, spray them onto a cloth and not directly onto the windows to prevent them wetting the paintwork.

CAUTION: Do not polish in direct sunlight or allow polish to be baked dry on your car.

9 TECHNICAL DATA

Rated voltage	230V
Rated frequency	50Hz
Rated input	120W
Protection class	II
Rotation speed	3500min^-1
Weight	2.2kg
Disc Diameter	240mm

10 NOISE

Noise emission values measured according to relevant standard. (K=3)

Acoustic pressure level LpA	64 dB(A)
Acoustic power level LwA	85 dB(A)

ATTENTION! Wear hearing protection when sound pressure is over 85 dB(A).

aw (Vibration):

8.1 m/s²

K = 1.5 ~m / s^2

11 MAINTENANCE

■ The tool requires no special maintenance.
- Regularly clean the ventilation slots.
- Regularly wash the polishing covers. Wash them by hand only and leave them to dry in the air.
- If you do not plan to use the tool for an extended period of time, remove the polishing cover from the polishing wheel. Store the tool with the polishing wheel pointing up.

12 WARRANTY

- This product is warranted for a 36-month period effective from the date of purchase by the first user.

- This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

- Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

- We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

- Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

- You can always obtain more information at the number 00 32 3 292 92 90.

- Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

- At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

- Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

- Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement.

- Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

- We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

- Your purchase receipt must be kept as proof of date of purchase.

- Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.

13 ENVIRONMENT

Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way.

Please dispose of used motor oil in a manner that spares the environment. We suggest you take it in a sealed container to your local service station for recycling. Do not throw it into the trash or pour it on the ground

14 DECLARATION OF CONFORMITY

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that,

product: POLISHING TOOL

trade mark: PowerPlus

model: POWX04960

is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration.

European Directives (including, if applicable, their amendments up to the date of signature);

2011/65/EU

2006/42/EC

2014/30/EU

European harmonized standards (including, if applicable, their amendments up to the date of signature);

EN62841-1:2015

EN62841-2-4:2014

EN55014-1:2017

EN55014-2:2015

EN61000-3-2:2014

EN61000-3-3:2013

Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V.

The undersigned acts on behalf of the company CEO,

Mertens Ludo

Ludo Mertens

Regulatory Affairs – Compliance Manager

07/09/2021, Lier - Belgium

Illustration of three-step cleaning or packaging process: pouring, pressing into a container, and rolling a cup (no text or symbols)

Illustration of hands cleaning a circular object with a textured surface (no text or symbols)

Illustration of a hand cleaning a car wheel (no text or symbols)

Illustration of hands holding a bowl and a spoon (no text or symbols)

07/09/2021, Lier - Belgium

Illustration showing steps to clean a car body using a brush, with labeled parts and a worker inspecting the car.

Illustration showing two hands performing a manual tool on a textured surface, with no visible text or symbols.

07/09/2021, Lier - Belgium

Illustration showing steps to clean car parts, including cleaning, polishing, and cleaning with numbered instructions.

Illustration of hands holding a bowl with a slice open, no text or symbols present

Regulatory Affairs – Compliance Manager

07/09/2021, Lier - Belgium

Illustration of three steps of a traditional ceramic tool: pouring, shaping, and pressing a cup (no text or symbols present)

Illustration of hands cleaning a car wheel (no text or symbols)

Line drawing of a hand gripping a car wheel (no text or symbols)

Illustration of hands holding a bowl and a spoon, no text or symbols present

Illustration showing steps to process a kitchen or food preparation, including mixing, cleaning, and finishing with a grater.

Trekk poleringshetten i tekstil over poleringsputen. Påse at poleringshetten er fullstendig ren.

Smør et jevnt lag med poleringspasta over poleringsputen. Ikke påfør poleringspasta direkte på bilen.

Slå poleringsmaskinen på og av kun når maskinen ligger an mot flaten som skal poleres.

Illustration of hands cleaning a car wheel (no text or symbols visible)

Illustration showing two hands performing a manual tool: one applying material to a surface, the other handling a bowl (no text or symbols present)

8 RÅD OM VEDLIKEHOLD

07/09/2021, Lier - Belgium

1 ANVENDELSE 2
2 BESKRIVELSE....2
3 MEDF∅LGENDE INDHOLD 2
4 SYMBOLER....2
5 GENERELLE SIKKERHEDSFORSKRIFTER ....3
5.1 Arbejdsområde....3
5.2 Elektrisk sikkerhed .... 3
5.3 Personlig sikkerhed....3
5.4 Omhyggelig håndtering og anvendelse af el-værktøjer 4
5.5 Service....4
6 YDERLIGERE SIKKERHEDSANVISNINGER....4
7 BETJENING 5
8 VEJLEDNING I PLEJE 6
9 TEKNISKE DATA....6
10 ST∅J....6
11 VEDLIGEHOLDELSE 6
12 GARANTI....7
13 MILJ∅ 7
14 KONFORMITETSERKLÆRING....8

PUDSE-/ POLERINGSMASKINE 120W - 240MM POWX04960

1 ANVENDELSE

Illustration of a hand holding a bowl over food, with a jar and bottle nearby (no text or symbols)

Illustration of hands using a tool to press or spread a cylindrical object, with a separate cylindrical item nearby (no text or symbols)

Illustration of a hand operating a mechanical device with a cup and ring (no text or symbols)

Line drawing of a person cleaning the dashboard of a car (no text or symbols)

Line drawing of a hand cleaning a car wheel (no text or symbols)

Illustration of a hand gripping a car wheel (no text or symbols)

Illustration of hands holding a piece of bread or cereal (no text or symbols)

07/09/2021, Lier - Belgium

1 ANVÄNDNINGSOMRÅDE 2
2 BESKRIVNINGDELBESKRIVNING (FIGUR A) 2
3 FÖRPACKNINGSINNEHÅLL 2
4 SYMBOLER....2
5 ALLMÄNNA SÄKERHETSANVISNINGAR 3
5.1 Arbetsplatsen....3
5.2 Elektrisk säkerhet 3
5.3 Personlig säkerhet....3
5.4 Varsam skötsel och användning av elektriska verktyg 4
5.5 Service....4
6 YTTERLIGARE SÄKERHETSANVISNINGAR....4
7 ANVÄNDNING....5
8 BILVÅRDSTIPS....6
9 TEKNISKA DATA....6
10 BULLER 6
11 UNDERHÅLL....6
12 GARANTI....7
13 MILJÖHÄNSYN....7
14 KONFORMITETSDEKLARATION....8

PUTS-/POLERINGSMASKIN 120W - 240MM POWX04960

1 ANVÄNDNINGSOMRÅDE

3 FÖRPACKNINGSINNEHÅLL

Illustration of three steps of a hand pouring liquid into a container, with no visible text or symbols.

Illustration showing car maintenance and cleaning steps: battery, tool, and hand tools (no text or symbols)

Illustration of hands holding a rounded object, possibly food or material (no text or symbols visible)

14 KONFORMITETSDEKLARATION

VARO – Vic. Van Rompuy N.V. – Joseph Van Instraat 9 – BE2500 Lier – Belgien, deklarerar härmed att,

07/09/2021, Lier - Belgium

Illustration of a hand pouring liquid into a container using a tool, with no visible text or symbols.

Illustration showing two hand-painted views of a car wheel rim and grip (no text or symbols)

Illustration of hands holding a bowl and a slice of food (no text or symbols)

07/09/2021, Lier - Belgium

Illustration of three steps of a food preparation procedure: slicing bread, using a spoon, and pressing a cup on a rotating stand (no text or symbols)

Line drawing of a person cleaning a car window (no text or symbols)

Illustration showing hands performing a car wheel rim and steering wheel (no text or symbols)

Illustration of hands holding a bowl with a lid (no text or symbols)

07/09/2021, Lier - Belgium

1 UREĐAJ 2
2 OPIS (SLIKA A)....2
3 POPIS SADRŽAJA PAKIRANJA 2
4 SYMBOLI 2
5 OPĆA UPOZORENJA O ELEKTRIČNIM ALATIMA....3
5.1 Područje za rad ....3
5.2 Električna sigurnost....3
5.3 Osobna sigurnost .... 3
5.4 Korištenje i održavanje električnog alata ....4
5.5 Servis....4
6 POSEBNE SIGURNOSNE UPUTE ZA STROJ ZA POLIRANJE ... 4
7 UPOTREBA....5
8 SAVJETI ZA ODRŽAVANJE 6
9 TEHNIČKI PODACI....6
10 BUKA....6
11 ODRŽAVANJE 6
12 JAMSTVO....7
13 OKOLIŠ 7
14 IZJAVA O SUKLADNOSTI 8

STROJ ZA POLIRANJE 120 W – 240 MM POWX04960

1 UREĐAJ

Illustration showing a cleaning or cleaning process with labeled steps including mixing, polishing, and cleaning.

Navucite tekstilnu navlaku za poliranje preko jastučića za poliranje. Provjerite da li je navlaka za poliranje potpuno čista.

Razmažite pastu za poliranje ravnomjerno po jastučiću za poliranje. Nemojte nanositi pastu za poliranje neposredno na karoseriju automobila.

Isključite stroj za poliranje kad stroj za poliranje odložite na karoseriju automobila.

Mrežni kabel položite preko svog ramena i prvo radite na velikim i ravnim površinama kao što su hauba, vrata prtljažnika i krov. Neka vam pokreti budu što je moguće pravilniji.

Važno! Omogućite klizanje stroja za poliranje preko površine koju polirate. Nemojte pritiskati stroj!

Illustration of hands holding a piece of bread or cheese, showing a slice cut (no text or symbols)

Illustration showing a cleaning or cleaning process with labeled steps including pouring, mixing, and cleaning.

Navucite tekstilnu navlaku za poliranje preko diska za poliranje. Uverite se da je navlaka za poliranje potpuno čista.

Ravnomero nanesite polir pastu na jastuče za poliranje. Nemojte nanositi polir pastu direktno na karoseriju automobila.

Illustration of hands holding a whole and a halved fruit, showing a cut section (no text or symbols)

Sada zamenite tekstilnu navlaku za poliranje navlakom za fino poliranje i navucite je preko jastučeta za poliranje. Uverite se da je potpuno čista. Uklonite sloj polir paste istim redosledom kojim je nanesena. Važno! Nemojte vršiti pritisak na mašinu za poliranje.

8 SAVETI ZA NEGU

07/09/2021, Lier - Belgium

Illustration of three-step cooking process: mixing bread, pouring into a bowl, and grinding a cup (no text or symbols)

Technical diagram illustrating car maintenance and cleaning steps with labeled components

Illustration of hands holding a whole and a halved fruit (no text or symbols)

07/09/2021, Lier - Belgium

1 POUŽÍVANIE 2
2 POPIS....2
3 OBSAH BALENIA 2
4 VYSVETLENIE SYMBOLOV 2
5 VŠEOBECNÉ BEZPEČNOSTNÉ VAROVANIA PRE ELEKTRICKÉ NÁRADIE....3
5.1 Pracovná plocha ....3
5.2 Elektrická bezpečnost'....3
5.3 Osobná bezpečnost......3
5.4 Používanie elektrického náradia a starostlivost' oň....4
5.5 Servis....4
6 ŠPECIÁLNE BEZPEČNOSTNÉ POKYNY PRE LEŠTIČKY ...... 4
7 PREVÁDZKA....5
8 TIPY PRE OŠETROVANIE 6
9 TECHNICKÉ ÚDAJE....6
10 HLUK....6
11 ÚDRŽBA....6
12 ZÁRUKA....7
13 ŽIVOTNÉ PROSTREDIE....7
14 VYHLÁSENIE O ZHODE 8

LEŠTIČKA 120 W – 240 MM POWX04960

1 POUŽÍVANIE

Illustration of three steps of a pottery or metalworking process: pouring, shaping, and pressing a cup (no text or symbols present)

Technical diagram showing a vehicle chassis with parts numbered 1, 2, and 3, alongside a worker inspecting the engine compartment.

Illustration showing two hand-painted car interior scenes: one with a curved object and another with a circular component (no text or symbols)

Illustration of hands holding a whole and a halved fruit, showing a cut section (no text or symbols)

07/09/2021, Lier - Belgium

Illustration showing a cleaning or cleaning process with labeled steps including mixing, polishing, and cleaning.

Illustration of a hand holding a sliced fruit or vegetable, no text or symbols present

07/09/2021, Lier - Belgium

Illustration of a food preparation step showing steps from mixing to shaping a cup (no text or symbols)

Illustration of hands cleaning a circular object with a textured surface (no text or symbols)

Illustration showing two hands performing a manual manipulation or cleaning procedure (no text or symbols present)

Illustration showing steps to organize a cleaning or cleaning tool, including mixing, polishing, and cleaning with labeled components.

Illustration of two hands performing a manual task: one handling a dough ball, the other handling a bread roll (no text or symbols present)

07/09/2021, Lier - Belgium

	Denotes risk of personal injury or damage to the tool.		Перед началом эксплуатации изучите инструкцию.
	In accordance with essential safety standards of applicable European directives		Class II - The tool is double insulated; Earthing wire is therefore not necessary.

Illustration of hands preparing food with containers and a lid (no text or symbols)

Illustration of cleaning and maintenance steps including tool, car, brush, and hand tools (no text or symbols)

07/09/2021, Lier - Belgium

1 ПРЕДНАЗНАЧЕНИЕ НА ЕЛЕКТРИЧЕСКИЯ УРЕД......2
2 ОПИСАНИЕ 2
3 СПИСЪК НА СЪДЪРЖАНИЕТО НА ПАКЕТА....2
4 СИМВОЛИ 2
5 ОБЩИ ИНСТРУКЦИИ ЗА БЕЗОПАСНОСТ ....3
5.1 Работна зона....3
5.2 Електрическа безопасност....3
5.3 Лична безопасност .... 3
5.4 Използване и грижи за механизирания инструмент....4
5.5 Сервизно обслужване .... 5
6 СПЕЦИАЛНИ ИНСТРУКЦИИ ЗА БЕЗОПАСНОСТ ПРИ РАБОТА С МАШИНА ЗА ПОЛИРАНЕ......5
7 ЕКСПЛОАТАЦИЯ....5
8 СЪВЕТИ ЗА ПОДДРЪЖКАТА....6
9 ТЕХНИЧЕСКИ ХАРАКТЕРИСТИКИ ....7
10 ШУМ 7
11 ПОДДРЪЖКА....7
12 ГАРАНЦИЯ 8
13 ОКОЛНА СРЕДА....8
14 ДЕКЛАРАЦИЯ ЗА СЪОТВЕТСТВИЕ С....9

МАШИНА ЗА ПОЛИРАНЕ 120 ВТ – 240 ММ POWX04960

1 ПРЕДНАЗНАЧЕНИЕ НА ЕЛЕКТРИЧЕСКИЯ УРЕД

Illustration of three-step cleaning procedure: mixing a bowl, pouring into a container, and using a tool to clean a cup (no text or symbols)

07/09/2021, Lier - Belgium

1 LIETOŠANA 2
2 APRAKSTS (A ATTËLS) 2
3 IEPAKOJUMA SATURA SARAKSTS....2
4 APZIMEJUMI 2
5 VISPĀRĪGI DARBARĪKA DROŠĪBAS BRĪDINĀJUMI 3
5.1 Darba vieta 3
5.2 Elektrodrošiba....3
5.3 Personāla drošība....3
5.4 Darbarika lietošana un apkopšana 4
5.5 Apkopes serviss ....4
6 ĪPAŠI PULĒTĀJA DROŠĪBAS BRĪDINĀJUMI......4
7 LIETOŠANA 5
8 KOPŠANAS PADOMI 6
9 TEHNISKIE DATI 6
10 TROKSNIS 6
11 TEHNISKÄ APKOPE 6
12 GARANTIJA 7
13 VIDES AIZSARDZIBA....7
14 ATBILSTĪBAS DEKLARĀCIJA 8

1 LIETOŠANA

	Denotes risk of personal injury or damage to the tool.		Read manual before use
	In accordance with essential safety standards of applicable European directives		Class II - The tool is double insulated; Earthing wire is therefore not necessary.

5 VISPĀRĪGI DARBARĪKA DROŠĪBAS BRĪDINĀJUMI

Illustration of three steps of a food preparation procedure: mixing bread, shaping a bowl, and pressing a cup (no text or symbols present)

Illustration of hands holding a rounded object with a halved interior (no text or symbols)

07/09/2021, Lier - Belgium

1 PASKIRTIS....2
2 APRAŠYMAS (A PAV.) 2
3 PAKUOTĖ 2
4 SIMBOLIAI 2
5 BENDRIEJI ELEKTRINIŲ ĮRANKIŲ SAUGOS ĮSPĖJIMAI ...... 3
5.1 Darbo zona....3
5.2 Elektros sauga....3
5.3 Asmens sauga....3
5.4 Elektrinio jrankio naudojimas ir priežiūra....4
5.5 Techniné priežiūra 4
6 SPECIFINIAI SAUGOS [SPÈJIMAI, KAIP NAUDOTI POLIRAVIMO [RANK]....4
7 NAUDOJIMAS....5
8 NAUDINGI PATARIMAI....6
9 TECHNINIAI DUOMENYS 6
10 TRIUKŠMAS....6
11 PRIEŽIŪRA....6
12 GARANTIJA....7
13 APLINKA....7
14 ATITIKIMO DEKLARACIJA....8

POLIRAVIMO IRANKIS 110W 240MM POWX04960

1 PASKIRTIS

	Denotes risk of personal injury or damage to the tool.		Read manual before use
	In accordance with essential safety standards of applicable European directives		Class II - The tool is double insulated; Earthing wire is therefore not necessary.

5 BENDRIEJI ELEKTRINIŲ IRANKIŲ SAUGOS ĮSPĖJIMAI

Illustration of three steps of a hand tooling a small object, including pressing, handling, and cutting (no text or symbols present)

Illustration of hands holding a piece of bread with a slice cut (no text or symbols)

9 TECHNINIAI DUOMENYS

Jtampa / dažnis	230V / 50 Hz
Naudojamoji galia	120 W
Apsaugos klasė	II
Rotation speed	3500min ^-1
Svoris	2.2kg
Dydis	∅240mm

10 TRIUKŠMAS

15/10/2020, Lier - Belgium

Yellow electric vacuum cleaner with black head and cable, no visible text or symbols

varo

WWW.VARO.COM

DESIGNED AND MARKETED BY VARO

©copyright by varo

VARO - VIC. VAN ROMPUY nv

JOSEPH VAN INSTRAAT 9 - 2500 LIER - BELGIUM

OFFICES:
