USER MANUAL Antimite UV WB55 JIMMY

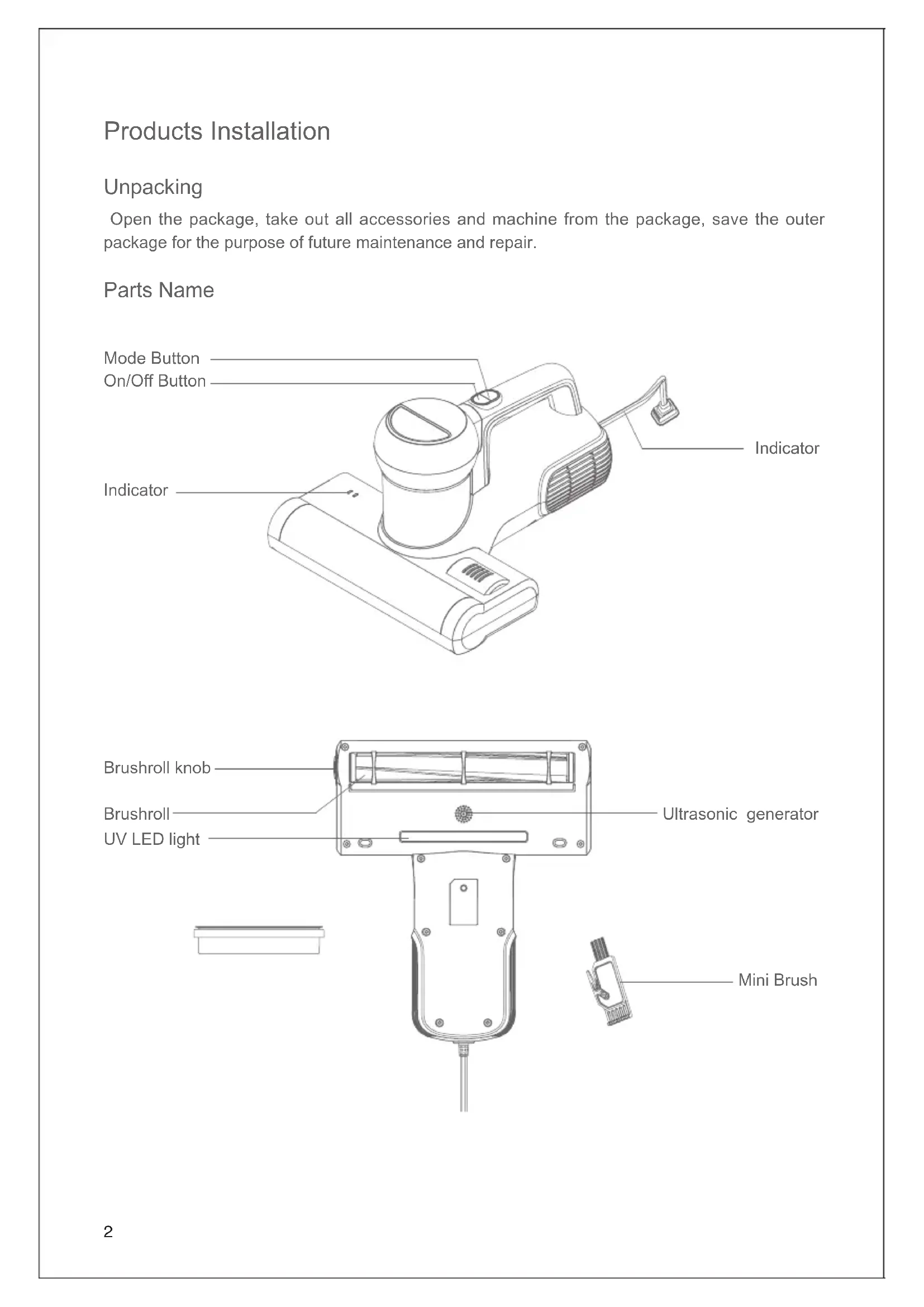

Use of the Product Insert the plug into the socket, press on/off button, the machine is in strong mode and strong indicator lights up.Press the mode button to switch the low mode and low indicator lights up. Press on/off button again, the machine stop working(Figure 1) Notice: For safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. Otherwise, the UV light will automatically turn off.

Figure 1 Mode button Strong Soft On/Off button4 Cleaning and Maintenance Dust Cup Cleaning Turn off the machine and unplug the power cord. Then press the release button and lift upward (Figure 2). Hold the dust cup and dust cup cover separately , twist dust dust lid anticlockwise (Figure 3),remove it from dust cup to clean (Figure 4). Handle position Cyclone assembly Figure 2 Figure 3 Figure 45 Filter and Cyclone Cleaning Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out lter (Figure 5).Do Not tap the lter in reverse side in case of lter clog(Figure 6). lean the cyclone metal lter with the attached mini brush(Figure 7). After cleaning lter, remove the two screws on the cyclone cover with a screwdriver to separate the cyclone cover from the cyclone to clean the internal air duct. After cleaning, assemble parts in reverse order. (Figure 8). After cleaning dust cup ,lter and cyclone, assemble in reverse order. Rotate the dust cup cover assembly into the dust cup.After hearing a "click" and the dot mark is aligned with the lock position that is assembled in place. Notice: 1.Do Not miss the lter! 2.Use water or neutral reagents to clean dust cup and wipe with dry cloths. Do not wash the lter until it is necessary. Make sure the lter and dust cup are completely dry before another use. Figure 5 Figure 8 Figure 6 Figure 7 Cyclone MIF lter6 Brushroll cleaning and installation Turn off the machine and unplug the power cord, rotate the right lock knob anticlockwise with hand from locked position to unlock position (Figure 9) to remove the brushroll to clean up(Figure 10). After brushroll cleaning,insert brushroll from the hole on the right. Make sure the left plug of brushroll be fully snapped into the belt(according to Figure 11) to lock brushroll on the window. Otherwise,the brushroll cannot be locked. Notice: for safety reasons, please turn off the machine and unplug power cord before cleaning brushroll. Maintenance and storage Please clean dust cup and lter after each use for further use. It is recommended to replace a lter after 30-50 hours of working time(depending on specic situation) for better use. Figure 9 Figure 11 Figure 10 Turn the brushroll manually to assist the brushroll to enter7 Any paper, lead glass, plastic will greatly affect the effect of UV light. Please wipe and clean the UV tube regularly for better use. Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment. Cautions Please read this instruction manual carefully before use and keep it properly for future use. Never leave the machine working without supervision. Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock. Cut the power source in maintenance or off-service. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage. For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, ammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or re. Do not use this product to clean water or wet dust. Do Not operate it in humid places (such as bathroom, toilet, laundry room, etc.) to avoid malfunction. Do Not place the machine near heating appliances or expose it to direct sunlight in case of re hazard. Keep this product beyond the reach of special individual such as children without adult’s supervision. Do Not operate this machine with suction port blocked in case of product damage. The product has UV light, for safety reasons, Do Not look at the bottom of the machine when the power is on in case of ultraviolet rays harming. Do Not apply this product to plants. Excessive use of UV may cause object damage. Do Not sit on this product in case of personal injury and product damage. Do Not remove the brushroll cover or force the cover outward when the machine is powered on for safety reasons. This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc. If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons.8 Trouble Shooting If fault remains after adopting the following solutions, contact after sale service or local distributor immediately. Problems Possible Reasons Solution Power Failure Power cord is not rmly inserted. Insert the power cord rmly. No power on socket. Check the socket. Power switch not pressed. Press the On/Off button. Low suction power Suction port clogged. Clean up suction port. Dust accumulation on lter. Clean up the lter. Dust accumulation on cyclone. Clean up cyclone. Dust accumulation on lter. Clean up lter. UV tube failure The UV function is automatically off for safety reasons or weak reection of object. The UV function operates on the condition of less than 5CM height from the object. The machine operates on the same position for a long time. Move the machine forward and backward The machine is placed upright. Machine tilted no more than 30 degrees. Sensor window is contaminate. Clean the sensor window with a half-dry cloth. UV light damage. Contact after-sale service. Automatically turned off Dust cup full. The machine will automatically turn off to prevent the motor under long operation. If the machine automatically turned off , please clean up the dust cup and filter, unplug power cord and reuse if after 2 hours. Suction port clogged. Filter blocked. Brushroll failure Brushroll tangled with foreign matter. Remove the cover and clean up brushroll according to user guide. Belt broken. Remove the cover according to user guide and check the belt. If broken, contact after-sale to repair. This product can ONLY use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc. If the power cord is damaged, please ask for professional help of the manufacturer and other professionals for safety reasons.9 Product Specication Parameter Model WB55 Rated voltage 230V~ Rated frequency 50Hz Rated power 600W Circuit Diagram Vacuum Motor Brushroll Motor Power supply PCB UV light PCB Ultrasonic generator On/off PCB Main PCB Left Infrared PCB Right Infrared PCB 230V

50Hz10 Manufacturer Kingclean Electric Co., Ltd Address No.1 Xiangyang Road, Suzhou New District, Jiangsu Province 215009,China Manufacturer Information Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. Subject to change without notice. Warranty Information This product enjoys one year warranty for the machine service starting from the date of purchase. Excluded from the guarantee is normal wear, commercial use, alterations to the appliance as purchased, cleaning activities, consequences of improper use or damage by the purchaser or a third person, damage, that can be attributed to external circumstances or caused by the batteries. Indicateur11 Installation du produit Déballage Ouvrez l'emballage, retirez tous les accessoires et le matériel. Sortez la machine de la boîte et conservez l'emballage pour le transport futur. Nom des pièces Bouton de mode Bouton marche / arrêt Indicateur Bouton du rouleau de brosse Rouleau de brosse Lumière LED UV Générateur ultrasonique Mini brosse Ligne d'alimentation12 Liste de colisage Aspirateur Filtre MIF Mini-brosse Mode d'emploi
