Product type	Non-contact voltage detector
Brand	Laserliner
Model	ActiveFinder Pro
Voltage range	100 VAC to 1000 VAC
Frequency	50 to 60 Hz
Overvoltage category	CAT IV - 1000 V
Pollution degree	2
Power supply	2 AAA 1.5 V batteries (LR03)
Dimensions (L x H x D)	20 x 157 x 26 mm
Weight (including batteries)	58 g
Indicator	Red/green LED + audible signal
Main functions	Non-contact voltage detection, integrated flashlight, visual and audible warning
Maintenance and cleaning	Clean with a slightly damp, solvent-free cloth. Store in a dry and clean place.
Safety	Double insulation (class II), do not use in case of moisture or defect, test before use on a known source.
Operating conditions	0 °C to 50 °C, max 80% RH (non-condensing), max altitude 2000 m
Storage conditions	-10 °C to 60 °C, max 80% RH
Spare parts and repairability	Replaceable batteries. No other spare parts supplied. Repair only by the manufacturer.
General information	Compliant with EU directives (Low Voltage, EMC, WEEE). Full instructions at laserliner.com

Frequently Asked Questions - ActiveFinder Pro Laserliner

How to turn on the Laserliner ActiveFinder Pro voltage detector?

Press the On/Off switch (reference 3). The green LED in the tip of the detector indicates that the device is operational.

What does the red LED with audible signal mean?

The red LED accompanied by an audible signal indicates the presence of an electrical voltage nearby. The voltage warning (reference 2) also lights up red.

What is the detectable voltage range?

The ActiveFinder Pro detects alternating voltages from 100 VAC to 1000 VAC at a frequency of 50 to 60 Hz.

How to change the batteries?

Open the battery compartment (reference 6) and insert two AAA 1.5 V batteries observing the indicated polarity. Close the compartment.

Can the device detect voltage behind a wall or metal covering?

No, the device cannot detect voltage behind metal panels or coverings because the electrostatic field is blocked. Cable insulation and distance affect detection.

How to test the proper operation of the device?

Before each use, test the device on a known voltage source (e.g., 230 V outlet). If the red LED and audible signal activate, the device is working correctly.

What safety instructions must be followed?

Never use the device under voltage in the presence of moisture. Observe the 5 safety rules: disconnect from power, protect against restart, verify absence of voltage, ground, protect adjacent parts.

How to use the flashlight?

Press the button (reference 5) to turn the integrated flashlight on or off. It lights up the work area.

What to do if the audible signal is weak?

A weak audible signal indicates that the batteries are worn out. Replace both batteries with new ones. Also check the device condition.

How to clean and maintain the ActiveFinder Pro?

Clean the device with a slightly damp cloth without solvent or abrasive. Store it in a dry and clean place. Do not immerse.

USER MANUAL ActiveFinder Pro Laserliner

Close-up of a Laserliner digital brush with black and white body, no visible text or symbols on the device itself.

Laserliner

DE	04
EN	08
NL	12
DA	16
FR	20
ES	24
IT	28
PL	32
FI	36
PT	40
SV	44
NO	48
TR	52
RU
UK
CS
ET
LV
LT
RO
BG
EL
SL
HU
SK

Laserliner

A

B

CAT IV

E

Diagram showing two mechanical components before and after assembly, with arrows indicating motion (no text or symbols)

F

G

H

Two-panel illustration showing a tool applying wire to a wall socket and a brick wall with a valve, both without any text or symbols.

1

Laserliner

!

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Function/Application

Non-contact tester for locating electrical voltage (230 VAC) in cables, sockets, bulb sockets, fuses, control cabinet and system components. Visual and acoustic signals indicate whether a voltage is present.

Safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures or significant vibration.
• If you are working with voltages higher than 24 V/AC / 60 V/DC, exercise extreme caution. Touching the electrical conductors at such voltages poses a risk of life-threatening electric shocks.
• If the device comes into contact with moisture or other conductive-residue, work must not be carried out under voltage. At and above voltages of 24 V/AC / 60 V/DC, the presence of moisture creates the risk of life-threatening electric shocks.
• Clean and dry the device before use.
• When using the device outdoors, make sure that the weather conditions are appropriate and/or that suitable protection measures are taken.
• In overvoltage category IV (CAT IV - 1000 V), the voltage between the test device and earth must not exceed 1000 V.
• Before taking any measurements, make sure that both the area to be tested (e.g. a line), the test device and the accessories used (e.g. connection cable) are in proper working order. Test the device by connecting it to known voltage sources (e.g. a 230 V socket in the case of AC testing).
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Observe the safety precautions of local and national authorities relating to the correct use of the device and any prescribed safety equipment (e.g. electrician's safety gloves).
• Do not work alone in the vicinity of hazardous electrical installations and only under the guidance of a qualified electrician.
• The measuring device must not be used as a substitute for a two-pole zero potential test.

- The device measures the presence of electrostatic fields of sufficient strength. If the field strength is too low voltage may still be applied although no warning signal is given. The following list of factors that influence the field strength does not claim to be complete: shielding, cable insulation (type, thickness), measurement distance, insulation between user and earth, special socket designs, condition of tester and of batteries.

Additional information on use

Observe the technical safety regulations for working on electrical systems, especially: 1. Safely isolating from power supply, 2. Securing to prevent system being switched on again, 3. Checking zero potential, two-pole, 4. Earthing and short-circuiting, 5. Securing and covering adjacent live components.

Safety instructions

Using artificial, optical emission (OStrV)

LED outlet (see Fig. A)

• The device works with LEDs of risk group RG 0 (exempt, no risk) in accordance with the latest versions of applicable standards relating to photobiological safety (EN 62471:2008-09ff / IEC/TR 62471:2006-07ff).
• Radiation power: Peak wavelength equals 445 nm. Mean radiance is below the limit values of risk group RG 0.
• When used for the intended purpose and under reasonably foreseeable conditions, the accessible radiation of the LEDs is safe for the human eye and skin.
• Temporary, irritating optical effects (e.g. dazzling, flash blindness, afterimages, colour vision impairment) cannot be completely ruled out, especially under low ambient light conditions.
• Do not intentionally look directly into the radiation source for longer periods of time.
• No specific measures are required to ensure the limit values of risk group RG 0 are maintained.

Safety instructions

Dealing with electromagnetic interference

- The measuring device complies with safety and electromagnetic compatibility regulations and limits in accordance with the Low Voltage Directive 2014/35/EU and electromagnetic compatibility regulations in accordance with the EMC Directive 2014/30/EU.

- Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Laserliner

Symbols

Fig. B: Warning about hazardous electrical voltage: Unprotected live components inside the device housing are capable of posing a risk of electric shock.

Fig. C: Protection class II: The test device has reinforced or double insulation.

Fig. D: Overvoltage category IV: Devices such as electricity meters, overcurrent circuit breakers and ripplecontrol units, which are intended for use at or near the infeed into the electrical installation of buildings, and specifically from the main distribution to the supply system.

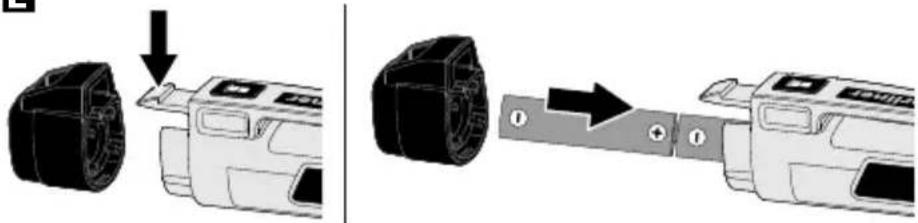

1 Insertion of batteries (see Fig. E)

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

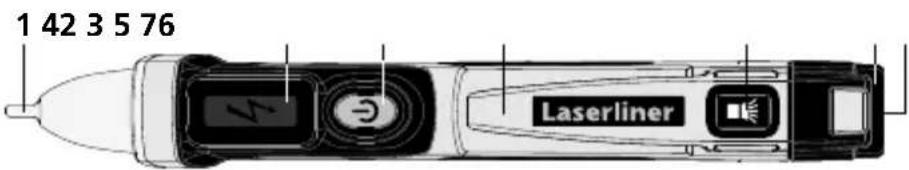

Device description (see Fig. F)

1 Detector tip with LED indicator (green/red) / status indicator

4 Pocket clip
5 Battery lamp ON/OFF
6 Battery compartment
7 Battery lamp

2 Voltage warning

3 ON/OFF button

Before using the device, you should always test it on a main circuit you know to be operational within the specified voltage range.

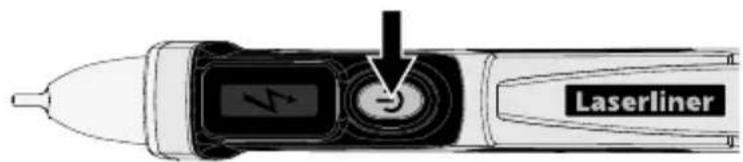

2 ON / OFF (see Fig. G)

3 LED indicator/status indicator

The LED indicator in the detector tip (1) signals the following:

Green LED: Tester ready / off-circuit area

Red LED with alarm: Live wires in vicinity

LED off: Tester not ready

4 Localising electrical voltages

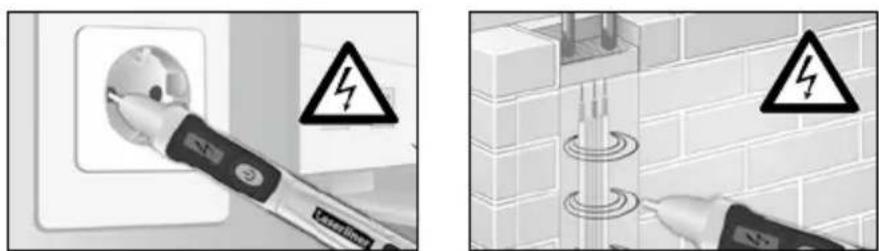

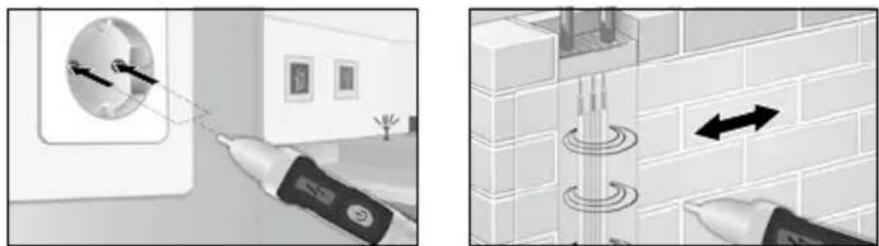

Fig. H: Position the detector tip in the area to be tested (e.g. cable, socket etc.). Fig. I: When voltage is present, the detector tip lights up red, the voltage warning signal (2) lights up red, and a rapid signal sounds.

For safety, check all three phase conductors (L1, L2, L3) for the presence of voltage!

If the acoustic signal is weak or the battery lamp is not as bright as it should be, replace the batteries.

!

Please be aware that even if a visual signal is not displayed, voltage may still be present. Differences in the design of the connection socket or the nature of the insulation (thickness and type) can affect functionality. Voltage cannot be detected behind panels and metal covers.

5 Battery lamp

Press button 5 to switch the flashlight on and off.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data Subject to technical alterations. 18W42

Indicator	LED (red/green)
Voltage range	100 VAC ~ 1000 VACFrequency 50 ... 60Hz
Overvoltage category	CAT IV - 1000 V(non-condensing)Pollution degree 2
Power supply	2 x 1,5 AAA (NEDA 24A/IEC LR 03)
Operating conditions	0°C ... 50°C, Max. humidity80% rH, no condensation,max. altitude 2000 m
Storage conditions	-10°C ... 60°C, Max. humidity80% rH
Dimensions (W x H x D)	20 x 157 x 26 mm
Weight (incl. batteries)	58 g

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at: http://laserliner.com/info/?an=AHD
