USER MANUAL TORAN 5001 MB BRENNENSTUHL
Mobiler Bluetooth LED Strahler Mobile Bluetooth LED floodlight
TORAN 3000 MB 5000 MB 5001 MB 5002 MB
GB Operating instructions 6
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
BEDIENUNG MIT BRENNENSTUHL APP ÜBER BLUETOOTH
Operating Instructions mobile Bluetooth LED floodlight
TORAN 3000 MB 5000 MB 5001 MB 5002 MB
Note: Before using the floodlight, please carefully read the operating instructions and store them in a proper location!
SAFETY INSTRUCTIONS
- Before use, always check the floodlight for any possible damage.
Never use the floodlight in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.
Non-compliance poses a risk of fatal injury from electrical current! - Never open the device. The floodlight does not contain components that require maintenance.
- The LEDs are not exchangeable.
- Do not use the floodlight in explosive atmospheres with flammable liquids, gases or dusts. Risk of death!
- Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
- Disconnect the floodlight from the mains power and switch the floodlight off before cleaning.
- To avoid dazzling or blinding, do not look directly into the light.
TECHNICAL DATA
Radio frequency: 2.4 GHz
Frequency band: 2402 - 2480 MHz
Transmitting power: 9.55 dBm (max.)
Bluetooth version: 5.0
Nominal voltage: 220 – 240 V \~ 50/60 Hz
Operating temperature: -20^-+40^
| Model TORAN 3000 MB TORAN 5000 MB TORAN 5001 MB TORAN 5002 MB | ||||
| Power socket: | — | DE F | CH | |
| 220 – 240 V~; max 3000 W | 220 – 240 V~; max 2000 W | |||
| Child protection: | — | Yes | Yes | No |
| Cable: | H07RN-F 2G1.0 mm ^2 | H07RN-F 3G1.5 mm ^2 | H07RN-F 3G1.5 mm ^2 | H07RN-F 3G1.5 mm ^2 |
| Electrical Power: | 30 W | 46 W | 46 W | 46 W |
| Current: | 0.13 A | 0.22 A | 0.22 A | 0.22 A |
| IP class: | IP55 | IP54 | IP54 | IP54 |
| Safety class: | II | I | I | I |
| Power factor: | 0.9 | 0.9 | 0.9 | 0.9 |
| Dimensions: | 276 x 276 x 68 mm | 276 x 276 x 68 mm | 276 x 276 x 68 mm | 276 x 276 x 68 mm |
| Weight: | 2.17 kg | 2.75 kg | 2.75 kg | 2.75 kg |
| max. projected area: | 0.08 m ^2 | 0.08 m ^2 | 0.08 m ^2 | 0.08 m ^2 |
This LED floodlight is suitable for indoor and outdoor lighting purposes.
FLOODLIGHT INSTALLATION
Vertical: Place the floodlight on a dry and level surface.
With tripod (not included in the scope of delivery)
The floodlight can also be mounted on a Brennenstuhl tripod.
ACCESSORIES (optional)
The floodlights can also be mounted on Brennenstuhl tripods.
Telescopic tripod ST 300 Art. no. 1170310
Telescopic tripod BS 250 Art. no. 1170610
Telescopic tripod TS 250 Art. no. 1170610020
Telescopic tripod TS 170 Art. no. 1170610010
POWER SOCKET (only 46 W versions)
At the back side of the (46 W) floodlight, there is a power socket by means of which it can also be used as power distributor.
The power socket is also functional when the light is switched off.
DOWNLOADING THE APP/BRENNENSTUHL® TORAN
The TORAN floodlights can be controlled using the brennenstuhl®TORAN app. The app is available free of charge at the App Store and the Google Play Store. For the download and the installation, follow the instructions on the screen.
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
OPERATION USING THE BRENNENSTUHL APP VIA BLUETOOTH
-
Switch on the Bluetooth function at the floodlight by means of the blue button at the back side. If there is no connection yet, the green LED will flash. If there is already a taught connection, the green LED will light up permanently.
-
Start the Brennenstuhl app at your smartphone and follow the instructions of the app.
- If a TORAN device is found, it can be added.
- In this case, the green LED will light up permanently.
- If the Bluetooth control is active, it is still possible to operate the device manually.
POSSIBLE CONTROL FUNCTIONS USING THE BRENNENSTUHL APP
- Light on/off.
- Light dimming from 10 to 100%.
- Timer on and off: Monday to Sunday, in each case 00:00 until 23:59. Several timers are possible.
- Countdown on or off: 00h01min to 23h59mins.
- Control of several floodlights using one smartphone.
- Grouping of up to 5 devices.
- The languages are set automatically; they can, however, also be selected manually: German, English, French, Italian.
For more information on the operation of the app, please refer to the detailed operating instructions at www.brennenstuhl.com in the service area.
RESETTING THE BLUETOOTH FUNCTION AT THE DEVICE
If a TORAN floodlight is connected to a smartphone, no other smartphone can access the same floodlight. The floodlight will also retain its settings if the smartphone is out of reach.
If in this situation, a different user wants to use the floodlight by means of the app, they can reset the connections and settings of different users by keeping the blue Bluetooth button pressed for more than 5 sec.
SWITCHING THE FLOODLIGHT ON/OFF MANUALLY
Switch the floodlight on by means of the yellow button at the back side.
The floodlight lights with 100 % brightness. By pressing the button again, the light will change to 50 % brightness. The light intensity can also be continuously set. To do so, keep the switch pressed – the light intensity is slowly reduced.
Proceed in the same way to increase the intensity again.
If the switch is left in any of its "on" positions for longer than 3 seconds, then pressing it once again will always turn it off.

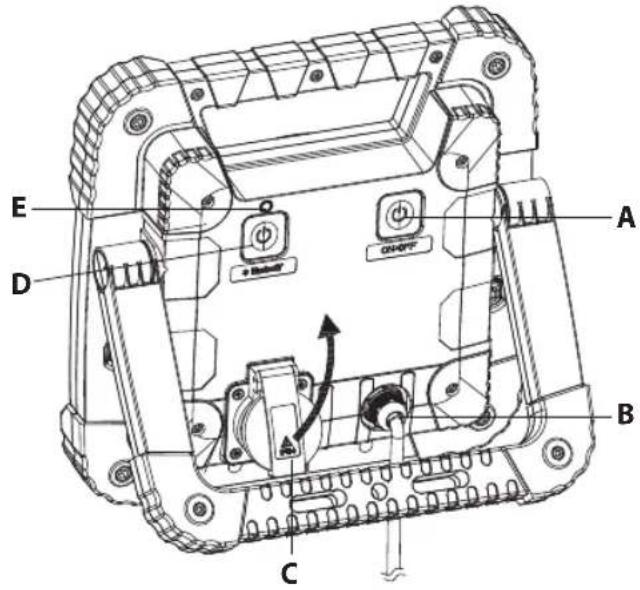

A: On/Off and function switch
B: Connection cable
C: Power socket (only TORAN 500X MB)
D: Bluetooth switch
E: Bluetooth status LED
The light source of this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced.
CLEANING
Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.
DISPOSAL
Dispose of electric appliances in an environmentally friendly manner!
Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.
For possibilities of disposal of the used appliance, please contact your local or municipal administration.
DECLARATION OF CONFORMITY
We, the Hugo Brennenstuhl GmbH & Co.KG, herewith declare that the remote system type TORAN 3000 MB, 5000 MB, 5001 MB, 5002 MB complies with the directives 2014/53/EU and 2011/65/EU (RoHS II) incl. 2015/863/EU. The complete text of the EU declaration of conformity is available at the following web address:
This device complies with all legal, national and European requirements.
All company names and product designations contained herein are trademarks of the respective owners.
ADDRESSES
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
UTILISATION AVEC L'APPLICATION BRENNENSTUHL® VIA BLUETOOTH
DÉCLARATION DE CONFORMITÉ
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
BEDIENING MET APP VAN BRENNENSTUHL VIA BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
USO CON APP BRENNENSTUHL VIA BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
ANVÄNDA BRENNENSTUHL-APPEN VIA BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
CONTROL CON LA APP DE BRENNENSTUHL A TRAVÉS DE BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
OBSŁUGA PRZY UŻYCIU APLIKACJI BRENNENSTUHL ZA POŚREDNICTWEM BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
OBSUHA S APLIKACÍ BRENNENSTUHL PŘES BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
A BRENNENSTUHL APPLIKÁCIÓ BLUETOOTH-ON KERESZTÜL TÖRTÉNŐ KEZELÉSE
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
BLUETOOTH ÜZERINDEN BRENNENSTUHL UYGULAMASIYLA KULLANIM
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
KÄYTTÖ BRENNENSTUHL® -SOVELLUKSELLA BLUETOOTHIN KAUTTA
KOHDEVALON MANUAALINEN ON/OFF-KYTKENTÄ
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
XEIPIΣΜΟΣ Μ'ΕΣΩ BRENNENSTUHL APP ME BLUETOOTH
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
Google Play and the Google Play logo are trademarks of Google LLC.
Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
OPERAÇÃO COM APLICATIVO BRENNENSTUHL VIA BLUETOOTH

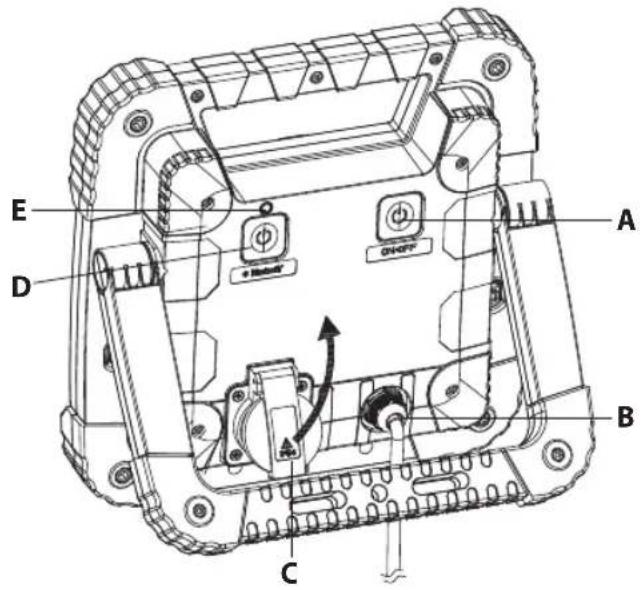

D: Interruptor do Bluetooth
