USER MANUAL HMIOLS 514EWH HOOVER

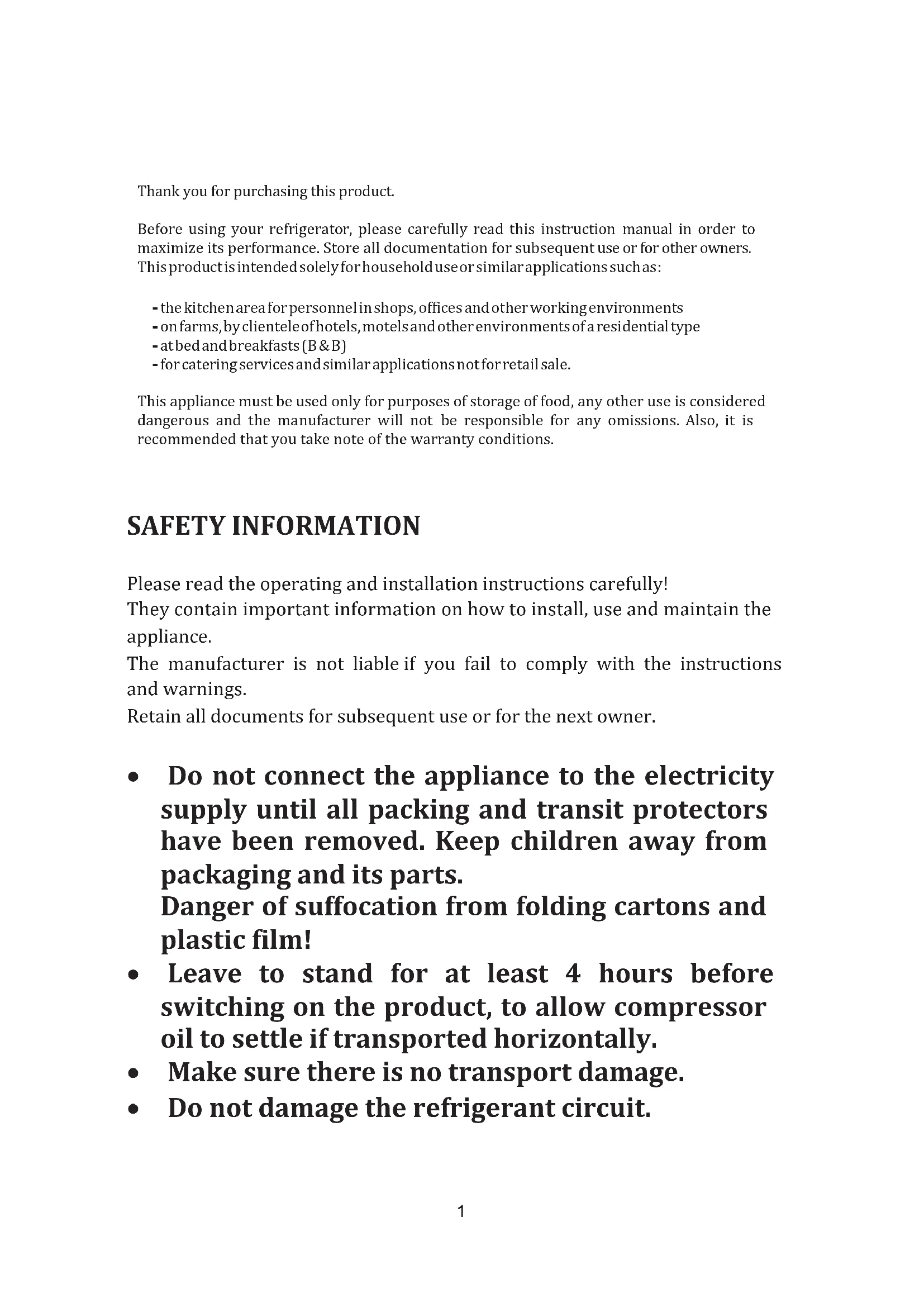

8VHULQWHUIDFH Page 22a23 5.Daily Use Page 24a27Thank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as: - t h e k i t c h e n a r e a f o r p e r s o n n e l i n s h o p s , o f f i c e s a n d o t h e r w o r k ing environments - on farms, by clientele of hotels, motels and other environments of a residential type - a t b e d a n d b r e a k f a s t s ( B & B ) - f o r c a t e r i n g s e r v i c e s a n d s i m i l a r a p p l i c a t i o n s n o t f o r r e t a i l s ale. This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. SAFETY INFORMATION Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner. x Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! x Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported horizontally. x Make sure there is no transport damage. x Do not damage the refrigerant circuit. 1x Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. x Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. x Handle the appliance always with at least two persons because it is heavy. x Install and level the appliance in an area suitable for its size and use. x Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. x The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. x Only for UK: The appliance’s power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible. x Make sure that mains cable is not caught under the appliance during and after 2carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard. x Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. x Do not install the appliance near heaters or inflammable materials. x FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen. x If you find that the lid of the appliance is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. x Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures. x Do not excessively pull or fold the power cord 3or touch the plug with wet hands. x Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! x Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water. x Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer. x Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries. x At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance. x Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance. Only children aged 8 years and above may use the appliance. x Children should not play with the appliance. 4x Children aged from 3 to 8 years are allowed to load and unload this appliance. x FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! x FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low- temperature burns! x Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous. x Before performing any operation, unplug the power cord from the power socket. x Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. x Do not use pointed or sharp-edged objects such as knives or forks to remove the frost. x Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. x It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire. x Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service. 5x Supervise children while the appliance is being cleaned or maintained. x Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. x WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite. x If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, - Thoroughly ventilate the room for several minutes, - Inform customer service. x WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. x WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do not recommend the use of extension leads and multi-way adapters. x Do not attempt to sit or stand on the top of the 6appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones. x The product is designed and built for domestic household use only. x Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. x Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice- cream and making ice cubes. - One-, two- and three -star compartments, if present in the appliance, are not suitable for the freezing of fresh food.

7- If the appliance is left empty for long periods,

switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. x FOR Wine Coolers: this appliance is intended to be used exclusively for the storage of wine x FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance x FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs Ȉ ȋȌ

INSTALLATION WARNING! The appliance is heavy. Always handle with at least two persons. Before first use ¾ Remove all packaging materials. ¾ Clean the appliance with water and a mild detergent and dry it with soft cloth. ¾ Check if power supply, socket and fusing are appropriate to the rating plate. ¾ Check if the power socket is earthed and no multi-plug or extension is present. ¾ Check if the power plug is accessible after the appliance has been positioned. ¾ Refrigerator and freezer temperature are automatically set at 4°C and - 18°C respectively. These are the recommended settings. If desired, you can change these temperature manually. See Adjust the temperature. Environmental conditions ¾ This appliance should be installed in a room that is dry and well ventilated. ¾ Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation or exposed to direct sunlight. ¾ If this appliance is situated in a cold environment (such as a shed, outhouse or garage), the performance will be affected and this may damage the food. Install this product in a position where the ambient temperature is not lower or higher than the operating temperature: in this case the appliance does not work properly. x Extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’. x Temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’. x Subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’. x Tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’. Levelling the appliance The appliance should be placed on a flat and solid surface

1. Tilt the appliance slightly backwards.

2. Turn the feet clockwise to raise the refrigerator.

3. Turn the feet counter clockwise to lower the

refrigerator. 12Moving the appliance

1. Remove all food and unplug the appliance

2. Secure shelves and other moveable parts in the fridge and in the freezer with

3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating

Position different food in different compartments according to be below table: Refrigerator compartment Type of food Door or balconies of fridge compartment x Foods with natural preservatives, such as jams, juices, drinks, condiments x Do not store perishable foods Crisper drawers (salad

drawer) x Fruits, herbs and vegetables should be placed separately in the crisper bin

Do not store bananas, onions, potatoes, garlic in the refrigerator Fridge shelf – middle x Dairy products, eggs Fridge shelf – top x Foods that do not need cocking, such as ready- to-eat foods, deli meats, leftovers Freezer drawer(s)/tray x Foods for long-term storage x Bottom drawer for raw meat, poultry, fish x Middle drawer for frozen vegetables, chips x To p tray for ice cream, frozen fruit, frozen baked goods ¾ It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. ¾ For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat. ¾ For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C) Tips for storing food in the fridge ¾ Keep your fridge temperature below 5°C. ¾ Hot food must be cooled to room temperature before storing in the appliance. ¾ Foods stored in the refrigerator should be washed and dried before storing. ¾ Food to be stored should be properly sealed to avoid odour or taste alterations. It is advisable to keep food covered with materials that are tasteless, impermeable to air and water, non-toxic and free of pollution, to avoid contamination or odour transfer. ¾ It is recommended not to obstruct the air outlets of the refrigerator compartment. ¾ Do no store excessive quantities of food. Leave spaces between foods to allow cold air flowing around them, for a better and more homogenous cooling. ¾ Leave a gap between foods and the inner walls, allowing air flowing. In special way don’t 13store foods against the rear wall, as food could freeze. ¾ The ageing process of some fruit and vegetables (such as melons, papaya, banana, pineapple etc) can be accelerated in the refrigerator; therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly greed fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature. Tips for freezing fresh food ¾ The freezer compartment is suitable for freezing fresh food and storing frozen and deep- frozen food for a long time ¾ Place the fresh food to be frozen in the freezer compartment ¾ The maximum amount of food that can be frozen in 24 hours is specified on the rating plate ¾ The freezing process lasts 24 hours: during this period do not add other food to be frozen Tips for storing food in the freezer ¾ Keep the freezer temperature at -18°C ¾ Hot foot must be cooled to room temperature before storing in the freezer compartment ¾ Food cut into small portions will freeze faster and will be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg ¾ It is better to pack the food before putting it into the freezer. ¾ Defrosted food cannot be re-frozen unless it is first cooked ¾ Do not load excessive quantities of fresh food in the freezer compartment ¾ Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g. meat: 3-12 months, vegetables 6-12 months). Do not exceed the food storage time recommended by the manufacturers.

WARNING! Disconnect the appliance from the power supply before cleaning General The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odours. ¾ Clean the inside and housing of the appliance with lukewarm water and some neutral soap. ¾ Rinse and dry with soft cloth. ¾ Clean the accessories only with lukewarm water and neutral detergent. Make sure that all soap is rinsed off and all parts are dry before replacing them inside the appliance. ¾ Do not clean any of the parts of the appliance in a dishwasher. ¾ Allow at least 5 minutes before restarting the appliance as frequent starting may damage the compressor. 14TROUBLESHOOTING In case of a problem please check all shown possibilities and follow below instructions before contacting an after sales service. Problem Possible cause Possible solution The appliance does not work The appliance is turned off Press the ON/OFF key to turn on the appliance Mains plug is not connected in the mains socket Connect the mains plug

Fuse has blown or is defective

Check the fuse and replace it if necessary Socket is defective Mains malfunctions should be corrected by an electrician The appliance runs frequently or runs for a too long period of time The indoor or outdoor temperature is too high It is normal for the appliance to run longer

The appliance has been off power for a period of time Normally, it takes 8 to 12 hours for the appliance to cool down completely A door/drawer of the appliance is not tightly closed Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door The inside of the refrigerator is dirty and/or smells The inside of the refrigerator needs cleaning Clean the inside of the refrigerator Food of strong odour is stored in the refrigerator Wrap the food thoroughly Moisture formation on the inside of the refrigerator The climate is too warm and too damp Increase the temperature A door/drawer of the appliance is not tightly closed. Close the door/drawer

Food containers or liquids are left open Let hot foods cool to room temperature and cover foods and liquids 15Moisture accumulates on the refrigerators outside the surface or between the doors/door and drawer The climate is too warm and too damp This is normal in damp climate and will change when the humidity decreases The door/drawer is not closed tightly Ensure that the door/drawer is tightly shut Strong ice and frost in the freezer compartment The goods were not adequately packaged Always pack the goods well A door/drawer of the appliance is not tightly closed Close the door/drawer

Unusual noises The appliance is not at level Re-adjust the feet The appliance is touching the wall or other objects Slightly move the appliance UI Led

s are flashing One of the sensors is out of range Contact the assistance An alarm is beeping The fridge storage compartment door is open Close the door or silence the alarm manually The interior lighting or cooling system does not work The LED-lamp is out of order Please call the service for changing the lamp During operation, the side walls and perimeter of the freezer compartment may be hot: this is normal and is due to the normal working cycle of the product. 16,QVWDOODWLRQ Door Reversibility %HIRUHUHYHUVLQJWKHGRRUSOHDVHEHSUHSDUHGEHORZWRROVDQGPDWHULDOVWUDLJKWVFUHZGULYHUFURVV VFUHZGULYHUVSDQQHUDQGWKHFRPSRQHQWVLQFOXGHGLQWKHSRO\EDJ 1.Remove upper wire box covers. 2.Unscrew right top hinge cover, and disconnect connectors of door switch and display. Left Aid-Closer ×1 Left Top Hinge Cover ×1 173.Unscrew and remove the top hinge, and then remove the door. 4.Remove the right aid-closer, and WDNHRXWOHIWDLGFORVHUIURPDFFHVVRULHVEDJDQGLQVWDOOLWDWOHIWVLGH 5.8QVFUHZWKHERWWRPKLQJHDQGUHPRYHWKHDGMXVWDEOHIRRWIURPWKHOHIWVLGHWRWKHULJKWVLGH ,QVWDOODWLRQ 6.8QVFUHZDQGPRYHWKHERWWRPKLQJHSLQIURPWKHULJKWVLGHWRWKHOHIWVLGHWKHQLQVWDOOWKHERWWRPKLQJHRQWKHOHIW VLGHRIWKHDSSOLDQFH

.1.,QVWDOOWKHWRSKLQJHWRWKHOHIWVLGHSOHDVHVOLJKWO\DGMXVWWKHWRSKLQJHZKLOHLQVWDOOLQJWRPDNHVXUHJDVNHWLVZHOOVHDOHG 1.&RQQHFWFRQQHFWRUVRIGRRUVZLWFKDQGGLVSOD\DQGLQVWDOOWKHOHIWWRSKLQJHFRYHU 1.Install the upper wire box covers to the right side. ,QVWDOODWLRQ 20Lengthen Shorten

218VHULQWHUIDFH Using the Control Panel 8VHULQWHUIDFHLQWURGXFWLRQ FRIDGE: Temperature Fontrol of the Dppliance Display Zindow for Sreset Wemperature All buttons are valid only in unlocking status.Short beep after per touching of buttonsSuper Pode LconVacation Pode LconLocking and Xnlocking Lcon SUPER: Select and Geselect Vuper Pode ALARM/VACATION: Clear Goor Rpening Dlarm, Velect and Geselect Yacation Pode LOCK: Locking and Xnlocking

.0 IOOXVWUDWLRQ RI WKH EXWWRQV

1.1 2SHUDWLRQEXWWRQV

DQGWKHQXVHUGHILQHGPRGHLVVHOHFWHG .2 SUPER:6HOHFWDQGGHVHOHFWVXSHUPRGH Press “SUPER” button to select super mode. After 5 seconds flashing of super mode icon, super mode is selected. When super mode is selected, super mode icon will light on, and display window will show 2℃. In super mode, touching “FRIDGE” button, super mode icon will flash 3 times, but fridge temperature can not be changed. To exit Super mode, - Press “SUPER” button to deselect Super mode, - Or after 3 hours of super mode without any operation, the refrigerator will automatically stop it and enter to previous setting. :DUQLQJ In super mode, noise of the appliance may be slightly higher than normal running.

.3 ALARM/VACATION:&OHDUGRRURSHQLQJDODUPVHOHFWDQGGHVHOHFWYDFDWLRQPRGH

Short touching “ALARM/VACATION” button to clear door opening alarm. Touching “$/$509$&$7,21´ button for 3 seconds to select vacation mode. After 5 seconds flashing of vacation mode icon, vacation mode is selected. When vacation mode is selected, vacation mode icon will light on, and display window will show 17℃. In vacation mode, “FRIDGE” button will not respond to any touching.

6KRUWWRXFKLQJ³683(5´EXWWRQFDQH[LWYDFDWLRQPRGHDQGHQWHUVXSHUPRGH

7RXFKLQJ³$/$509$&$7,21´EXWWRQIRUVHFRQGVWRGHVHOHFWYDFDWLRQPRGH .4 LOCK:/RFNLQJDQGXQORFNLQJ Touching “LOCK” button for 3 seconds to lock the control panel, then the locking and unlocking icon will be ³´. In locking status, touch any button, the locking and unlocking icon will flash 3 times. Touching “LOCK” button for 3 seconds to unlock the control panel, then the locking and unlocking icon will be ³´. In unlocking status, all buttons are available. If no operation in 25 seconds, the control panel will be locked automatically. .0 Door Rpening Dlarm If the door keeps opening for 90 seconds, door opening alarm sounds. Close the door to stop the door opening alarm. Or short touching “$/$509$&$7,21” button to clear door opening alarm. 8VHULQWHUIDFH

27Coldest Area Than The Refrigerator This symbol below indicates the location of the coldest area of the refrigerator. This area is bounded near the fan and above it by the icon or shelf positioned at the same level. To maintain temperatures in this area, be careful not to move this shelf.

INSTALLING THE TEMPERATURE GAUGE

To help you set up your fridge correctly, it features a temperature gauge that allows you to monitor the average temperature in the coldest area.WARNING: This ad is only intended for use with the refrigerator. Be careful not to use it in another refrigerator (in fact the coldest area is not the same) or for another use. Temperature control in the coldest area Once the installation of the temperature gauge is complete, it is possible You can periodically check that the temperature of the coldest zone is correct. If necessary, adjust the thermostat accordingly. The internal temperature of the refrigerator is influenced by several factors such as: B. the ambient temperature in the room, the amount of food stored and the frequency with which the door is opened. Consider these factors when setting the temperature. Be careful to properly store food in the refrigerator and especially in the coldest area. Make sure the temperature display indicates "OK". If “OK” does not appear, the temperature of the zone is too high. Set the thermostat to a higher position. Wait at least 12 hours before resetting the thermostat. After loading fresh food into the appliance or opening the door again (or for a long time), it is normal for the "OK" indicator not to appear on the temperature display. 283RN\Q\SURXåLYDWHOH &KODGQLþND7RWDO1R-)URVW Obsah 1.Bezpečnostní informace Strana 1~9 2.Přehled Strana 10~11 3.Instalace Strana 12~21 4.Uživatelské rozhraní Strana 22~23 5.Každodenní používání Strana 24~271 ³ǡāâ«Ǥ âÀǡā«āÀǡ⫳³ ± âÀ«ǡ ÀýǤæ±āÀ± ÀǤâ««ý³āÀýÀǡ
