HOCT3L517EB2 - Refrigerator HOOVER - Free user manual and instructions

Product type	Refrigerator with freezer compartment (4 stars)
Brand	Hoover
Model	HOCT3L517EB2
Dimensions (approx.)	H 185 cm × W 60 cm × D 65 cm
Weight (approx.)	65 kg
Power supply	220-240 V / 50 Hz
Climate class	SN, N, ST, T
Refrigerant	R600a (flammable)
Number of doors	2 (refrigerator + freezer drawer)
Type of cooling	Static (manual defrost)
Interior lighting	LED 12 V / 5 W, replaceable
Door reversibility	Yes, user-reversible
Temperature control	Electronic, 6 positions (2 °C to 8 °C) plus Super cool mode
Memory function	Yes, in case of power failure
Crisper drawer	Yes, with glass cover
Door balconies	Yes, for condiments and beverages
Shelves	Glass
Maintenance	Regular cleaning, manual defrost
Safety	Precautions for flammable refrigerant, child lock not available
Customer service	Technical support via https://corporate.haier-europe.com/

Frequently Asked Questions - HOCT3L517EB2 HOOVER

How long should you wait before plugging in the refrigerator after installation?

After transport and installation, it is imperative to wait at least 4 hours to allow the compressor oil to settle before plugging in the appliance.

How to adjust the refrigerator temperature?

Use the right button on the control panel. Press to scroll through settings: Super cool (2°C), 3°C, 4°C, 6°C, 8°C. The number flashes then becomes steady after 5 seconds to confirm.

What to do if the door is difficult to open right after closing?

This is normal due to the pressure difference. Wait a few minutes for the pressure to equalize, then the door will open normally.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to disassemble the hinges, remove the stoppers and reinstall them on the other side.

How to clean the inside of the refrigerator?

Unplug the appliance. Use a soft cloth and warm soapy water. Do not use abrasive products. Regularly clean surfaces in contact with food and the drainage systems.

What is the defrosting procedure?

Unplug the appliance, remove the food. Leave the door open to melt the ice. Never use sharp objects or heating devices to speed up defrosting.

How to replace the interior bulb?

Unplug the appliance. Remove the lamp cover with a screwdriver. Replace the bulb with one of type 12 V / 5 W. Put the cover back.

What to do in case of power outage?

Do not open the door. Frozen food remains intact for the time indicated on the label (temperature rise time). After a long outage, check the food.

Why is there noise coming from the refrigerator?

Normal noises are due to the compressor and refrigerant circulation. Ensure the appliance is level and not in contact with furniture.

Can I freeze fresh food in this refrigerator?

Yes, the freezer compartment is suitable for freezing fresh food (4 stars). Place them in the lower drawer for raw meat and fish.

USER MANUAL HOCT3L517EB2 HOOVER

Do not immerse the electric device in water.

Before cleaning,

unplug it.

Do not let

the packaging or

transport damage

the device.

Do not allow

the packaging or its parts

to come into contact with

water.

Danger of

• swallowing small parts.

Keep away from

children.

n HauJIOHOBO fOJNO!

OcTabete roB nOKoN

nohe 4 yaca npedn da

TO BKNIOUHTe, 3a Da

MOXe KOMnpecOphOTO

Máçlo da ce

pa3npedeJI, aKO

e npéhaçáH

XOpN3OHTaJIHNo.

YBepete ce,Ye HЯMa

TpaHcNoptHn IOBpeiN.

He noBpeKdaiTe

OxlaNTeHaTa Bepnra.

• Пордьржайт e

BeHTnlaZnOHHnTe

Open the housing

the device

insert

the construction freely

without obstacles.

• Never use water for cleaning the compressor area; after cleaning, wipe it well with a dry cloth to prevent rust.
• The device must be placed in a well-ventilated area, away from walls, because it is heavy.
• Place and level the device in a zone suitable for its dimensions and use.
• Make sure that
• the information for
• the electrical
• installation matches
• the data on the
• nameplate
• before connecting. If not
• e TaKa, CBbPjKeTe ce
• c eJIeKtpoTexHnK.
• Ypei bT pa60Tu np3axpaHbAhe 220 - 240 VAC/50 Hz. Heo6nuaHnTe

Флуктуаци В 3axpaHbauoTO Hanpeжene MoraT da DOBeaTdo Heycneuho CTaptnupaHe Ha ypeDa, Da NOBpeJr T UnpaBJIeHNeTo Ha Tempepatypata nI IN KOMPecopa nIIN da PrnHrT HeobuHaen Shym np pa6ota. B TaKbB cnyaai ce MOHTnpa aBTOMaTnueh peryIaTop.

• Camo 3aОбeДиНeHOTOKpaIcTBo:3axpaHbAunrKa6eJHa ypeJa e cHa6dEnC TpoEh (3a3eMЯBaU)UeNCeJ, KOHTOOTROBapra HaCTaHdApTeH TpoEh (3a3eMeH) KOHTaKT.Hnkora He OTPa3BaYteNII dEmOHtnpaIteTpETnIqT(3a3eMaBaHe).CleNdnoCTaBJeHTo Ha ypeJa Tp46Ba Da nMa DoCTbIdo UeNCeJa.
• YBepTe ce, ye 3axpaHbAsnT Ka6eI He e 3akJeUeH Iod UpeDa IO BpeMe Ha n CJIeI npEHaCJHeTo/ IpemecTBaHeto My, 3a Da Ce npEDoTbPaTu IpekbcBaHe NII NOBpeXdAHe Ha 3axpaHbAsnKa6eI. Ako 3axpaHbAsnT Ka6eI e NobpeDeH, Tp8Ba Da 6bDe 3aMeHen OT npOn3BODHTeJI, HerOBnO6cLyKbAs aReHT NII JNue C NoDobHa KBaIINKacn, 3a da Ce n36erHe eBENTyalHa OnaCHOCT. He mONTpaTe ypeDa Ha BlaJHn, Ma3Hn nI npaun MeCTa, HHTO rO n3JaarTe Ha dIupeKTHa CJIbHueBa CBetTInHa N BOda. He mONTpaTe ypeDa 6IIN3O Do OTONJIteJIHn TeJa IJI 3aJaIMMaTePnaJN.

3A ypei n c pfprn3ep: ako TOKbT cnpe, He OTBaprIte Kanaka. 3aMPa3eHnte xpaHn He Tp86Ba da 6bdaT 3acerHaTu, ako IpeKbCBAHeTo IpoIbJIxN IO-MaJIKO OT YacOBete, NocOueHn Ha Ta6eJaTa C DaHHN (BpeMeTO, Heo6XODmO 3a NOBnShaBaHe Ha TempepaTypa). Ako JInncata Ha 3axpaHbAhe e no- npodblJxnteJIHa, XpaHaTa Tp86Ba da 6bJe npOBepeHa n N3ydeHa BeDHa rIIN CROTBeHa n 3aMpa3eHa OTHOBO. He ce npntecnBaIte, aKO yCTaHOBNTe, ye kanaKbT Ha ypeDa ce OTBapr TpydHo BeHara cJeI KaTO CTe ro 3aTBOpn. ToBa e TaKa Iopadn pa3JIkKaTa BbB

Bb3dUshHOTo HaIraHe, KoETo ige ce N3paBn N ige N03BOJN KaIaKbT Da 6bDe OTBOpEn CpeI HЯKOJIKO MNHyTN.

He cxbxpanyaite IekapcTBA, 6aKtepn NII XIMnueckn aReHTN B ypeDa. ToBa e DOMaKNHcKn ypeI, He ce npenopbYBa da CbXpaHraTe MaTePnaJI, KOtO n3NCKBaT cTporn Tempepatypn. HeDbpnaTe npekaneHo cnIHO nIi He npereBbaTe 3axpaHbauNja Ka6eI, IJIi He DoKocBaTe Uencela C MOKpn pbc. He cxbxpanyaIte B Hero npOdykTn, KOnTO cbdbpxKaT 3analmo rOpNBO (HaNP. fJaKoHn POnd HaJraHe) nIn ekCpI03NBH

Do not place unstable items (such as heavy objects, candles, or containers of water) on top of the appliance, to avoid hazards from falling or electric shock upon contact with water. Do not use electrical appliances in the food storage compartment unless they are of the type recommended by the manufacturer. Do not touch the internal cooling elements, especially with wet hands, to avoid injuries or burns. This appliance can be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Make sure that children and persons in vulnerable positions understand the dangers. The person responsible for safety must supervise or instruct children and persons in vulnerable positions who use the appliance. Only children aged 8 and above may use the appliance.
• Children must not play with the appliance.
• Children aged 3 to 8 may load and unload the appliance.

For appliances with a freezer: Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! For appliances with a freezer: Never place frozen food directly against the freezer outlet. Risk of burns at low temperatures! - Keep the plastic parts clean - Check the door seal - Clean the interior regularly - Wipe dry after cleaning - Keep the plastic parts clean - Check the door seal - The interior will become dry - Wipe dry - Door seal - Before performing any operation, disconnect the power cord from the outlet.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use sharp objects or tools with sharp edges such as knives or blades to remove ice. Never use a hair dryer, electric heaters, or other similar electrical appliances for defrosting. - Keep the appliance clean, as a dirty appliance can accumulate a lot of dust and may cause a fire hazard.

Do not attempt to repair, disassemble, or modify the appliance yourself. If repair is needed, contact the nearest customer service department. Supervise children while the appliance is in use or being serviced. Do not pour hot water on the glass shelves. The sudden temperature difference may cause the glass to break. - WARNING: The refrigerant circuit contains a small amount of flammable refrigerant (R600a) and insulating

gas (cyclopentane).

It does not damage the ozone layer and does not increase the greenhouse effect.

The release of refrigerant may cause injuries or damage to the environment.

If the cooling circuit is damaged:

• Disconnect the appliance and ventilate the room.

- Keep away from open flames and ignition sources.

• Contact the nearest service center,
• The information center serves the client.
• WARNING: Do not damage the cable or its protective cover.

This may cause electric shock or fire.

• WARNING: Do not
• use
• a connector or
• use an extension cord
• for protection. Do not
• use
• the device
• with a damaged
• plug or
• aDaIaTepn.

Do not place the device on top of the device. It may be damaged or broken. This device is not intended for use in a column with other devices.

• Product
• intended
• developed - exclusively for
• household use.

Only original parts provided by

the manufacturer may be used. The manufacturer guarantees that only these parts meet the safety requirements.

• Disposal of the device at the end of its life may lead to a significant increase in the temperature of the device's components.
• Clean regularly
• surfaces that
• may come into contact with food,
• and the
• drainage system.
• drainage system.
• Clean the water tank if it has not been used for more than 48 hours; rinse the water system connected to the water supply if

the water has not been drawn within 5 days.

Raw meat should be stored in suitable containers in the refrigerator, so that it does not come into contact with other foods or drip onto other foods. - The drawers, labeled with two stars (if present on the appliance), are suitable for storing pre-frozen foods, storing ice cream, and storing ice cubes. - The drawers with one, two, and three stars (if present on the appliance) (if present on the appliance) are not

suitable for freezing fresh food.

Before servicing, unplug the appliance, defrost it, clean it, dry it, and leave the door open to prevent mold formation.

Light source (LED only), which must be replaced by a professional. This product contains a light source with energy efficiency class G.

For wine cooler: This appliance is intended exclusively for storing wine.

For free-standing appliances: This refrigerator is not intended to be used as a built-in appliance.

For appliances without a 4-star compartment: This refrigerator is not suitable for freezing food products.

For appliances without a 4-star compartment: This refrigerator is not suitable for freezing food.

For free-standing appliances: This refrigerator is not intended to be used as a built-in appliance.

For wine cooler: This appliance is intended exclusively for storing wine.

Used by another

user.

Do not connect the appliance to the power supply.

While the appliance is

not yet fully

unpacked, and all

elements have not been

removed,

the cardboard can become

a source of injury!

- If the product

was transported

in a horizontal

position, let it stand

vertically

for at least

4 hours before

switching it on, so that

OTCTOJIOCb

KOMPpeccophoe MacIIO.

- y6eIntecb

BOTCYTCTBNN

POBpeXdEnn Ppn

TpaHcnpTIpOBKe.

He noBpeIte KoHTyp

oxlaqdeHn.

He donyckaIte

pepekpbltna nomexamn

BěHTNJIaζnoHHbIX

OTBepctnHa Kopnyce

эльекторпбора на

BCTpoeHHbIX

KOHCTpyKcIaX.

Handle the compressor carefully, thoroughly dry it with a dry cloth after unpacking to prevent rust. - Due to the weight of the appliance, moving it requires at least two people. - Install the appliance and adjust its level in a place that matches its size and usage. - Make sure that the electrical characteristics on the rating plate match those of the power supply. If not, contact an electrician. - The appliance operates from a power supply

with 220-240 V AC, 50 Hz. Abnormal voltage fluctuations may cause the appliance to fail to start, damage to the temperature regulator or compressor, or strange noises during operation. In this case, install an automatic voltage regulator.

Only for UK: The appliance's power cord is equipped with a 3-pin (earthed) plug, which must be connected to a 3-pin (earthed) socket. It is forbidden to cut off or remove the

third pin (earth). After installation, the plug must be easily accessible.

• Make sure that during and after moving the appliance, the power cord is not trapped underneath it, as this could lead to damage or breakage of the power cord. If the power cord is damaged, to avoid possible danger, it must be replaced by the manufacturer, its service agent, or a similarly qualified person.

Do not install the appliance in damp, dusty, or dirty

or oily places, nor in areas exposed to direct sunlight or water.

Do not install the appliance near heaters or flammable materials.

Follow the instructions for installation, use, and maintenance carefully.

The manufacturer is not responsible for any damage resulting from improper use or failure to follow these instructions.

Keep all documentation for future reference or for subsequent users.

Do not connect the appliance to the power supply until you have fully understood it and

Remove all packaging materials and protective elements from the appliance before use. Do not allow children to play with the packaging or its parts.

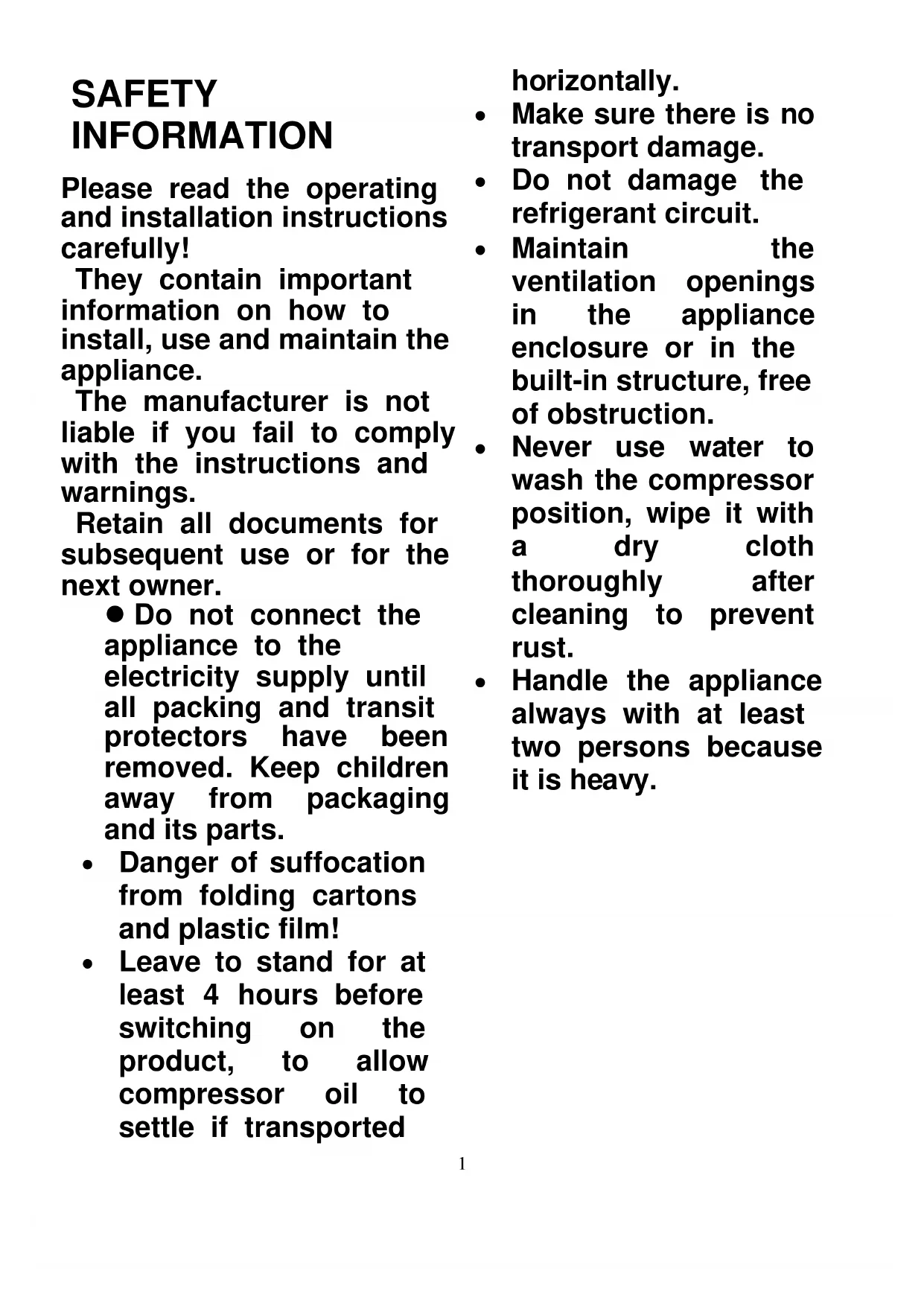

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.
• Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported

horizontally.

Make sure there is no transport damage. - Do not damage the refrigerant circuit. - Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. - Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. - Handle the appliance always with at least two persons because it is heavy.

• Install and level the appliance in an area suitable for its size and use. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
• The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
• Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug

that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials. FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. - Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures. - Do not excessively pull or fold the power cord or touch the plug with wet hands. - Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the

appliance. Risk of explosion!

• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people

who are using the appliance. Only children aged 8 years and above may use the appliance.

Children should not play with the appliance. Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!

• Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
• Before performing any operation, unplug the power cord from the power socket.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact always our customer service. Supervise

children while the appliance is being cleaned or maintained.

• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes

or ignite.

If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, Thoroughly ventilate the room for several minutes, - Inform customer service. WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. WARNING: Do not use multiple portable socketoutlets or portable power supplies. We do

not recommend the use of extension leads and multi- way adapters.

• Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

The product is designed and built for domestic household use only. - Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. - Opening the door for long periods

can cause asignificant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments(if they are presented

in the appliance) are suitable for storing pre- frozen food, storing or making ice-cream and making ice cubes.

One-, two- and three-star compartments, if present in the appliance, are not suitable for freezing fresh food. If the appliance is left empty for long periods, switch it off, defrost, clean, dry, and leave the door open to prevent mould from developing inside. For wine coolers: this appliance is intended to be used exclusively for the storage of wine. For a freestanding appliance: this refrigerating appliance is not

intended to be used as a built-in appliance.

For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. This product contains a light source of energy efficiency class G. - Replaceable (LED only) light source by a professional.

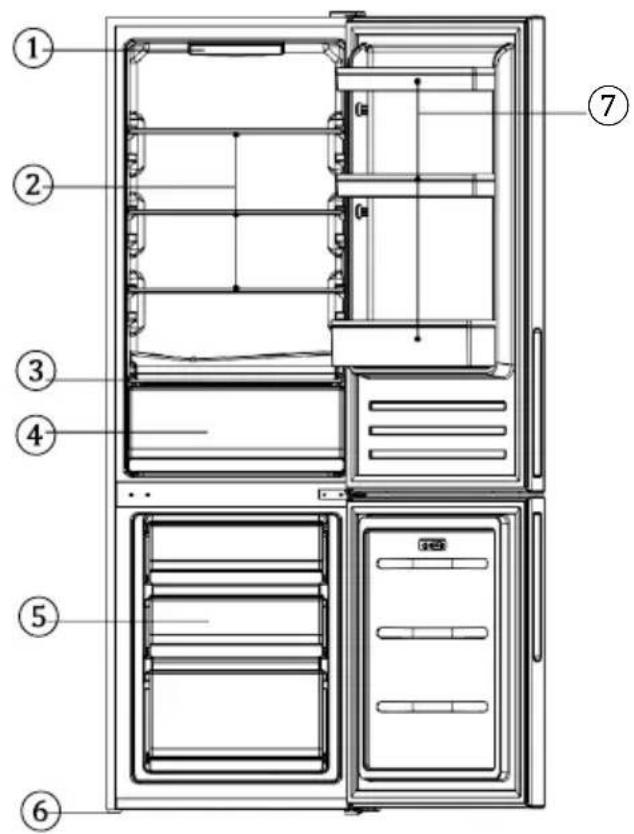

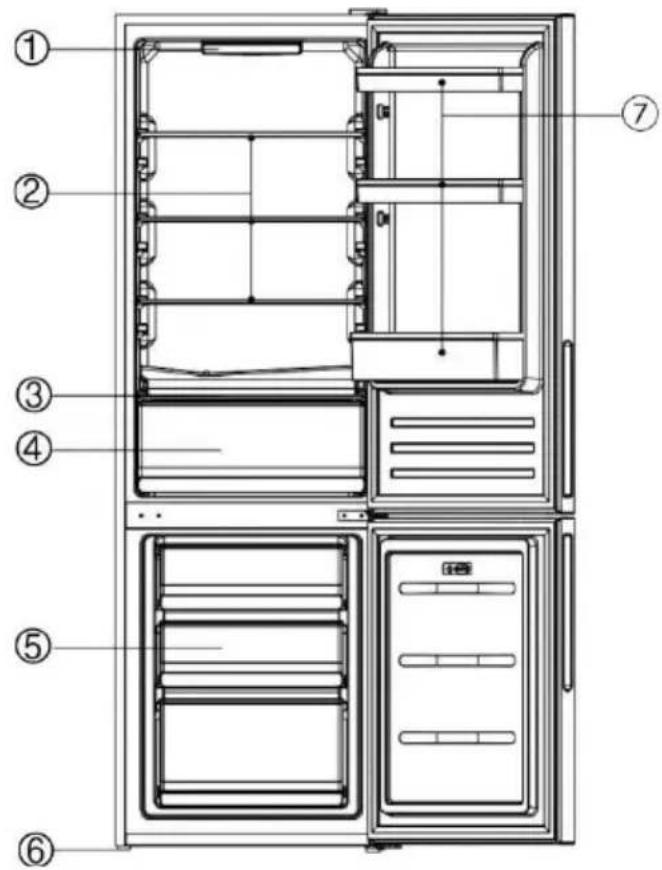

No	Description
①	Electronic control board
②	Glass shelf
③	Crisper Cover
④	Crisper
⑤	Freezer drawer
⑥	Adjustable feet
⑦	Door balcony

For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance. For wine coolers: this appliance is intended to be used exclusively for the storage of wine.

POSITIONING

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C'
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C'
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C'
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C'

FOOD STORAGE

Position different food in different compartments according to the table below.

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments. ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the risper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need to be cocked, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meet, poultry, fish ·Middle drawer for frozen vegetables, chips. ·Top tray for ice cream, frozen fruit, frozen baked goods.

• For most food categories, the longest storage time in the fridge

compartment is achieved with colder temperatures. Since some particular products (such as fresh fruits and vegetables) may be damaged by colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

It is suggested to set the temperature at 4°C in the fridge compartment, and, if possible, at -18°C in the freezer compartment. - For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C).

TECHNICAL ASSISTANCE

To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the "website" section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance.

The above image is the control panel, and only the buttons on the left and right are functional to control the refrigerator. The left button is to switch the refrigerator on/off, while the right button is to adjust the temperature.

Press this button for 3 seconds to switch the appliance on or off.

This product has a power-off or power failure memory function.

This button is used to adjust the temperature within the fridge. Press this sensor to make an adjustment; the number starts to flash, and if the button is released, the lit number flashes. After 5 seconds, it stops flashing, and the temperature shift corresponding to the number is confirmed. Press as many times as necessary until the desired level is selected. The settings range from super cooling, 2°C, 3°C, 4°C, 6°C, and 8°C, and it will represent the approximate fridge temperature.

Start super cooling: when super cooling is selected, it means the refrigerator will work at 2°C for 24 hours. After that, the function will quit automatically, then return to the original temperature setting.

Position	Conditions
2&3	Summer or ambient temperature between 25-35 °C
4	Spring, autumn or ambient temperature between 15-25 °C
6&8	Winter, or ambient temperature between 5-15 °C

Please note: Where possible, avoid having the temperature setting on super cooling or 2°C all of the time. This will help to alleviate strain on the compressor and refrigeration system. Press the button for 15 seconds, the key will flicker, then access to the laboratory adjustable state.

The lamp replacement operation

instructions are as follows:

Replace the lights

(lamp parameter: 12V/5W)

1. Unplug the power plug.

2. Remove the top light cover

with a screwdriver, then replace the new LED light board.

1. Use the screwdriver to install the light cover back to its original place.
2. Make sure that the refrigerator is unplugged, remove the hinge cover on the right side of the refrigerator.

Remove the screws on the upper hinge, and then remove the hinge and the fridge door.

1. Remove the screws on the center hinge.

1. Remove the screws on the bottom of the right side of the refrigerator, then remove the lower hinge and adjustable feet.

1. Remove the stopper on the bottom of the right side of the fridge door, then get the opposite door stopper from the accessory bag, install it on the bottom of the left side of the fridge door, after that do the same for the freezer door. 2-3

Remove the pin shaft from the lower hinge, and install it on the other side.

1. Remove the hinge hole cover from the right side of the freezer door, then install it on the left side. Remove the center hinge screw cover on the left side of the cabinet, then install it on the right side of the cabinet.

1. Install the lower hinge on the left side of the cabinet, then install two adjustable feet on the current position, after that install the freezer door directly.

1. Install the center hinge on the left side, then install the fridge door.

1. Remove the upper hinge

hole cover from the left of the cabinet, then install it on the right side.

Use the screwdriver to install the upper hinge on the left side of the cabinet, then install the hinge cover in its current position.
