Product type	Fridge-freezer
Brand	Hoover
Model	HOCT3L517ES2
Climate class	SN, N, ST, T (10°C to 43°C)
Power supply	220-240 V, 50 Hz
Refrigerant	R600a (flammable)
Super Cool function	Yes, cools to 2°C for 24h, automatic return to previous setting
Interior lighting	LED (energy class G), replaceable by a professional
Reversible door	Yes, manual (tools required)
Number of glass shelves	Not specified (at least 1)
Vegetable drawer	Yes, with lid
Freezer drawer	Yes, one drawer
Door balconies	Yes
Recommended refrigerator temperature	4°C
Recommended freezer temperature	-18°C
Defrosting	Manual
Adjustable feet	Yes
Power failure memory	Yes, keeps settings
Maintenance	Clean regularly with a soft cloth, do not use sharp objects for defrosting
Safety	Child lock not available, but emergency shutdown by unplugging

Frequently Asked Questions - HOCT3L517ES2 HOOVER

How to adjust the temperature of my Hoover HOCT3L517ES2 refrigerator?

Use the right button on the control panel. Press it repeatedly to cycle through the levels: Super Cool (2°C), 3°C, 4°C, 6°C, 8°C. The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

How to activate Super Cool mode?

Select Super Cool mode with the right button. The refrigerator will operate at 2°C for 24 hours, then automatically return to the previous setting.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: unplug the appliance, remove the hinges and stoppers, then install the parts on the other side. The operation requires a screwdriver.

How to clean the interior of the refrigerator?

Unplug the appliance. Use a soft cloth with warm water and a mild detergent. Never use abrasive products. Glass shelves should not be washed with hot water to avoid breakage.

How to defrost the freezer?

Defrosting is manual. Turn off the appliance and leave the door open. Never use sharp objects or heating devices to speed up the process. Then clean with warm water.

What to do in case of a power failure?

Do not open the door unnecessarily. Frozen food remains preserved for the time indicated on the rating label (temperature rise time). If the power failure exceeds this time, check the food.

Where to place food in the refrigerator?

Place dairy products and eggs on the middle shelves, raw meat and fish in the bottom drawer, fruits and vegetables in the vegetable drawer, and drinks in the door balconies. Avoid putting bananas, onions, potatoes, and garlic in the refrigerator.

Is the R600a refrigerant dangerous?

R600a is a flammable but environmentally friendly gas. In case of a leak, turn off the appliance, ventilate the room, and keep any flames or ignition sources away. Contact the after-sales service.

How to replace the bulb?

Unplug the appliance. Remove the lamp cover with a screwdriver. Replace the bulb with a new one (12 V/5 W). Put the cover back on. If you are not comfortable, call a professional.

What does the climate class mean?

The climate class indicates the ambient temperature for which the appliance is designed. This model supports classes SN, N, ST, T, i.e. from 10°C to 43°C. Do not install it in an unheated room in winter or exposed to the sun in summer.

USER MANUAL HOCT3L517ES2 HOOVER

Do not remove the electrical

equipment, until

the packaging

elements are

packed and

transport has not been

premature.

Do not allow

the packaging and its

parts to

fall into the hands of

children.

• Danger of

suffocation from

the packaging material.

n HauJIOHOBO fOJNO!

OcTabete roB nOKoN

nohe 4 yaca npedn da

TO BKNIOUHTe, 3a Da

MOXe KOMnpecOphOTO

Macono da ce

pa3npedeJI, aKO

e npéhaçáH

XOpN3OHTaJIHNo.

YBepete ce,Ye HЯMa

TpaHcNoptHn IOBpeiN.

He noBpeKdaiTe

OxlaNTeHaTa Bepnra.

• Пордьржайт e

BeHTnlaZnOHHnTe

Open the housing

of the device

Insert

the construction freely

from obstacles.

• Never use water to wash the compressor area; after cleaning, wipe it well with a dry cloth to prevent rust.
• The device must be placed away from flammable materials, as it gets hot.
• Place and level the device in an area suitable for its dimensions and use.
• Make sure that
• the information for
• the electrical
• installation matches
• the data on
• the rating plate
• for safety. If not
• e TaKa, CBbPjKeTe ce
• c eJIeKtpoTexHnK.
• Ypei bT pa60Tu np3axpaHbAhe 220 - 240 VAC/50 Hz. Heo6nuaHnTe

Флуктуаци В 3axpaHbauOTo Hanpeжene MoraT da DOBeaTdo Heycneuho CTapTnpaHe Ha ypeDa, Da NOBpeJr T ynpaBJIeHnETo Ha TempepaTypaTa nI IN KOMPecopa nIIN da PrnPCHRT HeOBnUaEH Shym np pa6ota. B TaKbB cIyuaN ce MOHTnpa aBTOMaTnueH peryIaTop.

• Camo 3aОбeДиНeHOTOKpaIcTBo:3axpaHbAunrKa6eJHa ypeJa e cHa6dEnC TpoEh (3a3eMЯBaU)UeNCeJ, KOHTOOTROBapra HaCTaHdApTeH TpoEh (3a3eMeH) KOHTaKT.Hnkora He OTPa3BaYteNII dEmOnTnpaIteTpETnIqT(3a3eMaBaHe).CleNdnoCTaBJeHTo Ha ypeJa Tp46Ba Da nMa DoCTbIdo UeNCeJa.
• YBepTe ce, ye 3axpaHbAsnT Ka6eI He e 3akJeUeH Iod UpeDa IO BpeMe Ha n CJIeI npEHaCJHeTo/ IpemecTBaHeto My, 3a Da Ce npEDoTbPaTu IpekbcBaHe NII NOBpeXdAHe Ha 3axpaHbAsnKa6eI. Ako 3axpaHbAsnT Ka6eI e NobpeDeH, Tp8Ba Da 6bDe 3aMeHen OT npOn3BODHTeJI, HerOBnO6cLyjKBaU aReHT NII JNue C NoDobHa KBaINΦnKaUa, 3a da Ce n36erHe eBENTyaJHa OnaCHOCT. He mONTpaTe ypeDa Ha BlaJHH, Ma3Hn IJI npaun MeCTa, HHTO rO n3JaarTe Ha DInpeKTHa CJIbHcEBa CBETlnHa N BOda. He mONTpaTe ypeDa 6IIN3O Do OTONJIteJIHn TeJa IJI 3aJaIMMaTePnaJN.

3A ypei n c pfpn3ep: ako TOKbT cnpe, He OTBapnTe Kanaka. 3aMPa3eHnTe xpaHn He Tp86Ba Da 6bDaT 3acERHaTn, ako PpeKbcBaHcTo PPOdblJxN No-MaJIKO OT YacOBeTe, NocOueHn Ha Ta6eJaTa C DaHHN (BpeMeTO, Heo6XoDnMo 3a NOBnShaBaHe Ha TempepaTypa). Ako JInncata Ha 3axpaHbAhe e no- npodblJxNtEnHa, XpaHaTa Tp86Ba Da 6bJe npOBePeHa n N3ydeHa BeDHara NJIcrotBeHa n 3aMpa3eHa OTHOBO. He ce npntecnBaIte, aKO yCTaHOBNTe, ye kanaKbT Ha ypeDa ce OTBapr TpydHo BeHara cJeI KaTO CTe ro 3aTBOpn. ToBa e TaKa Iopadn pa3JIkKaTa BbB

Bb3dUshHOTo HaJIraHe, KoETo ige ce N3paBnI ige N03BOJN KaPaKbT da 6bDe OTBOpEn Cpei HЯKOJko MNHyTu.

He cxbxpanyaite IekapcTBA, 6aKtepn NII XIMnueckn areHTN B ypeDa. ToBa e DOMaKNHcKn ypeI, He ce npenopbYBa da CbXpaHraTe MaTePnaJI, KOtO n3NCKBaT cTporn Tempepatypn. HeDbpnaTe npekaneHo cnIHO nIi He npereBbaTe 3axpaHbauNja Ka6eI, IJIi He DoKocBaTe Uencela C MOKpn pbc. He cxbxpaHЯBaIte B Hero npOdykTu, KOnTO cbDbpKaat 3aapanMo rOpNBO (HaNP. fJaKOHn PoJ HaJIraHe) nIIeKcPINO3NBH

Do not place unstable objects (such as heavy objects, candles, or containers with water) on top of the refrigerator, to avoid personal injury or electric shock caused by falling or contact with water. Do not use electrical appliances inside the food storage compartment unless they are of the type recommended by the manufacturer. Do not touch the internal cooling elements, especially with wet hands, to avoid burns or electric shock. This appliance is intended for use by individuals with limited physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children should be supervised to ensure that they do not play with the appliance.

• Ensure that children and persons in vulnerable positions understand the dangers. The person responsible for safety must supervise or instruct children and persons in vulnerable positions who use the appliance. Only children aged 8 years and above may use the appliance.
• Children must not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload the appliance.

For appliances with a freezer: Do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! For appliances with a freezer: Never place frozen food directly from the freezer. Risk of burns at low temperatures! - Keep the appliance clean and dry. - Clean the door seals regularly. - Remove dust from the condenser coils. - Keep the area around the appliance clean. - Do not use abrasive cleaners. - Before performing any maintenance or cleaning, disconnect the appliance from the power supply.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use sharp objects or objects with sharp edges such as knives or screwdrivers to remove ice. Never use a hair dryer, electric heaters, or other similar electrical appliances for defrosting. - Keep the appliance clean and dry. Accumulated dust on the condenser can cause a fire hazard.

Do not attempt to repair, disassemble, or modify the appliance yourself. If repair is needed, contact the nearest customer service center. Supervise children while the appliance is being cleaned or serviced. Do not pour hot water on the glass shelves. The sudden temperature difference may cause the glass to break. - WARNING: The refrigerant circuit contains a small amount of flammable refrigerant (R600a) and insulating gas (cyclopentane).

gas (cyclopentane).

It does not damage the ozone layer and does not increase the greenhouse effect.

The release of refrigerant may cause eye injury or ignite.

If the cooling circuit is damaged:

• Disconnect the appliance and ventilate the room.

Keep away from open flames or ignition sources.

• Contact the service center for repair.
• The information center serves the client.
• WARNING: Do not damage the cable or the protective conduit.

This may cause an electric shock or fire.

• WARNING: Do not
• use
• a connector or
• use an extension cord
• for protection. Do not
• repair
• the use of
• the device
• and the plug.

Do not place the device on top of the device. It may be damaged over time. This device is not intended for use in a column with another device.

• Product
• intended
• developed - exclusively for
• household use.

Only original parts provided

by the manufacturer may be used. The manufacturer guarantees that only these parts meet the safety requirements.

• Disposal of the device for a long period may lead to a significant increase in the temperature of the device parts.
• Clean regularly
• surfaces that
• may come into contact with food,
• and the accessible
• drainage system.
• If they have not been
• Using
• In operation.
• 48 hours; help;
• water system,
• connected to
• water supply, if

the water has not been drained for 5 days.

Raw meat should be stored in suitable containers in the refrigerator, so that it does not come into contact with other foods or drip onto other foods. - Separate compartments with two stars (if present in the appliance) are suitable for storing pre-frozen foods, storing or making ice cream and making ice cubes. - Compartments with one, two or three stars (if present in the appliance) (if present in the appliance) are not

suitable for freezing fresh food.

Before servicing, unplug the appliance, defrost it, clean it, dry it, and leave the door open to prevent mold from forming.

Light source (LED only), which must be replaced by a professional. This product contains a light source with energy efficiency class G.

For wine cooler: This appliance is intended exclusively for storing wine.

For freestanding appliance: This refrigerator is not intended to be used as a built-in appliance.

This appliance is not intended for freezing food products.

For a freezer compartment with 4 stars: This appliance is not suitable for freezing food

For a free-standing appliance: This appliance is not intended for use as a built-in appliance

For a wine cooler: This appliance is intended to be used exclusively for storing wine

Used for

another user.

Do not connect the appliance

to the power supply until it

is completely

unpacked, and

all elements have been

removed,

and the cardboard may become

a source of injury!

- If the product

Transport

Read the instructions for installation and operation!

Instructions for installation, use and maintenance of the device.

The manufacturer is not liable for any damage resulting from failure to follow these instructions and warnings.

36epiraTe BCIO Dokymentaio DnIy NoidaIbwoRO BnKOpncTaNHa a6o dJIy NaCTynHx KopncTyBaayB.

Do not connect the appliance to the electricity supply until you have completely unpacked it and

removed all transit protectors. Do not allow children to play with the packaging and its parts.

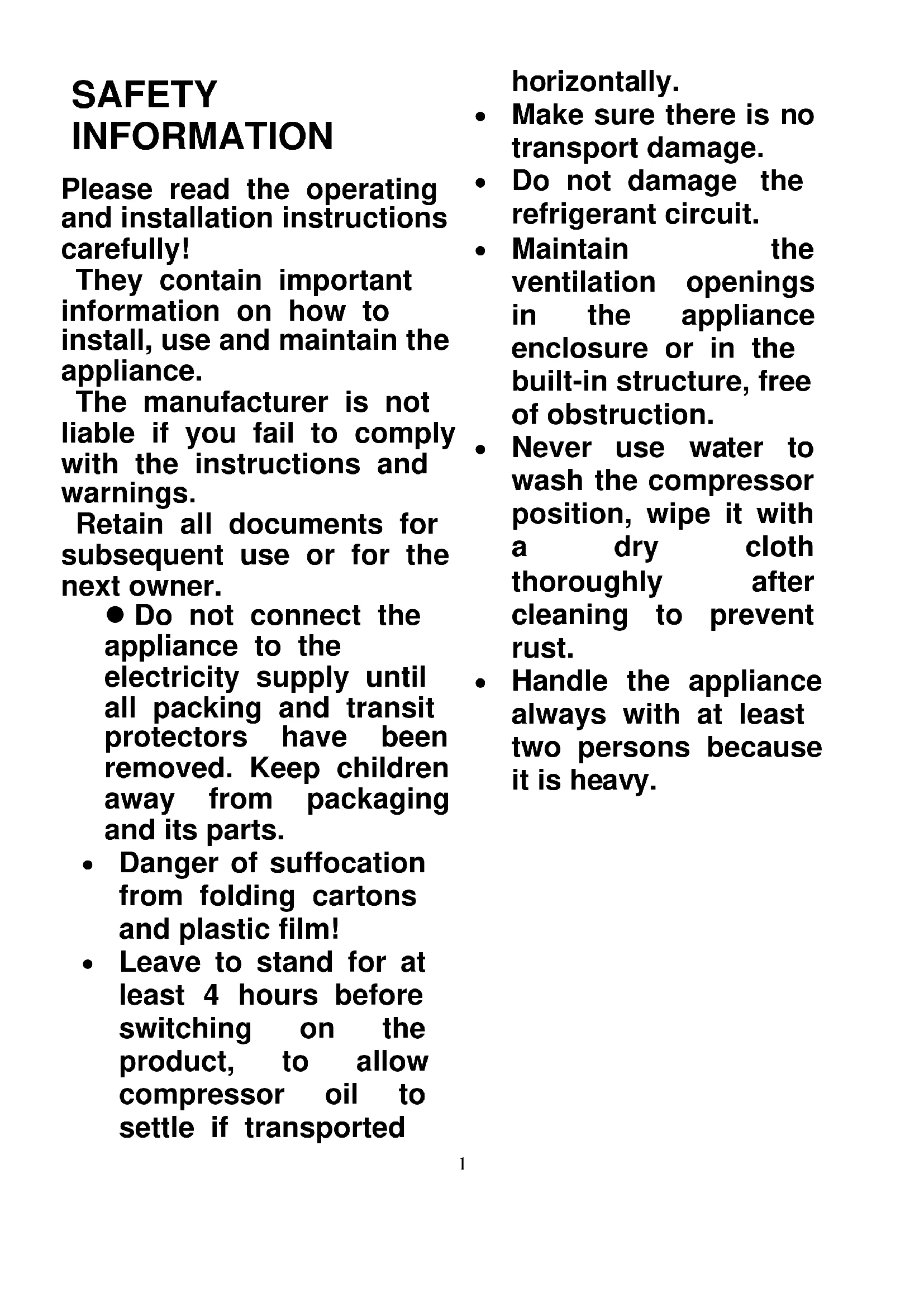

Please read the operating and installation instructions carefully!

They contain important information on how to install, use and maintain the appliance.

The manufacturer is not liable if you fail to comply with the instructions and warnings.

Retain all documents for subsequent use or for the next owner.

• Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed. Keep children away from packaging and its parts.
• Danger of suffocation from folding cartons and plastic film!
• Leave to stand for at least 4 hours before switching on the product, to allow compressor oil to settle if transported

horizontally.

Make sure there is no transport damage. - Do not damage the refrigerant circuit. - Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction. - Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust. - Handle the appliance always with at least two persons because it is heavy.

Install and level the appliance in an area suitable for its size and use. - Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician. - The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted. - Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug

that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

• Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
• Do not install the appliance near heaters or inflammable materials. FOR appliances with a freezer compartment: if there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than the hours indicated on the rating label (Temperature rise time). If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

If you find that the lid of the appliance is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes. - Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance, it is not recommended to store materials that require strict temperatures. - Do not excessively pull or fold the power cord or touch the plug with wet hands. - Do not store products which contain flammable propellant (e.g. spray cans) or explosive substances in the

appliance. Risk of explosion!

• Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
• Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
• Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.
• At risk here are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
• Check that children and vulnerable people have understood the hazards. A person responsible for safety must supervise or instruct children and vulnerable people

who are using the appliance. Only children aged 8 years and above may use the appliance.

Children should not play with the appliance. Children aged from 3 to 8 years are allowed to load and unload this appliance. FOR appliances with a freezer compartment: do not store bottled or canned liquids (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst! FOR appliances with a freezer compartment: never put frozen food straight from the freezer compartment in your mouth. Risk of low-temperature burns!

• Keep plastic parts and the door seal free of oil and grease. Otherwise, plastic parts and the door seal will become porous.
• Before performing any operation, unplug the power cord from the power socket.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
• Never use hairdryers, electrical heaters or other such electrical appliances for defrosting. It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
• Do not try to repair, disassemble or modify the appliance by yourself. In case of repair, please always contact our customer service. Supervise

children while the appliance is being cleaned or maintained.

• Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. WARNING: The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a) and insulating gas (cyclopentane). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes

or ignite.

If the refrigerant circuit should be damaged: - Switch off the appliance and pull out the mains plug, - Keep naked flames and/or ignition sources away from the appliance, - Thoroughly ventilate the room for several minutes, - Inform customer service. WARNING: Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. WARNING: Do not use multiple portable socket-outlets or portable power supplies. We do

not recommend the use of extension leads and multi-way adapters.

• Do not attempt to sit or stand on the top of the appliance. You could injure yourself or damage it. This appliance is not designed for stacking with any other ones.

The product is designed and built for domestic household use only. - Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. - Opening the door for long periods

can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented

in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three-star compartments, if present in the appliance, are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. For wine coolers: this appliance is intended to be used exclusively for the storage of wine. For a free standing appliance: this refrigerating appliance is not

intended to be used as a built-in appliance.

For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. This product contains a light source of energy efficiency class G. - Replaceable (LED only) light source by a professional.

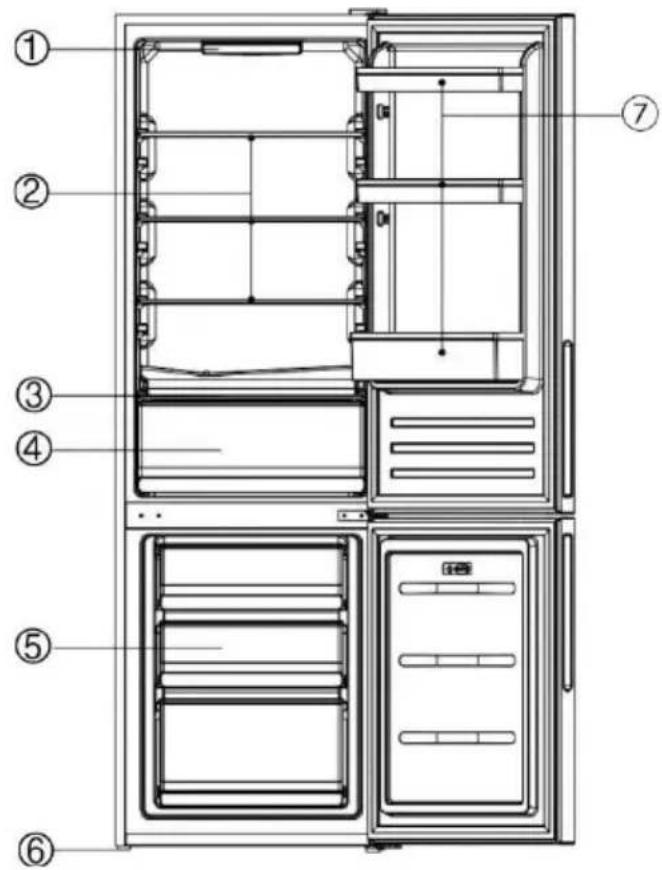

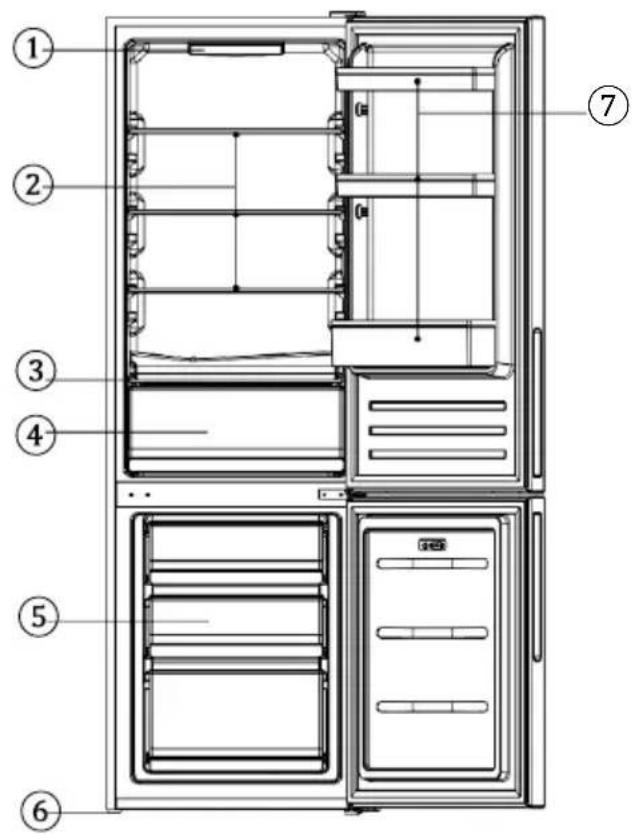

No	Description
①	Electronic control board
②	Glass shelf
③	Crisper Cover
④	Crisper
⑤	Freezer drawer
⑥	Adjustable feet
⑦	Door balcony

For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs. For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance. For wine coolers: this appliance is intended to be used exclusively for the storage of wine.

POSITIONING

Install the appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C'
• Temperate (N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C'
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C'
• Tropical (T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C'

FOOD STORAGE

Position different food in different compartments according to the table below.

Refrigerator compartment	Type of food
Door or balconies of fridge compartment	·Foods with natural preservatives, such as jams, juices, drinks, condiments. ·Do not store perishable foods
Crisper drawers (salad drawer)	·Fruits, herbs and vegetables should be placed separately in the risper bin ·Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	·Dairy products, eggs
Fridge shelf – top	·Foods that do not need to be cocked, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/tray	·Foods for long-term storage ·Bottom drawer for raw meet, poultry, fish ·Middle drawer for frozen vegetables, chips. ·Top tray for ice cream, frozen fruit, frozen baked goods.

• For most food categories, the longest storage time in the fridge

compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

It's suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment. - For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C).

TECHNICAL ASSISTANCE

To contact technical assistance, visit our website: https://corporate.haier-europe.com/en/ Under the "website" section, choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact technical assistance.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR code on the energy label supplied with the appliance.

The above image is the control panel, and only the buttons on the left and right are functional to control the refrigerator. The left button is to switch the refrigerator on/off, while the right button is to adjust the temperature.

Press this button for 3 seconds to switch the appliance on or off.

This product has a power-off or power failure memory function.

This button is used to adjust the temperature within the fridge. Press this sensor to make an adjustment; the number starts to flash, and if the button is released, the lit number flashes. After 5 seconds, it stops flashing, and the temperature shift corresponding to the number is confirmed. Press as many times as necessary until the desired level is selected. The settings range from super cooling, 2°C, 3°C, 4°C, 6°C, 8°C, and it will represent the approximate fridge temperature.

Start super cooling: when super cooling is selected, it means the refrigerator will work at 2°C for 24 hours. After that, the function will quit automatically, then return to the original temperature setting.

Position	Conditions
2&3	Summer or ambient temperature between 25-35 °C
4	Spring, autumn or ambient temperature between 15-25 °C
6&8	Winter, or ambient temperature between 5-15 °C

Please note: Where possible, avoid having the temperature setting on super cooling or 2°C all of the time. This will help to alleviate strain on the compressor and refrigeration system. Press the button for 15 seconds, the key flickers, then access to the laboratory adjustable state.

The lamp replacement operation

instructions are as follows:

Replace the lights

(lamp parameter: 12V/5W)

1. Unplug the power plug.

2. Remove the top light cover

with a screwdriver, then replace the new LED light board.

1. Use the screwdriver to install the light cover back to its original place.
2. Make sure that the refrigerator is unplugged, then remove the hinge cover on the right side of the refrigerator.

Remove the screws on the upper hinge, and then remove the hinge and the fridge door.

1. Remove the screws on the center hinge.

1. Remove the screws on the bottom of the right side of the refrigerator, then remove the lower hinge and adjustable feet.

1. Remove the stopper on the bottom of the right side of the fridge door, then get the opposite door stopper from the accessory bag, install it on the bottom of the left side of the fridge door, after that do the same for the freezer door. 2-3

Remove the pin shaft from the lower hinge, and install it on the other side.

1. Remove the hinge hole cover from the right side of the freezer door, then install it on the left side. Remove the center hinge screw cover on the left side of the cabinet, then install it on the right side of the cabinet.

1. Install the lower hinge on the left side of the cabinet, then install two adjustable feet on the current position, after that install the freezer door directly.

1. Install the center hinge on the left side, then install the fridge door.

1. Remove the upper hinge hole cover from the left of the cabinet, then install it on the right side.

hole cover from left of Cabinet, then install to the right side,

Use the screwdriver to install the upper hinge on the left side of the cabinet, then install the hinge cover in its current position.
