USER MANUAL CV01 Dörr

CV-01 Universonal Directional Mono Microphone

10.2 ROHS KONFORMITÄT

THANK YOU for choosing this DÖRR quality product. Please read the instruction manual and safety hints carefully before fi rst use. Keep this instruction manual together with the device for future use. If other people use this device, make this instruction manual available. This instruction manual is part of the device and must be supplied with the device in case of sale. DÖRR is not liable for damages caused by improper use or the failure to observe the instruction manual and safety hints. 01 | SAFETY HINTS

Protect the device from rain, moisture, direct sunlight and extreme temperatures.

Do not operate or touch the device with wet hands.

Protect the device against impacts and against dropping.

Do not attempt to repair the device by yourself. When service or repair is required, contact qualified service personnel.

Only operate with the supplied original connection cables.

People with physical or cognitive disabilities should use the device with supervision.

People with cardiac pacemakers, defibrillators or any other electrical implants should maintain a minimum distance of 30 cm, as the device generates magnetic fields.

This device is not a toy. To prevent accidents and suffocation keep the device, the accessories and the packing materials away from children and pets.

Protect the device against dirt. Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfiber cloth to clean the outer parts of the device. Before cleaning make sure to take off from power device.

Store the device in a dust-free, dry and cool place.

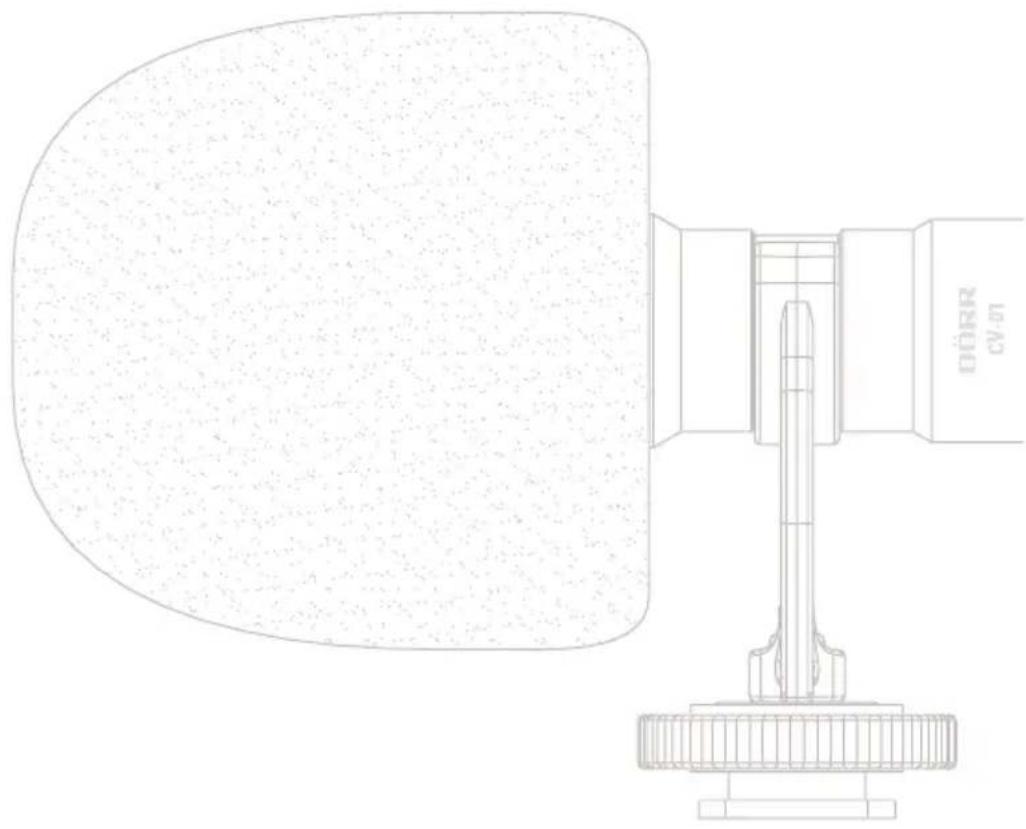

If the device is defective or without any further use, dispose of the device according to the Waste Electrical and Electronic Equipment Directive WEEE. For further information, please contact your local authorities. 02 | PRODUCT DESCRIPTION The DÖRR CV-01 Universal Directional Microphone optimizes the sound quality of your video or voice recordings. The compact and lightweight cardioid condenser microphone o ers a clear and balanced sound and e ectively reduces annoying background noises. Suitable for smartphones and tablets (iOS and Android) with headphone jack, as well as cameras and camcorders with hot shoe and external microphone jack.

Plug-in-Power supply via the connected recording device

High-quality and robust aluminum housing

Anti-shock microphone mount absorbs camera noises and other vibrations

Universal hot shoe mount with ¼ inch tripod mount

Dead Kitten windshield minimizes annoying wind and ambient noises

Including two connection cables with TRS or TRRS mini-jack plug 3.5 mm

PLEASE NOTE To ensure proper operation, always use the two supplied connection cables as described below. ATTENTION Please note that using the microphone increases the battery consumption of your smartphone or camera.

04.1 WITH CAMERA, CAMCORDER OR OTHER AUDIO/VIDEO RECORDING DEVICES

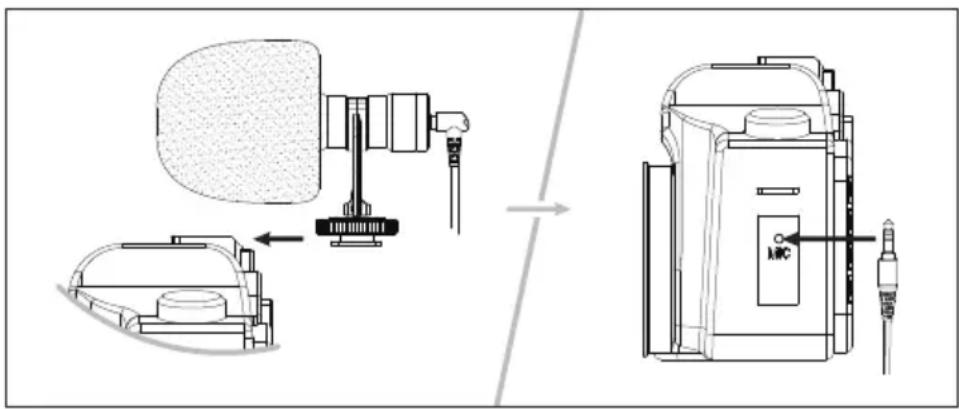

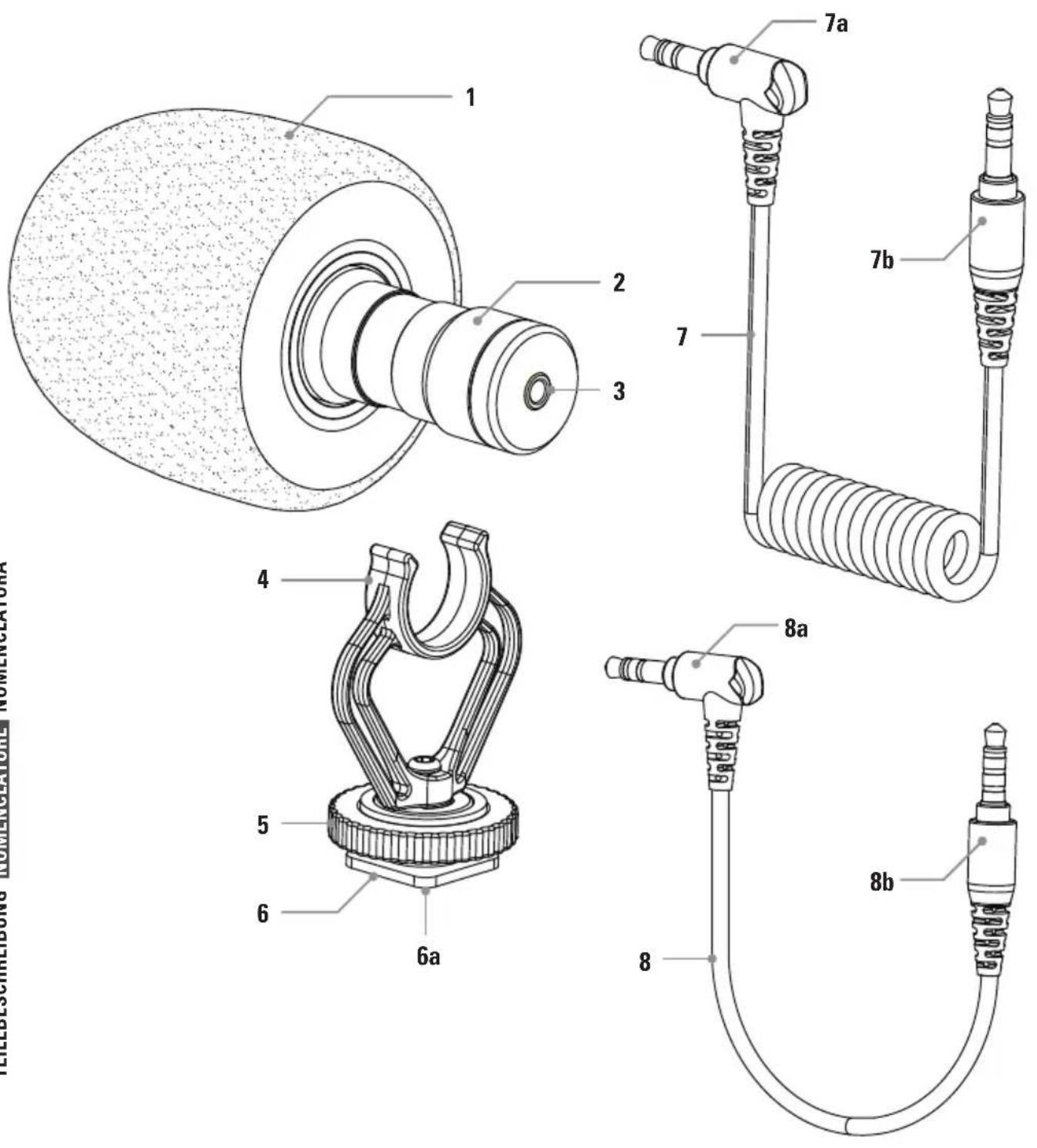

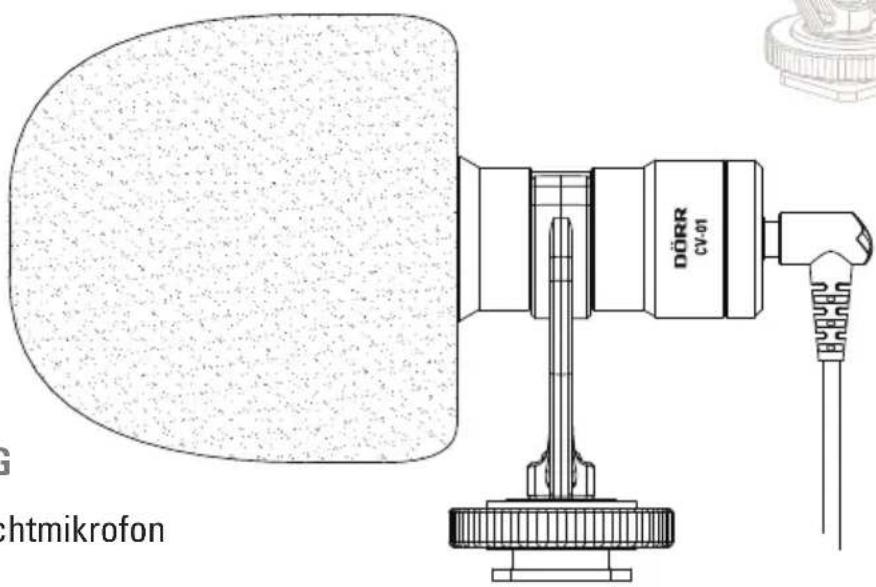

For using the DÖRR CV-01 microphone with a camera, camcorder or other audio/video recording devices, please use the supplied spiral connection cable (7) with TRS mini-jack plug. Always plug the TRS angle mini-jack plug (7a) into the audio jack (3) of the microphone. Plug the TRS mini-jack plug (7b) into the micro- phone jack of your camera or your recording device (please refer to manual of the recording device. Slide the universal hot shoe (6) into the hot shoe mount of your camera/camcorder and turn the locking screw (5) down until microphone holds tight on the camera. Connect your camera/camcorder with the microphone like described above, using the spiral connection cable (7). Start the video recording at your camera/camcor- der (please refer to manual of the recor- ding device). 7 Spiral connection cable to camera 7a) TRS angle mini-jack plug 3.5 mm (mono, three-pole) › to microphone 7b) TRS mini-jack plug 3.5 mm (mono, three-pole) › to camera 8 Straight connection cable to smartphone 8a) TRRS angle mini-jack plug 3.5 mm (mono, three-pole) › to microphone 8b) TRRS mini-jack plug 3.5 mm (mono, four-pole) › to smartphone 7a › Microphone 7b › Recording device NOTE With the ¼ inch tripod mount (6a) underneath the universal hot shoe (6) the microphone can be mounted onto a tripod or an audio boom. For this purpose a longer connection cable with 3.5 mm mini-jack plug is recommended (optionally available in specialized electronic stores).10 NOTE To avoid sound interferences while recording caused by built-in cellular mobile module, we recommend to activate the O ine-Mode at your smartphone. While Live-Streaming, the WLAN can remain active as it has no infl uence on the sound signal of the microphone. PLEASE NOTE To hear the sound when playing the video or audio recording, please unplug the 3.5mm mini-jack plug (8b) from your smartphone/tablet.

04.2 WITH SMARTPHONE OR TABLET (ANDROID AND iOS)

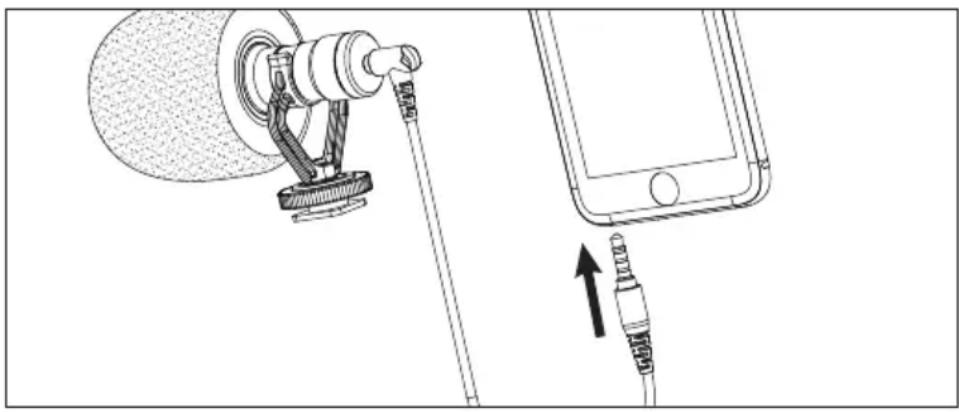

For using the DÖRR CV-01 microphone with a smartphone or a tablet (Android and iOS), please use the supplied straight connection cable (8) with TRRS mini-jack plugs. Always plug the TRRS angle mini-jack plug (8a) into the audio jack (3) of the microphone. Plug the TRRS mini-jack plug (8b) into the headphone jack of your smartphone or your tablet (please refer to manual of the recording device). Connect your smartphone/tablet with the microphone like described above, using the straight connection cable (8). Start the App for video or voice recording at your smartphone/tablet (please refer to manual of the recording device). 8a › Microphone 8b › Smartphone/tablet

05 | CLEANING AND STORAGE

Never use aggressive cleansing agents or benzine to clean the device. We recommend a soft, slightly damp microfi ber cloth to clean the outer parts of the device. Before cleaning make sure to take o from power device. Store the device in a dust-free, dry and cool place. This device is not a toy – keep it out of reach of children. Keep away from pets.11 08 | TECHNICAL SPECIFICATIONS Type (transducer) Electret condenser microphone Polar pattern Cardioid Frequency response 35 Hz – 18 kHz ± 3 dB Sensitivity -42 dB ± 1 dB, 0 dB re 1 V/Pa @ 1 kHz Signal to noise ratio (SNR) 76 dB SPL Impedance approx. 2000 Ω Power supply Plug-in-Power supply via the connected recording device Power consumption 2 V/min. 0,1 mA max. 0,7 mA Connection cables 3.5 mm TRS spiral connection cable to cameras

3.5 mm TRRS connection cable to smartphones

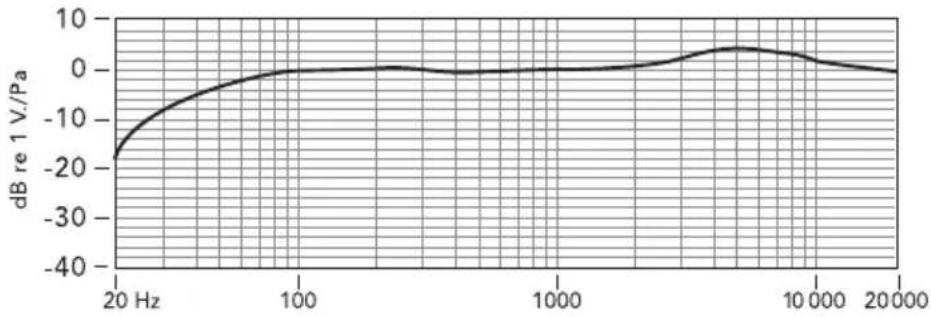

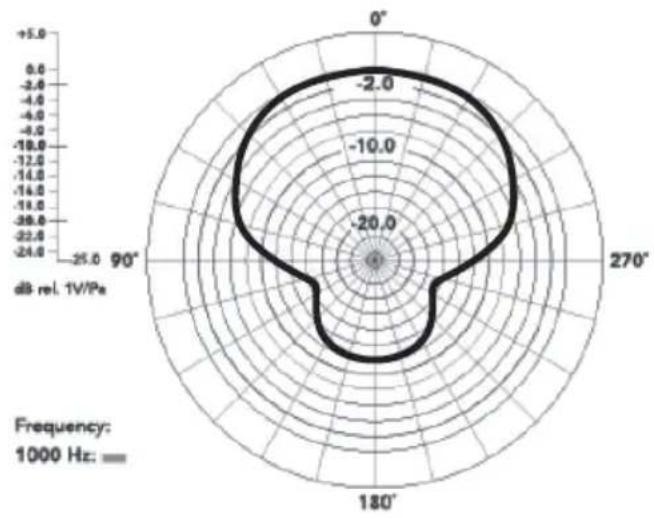

Material housing Aluminum Material shock mount Plastic Dimensions microphone Length approx. 80 mm, ø 22 mm Dimensions shock mount approx. 55 x 42 mm Weight approx. 65 g 06 | FREQUENCY RESPONSE 07 | POLAR PATTERN12

10 | DISPOSAL, CE MARKING

10.1 WEEE INFORMATION

The Waste Electrical and Electronic Equipment Directive (WEEE Directive) is the European community directive on waste electrical and electronic equipment, which became European law in February 2003. The main purpose of this directive is to prevent electronic waste. Recycling and other forms of waste recovery should be encouraged to reduce waste. The symbol (trash can) on the product and on the packing means that used electrical and electronic products should not be disposed of with general household waste. It is your responsibility to dispose of all your electronic or electrical waste at designated collection points. Disposing of this product correctly will help to save valuable resources and it is a signifi cant contribution to protect our environment as well as human health. For more information about the correct disposal of electrical and electronic equipment, recycling and collection points please contact your local authorities, waste management companies, your retailer or the manufacturer of this device.

10.2 ROHS CONFORMITY

This product is compliant with the European directive 2011/65/EU of June 08, 2011 for the restriction of use of certain hazar- dous substances in electrical and electronic equipment (RoHS) and its amendments.

The CE marking complies with the European directives.13

10.2 CONFORMITÀ A ROHS
