Brand	ANSMANN
Model	Powerline 4 Smart
Product type	Smart battery charger
Compatible battery types	NiMH and NiCd (AA/AAA)
Number of slots	4 (independent)
Charging current	500 mA per battery
Maximum charging capacity	3000 mAh per battery
Power supply	100-240 V AC, 50-60 Hz, max. 200 mA
Display	Multicolor LED (red/green) per slot
Main functions	Automatic diagnostics, repair mode, gentle initial charge, fast charge, pulsed maintenance charge
Protection	-dU monitoring, overcharge protection, reverse polarity detection, defective battery detection
Warranty	3 years
Maintenance and cleaning	Unplug before cleaning, use a dry cloth, clean contacts
General information	Worldwide use, interchangeable plug (Euro, UK, US, AU)

Frequently Asked Questions - Powerline 4 Smart ANSMANN

What types of batteries can I charge with the Powerline 4 Smart?

This charger is designed for NiMH and NiCd rechargeable batteries in AA and AAA sizes. Never use alkaline batteries, as this would pose an explosion risk.

How can I tell if a battery is defective?

If the red LED blinks continuously for a slot, the battery is considered defective (internal short circuit or non-rechargeable battery inserted). Remove it and dispose of it according to environmental regulations.

What does alternating red and green flashing mean?

This is the repair mode: the charger attempts to reactivate a deeply discharged battery. If it fails, the battery is reported defective. If successful, it proceeds to gentle initial charge.

Can I charge AA and AAA batteries at the same time?

Yes, the slots are independent. You can charge a mix of AA and AAA batteries. Each battery is treated individually.

How long does a full charge take?

Charging time varies by capacity. With a 500 mA current, a 2000 mAh AA battery charges in about 4 hours. The charger automatically switches to maintenance charge once finished.

My battery heats up during charging, is that normal?

Yes, it is normal for batteries to heat up slightly. However, if the heat is excessive, stop charging and check the battery's condition. The charger is protected against overcharging.

How to clean the charger?

Always unplug the charger before cleaning. Use a dry cloth to clean the surfaces. Keep the charger and battery contacts clean for proper operation.

Can I use this charger abroad?

Yes, the power supply is designed for worldwide use (100-240 V AC, 50-60 Hz). You can change the plug according to the country (Euro, UK, US, AU).

How to change the plug?

Gently press the locking tab (e.g., with a pen) and pull the plug backwards. Insert the new plug until it clicks audibly.

What to do if the LED stays off after connecting?

Check that the plug is correctly inserted and the wall socket is powered. If the problem persists, contact customer service. The charger should flash orange when connected.

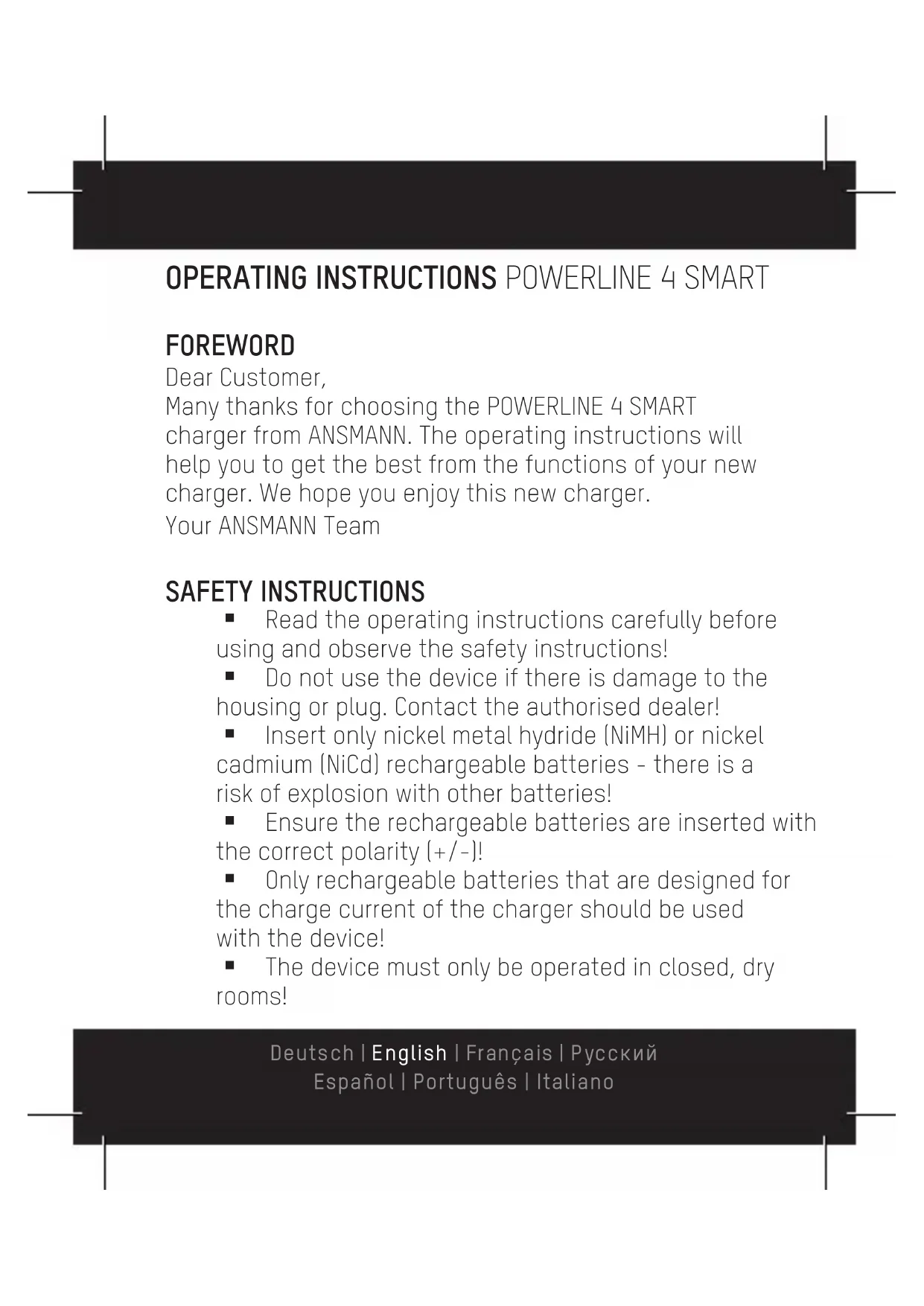

USER MANUAL Powerline 4 Smart ANSMANN

Dear Customer,
Many thanks for choosing the POWERLINE 4 SMART charger from ANSMANN. The operating instructions will help you to get the best from the functions of your new charger. We hope you enjoy this new charger.
Your ANSMANN Team

SAFETY INSTRUCTIONS

• Read the operating instructions carefully before using and observe the safety instructions!

• Do not use the device if there is damage to the housing or plug. Contact the authorised dealer!

• Insert only nickel metal hydride (NiMH) or nickel cadmium (NiCd) rechargeable batteries - there is a risk of explosion with other batteries!

• Ensure the rechargeable batteries are inserted with the correct polarity (+ / - )!

• Only rechargeable batteries that are designed for the charge current of the charger should be used with the device!

The device must only be operated in closed, dry rooms!

In order to prevent any risk of fire or electric shock, the device must be protected from moisture and rain!

• Only carry out cleaning and maintenance tasks with the mains plug disconnected!

• Do not open the device!

• Keep away from children! Children should be supervised in order to ensure that they do not play with the device!

This device is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this device. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the device!

Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device or the rechargeable batteries!

We recommend using ANSMANN rechargeable batteries!

FUNCTIONAL OVERVIEW

• Intelligent charger for 1-4 AA / AAA NiMH rechargeable batteries

Auto-diagnosis of the rechargeable batteries insert

ted, automatic start of repair mode if required toregenerate deep-discharged rechargeable batteries and gentle pre-charging with reduced current

Automatic charge start after rechargeable battery is inserted
- Microcontroller-monitored charge control
Multiple over-charging protection through voltage monitoring (-dU) and safety timer
Fully-charged detection and automatic changeover to pulse maintenance charging
- Individual slot monitoring (separate charging for each rechargeable battery)
- Reverse polarity protection
Defective battery detection
- Indication of the rechargeable battery status via a multicolour LED for each charge slot
Worldwide use (100V-240V AC / 50-60Hz)

USE

Fit the mains plug (different mains plugs may be included, e.g. Euro, UK, US or AU, depending on the design and the specific country variant) onto the two mains contacts and slide it on until it reaches the stop in the guide (see illustration). Ensure that the plug latches into place audibly when sliding on. The charger is now ready for use.

Deutsch | English | Français | Pycckn Espanol | Portugues | Italiano

To release/change the mains plug, press the locking tab carefully (e.g. with a ballpoint pen) downwards a little and slide the plug back.

Plug the charger into a suitable mains outlet. The charger's readiness for operation is indicated by all 4 LEDs flashing orange three times. You can insert up to 4 NiMH or NiCd rechargeable batteries in AA or AAA sizes (or even a mixture of the two). Ensure that the rechargeable batteries are inserted with the correct polarity, matching with the symbols in the charge slots. The charge process starts automatically. The charge status of each rechargeable battery is indicated by means of the indicator lights (see CHARGE STATUS INDICATION) above the charge slot.

The rechargeable batteries do not need to be inserted at the same time as the charge process for each rechargeable battery is controlled independently. Warming of the rechargeable batteries during the charge process is normal. After successfully charging a rechargeable battery, the charge process switches automatically to pulse maintenance charging. This function guarantees optimum performance and prevents the self-discharge of the rechargeable battery.

CHARGE STATUS INDICATION

LED flashes red and green alternately: Repair mode

The charger has detected a deep-discharged rechargeable battery. The charger will attempt to regenerate this rechargeable battery by means of charge pulses. If this does not work, the rechargeable battery will be identified as faulty. If the rechargeable battery can be regenerated, the precharging mode is then initiated.

LED flashes green: Pre-charging mode The rechargeable battery is prepared for rapid charging by allowing a gentle, reduced current.

LED illuminates green briefly after inserting a rechargeable battery and then changes to red: If the charge status of the rechargeable battery is more than 70% , pre-charging is not required. The rechargeable battery is fully charged in rapid charge mode.

LED illuminates steadily red: Rapid charge process The rechargeable battery is charged with max. current.

LED illuminates steadily green: Charge process complete The rechargeable battery is fully charged and is supplied with maintenance charge current.

LED flashes red: Rechargeable battery faulty The charge process is cancelled. The rechargeable

battery has an internal short-circuit or a non-re-chargeable battery (alkaline) has been accidentally inserted.

ENVIRONMENTAL INFORMATION

The device should not be discarded in the normal household waste under any circumstances. Dispos of the device via an authorised disposal centre or your communal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispos of all packaging materials via an environmentally friendly disposal facility. Rechargeable batteries must not be disposed of in the household waste. Return used rechargeable batteries to your dealer or hand them in to a battery collection facility.

MAINTENANCE / CARE

In order to ensure that the device continues to work without problems, please keep the contacts of the charger and the rechargeable batteries free of dirt and contaminants. Clean the device only when the mains plug is removed from the mains power and with a dry cloth.

TECHNICAL DATA

Input: 100-240V AC / 50-60Hz / max. 200mA Charge current AA/AAA: 500mA / rechargeable battery Max. chargeable capacity: 3000mAh / rechargeable battery

LIMITATION OF LIABILITY

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions.

GUARANTEE INFORMATION

The device has a three year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions or due to poor-quality rechargeable batteries.

Subject to technical changes. We assume no liability for printing errors. 06/2017
