SEM 120 A2 - Electric knife SILVERCREST - Free user manual and instructions

Product type	Electric knife
Brand	SilverCrest
Model	SEM 120 A2
Power supply	220-240 V ~, 50/60 Hz
Power	120 W
Protection class	II
Blade type	Serrated and multi-function (2 pairs)
Blade material	Stainless steel
Usage	Cutting food products (meat, bread, fruits, vegetables, cakes)
Lock function	Yes, for safety
Switch	On/off with lock
Blade ejection	Eject button
Blade cleaning	Dishwasher safe
Housing cleaning	Damp cloth
Safety	Do not immerse, use by adults, unplug before changing blades
Maximum continuous use	2 minutes
Pause between cycles	1 minute
Maximum cycles before cooling	5 cycles
Warranty	3 years
Included accessories	2 pairs of blades, protective covers, instruction manual

Frequently Asked Questions - SEM 120 A2 SILVERCREST

How to assemble the blades?

Insert the rivet of the left blade into the notch of the right blade, then align the two blades parallel to each other. An audible click indicates correct assembly.

How to eject the blades?

Unplug the appliance, then press the blade eject button located on the housing. Then pull on the blades while holding the blade guards.

Can I use the knife continuously?

No, the continuous operation time is limited to 2 minutes. Let the appliance rest for at least 1 minute between cycles. After 5 cycles, let it cool to room temperature.

How to clean the blades?

The blades can be cleaned in the dishwasher or by hand like ordinary knives. Disassemble the blades before cleaning and dry them thoroughly.

Can the housing go in the dishwasher?

No, the housing must not be immersed. Clean it only with a slightly damp cloth.

Can I cut frozen foods?

The knife is designed for firm foods like roast or bread, but not for frozen foods. Use the serrated blades for hard foods.

What to do if the knife does not work?

First check that the lock is released and the switch is in position I. If the problem persists, contact customer service at the numbers indicated in the manual.

How to store the blades?

Store the blades in their protective covers provided, in a dry place out of reach of children.

What is the warranty?

This product comes with a 3-year warranty from the date of purchase. Keep the receipt as proof.

Can I use a single blade?

No, always use a pair of blades of the same type. Never use a single blade.

USER MANUAL SEM 120 A2 SILVERCREST

Black-and-white photo of a white electric iron haver with cut slices, no visible text or symbols on the main subject.

ELEKTRISCHES MESSER / ELECTRIC CARVING KNIFE / COUTEAU ÉLECTRIQUE SEM 120 A2

DE AT CH

ELEKTRISCHES MESSER

Operation and safety notes

FR BE

COUTEAU ÉLECTRIQUE

Technical line drawing of a mechanical tool with threaded end and wavy base (no text or symbols)

Technical line drawing of a mechanical tool with wavy base and square head (no text or symbols)

D

E

Warnings and symbols used .... Page 20

Introduction Page 21

Intended use.... Page 21

Scope of delivery.... Page 22

Description of parts ...... Page 22

Technical data Page 22

Safety instructions.... Page 23

Before first use.... Page 28

Operation...... Page 28

Select the right blade type.... Page 28

Attach/detach blades Page 29

Insert/remove the blades.... Page 29

Cutting Page 29

After use.... Page 30

Cleaning and maintenance ...... Page 30

Storage Page 31

Disposal Page 31

Warranty Page 31

Warnings and symbols usedThe following warnings are used in this user manual:
	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.
	CAUTION! This symbol in combination with "Caution" marks a low-risk hazard that if not prevented could result in minor or moderate injury.
	NOTE: This symbol with the signal word "Note" provides additional useful information.
	Alternating current/voltage
	Hertz (supply frequency)
	Watts
	Use the product in dry indoor spaces only.
	Symbol for a protection class II product
	DANGER! Product contains sharp elements.
	CE mark indicates conformity with relevant EU directives applicable for this product.
	Food safeThis product has no adverse effect on taste or smell.
	Suitable for dishwashers:8 Blades

ELECTRIC CARVING KNIFE

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is intended for cutting food. Do not use it for any other purpose. The product is designed for household use; it is not suitable for commercial use. The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

After unpacking the product, verify that the delivery is complete and that all parts are in proper condition. Remove all packaging materials before use.

1 x Electric carving knife
2 x 2 blades in protective foils
1 x Instruction manual

• Description of parts

1 Blade holder
2 ▲ Blade release
3 On/off switch (I = on, O = off)
4 (Switch-on lock)
5 Power cord with power plug
6 Engaging bolt
7 Blade handle
8 Blades
9 Rivet and stud
10 Protective sleeves for blade storage

Technical data

Input 220-240 V \~, 50/60 Hz

Power consumption 120 W

Protection class II

Safety instructions

BEFORE USE, BECOME ACQUAINTED WITH ALL THE PRODUCT'S SAFETY AND OPERATING INSTRUCTIONS! IF YOU GIVE THE PRODUCT TO A THIRD PARTY, ALSO INCLUDE ALL DOCUMENTATION!

The warranty becomes void in the event of damages due to a failure to comply with the user manual! No liability is accepted for consequential damage! No liability is accepted for personal or property damage due to improper use or failure to comply with the safety instructions.

⚠ WARNING! RISK OF DEATH AND ACCIDENT FOR INFANTS AND

CHILDREN! Do not allow children

to play with the packaging materials unsupervised. The packaging materials pose a suffocation hazard. Children often underestimate the associated risks. Keep packaging materials out of the reach of children at all times.

⚠️ DANGER! Risk of electric shock!

Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

⚠ WARNING! Risk of electric shock!

Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

⚠️ CAUTION! Risk of electric shock!

Never use a damaged product. Disconnect the product from the power supply and contact your retailer if the product is damaged.

⚠ WARNING! Risk of injury! Turn off the product and disconnect it from the power supply before cleaning and when the product is not in use.

⚠ WARNING! Improper use may result in personal injury. Use the product only as described in the user manual. Never attempt to alter the product in any way.

Safety instructions for electric knives

This product shall not be used by children. Keep the product and its cord out of reach of children.
This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

■ Children shall not play with the product.

The continuous operating time may not exceed 2 minutes. Let the product rest between 2 cycles for at least 1 minute! After 5 consecutive operating cycles, the product must be allowed to cool to room temperature before continued use.

■ WARNING! Improper use can lead to injuries!

■ Handle sharp knives with care!
- Do not cut on sensitive or hard surfaces to prevent damages. Always use a suitable cutting surface (e.g. cutting board).
■ Always disconnect the product from the power supply when it is not supervised, before assembly, disassembly and cleaning.
■ Switch off the product and disconnect from supply before changing accessories or approaching parts that move in use.
- Clean all parts that come into contact with food/cooking oil with a neutral detergent. Rinse all parts thoroughly with clear water and dry them.
- Do not make any modifications to the product. Only use attachments and accessory parts recommended by the manufacturer.

Electrical safety

■ Before connecting the product to the power supply, make sure that the nominal voltage on the rating plate complies with your mains network.

- Do not use the product if the plug or power cord are damaged, the product does not work properly or is otherwise damaged.

■ Protect the power cord from damage.

- Do not let the power cord hang over sharp corners and do not bend it. Keep the power cord away from hot surfaces and make sure that no one can trip over it.

If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not insert any fingers or objects into the interior of the product and do not block its air vents.

■ Protect the product from heat. Do not place the product directly next to heat sources such as stoves or heaters.

No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz.

Before first use

■ Remove the packing materials. Make sure that all the parts are present (Fig. A).
- Clean the product and the accessories (see "Cleaning and care").

Operation

⚠️ DANGER! Always follow the safety instructions while operating the product:

■ Only use identical blades as a pair.
■ Never insert a single blade.
■ Always heed the correct orientation of the blades 8 (up/down).

■ Press the blades 8 by the blade handles 7 firmly into the blade holder 1. Both blades 8 must noticeably click into place.

• Keep your hands away from the blades 8. They are very sharp and may cause serious injury.
  ■ Always first unplug the product before changing the blades 8.

- Select the right blade type

There are 2 blade types available:

Blade type Fig. Suitable for

Serrated blade B Firm foods

(e.g. roasting joints, breads, baked food)

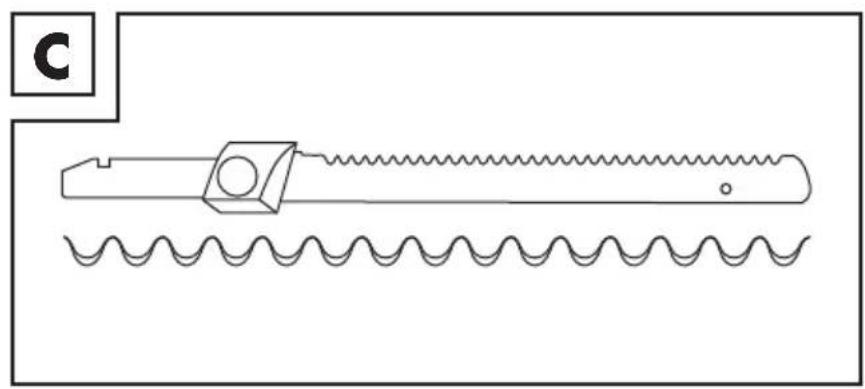

Multi-function blade C

Soft foods

(e.g. fruit, vegetables, cake, pie)

Attach/detach blades

The blades 8 attach to one another at the front via a stud 9 and rivet 9.

Attach the blades

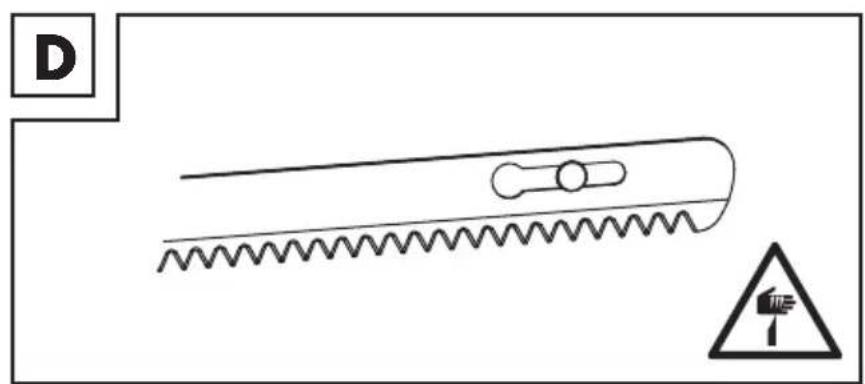

Guide the rivet of the left blade into the stud 9 of the right blade (Fig. D).

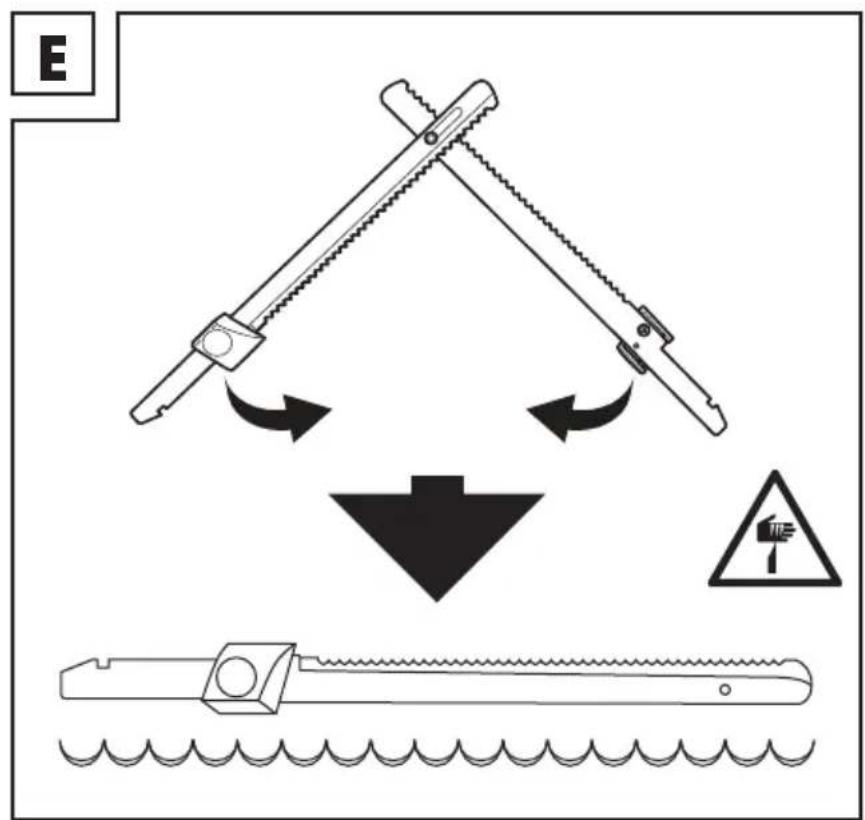

Place the blades parallel to one another (Fig. E).

Detach the blades

■ Slide the right blade forward.
■ Remove the rivet from the stud 9.

Insert/remove the blades

Insert the blades

■ Unplug the plug from the power outlet.
- Hold the attached blades by the blade handles 7.
- Insert both blades into the blade holder 1 on the product.
■ Push the blades by the blade handles 7 firmly into the blade holder 1.
Both blades must noticeably click into place. Try to pull out the blades 8 by the handles 7. If you cannot remove the blades, they are firmly inserted.

Remove the blades

■ Unplug the plug from the power outlet.
Press the blade release.
Pull the blades by the blade handles 7 from the blade holder 1.

Cutting

Plug the power plug into an appropriate socket.
- Hold the product by the housing. Your thumb is on the on/off switch 3. Your index finger is on the switch-on lock 4.
- Hold the blades on the food.

■ Press the switch-on lock 4 with your index finger.

■ Turn on the product: Slide the on/off switch 3 to the I position.

■ Turn off the product: Release the on/off switch 3 so it slides back the ○ position.

After use

■ Release the switch-on lock 4 with your index finger.

■ Unplug the plug from the power outlet.
Food residue may contain or form acids. These may damage the blades 8. Always clean the product after use (see "Cleaning and maintenance").
■ Store the product at a location out of the reach of children.

● Cleaning and maintenance

⚠️ DANGER! Risk of electric shock and injury! Always disconnect the power plug 5 from the outlet before cleaning the product.
⚠ WARNING! Risk of injury! The blades 8 are very sharp and may cause serious injury.

- Do not use any abrasive, aggressive cleaners or hard brushes to clean the product.

Part Cleaning

Housing

■ Wipe down the product with a slightly damp cloth.

- Do not let any water or other liquids enter the product interior.

Blades

8

■ Remove the blades from the blade holder 1.
- Detach the blades from each other.
- Clean the blades like regular knives.

NOTE: The blades 8 are also suitable for dishwashers.

- Let all parts dry completely after cleaning.

Storage

■ Store the blades in their protective sleeves 10.
- Store the product in the original packaging when it is not in use.
- Store the product at a dry location out of the reach of children.
Make sure the power c05c is rolled up evenly and without kinks.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
