| Product type | Multi-function cooking appliance (raclette, grill, fondue) |
| Brand | SilverCrest |
| Model | SRGF 1400 A1 |
| Mains voltage | 220-240 V ~, 50-60 Hz |
| Power consumption | 1400 W |
| Functions | Raclette, grill, fondue |
| Fondue pot capacity | 1.7 L (max. 1 L filling) |
| Included accessories | 8 mini pans, 8 spatulas, 8 forks, fondue pot, splash guard |
| Coating | Non-stick on grill plate and mini pans |
| Safety | Adjustable thermostat, power indicator, splash guard |
| Care and cleaning | Grill plate, fondue pot, forks and splash guard dishwasher-safe; mini pans and spatulas hand washing recommended |
| Warranty | 3 years (conditions as per manual) |
| Reference (IAN) | 383201 2101 |
| After-sales service France | 0800 919270, kompernass@lidl.fr |
| Net weight | Approx. 2.5 kg (estimate) |
| Dimensions (L x W x H) | Approx. 40 x 30 x 15 cm (estimate) |
Frequently Asked Questions - SRGF 1400 A1 SILVERCREST
User questions about SRGF 1400 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooking appliance in PDF format for free! Find your manual SRGF 1400 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SRGF 1400 A1 by SILVERCREST.
USER MANUAL SRGF 1400 A1 SILVERCREST
RACLETTE GRILL WITH FONDUE / FONDUE-RACLETTE GRILL-KOMBINATION / APPAREIL COMBINÉ RACLETTE, GRIL ET FONDUE SRGF 1400 A1
GB IE
RACLETTE GRILL WITH FONDUE
Operating instructions
FR BE
APPAREIL COMBINÉ RACLETTE, GRIL ET FONDUE
Mode d'emploi
CZ
KOMBINACE FONDUE A GRILU RACLETTE
Návod k obsluze
SK
KOMBINOVANY GRIL NA FONDUE A RACLETTE
Návod na obsluhu
DK
KOMBINERET FONDUE OG RACLETTEGRILL
Beteningsvejledning
DE AT CH
FONDUE-RACLETTEGRILL-KOMBINATION
Bedienungsanleitung
NL BE
FONDUE-RACLETTEGRILLCOMBINATIE
Gebruiksaanwijzing
PL
GRILL DO FONDUE I RACLETTE
Instrukcja obstugi
ES
SET DE RACLETTE, PARRILLA Y FONDUE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB/IE Operating instructions Page 1
Introduction 2
Intended use 2
Package contents and transport inspection 2
Appliance description 3
Technical details 3
Safety information 3
Before first use
Setting up 6
Operation 7
Raclette 7
Grrll 8
Fondue 9
Cleaning and care 10
Storage 11
Troubleshooting 11
Disposal 11
Kompernass Handels GmbH warranty 12
Service 13
Importer 13

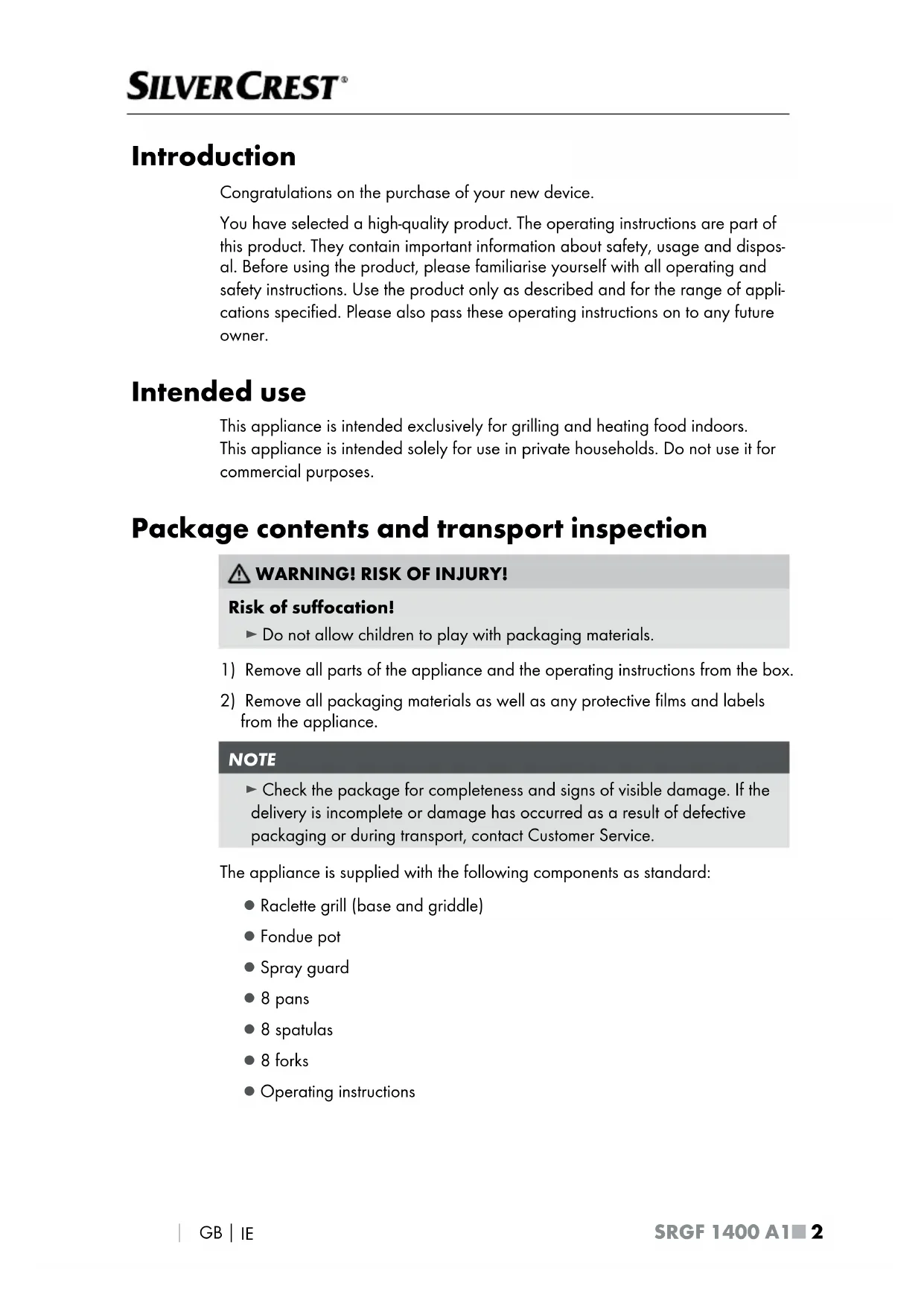

Introduction
Congratulations on the purchase of your new device.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
This appliance is intended exclusively for grilling and heating food indoors. This appliance is intended solely for use in private households. Do not use it for commercial purposes.
Package contents and transport inspection
WARNING! RISK OF INJURY!
Risk of suffocation!
Do not allow children to play with packaging materials.
1) Remove all parts of the appliance and the operating instructions from the box.
2) Remove all packaging materials as well as any protective films and labels from the appliance.
NOTE
- Check the package for completeness and signs of visible damage. If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact Customer Service.
The appliance is supplied with the following components as standard:
- Raclette grill (base and griddle)
Fondue pot
Spray guard
8 pans
8 spatulas
8 forks - Operating instructions
Appliance description
Figure A:
Spray guard
Fondue pot
Griddle
4 Operating light (red)
5 Temperature control
6 Indentations for pans
Figure B:
7 Pan
Spatula
Forks
Technical details
| Mains voltage | 220 - 240 V ~ (alternating current), 50 - 60 Hz |
| Power consumption 1400 W | |
| Capacity of the fondue pot ② 1.7 l | |
| Max. fill level of the fondue pot ② 1 l | |
| All parts of this appliance which come into contact with food are food-safe. |
Safety information
- To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.
- Do not allow the power cable to come into contact with hot appliance parts. Never use the appliance near naked flames, a hotplate or a heated oven.
- Do not expose the appliance to rain, and never use it in a humid or wet environment. Ensure that the power cable never becomes wet or moist during operation.
- Check the device for visible external damage before use. Do not operate a device that has been damaged or dropped.
The power cable must be checked for signs of damage at regular intervals. If the power cable is damaged, the appliance may no longer be used.
The appliance must be connected to a mains socket with a protective earth.
The device must not come into contact with moisture such as rain or water.
Never immerse the appliance in water or any other liquid! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation.
WARNING! RISK OF INJURY!
This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge only if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.
Children must not play with the device.
- Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.
Children younger than 8 years must be kept away from the appliance and the power cable.
After use, allow the appliance to cool down completely before cleaning it. Risk of burns!
WARNING! RISK OF INJURY!
If possible, set up the appliance close to a power socket. Ensure that the power plug is quickly reachable in case of danger, and that the cable poses no risk of tripping.
- Provide a stable location for the appliance.
Caution! Hot surface!
The appliance and the accessories become very hot during operation. During operation, touch the appliance only on the temperature control and the handles.
The fondue pot and its contents become very hot during operation. Do not touch or move the fondue pot or the appliance until it has cooled down sufficiently.
The appliance is not suitable for heating up flammable or alcoholic liquids. Risk of fire!
CAUTION! PROPERTY DAMAGE!
- Do not use an external timer switch or a separate remote control system to operate the appliance.
- Never leave the device unattended during operation.
- Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
- Do not use charcoal or similar fuels to operate the appliance!
- Do not use metal utensils such as knives, forks, etc. when removing food from the griddle or pans as they may damage the non-stick coating. If the non-stick coating is damaged, stop using the appliance.
- Operate the appliance only with the original accessories supplied.
Before first use
1) Clean all of the components as described in the section Cleaning and care to remove any packaging residue. Make sure that all parts are completely dry before operating the appliance.
2) Set up the appliance as described in the section Setting up.
3) Insert the plug into a mains power socket.
4) Turn the temperature control 5 to MAX. The operating light 4 lights up to show that the appliance is heating up.
5) After 20 minutes, turn the temperature control ⑤ to 0.
6) Disconnect the plug and allow the appliance to cool down.
NOTE
The first time the appliance heats up, a small amount of smoke and odour may result from production-related residues. This is normal and is completely harmless. Ensure sufficient ventilation; for example, by opening a window.
7) Clean the griddle 3 again as described in the section Cleaning and Care.
8) Ensure that all parts are completely dry before operating the device.
Setting up
WARNING! RISK OF FIRE!
- Never place the device underneath wall cupboards or next to curtains, cupboard walls or other flammable objects.
Always place the appliance on a heat-resistant surface.
1) Place the appliance on a clean and level heat-resistant surface. Ensure that you do not place the appliance directly next to a wall or a cupboard. Each person should have unimpaired access to the pans 7 and the forks 9.
2) Place the griddle ③ on the appliance with the grooved grilling surface facing upwards.
3) Insert the plug into a mains power socket.
4) If you want to use the fondue pot 2, proceed as described in the section Fondue.
Operation
WARNING! RISK OF INJURY!
- The appliance and the accessories become very hot during operation. During operation, touch the appliance only on the temperature control 5 and the handles.
Raclette
ATTENTION! PROPERTY DAMAGE!
- Do not use metal utensils such as knives, forks, etc. when you remove food from the griddle ③ or the pans ⑦ as they could damage the non-stick coating. If the non-stick coating is damaged, stop using the appliance.
1) Lightly oil the griddle 3 and the pans 7 on the inside.
2) Turn the temperature control 5 to MAX. The operating light 4 lights up to show that the appliance is heating up. Preheat the appliance for about 10 minutes.
NOTE
The operating light 4 remains switched on until the set temperature level is reached. It may switch on and off again and again, depending on the ambient temperature and the cooking situation. This is not a malfunction. It merely indicates that the appliance is heating up again to maintain the temperature. When the appliance is set to MAX, the operating light 4 remains on constantly.
Depending on the room temperature, heating up will start at different positions on the temperature control 5.
3) Fill the pans with the desired ingredients. Ensure that the pans are not overfilled otherwise the food could get too close to the heating elements and could even touch them!
4) Place the pans ⑦ into the device. The slight recess ⑥ in the appliance helps to keep the pans in place.
5) Turn the temperature control 5 towards 0 if you want to reduce the temperature. Turn the temperature control 5 towards MAX if you want to increase the temperature again.
6) Remove the pans 7 from the device as soon as the contents are cooked.
WARNING! RISK OF INJURY!
- Apart from the insulated handles, the pans ⑦ are very hot! Therefore, hold the pans ⑦ only by the handle!
7) Empty the contents of the pan ⑦ onto your plate using the spatula ⑧. You can now refill the pan ⑦ and push it back into the device. Do not push used, but empty pans ⑦ into the device. Any remaining food in the pans ⑦ could burn on.
NOTE
Because of the non-stick coating in the pans ⑦, it is not necessary to re-grease them before every use.
8) Once you have finished using the appliance, turn the temperature control ⑤ to 0 and remove the plug from the mains socket.
Grill
WARNING! RISK OF INJURY!
- Very moist or frozen food can splash strongly when placed on a hot griddle ③. Thaw frozen food before grilling and pat moist food dry.
Always keep a safe distance from the hot griddle 3
ATTENTION! PROPERTY DAMAGE!
- Do not use metal utensils such as knives, forks, etc. when you remove food from the griddle ③ or the pans ⑦ as they could damage the non-stick coating. If the non-stick coating is damaged, stop using the appliance.
You can grill meat, vegetables or small pieces of fruit on the griddle ③, either individually or at the same time as the raclette and fondue.
1) Lightly oil the griddle 3.
2) Preheat the appliance for about 10 minutes.
3) Place the food you want to grill onto the griddle ③ and turn it occasionally as required.
NOTE
If you are not using the fondue pot 2, you can also use the round surface in the middle of the griddle 3 for grilling.
4) Remove the cooked food from the griddle with a non-metallic object.
5) Once you are finished using the device, turn the temperature control ⑤ to 0 and remove the plug from the mains socket.
Fondue
WARNING! RISK OF INJURY!
The fondue pot 2 and its contents become very hot during operation. Do not touch or move the fondue pot 2 or the appliance until it has cooled down sufficiently.
The hot contents of the fondue pot 2 can splash and/or froth up heavily when you put in moist or frozen food. Thaw frozen food beforehand and pat moist food dry. Always dip food slowly into the hot contents of the fondue pot 2.
Always keep a safe distance from the hot grill plate 3.
ATTENTION! PROPERTY DAMAGE!
- Do not heat the fondue pot 2 using other heat sources, such as a hotplate or microwave.
- Never place the fondue pot 2 on the hot griddle 3 without contents. Always add at least 500ml of liquid into the fondue pot 2.
The fondue pot 2 is not suitable for frying or steaming food.
You can use the fondue separately or at the same time as the raclette or grill.
1) Always add at least 500ml of liquid into the fondue pot 2, but do not exceed the MAX marking.
2) Place the splash guard 1 on the rim of the fondue pot 2 with the curved side facing upwards and place it in the indentation provided in the centre of the griddle 3.
3) Set the desired temperature using the temperature control 5:
- Low to medium temperature: For delicate dips and sauces (e.g. cheese or chocolate sauce) and for heating thick sauces (e.g. tomato sauce).
Medium to high temperature: For keeping liquid contents such as oil or broth warm or hot.
Maximum temperature: For heating low-viscosity contents such as oil or broth. Select a lower temperature as soon as the contents have heated up sufficiently.
NOTE
To prevent burning or splashes, avoid using a very high temperature to heat cheese or chocolate sauce or similar thick sauces (such as tomato sauce). Stir the contents of the fondue pot 2 occasionally so that nothing sticks to the bottom of the pot.
- Use the maximum temperature setting only for heating low-viscosity contents such as oil or stock. Select a lower temperature setting to keep the contents warm or hot.
4) As soon as the contents of the fondue pot 2 have been heated up sufficiently, you can spear the prepared food pieces using the forks 9 and dip them into the fondue pot 2. You can hang the forks 9 in the recesses provided in the splash guard 1.
WARNING! RISK OF INJURY!
- Be aware that fat, sauce or similar products can drip from the forks ⑨ onto the hot griddle ③ and splatter vigorously. Therefore, always keep a safe distance from the hot griddle ③.
5) Once you are finished using the device, turn the temperature control ⑤ to 0 and remove the plug from the mains socket.
Cleaning and care
Before cleaning the appliance, disconnect the power plug from the mains power socket! There is a risk of electric shock!
Never immerse the device in water or any other liquid!
WARNING! RISK OF INJURY!
Always allow the appliance to cool down before cleaning it. Otherwise there is a risk of burns!
ATTENTION! PROPERTY DAMAGE!
- Do not use abrasive or aggressive cleaning materials. They can irreparably damage the surfaces!
NOTE
It is best to clean the appliance as soon as it has cooled down. This makes food residues easier to remove.
■ Wipe the appliance housing and the heating elements with a moist cloth. If necessary, put a little mild detergent on the cloth and wipe the product off afterwards with a cloth dampened with water only. Dry everything properly.
Clean the griddle 3, the fondue pot 2, the splash guard 1, the pans 7, the spatula 8 and the forks 9 in warm washing-up water. Dry all parts thoroughly after cleaning.
NOTE
The griddle 3, the fondue pot 2, the forks 9 and the splash guard 1 can also be cleaned in the dishwasher. To prolong the life of the non-stick coating, we recommend washing the fondue pot 2 and griddle 3 by hand as described above.
Storage
After it has cooled down, store the cleaned appliance in a dust-free and dry location.
Troubleshooting
| Fault Cause The solution | |
| The plug is not connected to the mains power. | Insert the plug into a mains power socket. |
| The mains power socket is defective. | Use a different mains power socket. |
| The appliance is defective. Co | tact Customer Services. |
If the malfunction cannot be corrected using one of the suggestions above, or if you have found some other kind of malfunction, please contact our Customer Service department.
Disposal
Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.
Dispos of the device via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
The packaging is made of environmentally friendly materials which you can dispose of at your local recycling centre.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 383201_2101 available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 383201_2101.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN383201_2101
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Table des matieres
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding 48
WAARSCHUWING! LETSELGEVAAR!
Verstikkingsgevaar!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! BRANDGEVAAR!
WAARSCHUWING! LETSELGEVAARI!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAAR!
WAARSCHUWING! LETSELGEVAARI!
WAARSCHUWING! LETSELGEVAAR!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Obsah
POZORI HMOTNÉ SKODYI
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NÉMECKO
www.kompernass.com
Spistresci
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Uvod. 90
Použivanie v sulade surcenim 90
Rozsah dodávky a kontrola po preprave 90
Opis pristroja 91
Technické udaje 91
BezpečnostnéPokyny 91
Pred prvym pouzitim 94
Instalacia 95
Obsluha 95
Raclette 95
Grl 96
Fondue 97
Cistenie a udrzba 99
Uskladnenie 99
Odstrańovanie poruch 100
Likvidácia 100
Záruka spolocnosti Kompernass Handels GmbH 101
Servis 102
Dovozca 102
Uvod
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Indices
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Indholdsfortegnelse
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci · Stan informaci · Stav informacion · Estado de las informaciones · Tilstand of information:
08/2021-Ident.-No.:SRGF1400A1-052021-3
IAN 383201_2101
